PitchInterpolator Class Reference

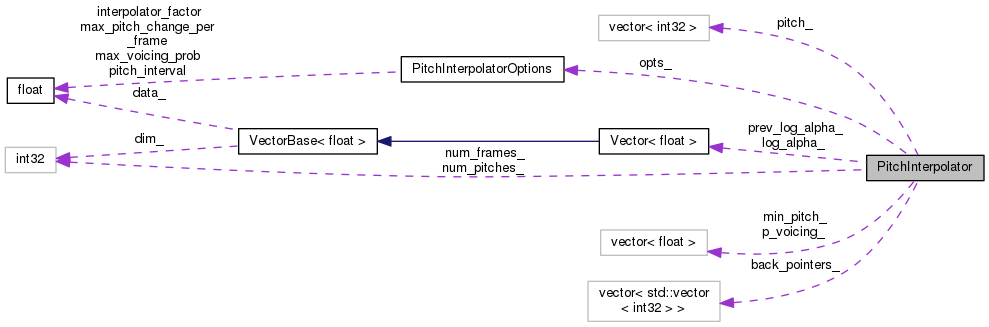

Collaboration diagram for PitchInterpolator:

Public Member Functions
	PitchInterpolator (const PitchInterpolatorOptions &opts, Matrix< BaseFloat > *mat, PitchInterpolatorStats *stats)

Private Member Functions
void	InitValues (const Matrix< BaseFloat > &mat)
void	MultiplyObsProb (int32 t)
void	ComputeTransitionProb (int32 t)
void	Forward ()
void	Backtrace (Matrix< BaseFloat > *mat, PitchInterpolatorStats *stats)

Private Attributes
const PitchInterpolatorOptions &	opts_
std::vector< BaseFloat >	min_pitch_
int32	num_frames_
int32	num_pitches_
std::vector< int32 >	pitch_
std::vector< BaseFloat >	p_voicing_
std::vector< std::vector< int32 > >	back_pointers_
Vector< BaseFloat >	log_alpha_
Vector< BaseFloat >	prev_log_alpha_

Detailed Description

Definition at line 77 of file interpolate-pitch.cc.

Constructor & Destructor Documentation

PitchInterpolator()

PitchInterpolator ( const PitchInterpolatorOptions &  opts, Matrix< BaseFloat > *  mat, PitchInterpolatorStats *  stats  )

inline

Definition at line 79 of file interpolate-pitch.cc.

References PitchInterpolatorOptions::Check().

                                                  :
      opts_(opts) {
    opts.Check();
    InitValues(*mat);
    Forward();
    Backtrace(mat, stats);
  }

Member Function Documentation

Backtrace()

void Backtrace ( Matrix< BaseFloat > *  mat, PitchInterpolatorStats *  stats  )

inlineprivate

Definition at line 212 of file interpolate-pitch.cc.

References KALDI_ASSERT, PitchInterpolatorStats::num_frames_changed, PitchInterpolatorStats::num_frames_tot, PitchInterpolatorStats::num_frames_zero, and PitchInterpolatorOptions::pitch_interval.

                                                                        {
    const BaseFloat pitch_interval = opts_.pitch_interval;
    BaseFloat *p_begin = log_alpha_.Data(), *p_end = p_begin + num_pitches_,
        *p_best = std::max_element(p_begin, p_end);

    std::vector<int32> best_pitch(num_frames_);
    int32 best_p = p_best - p_begin; // best discrete pitch p at time T-1.
    for (int32 t = num_frames_ - 1; t >= 0; t--) {
      { // Update stats:
        stats->num_frames_tot++;
        if (pitch_[t] == 0) stats->num_frames_zero++;
        else if (best_p != pitch_[t]) stats->num_frames_changed++;
      }
      BaseFloat pitch = min_pitch_[t] + pitch_interval * best_p;
      (*mat)(t, 1) = pitch;
      KALDI_ASSERT(best_p >= 0 && best_p < num_pitches_);
      if (t > 0)
        best_p = back_pointers_[t][best_p];
    }
  }

ComputeTransitionProb()

void ComputeTransitionProb ( int32  t )

inlineprivate

Definition at line 160 of file interpolate-pitch.cc.

References KALDI_ASSERT, and PitchInterpolatorOptions::pitch_interval.

                                      {
    KALDI_ASSERT(t > 0);
    BaseFloat pitch_interval = opts_.pitch_interval;
    back_pointers_[t].resize(num_pitches_);

    // Transition probability between pitch p and p' on times t-1 and t
    // is (p - p')^2, with the pitch measured in Hz.  We're doing Viterbi,
    // so always pick the max over the previous frame's t.
    KALDI_ASSERT(t > 0 && t < num_frames_);
    int32 K = floor(opts_.max_pitch_change_per_frame / pitch_interval + 0.5);
    // K is max #bins we can move; a kind of pruning, for speed.
    for (int32 p = 0; p < num_pitches_; p++) {
      int32 min_prev_p = p - K, max_prev_p = p + K;
      if (min_prev_p < 0) min_prev_p = 0;
      if (max_prev_p >= num_pitches_) max_prev_p = num_pitches_ - 1;
      BaseFloat best_logprob = -1.0e+10;
      int32 best_prev_p = -1;
      for (int32 prev_p = min_prev_p; prev_p <= max_prev_p; prev_p++) {
        BaseFloat delta_pitch = (min_pitch_[t-1] + prev_p * pitch_interval) -
            (min_pitch_[t] + p * pitch_interval);
        BaseFloat this_logprob = prev_log_alpha_(prev_p)
            - 0.5 * delta_pitch * delta_pitch;
        if (this_logprob > best_logprob) {
          best_logprob = this_logprob;
          best_prev_p = prev_p;
        }
      }
      back_pointers_[t][p] = best_prev_p;
      log_alpha_(p) = best_logprob;
    }
  }

Forward()

void Forward ( )

inlineprivate

Definition at line 192 of file interpolate-pitch.cc.

                 {
    // Viterbi in a discrete model of the pitch, in which the observation
    // probability of a pitch is p(voicing) at the observed pitch, and
    // interpolator_factor_ * 1.0 - p(voicing) at all other pitches.  the
    // transition log-probability is -0.5 times the squared difference in pitch.
    // [We measure this in Hz, not in integer values, to make it more invariant
    // to the discretization interval].

    back_pointers_.resize(num_frames_);

    log_alpha_.Resize(num_pitches_);
    prev_log_alpha_.Resize(num_pitches_);
    log_alpha_.Set(0.0);
    MultiplyObsProb(0);
    for (int32 t = 1; t < num_frames_; t++) {
      log_alpha_.Swap(&prev_log_alpha_);
      ComputeTransitionProb(t);
      MultiplyObsProb(t);
    }
  }

InitValues()

void InitValues ( const Matrix< BaseFloat > &  mat )

inlineprivate

Definition at line 89 of file interpolate-pitch.cc.

References KALDI_ASSERT, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), PitchInterpolatorOptions::pitch_interval, and kaldi::RandUniform().

                                                {
    BaseFloat pitch_interval = opts_.pitch_interval;
    num_frames_ = mat.NumRows();
    KALDI_ASSERT(mat.NumCols() == 2);
    BaseFloat min_pitch = 1.0e+10, max_pitch = 0.0;
    pitch_.resize(num_frames_);
    p_voicing_.resize(num_frames_);
    for (int32 f = 0; f < num_frames_; f++) {
      BaseFloat p_voicing = mat(f, 0), pitch = mat(f, 1);
      p_voicing *= opts_.max_voicing_prob;
      if (pitch == 0.0) {
        p_voicing = 0.0; // complete uncertainty about real pitch.
      } else {
        if (pitch < min_pitch) min_pitch = pitch;
        if (pitch > max_pitch) max_pitch = pitch;
      }
      p_voicing_[f] = p_voicing;
    }
    if (max_pitch == 0.0) { // No voiced frames at all.
      min_pitch = 100.0;
      max_pitch = 100.0;
    }
    if (max_pitch <= min_pitch + (2.0 * pitch_interval)) {
      max_pitch = min_pitch + 2.0 * pitch_interval;
    } // avoid crashes.

    // Note: the + 2 here is for edge effects.
    num_pitches_ = floor((max_pitch - min_pitch) / pitch_interval + 0.5) + 2;
    KALDI_ASSERT(num_pitches_ >= 3);
    min_pitch_.resize(num_frames_);
    for (int32 f = 0; f < num_frames_; f++) {
      min_pitch_[f] = min_pitch - pitch_interval * RandUniform(); // bottom of
      // discretization range for each frame is randomly different.

      BaseFloat pitch = mat(f, 1);
      if (pitch == 0.0) {
        pitch_[f] = 0; // This will actually be a don't-care value; we just put in
        // some value that won't crash the algorithm.
      } else {
        int32 int_pitch = floor((pitch - min_pitch_[f]) / pitch_interval + 0.5);
        KALDI_ASSERT(int_pitch >= 0 && int_pitch < num_pitches_);
        pitch_[f] = int_pitch;
      }
    }
  }

MultiplyObsProb()

void MultiplyObsProb ( int32  t )

inlineprivate

Definition at line 135 of file interpolate-pitch.cc.

References kaldi::Log(), and VectorBase< Real >::SetRandn().

                                {
    // For the forward computation:
    // Multiplies the observation probabilities into alpha at time t.
    // constant_prob is the constant part that does not depend on the pitch value:
    BaseFloat constant_prob = (1.0 - p_voicing_[t]) * opts_.interpolator_factor,
        specified_prob = p_voicing_[t] + constant_prob;
    // specified_prob adds in the extra probability mass at the observed pitch value.
    BaseFloat log_constant_prob = Log(constant_prob),
        log_ratio = Log(specified_prob / constant_prob);
    log_alpha_.Add(log_constant_prob); // add log_constant_prob to all pitches at this time.

    log_alpha_(pitch_[t]) += log_ratio; // corrects this to be like adding
    // log(specified_prob) to the observed pitch at this time.  Note: if pitch_[t] == 0,
    // this won't have any effect because log_ratio will be zero too.

    Vector<BaseFloat> temp_rand(num_pitches_);
    temp_rand.SetRandn(); // Set to Gaussian noise.  Type of noise doesn't really matter.
    log_alpha_.AddVec(0.01, temp_rand); // We add a small amount of noise to the
    // observation probabilities; this has the effect of breaking symmetries in
    // a more random way to overcome certain weirdnesses that could otherwise
    // happen due to the discretization.
  }

Member Data Documentation

back_pointers_

std::vector<std::vector<int32> > back_pointers_

private

Definition at line 242 of file interpolate-pitch.cc.

log_alpha_

Vector<BaseFloat> log_alpha_

private

Definition at line 245 of file interpolate-pitch.cc.

min_pitch_

std::vector<BaseFloat> min_pitch_

private

Definition at line 233 of file interpolate-pitch.cc.

num_frames_

int32 num_frames_

private

Definition at line 236 of file interpolate-pitch.cc.

num_pitches_

int32 num_pitches_

private

Definition at line 237 of file interpolate-pitch.cc.

opts_

const PitchInterpolatorOptions& opts_

private

Definition at line 232 of file interpolate-pitch.cc.

p_voicing_

std::vector<BaseFloat> p_voicing_

private

Definition at line 240 of file interpolate-pitch.cc.

pitch_

std::vector<int32> pitch_

private

Definition at line 238 of file interpolate-pitch.cc.

prev_log_alpha_

Vector<BaseFloat> prev_log_alpha_

private

Definition at line 246 of file interpolate-pitch.cc.

---

The documentation for this class was generated from the following file:

• featbin/interpolate-pitch.cc
