TreeRenderer Class Reference

#include <tree-renderer.h>

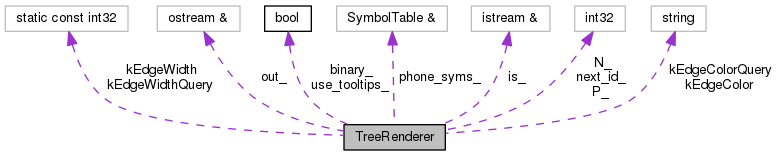

Collaboration diagram for TreeRenderer:

Public Member Functions
	TreeRenderer (std::istream &is, bool binary, std::ostream &os, fst::SymbolTable &phone_syms, bool use_tooltips)
void	Render (const EventType *query)

Static Public Attributes
static const int32	kEdgeWidth = 1
static const int32	kEdgeWidthQuery = 3
static const std::string	kEdgeColor = "black"
static const std::string	kEdgeColorQuery = "red"

Private Member Functions
void	RenderSubTree (const EventType *query, int32 id)
void	RenderConstant (const EventType *query, int32 id)
void	RenderSplit (const EventType *query, int32 id)
void	RenderTable (const EventType *query, int32 id)
std::string	MakeEdgeLabel (const EventKeyType &key, const ConstIntegerSet< EventValueType > &intset)
void	RenderNonLeaf (int32 id, const EventKeyType &key, bool in_query)

Private Attributes
fst::SymbolTable &	phone_syms_
std::istream &	is_
std::ostream &	out_
bool	binary_
int32	N_
int32	P_
bool	use_tooltips_
int32	next_id_

Detailed Description

Definition at line 31 of file tree-renderer.h.

Constructor & Destructor Documentation

TreeRenderer()

TreeRenderer ( std::istream &  is, bool  binary, std::ostream &  os, fst::SymbolTable &  phone_syms, bool  use_tooltips  )

inline

Definition at line 38 of file tree-renderer.h.

References TreeRenderer::MakeEdgeLabel(), TreeRenderer::Render(), TreeRenderer::RenderConstant(), TreeRenderer::RenderNonLeaf(), TreeRenderer::RenderSplit(), TreeRenderer::RenderSubTree(), and TreeRenderer::RenderTable().

      : phone_syms_(phone_syms), is_(is), out_(os), binary_(binary),
        N_(-1), use_tooltips_(use_tooltips), next_id_(0) {}

Member Function Documentation

MakeEdgeLabel()

std::string MakeEdgeLabel ( const EventKeyType &  key, const ConstIntegerSet< EventValueType > &  intset  )

private

Definition at line 61 of file tree-renderer.cc.

References ConstIntegerSet< I >::begin(), ConstIntegerSet< I >::end(), KALDI_ERR, kaldi::kPdfClass, and TreeRenderer::phone_syms_.

Referenced by TreeRenderer::RenderSplit(), and TreeRenderer::TreeRenderer().

                                                                           {
  std::ostringstream oss;
  ConstIntegerSet<EventValueType>::iterator child = intset.begin();
  for (; child != intset.end(); ++child) {
    if (child != intset.begin())
      oss << ", ";
    if (key != kPdfClass) {
      std::string phone =
          phone_syms_.Find(static_cast<kaldi::int64>(*child));
      if (phone.empty())
        KALDI_ERR << "No phone found for Phone ID " << *child;
      oss << phone;
    } else {
      oss << *child;
    }
  }

  return oss.str();
}

Render()

void Render

(

const EventType *

query = 0

)

Definition at line 186 of file tree-renderer.cc.

References TreeRenderer::binary_, kaldi::ExpectToken(), TreeRenderer::is_, KALDI_ERR, TreeRenderer::N_, TreeRenderer::next_id_, TreeRenderer::out_, TreeRenderer::P_, kaldi::ReadBasicType(), and TreeRenderer::RenderSubTree().

Referenced by main(), and TreeRenderer::TreeRenderer().

                                                    {
  ExpectToken(is_, binary_, "ContextDependency");
  ReadBasicType(is_, binary_, &N_);
  ReadBasicType(is_, binary_, &P_);
  ExpectToken(is_, binary_, "ToPdf");
  if (query && query->size() != N_+1)
    KALDI_ERR << "Invalid query size \"" << query->size() << "\"! Expected \""
              << N_+1 << '"';
  out_ << "digraph EventMap {\n";
  RenderSubTree(query, next_id_++);
  out_ << "}\n";
  ExpectToken(is_, binary_, "EndContextDependency");
}

RenderConstant()

void RenderConstant ( const EventType *  query, int32  id  )

private

Definition at line 158 of file tree-renderer.cc.

References TreeRenderer::binary_, kaldi::ExpectToken(), TreeRenderer::is_, TreeRenderer::kEdgeColor, TreeRenderer::kEdgeColorQuery, TreeRenderer::kEdgeWidth, TreeRenderer::kEdgeWidthQuery, TreeRenderer::out_, and kaldi::ReadBasicType().

Referenced by TreeRenderer::RenderSubTree(), and TreeRenderer::TreeRenderer().

                                                                  {
  ExpectToken(is_, binary_, "CE");
  EventAnswerType answer;
  ReadBasicType(is_, binary_, &answer);

  std::string color = (query!=NULL)? kEdgeColorQuery: kEdgeColor;
  int32 width = (query!=NULL)? kEdgeWidthQuery: kEdgeWidth;
  out_ << id << "[shape=doublecircle, label=" << answer
       << ",color=" << color << ", penwidth=" << width << "];\n";
}

RenderNonLeaf()

void RenderNonLeaf ( int32  id, const EventKeyType &  key, bool  in_query  )

private

Definition at line 31 of file tree-renderer.cc.

References KALDI_ERR, TreeRenderer::kEdgeColor, TreeRenderer::kEdgeColorQuery, TreeRenderer::kEdgeWidth, TreeRenderer::kEdgeWidthQuery, kaldi::kPdfClass, TreeRenderer::N_, TreeRenderer::out_, and TreeRenderer::P_.

Referenced by TreeRenderer::RenderSplit(), TreeRenderer::RenderTable(), and TreeRenderer::TreeRenderer().

                                                                            {
  std::string color = in_query? kEdgeColorQuery: kEdgeColor;
  int32 width = in_query? kEdgeWidthQuery: kEdgeWidth;
  std::string label;
  if (key == kPdfClass) {
    label = "\"PdfClass = ?\"";
  } else if (key == 0) {
    if (N_ == 1 && P_ == 0) // monophone tree?
      label = "\"Phone = ?\"";
    else if (N_ == 3 && P_ == 1) // triphone tree?
      label = "\"LContext = ?\"";
  } else if (key == 2 && N_ == 3 && P_ == 1) {
    label = "\"RContext = ?\"";
  } else if (key >= 0 && key <= N_-1) {
    if (P_ == key)
      label = "\"Center = ?\"";
    else {
      std::ostringstream oss;
      oss << "\"Ctx Position " << key << " = ?\"";
      label = oss.str();
    }
  } else {
    KALDI_ERR << "Invalid decision tree key: " << key;
  }

  out_ << id << "[label=" << label << ", color=" << color
       << ", penwidth=" << width << "];" << std::endl;
}

RenderSplit()

void RenderSplit ( const EventType *  query, int32  id  )

private

Definition at line 82 of file tree-renderer.cc.

References TreeRenderer::binary_, ConstIntegerSet< I >::count(), kaldi::ExpectToken(), TreeRenderer::is_, TreeRenderer::kEdgeColor, TreeRenderer::kEdgeColorQuery, TreeRenderer::kEdgeWidth, TreeRenderer::kEdgeWidthQuery, EventMap::Lookup(), TreeRenderer::MakeEdgeLabel(), TreeRenderer::next_id_, TreeRenderer::out_, ConstIntegerSet< I >::Read(), kaldi::ReadBasicType(), TreeRenderer::RenderNonLeaf(), TreeRenderer::RenderSubTree(), and TreeRenderer::use_tooltips_.

Referenced by TreeRenderer::RenderSubTree(), and TreeRenderer::TreeRenderer().

                                                               {
  ExpectToken(is_, binary_, "SE");
  EventKeyType key;
  ReadBasicType(is_, binary_, &key);
  ConstIntegerSet<EventValueType> yes_set;
  yes_set.Read(is_, binary_);
  ExpectToken(is_, binary_, "{");

  EventValueType value = -30000000; // just a value I guess is invalid
  if (query != NULL)
    EventMap::Lookup(*query, key, &value);
  const EventType *query_yes = yes_set.count(value)? query: NULL;
  const EventType *query_no = (query_yes == NULL)? query: NULL;
  std::string color_yes = (query_yes)? kEdgeColorQuery: kEdgeColor;
  std::string color_no = (query && !query_yes)? kEdgeColorQuery: kEdgeColor;
  int32 width_yes = (query_yes)? kEdgeWidthQuery: kEdgeWidth;
  int32 width_no = (query && !query_yes)? kEdgeWidthQuery: kEdgeWidth;
  RenderNonLeaf(id, key, (query != NULL)); // Draw the node itself
  std::string yes_label = MakeEdgeLabel(key, yes_set);
  out_ << "\t" << id << " -> " << next_id_++ << " ["; // YES edge
  if (use_tooltips_) {
    out_ << "tooltip=\"" << yes_label << "\", label=YES"
         << ", penwidth=" << width_yes << ", color=" << color_yes << "];\n";
  } else {
    out_ << "label=\"" << yes_label << "\", penwidth=" << width_yes
         << ", penwidth=" << width_yes << ", color=" << color_yes << "];\n";
  }
  RenderSubTree(query_yes, next_id_-1); // Render YES subtree
  out_ << "\t" << id << " -> " << next_id_++ << "[label=NO" // NO edge
       << ", color=" << color_no << ", penwidth=" << width_no << "];\n";
  RenderSubTree(query_no, next_id_-1); // Render NO subtree

  ExpectToken(is_, binary_, "}");
}

RenderSubTree()

void RenderSubTree ( const EventType *  query, int32  id  )

private

Definition at line 169 of file tree-renderer.cc.

References TreeRenderer::binary_, kaldi::CharToString(), kaldi::ExpectToken(), TreeRenderer::is_, KALDI_ERR, kaldi::Peek(), TreeRenderer::RenderConstant(), TreeRenderer::RenderSplit(), and TreeRenderer::RenderTable().

Referenced by TreeRenderer::Render(), TreeRenderer::RenderSplit(), TreeRenderer::RenderTable(), and TreeRenderer::TreeRenderer().

                                                                 {
  char c = Peek(is_, binary_);
  if (c == 'N') {
    ExpectToken(is_, binary_, "NULL"); // consume NULL entries
    return;
  } else if (c == 'C') {
    RenderConstant(query, id);
  } else if (c == 'T') {
    RenderTable(query, id);
  } else if (c == 'S') {
    RenderSplit(query, id);
  } else {
    KALDI_ERR << "EventMap::read, was not expecting character " << CharToString(c)
              << ", at file position " << is_.tellg();
  }
}

RenderTable()

void RenderTable ( const EventType *  query, int32  id  )

private

Definition at line 117 of file tree-renderer.cc.

References TreeRenderer::binary_, kaldi::ExpectToken(), TreeRenderer::is_, KALDI_ERR, TreeRenderer::kEdgeColor, TreeRenderer::kEdgeColorQuery, TreeRenderer::kEdgeWidth, TreeRenderer::kEdgeWidthQuery, kaldi::kPdfClass, EventMap::Lookup(), TreeRenderer::N_, TreeRenderer::next_id_, TreeRenderer::out_, TreeRenderer::phone_syms_, kaldi::ReadBasicType(), TreeRenderer::RenderNonLeaf(), and TreeRenderer::RenderSubTree().

Referenced by TreeRenderer::RenderSubTree(), and TreeRenderer::TreeRenderer().

                                                               {
  ExpectToken(is_, binary_, "TE");
  EventKeyType key;
  ReadBasicType(is_, binary_, &key);
  uint32 size;
  ReadBasicType(is_, binary_, &size);
  ExpectToken(is_, binary_, "(");

  EventValueType value = -3000000; // just a value I hope is invalid
  if (query != NULL)
    EventMap::Lookup(*query, key, &value);
  RenderNonLeaf(id, key, (query != NULL));
  for (size_t t = 0; t < size; t++) {
    std::string color = (t == value)? kEdgeColorQuery: kEdgeColor;
    int32 width = (t==value)? kEdgeWidthQuery: kEdgeWidth;
    std::ostringstream label;
    if (key == kPdfClass) {
      label << t;
    } else if (key >= 0 && key < N_) {
      if (t == 0) {
        ExpectToken(is_, binary_, "NULL"); // consume the invalid/NULL entry
        continue;
      }
      std::string phone = phone_syms_.Find(static_cast<kaldi::int64>(t));
      if (phone.empty())
          KALDI_ERR << "Phone ID found in a TableEventMap, but not in the "
                    << "phone symbol table! ID: " << t;
      label << phone;
    } else {
      KALDI_ERR << "TableEventMap: Invalid event key: " << key;
    }
    // draw the edge to the child subtree
    out_ << "\t" << id << " -> " << next_id_++ << " [label=" << label.str()
         << ", color=" << color << ", penwidth=" << width <<  "];\n";
    const EventType *query_child = (t == value)? query: NULL;
    RenderSubTree(query_child, next_id_-1); // render the child subtree
  }

  ExpectToken(is_, binary_, ")");
}

Member Data Documentation

binary_

bool binary_

private

Definition at line 75 of file tree-renderer.h.

Referenced by TreeRenderer::Render(), TreeRenderer::RenderConstant(), TreeRenderer::RenderSplit(), TreeRenderer::RenderSubTree(), and TreeRenderer::RenderTable().

is_

std::istream& is_

private

Definition at line 73 of file tree-renderer.h.

Referenced by TreeRenderer::Render(), TreeRenderer::RenderConstant(), TreeRenderer::RenderSplit(), TreeRenderer::RenderSubTree(), and TreeRenderer::RenderTable().

kEdgeColor

const std::string kEdgeColor = "black"

static

Definition at line 35 of file tree-renderer.h.

Referenced by TreeRenderer::RenderConstant(), TreeRenderer::RenderNonLeaf(), TreeRenderer::RenderSplit(), and TreeRenderer::RenderTable().

kEdgeColorQuery

const std::string kEdgeColorQuery = "red"

static

Definition at line 36 of file tree-renderer.h.

Referenced by TreeRenderer::RenderConstant(), TreeRenderer::RenderNonLeaf(), TreeRenderer::RenderSplit(), and TreeRenderer::RenderTable().

kEdgeWidth

const int32 kEdgeWidth = 1

static

Definition at line 33 of file tree-renderer.h.

Referenced by TreeRenderer::RenderConstant(), TreeRenderer::RenderNonLeaf(), TreeRenderer::RenderSplit(), and TreeRenderer::RenderTable().

kEdgeWidthQuery

const int32 kEdgeWidthQuery = 3

static

Definition at line 34 of file tree-renderer.h.

Referenced by TreeRenderer::RenderConstant(), TreeRenderer::RenderNonLeaf(), TreeRenderer::RenderSplit(), and TreeRenderer::RenderTable().

N_

int32 N_

private

Definition at line 76 of file tree-renderer.h.

Referenced by TreeRenderer::Render(), TreeRenderer::RenderNonLeaf(), and TreeRenderer::RenderTable().

next_id_

int32 next_id_

private

Definition at line 78 of file tree-renderer.h.

Referenced by TreeRenderer::Render(), TreeRenderer::RenderSplit(), and TreeRenderer::RenderTable().

out_

std::ostream& out_

private

Definition at line 74 of file tree-renderer.h.

Referenced by TreeRenderer::Render(), TreeRenderer::RenderConstant(), TreeRenderer::RenderNonLeaf(), TreeRenderer::RenderSplit(), and TreeRenderer::RenderTable().

P_

int32 P_

private

Definition at line 76 of file tree-renderer.h.

Referenced by TreeRenderer::Render(), and TreeRenderer::RenderNonLeaf().

phone_syms_

fst::SymbolTable& phone_syms_

private

Definition at line 72 of file tree-renderer.h.

Referenced by TreeRenderer::MakeEdgeLabel(), and TreeRenderer::RenderTable().

use_tooltips_

bool use_tooltips_

private

Definition at line 77 of file tree-renderer.h.

Referenced by TreeRenderer::RenderSplit().

---

The documentation for this class was generated from the following files:

• tree/tree-renderer.h
• tree/tree-renderer.cc
