Clusterable Class Reference

#include <clusterable-itf.h>

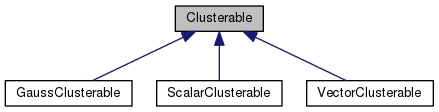

Inheritance diagram for Clusterable:

Public Member Functions
Functions that must be overridden
virtual Clusterable *	Copy () const =0
	Return a copy of this object. More...
virtual BaseFloat	Objf () const =0
	Return the objective function associated with the stats [assuming ML estimation]. More...
virtual BaseFloat	Normalizer () const =0
	Return the normalizer (typically, count) associated with the stats. More...
virtual void	SetZero ()=0
	Set stats to empty. More...
virtual void	Add (const Clusterable &other)=0
	Add other stats. More...
virtual void	Sub (const Clusterable &other)=0
	Subtract other stats. More...
virtual void	Scale (BaseFloat f)
	Scale the stats by a positive number f [not mandatory to supply this]. More...
virtual std::string	Type () const =0
	Return a string that describes the inherited type. More...
virtual void	Write (std::ostream &os, bool binary) const =0
	Write data to stream. More...
virtual Clusterable *	ReadNew (std::istream &os, bool binary) const =0
	Read data from a stream and return the corresponding object (const function; it's a class member because we need access to the vtable so generic code can read derived types). More...
virtual	~Clusterable ()
Functions that have default implementations
virtual BaseFloat	ObjfPlus (const Clusterable &other) const
	Return the objective function of the combined object this + other. More...
virtual BaseFloat	ObjfMinus (const Clusterable &other) const
	Return the objective function of the subtracted object this - other. More...
virtual BaseFloat	Distance (const Clusterable &other) const
	Return the objective function decrease from merging the two clusters, negated to be a positive number (or zero). More...

Detailed Description

Definition at line 38 of file clusterable-itf.h.

Constructor & Destructor Documentation

~Clusterable()

virtual ~Clusterable ( )

inlinevirtual

Definition at line 72 of file clusterable-itf.h.

References Clusterable::Distance(), Clusterable::ObjfMinus(), and Clusterable::ObjfPlus().

{}

Member Function Documentation

Add()

virtual void Add ( const Clusterable &  other )

pure virtual

Add other stats.

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by kaldi::AddToClustersOptimized(), Clusterable::Distance(), RefineClusterer::InitPoint(), main(), Clusterable::ObjfPlus(), kaldi::SumClusterable(), kaldi::SumStats(), kaldi::TestClusterUtils(), kaldi::TestClusterUtilsVector(), kaldi::TestContextDep(), and RefineClusterer::UpdateInfo().

Copy()

virtual Clusterable* Copy ( ) const

pure virtual

Return a copy of this object.

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by kaldi::AddToClustersOptimized(), Clusterable::Distance(), kaldi::EnsureClusterableVectorNotNull(), RefineClusterer::InitPoint(), Clusterable::ObjfMinus(), Clusterable::ObjfPlus(), kaldi::SumClusterable(), kaldi::SumStats(), kaldi::TestClusterUtils(), kaldi::TestClusterUtilsVector(), kaldi::TestContextDep(), and RefineClusterer::UpdateInfo().

Distance()

BaseFloat Distance ( const Clusterable &  other ) const

virtual

Return the objective function decrease from merging the two clusters, negated to be a positive number (or zero).

Definition at line 49 of file clusterable-classes.cc.

References Clusterable::Add(), Clusterable::Copy(), KALDI_WARN, and Clusterable::Objf().

Referenced by DecisionTreeSplitter::DoSplitInternal(), and Clusterable::~Clusterable().

                                                              {
  Clusterable *copy = this->Copy();
  copy->Add(other);
  BaseFloat ans = this->Objf() + other.Objf() - copy->Objf();
  if (ans < 0) {
    // This should not happen. Check if it is more than just rounding error.
    if (std::fabs(ans) > 0.01 * (1.0 + std::fabs(copy->Objf()))) {
      KALDI_WARN << "Negative number returned (badly defined Clusterable "
                 << "class?): ans= " << ans;
    }
    ans = 0;
  }
  delete copy;
  return ans;
}

Normalizer()

virtual BaseFloat Normalizer ( ) const

pure virtual

Return the normalizer (typically, count) associated with the stats.

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by kaldi::AddToClustersOptimized(), kaldi::SumNormalizer(), kaldi::TestClusterUtils(), kaldi::TestClusterUtilsVector(), and kaldi::TestContextDep().

Objf()

virtual BaseFloat Objf ( ) const

pure virtual

Return the objective function associated with the stats [assuming ML estimation].

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by kaldi::ClusterKMeansOnce(), kaldi::ComputeInitialSplit(), Clusterable::Distance(), Clusterable::ObjfMinus(), Clusterable::ObjfPlus(), kaldi::SumObjf(), kaldi::TestClusterUtils(), kaldi::TestClusterUtilsVector(), kaldi::TestContextDep(), kaldi::TestSum(), and RefineClusterer::UpdateInfo().

ObjfMinus()

BaseFloat ObjfMinus ( const Clusterable &  other ) const

virtual

Return the objective function of the subtracted object this - other.

Definition at line 41 of file clusterable-classes.cc.

References Clusterable::Copy(), Clusterable::Objf(), and Clusterable::Sub().

Referenced by Clusterable::~Clusterable().

                                                               {
  Clusterable *copy = this->Copy();
  copy->Sub(other);
  BaseFloat ans = copy->Objf();
  delete copy;
  return ans;
}

ObjfPlus()

BaseFloat ObjfPlus ( const Clusterable &  other ) const

virtual

Return the objective function of the combined object this + other.

Definition at line 33 of file clusterable-classes.cc.

References Clusterable::Add(), Clusterable::Copy(), and Clusterable::Objf().

Referenced by Clusterable::~Clusterable().

                                                              {
  Clusterable *copy = this->Copy();
  copy->Add(other);
  BaseFloat ans = copy->Objf();
  delete copy;
  return ans;
}

ReadNew()

virtual Clusterable* ReadNew ( std::istream &  os, bool  binary  ) const

pure virtual

Read data from a stream and return the corresponding object (const function; it's a class member because we need access to the vtable so generic code can read derived types).

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by kaldi::ReadBuildTreeStats(), and Clusterable::Scale().

Scale()

virtual void Scale ( BaseFloat  f )

inlinevirtual

Scale the stats by a positive number f [not mandatory to supply this].

Reimplemented in VectorClusterable, and GaussClusterable.

Definition at line 57 of file clusterable-itf.h.

References KALDI_ERR, Clusterable::ReadNew(), Clusterable::Type(), and Clusterable::Write().

Referenced by GaussClusterable::Normalizer().

                                  {
    KALDI_ERR << "This Clusterable object does not implement Scale().";
  }

SetZero()

virtual void SetZero ( )

pure virtual

Set stats to empty.

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by kaldi::EnsureClusterableVectorNotNull().

Sub()

virtual void Sub ( const Clusterable &  other )

pure virtual

Subtract other stats.

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by Clusterable::ObjfMinus(), and RefineClusterer::UpdateInfo().

Type()

virtual std::string Type ( ) const

pure virtual

Return a string that describes the inherited type.

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by ScalarClusterable::Add(), GaussClusterable::Add(), VectorClusterable::Add(), Clusterable::Scale(), ScalarClusterable::Sub(), GaussClusterable::Sub(), and VectorClusterable::Sub().

Write()

virtual void Write ( std::ostream &  os, bool  binary  ) const

pure virtual

Write data to stream.

Implemented in VectorClusterable, GaussClusterable, and ScalarClusterable.

Referenced by Clusterable::Scale().

---

The documentation for this class was generated from the following files:

• itf/clusterable-itf.h
• tree/clusterable-classes.cc
