FmllrDiagGmmAccs Class Reference

This does not work with multiple feature transforms. More...

#include <fmllr-diag-gmm.h>

Inheritance diagram for FmllrDiagGmmAccs:

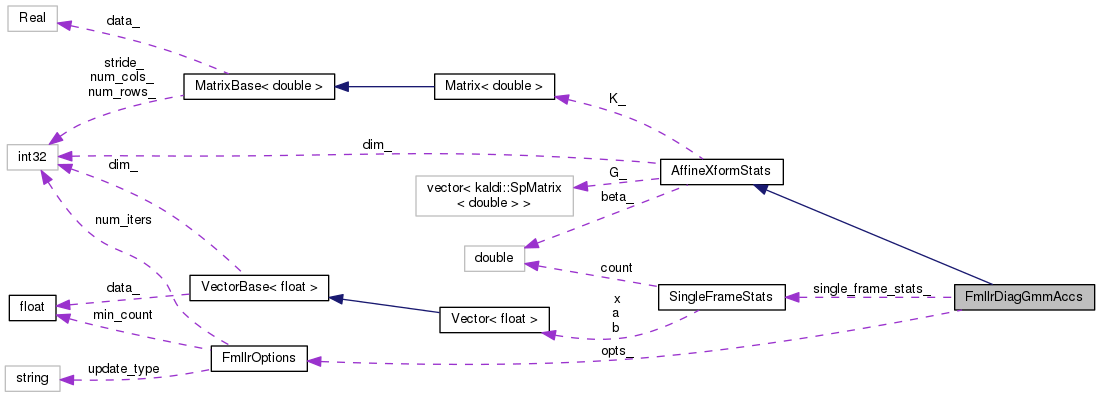

Collaboration diagram for FmllrDiagGmmAccs:

Classes
struct	SingleFrameStats

Public Member Functions
	FmllrDiagGmmAccs (const FmllrOptions &opts=FmllrOptions())
	FmllrDiagGmmAccs (const FmllrDiagGmmAccs &other)
	FmllrDiagGmmAccs (int32 dim, const FmllrOptions &opts=FmllrOptions())
	FmllrDiagGmmAccs (const DiagGmm &gmm, const AccumFullGmm &fgmm_accs)
void	Init (size_t dim)
void	Read (std::istream &in, bool binary, bool add)
BaseFloat	AccumulateForGmm (const DiagGmm &gmm, const VectorBase< BaseFloat > &data, BaseFloat weight)
	Accumulate stats for a single GMM in the model; returns log likelihood. More...
BaseFloat	AccumulateForGmmPreselect (const DiagGmm &gmm, const std::vector< int32 > &gselect, const VectorBase< BaseFloat > &data, BaseFloat weight)
	This is like AccumulateForGmm but when you have gselect (Gaussian selection) information. More...
void	AccumulateFromPosteriors (const DiagGmm &gmm, const VectorBase< BaseFloat > &data, const VectorBase< BaseFloat > &posteriors)
	Accumulate stats for a GMM, given supplied posteriors. More...
void	AccumulateFromPosteriorsPreselect (const DiagGmm &gmm, const std::vector< int32 > &gselect, const VectorBase< BaseFloat > &data, const VectorBase< BaseFloat > &posteriors)
	Accumulate stats for a GMM, given supplied posteriors. More...
void	Update (const FmllrOptions &opts, MatrixBase< BaseFloat > *fmllr_mat, BaseFloat *objf_impr, BaseFloat *count)
	Update. More...
Public Member Functions inherited from AffineXformStats
	AffineXformStats ()
void	Init (int32 dim, int32 num_gs)
int32	Dim () const
void	SetZero ()
void	CopyStats (const AffineXformStats &other)
void	Add (const AffineXformStats &other)
void	Write (std::ostream &out, bool binary) const
void	Read (std::istream &in, bool binary, bool add)
	AffineXformStats (const AffineXformStats &other)

Private Member Functions
void	CommitSingleFrameStats ()
void	InitSingleFrameStats (const VectorBase< BaseFloat > &data)
bool	DataHasChanged (const VectorBase< BaseFloat > &data) const

Private Attributes
SingleFrameStats	single_frame_stats_
FmllrOptions	opts_

Additional Inherited Members
Public Attributes inherited from AffineXformStats
double	beta_
	beta_ is the occupation count. More...
Matrix< double >	K_
	K_ is the summed outer product of [mean times inverse variance] with [extended data], scaled by the occupation counts; dimension is dim by (dim+1) More...
std::vector< SpMatrix< double > >	G_
	G_ is the outer product of extended-data, scaled by inverse variance, for each dimension. More...
int32	dim_
	dim_ is the feature dimension. More...

Detailed Description

This does not work with multiple feature transforms.

Definition at line 61 of file fmllr-diag-gmm.h.

Constructor & Destructor Documentation

FmllrDiagGmmAccs() [1/4]

FmllrDiagGmmAccs ( const FmllrOptions &  opts = FmllrOptions() )

inline

Definition at line 66 of file fmllr-diag-gmm.h.

                                                             :
      opts_(opts) { }

FmllrDiagGmmAccs() [2/4]

FmllrDiagGmmAccs ( const FmllrDiagGmmAccs &  other )

inlineexplicit

Definition at line 68 of file fmllr-diag-gmm.h.

                                                          :
      AffineXformStats(other), single_frame_stats_(other.single_frame_stats_),
      opts_(other.opts_) {}

FmllrDiagGmmAccs() [3/4]

FmllrDiagGmmAccs ( int32  dim, const FmllrOptions &  opts = FmllrOptions()  )

inlineexplicit

Definition at line 71 of file fmllr-diag-gmm.h.

                                                                                 :
      opts_(opts) { Init(dim); }

FmllrDiagGmmAccs() [4/4]

FmllrDiagGmmAccs	(	const DiagGmm &	gmm,
		const AccumFullGmm &	fgmm_accs
	)

Definition at line 67 of file fmllr-diag-gmm.cc.

References MatrixBase< Real >::AddVecVec(), AffineXformStats::beta_, MatrixBase< Real >::CopyColFromVec(), AccumFullGmm::covariance_accumulator(), rnnlm::d, DiagGmm::Dim(), AccumFullGmm::Dim(), AffineXformStats::G_, FmllrDiagGmmAccs::Init(), DiagGmm::inv_vars(), AffineXformStats::K_, KALDI_ASSERT, AccumFullGmm::mean_accumulator(), DiagGmm::means_invvars(), DiagGmm::NumGauss(), AccumFullGmm::NumGauss(), AccumFullGmm::occupancy(), VectorBase< Real >::Range(), MatrixBase< Real >::Range(), and MatrixBase< Real >::Row().

                                                                 :
    single_frame_stats_(gmm.Dim()), opts_(FmllrOptions()) {
  KALDI_ASSERT(gmm.NumGauss() == fgmm_accs.NumGauss()
               && gmm.Dim() == fgmm_accs.Dim());
  Init(gmm.Dim());
  int32 dim = gmm.Dim(), num_gauss = gmm.NumGauss();
  for (int32 g = 0; g < num_gauss; g++) {
    double this_occ = fgmm_accs.occupancy()(g);
    if (this_occ == 0) continue;
    SubVector<BaseFloat> this_mean_invvar(gmm.means_invvars(), g);
    SubVector<BaseFloat> this_invvar(gmm.inv_vars(), g);
    SubVector<double> this_mean_acc(fgmm_accs.mean_accumulator(), g);
    Vector<double> this_mean_invvar_dbl(this_mean_invvar);
    Vector<double> this_extended_mean_acc(dim+1);
    this_extended_mean_acc.Range(0, dim).CopyFromVec(this_mean_acc);
    this_extended_mean_acc(dim) = this_occ; // acc of x^+
    Matrix<double> this_cov_acc(fgmm_accs.covariance_accumulator()[g]); // copy to
    // regular Matrix.
    Matrix<double> this_extended_cov_acc(dim+1, dim+1); // make as if accumulated
    // using x^+, not x.
    this_extended_cov_acc.Range(0, dim, 0, dim).CopyFromMat(this_cov_acc);
    this_extended_cov_acc.Row(dim).CopyFromVec(this_extended_mean_acc);
    this_extended_cov_acc.CopyColFromVec(this_extended_mean_acc, dim); // since
    // there is no Col() function, use a member-function of the matrix class.
    SpMatrix<double> this_extended_cov_acc_sp(this_extended_cov_acc);
    beta_ += this_occ;
    K_.AddVecVec(1.0, this_mean_invvar_dbl, this_extended_mean_acc);
    for (int32 d = 0; d < dim; d++)
      G_[d].AddSp(this_invvar(d), this_extended_cov_acc_sp);
  }
}

Member Function Documentation

AccumulateForGmm()

BaseFloat AccumulateForGmm	(	const DiagGmm &	gmm,
		const VectorBase< BaseFloat > &	data,
		BaseFloat	weight
	)

Accumulate stats for a single GMM in the model; returns log likelihood.

Definition at line 101 of file fmllr-diag-gmm.cc.

References FmllrDiagGmmAccs::AccumulateFromPosteriors(), DiagGmm::ComponentPosteriors(), DiagGmm::NumGauss(), and VectorBase< Real >::Scale().

Referenced by kaldi::AccumulateForUtterance(), main(), kaldi::UnitTestFmllrDiagGmm(), kaldi::UnitTestFmllrDiagGmmDiagonal(), and kaldi::UnitTestFmllrDiagGmmOffset().

                                                               {
  int32 num_comp = pdf.NumGauss();
  Vector<BaseFloat> posterior(num_comp);
  BaseFloat loglike;

  loglike = pdf.ComponentPosteriors(data, &posterior);
  posterior.Scale(weight);
  AccumulateFromPosteriors(pdf, data, posterior);
  return loglike;
}

AccumulateForGmmPreselect()

BaseFloat AccumulateForGmmPreselect	(	const DiagGmm &	gmm,
		const std::vector< int32 > &	gselect,
		const VectorBase< BaseFloat > &	data,
		BaseFloat	weight
	)

This is like AccumulateForGmm but when you have gselect (Gaussian selection) information.

Definition at line 114 of file fmllr-diag-gmm.cc.

References FmllrDiagGmmAccs::AccumulateFromPosteriorsPreselect(), KALDI_ASSERT, and DiagGmm::LogLikelihoodsPreselect().

                      {
  KALDI_ASSERT(!gselect.empty() && "Empty gselect information");
  Vector<BaseFloat> loglikes;
  pdf.LogLikelihoodsPreselect(data, gselect, &loglikes);

  BaseFloat loglike = loglikes.ApplySoftMax(); // they are now posteriors.
  loglikes.Scale(weight);
  AccumulateFromPosteriorsPreselect(pdf, gselect, data, loglikes);
  return loglike;
}

AccumulateFromPosteriors()

void AccumulateFromPosteriors	(	const DiagGmm &	gmm,
		const VectorBase< BaseFloat > &	data,
		const VectorBase< BaseFloat > &	posteriors
	)

Accumulate stats for a GMM, given supplied posteriors.

Definition at line 30 of file fmllr-diag-gmm.cc.

References FmllrDiagGmmAccs::SingleFrameStats::a, FmllrDiagGmmAccs::SingleFrameStats::b, FmllrDiagGmmAccs::CommitSingleFrameStats(), FmllrDiagGmmAccs::SingleFrameStats::count, FmllrDiagGmmAccs::DataHasChanged(), FmllrDiagGmmAccs::InitSingleFrameStats(), DiagGmm::inv_vars(), kaldi::kTrans, DiagGmm::means_invvars(), FmllrDiagGmmAccs::single_frame_stats_, and VectorBase< Real >::Sum().

Referenced by FmllrDiagGmmAccs::AccumulateForGmm(), kaldi::AccumulateForUtterance(), SingleUtteranceGmmDecoder::EstimateFmllr(), kaldi::UnitTestFmllrDiagGmm(), kaldi::UnitTestFmllrDiagGmmDiagonal(), and kaldi::UnitTestFmllrDiagGmmOffset().

                                            {

  if (this->DataHasChanged(data)) {
    CommitSingleFrameStats();
    InitSingleFrameStats(data);
  }
  SingleFrameStats &stats = this->single_frame_stats_;
  stats.count += posterior.Sum();
  stats.a.AddMatVec(1.0, pdf.means_invvars(), kTrans, posterior, 1.0);
  stats.b.AddMatVec(1.0, pdf.inv_vars(), kTrans, posterior, 1.0);
}

AccumulateFromPosteriorsPreselect()

void AccumulateFromPosteriorsPreselect	(	const DiagGmm &	gmm,
		const std::vector< int32 > &	gselect,
		const VectorBase< BaseFloat > &	data,
		const VectorBase< BaseFloat > &	posteriors
	)

Accumulate stats for a GMM, given supplied posteriors.

The "posteriors" vector should be have the same size as "gselect".

Definition at line 45 of file fmllr-diag-gmm.cc.

References FmllrDiagGmmAccs::SingleFrameStats::a, FmllrDiagGmmAccs::SingleFrameStats::b, FmllrDiagGmmAccs::CommitSingleFrameStats(), FmllrDiagGmmAccs::SingleFrameStats::count, FmllrDiagGmmAccs::DataHasChanged(), VectorBase< Real >::Dim(), rnnlm::i, FmllrDiagGmmAccs::InitSingleFrameStats(), DiagGmm::inv_vars(), KALDI_ASSERT, DiagGmm::means_invvars(), MatrixBase< Real >::Row(), FmllrDiagGmmAccs::single_frame_stats_, and VectorBase< Real >::Sum().

Referenced by FmllrDiagGmmAccs::AccumulateForGmmPreselect(), and kaldi::AccumulateForUtterance().

                                            {

  if (this->DataHasChanged(data)) {
    CommitSingleFrameStats();
    InitSingleFrameStats(data);
  }
  SingleFrameStats &stats = this->single_frame_stats_;
  stats.count += posterior.Sum();

  const Matrix<BaseFloat> &means_invvars = pdf.means_invvars(),
      &inv_vars = pdf.inv_vars();
  KALDI_ASSERT(static_cast<int32>(gselect.size()) == posterior.Dim());
  for (size_t i = 0; i < gselect.size(); i++) {
    stats.a.AddVec(posterior(i), means_invvars.Row(gselect[i]));
    stats.b.AddVec(posterior(i), inv_vars.Row(gselect[i]));
  }
}

CommitSingleFrameStats()

void CommitSingleFrameStats ( )

private

Definition at line 562 of file fmllr-diag-gmm.cc.

References FmllrDiagGmmAccs::SingleFrameStats::a, SpMatrix< Real >::AddVec2(), MatrixBase< Real >::AddVecVec(), FmllrDiagGmmAccs::SingleFrameStats::b, AffineXformStats::beta_, FmllrDiagGmmAccs::SingleFrameStats::count, AffineXformStats::Dim(), AffineXformStats::G_, rnnlm::i, AffineXformStats::K_, KALDI_ASSERT, FmllrDiagGmmAccs::opts_, VectorBase< Real >::Range(), FmllrDiagGmmAccs::single_frame_stats_, FmllrOptions::update_type, and FmllrDiagGmmAccs::SingleFrameStats::x.

Referenced by FmllrDiagGmmAccs::AccumulateFromPosteriors(), FmllrDiagGmmAccs::AccumulateFromPosteriorsPreselect(), and FmllrDiagGmmAccs::Update().

                                              {
  // Commit the stats for this from (in SingleFrameStats).
  int32 dim = Dim();
  SingleFrameStats &stats = single_frame_stats_;
  if (stats.count == 0.0) return;

  Vector<double> xplus(dim+1);
  xplus.Range(0, dim).CopyFromVec(stats.x);
  xplus(dim) = 1.0;

  this->beta_ += stats.count;
  this->K_.AddVecVec(1.0, Vector<double>(stats.a), xplus);


  if (opts_.update_type == "full") {
    SpMatrix<double> scatter(dim+1);
    scatter.AddVec2(1.0, xplus);

    KALDI_ASSERT(static_cast<size_t>(dim) == this->G_.size());
    for (int32 i = 0; i < dim; i++)
      this->G_[i].AddSp(stats.b(i), scatter);
  } else {
    // We only need some elements of these stats, so just update those elements.
    for (int32 i = 0; i < dim; i++) {
      BaseFloat scale = stats.b(i), x_i = xplus(i);
      this->G_[i](i, i) += scale * x_i * x_i;
      this->G_[i](dim, i) += scale * 1.0 * x_i;
      this->G_[i](dim, dim) += scale * 1.0 * 1.0;
    }
  }

  stats.count = 0.0;
  stats.a.SetZero();
  stats.b.SetZero();
}

DataHasChanged()

bool DataHasChanged ( const VectorBase< BaseFloat > &  data ) const

private

Definition at line 542 of file fmllr-diag-gmm.cc.

References VectorBase< Real >::ApproxEqual(), AffineXformStats::Dim(), VectorBase< Real >::Dim(), KALDI_ASSERT, FmllrDiagGmmAccs::single_frame_stats_, and FmllrDiagGmmAccs::SingleFrameStats::x.

Referenced by FmllrDiagGmmAccs::AccumulateFromPosteriors(), and FmllrDiagGmmAccs::AccumulateFromPosteriorsPreselect().

                                                                             {
  KALDI_ASSERT(data.Dim() == this->Dim());
  return !data.ApproxEqual(single_frame_stats_.x, 0.0);
}

Init()

void Init ( size_t  dim )

inline

Definition at line 81 of file fmllr-diag-gmm.h.

References AffineXformStats::Init().

Referenced by SingleUtteranceGmmDecoder::EstimateFmllr(), and FmllrDiagGmmAccs::FmllrDiagGmmAccs().

                        {
    AffineXformStats::Init(dim, dim); single_frame_stats_.Init(dim);
  }

InitSingleFrameStats()

void InitSingleFrameStats ( const VectorBase< BaseFloat > &  data )

private

Definition at line 554 of file fmllr-diag-gmm.cc.

References FmllrDiagGmmAccs::SingleFrameStats::a, FmllrDiagGmmAccs::SingleFrameStats::b, FmllrDiagGmmAccs::SingleFrameStats::count, FmllrDiagGmmAccs::single_frame_stats_, and FmllrDiagGmmAccs::SingleFrameStats::x.

Referenced by FmllrDiagGmmAccs::AccumulateFromPosteriors(), and FmllrDiagGmmAccs::AccumulateFromPosteriorsPreselect().

                                                                             {
  SingleFrameStats &stats = single_frame_stats_;
  stats.x.CopyFromVec(data);
  stats.count = 0.0;
  stats.a.SetZero();
  stats.b.SetZero();
}

Read()

void Read ( std::istream &  in, bool  binary, bool  add  )

inline

Definition at line 84 of file fmllr-diag-gmm.h.

References count, and AffineXformStats::Read().

Referenced by OnlineGmmAdaptationState::Read().

                                                   {
      AffineXformStats::Read(in, binary, add);
      single_frame_stats_.Init(Dim());
  }

Update()

void Update	(	const FmllrOptions &	opts,
		MatrixBase< BaseFloat > *	fmllr_mat,
		BaseFloat *	objf_impr,
		BaseFloat *	count
	)

Update.

Definition at line 131 of file fmllr-diag-gmm.cc.

References AffineXformStats::beta_, FmllrDiagGmmAccs::CommitSingleFrameStats(), kaldi::ComputeFmllrMatrixDiagGmmDiagonal(), kaldi::ComputeFmllrMatrixDiagGmmFull(), kaldi::ComputeFmllrMatrixDiagGmmOffset(), MatrixBase< Real >::CopyFromMat(), MatrixBase< Real >::IsZero(), KALDI_ASSERT, KALDI_ERR, KALDI_WARN, FmllrOptions::min_count, FmllrOptions::num_iters, and FmllrOptions::update_type.

Referenced by main(), kaldi::UnitTestFmllrDiagGmm(), kaldi::UnitTestFmllrDiagGmmDiagonal(), and kaldi::UnitTestFmllrDiagGmmOffset().

                                                {
  KALDI_ASSERT(fmllr_mat != NULL);
  CommitSingleFrameStats();
  if (fmllr_mat->IsZero())
    KALDI_ERR << "You must initialize the fMLLR matrix to a non-singular value "
        "(so we can report objective function changes); e.g. call SetUnit()";
  if (opts.update_type == "full" && this->opts_.update_type != "full") {
    KALDI_ERR << "You are requesting a full-fMLLR update but you accumulated "
              << "stats for more limited update type.";
  }
  if (beta_ > opts.min_count) {
    Matrix<BaseFloat> tmp_old(*fmllr_mat), tmp_new(*fmllr_mat);
    BaseFloat objf_change;
    if (opts.update_type == "full")
      objf_change = ComputeFmllrMatrixDiagGmmFull(tmp_old, *this, opts.num_iters, &tmp_new);
    else if (opts.update_type == "diag")
      objf_change = ComputeFmllrMatrixDiagGmmDiagonal(tmp_old, *this, &tmp_new);
    else if (opts.update_type == "offset")
      objf_change = ComputeFmllrMatrixDiagGmmOffset(tmp_old, *this, &tmp_new);
    else if (opts.update_type == "none")
      objf_change = 0.0;
    else
      KALDI_ERR << "Unknown fMLLR update type " << opts.update_type
                << ", fmllr-update-type must be one of \"full\"|\"diag\"|\"offset\"|\"none\"";
    fmllr_mat->CopyFromMat(tmp_new);
    if (objf_impr) *objf_impr = objf_change;
    if (count) *count = beta_;
  } else {  // Not changing matrix.
    KALDI_WARN << "Not updating fMLLR since below min-count: count is " << beta_;
    if (objf_impr) *objf_impr = 0.0;
    if (count) *count = beta_;
  }
}

Member Data Documentation

opts_

FmllrOptions opts_

private

Definition at line 155 of file fmllr-diag-gmm.h.

Referenced by FmllrDiagGmmAccs::CommitSingleFrameStats().

single_frame_stats_

SingleFrameStats single_frame_stats_

private

Definition at line 151 of file fmllr-diag-gmm.h.

Referenced by FmllrDiagGmmAccs::AccumulateFromPosteriors(), FmllrDiagGmmAccs::AccumulateFromPosteriorsPreselect(), FmllrDiagGmmAccs::CommitSingleFrameStats(), FmllrDiagGmmAccs::DataHasChanged(), and FmllrDiagGmmAccs::InitSingleFrameStats().

---

The documentation for this class was generated from the following files:

• transform/fmllr-diag-gmm.h
• transform/fmllr-diag-gmm.cc
