This is as LatticeFasterDecoder, but does online composition between HCLG and the "difference language model", which is a deterministic FST that represents the difference between the language model you want and the language model you compiled HCLG with. More...

#include <lattice-biglm-faster-decoder.h>

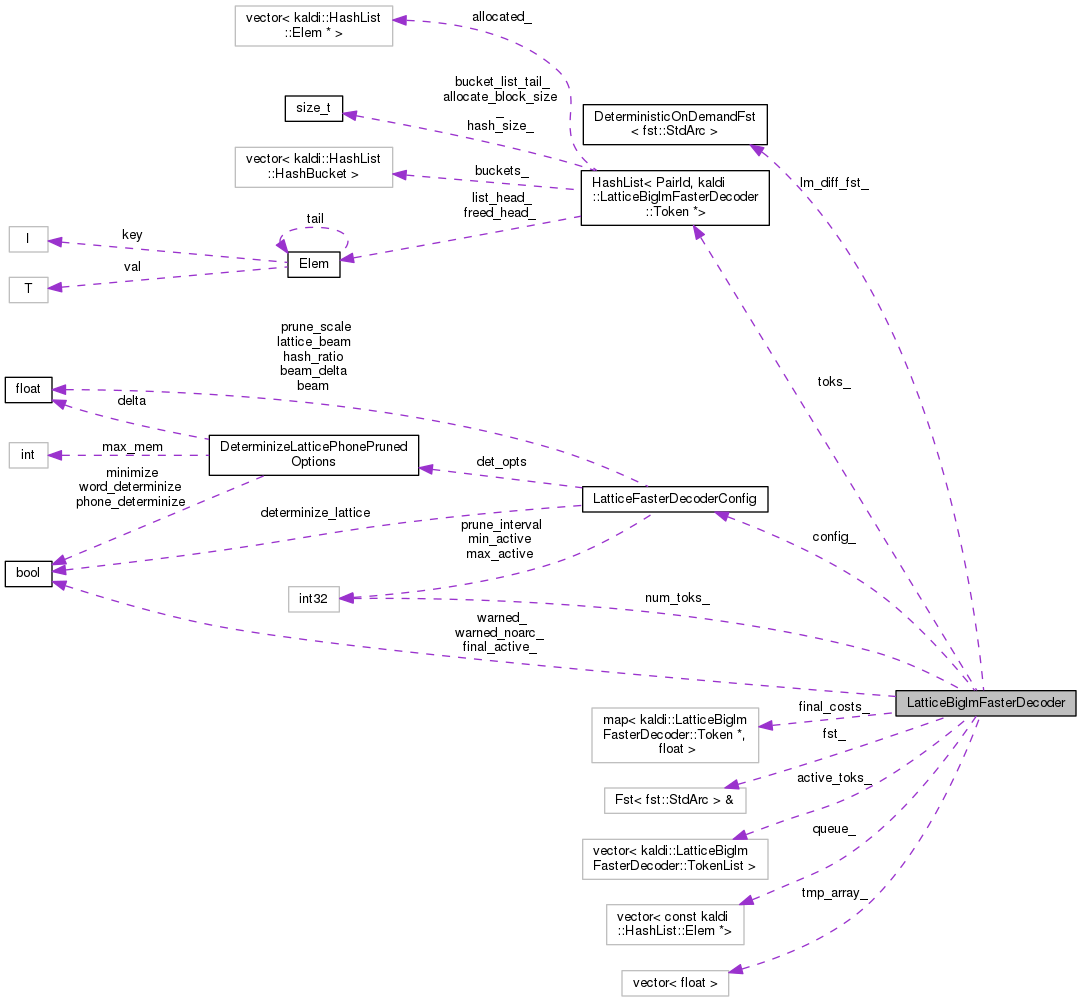

Collaboration diagram for LatticeBiglmFasterDecoder:

[legend]

Classes
struct	ForwardLink

struct	Token

struct	TokenList

Public Types
typedef fst::StdArc	Arc

typedef Arc::Label	Label

typedef Arc::StateId	StateId

typedef uint64	PairId

typedef Arc::Weight	Weight

Public Member Functions
	LatticeBiglmFasterDecoder (const fst::Fst< fst::StdArc > &fst, const LatticeBiglmFasterDecoderConfig &config, fst::DeterministicOnDemandFst< fst::StdArc > *lm_diff_fst)

void	SetOptions (const LatticeBiglmFasterDecoderConfig &config)

LatticeBiglmFasterDecoderConfig	GetOptions ()

	~LatticeBiglmFasterDecoder ()

bool	Decode (DecodableInterface *decodable)

bool	ReachedFinal () const
	says whether a final-state was active on the last frame. More...

bool	GetBestPath (fst::MutableFst< LatticeArc > *ofst, bool use_final_probs=true) const

bool	GetRawLattice (fst::MutableFst< LatticeArc > *ofst, bool use_final_probs=true) const

bool	GetLattice (fst::MutableFst< CompactLatticeArc > *ofst, bool use_final_probs=true) const

Private Types
typedef HashList< PairId, Token * >::Elem	Elem

Private Member Functions
PairId	ConstructPair (StateId fst_state, StateId lm_state)

void	PossiblyResizeHash (size_t num_toks)

Elem *	FindOrAddToken (PairId state_pair, int32 frame, BaseFloat tot_cost, bool emitting, bool *changed)

void	PruneForwardLinks (int32 frame, bool extra_costs_changed, bool links_pruned, BaseFloat delta)

void	PruneForwardLinksFinal (int32 frame)

void	PruneTokensForFrame (int32 frame)

void	PruneActiveTokens (int32 cur_frame, BaseFloat delta)

void	PruneActiveTokensFinal (int32 cur_frame)

BaseFloat	GetCutoff (Elem list_head, size_t tok_count, BaseFloat adaptive_beam, Elem *best_elem)
	Gets the weight cutoff. Also counts the active tokens. More...

StateId	PropagateLm (StateId lm_state, Arc *arc)

void	ProcessEmitting (DecodableInterface *decodable, int32 frame)

void	ProcessNonemitting (int32 frame)

void	DeleteElems (Elem *list)

void	ClearActiveTokens ()

Static Private Member Functions
static StateId	PairToState (PairId state_pair)

static StateId	PairToLmState (PairId state_pair)

Private Attributes
HashList< PairId, Token * >	toks_

std::vector< TokenList >	active_toks_

std::vector< const Elem *>	queue_

std::vector< BaseFloat >	tmp_array_

const fst::Fst< fst::StdArc > &	fst_

fst::DeterministicOnDemandFst< fst::StdArc > *	lm_diff_fst_

LatticeBiglmFasterDecoderConfig	config_

bool	warned_noarc_

int32	num_toks_

bool	warned_

bool	final_active_

std::map< Token *, BaseFloat >	final_costs_

Detailed Description

This is as LatticeFasterDecoder, but does online composition between HCLG and the "difference language model", which is a deterministic FST that represents the difference between the language model you want and the language model you compiled HCLG with.

The class DeterministicOnDemandFst follows through the epsilons in G for you (assuming G is a standard backoff language model) and makes it look like a determinized FST.

Definition at line 48 of file lattice-biglm-faster-decoder.h.

Member Typedef Documentation

◆ Arc

typedef fst::StdArc Arc

Definition at line 50 of file lattice-biglm-faster-decoder.h.

◆ Elem

typedef HashList<PairId, Token*>::Elem Elem

private

Definition at line 300 of file lattice-biglm-faster-decoder.h.

◆ Label

typedef Arc::Label Label

Definition at line 51 of file lattice-biglm-faster-decoder.h.

◆ PairId

typedef uint64 PairId

Definition at line 54 of file lattice-biglm-faster-decoder.h.

◆ StateId

typedef Arc::StateId StateId

Definition at line 52 of file lattice-biglm-faster-decoder.h.

◆ Weight

typedef Arc::Weight Weight

Definition at line 55 of file lattice-biglm-faster-decoder.h.

Constructor & Destructor Documentation

◆ LatticeBiglmFasterDecoder()

LatticeBiglmFasterDecoder	(	const fst::Fst< fst::StdArc > &	fst,
		const LatticeBiglmFasterDecoderConfig &	config,
		fst::DeterministicOnDemandFst< fst::StdArc > *	lm_diff_fst
	)

inline

Definition at line 57 of file lattice-biglm-faster-decoder.h.

References LatticeFasterDecoderConfig::Check(), KALDI_ASSERT, DeterministicOnDemandFst< Arc >::Start(), and LatticeBiglmFasterDecoder::toks_.

                                                           :
       fst_(fst), lm_diff_fst_(lm_diff_fst), config_(config),
       warned_noarc_(false), num_toks_(0) {
     config.Check();
     KALDI_ASSERT(fst.Start() != fst::kNoStateId &&
                  lm_diff_fst->Start() != fst::kNoStateId);
     toks_.SetSize(1000);  // just so on the first frame we do something reasonable.
   }

◆ ~LatticeBiglmFasterDecoder()

~LatticeBiglmFasterDecoder ( )

inline

Definition at line 70 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::ClearActiveTokens(), LatticeBiglmFasterDecoder::DeleteElems(), and LatticeBiglmFasterDecoder::toks_.

                                {
     DeleteElems(toks_.Clear());
     ClearActiveTokens();
   }

Member Function Documentation

◆ ClearActiveTokens()

void ClearActiveTokens ( )

inlineprivate

Definition at line 867 of file lattice-biglm-faster-decoder.h.

References rnnlm::i, KALDI_ASSERT, LatticeBiglmFasterDecoder::Token::next, and LatticeBiglmFasterDecoder::ForwardLink::next_tok.

Referenced by LatticeBiglmFasterDecoder::Decode(), and LatticeBiglmFasterDecoder::~LatticeBiglmFasterDecoder().

                            { // a cleanup routine, at utt end/begin
     for (size_t i = 0; i < active_toks_.size(); i++) {
       // Delete all tokens alive on this frame, and any forward
       // links they may have.
       for (Token *tok = active_toks_[i].toks; tok != NULL; ) {
         tok->DeleteForwardLinks();
         Token *next_tok = tok->next;
         delete tok;
         num_toks_--;
         tok = next_tok;
       }
     }
     active_toks_.clear();
     KALDI_ASSERT(num_toks_ == 0);
   }

◆ ConstructPair()

PairId ConstructPair	(	StateId	fst_state,
		StateId	lm_state
	)

inlineprivate

Definition at line 229 of file lattice-biglm-faster-decoder.h.

Referenced by LatticeBiglmFasterDecoder::Decode(), LatticeBiglmFasterDecoder::ProcessEmitting(), and LatticeBiglmFasterDecoder::ProcessNonemitting().

                                                                    {
     return static_cast<PairId>(fst_state) + (static_cast<PairId>(lm_state) << 32);
   }

◆ Decode()

bool Decode ( DecodableInterface * decodable )

inline

Definition at line 77 of file lattice-biglm-faster-decoder.h.

Referenced by kaldi::DecodeUtterance().

                                              {
     // clean up from last time:
     DeleteElems(toks_.Clear());
     ClearActiveTokens();
     warned_ = false;
     final_active_ = false;
     final_costs_.clear();
     num_toks_ = 0;
     PairId start_pair = ConstructPair(fst_.Start(), lm_diff_fst_->Start());
     active_toks_.resize(1);
     Token *start_tok = new Token(0.0, 0.0, NULL, NULL);
     active_toks_[0].toks = start_tok;
     toks_.Insert(start_pair, start_tok);
     num_toks_++;
     ProcessNonemitting(0);

     // We use 1-based indexing for frames in this decoder (if you view it in
     // terms of features), but note that the decodable object uses zero-based
     // numbering, which we have to correct for when we call it.
     for (int32 frame = 1; !decodable->IsLastFrame(frame-2); frame++) {
       active_toks_.resize(frame+1); // new column

       ProcessEmitting(decodable, frame);

       ProcessNonemitting(frame);

       if (decodable->IsLastFrame(frame-1))
         PruneActiveTokensFinal(frame);
       else if (frame % config_.prune_interval == 0)
         PruneActiveTokens(frame, config_.lattice_beam * 0.1); // use larger delta.
     }
     // Returns true if we have any kind of traceback available (not necessarily
     // to the end state; query ReachedFinal() for that).
     return !final_costs_.empty();
   }

◆ DeleteElems()

void DeleteElems ( Elem * list )

inlineprivate

Definition at line 859 of file lattice-biglm-faster-decoder.h.

References HashList< I, T >::Clear(), and HashList< I, T >::Delete().

Referenced by LatticeBiglmFasterDecoder::Decode(), and LatticeBiglmFasterDecoder::~LatticeBiglmFasterDecoder().

                                {
     for (Elem *e = list, *e_tail; e != NULL; e = e_tail) {
       e_tail = e->tail;
       toks_.Delete(e);
     }
     toks_.Clear();
   }

◆ FindOrAddToken()

Elem* FindOrAddToken	(	PairId	state_pair,
		int32	frame,
		BaseFloat	tot_cost,
		bool	emitting,
		bool *	changed
	)

inlineprivate

Definition at line 315 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::active_toks_, KALDI_ASSERT, LatticeBiglmFasterDecoder::num_toks_, LatticeBiglmFasterDecoder::toks_, LatticeBiglmFasterDecoder::Token::tot_cost, and HashList< I, T >::Elem::val.

Referenced by LatticeBiglmFasterDecoder::ProcessEmitting(), and LatticeBiglmFasterDecoder::ProcessNonemitting().

                                                         {
     // Returns the Token pointer.  Sets "changed" (if non-NULL) to true
     // if the token was newly created or the cost changed.
     KALDI_ASSERT(frame < active_toks_.size());
     Token *&toks = active_toks_[frame].toks;
     Elem *e_found = toks_.Insert(state_pair, NULL);
     if (e_found->val == NULL) { // no such token presently.
       const BaseFloat extra_cost = 0.0;
       // tokens on the currently final frame have zero extra_cost
       // as any of them could end up
       // on the winning path.
       Token *new_tok = new Token (tot_cost, extra_cost, NULL, toks);
       // NULL: no forward links yet
       toks = new_tok;
       num_toks_++;
       e_found->val = new_tok;
       if (changed) *changed = true;
       return e_found;
     } else {
       Token *tok = e_found->val; // There is an existing Token for this state.
       if (tok->tot_cost > tot_cost) { // replace old token
         tok->tot_cost = tot_cost;
         // we don't allocate a new token, the old stays linked in active_toks_
         // we only replace the tot_cost
         // in the current frame, there are no forward links (and no extra_cost)
         // only in ProcessNonemitting we have to delete forward links
         // in case we visit a state for the second time
         // those forward links, that lead to this replaced token before:
         // they remain and will hopefully be pruned later (PruneForwardLinks...)
         if (changed) *changed = true;
       } else {
         if (changed) *changed = false;
       }
       return e_found;
     }
   }

◆ GetBestPath()

bool GetBestPath	(	fst::MutableFst< LatticeArc > *	ofst,
		bool	use_final_probs = `true`
	)		const

inline

Definition at line 120 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::GetRawLattice().

Referenced by kaldi::DecodeUtterance().

                                                       {
     fst::VectorFst<LatticeArc> fst;
     if (!GetRawLattice(&fst, use_final_probs)) return false;
     // std::cout << "Raw lattice is:\n";
     // fst::FstPrinter<LatticeArc> fstprinter(fst, NULL, NULL, NULL, false, true);
     // fstprinter.Print(&std::cout, "standard output");
     ShortestPath(fst, ofst);
     return true;
   }

◆ GetCutoff()

BaseFloat GetCutoff	(	Elem *	list_head,
		size_t *	tok_count,
		BaseFloat *	adaptive_beam,
		Elem **	best_elem
	)

inlineprivate

Gets the weight cutoff. Also counts the active tokens.

Definition at line 616 of file lattice-biglm-faster-decoder.h.

References LatticeFasterDecoderConfig::beam, LatticeFasterDecoderConfig::beam_delta, LatticeBiglmFasterDecoder::config_, count, LatticeFasterDecoderConfig::max_active, HashList< I, T >::Elem::tail, and LatticeBiglmFasterDecoder::tmp_array_.

Referenced by LatticeBiglmFasterDecoder::ProcessEmitting().

                                                                   {
     BaseFloat best_weight = std::numeric_limits<BaseFloat>::infinity();
     // positive == high cost == bad.
     size_t count = 0;
     if (config_.max_active == std::numeric_limits<int32>::max()) {
       for (Elem *e = list_head; e != NULL; e = e->tail, count++) {
         BaseFloat w = static_cast<BaseFloat>(e->val->tot_cost);
         if (w < best_weight) {
           best_weight = w;
           if (best_elem) *best_elem = e;
         }
       }
       if (tok_count != NULL) *tok_count = count;
       if (adaptive_beam != NULL) *adaptive_beam = config_.beam;
       return best_weight + config_.beam;
     } else {
       tmp_array_.clear();
       for (Elem *e = list_head; e != NULL; e = e->tail, count++) {
         BaseFloat w = e->val->tot_cost;
         tmp_array_.push_back(w);
         if (w < best_weight) {
           best_weight = w;
           if (best_elem) *best_elem = e;
         }
       }
       if (tok_count != NULL) *tok_count = count;
       if (tmp_array_.size() <= static_cast<size_t>(config_.max_active)) {
         if (adaptive_beam) *adaptive_beam = config_.beam;
         return best_weight + config_.beam;
       } else {
         // the lowest elements (lowest costs, highest likes)
         // will be put in the left part of tmp_array.
         std::nth_element(tmp_array_.begin(),
                          tmp_array_.begin()+config_.max_active,
                          tmp_array_.end());
         // return the tighter of the two beams.
         BaseFloat ans = std::min(best_weight + config_.beam,
                                  *(tmp_array_.begin()+config_.max_active));
         if (adaptive_beam)
           *adaptive_beam = std::min(config_.beam,
                                     ans - best_weight + config_.beam_delta);
         return ans;
       }
     }
   }

◆ GetLattice()

bool GetLattice	(	fst::MutableFst< CompactLatticeArc > *	ofst,
		bool	use_final_probs = `true`
	)		const

inline

Definition at line 204 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::config_, LatticeFasterDecoderConfig::det_opts, fst::DeterminizeLatticePruned(), LatticeBiglmFasterDecoder::GetRawLattice(), KALDI_WARN, LatticeFasterDecoderConfig::lattice_beam, DeterminizeLatticePrunedOptions::max_mem, and DeterminizeLatticePhonePrunedOptions::max_mem.

                                                      {
     Lattice raw_fst;
     if (!GetRawLattice(&raw_fst, use_final_probs)) return false;
     Invert(&raw_fst); // make it so word labels are on the input.
     if (!TopSort(&raw_fst)) // topological sort makes lattice-determinization more efficient
       KALDI_WARN << "Topological sorting of state-level lattice failed "
           "(probably your lexicon has empty words or your LM has epsilon cycles; this "
           " is a bad idea.)";
     // (in phase where we get backward-costs).
     fst::ILabelCompare<LatticeArc> ilabel_comp;
     ArcSort(&raw_fst, ilabel_comp); // sort on ilabel; makes
     // lattice-determinization more efficient.

     fst::DeterminizeLatticePrunedOptions lat_opts;
     lat_opts.max_mem = config_.det_opts.max_mem;

     DeterminizeLatticePruned(raw_fst, config_.lattice_beam, ofst, lat_opts);
     raw_fst.DeleteStates(); // Free memory-- raw_fst no longer needed.
     Connect(ofst); // Remove unreachable states... there might be
     // a small number of these, in some cases.
     return true;
   }

◆ GetOptions()

LatticeBiglmFasterDecoderConfig GetOptions ( )

inline

Definition at line 69 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::config_.

Referenced by kaldi::DecodeUtterance().

69 { return config_; }

kaldi::LatticeBiglmFasterDecoder::config_

LatticeBiglmFasterDecoderConfig config_

Definition: lattice-biglm-faster-decoder.h:844

◆ GetRawLattice()

bool GetRawLattice	(	fst::MutableFst< LatticeArc > *	ofst,
		bool	use_final_probs = `true`
	)		const

inline

Definition at line 133 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::active_toks_, LatticeBiglmFasterDecoder::final_costs_, KALDI_ASSERT, KALDI_VLOG, KALDI_WARN, LatticeBiglmFasterDecoder::ForwardLink::next, LatticeBiglmFasterDecoder::num_toks_, and LatticeWeightTpl< BaseFloat >::One().

Referenced by kaldi::DecodeUtterance(), LatticeBiglmFasterDecoder::GetBestPath(), and LatticeBiglmFasterDecoder::GetLattice().

                                                         {
     typedef LatticeArc Arc;
     typedef Arc::StateId StateId;
     // A PairId will be constructed as: (StateId in fst) + (StateId in lm_diff_fst) << 32;
     typedef uint64 PairId;
     typedef Arc::Weight Weight;
     typedef Arc::Label Label;
     ofst->DeleteStates();
     // num-frames plus one (since frames are one-based, and we have
     // an extra frame for the start-state).
     int32 num_frames = active_toks_.size() - 1;
     KALDI_ASSERT(num_frames > 0);
     unordered_map<Token*, StateId> tok_map(num_toks_/2 + 3); // bucket count
     // First create all states.
     for (int32 f = 0; f <= num_frames; f++) {
       if (active_toks_[f].toks == NULL) {
         KALDI_WARN << "GetRawLattice: no tokens active on frame " << f
                    << ": not producing lattice.\n";
         return false;
       }
       for (Token *tok = active_toks_[f].toks; tok != NULL; tok = tok->next)
         tok_map[tok] = ofst->AddState();
       // The next statement sets the start state of the output FST.
       // Because we always add new states to the head of the list
       // active_toks_[f].toks, and the start state was the first one
       // added, it will be the last one added to ofst.
       if (f == 0 && ofst->NumStates() > 0)
         ofst->SetStart(ofst->NumStates()-1);
     }
     KALDI_VLOG(3) << "init:" << num_toks_/2 + 3 << " buckets:"
                   << tok_map.bucket_count() << " load:" << tok_map.load_factor()
                   << " max:" << tok_map.max_load_factor();
     // Now create all arcs.
     StateId cur_state = 0; // we rely on the fact that we numbered these
     // consecutively (AddState() returns the numbers in order..)
     for (int32 f = 0; f <= num_frames; f++) {
       for (Token *tok = active_toks_[f].toks; tok != NULL; tok = tok->next,
                cur_state++) {
         for (ForwardLink *l = tok->links;
              l != NULL;
              l = l->next) {
           unordered_map<Token*, StateId>::const_iterator iter =
               tok_map.find(l->next_tok);
           StateId nextstate = iter->second;
           KALDI_ASSERT(iter != tok_map.end());
           Arc arc(l->ilabel, l->olabel,
                   Weight(l->graph_cost, l->acoustic_cost),
                   nextstate);
           ofst->AddArc(cur_state, arc);
         }
         if (f == num_frames) {
           if (use_final_probs && !final_costs_.empty()) {
             std::map<Token*, BaseFloat>::const_iterator iter =
                 final_costs_.find(tok);
             if (iter != final_costs_.end())
               ofst->SetFinal(cur_state, LatticeWeight(iter->second, 0));
           } else {
             ofst->SetFinal(cur_state, LatticeWeight::One());
           }
         }
       }
     }
     KALDI_ASSERT(cur_state == ofst->NumStates());
     return (cur_state != 0);
   }

◆ PairToLmState()

static StateId PairToLmState ( PairId state_pair )

inlinestaticprivate

Definition at line 236 of file lattice-biglm-faster-decoder.h.

Referenced by LatticeBiglmFasterDecoder::ProcessEmitting(), LatticeBiglmFasterDecoder::ProcessNonemitting(), and LatticeBiglmFasterDecoder::PruneForwardLinksFinal().

                                                          {
     return static_cast<StateId>(static_cast<uint32>(state_pair >> 32));
   }

◆ PairToState()

static StateId PairToState ( PairId state_pair )

inlinestaticprivate

Definition at line 233 of file lattice-biglm-faster-decoder.h.

Referenced by LatticeBiglmFasterDecoder::ProcessEmitting(), LatticeBiglmFasterDecoder::ProcessNonemitting(), and LatticeBiglmFasterDecoder::PruneForwardLinksFinal().

                                                        {
     return static_cast<StateId>(static_cast<uint32>(state_pair));
   }

◆ PossiblyResizeHash()

void PossiblyResizeHash ( size_t num_toks )

inlineprivate

Definition at line 302 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::config_, LatticeFasterDecoderConfig::hash_ratio, and LatticeBiglmFasterDecoder::toks_.

Referenced by LatticeBiglmFasterDecoder::ProcessEmitting().

                                            {
     size_t new_sz = static_cast<size_t>(static_cast<BaseFloat>(num_toks)
                                         * config_.hash_ratio);
     if (new_sz > toks_.Size()) {
       toks_.SetSize(new_sz);
     }
   }

◆ ProcessEmitting()

void ProcessEmitting	(	DecodableInterface *	decodable,
		int32	frame
	)

inlineprivate

Definition at line 687 of file lattice-biglm-faster-decoder.h.

Referenced by LatticeBiglmFasterDecoder::Decode().

                                                                    {
     // Processes emitting arcs for one frame.  Propagates from prev_toks_ to cur_toks_.
     Elem *last_toks = toks_.Clear(); // swapping prev_toks_ / cur_toks_
     Elem *best_elem = NULL;
     BaseFloat adaptive_beam;
     size_t tok_cnt;
     BaseFloat cur_cutoff = GetCutoff(last_toks, &tok_cnt, &adaptive_beam, &best_elem);
     PossiblyResizeHash(tok_cnt);  // This makes sure the hash is always big enough.

     BaseFloat next_cutoff = std::numeric_limits<BaseFloat>::infinity();
     // pruning "online" before having seen all tokens

     // First process the best token to get a hopefully
     // reasonably tight bound on the next cutoff.
     if (best_elem) {
       PairId state_pair = best_elem->key;
       StateId state = PairToState(state_pair), // state in "fst"
           lm_state = PairToLmState(state_pair);
       Token *tok = best_elem->val;
       for (fst::ArcIterator<fst::Fst<Arc> > aiter(fst_, state);
            !aiter.Done();
            aiter.Next()) {
         Arc arc = aiter.Value();
         if (arc.ilabel != 0) {  // propagate..
           PropagateLm(lm_state, &arc); // may affect "arc.weight".
           // We don't need the return value (the new LM state).
           arc.weight = Times(arc.weight,
                              Weight(-decodable->LogLikelihood(frame-1, arc.ilabel)));
           BaseFloat new_weight = arc.weight.Value() + tok->tot_cost;
           if (new_weight + adaptive_beam < next_cutoff)
             next_cutoff = new_weight + adaptive_beam;
         }
       }
     }

     // the tokens are now owned here, in last_toks, and the hash is empty.
     // 'owned' is a complex thing here; the point is we need to call DeleteElem
     // on each elem 'e' to let toks_ know we're done with them.
     for (Elem *e = last_toks, *e_tail; e != NULL; e = e_tail) {
       // loop this way because we delete "e" as we go.
       PairId state_pair = e->key;
       StateId state = PairToState(state_pair),
           lm_state = PairToLmState(state_pair);
       Token *tok = e->val;
       if (tok->tot_cost <=  cur_cutoff) {
         for (fst::ArcIterator<fst::Fst<Arc> > aiter(fst_, state);
              !aiter.Done();
              aiter.Next()) {
           const Arc &arc_ref = aiter.Value();
           if (arc_ref.ilabel != 0) {  // propagate..
             Arc arc(arc_ref);
             StateId next_lm_state = PropagateLm(lm_state, &arc);
             BaseFloat ac_cost = -decodable->LogLikelihood(frame-1, arc.ilabel),
                 graph_cost = arc.weight.Value(),
                 cur_cost = tok->tot_cost,
                 tot_cost = cur_cost + ac_cost + graph_cost;
             if (tot_cost >= next_cutoff) continue;
             else if (tot_cost + config_.beam < next_cutoff)
               next_cutoff = tot_cost + config_.beam; // prune by best current token
             PairId next_pair = ConstructPair(arc.nextstate, next_lm_state);
             Elem *e_next = FindOrAddToken(next_pair, frame, tot_cost, true, NULL);
             // true: emitting, NULL: no change indicator needed

             // Add ForwardLink from tok to next_tok (put on head of list tok->links)
             tok->links = new ForwardLink(e_next->val, arc.ilabel, arc.olabel,
                                          graph_cost, ac_cost, tok->links);
           }
         } // for all arcs
       }
       e_tail = e->tail;
       toks_.Delete(e); // delete Elem
     }
   }

◆ ProcessNonemitting()

void ProcessNonemitting ( int32 frame )

inlineprivate

Definition at line 761 of file lattice-biglm-faster-decoder.h.

Referenced by LatticeBiglmFasterDecoder::Decode().

                                        {
     // note: "frame" is the same as emitting states just processed.

     // Processes nonemitting arcs for one frame.  Propagates within toks_.
     // Note-- this queue structure is is not very optimal as
     // it may cause us to process states unnecessarily (e.g. more than once),
     // but in the baseline code, turning this vector into a set to fix this
     // problem did not improve overall speed.

     KALDI_ASSERT(queue_.empty());
     BaseFloat best_cost = std::numeric_limits<BaseFloat>::infinity();
     for (const Elem *e = toks_.GetList(); e != NULL;  e = e->tail) {
       queue_.push_back(e);
       // for pruning with current best token
       best_cost = std::min(best_cost, static_cast<BaseFloat>(e->val->tot_cost));
     }
     if (queue_.empty()) {
       if (!warned_) {
         KALDI_ERR << "Error in ProcessEmitting: no surviving tokens: frame is "
                   << frame;
         warned_ = true;
       }
     }
     BaseFloat cutoff = best_cost + config_.beam;

     while (!queue_.empty()) {
       const Elem *e = queue_.back();
       queue_.pop_back();

       PairId state_pair = e->key;
       Token *tok = e->val;  // would segfault if state not in
                             // toks_ but this can't happen.
       BaseFloat cur_cost = tok->tot_cost;
       if (cur_cost >= cutoff) // Don't bother processing successors.
         continue;
       StateId state = PairToState(state_pair),
           lm_state = PairToLmState(state_pair);
       // If "tok" has any existing forward links, delete them,
       // because we're about to regenerate them.  This is a kind
       // of non-optimality (remember, this is the simple decoder),
       // but since most states are emitting it's not a huge issue.
       tok->DeleteForwardLinks(); // necessary when re-visiting
       tok->links = NULL;
       for (fst::ArcIterator<fst::Fst<Arc> > aiter(fst_, state);
           !aiter.Done();
           aiter.Next()) {
         const Arc &arc_ref = aiter.Value();
         if (arc_ref.ilabel == 0) {  // propagate nonemitting only...
           Arc arc(arc_ref);
           StateId next_lm_state = PropagateLm(lm_state, &arc);
           BaseFloat graph_cost = arc.weight.Value(),
               tot_cost = cur_cost + graph_cost;
           if (tot_cost < cutoff) {
             bool changed;
             PairId next_pair = ConstructPair(arc.nextstate, next_lm_state);
             Elem *e_new = FindOrAddToken(next_pair, frame, tot_cost,
                                          false, &changed); // false: non-emit

             tok->links = new ForwardLink(e_new->val, 0, arc.olabel,
                                          graph_cost, 0, tok->links);

             // "changed" tells us whether the new token has a different
             // cost from before, or is new [if so, add into queue].
             if (changed) queue_.push_back(e_new);
           }
         }
       } // for all arcs
     } // while queue not empty
   }

◆ PropagateLm()

StateId PropagateLm	(	StateId	lm_state,
		Arc *	arc
	)

inlineprivate

Definition at line 663 of file lattice-biglm-faster-decoder.h.

References DeterministicOnDemandFst< Arc >::GetArc(), KALDI_WARN, LatticeBiglmFasterDecoder::lm_diff_fst_, fst::Times(), and LatticeBiglmFasterDecoder::warned_noarc_.

Referenced by LatticeBiglmFasterDecoder::ProcessEmitting(), and LatticeBiglmFasterDecoder::ProcessNonemitting().

                                        { // returns new LM state.
     if (arc->olabel == 0) {
       return lm_state; // no change in LM state if no word crossed.
     } else { // Propagate in the LM-diff FST.
       Arc lm_arc;
       bool ans = lm_diff_fst_->GetArc(lm_state, arc->olabel, &lm_arc);
       if (!ans) { // this case is unexpected for statistical LMs.
         if (!warned_noarc_) {
           warned_noarc_ = true;
           KALDI_WARN << "No arc available in LM (unlikely to be correct "
               "if a statistical language model); will not warn again";
         }
         arc->weight = Weight::Zero();
         return lm_state; // doesn't really matter what we return here; will
         // be pruned.
       } else {
         arc->weight = Times(arc->weight, lm_arc.weight);
         arc->olabel = lm_arc.olabel; // probably will be the same.
         return lm_arc.nextstate; // return the new LM state.
       }
     }
   }

◆ PruneActiveTokens()

void PruneActiveTokens	(	int32	cur_frame,
		BaseFloat	delta
	)

inlineprivate

Definition at line 566 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::active_toks_, KALDI_VLOG, LatticeBiglmFasterDecoder::num_toks_, LatticeBiglmFasterDecoder::PruneForwardLinks(), and LatticeBiglmFasterDecoder::PruneTokensForFrame().

Referenced by LatticeBiglmFasterDecoder::Decode().

                                                            {
     int32 num_toks_begin = num_toks_;
     for (int32 frame = cur_frame-1; frame >= 0; frame--) {
       // Reason why we need to prune forward links in this situation:
       // (1) we have never pruned them (new TokenList)
       // (2) we have not yet pruned the forward links to the next frame,
       // after any of those tokens have changed their extra_cost.
       if (active_toks_[frame].must_prune_forward_links) {
         bool extra_costs_changed = false, links_pruned = false;
         PruneForwardLinks(frame, &extra_costs_changed, &links_pruned, delta);
         if (extra_costs_changed && frame > 0) // any token has changed extra_cost
           active_toks_[frame-1].must_prune_forward_links = true;
         if (links_pruned) // any link was pruned
           active_toks_[frame].must_prune_tokens = true;
         active_toks_[frame].must_prune_forward_links = false; // job done
       }
       if (frame+1 < cur_frame &&      // except for last frame (no forward links)
          active_toks_[frame+1].must_prune_tokens) {
         PruneTokensForFrame(frame+1);
         active_toks_[frame+1].must_prune_tokens = false;
       }
     }
     KALDI_VLOG(3) << "PruneActiveTokens: pruned tokens from " << num_toks_begin
                   << " to " << num_toks_;
   }

◆ PruneActiveTokensFinal()

void PruneActiveTokensFinal ( int32 cur_frame )

inlineprivate

Definition at line 594 of file lattice-biglm-faster-decoder.h.

References KALDI_VLOG, LatticeBiglmFasterDecoder::num_toks_, LatticeBiglmFasterDecoder::PruneForwardLinks(), LatticeBiglmFasterDecoder::PruneForwardLinksFinal(), and LatticeBiglmFasterDecoder::PruneTokensForFrame().

Referenced by LatticeBiglmFasterDecoder::Decode().

                                                {
     // returns true if there were final states active
     // else returns false and treats all states as final while doing the pruning
     // (this can be useful if you want partial lattice output,
     // although it can be dangerous, depending what you want the lattices for).
     // final_active_ and final_probs_ (a hash) are set internally
     // by PruneForwardLinksFinal
     int32 num_toks_begin = num_toks_;
     PruneForwardLinksFinal(cur_frame); // prune final frame (with final-probs)
     // sets final_active_ and final_probs_
     for (int32 frame = cur_frame-1; frame >= 0; frame--) {
       bool b1, b2; // values not used.
       BaseFloat dontcare = 0.0; // delta of zero means we must always update
       PruneForwardLinks(frame, &b1, &b2, dontcare);
       PruneTokensForFrame(frame+1);
     }
     PruneTokensForFrame(0);
     KALDI_VLOG(3) << "PruneActiveTokensFinal: pruned tokens from " << num_toks_begin
                   << " to " << num_toks_;
   }

◆ PruneForwardLinks()

void PruneForwardLinks	(	int32	frame,
		bool *	extra_costs_changed,
		bool *	links_pruned,
		BaseFloat	delta
	)

inlineprivate

Definition at line 356 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::ForwardLink::acoustic_cost, LatticeBiglmFasterDecoder::active_toks_, LatticeBiglmFasterDecoder::config_, LatticeBiglmFasterDecoder::Token::extra_cost, LatticeBiglmFasterDecoder::ForwardLink::graph_cost, KALDI_ASSERT, KALDI_WARN, LatticeFasterDecoderConfig::lattice_beam, LatticeBiglmFasterDecoder::ForwardLink::next, LatticeBiglmFasterDecoder::ForwardLink::next_tok, LatticeBiglmFasterDecoder::Token::tot_cost, and LatticeBiglmFasterDecoder::warned_.

Referenced by LatticeBiglmFasterDecoder::PruneActiveTokens(), and LatticeBiglmFasterDecoder::PruneActiveTokensFinal().

                                           {
     // delta is the amount by which the extra_costs must change
     // If delta is larger,  we'll tend to go back less far
     //    toward the beginning of the file.
     // extra_costs_changed is set to true if extra_cost was changed for any token
     // links_pruned is set to true if any link in any token was pruned

     *extra_costs_changed = false;
     *links_pruned = false;
     KALDI_ASSERT(frame >= 0 && frame < active_toks_.size());
     if (active_toks_[frame].toks == NULL ) { // empty list; should not happen.
       if (!warned_) {
         KALDI_WARN << "No tokens alive [doing pruning].. warning first "
             "time only for each utterance\n";
         warned_ = true;
       }
     }

     // We have to iterate until there is no more change, because the links
     // are not guaranteed to be in topological order.
     bool changed = true; // difference new minus old extra cost >= delta ?
     while (changed) {
       changed = false;
       for (Token *tok = active_toks_[frame].toks; tok != NULL; tok = tok->next) {
         ForwardLink *link, *prev_link=NULL;
         // will recompute tok_extra_cost for tok.
         BaseFloat tok_extra_cost = std::numeric_limits<BaseFloat>::infinity();
         // tok_extra_cost is the best (min) of link_extra_cost of outgoing links
         for (link = tok->links; link != NULL; ) {
           // See if we need to excise this link...
           Token *next_tok = link->next_tok;
           BaseFloat link_extra_cost = next_tok->extra_cost +
               ((tok->tot_cost + link->acoustic_cost + link->graph_cost)
                - next_tok->tot_cost); // difference in brackets is >= 0
           // link_exta_cost is the difference in score between the best paths
           // through link source state and through link destination state
           KALDI_ASSERT(link_extra_cost == link_extra_cost); // check for NaN
           if (link_extra_cost > config_.lattice_beam) { // excise link
             ForwardLink *next_link = link->next;
             if (prev_link != NULL) prev_link->next = next_link;
             else tok->links = next_link;
             delete link;
             link = next_link; // advance link but leave prev_link the same.
             *links_pruned = true;
           } else { // keep the link and update the tok_extra_cost if needed.
             if (link_extra_cost < 0.0) { // this is just a precaution.
               if (link_extra_cost < -0.01)
                 KALDI_WARN << "Negative extra_cost: " << link_extra_cost;
               link_extra_cost = 0.0;
             }
             if (link_extra_cost < tok_extra_cost)
               tok_extra_cost = link_extra_cost;
             prev_link = link; // move to next link
             link = link->next;
           }
         } // for all outgoing links
         if (fabs(tok_extra_cost - tok->extra_cost) > delta)
           changed = true;  // difference new minus old is bigger than delta
         tok->extra_cost = tok_extra_cost;
         // will be +infinity or <= lattice_beam_.
         // infinity indicates, that no forward link survived pruning
       } // for all Token on active_toks_[frame]
       if (changed) *extra_costs_changed = true;

       // Note: it's theoretically possible that aggressive compiler
       // optimizations could cause an infinite loop here for small delta and
       // high-dynamic-range scores.
     } // while changed
   }

◆ PruneForwardLinksFinal()

void PruneForwardLinksFinal ( int32 frame )

inlineprivate

Definition at line 431 of file lattice-biglm-faster-decoder.h.

Referenced by LatticeBiglmFasterDecoder::PruneActiveTokensFinal().

                                            {
     KALDI_ASSERT(static_cast<size_t>(frame+1) == active_toks_.size());
     if (active_toks_[frame].toks == NULL ) // empty list; should not happen.
       KALDI_WARN << "No tokens alive at end of file\n";

     // First go through, working out the best token (do it in parallel
     // including final-probs and not including final-probs; we'll take
     // the one with final-probs if it's valid).
     const BaseFloat infinity = std::numeric_limits<BaseFloat>::infinity();
     BaseFloat best_cost_final = infinity,
         best_cost_nofinal = infinity;
     unordered_map<Token*, BaseFloat> tok_to_final_cost;
     Elem *cur_toks = toks_.Clear(); // swapping prev_toks_ / cur_toks_
     for (Elem *e = cur_toks, *e_tail; e != NULL;  e = e_tail) {
       PairId state_pair = e->key;
       StateId state = PairToState(state_pair),
           lm_state = PairToLmState(state_pair);
       Token *tok = e->val;
       BaseFloat final_cost = fst_.Final(state).Value() +
           lm_diff_fst_->Final(lm_state).Value();
       tok_to_final_cost[tok] = final_cost;
       best_cost_final = std::min(best_cost_final, tok->tot_cost + final_cost);
       best_cost_nofinal = std::min(best_cost_nofinal, tok->tot_cost);
       e_tail = e->tail;
       toks_.Delete(e);
     }
     final_active_ = (best_cost_final != infinity);

     // Now go through tokens on this frame, pruning forward links...  may have
     // to iterate a few times until there is no more change, because the list is
     // not in topological order.

     bool changed = true;
     BaseFloat delta = 1.0e-05;
     while (changed) {
       changed = false;
       for (Token *tok = active_toks_[frame].toks; tok != NULL; tok = tok->next) {
         ForwardLink *link, *prev_link=NULL;
         // will recompute tok_extra_cost.  It has a term in it that corresponds
         // to the "final-prob", so instead of initializing tok_extra_cost to infinity
         // below we set it to the difference between the (score+final_prob) of this token,
         // and the best such (score+final_prob).
         BaseFloat tok_extra_cost;
         if (final_active_) {
           BaseFloat final_cost = tok_to_final_cost[tok];
           tok_extra_cost = (tok->tot_cost + final_cost) - best_cost_final;
         } else
           tok_extra_cost = tok->tot_cost - best_cost_nofinal;

         for (link = tok->links; link != NULL; ) {
           // See if we need to excise this link...
           Token *next_tok = link->next_tok;
           BaseFloat link_extra_cost = next_tok->extra_cost +
               ((tok->tot_cost + link->acoustic_cost + link->graph_cost)
                - next_tok->tot_cost);
           if (link_extra_cost > config_.lattice_beam) { // excise link
             ForwardLink *next_link = link->next;
             if (prev_link != NULL) prev_link->next = next_link;
             else tok->links = next_link;
             delete link;
             link = next_link; // advance link but leave prev_link the same.
           } else { // keep the link and update the tok_extra_cost if needed.
             if (link_extra_cost < 0.0) { // this is just a precaution.
               if (link_extra_cost < -0.01)
                 KALDI_WARN << "Negative extra_cost: " << link_extra_cost;
               link_extra_cost = 0.0;
             }
             if (link_extra_cost < tok_extra_cost)
               tok_extra_cost = link_extra_cost;
             prev_link = link;
             link = link->next;
           }
         }
         // prune away tokens worse than lattice_beam above best path.  This step
         // was not necessary in the non-final case because then, this case
         // showed up as having no forward links.  Here, the tok_extra_cost has
         // an extra component relating to the final-prob.
         if (tok_extra_cost > config_.lattice_beam)
           tok_extra_cost = infinity;
           // to be pruned in PruneTokensForFrame

         if (!ApproxEqual(tok->extra_cost, tok_extra_cost, delta))
           changed = true;
         tok->extra_cost = tok_extra_cost; // will be +infinity or <= lattice_beam_.
       }
     } // while changed

     // Now put surviving Tokens in the final_costs_ hash, which is a class
     // member (unlike tok_to_final_costs).
     for (Token *tok = active_toks_[frame].toks; tok != NULL; tok = tok->next) {
       if (tok->extra_cost != infinity) {
         // If the token was not pruned away,
         if (final_active_) {
           BaseFloat final_cost = tok_to_final_cost[tok];
           if (final_cost != infinity)
             final_costs_[tok] = final_cost;
         } else {
           final_costs_[tok] = 0;
         }
       }
     }
   }

◆ PruneTokensForFrame()

void PruneTokensForFrame ( int32 frame )

inlineprivate

Definition at line 538 of file lattice-biglm-faster-decoder.h.

References LatticeBiglmFasterDecoder::active_toks_, LatticeBiglmFasterDecoder::Token::extra_cost, KALDI_ASSERT, KALDI_WARN, LatticeBiglmFasterDecoder::Token::next, LatticeBiglmFasterDecoder::ForwardLink::next_tok, and LatticeBiglmFasterDecoder::num_toks_.

Referenced by LatticeBiglmFasterDecoder::PruneActiveTokens(), and LatticeBiglmFasterDecoder::PruneActiveTokensFinal().

                                         {
     KALDI_ASSERT(frame >= 0 && frame < active_toks_.size());
     Token *&toks = active_toks_[frame].toks;
     if (toks == NULL)
       KALDI_WARN << "No tokens alive [doing pruning]\n";
     Token *tok, *next_tok, *prev_tok = NULL;
     for (tok = toks; tok != NULL; tok = next_tok) {
       next_tok = tok->next;
       if (tok->extra_cost == std::numeric_limits<BaseFloat>::infinity()) {
         // token is unreachable from end of graph; (no forward links survived)
         // excise tok from list and delete tok.
         if (prev_tok != NULL) prev_tok->next = tok->next;
         else toks = tok->next;
         delete tok;
         num_toks_--;
       } else { // fetch next Token
         prev_tok = tok;
       }
     }
   }
