This class does the word-level Minimum Bayes Risk computation, and gives you either the 1-best MBR output together with the expected Bayes Risk, or a sausage-like structure. More...

#include <sausages.h>

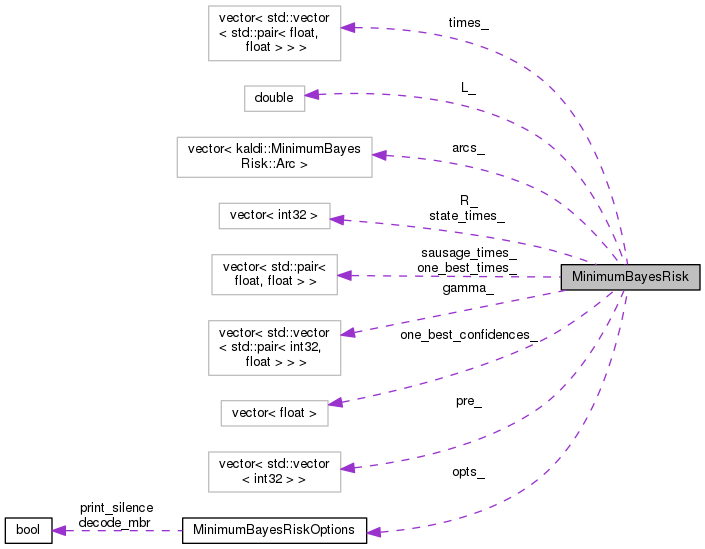

Collaboration diagram for MinimumBayesRisk:

[legend]

Classes
struct	Arc

struct	GammaCompare

Public Member Functions
	MinimumBayesRisk (const CompactLattice &clat, MinimumBayesRiskOptions opts=MinimumBayesRiskOptions())
	Initialize with compact lattice– any acoustic scaling etc., is assumed to have been done already. More...

	MinimumBayesRisk (const CompactLattice &clat, const std::vector< int32 > &words, MinimumBayesRiskOptions opts=MinimumBayesRiskOptions())

	MinimumBayesRisk (const CompactLattice &clat, const std::vector< int32 > &words, const std::vector< std::pair< BaseFloat, BaseFloat > > &times, MinimumBayesRiskOptions opts=MinimumBayesRiskOptions())

const std::vector< int32 > &	GetOneBest () const

const std::vector< std::vector< std::pair< BaseFloat, BaseFloat > > >	GetTimes () const

const std::vector< std::pair< BaseFloat, BaseFloat > >	GetSausageTimes () const

const std::vector< std::pair< BaseFloat, BaseFloat > > &	GetOneBestTimes () const

const std::vector< BaseFloat > &	GetOneBestConfidences () const
	Outputs the confidences for the one-best transcript. More...

BaseFloat	GetBayesRisk () const
	Returns the expected WER over this sentence (assuming model correctness). More...

const std::vector< std::vector< std::pair< int32, BaseFloat > > > &	GetSausageStats () const

Private Member Functions
void	PrepareLatticeAndInitStats (CompactLattice *clat)

void	MbrDecode ()
	Minimum-Bayes-Risk Decode. Top-level algorithm. Figure 6 of the paper. More...

double	l (int32 a, int32 b, bool penalize=false)
	Without the 'penalize' argument this gives us the basic edit-distance function l(a,b), as in the paper. More...

int32	r (int32 q)
	returns r_q, in one-based indexing, as in the paper. More...

double	EditDistance (int32 N, int32 Q, Vector< double > &alpha, Matrix< double > &alpha_dash, Vector< double > &alpha_dash_arc)
	Figure 4 of the paper; called from AccStats (Fig. 5) More...

void	AccStats ()
	Figure 5 of the paper. Outputs to gamma_ and L_. More...

Static Private Member Functions
static void	RemoveEps (std::vector< int32 > *vec)
	Removes epsilons (symbol 0) from a vector. More...

static void	NormalizeEps (std::vector< int32 > *vec)

static BaseFloat	delta ()

static void	AddToMap (int32 i, double d, std::map< int32, double > *gamma)
	Function used to increment map. More...

Private Attributes
MinimumBayesRiskOptions	opts_

std::vector< Arc >	arcs_
	Arcs in the topologically sorted acceptor form of the word-level lattice, with one final-state. More...

std::vector< std::vector< int32 > >	pre_
	For each node in the lattice, a list of arcs entering that node. More...

std::vector< int32 >	state_times_

std::vector< int32 >	R_

double	L_

std::vector< std::vector< std::pair< int32, BaseFloat > > >	gamma_

std::vector< std::vector< std::pair< BaseFloat, BaseFloat > > >	times_

std::vector< std::pair< BaseFloat, BaseFloat > >	sausage_times_

std::vector< std::pair< BaseFloat, BaseFloat > >	one_best_times_

std::vector< BaseFloat >	one_best_confidences_

Detailed Description

This class does the word-level Minimum Bayes Risk computation, and gives you either the 1-best MBR output together with the expected Bayes Risk, or a sausage-like structure.

Definition at line 77 of file sausages.h.

Constructor & Destructor Documentation

◆ MinimumBayesRisk() [1/3]

MinimumBayesRisk	(	const CompactLattice &	clat,
		MinimumBayesRiskOptions	opts = `MinimumBayesRiskOptions()`
	)

Initialize with compact lattice– any acoustic scaling etc., is assumed to have been done already.

This does the whole computation. You get the output with GetOneBest(), GetBayesRisk(), and GetSausageStats().

Definition at line 369 of file sausages.cc.

References fst::ConvertLattice(), fst::GetLinearSymbolSequence(), KALDI_ASSERT, MinimumBayesRisk::L_, MinimumBayesRisk::MbrDecode(), MinimumBayesRisk::PrepareLatticeAndInitStats(), MinimumBayesRisk::R_, fst::RemoveAlignmentsFromCompactLattice(), and words.

                                                                  : opts_(opts) {
   CompactLattice clat(clat_in); // copy.

   PrepareLatticeAndInitStats(&clat);

   // We don't need to look at clat.Start() or clat.Final(state):
   // we know clat.Start() == 0 since it's topologically sorted,
   // and clat.Final(state) is Zero() except for One() at the last-
   // numbered state, thanks to CreateSuperFinal and the topological
   // sorting.

   { // Now set R_ to one best in the FST.
     RemoveAlignmentsFromCompactLattice(&clat); // will be more efficient
     // in best-path if we do this.
     Lattice lat;
     ConvertLattice(clat, &lat); // convert from CompactLattice to Lattice.
     fst::VectorFst<fst::StdArc> fst;
     ConvertLattice(lat, &fst); // convert from lattice to normal FST.
     fst::VectorFst<fst::StdArc> fst_shortest_path;
     fst::ShortestPath(fst, &fst_shortest_path); // take shortest path of FST.
     std::vector<int32> alignment, words;
     fst::TropicalWeight weight;
     GetLinearSymbolSequence(fst_shortest_path, &alignment, &words, &weight);
     KALDI_ASSERT(alignment.empty()); // we removed the alignment.
     R_ = words;
     L_ = 0.0; // Set current edit-distance to 0 [just so we know
     // when we're on the 1st iter.]
   }

   MbrDecode();

 }

◆ MinimumBayesRisk() [2/3]

MinimumBayesRisk	(	const CompactLattice &	clat,
		const std::vector< int32 > &	words,
		MinimumBayesRiskOptions	opts = `MinimumBayesRiskOptions()`
	)

Definition at line 403 of file sausages.cc.

References MinimumBayesRisk::L_, MinimumBayesRisk::MbrDecode(), MinimumBayesRisk::PrepareLatticeAndInitStats(), MinimumBayesRisk::R_, and words.

                                                                  : opts_(opts) {
   CompactLattice clat(clat_in); // copy.

   PrepareLatticeAndInitStats(&clat);

   R_ = words;
   L_ = 0.0;

   MbrDecode();
 }

◆ MinimumBayesRisk() [3/3]

MinimumBayesRisk	(	const CompactLattice &	clat,
		const std::vector< int32 > &	words,
		const std::vector< std::pair< BaseFloat, BaseFloat > > &	times,
		MinimumBayesRiskOptions	opts = `MinimumBayesRiskOptions()`
	)

Definition at line 416 of file sausages.cc.

References MinimumBayesRisk::L_, MinimumBayesRisk::MbrDecode(), MinimumBayesRisk::PrepareLatticeAndInitStats(), MinimumBayesRisk::R_, MinimumBayesRisk::sausage_times_, and words.

                                                                  : opts_(opts) {
   CompactLattice clat(clat_in); // copy.

   PrepareLatticeAndInitStats(&clat);

   R_ = words;
   sausage_times_ = times;
   L_ = 0.0;

   MbrDecode();
 }

Member Function Documentation

◆ AccStats()

void AccStats ( )

private

Figure 5 of the paper. Outputs to gamma_ and L_.

Definition at line 170 of file sausages.cc.

References MinimumBayesRisk::AddToMap(), MinimumBayesRisk::arcs_, MinimumBayesRisk::EditDistance(), kaldi::Exp(), MinimumBayesRisk::gamma_, rnnlm::i, KALDI_ERR, KALDI_VLOG, KALDI_WARN, MinimumBayesRisk::l(), MinimumBayesRisk::L_, MinimumBayesRisk::Arc::loglike, rnnlm::n, MinimumBayesRisk::pre_, MinimumBayesRisk::r(), MinimumBayesRisk::R_, MinimumBayesRisk::sausage_times_, VectorBase< Real >::SetZero(), MinimumBayesRisk::Arc::start_node, MinimumBayesRisk::state_times_, MinimumBayesRisk::times_, and MinimumBayesRisk::Arc::word.

Referenced by MinimumBayesRisk::MbrDecode().

                                 {
   using std::map;

   int32 N = static_cast<int32>(pre_.size()) - 1,
       Q = static_cast<int32>(R_.size());

   Vector<double> alpha(N+1); // index (1...N)
   Matrix<double> alpha_dash(N+1, Q+1); // index (1...N, 0...Q)
   Vector<double> alpha_dash_arc(Q+1); // index 0...Q
   Matrix<double> beta_dash(N+1, Q+1); // index (1...N, 0...Q)
   Vector<double> beta_dash_arc(Q+1); // index 0...Q
   std::vector<char> b_arc(Q+1); // integer in {1,2,3}; index 1...Q
   std::vector<map<int32, double> > gamma(Q+1); // temp. form of gamma.
   // index 1...Q [word] -> occ.

   // The tau maps below are the sums over arcs with the same word label
   // of the tau_b and tau_e timing quantities mentioned in Appendix C of
   // the paper... we are using these to get averaged times for both the
   // the sausage bins and the 1-best output.
   std::vector<map<int32, double> > tau_b(Q+1), tau_e(Q+1);

   double Ltmp = EditDistance(N, Q, alpha, alpha_dash, alpha_dash_arc);
   if (L_ != 0 && Ltmp > L_) { // L_ != 0 is to rule out 1st iter.
     KALDI_WARN << "Edit distance increased: " << Ltmp << " > "
                << L_;
   }
   L_ = Ltmp;
   KALDI_VLOG(2) << "L = " << L_;
   // omit line 10: zero when initialized.
   beta_dash(N, Q) = 1.0; // Line 11.
   for (int32 n = N; n >= 2; n--) {
     for (size_t i = 0; i < pre_[n].size(); i++) {
       const Arc &arc = arcs_[pre_[n][i]];
       int32 s_a = arc.start_node, w_a = arc.word;
       BaseFloat p_a = arc.loglike;
       alpha_dash_arc(0) = alpha_dash(s_a, 0) + l(w_a, 0, true); // line 14.
       for (int32 q = 1; q <= Q; q++) { // this loop == lines 15-18.
         int32 r_q = r(q);
         double a1 = alpha_dash(s_a, q-1) + l(w_a, r_q),
             a2 = alpha_dash(s_a, q) + l(w_a, 0, true),
             a3 = alpha_dash_arc(q-1) + l(0, r_q);
         if (a1 <= a2) {
           if (a1 <= a3) { b_arc[q] = 1; alpha_dash_arc(q) = a1; }
           else { b_arc[q] = 3; alpha_dash_arc(q) = a3; }
         } else {
           if (a2 <= a3) { b_arc[q] = 2; alpha_dash_arc(q) = a2; }
           else { b_arc[q] = 3; alpha_dash_arc(q) = a3; }
         }
       }
       beta_dash_arc.SetZero(); // line 19.
       for (int32 q = Q; q >= 1; q--) {
         // line 21:
         beta_dash_arc(q) += Exp(alpha(s_a) + p_a - alpha(n)) * beta_dash(n, q);
         switch (static_cast<int>(b_arc[q])) { // lines 22 and 23:
           case 1:
             beta_dash(s_a, q-1) += beta_dash_arc(q);
             // next: gamma(q, w(a)) += beta_dash_arc(q)
             AddToMap(w_a, beta_dash_arc(q), &(gamma[q]));
             // next: accumulating times, see decl for tau_b,tau_e
             AddToMap(w_a, state_times_[s_a] * beta_dash_arc(q), &(tau_b[q]));
             AddToMap(w_a, state_times_[n] * beta_dash_arc(q), &(tau_e[q]));
             break;
           case 2:
             beta_dash(s_a, q) += beta_dash_arc(q);
             break;
           case 3:
             beta_dash_arc(q-1) += beta_dash_arc(q);
             // next: gamma(q, epsilon) += beta_dash_arc(q)
             AddToMap(0, beta_dash_arc(q), &(gamma[q]));
             // next: accumulating times, see decl for tau_b,tau_e
             // WARNING: there was an error in Appendix C.  If we followed
             // the instructions there the next line would say state_times_[sa], but
             // it would be wrong.  I will try to publish an erratum.
             AddToMap(0, state_times_[n] * beta_dash_arc(q), &(tau_b[q]));
             AddToMap(0, state_times_[n] * beta_dash_arc(q), &(tau_e[q]));
             break;
           default:
             KALDI_ERR << "Invalid b_arc value"; // error in code.
         }
       }
       beta_dash_arc(0) += Exp(alpha(s_a) + p_a - alpha(n)) * beta_dash(n, 0);
       beta_dash(s_a, 0) += beta_dash_arc(0); // line 26.
     }
   }
   beta_dash_arc.SetZero(); // line 29.
   for (int32 q = Q; q >= 1; q--) {
     beta_dash_arc(q) += beta_dash(1, q);
     beta_dash_arc(q-1) += beta_dash_arc(q);
     AddToMap(0, beta_dash_arc(q), &(gamma[q]));
     // the statements below are actually redundant because
     // state_times_[1] is zero.
     AddToMap(0, state_times_[1] * beta_dash_arc(q), &(tau_b[q]));
     AddToMap(0, state_times_[1] * beta_dash_arc(q), &(tau_e[q]));
   }
   for (int32 q = 1; q <= Q; q++) { // a check (line 35)
     double sum = 0.0;
     for (map<int32, double>::iterator iter = gamma[q].begin();
          iter != gamma[q].end(); ++iter) sum += iter->second;
     if (fabs(sum - 1.0) > 0.1)
       KALDI_WARN << "sum of gamma[" << q << ",s] is " << sum;
   }
   // The next part is where we take gamma, and convert
   // to the class member gamma_, which is using a different
   // data structure and indexed from zero, not one.
   gamma_.clear();
   gamma_.resize(Q);
   for (int32 q = 1; q <= Q; q++) {
     for (map<int32, double>::iterator iter = gamma[q].begin();
          iter != gamma[q].end(); ++iter)
       gamma_[q-1].push_back(
           std::make_pair(iter->first, static_cast<BaseFloat>(iter->second)));
     // sort gamma_[q-1] from largest to smallest posterior.
     GammaCompare comp;
     std::sort(gamma_[q-1].begin(), gamma_[q-1].end(), comp);
   }
   // We do the same conversion for the state times tau_b and tau_e:
   // they get turned into the times_ data member, which has zero-based
   // indexing.
   times_.clear();
   times_.resize(Q);
   sausage_times_.clear();
   sausage_times_.resize(Q);
   for (int32 q = 1; q <= Q; q++) {
     double t_b = 0.0, t_e = 0.0;
     for (std::vector<std::pair<int32, BaseFloat>>::iterator iter = gamma_[q-1].begin();
          iter != gamma_[q-1].end(); ++iter) {
       double w_b = tau_b[q][iter->first], w_e = tau_e[q][iter->first];
       if (w_b > w_e)
         KALDI_WARN << "Times out of order";  // this is quite bad.
       times_[q-1].push_back(
           std::make_pair(static_cast<BaseFloat>(w_b / iter->second),
                          static_cast<BaseFloat>(w_e / iter->second)));
       t_b += w_b;
       t_e += w_e;
     }
     sausage_times_[q-1].first = t_b;
     sausage_times_[q-1].second = t_e;
     if (sausage_times_[q-1].first > sausage_times_[q-1].second)
       KALDI_WARN << "Times out of order";  // this is quite bad.
     if (q > 1 && sausage_times_[q-2].second > sausage_times_[q-1].first) {
       // We previously had a warning here, but now we'll just set both
       // those values to their average.  It's quite possible for this
       // condition to happen, but it seems like it would have a bad effect
       // on the downstream processing, so we fix it.
       sausage_times_[q-2].second = sausage_times_[q-1].first =
           0.5 * (sausage_times_[q-2].second + sausage_times_[q-1].first);
     }
   }
 }

◆ AddToMap()

static void AddToMap	(	int32	i,
		double	d,
		std::map< int32, double > *	gamma
	)

inlinestaticprivate

Function used to increment map.

Definition at line 192 of file sausages.h.

References rnnlm::d.

Referenced by MinimumBayesRisk::AccStats().

                                                                                {
     if (d == 0) return;
     std::pair<const int32, double> pr(i, d);
     std::pair<std::map<int32, double>::iterator, bool> ret = gamma->insert(pr);
     if (!ret.second) // not inserted, so add to contents.
       ret.first->second += d;
   }

◆ delta()

static BaseFloat delta ( )

inlinestaticprivate

Definition at line 188 of file sausages.h.

188 { return 1.0e-05; }

◆ EditDistance()

double EditDistance	(	int32	N,
		int32	Q,
		Vector< double > &	alpha,
		Matrix< double > &	alpha_dash,
		Vector< double > &	alpha_dash_arc
	)

private

Figure 4 of the paper; called from AccStats (Fig. 5)

Definition at line 130 of file sausages.cc.

References MinimumBayesRisk::arcs_, kaldi::Exp(), rnnlm::i, kaldi::kLogZeroDouble, MinimumBayesRisk::l(), kaldi::LogAdd(), MinimumBayesRisk::Arc::loglike, rnnlm::n, MinimumBayesRisk::pre_, MinimumBayesRisk::r(), MinimumBayesRisk::Arc::start_node, and MinimumBayesRisk::Arc::word.

Referenced by MinimumBayesRisk::AccStats().

                                                                       {
   alpha(1) = 0.0; // = log(1).  Line 5.
   alpha_dash(1, 0) = 0.0; // Line 5.
   for (int32 q = 1; q <= Q; q++)
     alpha_dash(1, q) = alpha_dash(1, q-1) + l(0, r(q)); // Line 7.
   for (int32 n = 2; n <= N; n++) {
     double alpha_n = kLogZeroDouble;
     for (size_t i = 0; i < pre_[n].size(); i++) {
       const Arc &arc = arcs_[pre_[n][i]];
       alpha_n = LogAdd(alpha_n, alpha(arc.start_node) + arc.loglike);
     }
     alpha(n) = alpha_n; // Line 10.
     // Line 11 omitted: matrix was initialized to zero.
     for (size_t i = 0; i < pre_[n].size(); i++) {
       const Arc &arc = arcs_[pre_[n][i]];
       int32 s_a = arc.start_node, w_a = arc.word;
       BaseFloat p_a = arc.loglike;
       for (int32 q = 0; q <= Q; q++) {
         if (q == 0) {
           alpha_dash_arc(q) = // line 15.
               alpha_dash(s_a, q) + l(w_a, 0, true);
         } else {  // a1,a2,a3 are the 3 parts of min expression of line 17.
           int32 r_q = r(q);
           double a1 = alpha_dash(s_a, q-1) + l(w_a, r_q),
               a2 = alpha_dash(s_a, q) + l(w_a, 0, true),
               a3 = alpha_dash_arc(q-1) + l(0, r_q);
           alpha_dash_arc(q) = std::min(a1, std::min(a2, a3));
         }
         // line 19:
         alpha_dash(n, q) += Exp(alpha(s_a) + p_a - alpha(n)) * alpha_dash_arc(q);
       }
     }
   }
   return alpha_dash(N, Q); // line 23.
 }

◆ GetBayesRisk()

BaseFloat GetBayesRisk ( ) const

inline

Returns the expected WER over this sentence (assuming model correctness).

Definition at line 137 of file sausages.h.

Referenced by main().

137 { return L_; }

kaldi::MinimumBayesRisk::L_

double L_

Definition: sausages.h:226

◆ GetOneBest()

const std::vector<int32>& GetOneBest ( ) const

inline

Definition at line 104 of file sausages.h.

Referenced by main().

                                              { // gets one-best (with no epsilons)
     return R_;
   }

◆ GetOneBestConfidences()

const std::vector<BaseFloat>& GetOneBestConfidences ( ) const

inline

Outputs the confidences for the one-best transcript.

Definition at line 132 of file sausages.h.

Referenced by main().

                                                             {
     return one_best_confidences_;
   }

◆ GetOneBestTimes()

const std::vector<std::pair<BaseFloat, BaseFloat> >& GetOneBestTimes ( ) const

inline

Definition at line 122 of file sausages.h.

Referenced by main().

                                                                            {
     return one_best_times_; // returns average (start,end) times for each word
     // corresponding to an entry in the one-best output.  This is typically the
     // appropriate subset of the times in GetTimes() but can be slightly
     // different if the times for the one-best words overlap, in which case
     // the times returned by this method do not overlap unlike the times
     // returned by GetTimes().
   }

◆ GetSausageStats()

const std::vector<std::vector<std::pair<int32, BaseFloat> > >& GetSausageStats ( ) const

inline

Definition at line 139 of file sausages.h.

Referenced by main().

                                                                                    {
     return gamma_;
   }

◆ GetSausageTimes()

const std::vector<std::pair<BaseFloat, BaseFloat> > GetSausageTimes ( ) const

inline

Definition at line 114 of file sausages.h.

Referenced by main().

                                                                           {
     return sausage_times_; // returns average (start,end) times for each bin.
     // This is typically the weighted average of the times in GetTimes() but can
     // be slightly different if the times for the bins overlap, in which case
     // the times returned by this method do not overlap unlike the times
     // returned by GetTimes().
   }

◆ GetTimes()

const std::vector<std::vector<std::pair<BaseFloat, BaseFloat> > > GetTimes ( ) const

inline

Definition at line 108 of file sausages.h.

                                                                                {
     return times_; // returns average (start,end) times for each word in each
     // bin. These are raw averages without any processing, i.e. time intervals
     // from different bins can overlap.
   }

◆ l()

double l	(	int32	a,
		int32	b,
		bool	penalize = `false`
	)

inlineprivate

Without the 'penalize' argument this gives us the basic edit-distance function l(a,b), as in the paper.

With the 'penalize' argument it can be interpreted as the edit distance plus the 'delta' from the paper, except that we make a kind of conceptual bug-fix and only apply the delta if the edit-distance was not already zero. This bug-fix was necessary in order to force all the stats to show up, that should show up, and applying the bug-fix makes the sausage stats significantly less sparse.

Definition at line 157 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), and MinimumBayesRisk::EditDistance().

                                                            {
     if (a == b) return 0.0;
     else return (penalize ? 1.0 + delta() : 1.0);
   }

◆ MbrDecode()

void MbrDecode ( )

private

Minimum-Bayes-Risk Decode. Top-level algorithm. Figure 6 of the paper.

Definition at line 28 of file sausages.cc.

References MinimumBayesRisk::AccStats(), MinimumBayesRiskOptions::decode_mbr, MinimumBayesRisk::gamma_, rnnlm::i, rnnlm::j, KALDI_VLOG, KALDI_WARN, MinimumBayesRisk::NormalizeEps(), MinimumBayesRisk::one_best_confidences_, MinimumBayesRisk::one_best_times_, MinimumBayesRisk::opts_, MinimumBayesRiskOptions::print_silence, MinimumBayesRisk::R_, MinimumBayesRisk::RemoveEps(), and MinimumBayesRisk::times_.

Referenced by MinimumBayesRisk::MinimumBayesRisk().

                                  {

   for (size_t counter = 0; ; counter++) {
     NormalizeEps(&R_);
     AccStats(); // writes to gamma_
     double delta_Q = 0.0; // change in objective function.

     one_best_times_.clear();
     one_best_confidences_.clear();

     // Caution: q in the line below is (q-1) in the algorithm
     // in the paper; both R_ and gamma_ are indexed by q-1.
     for (size_t q = 0; q < R_.size(); q++) {
       if (opts_.decode_mbr) { // This loop updates R_ [indexed same as gamma_].
         // gamma_[i] is sorted in reverse order so most likely one is first.
         const std::vector<std::pair<int32, BaseFloat> > &this_gamma = gamma_[q];
         double old_gamma = 0, new_gamma = this_gamma[0].second;
         int32 rq = R_[q], rhat = this_gamma[0].first; // rq: old word, rhat: new.
         for (size_t j = 0; j < this_gamma.size(); j++)
           if (this_gamma[j].first == rq) old_gamma = this_gamma[j].second;
         delta_Q += (old_gamma - new_gamma); // will be 0 or negative; a bound on
         // change in error.
         if (rq != rhat)
           KALDI_VLOG(2) << "Changing word " << rq << " to " << rhat;
         R_[q] = rhat;
       }
       // build the outputs (time, confidences),
       if (R_[q] != 0 || opts_.print_silence) {
         // see which 'item' from the sausage-bin should we select,
         // (not necessarily the 1st one when MBR decoding disabled)
         int32 s = 0;
         for (int32 j=0; j<gamma_[q].size(); j++) {
           if (gamma_[q][j].first == R_[q]) {
             s = j;
             break;
           }
         }
         one_best_times_.push_back(times_[q][s]);
         // post-process the times,
         size_t i = one_best_times_.size();
         if (i > 1 && one_best_times_[i-2].second > one_best_times_[i-1].first) {
           // It's quite possible for this to happen, but it seems like it would
           // have a bad effect on the downstream processing, so we fix it here.
           // We resolve overlaps by redistributing the available time interval.
           BaseFloat prev_right = i > 2 ? one_best_times_[i-3].second : 0.0;
           BaseFloat left = std::max(prev_right,
                                     std::min(one_best_times_[i-2].first,
                                              one_best_times_[i-1].first));
           BaseFloat right = std::max(one_best_times_[i-2].second,
                                      one_best_times_[i-1].second);
           BaseFloat first_dur =
               one_best_times_[i-2].second - one_best_times_[i-2].first;
           BaseFloat second_dur =
               one_best_times_[i-1].second - one_best_times_[i-1].first;
           BaseFloat mid = first_dur > 0 ? left + (right - left) * first_dur /
                                      (first_dur + second_dur) : left;
           one_best_times_[i-2].first = left;
           one_best_times_[i-2].second = one_best_times_[i-1].first = mid;
           one_best_times_[i-1].second = right;
         }
         BaseFloat confidence = 0.0;
         for (int32 j = 0; j < gamma_[q].size(); j++) {
           if (gamma_[q][j].first == R_[q]) {
             confidence = gamma_[q][j].second;
             break;
           }
         }
         one_best_confidences_.push_back(confidence);
       }
     }
     KALDI_VLOG(2) << "Iter = " << counter << ", delta-Q = " << delta_Q;
     if (delta_Q == 0) break;
     if (counter > 100) {
       KALDI_WARN << "Iterating too many times in MbrDecode; stopping.";
       break;
     }
   }
   if (!opts_.print_silence) RemoveEps(&R_);
 }

◆ NormalizeEps()

void NormalizeEps ( std::vector< int32 > * vec )

staticprivate

Definition at line 119 of file sausages.cc.

References rnnlm::i, and MinimumBayesRisk::RemoveEps().

Referenced by MinimumBayesRisk::MbrDecode().

                                                          {
   RemoveEps(vec);
   vec->resize(1 + vec->size() * 2);
   int32 s = vec->size();
   for (int32 i = s/2 - 1; i >= 0; i--) {
     (*vec)[i*2 + 1] = (*vec)[i];
     (*vec)[i*2 + 2] = 0;
   }
   (*vec)[0] = 0;
 }

◆ PrepareLatticeAndInitStats()

void PrepareLatticeAndInitStats ( CompactLattice * clat )

private

Definition at line 320 of file sausages.cc.

References MinimumBayesRisk::arcs_, kaldi::CompactLatticeStateTimes(), fst::CreateSuperFinal(), MinimumBayesRisk::Arc::end_node, rnnlm::i, KALDI_ASSERT, KALDI_ERR, MinimumBayesRisk::Arc::loglike, rnnlm::n, MinimumBayesRisk::pre_, MinimumBayesRisk::Arc::start_node, MinimumBayesRisk::state_times_, and MinimumBayesRisk::Arc::word.

Referenced by MinimumBayesRisk::MinimumBayesRisk().

                                                                       {
   KALDI_ASSERT(clat != NULL);

   CreateSuperFinal(clat); // Add super-final state to clat... this is
   // one of the requirements of the MBR algorithm, as mentioned in the
   // paper (i.e. just one final state).

   // Topologically sort the lattice, if not already sorted.
   kaldi::uint64 props = clat->Properties(fst::kFstProperties, false);
   if (!(props & fst::kTopSorted)) {
     if (fst::TopSort(clat) == false)
       KALDI_ERR << "Cycles detected in lattice.";
   }
   CompactLatticeStateTimes(*clat, &state_times_); // work out times of
   // the states in clat
   state_times_.push_back(0); // we'll convert to 1-based numbering.
   for (size_t i = state_times_.size()-1; i > 0; i--)
     state_times_[i] = state_times_[i-1];

   // Now we convert the information in "clat" into a special internal
   // format (pre_, post_ and arcs_) which allows us to access the
   // arcs preceding any given state.
   // Note: in our internal format the states will be numbered from 1,
   // which involves adding 1 to the OpenFst states.
   int32 N = clat->NumStates();
   pre_.resize(N+1);

   // Careful: "Arc" is a class-member struct, not an OpenFst type of arc as one
   // would normally assume.
   for (int32 n = 1; n <= N; n++) {
     for (fst::ArcIterator<CompactLattice> aiter(*clat, n-1);
          !aiter.Done();
          aiter.Next()) {
       const CompactLatticeArc &carc = aiter.Value();
       Arc arc; // in our local format.
       arc.word = carc.ilabel; // == carc.olabel
       arc.start_node = n;
       arc.end_node = carc.nextstate + 1; // convert to 1-based.
       arc.loglike = - (carc.weight.Weight().Value1() +
                        carc.weight.Weight().Value2());
       // loglike: sum graph/LM and acoustic cost, and negate to
       // convert to loglikes.  We assume acoustic scaling is already done.

       pre_[arc.end_node].push_back(arcs_.size()); // record index of this arc.
       arcs_.push_back(arc);
     }
   }
 }

◆ r()

int32 r ( int32 q )

inlineprivate

returns r_q, in one-based indexing, as in the paper.

Definition at line 163 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), and MinimumBayesRisk::EditDistance().

163 { return R_[q-1]; }

kaldi::MinimumBayesRisk::R_

std::vector< int32 > R_

Definition: sausages.h:222

◆ RemoveEps()

void RemoveEps ( std::vector< int32 > * vec )

staticprivate

Removes epsilons (symbol 0) from a vector.

Definition at line 112 of file sausages.cc.

Referenced by MinimumBayesRisk::MbrDecode(), and MinimumBayesRisk::NormalizeEps().

                                                       {
   Int32IsZero pred;
   vec->erase(std::remove_if (vec->begin(), vec->end(), pred),
              vec->end());
 }

Member Data Documentation

◆ arcs_

std::vector<Arc> arcs_

private

Arcs in the topologically sorted acceptor form of the word-level lattice, with one final-state.

Contains (word-symbol, log-likelihood on arc == negated cost). Indexed from zero.

Definition at line 213 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), MinimumBayesRisk::EditDistance(), and MinimumBayesRisk::PrepareLatticeAndInitStats().

◆ gamma_

std::vector<std::vector<std::pair<int32, BaseFloat> > > gamma_

private

Definition at line 229 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), and MinimumBayesRisk::MbrDecode().

◆ L_

double L_

private

Definition at line 226 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), and MinimumBayesRisk::MinimumBayesRisk().

◆ one_best_confidences_

std::vector<BaseFloat> one_best_confidences_

private

Definition at line 250 of file sausages.h.

Referenced by MinimumBayesRisk::MbrDecode().

◆ one_best_times_

std::vector<std::pair<BaseFloat, BaseFloat> > one_best_times_

private

Definition at line 245 of file sausages.h.

Referenced by MinimumBayesRisk::MbrDecode().

◆ opts_

MinimumBayesRiskOptions opts_

private

Definition at line 207 of file sausages.h.

Referenced by MinimumBayesRisk::MbrDecode().

◆ pre_

std::vector<std::vector<int32> > pre_

private

For each node in the lattice, a list of arcs entering that node.

Indexed from 1 (first node == 1).

Definition at line 217 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), MinimumBayesRisk::EditDistance(), and MinimumBayesRisk::PrepareLatticeAndInitStats().

◆ R_

std::vector<int32> R_

private

Definition at line 222 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), MinimumBayesRisk::MbrDecode(), and MinimumBayesRisk::MinimumBayesRisk().

◆ sausage_times_

std::vector<std::pair<BaseFloat, BaseFloat> > sausage_times_

private

Definition at line 240 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), and MinimumBayesRisk::MinimumBayesRisk().

◆ state_times_

std::vector<int32> state_times_

private

Definition at line 219 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), and MinimumBayesRisk::PrepareLatticeAndInitStats().

◆ times_

std::vector<std::vector<std::pair<BaseFloat, BaseFloat> > > times_

private

Definition at line 235 of file sausages.h.

Referenced by MinimumBayesRisk::AccStats(), and MinimumBayesRisk::MbrDecode().

The documentation for this class was generated from the following files:

lat/sausages.h
lat/sausages.cc

Classes

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ MinimumBayesRisk() [1/3]

◆ MinimumBayesRisk() [2/3]

◆ MinimumBayesRisk() [3/3]

Member Function Documentation

◆ AccStats()

◆ AddToMap()

◆ delta()

◆ EditDistance()

◆ GetBayesRisk()

◆ GetOneBest()

◆ GetOneBestConfidences()

◆ GetOneBestTimes()

◆ GetSausageStats()

◆ GetSausageTimes()

◆ GetTimes()

◆ l()

◆ MbrDecode()

◆ NormalizeEps()

◆ PrepareLatticeAndInitStats()

◆ r()

◆ RemoveEps()

Member Data Documentation

◆ arcs_

◆ gamma_

◆ L_

◆ one_best_confidences_

◆ one_best_times_

◆ opts_

◆ pre_

◆ R_

◆ sausage_times_

◆ state_times_

◆ times_
