RegressionTree Class Reference

A regression tree is a clustering of Gaussian densities in an acoustic model, such that the group of Gaussians at each node of the tree are transformed by the same transform. More...

#include <regression-tree.h>

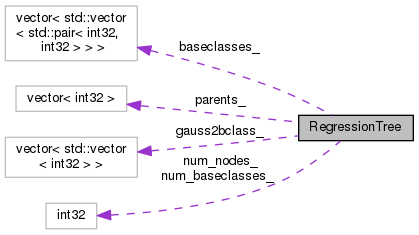

Collaboration diagram for RegressionTree:

Public Member Functions
	RegressionTree ()
void	BuildTree (const Vector< BaseFloat > &state_occs, const std::vector< int32 > &sil_indices, const AmDiagGmm &am, int32 max_clusters)
	Top-down clustering of the Gaussians in a model based on their means. More...
bool	GatherStats (const std::vector< AffineXformStats *> &stats_in, double min_count, std::vector< int32 > *regclasses_out, std::vector< AffineXformStats *> *stats_out) const
	Parses the regression tree and finds the nodes whose occupancies (read from stats_in) are greater than min_count. More...
void	Write (std::ostream &out, bool binary) const
void	Read (std::istream &in, bool binary, const AmDiagGmm &am)
int32	NumBaseclasses () const
	Accessors (const) More...
const std::vector< std::pair< int32, int32 > > &	GetBaseclass (int32 bclass) const
int32	Gauss2BaseclassId (size_t pdf_id, size_t gauss_id) const

Private Member Functions
void	MakeGauss2Bclass (const AmDiagGmm &am)
	KALDI_DISALLOW_COPY_AND_ASSIGN (RegressionTree)

Private Attributes
int32	num_nodes_
	Total (non-leaf+leaf) nodes. More...
std::vector< int32 >	parents_
	For each node, index of its parent: size = num_nodes_ If 0 <= i < num_baseclasses_, then i is a leaf of the tree (a base class); else a non-leaf node. More...
int32	num_baseclasses_
	Number of leaf nodes. More...
std::vector< std::vector< std::pair< int32, int32 > > >	baseclasses_
	Each baseclass (leaf of regression tree) is a vector of Gaussian indices. More...
std::vector< std::vector< int32 > >	gauss2bclass_
	Mapping from (pdf, gaussian) indices to baseclasses. More...

Detailed Description

A regression tree is a clustering of Gaussian densities in an acoustic model, such that the group of Gaussians at each node of the tree are transformed by the same transform.

Each node is thus called a regression class.

Definition at line 41 of file regression-tree.h.

Constructor & Destructor Documentation

RegressionTree()

RegressionTree ( )

inline

Definition at line 43 of file regression-tree.h.

References RegressionTree::BuildTree(), RegressionTree::GatherStats(), RegressionTree::Read(), and RegressionTree::Write().

{}

Member Function Documentation

BuildTree()

void BuildTree	(	const Vector< BaseFloat > &	state_occs,
		const std::vector< int32 > &	sil_indices,
		const AmDiagGmm &	am,
		int32	max_clusters
	)

Top-down clustering of the Gaussians in a model based on their means.

If sil_indices is nonempty, will put silence in a special class using a top-level split.

Definition at line 34 of file regression-tree.cc.

References VectorBase< Real >::AddVec2(), RegressionTree::baseclasses_, kaldi::DeletePointers(), AmDiagGmm::Dim(), RegressionTree::gauss2bclass_, AmDiagGmm::GetGaussianMean(), AmDiagGmm::GetGaussianVariance(), AmDiagGmm::GetPdf(), rnnlm::i, kaldi::IsSortedAndUniq(), rnnlm::j, KALDI_ASSERT, RegressionTree::num_baseclasses_, RegressionTree::num_nodes_, DiagGmm::NumGauss(), AmDiagGmm::NumGauss(), AmDiagGmm::NumPdfs(), RegressionTree::parents_, VectorBase< Real >::Scale(), kaldi::TreeCluster(), and DiagGmm::weights().

Referenced by main(), RegressionTree::RegressionTree(), UnitTestRegressionTree(), kaldi::UnitTestRegtreeFmllrDiagGmm(), and UnitTestRegtreeMllrDiagGmm().

                                                   {
  KALDI_ASSERT(IsSortedAndUniq(sil_indices));
  int32 dim = am.Dim(),
      num_pdfs = static_cast<int32>(am.NumPdfs());
  vector<Clusterable*> gauss_means;
  // For each Gaussianin the model, the pair of (pdf, gaussian) indices.
  vector< pair<int32, int32> > gauss_indices;
  Vector<BaseFloat> tmp_mean(dim);
  Vector<BaseFloat> tmp_var(dim);
  BaseFloat var_floor = 0.01;

  gauss2bclass_.resize(num_pdfs);
  gauss_means.reserve(am.NumGauss());  // NOT resize, uses push_back
  gauss_indices.reserve(am.NumGauss());  // NOT resize, uses push_back

  for (int32 pdf_index = 0; pdf_index < num_pdfs; pdf_index++) {
    gauss2bclass_[pdf_index].resize(am.GetPdf(pdf_index).NumGauss());
    for (int32 num_gauss = am.GetPdf(pdf_index).NumGauss(),
        gauss_index = 0; gauss_index < num_gauss; ++gauss_index) {
      // don't include silence while clustering...
      if (std::binary_search(sil_indices.begin(), sil_indices.end(), pdf_index))
        continue;

      am.GetGaussianMean(pdf_index, gauss_index, &tmp_mean);
      am.GetGaussianVariance(pdf_index, gauss_index, &tmp_var);
      tmp_var.AddVec2(1.0, tmp_mean);  // make it x^2 stats.
      BaseFloat this_weight =  state_occs(pdf_index) *
                               (am.GetPdf(pdf_index).weights())(gauss_index);
      tmp_mean.Scale(this_weight);
      tmp_var.Scale(this_weight);
      gauss_indices.push_back(std::make_pair(pdf_index, gauss_index));
      gauss_means.push_back(new GaussClusterable(tmp_mean, tmp_var, var_floor,
                                                 this_weight));
    }
  }

  vector<int32> leaves;
  vector<int32> clust_parents;
  int32 num_leaves;
  TreeClusterOptions opts;  // Use default options or get from somewhere else
  TreeCluster(gauss_means,
              (sil_indices.empty() ? max_clusters : max_clusters-1),
              NULL /* clusters not needed */,
              &leaves, &clust_parents, &num_leaves, opts);

  if (sil_indices.empty()) {  // no special treatment of silence...
    num_baseclasses_ = static_cast<int32>(num_leaves);
    baseclasses_.resize(num_leaves);
    parents_.resize(clust_parents.size());
    for (int32 i = 0, num_nodes = clust_parents.size(); i < num_nodes; i++) {
      parents_[i] = static_cast<int32>(clust_parents[i]);
    }
    num_nodes_ = static_cast<int32>(clust_parents.size());
    for (int32 i = 0; i < static_cast<int32>(gauss_indices.size()); i++) {
      baseclasses_[leaves[i]].push_back(gauss_indices[i]);
      gauss2bclass_[gauss_indices[i].first][gauss_indices[i].second] = leaves[i];
    }
  } else {
    // separate top-level split between silence and speech...
    // silence is node zero and new parent is last-numbered one.
    num_baseclasses_ = static_cast<int32>(num_leaves+1);  // +1 to include 0 == silence
    baseclasses_.resize(num_leaves+1);  // +1 to include 0 == silence
    parents_.resize(clust_parents.size()+2);  // +1 to include 0 == silence, +parent.

    int32 top_node = clust_parents.size() + 1;
    for (int32 i = 0; i < static_cast<int32>(clust_parents.size()); i++) {
      parents_[i+1] = clust_parents[i]+1;  // handle offsets
    }
    parents_[0] = top_node;
    parents_[clust_parents.size()] = top_node;  // old top node's parent is new top node.
    parents_[top_node] = top_node;  // being own parent is sign of being top node.

    num_nodes_ = static_cast<int32>(clust_parents.size() + 2);
    // Assign nonsilence Gaussians to their assigned classes (add one
    // to all leaf indices, make room for silence class).
    for (int32 i = 0; i < static_cast<int32>(gauss_indices.size()); i++) {
      baseclasses_[leaves[i]+1].push_back(gauss_indices[i]);
      gauss2bclass_[gauss_indices[i].first][gauss_indices[i].second] = leaves[i]+1;
    }
    // Assign silence Gaussians to zero'th baseclass.
    for (int32 i = 0; i < static_cast<int32>(sil_indices.size()); i++) {
      int32 pdf_index = sil_indices[i];
      for (int32 j = 0; j < am.GetPdf(pdf_index).NumGauss(); j++) {
        baseclasses_[0].push_back(std::make_pair(pdf_index, j));
        gauss2bclass_[pdf_index][j] = 0;
      }
    }
  }
  DeletePointers(&gauss_means);
}

GatherStats()

bool GatherStats	(	const std::vector< AffineXformStats *> &	stats_in,
		double	min_count,
		std::vector< int32 > *	regclasses_out,
		std::vector< AffineXformStats *> *	stats_out
	)		const

Parses the regression tree and finds the nodes whose occupancies (read from stats_in) are greater than min_count.

The regclass_out vector has size equal to number of baseclasses, and contains the regression class index for each baseclass. The stats_out vector has size equal to number of regression classes. Return value is true if at least one regression class passed the count cutoff, false otherwise.

Definition at line 162 of file regression-tree.cc.

References kaldi::AssertEqual(), kaldi::DeletePointers(), kaldi::GetActiveParents(), KALDI_ASSERT, KALDI_WARN, RegressionTree::num_baseclasses_, RegressionTree::num_nodes_, and RegressionTree::parents_.

Referenced by RegressionTree::RegressionTree(), RegtreeMllrDiagGmmAccs::Update(), and RegtreeFmllrDiagGmmAccs::Update().

                                                                             {
  KALDI_ASSERT(static_cast<int32>(stats_in.size()) == num_baseclasses_);
  if (static_cast<int32>(regclasses_out->size()) != num_baseclasses_)
    regclasses_out->resize(static_cast<size_t>(num_baseclasses_), -1);
  if (num_baseclasses_ == 1)  // Only root node in tree
    KALDI_ASSERT(num_nodes_ == 1);

  double total_occ = 0.0;
  int32 num_regclasses = 0;
  vector<double> node_occupancies(num_nodes_, 0.0);
  vector<bool> generate_xform(num_nodes_, false);
  vector<int32> regclasses(num_nodes_, -1);

  // Go through the leaves (baseclasses) and find where to generate transforms
  for (int32 bclass = 0; bclass < num_baseclasses_; bclass++) {
    total_occ += stats_in[bclass]->beta_;
    node_occupancies[bclass] = stats_in[bclass]->beta_;
    if (num_baseclasses_ != 1) {  // Don't count twice if tree only has root.
      node_occupancies[parents_[bclass]] += node_occupancies[bclass];
    }
    if (node_occupancies[bclass] < min_count) {
      // Not enough count, so pass the responsibility to the parent.
      generate_xform[bclass] = false;
      generate_xform[parents_[bclass]] = true;
    } else {  // generate at the leaf level.
      generate_xform[bclass] = true;
      regclasses[bclass] = num_regclasses++;
    }
  }
  // Check whether there is enough data for the single global transform (at
  // the root of the regression tree). If not, no transforms will be computed.
  if (total_occ < min_count) {
    // Make all baseclasses use the unit transform at the root.
    for (int32 bclass = 0; bclass < num_baseclasses_; bclass++) {
      (*regclasses_out)[bclass] = 0;
    }
    DeletePointers(stats_out);
    stats_out->clear();
    KALDI_WARN << "Not enough data to compute global transform. Occupancy at "
               << "root = " << total_occ << "<"  << min_count;
    return false;
  }

  // Now go through the non-leaf nodes and find where to generate transforms.
  // Iterates only till num_nodes_ - 1 so that it doesn't count root twice.
  for (int32 node = num_baseclasses_; node < num_nodes_ - 1; node++) {
    node_occupancies[parents_[node]] += node_occupancies[node];
    // Only bother with generating transforms if a child asked for it.
    if (generate_xform[node]) {
      if (node_occupancies[node] < min_count) {
        // Not enough count, so pass the responsibility to the parent.
        generate_xform[node] = false;
        generate_xform[parents_[node]] = true;
      } else {  // transform will be generated at this level.
        regclasses[node] = num_regclasses++;
      }
    }
  }

  AssertEqual(node_occupancies[num_nodes_-1], total_occ, 1.0e-9);
  // If needed, generate a transform at the root.
  if (generate_xform[num_nodes_-1] && regclasses[num_nodes_-1] < 0) {
    KALDI_ASSERT(node_occupancies[num_nodes_-1] >= min_count);
    regclasses[num_nodes_-1] = num_regclasses++;
  }

  // Initialize the accumulators for output stats.
  // NOTE: memory is allocated here; be careful to delete the pointers
  stats_out->resize(num_regclasses);
  for (int32 r = 0; r < num_regclasses; r++) {
    (*stats_out)[r] = new AffineXformStats();
    (*stats_out)[r]->Init(stats_in[0]->dim_, stats_in[0]->G_.size());
  }

  // Finally go through the tree again and add stats
  vector<int32> active_parents;
  for (int32 bclass = 0; bclass < num_baseclasses_; bclass++) {
    if (generate_xform[bclass]) {
      KALDI_ASSERT(regclasses[bclass] > -1);
      (*stats_out)[regclasses[bclass]]->CopyStats(*(stats_in[bclass]));
      (*regclasses_out)[bclass] = regclasses[bclass];
      if (GetActiveParents(bclass, parents_, generate_xform, &active_parents)) {
        // Some other baseclass has less count
        for (vector<int32>::const_iterator p = active_parents.begin(),
            endp = active_parents.end(); p != endp; ++p) {
          KALDI_ASSERT(regclasses[*p] > -1);
          (*stats_out)[regclasses[*p]]->Add(*(stats_in[bclass]));
        }
      }
    } else {
      bool found = GetActiveParents(bclass, parents_, generate_xform,
                                    &active_parents);
      KALDI_ASSERT(found);  // must have active parents
      for (vector<int32>::const_iterator p = active_parents.begin(),
          endp = active_parents.end(); p != endp; ++p) {
        KALDI_ASSERT(regclasses[*p] > -1);
        (*stats_out)[regclasses[*p]]->Add(*(stats_in[bclass]));
      }
      (*regclasses_out)[bclass] = regclasses[active_parents[0]];
    }
  }

  KALDI_ASSERT(num_regclasses <= num_baseclasses_);
  return true;
}

Gauss2BaseclassId()

int32 Gauss2BaseclassId ( size_t  pdf_id, size_t  gauss_id  ) const

inline

Definition at line 71 of file regression-tree.h.

References RegressionTree::gauss2bclass_.

Referenced by RegtreeMllrDiagGmmAccs::AccumulateForGaussian(), RegtreeFmllrDiagGmmAccs::AccumulateForGaussian(), RegtreeMllrDiagGmmAccs::AccumulateForGmm(), RegtreeFmllrDiagGmmAccs::AccumulateForGmm(), RegtreeMllrDiagGmm::GetTransformedMeans(), and DecodableAmDiagGmmRegtreeFmllr::LogLikelihoodZeroBased().

                                                                {
    return gauss2bclass_[pdf_id][gauss_id];
  }

GetBaseclass()

const std::vector< std::pair<int32, int32> >& GetBaseclass ( int32  bclass ) const

inline

Definition at line 69 of file regression-tree.h.

References RegressionTree::baseclasses_.

Referenced by RegtreeMllrDiagGmm::TransformModel().

            { return baseclasses_[bclass]; }

KALDI_DISALLOW_COPY_AND_ASSIGN()

KALDI_DISALLOW_COPY_AND_ASSIGN ( RegressionTree  )

private

MakeGauss2Bclass()

void MakeGauss2Bclass ( const AmDiagGmm &  am )

private

Definition at line 351 of file regression-tree.cc.

References RegressionTree::baseclasses_, RegressionTree::gauss2bclass_, KALDI_ASSERT, KALDI_ERR, RegressionTree::num_baseclasses_, AmDiagGmm::NumGauss(), AmDiagGmm::NumGaussInPdf(), and AmDiagGmm::NumPdfs().

Referenced by RegressionTree::Read().

                                                         {
  gauss2bclass_.resize(am.NumPdfs());
  for (int32 pdf_index = 0, num_pdfs = am.NumPdfs(); pdf_index < num_pdfs;
      ++pdf_index) {
    gauss2bclass_[pdf_index].resize(am.NumGaussInPdf(pdf_index));
  }

  int32 total_gauss = 0;
  for (int32 bclass_index = 0; bclass_index < num_baseclasses_;
      ++bclass_index) {
    vector< pair<int32, int32> >::const_iterator itr =
        baseclasses_[bclass_index].begin(), end =
            baseclasses_[bclass_index].end();
    for (; itr != end; ++itr) {
      KALDI_ASSERT(itr->first < am.NumPdfs() &&
          itr->second < am.NumGaussInPdf(itr->first));
      gauss2bclass_[itr->first][itr->second] = bclass_index;
      total_gauss++;
    }
  }

  if (total_gauss != am.NumGauss())
    KALDI_ERR << "Expecting " << am.NumGauss() << " Gaussians in "
        "regression tree, found " << total_gauss;
}

NumBaseclasses()

int32 NumBaseclasses ( ) const

inline

Accessors (const)

Definition at line 68 of file regression-tree.h.

References RegressionTree::num_baseclasses_.

Referenced by RegtreeMllrDiagGmm::GetTransformedMeans(), main(), RegtreeMllrDiagGmm::TransformModel(), kaldi::UnitTestRegtreeFmllrDiagGmm(), and UnitTestRegtreeMllrDiagGmm().

{ return num_baseclasses_; }

Read()

void Read	(	std::istream &	in,
		bool	binary,
		const AmDiagGmm &	am
	)

Definition at line 308 of file regression-tree.cc.

References RegressionTree::baseclasses_, kaldi::ExpectToken(), rnnlm::i, KALDI_ASSERT, KALDI_ERR, RegressionTree::MakeGauss2Bclass(), RegressionTree::num_baseclasses_, RegressionTree::num_nodes_, AmDiagGmm::NumGauss(), RegressionTree::parents_, kaldi::ReadBasicType(), and kaldi::ReadIntegerVector().

Referenced by main(), RegressionTree::RegressionTree(), and test_io().

                                               {
  int32 total_gauss = 0;
  ExpectToken(in, binary, "<REGTREE>");
  ExpectToken(in, binary, "<NUMNODES>");
  ReadBasicType(in, binary, &num_nodes_);
  KALDI_ASSERT(num_nodes_ > 0);
  parents_.resize(static_cast<size_t>(num_nodes_));
  ExpectToken(in, binary, "<PARENTS>");
  ReadIntegerVector(in, binary, &parents_);
  ExpectToken(in, binary, "</PARENTS>");

  ExpectToken(in, binary, "<BASECLASSES>");
  ExpectToken(in, binary, "<NUMBASECLASSES>");
  ReadBasicType(in, binary, &num_baseclasses_);
  KALDI_ASSERT(num_baseclasses_ >0);
  baseclasses_.resize(static_cast<size_t>(num_baseclasses_));
  for (int32 bclass = 0; bclass < num_baseclasses_; bclass++) {
    ExpectToken(in, binary, "<CLASS>");
    int32 class_id, num_comp, pdf_id, gauss_id;
    ReadBasicType(in, binary, &class_id);
    ReadBasicType(in, binary, &num_comp);
    KALDI_ASSERT(class_id == bclass && num_comp > 0);
    total_gauss += num_comp;
    baseclasses_[bclass].reserve(num_comp);

    for (int32 i = 0; i < num_comp; i++) {
      ReadBasicType(in, binary, &pdf_id);
      ReadBasicType(in, binary, &gauss_id);
      KALDI_ASSERT(pdf_id >= 0 && gauss_id >= 0);
      baseclasses_[bclass].push_back(std::make_pair(pdf_id, gauss_id));
    }

    ExpectToken(in, binary, "</CLASS>");
  }
  ExpectToken(in, binary, "</BASECLASSES>");

  if (total_gauss != am.NumGauss())
    KALDI_ERR << "Expecting " << am.NumGauss() << " Gaussians in "
        "regression tree, found " << total_gauss;
  MakeGauss2Bclass(am);
}

Write()

void Write	(	std::ostream &	out,
		bool	binary
	)		const

Definition at line 271 of file regression-tree.cc.

References RegressionTree::baseclasses_, RegressionTree::num_baseclasses_, RegressionTree::num_nodes_, RegressionTree::parents_, kaldi::WriteBasicType(), kaldi::WriteIntegerVector(), and kaldi::WriteToken().

Referenced by main(), RegressionTree::RegressionTree(), and test_io().

                                                             {
  WriteToken(out, binary, "<REGTREE>");
  WriteToken(out, binary, "<NUMNODES>");
  WriteBasicType(out, binary, num_nodes_);
  if (!binary) out << '\n';
  WriteToken(out, binary, "<PARENTS>");
  if (!binary) out << '\n';
  WriteIntegerVector(out, binary, parents_);
  WriteToken(out, binary, "</PARENTS>");
  if (!binary) out << '\n';

  WriteToken(out, binary, "<BASECLASSES>");
  if (!binary) out << '\n';
  WriteToken(out, binary, "<NUMBASECLASSES>");
  WriteBasicType(out, binary, num_baseclasses_);
  if (!binary) out << '\n';
  for (int32 bclass = 0; bclass < num_baseclasses_; bclass++) {
    WriteToken(out, binary, "<CLASS>");
    WriteBasicType(out, binary, bclass);
    WriteBasicType(out, binary, static_cast<int32>(
        baseclasses_[bclass].size()));
    if (!binary) out << '\n';
    for (vector< pair<int32, int32> >::const_iterator
        it = baseclasses_[bclass].begin(), end = baseclasses_[bclass].end();
        it != end; it++) {
      WriteBasicType(out, binary, it->first);
      WriteBasicType(out, binary, it->second);
      if (!binary) out << '\n';
    }

    WriteToken(out, binary, "</CLASS>");
    if (!binary) out << '\n';
  }
  WriteToken(out, binary, "</BASECLASSES>");
  if (!binary) out << '\n';
}

Member Data Documentation

baseclasses_

std::vector< std::vector< std::pair<int32, int32> > > baseclasses_

private

Each baseclass (leaf of regression tree) is a vector of Gaussian indices.

Each Gaussian in the model is indexed by (pdf, gaussian) indices pair.

Definition at line 86 of file regression-tree.h.

Referenced by RegressionTree::BuildTree(), RegressionTree::GetBaseclass(), RegressionTree::MakeGauss2Bclass(), RegressionTree::Read(), and RegressionTree::Write().

gauss2bclass_

std::vector< std::vector<int32> > gauss2bclass_

private

Mapping from (pdf, gaussian) indices to baseclasses.

Definition at line 88 of file regression-tree.h.

Referenced by RegressionTree::BuildTree(), RegressionTree::Gauss2BaseclassId(), and RegressionTree::MakeGauss2Bclass().

num_baseclasses_

int32 num_baseclasses_

private

Number of leaf nodes.

Definition at line 83 of file regression-tree.h.

Referenced by RegressionTree::BuildTree(), RegressionTree::GatherStats(), RegressionTree::MakeGauss2Bclass(), RegressionTree::NumBaseclasses(), RegressionTree::Read(), and RegressionTree::Write().

num_nodes_

int32 num_nodes_

private

Total (non-leaf+leaf) nodes.

Definition at line 76 of file regression-tree.h.

Referenced by RegressionTree::BuildTree(), RegressionTree::GatherStats(), RegressionTree::Read(), and RegressionTree::Write().

parents_

std::vector<int32> parents_

private

For each node, index of its parent: size = num_nodes_ If 0 <= i < num_baseclasses_, then i is a leaf of the tree (a base class); else a non-leaf node.

parents_[i] > i, except for the top node (last-numbered one), for which parents_[i] == i.

Definition at line 82 of file regression-tree.h.

Referenced by RegressionTree::BuildTree(), RegressionTree::GatherStats(), RegressionTree::Read(), and RegressionTree::Write().

---

The documentation for this class was generated from the following files:

• transform/regression-tree.h
• transform/regression-tree.cc
