AppendTransform Class Reference

This is a version of the transform class that consists of a number of other transforms, appended dimension-wise– e.g. More...

#include <differentiable-transform.h>

Inheritance diagram for AppendTransform:

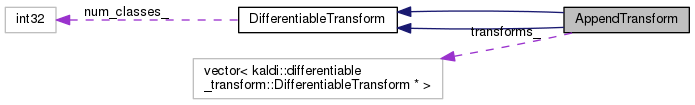

Collaboration diagram for AppendTransform:

Public Member Functions
int32	Dim () const override
	Return the dimension of the input and output features. More...
int32	SetNumClasses () const override
MinibatchInfoItf *	TrainingForward (const CuMatrixBase< BaseFloat > &input, int32 num_chunks, int32 num_spk, const Posterior &posteriors, CuMatrixBase< BaseFloat > *output) const override
	This is the function you call in training time, for the forward pass; it adapts the features. More...
virtual void	TrainingBackward (const CuMatrixBase< BaseFloat > &input, const CuMatrixBase< BaseFloat > &output_deriv, int32 num_chunks, int32 num_spk, const Posterior &posteriors, const MinibatchInfoItf &minibatch_info, CuMatrixBase< BaseFloat > *input_deriv) const override
	This does the backpropagation, during the training pass. More...
virtual int32	NumFinalIterations ()
	Returns the number of times you have to (call Accumulate() on a subset of data, then call Estimate()) More...
void	Accumulate (int32 final_iter, const CuMatrixBase< BaseFloat > &input, int32 num_chunks, int32 num_spk, const Posterior &posteriors) override
	This will typically be called sequentially, minibatch by minibatch, for a subset of training data, after training the neural nets, followed by a call to Estimate(). More...
virtual void	TestingForward (const MatrixBase< BaseFloat > &input, const SpeakerStatsItf &speaker_stats, MatrixBase< BaseFloat > *output) override
void	Estimate (int32 final_iter) override
	AppendTransform (const AppendTransform &other)
DifferentiableTransform *	Copy () const override
void	Write (std::ostream &os, bool binary) const override
void	Read (std::istream &is, bool binary) override
Public Member Functions inherited from DifferentiableTransform
int32	NumClasses () const
	Return the number of classes in the model used for adaptation. More...
virtual void	SetNumClasses (int32 num_classes)
	This can be used to change the number of classes. More...
virtual SpeakerStatsItf *	GetEmptySpeakerStats ()=0
virtual void	TestingAccumulate (const MatrixBase< BaseFloat > &input, const Posterior &posteriors, SpeakerStatsItf *speaker_stats) const =0
virtual void	TestingForward (const MatrixBase< BaseFloat > &input, const SpeakerStatsItf &speaker_stats, MatrixBase< BaseFloat > *output) const =0

Private Member Functions
int32	Dim () const override
	Return the dimension of the input and output features. More...
int32	NumClasses () const override
MinibatchInfoItf *	TrainingForward (const CuMatrixBase< BaseFloat > &input, int32 num_chunks, int32 num_spk, const Posterior &posteriors, CuMatrixBase< BaseFloat > *output) const override
	This is the function you call in training time, for the forward pass; it adapts the features. More...
virtual void	TrainingBackward (const CuMatrixBase< BaseFloat > &input, const CuMatrixBase< BaseFloat > &output_deriv, int32 num_chunks, int32 num_spk, const Posterior &posteriors, const MinibatchInfoItf &minibatch_info, CuMatrixBase< BaseFloat > *input_deriv) const override
	This does the backpropagation, during the training pass. More...
void	Accumulate (const CuMatrixBase< BaseFloat > &input, int32 num_chunks, int32 num_spk, const Posterior &posteriors) override
void	Estimate () override
	AppendTransform (const AppendTransform &other)
DifferentiableTransform *	Copy () const override
void	Write (std::ostream &os, bool binary) const override
void	Read (std::istream &is, bool binary) override

Private Attributes
std::vector< DifferentiableTransform * >	transforms_

Additional Inherited Members
Static Public Member Functions inherited from DifferentiableTransform
static DifferentiableTransform *	ReadNew (std::istream &is, bool binary)
static DifferentiableTransform *	NewTransformOfType (const std::string &type)
Protected Attributes inherited from DifferentiableTransform
int32	num_classes_

Detailed Description

This is a version of the transform class that consists of a number of other transforms, appended dimension-wise– e.g.

This is a version of the transform class that appends over sub-ranges of dimensions, so that, for instance, you can implement a block-diagonal transform or a setup where some dimensions are transformed and some are not.

this could be used to implement block-diagonal fMLLR, or a structure where some dimensions are adapted and some are not.

Definition at line 418 of file differentiable-transform.h.

Constructor & Destructor Documentation

AppendTransform() [1/2]

AppendTransform

(

const AppendTransform &

other

)

AppendTransform() [2/2]

AppendTransform ( const AppendTransform &  other )

private

Member Function Documentation

Accumulate() [1/2]

void Accumulate ( int32  final_iter, const CuMatrixBase< BaseFloat > &  input, int32  num_chunks, int32  num_spk, const Posterior &  posteriors  )

overridevirtual

This will typically be called sequentially, minibatch by minibatch, for a subset of training data, after training the neural nets, followed by a call to Estimate().

Accumulate() stores statistics that are used by Estimate(). This process is analogous to computing the final stats in BatchNorm, in preparation for testing. In practice it will be doing things like computing per-class means and variances.

Parameters

[in]

final_iter

An iteration number in the range [0, NumFinalIterations()]. In many cases there will be only one iteration so this will just be zero.

The input parameters are the same as the same-named parameters to TrainingForward(); please refer to the documentation there.

Implements DifferentiableTransform.

Accumulate() [2/2]

void Accumulate ( const CuMatrixBase< BaseFloat > &  input, int32  num_chunks, int32  num_spk, const Posterior &  posteriors  )

overrideprivate

Copy() [1/2]

DifferentiableTransform* Copy ( ) const

inlineoverridevirtual

Implements DifferentiableTransform.

Definition at line 457 of file differentiable-transform.h.

                                                 {
    return new AppendTransform(*this);
  }

Copy() [2/2]

DifferentiableTransform* Copy ( ) const

overrideprivatevirtual

Implements DifferentiableTransform.

Dim() [1/2]

int32 Dim ( ) const

overridevirtual

Return the dimension of the input and output features.

Implements DifferentiableTransform.

Dim() [2/2]

int32 Dim ( ) const

overrideprivatevirtual

Return the dimension of the input and output features.

Implements DifferentiableTransform.

Estimate() [1/2]

void Estimate ( int32  final_iter )

overridevirtual

Implements DifferentiableTransform.

Estimate() [2/2]

void Estimate ( )

inlineoverrideprivate

Definition at line 504 of file differentiable-transform.h.

References kaldi::cu::Copy().

{ }

NumClasses()

int32 NumClasses ( ) const

overrideprivate

NumFinalIterations()

virtual int32 NumFinalIterations ( )

virtual

Returns the number of times you have to (call Accumulate() on a subset of data, then call Estimate())

Implements DifferentiableTransform.

Read() [1/2]

void Read ( std::istream &  is, bool  binary  )

overridevirtual

Implements DifferentiableTransform.

Read() [2/2]

void Read ( std::istream &  is, bool  binary  )

overrideprivatevirtual

Implements DifferentiableTransform.

SetNumClasses()

int32 SetNumClasses ( ) const

override

TestingForward()

virtual void TestingForward ( const MatrixBase< BaseFloat > &  input, const SpeakerStatsItf &  speaker_stats, MatrixBase< BaseFloat > *  output  )

overridevirtual

TrainingBackward() [1/2]

virtual void TrainingBackward ( const CuMatrixBase< BaseFloat > &  input, const CuMatrixBase< BaseFloat > &  output_deriv, int32  num_chunks, int32  num_spk, const Posterior &  posteriors, const MinibatchInfoItf &  minibatch_info, CuMatrixBase< BaseFloat > *  input_deriv  ) const

overridevirtual

This does the backpropagation, during the training pass.

Parameters

[in]	input	The original input (pre-transform) features that were given to TrainingForward().
[in]	output_deriv	The derivative of the objective function (that we are backpropagating) w.r.t. the output.
[in]	num_chunks,num_spk,posteriors	See TrainingForward() for information about these arguments; they should be the same values.
[in]	minibatch_info	The object returned by the corresponding call to TrainingForward(). The caller will likely want to delete that object after calling this function
[in,out]	input_deriv	The derivative at the input, i.e. dF/d(input), where F is the function we are evaluating. Must have the same dimension as 'input'. The derivative is *added* to here. This is useful because generally we will also be training (perhaps with less weight) on the unadapted features, in order to prevent them from deviating too far from the adapted ones and to allow the same model to be used for the first pass.

Implements DifferentiableTransform.

TrainingBackward() [2/2]

virtual void TrainingBackward ( const CuMatrixBase< BaseFloat > &  input, const CuMatrixBase< BaseFloat > &  output_deriv, int32  num_chunks, int32  num_spk, const Posterior &  posteriors, const MinibatchInfoItf &  minibatch_info, CuMatrixBase< BaseFloat > *  input_deriv  ) const

overrideprivatevirtual

This does the backpropagation, during the training pass.

Parameters

[in]	input	The original input (pre-transform) features that were given to TrainingForward().
[in]	output_deriv	The derivative of the objective function (that we are backpropagating) w.r.t. the output.
[in]	num_chunks,num_spk,posteriors	See TrainingForward() for information about these arguments; they should be the same values.
[in]	minibatch_info	The object returned by the corresponding call to TrainingForward(). The caller will likely want to delete that object after calling this function
[in,out]	input_deriv	The derivative at the input, i.e. dF/d(input), where F is the function we are evaluating. Must have the same dimension as 'input'. The derivative is *added* to here. This is useful because generally we will also be training (perhaps with less weight) on the unadapted features, in order to prevent them from deviating too far from the adapted ones and to allow the same model to be used for the first pass.

Implements DifferentiableTransform.

TrainingForward() [1/2]

MinibatchInfoItf* TrainingForward ( const CuMatrixBase< BaseFloat > &  input, int32  num_chunks, int32  num_spk, const Posterior &  posteriors, CuMatrixBase< BaseFloat > *  output  ) const

overridevirtual

This is the function you call in training time, for the forward pass; it adapts the features.

By "training time" here, we assume you are training the 'bottom' neural net, that produces the features in 'input'; if you were not training it, it would be the same as test time as far as this function is concerned.

Parameters

[in]	input	The original, un-adapted features; these will typically be output by a neural net, the 'bottom' net in our terminology. This will correspond to a whole minibatch, consisting of multiple speakers and multiple sequences (chunks) per speaker. Caution: the order of both the input and output features, and the posteriors, does not consist of blocks, one per sequence, but rather blocks, one per time frame, so the sequences are intercalated.
[in]	num_chunks	The number of individual sequences (e.g., chunks of speech) represented in 'input'. input.NumRows() will equal num_sequences times the number of time frames.
[in]	num_spk	The number of speakers. Must be greater than one, and must divide num_chunks. The number of chunks per speaker (num_chunks / num_spk) must be the same for all speakers, and the chunks for a speaker must be consecutive.
[in]	posteriors	(note: this is a vector of vector of pair<int32,BaseFloat>). This provides, in 'soft-count' form, the class supervision information that is used for the adaptation. posteriors.size() will be equal to input.NumRows(), and the ordering of its elements is the same as the ordering of the rows of input, i.e. the sequences are intercalated. There is no assumption that the posteriors sum to one; this allows you to do things like silence weighting.
[out]	output	The adapted output. This matrix should have the same dimensions as 'input'.

Returns

This function returns either NULL or an object of type DifferentiableTransformItf*, which is expected to be given to the function TrainingBackward(). It will store any information that will be needed in the backprop phase.

Implements DifferentiableTransform.

TrainingForward() [2/2]

MinibatchInfoItf* TrainingForward ( const CuMatrixBase< BaseFloat > &  input, int32  num_chunks, int32  num_spk, const Posterior &  posteriors, CuMatrixBase< BaseFloat > *  output  ) const

inlineoverrideprivatevirtual

This is the function you call in training time, for the forward pass; it adapts the features.

By "training time" here, we assume you are training the 'bottom' neural net, that produces the features in 'input'; if you were not training it, it would be the same as test time as far as this function is concerned.

Parameters

[in]	input	The original, un-adapted features; these will typically be output by a neural net, the 'bottom' net in our terminology. This will correspond to a whole minibatch, consisting of multiple speakers and multiple sequences (chunks) per speaker. Caution: the order of both the input and output features, and the posteriors, does not consist of blocks, one per sequence, but rather blocks, one per time frame, so the sequences are intercalated.
[in]	num_chunks	The number of individual sequences (e.g., chunks of speech) represented in 'input'. input.NumRows() will equal num_sequences times the number of time frames.
[in]	num_spk	The number of speakers. Must be greater than one, and must divide num_chunks. The number of chunks per speaker (num_chunks / num_spk) must be the same for all speakers, and the chunks for a speaker must be consecutive.
[in]	posteriors	(note: this is a vector of vector of pair<int32,BaseFloat>). This provides, in 'soft-count' form, the class supervision information that is used for the adaptation. posteriors.size() will be equal to input.NumRows(), and the ordering of its elements is the same as the ordering of the rows of input, i.e. the sequences are intercalated. There is no assumption that the posteriors sum to one; this allows you to do things like silence weighting.
[out]	output	The adapted output. This matrix should have the same dimensions as 'input'.

Returns

This function returns either NULL or an object of type DifferentiableTransformItf*, which is expected to be given to the function TrainingBackward(). It will store any information that will be needed in the backprop phase.

Implements DifferentiableTransform.

Definition at line 480 of file differentiable-transform.h.

References CuMatrixBase< Real >::CopyFromMat().

                                                      {
    output->CopyFromMat(input);
    return NULL;
  }

Write() [1/2]

void Write ( std::ostream &  os, bool  binary  ) const

overridevirtual

Implements DifferentiableTransform.

Write() [2/2]

void Write ( std::ostream &  os, bool  binary  ) const

overrideprivatevirtual

Implements DifferentiableTransform.

Member Data Documentation

transforms_

std::vector< DifferentiableTransform * > transforms_

private

Definition at line 466 of file differentiable-transform.h.

---

The documentation for this class was generated from the following file:

• transform/differentiable-transform.h
