This is a version of the transform class that does a sequence of other transforms, specified by other instances of the DifferentiableTransform interface. More...

#include <differentiable-transform.h>

Inheritance diagram for SequenceTransform:

[legend]

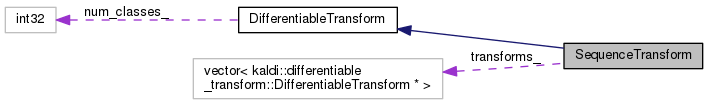

Collaboration diagram for SequenceTransform:

[legend]

Public Member Functions
int32	Dim () const override
	Return the dimension of the input and output features. More...

int32	SetNumClasses () const override

MinibatchInfoItf *	TrainingForward (const CuMatrixBase< BaseFloat > &input, int32 num_chunks, int32 num_spk, const Posterior &posteriors, CuMatrixBase< BaseFloat > *output) const override
	This is the function you call in training time, for the forward pass; it adapts the features. More...

virtual void	TrainingBackward (const CuMatrixBase< BaseFloat > &input, const CuMatrixBase< BaseFloat > &output_deriv, int32 num_chunks, int32 num_spk, const Posterior &posteriors, const MinibatchInfoItf &minibatch_info, CuMatrixBase< BaseFloat > *input_deriv) const override
	This does the backpropagation, during the training pass. More...

virtual int32	NumFinalIterations ()
	Returns the number of times you have to (call Accumulate() on a subset of data, then call Estimate()) More...

void	Accumulate (int32 final_iter, const CuMatrixBase< BaseFloat > &input, int32 num_chunks, int32 num_spk, const Posterior &posteriors) override
	This will typically be called sequentially, minibatch by minibatch, for a subset of training data, after training the neural nets, followed by a call to Estimate(). More...

SpeakerStatsItf *	GetEmptySpeakerStats () override

void	TestingAccumulate (const MatrixBase< BaseFloat > &input, const Posterior &posteriors, SpeakerStatsItf *speaker_stats) const override

virtual void	TestingForward (const MatrixBase< BaseFloat > &input, const SpeakerStatsItf &speaker_stats, MatrixBase< BaseFloat > *output) override

void	Estimate (int32 final_iter) override

	SequenceTransform (const SequenceTransform &other)

DifferentiableTransform *	Copy () const override

void	Write (std::ostream &os, bool binary) const override

void	Read (std::istream &is, bool binary) override

Public Member Functions inherited from DifferentiableTransform
int32	NumClasses () const
	Return the number of classes in the model used for adaptation. More...

virtual void	SetNumClasses (int32 num_classes)
	This can be used to change the number of classes. More...

virtual void	TestingForward (const MatrixBase< BaseFloat > &input, const SpeakerStatsItf &speaker_stats, MatrixBase< BaseFloat > *output) const =0

Private Attributes
std::vector< DifferentiableTransform * >	transforms_

Additional Inherited Members
Static Public Member Functions inherited from DifferentiableTransform
static DifferentiableTransform *	ReadNew (std::istream &is, bool binary)

static DifferentiableTransform *	NewTransformOfType (const std::string &type)

Protected Attributes inherited from DifferentiableTransform
int32	num_classes_

Detailed Description

This is a version of the transform class that does a sequence of other transforms, specified by other instances of the DifferentiableTransform interface.

Definition at line 353 of file differentiable-transform.h.

Constructor & Destructor Documentation

◆ SequenceTransform()

SequenceTransform ( const SequenceTransform & other )

Member Function Documentation

◆ Accumulate()

void Accumulate	(	int32	final_iter,
		const CuMatrixBase< BaseFloat > &	input,
		int32	num_chunks,
		int32	num_spk,
		const Posterior &	posteriors
	)

overridevirtual

This will typically be called sequentially, minibatch by minibatch, for a subset of training data, after training the neural nets, followed by a call to Estimate().

Accumulate() stores statistics that are used by Estimate(). This process is analogous to computing the final stats in BatchNorm, in preparation for testing. In practice it will be doing things like computing per-class means and variances.

Parameters

[in] final_iter An iteration number in the range [0, NumFinalIterations()]. In many cases there will be only one iteration so this will just be zero.

The input parameters are the same as the same-named parameters to TrainingForward(); please refer to the documentation there.

Implements DifferentiableTransform.

◆ Copy()

DifferentiableTransform* Copy ( ) const

inlineoverridevirtual

Implements DifferentiableTransform.

Definition at line 399 of file differentiable-transform.h.

                                                  {
     return new SequenceTransform(*this);
   }

◆ Dim()

int32 Dim ( ) const

overridevirtual

Return the dimension of the input and output features.

Implements DifferentiableTransform.

◆ Estimate()

void Estimate ( int32 final_iter )

overridevirtual

Implements DifferentiableTransform.

◆ GetEmptySpeakerStats()

SpeakerStatsItf* GetEmptySpeakerStats ( )

overridevirtual

Implements DifferentiableTransform.

◆ NumFinalIterations()

virtual int32 NumFinalIterations ( )

virtual

Returns the number of times you have to (call Accumulate() on a subset of data, then call Estimate())

Implements DifferentiableTransform.

◆ Read()

void Read	(	std::istream &	is,
		bool	binary
	)

overridevirtual

Implements DifferentiableTransform.

◆ SetNumClasses()

int32 SetNumClasses ( ) const

override

◆ TestingAccumulate()

void TestingAccumulate	(	const MatrixBase< BaseFloat > &	input,
		const Posterior &	posteriors,
		SpeakerStatsItf *	speaker_stats
	)		const

overridevirtual

Implements DifferentiableTransform.

◆ TestingForward()

virtual void TestingForward	(	const MatrixBase< BaseFloat > &	input,
		const SpeakerStatsItf &	speaker_stats,
		MatrixBase< BaseFloat > *	output
	)

overridevirtual

◆ TrainingBackward()

virtual void TrainingBackward	(	const CuMatrixBase< BaseFloat > &	input,
		const CuMatrixBase< BaseFloat > &	output_deriv,
		int32	num_chunks,
		int32	num_spk,
		const Posterior &	posteriors,
		const MinibatchInfoItf &	minibatch_info,
		CuMatrixBase< BaseFloat > *	input_deriv
	)		const

overridevirtual

This does the backpropagation, during the training pass.

Parameters

[in]	input	The original input (pre-transform) features that were given to TrainingForward().
[in]	output_deriv	The derivative of the objective function (that we are backpropagating) w.r.t. the output.
[in]	num_chunks,num_spk,posteriors	See TrainingForward() for information about these arguments; they should be the same values.
[in]	minibatch_info	The object returned by the corresponding call to TrainingForward(). The caller will likely want to delete that object after calling this function
[in,out]	input_deriv	The derivative at the input, i.e. dF/d(input), where F is the function we are evaluating. Must have the same dimension as 'input'. The derivative is added to here. This is useful because generally we will also be training (perhaps with less weight) on the unadapted features, in order to prevent them from deviating too far from the adapted ones and to allow the same model to be used for the first pass.

Implements DifferentiableTransform.

◆ TrainingForward()

MinibatchInfoItf* TrainingForward	(	const CuMatrixBase< BaseFloat > &	input,
		int32	num_chunks,
		int32	num_spk,
		const Posterior &	posteriors,
		CuMatrixBase< BaseFloat > *	output
	)		const

overridevirtual

This is the function you call in training time, for the forward pass; it adapts the features.

By "training time" here, we assume you are training the 'bottom' neural net, that produces the features in 'input'; if you were not training it, it would be the same as test time as far as this function is concerned.

Parameters

[in]	input	The original, un-adapted features; these will typically be output by a neural net, the 'bottom' net in our terminology. This will correspond to a whole minibatch, consisting of multiple speakers and multiple sequences (chunks) per speaker. Caution: the order of both the input and output features, and the posteriors, does not consist of blocks, one per sequence, but rather blocks, one per time frame, so the sequences are intercalated.
[in]	num_chunks	The number of individual sequences (e.g., chunks of speech) represented in 'input'. input.NumRows() will equal num_sequences times the number of time frames.
[in]	num_spk	The number of speakers. Must be greater than one, and must divide num_chunks. The number of chunks per speaker (num_chunks / num_spk) must be the same for all speakers, and the chunks for a speaker must be consecutive.
[in]	posteriors	(note: this is a vector of vector of pair<int32,BaseFloat>). This provides, in 'soft-count' form, the class supervision information that is used for the adaptation. posteriors.size() will be equal to input.NumRows(), and the ordering of its elements is the same as the ordering of the rows of input, i.e. the sequences are intercalated. There is no assumption that the posteriors sum to one; this allows you to do things like silence weighting.
[out]	output	The adapted output. This matrix should have the same dimensions as 'input'.

Returns: This function returns either NULL or an object of type DifferentiableTransformItf*, which is expected to be given to the function TrainingBackward(). It will store any information that will be needed in the backprop phase.

Implements DifferentiableTransform.

◆ Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

overridevirtual

Implements DifferentiableTransform.

Member Data Documentation

◆ transforms_

std::vector<DifferentiableTransform*> transforms_

private

Definition at line 408 of file differentiable-transform.h.

The documentation for this class was generated from the following file:

transform/differentiable-transform.h
