CopyComponent Class Reference

Rearrange the matrix columns according to the indices in copy_from_indices_. More...

#include <nnet-various.h>

Inheritance diagram for CopyComponent:

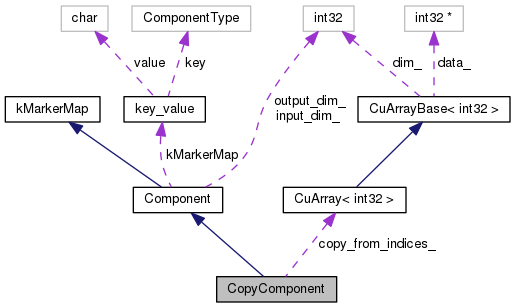

Collaboration diagram for CopyComponent:

Public Member Functions
	CopyComponent (int32 dim_in, int32 dim_out)
	~CopyComponent ()
Component *	Copy () const
	Copy component (deep copy),. More...
ComponentType	GetType () const
	Get Type Identification of the component,. More...
void	InitData (std::istream &is)
	Virtual interface for initialization and I/O,. More...
void	ReadData (std::istream &is, bool binary)
	Reads the component content. More...
void	WriteData (std::ostream &os, bool binary) const
	Writes the component content. More...
std::string	Info () const
	Print some additional info (after <ComponentName> and the dims),. More...
void	PropagateFnc (const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > *out)
	Abstract interface for propagation/backpropagation. More...
void	BackpropagateFnc (const CuMatrixBase< BaseFloat > &in, const CuMatrixBase< BaseFloat > &out, const CuMatrixBase< BaseFloat > &out_diff, CuMatrixBase< BaseFloat > *in_diff)
	Backward pass transformation (to be implemented by descending class...) More...
Public Member Functions inherited from Component
	Component (int32 input_dim, int32 output_dim)
	Generic interface of a component,. More...
virtual	~Component ()
virtual bool	IsUpdatable () const
	Check if componeny has 'Updatable' interface (trainable components),. More...
virtual bool	IsMultistream () const
	Check if component has 'Recurrent' interface (trainable and recurrent),. More...
int32	InputDim () const
	Get the dimension of the input,. More...
int32	OutputDim () const
	Get the dimension of the output,. More...
void	Propagate (const CuMatrixBase< BaseFloat > &in, CuMatrix< BaseFloat > *out)
	Perform forward-pass propagation 'in' -> 'out',. More...
void	Backpropagate (const CuMatrixBase< BaseFloat > &in, const CuMatrixBase< BaseFloat > &out, const CuMatrixBase< BaseFloat > &out_diff, CuMatrix< BaseFloat > *in_diff)
	Perform backward-pass propagation 'out_diff' -> 'in_diff'. More...
void	Write (std::ostream &os, bool binary) const
	Write the component to a stream,. More...
virtual std::string	InfoGradient () const
	Print some additional info about gradient (after <...> and dims),. More...

Protected Attributes
CuArray< int32 >	copy_from_indices_
Protected Attributes inherited from Component
int32	input_dim_
	Data members,. More...
int32	output_dim_
	Dimension of the output of the Component,. More...

Additional Inherited Members
Public Types inherited from Component
enum	ComponentType {   kUnknown = 0x0, kUpdatableComponent = 0x0100, kAffineTransform, kLinearTransform,   kConvolutionalComponent, kLstmProjected, kBlstmProjected, kRecurrentComponent,   kActivationFunction = 0x0200, kSoftmax, kHiddenSoftmax, kBlockSoftmax,   kSigmoid, kTanh, kParametricRelu, kDropout,   kLengthNormComponent, kTranform = 0x0400, kRbm, kSplice,   kCopy, kTranspose, kBlockLinearity, kAddShift,   kRescale, kKlHmm = 0x0800, kSentenceAveragingComponent, kSimpleSentenceAveragingComponent,   kAveragePoolingComponent, kMaxPoolingComponent, kFramePoolingComponent, kParallelComponent,   kMultiBasisComponent }
	Component type identification mechanism,. More...
Static Public Member Functions inherited from Component
static const char *	TypeToMarker (ComponentType t)
	Converts component type to marker,. More...
static ComponentType	MarkerToType (const std::string &s)
	Converts marker to component type (case insensitive),. More...
static Component *	Init (const std::string &conf_line)
	Initialize component from a line in config file,. More...
static Component *	Read (std::istream &is, bool binary)
	Read the component from a stream (static method),. More...
Static Public Attributes inherited from Component
static const struct key_value	kMarkerMap []
	The table with pairs of Component types and markers (defined in nnet-component.cc),. More...

Detailed Description

Rearrange the matrix columns according to the indices in copy_from_indices_.

Definition at line 146 of file nnet-various.h.

Constructor & Destructor Documentation

CopyComponent()

CopyComponent ( int32  dim_in, int32  dim_out  )

inline

Definition at line 148 of file nnet-various.h.

                                            :
    Component(dim_in, dim_out)
  { }

~CopyComponent()

~CopyComponent ( )

inline

Definition at line 152 of file nnet-various.h.

  { }

Member Function Documentation

BackpropagateFnc()

void BackpropagateFnc ( const CuMatrixBase< BaseFloat > &  in, const CuMatrixBase< BaseFloat > &  out, const CuMatrixBase< BaseFloat > &  out_diff, CuMatrixBase< BaseFloat > *  in_diff  )

inlinevirtual

Backward pass transformation (to be implemented by descending class...)

Implements Component.

Definition at line 221 of file nnet-various.h.

References Splice::GetType(), KALDI_WARN, CuMatrixBase< Real >::SetZero(), and Component::TypeToMarker().

                                                          {
    static bool warning_displayed = false;
    if (!warning_displayed) {
      KALDI_WARN << Component::TypeToMarker(GetType()) << " : "
                 << __func__ << "() Not implemented!";

      warning_displayed = true;
    }
    in_diff->SetZero();
  }

Copy()

Component* Copy ( ) const

inlinevirtual

Copy component (deep copy),.

Implements Component.

Definition at line 155 of file nnet-various.h.

{ return new CopyComponent(*this); }

GetType()

ComponentType GetType ( ) const

inlinevirtual

Get Type Identification of the component,.

Implements Component.

Definition at line 156 of file nnet-various.h.

References Component::kCopy.

{ return kCopy; }

Info()

std::string Info ( ) const

inlinevirtual

Print some additional info (after <ComponentName> and the dims),.

Reimplemented from Component.

Definition at line 211 of file nnet-various.h.

References kaldi::nnet1::ToString().

                         {
    return std::string("\n  min ") + ToString(copy_from_indices_.Min()) +
                         ", max "  + ToString(copy_from_indices_.Max());
  }

InitData()

void InitData ( std::istream &  is )

inlinevirtual

Virtual interface for initialization and I/O,.

Initialize internal data of a component

Reimplemented from Component.

Definition at line 158 of file nnet-various.h.

References kaldi::nnet1::BuildIntegerVector(), Component::InputDim(), KALDI_ASSERT, KALDI_ERR, Component::OutputDim(), kaldi::ReadToken(), and kaldi::SplitStringToIntegers().

                                {
    // define options,
    std::vector<std::vector<int32> > build_vector;
    // parse config,
    std::string token;
    while (is >> std::ws, !is.eof()) {
      ReadToken(is, false, &token);
       if (token == "<ReadVector>") {
        copy_from_indices_.Read(is, false);
      } else if (token == "<BuildVector>") {
        // <BuildVector> 1:1:1000 1:1:1000 1 2 3 1:10 </BuildVector>
        // 'matlab-line' indexing, read the colon-separated-lists:
        while (is >> std::ws, !is.eof()) {
          std::string colon_sep_list_or_end;
          ReadToken(is, false, &colon_sep_list_or_end);
          if (colon_sep_list_or_end == "</BuildVector>") break;
          std::vector<int32> v;
          SplitStringToIntegers(colon_sep_list_or_end, ":", false, &v);
          build_vector.push_back(v);
        }
      } else {
        KALDI_ERR << "Unknown token " << token << ", a typo in config?"
                  << " (ReadVector|BuildVector)";
      }
    }

    if (build_vector.size() > 0) {
      // build the vector, using <BuildVector> ... </BuildVector> inputs,
      BuildIntegerVector(build_vector, &copy_from_indices_);
    }

    // decrease by 1,
    copy_from_indices_.Add(-1);

    // check range,
    KALDI_ASSERT(copy_from_indices_.Min() >= 0);
    KALDI_ASSERT(copy_from_indices_.Max() < InputDim());
    // check dim,
    KALDI_ASSERT(copy_from_indices_.Dim() == OutputDim());
  }

PropagateFnc()

void PropagateFnc ( const CuMatrixBase< BaseFloat > &  in, CuMatrixBase< BaseFloat > *  out  )

inlinevirtual

Abstract interface for propagation/backpropagation.

Forward pass transformation (to be implemented by descending class...)

Implements Component.

Definition at line 216 of file nnet-various.h.

References kaldi::cu::Copy().

                                                  {
    cu::Copy(in, copy_from_indices_,out);
  }

ReadData()

void ReadData ( std::istream &  is, bool  binary  )

inlinevirtual

Reads the component content.

Reimplemented from Component.

Definition at line 199 of file nnet-various.h.

References KALDI_ASSERT, and Component::OutputDim().

                                             {
    copy_from_indices_.Read(is, binary);
    KALDI_ASSERT(copy_from_indices_.Dim() == OutputDim());
    copy_from_indices_.Add(-1);  // -1 from each element,
  }

WriteData()

void WriteData ( std::ostream &  os, bool  binary  ) const

inlinevirtual

Writes the component content.

Reimplemented from Component.

Definition at line 205 of file nnet-various.h.

References CuArrayBase< T >::Add(), and CuArray< T >::Write().

                                                    {
    CuArray<int32> tmp(copy_from_indices_);
    tmp.Add(1);  // +1 to each element,
    tmp.Write(os, binary);
  }

Member Data Documentation

copy_from_indices_

CuArray<int32> copy_from_indices_

protected

Definition at line 236 of file nnet-various.h.

---

The documentation for this class was generated from the following file:

• nnet/nnet-various.h
