feature-mfcc-test.cc File Reference

#include <iostream>
#include "feat/feature-mfcc.h"
#include "base/kaldi-math.h"
#include "matrix/kaldi-matrix-inl.h"
#include "feat/wave-reader.h"

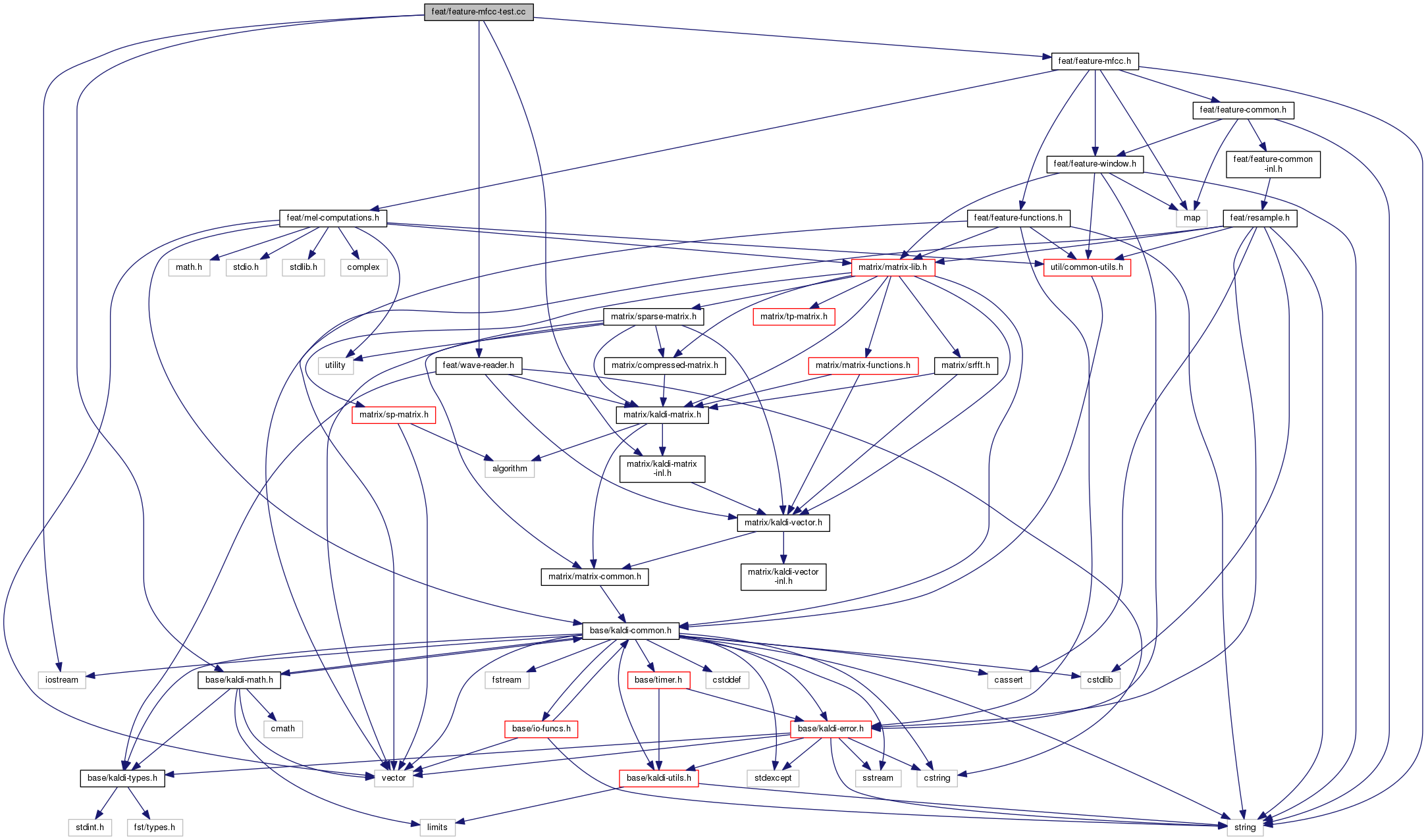

Include dependency graph for feature-mfcc-test.cc:

Go to the source code of this file.

Functions
static void	UnitTestReadWave ()
static void	UnitTestSimple ()
static void	UnitTestHTKCompare1 ()
static void	UnitTestHTKCompare2 ()
static void	UnitTestHTKCompare3 ()
static void	UnitTestHTKCompare4 ()
static void	UnitTestHTKCompare5 ()
static void	UnitTestHTKCompare6 ()
void	UnitTestVtln ()
static void	UnitTestFeat ()
int	main ()

Function Documentation

main()

int main

(

)

Definition at line 674 of file feature-mfcc-test.cc.

References rnnlm::i, and UnitTestFeat().

           {
  try {
    for (int i = 0; i < 5; i++)
      UnitTestFeat();
    std::cout << "Tests succeeded.\n";
    return 0;
  } catch (const std::exception &e) {
    std::cerr << e.what();
    return 1;
  }
}

UnitTestFeat()

static void UnitTestFeat ( )

static

Definition at line 656 of file feature-mfcc-test.cc.

References UnitTestHTKCompare1(), UnitTestHTKCompare2(), UnitTestHTKCompare3(), UnitTestHTKCompare4(), UnitTestHTKCompare5(), UnitTestHTKCompare6(), UnitTestReadWave(), kaldi::UnitTestSimple(), and UnitTestVtln().

Referenced by main().

                           {
  UnitTestVtln();
  UnitTestReadWave();
  UnitTestSimple();
  UnitTestHTKCompare1();
  UnitTestHTKCompare2();
  // commenting out this one as it doesn't compare right now I normalized
  // the way the FFT bins are treated (removed offset of 0.5)... this seems
  // to relate to the way frequency zero behaves.
  UnitTestHTKCompare3();
  UnitTestHTKCompare4();
  UnitTestHTKCompare5();
  UnitTestHTKCompare6();
  std::cout << "Tests succeeded.\n";
}

UnitTestHTKCompare1()

static void UnitTestHTKCompare1 ( )

static

Definition at line 112 of file feature-mfcc-test.cc.

References OfflineFeatureTpl< F >::Compute(), kaldi::ComputeDeltas(), WaveData::Data(), FrameExtractionOptions::dither, MfccOptions::frame_opts, MfccOptions::htk_compat, MelBanksOptions::htk_mode, rnnlm::i, rnnlm::j, KALDI_ASSERT, KALDI_ERR, MelBanksOptions::low_freq, MfccOptions::mel_opts, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), FrameExtractionOptions::preemph_coeff, WaveData::Read(), kaldi::ReadHtk(), FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, MatrixBase< Real >::Row(), MfccOptions::use_energy, FrameExtractionOptions::window_type, and kaldi::WriteHtk().

Referenced by UnitTestFeat().

                                  {
  std::cout << "=== UnitTestHTKCompare1() ===\n";

  std::ifstream is("test_data/test.wav", std::ios_base::binary);
  WaveData wave;
  wave.Read(is);
  KALDI_ASSERT(wave.Data().NumRows() == 1);
  SubVector<BaseFloat> waveform(wave.Data(), 0);

  // read the HTK features
  Matrix<BaseFloat> htk_features;
  {
    std::ifstream is("test_data/test.wav.fea_htk.1",
                     std::ios::in | std::ios_base::binary);
    bool ans = ReadHtk(is, &htk_features, 0);
    KALDI_ASSERT(ans);
  }

  // use mfcc with default configuration...
  MfccOptions op;
  op.frame_opts.dither = 0.0;
  op.frame_opts.preemph_coeff = 0.0;
  op.frame_opts.window_type = "hamming";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.mel_opts.low_freq = 0.0;
  op.mel_opts.htk_mode = true;
  op.htk_compat = true;
  op.use_energy = false;  // C0 not energy.

  Mfcc mfcc(op);

  // calculate kaldi features
  Matrix<BaseFloat> kaldi_raw_features;
  mfcc.Compute(waveform, 1.0, &kaldi_raw_features);

  DeltaFeaturesOptions delta_opts;
  Matrix<BaseFloat> kaldi_features;
  ComputeDeltas(delta_opts,
                kaldi_raw_features,
                &kaldi_features);

  // compare the results
  bool passed = true;
  int32 i_old = -1;
  KALDI_ASSERT(kaldi_features.NumRows() == htk_features.NumRows());
  KALDI_ASSERT(kaldi_features.NumCols() == htk_features.NumCols());
  // Ignore ends-- we make slightly different choices than
  // HTK about how to treat the deltas at the ends.
  for (int32 i = 10; i+10 < kaldi_features.NumRows(); i++) {
    for (int32 j = 0; j < kaldi_features.NumCols(); j++) {
      BaseFloat a = kaldi_features(i, j), b = htk_features(i, j);
      if ((std::abs(b - a)) > 1.0) {  //<< TOLERANCE TO DIFFERENCES!!!!!
        // print the non-matching data only once per-line
        if (i_old != i) {
          std::cout << "\n\n\n[HTK-row: " << i << "] " << htk_features.Row(i) << "\n";
          std::cout << "[Kaldi-row: " << i << "] " << kaldi_features.Row(i) << "\n\n\n";
          i_old = i;
        }
        // print indices of non-matching cells
        std::cout << "[" << i << ", " << j << "]";
        passed = false;
  }}}
  if (!passed) KALDI_ERR << "Test failed";

  // write the htk features for later inspection
  HtkHeader header = {
    kaldi_features.NumRows(),
    100000,  // 10ms
    static_cast<int16>(sizeof(float)*kaldi_features.NumCols()),
    021406  // MFCC_D_A_0
  };
  {
    std::ofstream os("tmp.test.wav.fea_kaldi.1",
                     std::ios::out|std::ios::binary);
    WriteHtk(os, kaldi_features, header);
  }

  std::cout << "Test passed :)\n\n";

  unlink("tmp.test.wav.fea_kaldi.1");
}

UnitTestHTKCompare2()

static void UnitTestHTKCompare2 ( )

static

Definition at line 196 of file feature-mfcc-test.cc.

References OfflineFeatureTpl< F >::Compute(), kaldi::ComputeDeltas(), WaveData::Data(), FrameExtractionOptions::dither, MfccOptions::frame_opts, MfccOptions::htk_compat, MelBanksOptions::htk_mode, rnnlm::i, rnnlm::j, KALDI_ASSERT, KALDI_ERR, MelBanksOptions::low_freq, MfccOptions::mel_opts, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), FrameExtractionOptions::preemph_coeff, WaveData::Read(), kaldi::ReadHtk(), FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, MatrixBase< Real >::Row(), MfccOptions::use_energy, FrameExtractionOptions::window_type, and kaldi::WriteHtk().

Referenced by UnitTestFeat().

                                  {
  std::cout << "=== UnitTestHTKCompare2() ===\n";

  std::ifstream is("test_data/test.wav", std::ios_base::binary);
  WaveData wave;
  wave.Read(is);
  KALDI_ASSERT(wave.Data().NumRows() == 1);
  SubVector<BaseFloat> waveform(wave.Data(), 0);

  // read the HTK features
  Matrix<BaseFloat> htk_features;
  {
    std::ifstream is("test_data/test.wav.fea_htk.2",
                     std::ios::in | std::ios_base::binary);
    bool ans = ReadHtk(is, &htk_features, 0);
    KALDI_ASSERT(ans);
  }

  // use mfcc with default configuration...
  MfccOptions op;
  op.frame_opts.dither = 0.0;
  op.frame_opts.preemph_coeff = 0.0;
  op.frame_opts.window_type = "hamming";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.mel_opts.low_freq = 0.0;
  op.mel_opts.htk_mode = true;
  op.htk_compat = true;
  op.use_energy = true;  // Use energy.

  Mfcc mfcc(op);

  // calculate kaldi features
  Matrix<BaseFloat> kaldi_raw_features;
  mfcc.Compute(waveform, 1.0, &kaldi_raw_features);

  DeltaFeaturesOptions delta_opts;
  Matrix<BaseFloat> kaldi_features;
  ComputeDeltas(delta_opts,
                kaldi_raw_features,
                &kaldi_features);

  // compare the results
  bool passed = true;
  int32 i_old = -1;
  KALDI_ASSERT(kaldi_features.NumRows() == htk_features.NumRows());
  KALDI_ASSERT(kaldi_features.NumCols() == htk_features.NumCols());
  // Ignore ends-- we make slightly different choices than
  // HTK about how to treat the deltas at the ends.
  for (int32 i = 10; i+10 < kaldi_features.NumRows(); i++) {
    for (int32 j = 0; j < kaldi_features.NumCols(); j++) {
      BaseFloat a = kaldi_features(i, j), b = htk_features(i, j);
      if ((std::abs(b - a)) > 1.0) {  //<< TOLERANCE TO DIFFERENCES!!!!!
        // print the non-matching data only once per-line
        if (i_old != i) {
          std::cout << "\n\n\n[HTK-row: " << i << "] " << htk_features.Row(i) << "\n";
          std::cout << "[Kaldi-row: " << i << "] " << kaldi_features.Row(i) << "\n\n\n";
          i_old = i;
        }
        // print indices of non-matching cells
        std::cout << "[" << i << ", " << j << "]";
        passed = false;
  }}}
  if (!passed) KALDI_ERR << "Test failed";

  // write the htk features for later inspection
  HtkHeader header = {
    kaldi_features.NumRows(),
    100000,  // 10ms
    static_cast<int16>(sizeof(float)*kaldi_features.NumCols()),
    021406  // MFCC_D_A_0
  };
  {
    std::ofstream os("tmp.test.wav.fea_kaldi.2",
                     std::ios::out|std::ios::binary);
    WriteHtk(os, kaldi_features, header);
  }

  std::cout << "Test passed :)\n\n";

  unlink("tmp.test.wav.fea_kaldi.2");
}

UnitTestHTKCompare3()

static void UnitTestHTKCompare3 ( )

static

Definition at line 280 of file feature-mfcc-test.cc.

References OfflineFeatureTpl< F >::Compute(), kaldi::ComputeDeltas(), WaveData::Data(), FrameExtractionOptions::dither, MfccOptions::frame_opts, MfccOptions::htk_compat, MelBanksOptions::htk_mode, rnnlm::i, rnnlm::j, KALDI_ASSERT, KALDI_ERR, MelBanksOptions::low_freq, MfccOptions::mel_opts, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), FrameExtractionOptions::preemph_coeff, WaveData::Read(), kaldi::ReadHtk(), FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, MatrixBase< Real >::Row(), MfccOptions::use_energy, FrameExtractionOptions::window_type, and kaldi::WriteHtk().

Referenced by UnitTestFeat().

                                  {
  std::cout << "=== UnitTestHTKCompare3() ===\n";

  std::ifstream is("test_data/test.wav", std::ios_base::binary);
  WaveData wave;
  wave.Read(is);
  KALDI_ASSERT(wave.Data().NumRows() == 1);
  SubVector<BaseFloat> waveform(wave.Data(), 0);

  // read the HTK features
  Matrix<BaseFloat> htk_features;
  {
    std::ifstream is("test_data/test.wav.fea_htk.3",
                     std::ios::in | std::ios_base::binary);
    bool ans = ReadHtk(is, &htk_features, 0);
    KALDI_ASSERT(ans);
  }

  // use mfcc with default configuration...
  MfccOptions op;
  op.frame_opts.dither = 0.0;
  op.frame_opts.preemph_coeff = 0.0;
  op.frame_opts.window_type = "hamming";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.htk_compat = true;
  op.use_energy = true;  // Use energy.
  op.mel_opts.low_freq = 20.0;
  //op.mel_opts.debug_mel = true;
  op.mel_opts.htk_mode = true;

  Mfcc mfcc(op);

  // calculate kaldi features
  Matrix<BaseFloat> kaldi_raw_features;
  mfcc.Compute(waveform, 1.0, &kaldi_raw_features);

  DeltaFeaturesOptions delta_opts;
  Matrix<BaseFloat> kaldi_features;
  ComputeDeltas(delta_opts,
                kaldi_raw_features,
                &kaldi_features);

  // compare the results
  bool passed = true;
  int32 i_old = -1;
  KALDI_ASSERT(kaldi_features.NumRows() == htk_features.NumRows());
  KALDI_ASSERT(kaldi_features.NumCols() == htk_features.NumCols());
  // Ignore ends-- we make slightly different choices than
  // HTK about how to treat the deltas at the ends.
  for (int32 i = 10; i+10 < kaldi_features.NumRows(); i++) {
    for (int32 j = 0; j < kaldi_features.NumCols(); j++) {
      BaseFloat a = kaldi_features(i, j), b = htk_features(i, j);
      if ((std::abs(b - a)) > 1.0) {  //<< TOLERANCE TO DIFFERENCES!!!!!
        // print the non-matching data only once per-line
        if (static_cast<int32>(i_old) != i) {
          std::cout << "\n\n\n[HTK-row: " << i << "] " << htk_features.Row(i) << "\n";
          std::cout << "[Kaldi-row: " << i << "] " << kaldi_features.Row(i) << "\n\n\n";
          i_old = i;
        }
        // print indices of non-matching cells
        std::cout << "[" << i << ", " << j << "]";
        passed = false;
  }}}
  if (!passed) KALDI_ERR << "Test failed";

  // write the htk features for later inspection
  HtkHeader header = {
    kaldi_features.NumRows(),
    100000,  // 10ms
    static_cast<int16>(sizeof(float)*kaldi_features.NumCols()),
    021406  // MFCC_D_A_0
  };
  {
    std::ofstream os("tmp.test.wav.fea_kaldi.3",
                     std::ios::out|std::ios::binary);
    WriteHtk(os, kaldi_features, header);
  }

  std::cout << "Test passed :)\n\n";

  unlink("tmp.test.wav.fea_kaldi.3");
}

UnitTestHTKCompare4()

static void UnitTestHTKCompare4 ( )

static

Definition at line 365 of file feature-mfcc-test.cc.

References OfflineFeatureTpl< F >::Compute(), kaldi::ComputeDeltas(), WaveData::Data(), FrameExtractionOptions::dither, MfccOptions::frame_opts, MfccOptions::htk_compat, MelBanksOptions::htk_mode, rnnlm::i, rnnlm::j, KALDI_ASSERT, KALDI_ERR, MelBanksOptions::low_freq, MfccOptions::mel_opts, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), WaveData::Read(), kaldi::ReadHtk(), FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, MatrixBase< Real >::Row(), MfccOptions::use_energy, FrameExtractionOptions::window_type, and kaldi::WriteHtk().

Referenced by UnitTestFeat().

                                  {
  std::cout << "=== UnitTestHTKCompare4() ===\n";

  std::ifstream is("test_data/test.wav", std::ios_base::binary);
  WaveData wave;
  wave.Read(is);
  KALDI_ASSERT(wave.Data().NumRows() == 1);
  SubVector<BaseFloat> waveform(wave.Data(), 0);

  // read the HTK features
  Matrix<BaseFloat> htk_features;
  {
    std::ifstream is("test_data/test.wav.fea_htk.4",
                     std::ios::in | std::ios_base::binary);
    bool ans = ReadHtk(is, &htk_features, 0);
    KALDI_ASSERT(ans);
  }

  // use mfcc with default configuration...
  MfccOptions op;
  op.frame_opts.dither = 0.0;
  op.frame_opts.window_type = "hamming";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.mel_opts.low_freq = 0.0;
  op.htk_compat = true;
  op.use_energy = true;  // Use energy.
  op.mel_opts.htk_mode = true;

  Mfcc mfcc(op);

  // calculate kaldi features
  Matrix<BaseFloat> kaldi_raw_features;
  mfcc.Compute(waveform, 1.0, &kaldi_raw_features);

  DeltaFeaturesOptions delta_opts;
  Matrix<BaseFloat> kaldi_features;
  ComputeDeltas(delta_opts,
                kaldi_raw_features,
                &kaldi_features);

  // compare the results
  bool passed = true;
  int32 i_old = -1;
  KALDI_ASSERT(kaldi_features.NumRows() == htk_features.NumRows());
  KALDI_ASSERT(kaldi_features.NumCols() == htk_features.NumCols());
  // Ignore ends-- we make slightly different choices than
  // HTK about how to treat the deltas at the ends.
  for (int32 i = 10; i+10 < kaldi_features.NumRows(); i++) {
    for (int32 j = 0; j < kaldi_features.NumCols(); j++) {
      BaseFloat a = kaldi_features(i, j), b = htk_features(i, j);
      if ((std::abs(b - a)) > 1.0) {  //<< TOLERANCE TO DIFFERENCES!!!!!
        // print the non-matching data only once per-line
        if (static_cast<int32>(i_old) != i) {
          std::cout << "\n\n\n[HTK-row: " << i << "] " << htk_features.Row(i) << "\n";
          std::cout << "[Kaldi-row: " << i << "] " << kaldi_features.Row(i) << "\n\n\n";
          i_old = i;
        }
        // print indices of non-matching cells
        std::cout << "[" << i << ", " << j << "]";
        passed = false;
  }}}
  if (!passed) KALDI_ERR << "Test failed";

  // write the htk features for later inspection
  HtkHeader header = {
    kaldi_features.NumRows(),
    100000,  // 10ms
    static_cast<int16>(sizeof(float)*kaldi_features.NumCols()),
    021406  // MFCC_D_A_0
  };
  {
    std::ofstream os("tmp.test.wav.fea_kaldi.4",
                     std::ios::out|std::ios::binary);
    WriteHtk(os, kaldi_features, header);
  }

  std::cout << "Test passed :)\n\n";

  unlink("tmp.test.wav.fea_kaldi.4");
}

UnitTestHTKCompare5()

static void UnitTestHTKCompare5 ( )

static

Definition at line 448 of file feature-mfcc-test.cc.

References OfflineFeatureTpl< F >::Compute(), kaldi::ComputeDeltas(), WaveData::Data(), FrameExtractionOptions::dither, MfccOptions::frame_opts, MfccOptions::htk_compat, MelBanksOptions::htk_mode, rnnlm::i, rnnlm::j, KALDI_ASSERT, KALDI_ERR, MelBanksOptions::low_freq, MfccOptions::mel_opts, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), WaveData::Read(), kaldi::ReadHtk(), FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, MatrixBase< Real >::Row(), MfccOptions::use_energy, MelBanksOptions::vtln_high, MelBanksOptions::vtln_low, FrameExtractionOptions::window_type, and kaldi::WriteHtk().

Referenced by UnitTestFeat().

                                  {
  std::cout << "=== UnitTestHTKCompare5() ===\n";

  std::ifstream is("test_data/test.wav", std::ios_base::binary);
  WaveData wave;
  wave.Read(is);
  KALDI_ASSERT(wave.Data().NumRows() == 1);
  SubVector<BaseFloat> waveform(wave.Data(), 0);

  // read the HTK features
  Matrix<BaseFloat> htk_features;
  {
    std::ifstream is("test_data/test.wav.fea_htk.5",
                     std::ios::in | std::ios_base::binary);
    bool ans = ReadHtk(is, &htk_features, 0);
    KALDI_ASSERT(ans);
  }

  // use mfcc with default configuration...
  MfccOptions op;
  op.frame_opts.dither = 0.0;
  op.frame_opts.window_type = "hamming";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.htk_compat = true;
  op.use_energy = true;  // Use energy.
  op.mel_opts.low_freq = 0.0;
  op.mel_opts.vtln_low = 100.0;
  op.mel_opts.vtln_high = 7500.0;
  op.mel_opts.htk_mode = true;

  BaseFloat vtln_warp = 1.1; // our approach identical to htk for warp factor >1,
  // differs slightly for higher mel bins if warp_factor <0.9

  Mfcc mfcc(op);

  // calculate kaldi features
  Matrix<BaseFloat> kaldi_raw_features;
  mfcc.Compute(waveform, vtln_warp, &kaldi_raw_features);

  DeltaFeaturesOptions delta_opts;
  Matrix<BaseFloat> kaldi_features;
  ComputeDeltas(delta_opts,
                kaldi_raw_features,
                &kaldi_features);

  // compare the results
  bool passed = true;
  int32 i_old = -1;
  KALDI_ASSERT(kaldi_features.NumRows() == htk_features.NumRows());
  KALDI_ASSERT(kaldi_features.NumCols() == htk_features.NumCols());
  // Ignore ends-- we make slightly different choices than
  // HTK about how to treat the deltas at the ends.
  for (int32 i = 10; i+10 < kaldi_features.NumRows(); i++) {
    for (int32 j = 0; j < kaldi_features.NumCols(); j++) {
      BaseFloat a = kaldi_features(i, j), b = htk_features(i, j);
      if ((std::abs(b - a)) > 1.0) {  //<< TOLERANCE TO DIFFERENCES!!!!!
        // print the non-matching data only once per-line
        if (static_cast<int32>(i_old) != i) {
          std::cout << "\n\n\n[HTK-row: " << i << "] " << htk_features.Row(i) << "\n";
          std::cout << "[Kaldi-row: " << i << "] " << kaldi_features.Row(i) << "\n\n\n";
          i_old = i;
        }
        // print indices of non-matching cells
        std::cout << "[" << i << ", " << j << "]";
        passed = false;
  }}}
  if (!passed) KALDI_ERR << "Test failed";

  // write the htk features for later inspection
  HtkHeader header = {
    kaldi_features.NumRows(),
    100000,  // 10ms
    static_cast<int16>(sizeof(float)*kaldi_features.NumCols()),
    021406  // MFCC_D_A_0
  };
  {
    std::ofstream os("tmp.test.wav.fea_kaldi.5",
                     std::ios::out|std::ios::binary);
    WriteHtk(os, kaldi_features, header);
  }

  std::cout << "Test passed :)\n\n";

  unlink("tmp.test.wav.fea_kaldi.5");
}

UnitTestHTKCompare6()

static void UnitTestHTKCompare6 ( )

static

Definition at line 535 of file feature-mfcc-test.cc.

References OfflineFeatureTpl< F >::Compute(), kaldi::ComputeDeltas(), WaveData::Data(), FrameExtractionOptions::dither, MfccOptions::frame_opts, MelBanksOptions::high_freq, MfccOptions::htk_compat, rnnlm::i, rnnlm::j, KALDI_ASSERT, KALDI_ERR, MelBanksOptions::low_freq, MfccOptions::mel_opts, MelBanksOptions::num_bins, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), FrameExtractionOptions::preemph_coeff, WaveData::Read(), kaldi::ReadHtk(), FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, MatrixBase< Real >::Row(), MfccOptions::use_energy, FrameExtractionOptions::window_type, and kaldi::WriteHtk().

Referenced by UnitTestFeat().

                                  {
  std::cout << "=== UnitTestHTKCompare6() ===\n";


  std::ifstream is("test_data/test.wav", std::ios_base::binary);
  WaveData wave;
  wave.Read(is);
  KALDI_ASSERT(wave.Data().NumRows() == 1);
  SubVector<BaseFloat> waveform(wave.Data(), 0);

  // read the HTK features
  Matrix<BaseFloat> htk_features;
  {
    std::ifstream is("test_data/test.wav.fea_htk.6",
                     std::ios::in | std::ios_base::binary);
    bool ans = ReadHtk(is, &htk_features, 0);
    KALDI_ASSERT(ans);
  }

  // use mfcc with default configuration...
  MfccOptions op;
  op.frame_opts.dither = 0.0;
  op.frame_opts.preemph_coeff = 0.97;
  op.frame_opts.window_type = "hamming";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.mel_opts.num_bins = 24;
  op.mel_opts.low_freq = 125.0;
  op.mel_opts.high_freq = 7800.0;
  op.htk_compat = true;
  op.use_energy = false;  // C0 not energy.

  Mfcc mfcc(op);

  // calculate kaldi features
  Matrix<BaseFloat> kaldi_raw_features;
  mfcc.Compute(waveform, 1.0, &kaldi_raw_features);

  DeltaFeaturesOptions delta_opts;
  Matrix<BaseFloat> kaldi_features;
  ComputeDeltas(delta_opts,
                kaldi_raw_features,
                &kaldi_features);

  // compare the results
  bool passed = true;
  int32 i_old = -1;
  KALDI_ASSERT(kaldi_features.NumRows() == htk_features.NumRows());
  KALDI_ASSERT(kaldi_features.NumCols() == htk_features.NumCols());
  // Ignore ends-- we make slightly different choices than
  // HTK about how to treat the deltas at the ends.
  for (int32 i = 10; i+10 < kaldi_features.NumRows(); i++) {
    for (int32 j = 0; j < kaldi_features.NumCols(); j++) {
      BaseFloat a = kaldi_features(i, j), b = htk_features(i, j);
      if ((std::abs(b - a)) > 1.0) {  //<< TOLERANCE TO DIFFERENCES!!!!!
        // print the non-matching data only once per-line
        if (static_cast<int32>(i_old) != i) {
          std::cout << "\n\n\n[HTK-row: " << i << "] " << htk_features.Row(i) << "\n";
          std::cout << "[Kaldi-row: " << i << "] " << kaldi_features.Row(i) << "\n\n\n";
          i_old = i;
        }
        // print indices of non-matching cells
        std::cout << "[" << i << ", " << j << "]";
        passed = false;
  }}}
  if (!passed) KALDI_ERR << "Test failed";

  // write the htk features for later inspection
  HtkHeader header = {
    kaldi_features.NumRows(),
    100000,  // 10ms
    static_cast<int16>(sizeof(float)*kaldi_features.NumCols()),
    021406  // MFCC_D_A_0
  };
  {
    std::ofstream os("tmp.test.wav.fea_kaldi.6",
                     std::ios::out|std::ios::binary);
    WriteHtk(os, kaldi_features, header);
  }

  std::cout << "Test passed :)\n\n";

  unlink("tmp.test.wav.fea_kaldi.6");
}

UnitTestReadWave()

static void UnitTestReadWave ( )

static

Definition at line 32 of file feature-mfcc-test.cc.

References VectorBase< Real >::CopyFromVec(), WaveData::Data(), VectorBase< Real >::Dim(), rnnlm::i, KALDI_ASSERT, WaveData::Read(), Vector< Real >::Read(), and Vector< Real >::Resize().

Referenced by UnitTestFeat().

                               {

  std::cout << "=== UnitTestReadWave() ===\n";

  Vector<BaseFloat> v, v2;

  std::cout << "<<<=== Reading waveform\n";

  {
    std::ifstream is("test_data/test.wav", std::ios_base::binary);
    WaveData wave;
    wave.Read(is);
    const Matrix<BaseFloat> data(wave.Data());
    KALDI_ASSERT(data.NumRows() == 1);
    v.Resize(data.NumCols());
    v.CopyFromVec(data.Row(0));
  }

  std::cout << "<<<=== Reading Vector<BaseFloat> waveform, prepared by matlab\n";
  std::ifstream input(
    "test_data/test_matlab.ascii"
  );
  KALDI_ASSERT(input.good());
  v2.Read(input, false);
  input.close();

  std::cout << "<<<=== Comparing freshly read waveform to 'libsndfile' waveform\n";
  KALDI_ASSERT(v.Dim() == v2.Dim());
  for (int32 i = 0; i < v.Dim(); i++) {
    KALDI_ASSERT(v(i) == v2(i));
  }
  std::cout << "<<<=== Comparing done\n";

  // std::cout << "== The Waveform Samples == \n";
  // std::cout << v;

  std::cout << "Test passed :)\n\n";

}

UnitTestSimple()

static void UnitTestSimple ( )

static

Definition at line 76 of file feature-mfcc-test.cc.

References OfflineFeatureTpl< F >::Compute(), VectorBase< Real >::Dim(), FrameExtractionOptions::dither, MfccOptions::frame_opts, MfccOptions::htk_compat, MelBanksOptions::htk_mode, rnnlm::i, MelBanksOptions::low_freq, MfccOptions::mel_opts, FrameExtractionOptions::preemph_coeff, FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, and FrameExtractionOptions::window_type.

                             {
  std::cout << "=== UnitTestSimple() ===\n";

  Vector<BaseFloat> v(100000);
  Matrix<BaseFloat> m;

  // init with noise
  for (int32 i = 0; i < v.Dim(); i++) {
    v(i) = (abs( i * 433024253 ) % 65535) - (65535 / 2);
  }

  std::cout << "<<<=== Just make sure it runs... Nothing is compared\n";
  // the parametrization object
  MfccOptions op;
  // trying to have same opts as baseline.
  op.frame_opts.dither = 0.0;
  op.frame_opts.preemph_coeff = 0.0;
  op.frame_opts.window_type = "rectangular";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.mel_opts.low_freq = 0.0;
  op.mel_opts.htk_mode = true;
  op.htk_compat = true;

  Mfcc mfcc(op);
  // use default parameters

  // compute mfccs.
  mfcc.Compute(v, 1.0, &m);

  // possibly dump
  //   std::cout << "== Output features == \n" << m;
  std::cout << "Test passed :)\n\n";
}

UnitTestVtln()

void UnitTestVtln

(

)

Definition at line 620 of file feature-mfcc-test.cc.

References kaldi::AssertEqual(), rnnlm::i, KALDI_ASSERT, kaldi::RandUniform(), and MelBanks::VtlnWarpFreq().

Referenced by UnitTestFeat().

                    {
  // Test the function VtlnWarpFreq.
  BaseFloat low_freq = 10, high_freq = 7800,
      vtln_low_cutoff = 20, vtln_high_cutoff = 7400;

  for (size_t i = 0; i < 100; i++) {
    BaseFloat freq = 5000, warp_factor = 0.9 + RandUniform() * 0.2;
    AssertEqual(MelBanks::VtlnWarpFreq(vtln_low_cutoff, vtln_high_cutoff,
                             low_freq, high_freq, warp_factor,
                             freq),
                freq / warp_factor);

    AssertEqual(MelBanks::VtlnWarpFreq(vtln_low_cutoff, vtln_high_cutoff,
                             low_freq, high_freq, warp_factor,
                             low_freq),
                low_freq);
    AssertEqual(MelBanks::VtlnWarpFreq(vtln_low_cutoff, vtln_high_cutoff,
                             low_freq, high_freq, warp_factor,
                             high_freq),
                high_freq);
    BaseFloat freq2 = low_freq + (high_freq-low_freq) * RandUniform(),
        freq3 = freq2 +  (high_freq-freq2) * RandUniform();  // freq3>=freq2
    BaseFloat w2 = MelBanks::VtlnWarpFreq(vtln_low_cutoff, vtln_high_cutoff,
                                low_freq, high_freq, warp_factor,
                                freq2);
    BaseFloat w3 = MelBanks::VtlnWarpFreq(vtln_low_cutoff, vtln_high_cutoff,
                                low_freq, high_freq, warp_factor,
                                freq3);
    KALDI_ASSERT(w3 >= w2);  // increasing function.
    BaseFloat w3dash = MelBanks::VtlnWarpFreq(vtln_low_cutoff, vtln_high_cutoff,
                                    low_freq, high_freq, 1.0,
                                    freq3);
    AssertEqual(w3dash, freq3);
  }
}
