feature-plp-test.cc File Reference

#include <iostream>
#include "feat/feature-plp.h"
#include "base/kaldi-math.h"
#include "matrix/kaldi-matrix-inl.h"
#include "feat/wave-reader.h"

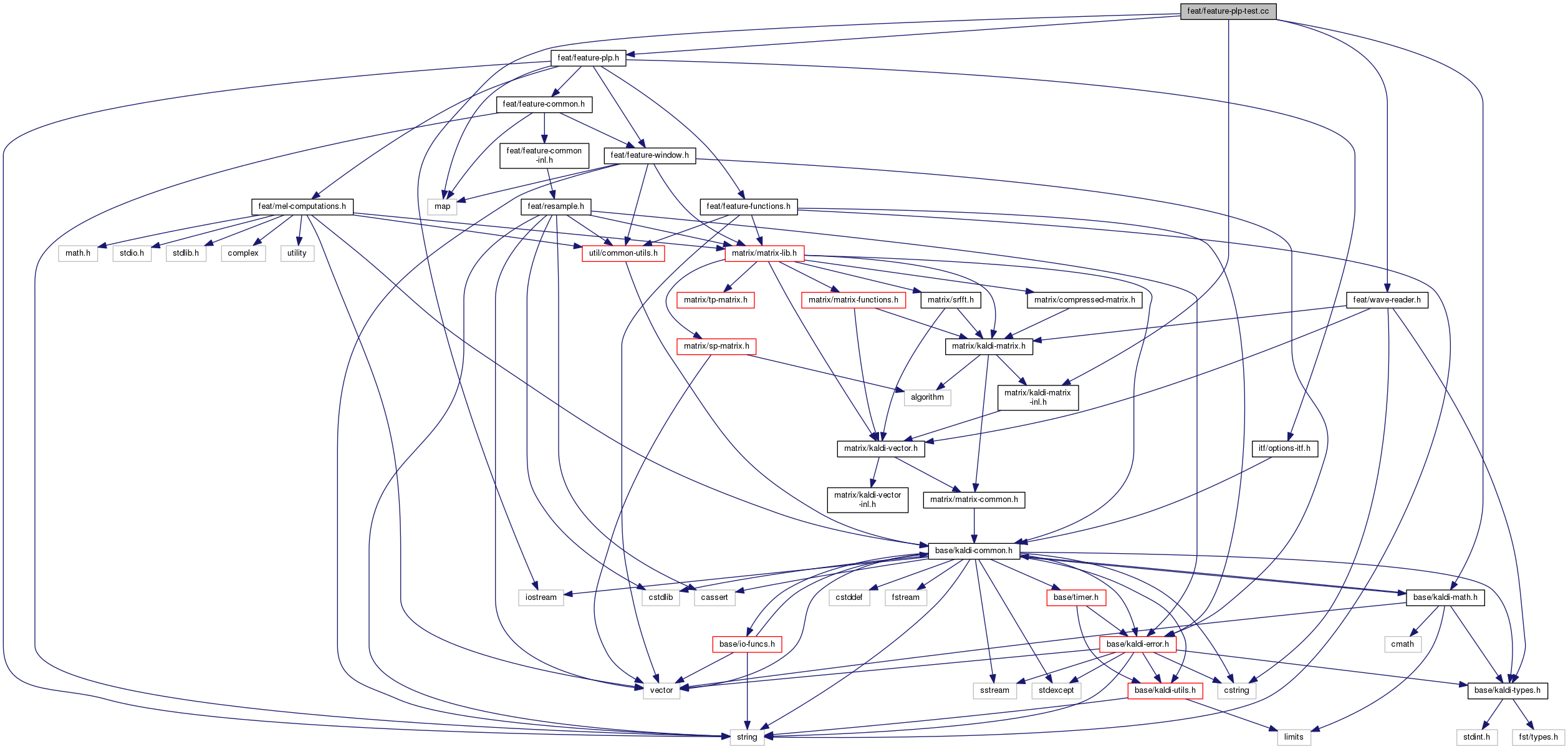

Include dependency graph for feature-plp-test.cc:

Go to the source code of this file.

Functions
static void	UnitTestSimple ()
static void	UnitTestHTKCompare1 ()
static void	UnitTestFeat ()
int	main ()

Function Documentation

main()

int main

(

)

Definition at line 165 of file feature-plp-test.cc.

References rnnlm::i, and UnitTestFeat().

           {
  try {
    for (int i = 0; i < 5; i++)
      UnitTestFeat();
    std::cout << "Tests succeeded.\n";
    return 0;
  } catch (const std::exception &e) {
    std::cerr << e.what();
    return 1;
  }
}

UnitTestFeat()

static void UnitTestFeat ( )

static

Definition at line 157 of file feature-plp-test.cc.

References UnitTestHTKCompare1(), and kaldi::UnitTestSimple().

Referenced by main().

                           {
  UnitTestSimple();
  UnitTestHTKCompare1();
}

UnitTestHTKCompare1()

static void UnitTestHTKCompare1 ( )

static

Definition at line 71 of file feature-plp-test.cc.

References PlpOptions::cepstral_scale, OfflineFeatureTpl< F >::Compute(), kaldi::ComputeDeltas(), WaveData::Data(), FrameExtractionOptions::dither, PlpOptions::frame_opts, PlpOptions::htk_compat, rnnlm::i, rnnlm::j, KALDI_ASSERT, KALDI_ERR, MelBanksOptions::low_freq, PlpOptions::mel_opts, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), FrameExtractionOptions::preemph_coeff, WaveData::Read(), kaldi::ReadHtk(), FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, MatrixBase< Real >::Row(), PlpOptions::use_energy, FrameExtractionOptions::window_type, and kaldi::WriteHtk().

Referenced by UnitTestFeat().

                                  {
  std::cout << "=== UnitTestHTKCompare1() ===\n";

  std::ifstream is("test_data/test.wav", std::ios_base::binary);
  WaveData wave;
  wave.Read(is);
  KALDI_ASSERT(wave.Data().NumRows() == 1);
  SubVector<BaseFloat> waveform(wave.Data(), 0);

  // read the HTK features
  Matrix<BaseFloat> htk_features;
  {
    std::ifstream is("test_data/test.wav.plp_htk.1",
                     std::ios::in | std::ios_base::binary);
    bool ans = ReadHtk(is, &htk_features, 0);
    KALDI_ASSERT(ans);
  }

  // use plp with default configuration...
  PlpOptions op;
  op.frame_opts.dither = 0.0;
  op.frame_opts.preemph_coeff = 0.0;
  op.frame_opts.window_type = "hamming";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.mel_opts.low_freq = 0.0;
  op.htk_compat = true;
  op.use_energy = false;  // C0 not energy.
  op.cepstral_scale = 1.0;

  Plp plp(op);

  // calculate kaldi features
  Matrix<BaseFloat> kaldi_raw_features;
  plp.Compute(waveform, 1.0, &kaldi_raw_features);

  DeltaFeaturesOptions delta_opts;
  Matrix<BaseFloat> kaldi_features;
  ComputeDeltas(delta_opts,
                kaldi_raw_features,
                &kaldi_features);

  // compare the results
  bool passed = true;
  int32 i_old = -1;
  KALDI_ASSERT(kaldi_features.NumRows() == htk_features.NumRows());
  KALDI_ASSERT(kaldi_features.NumCols() == htk_features.NumCols());
  // Ignore ends-- we make slightly different choices than
  // HTK about how to treat the deltas at the ends.
  for (int32 i = 10; i+10 < kaldi_features.NumRows(); i++) {
    for (int32 j = 0; j < kaldi_features.NumCols(); j++) {
      BaseFloat a = kaldi_features(i, j), b = htk_features(i, j);
      if ((std::abs(b - a)) > 0.10) {  //<< TOLERANCE TO DIFFERENCES!!!!!
        // print the non-matching data only once per-line
        if (i_old != i) {
          std::cout << "\n\n\n[HTK-row: " << i << "] " << htk_features.Row(i) << "\n";
          std::cout << "[Kaldi-row: " << i << "] " << kaldi_features.Row(i) << "\n\n\n";
          i_old = i;
        }
        // print indices of non-matching cells
        std::cout << "[" << i << ", " << j << "]";
        passed = false;
  }}}
  if (!passed) KALDI_ERR << "Test failed";

  // write the htk features for later inspection
  HtkHeader header = {
    kaldi_features.NumRows(),
    100000,  // 10ms
    static_cast<int16>(sizeof(float)*kaldi_features.NumCols()),
    021413  // PLP_D_A_0
  };
  {
    std::ofstream os("tmp.test.wav.plp_kaldi.1",
                     std::ios::out|std::ios::binary);
    WriteHtk(os, kaldi_features, header);
  }

  std::cout << "Test passed :)\n\n";

  unlink("tmp.test.wav.plp_kaldi.1");
}

UnitTestSimple()

static void UnitTestSimple ( )

static

Definition at line 36 of file feature-plp-test.cc.

References OfflineFeatureTpl< F >::Compute(), VectorBase< Real >::Dim(), FrameExtractionOptions::dither, PlpOptions::frame_opts, rnnlm::i, MelBanksOptions::low_freq, PlpOptions::mel_opts, FrameExtractionOptions::preemph_coeff, FrameExtractionOptions::remove_dc_offset, FrameExtractionOptions::round_to_power_of_two, and FrameExtractionOptions::window_type.

                             {
  std::cout << "=== UnitTestSimple() ===\n";

  Vector<BaseFloat> v(100000);
  Matrix<BaseFloat> m;

  // init with noise
  for (int32 i = 0; i < v.Dim(); i++) {
    v(i) = (abs( i * 433024253 ) % 65535) - (65535 / 2);
  }

  std::cout << "<<<=== Just make sure it runs... Nothing is compared\n";
  // the parametrization object
  PlpOptions op;
  // trying to have same opts as baseline.
  op.frame_opts.dither = 0.0;
  op.frame_opts.preemph_coeff = 0.0;
  op.frame_opts.window_type = "rectangular";
  op.frame_opts.remove_dc_offset = false;
  op.frame_opts.round_to_power_of_two = true;
  op.mel_opts.low_freq = 0.0;
//  op.htk_compat = true;

  Plp plp(op);
  // use default parameters

  // compute mfccs.
  plp.Compute(v, 1.0, &m);

  // possibly dump
  //   std::cout << "== Output features == \n" << m;
  std::cout << "Test passed :)\n\n";
}
