lattice-oracle.cc File Reference

#include "base/kaldi-common.h"
#include "util/common-utils.h"
#include "fstext/fstext-lib.h"
#include "lat/kaldi-lattice.h"
#include "lat/lattice-functions.h"

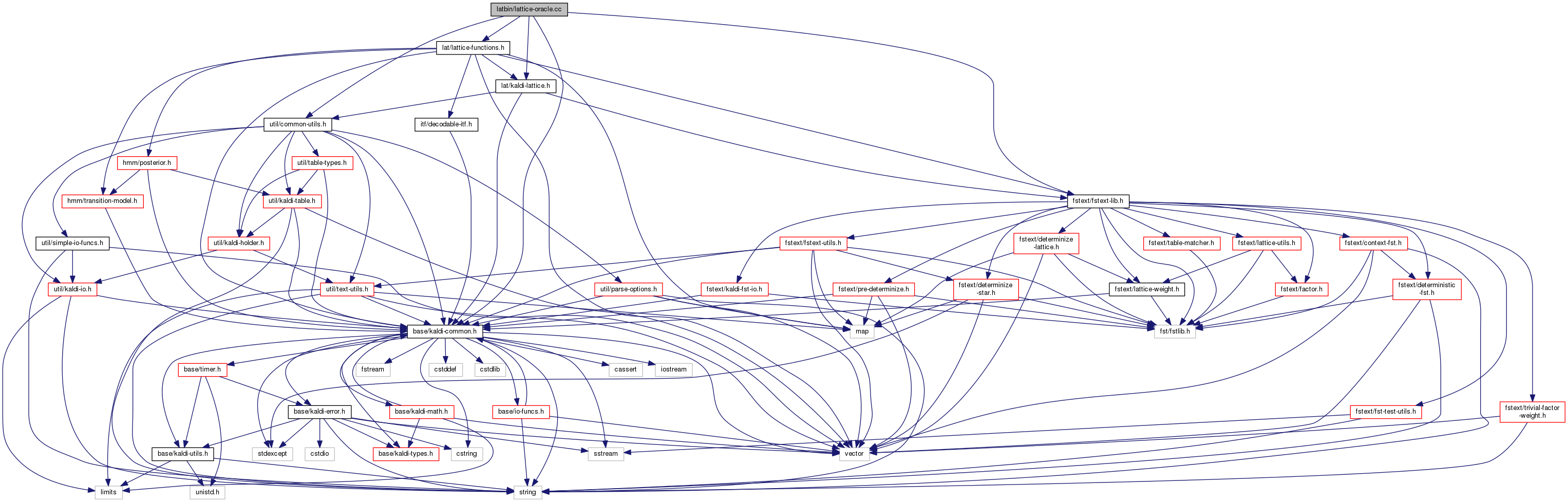

Include dependency graph for lattice-oracle.cc:

Go to the source code of this file.

Namespaces
	kaldi
	This code computes Goodness of Pronunciation (GOP) and extracts phone-level pronunciation feature for mispronunciations detection tasks, the reference:

Typedefs
typedef fst::StdArc::Label	Label
typedef std::vector< std::pair< Label, Label > >	LabelPairVector

Functions
void	ReadSymbolList (const std::string &rxfilename, fst::SymbolTable *word_syms, LabelPairVector *lpairs)
void	ConvertLatticeToUnweightedAcceptor (const kaldi::Lattice &ilat, const LabelPairVector &wildcards, fst::StdVectorFst *ofst)
void	CreateEditDistance (const fst::StdVectorFst &fst1, const fst::StdVectorFst &fst2, fst::StdVectorFst *pfst)
void	CountErrors (const fst::StdVectorFst &fst, int32 *correct, int32 *substitutions, int32 *insertions, int32 *deletions, int32 *num_words)
bool	CheckFst (const fst::StdVectorFst &fst, string name, string key)
int	main (int argc, char *argv[])

Function Documentation

main()

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 165 of file lattice-oracle.cc.

References kaldi::CheckFst(), fst::ConvertLattice(), kaldi::ConvertLatticeToUnweightedAcceptor(), kaldi::CountErrors(), kaldi::CreateEditDistance(), SequentialTableReader< Holder >::Done(), ParseOptions::GetArg(), fst::GetLinearSymbolSequence(), ParseOptions::GetOptArg(), RandomAccessTableReader< Holder >::HasKey(), rnnlm::i, KALDI_ASSERT, KALDI_ERR, KALDI_LOG, KALDI_WARN, SequentialTableReader< Holder >::Key(), fst::MakeLinearAcceptor(), SequentialTableReader< Holder >::Next(), ParseOptions::NumArgs(), ParseOptions::PrintUsage(), ParseOptions::Read(), kaldi::ReadSymbolList(), ParseOptions::Register(), kaldi::SplitStringToIntegers(), kaldi::TopSortCompactLatticeIfNeeded(), RandomAccessTableReader< Holder >::Value(), SequentialTableReader< Holder >::Value(), and TableWriter< Holder >::Write().

                                 {
  try {
    using namespace kaldi;
    using fst::SymbolTable;
    using fst::VectorFst;
    using fst::StdArc;
    typedef kaldi::int32 int32;
    typedef kaldi::int64 int64;
    typedef fst::StdArc::Weight Weight;
    typedef fst::StdArc::StateId StateId;

    const char *usage =
        "Finds the path having the smallest edit-distance between a lattice\n"
        "and a reference string.\n"
        "\n"
        "Usage: lattice-oracle [options] <test-lattice-rspecifier> \\\n"
        "                                <reference-rspecifier> \\\n"
        "                                <transcriptions-wspecifier> \\\n"
        "                                [<edit-distance-wspecifier>]\n"
        " e.g.: lattice-oracle ark:lat.1 'ark:sym2int.pl -f 2- \\\n"
        "                       data/lang/words.txt <data/test/text|' ark,t:-\n"
        "\n"
        "Note the --write-lattices option by which you can write out the\n"
        "optimal path as a lattice.\n"
        "Note: you can use this program to compute the n-best oracle WER by\n"
        "first piping the input lattices through lattice-to-nbest and then\n"
        "nbest-to-lattice.\n";

    ParseOptions po(usage);

    std::string word_syms_filename;
    std::string wild_syms_rxfilename;
    std::string wildcard_symbols;
    std::string lats_wspecifier;

    po.Register("word-symbol-table", &word_syms_filename,
                "Symbol table for words [for debug output]");
    po.Register("wildcard-symbols-list", &wild_syms_rxfilename, "Filename "
                "(generally rxfilename) for file containing text-form list of "
                "symbols that don't count as errors; this option requires "
                "--word-symbol-table. Deprecated; use --wildcard-symbols "
                "option.");
    po.Register("wildcard-symbols", &wildcard_symbols,
                "Colon-separated list of integer ids of symbols that "
                "don't count as errors.  Preferred alternative to deprecated "
                "option --wildcard-symbols-list.");
    po.Register("write-lattices", &lats_wspecifier, "If supplied, write the "
                "lattice that contains only the oracle path to the given "
                "wspecifier.");

    po.Read(argc, argv);

    if (po.NumArgs() != 3 && po.NumArgs() != 4) {
      po.PrintUsage();
      exit(1);
    }

    std::string lats_rspecifier = po.GetArg(1),
        reference_rspecifier = po.GetArg(2),
        transcriptions_wspecifier = po.GetArg(3),
        edit_distance_wspecifier = po.GetOptArg(4);

    // will read input as  lattices
    SequentialLatticeReader lattice_reader(lats_rspecifier);
    RandomAccessInt32VectorReader reference_reader(reference_rspecifier);
    Int32VectorWriter transcriptions_writer(transcriptions_wspecifier);
    Int32Writer edit_distance_writer(edit_distance_wspecifier);
    CompactLatticeWriter lats_writer(lats_wspecifier);

    fst::SymbolTable *word_syms = NULL;
    if (word_syms_filename != "")
      if (!(word_syms = fst::SymbolTable::ReadText(word_syms_filename)))
        KALDI_ERR << "Could not read symbol table from file "
                  << word_syms_filename;

    LabelPairVector wildcards;
    if (wild_syms_rxfilename != "") {
      KALDI_WARN << "--wildcard-symbols-list option deprecated.";
      KALDI_ASSERT(wildcard_symbols.empty() && "Do not use both "
                   "--wildcard-symbols and --wildcard-symbols-list options.");
      KALDI_ASSERT(word_syms != NULL && "--wildcard-symbols-list option "
                   "requires --word-symbol-table option");
      ReadSymbolList(wild_syms_rxfilename, word_syms, &wildcards);
    } else {
      std::vector<fst::StdArc::Label> wildcard_symbols_vec;
      if (!SplitStringToIntegers(wildcard_symbols, ":", false,
                                 &wildcard_symbols_vec)) {
        KALDI_ERR << "Expected colon-separated list of integers for "
                  << "--wildcard-symbols option, got: " << wildcard_symbols;
      }
      for (size_t i = 0; i < wildcard_symbols_vec.size(); i++)
        wildcards.emplace_back(wildcard_symbols_vec[i], 0);
    }

    int32 n_done = 0, n_fail = 0;
    int32 tot_correct = 0, tot_substitutions = 0,
          tot_insertions = 0, tot_deletions = 0, tot_words = 0;

    for (; !lattice_reader.Done(); lattice_reader.Next()) {
      std::string key = lattice_reader.Key();
      const Lattice &lat = lattice_reader.Value();
      std::cerr << "Lattice " << key << " read." << std::endl;

      // remove all weights while creating a standard FST
      VectorFst<StdArc> lattice_fst;
      ConvertLatticeToUnweightedAcceptor(lat, wildcards, &lattice_fst);
      CheckFst(lattice_fst, "lattice_fst_", key);

      // TODO: map certain symbols (using an FST created with CreateMapFst())
      if (!reference_reader.HasKey(key)) {
        KALDI_WARN << "No reference present for utterance " << key;
        n_fail++;
        continue;
      }
      const std::vector<int32> &reference = reference_reader.Value(key);
      VectorFst<StdArc> reference_fst;
      MakeLinearAcceptor(reference, &reference_fst);

      // Remove any wildcards in reference.
      fst::Relabel(&reference_fst, wildcards, wildcards);
      CheckFst(reference_fst, "reference_fst_", key);

      // recreate edit distance fst if necessary
      fst::StdVectorFst edit_distance_fst;
      CreateEditDistance(lattice_fst, reference_fst, &edit_distance_fst);

      // compose with edit distance transducer
      VectorFst<StdArc> edit_ref_fst;
      fst::Compose(edit_distance_fst, reference_fst, &edit_ref_fst);
      CheckFst(edit_ref_fst, "composed_", key);

      // make sure composed FST is input sorted
      fst::ArcSort(&edit_ref_fst, fst::StdILabelCompare());

      // compose with previous result
      VectorFst<StdArc> result_fst;
      fst::Compose(lattice_fst, edit_ref_fst, &result_fst);
      CheckFst(result_fst, "result_", key);

      // find out best path
      VectorFst<StdArc> best_path;
      fst::ShortestPath(result_fst, &best_path);
      CheckFst(best_path, "best_path_", key);

      if (best_path.Start() == fst::kNoStateId) {
        KALDI_WARN << "Best-path failed for key " << key;
        n_fail++;
      } else {
        // count errors
        int32 correct, substitutions, insertions, deletions, num_words;
        CountErrors(best_path, &correct, &substitutions,
                    &insertions, &deletions, &num_words);
        int32 tot_errs = substitutions + insertions + deletions;
        if (edit_distance_wspecifier != "")
          edit_distance_writer.Write(key, tot_errs);
        KALDI_LOG << "%WER " << (100.*tot_errs) / num_words << " [ " << tot_errs
                  << " / " << num_words << ", " << insertions << " insertions, "
                  << deletions << " deletions, " << substitutions << " sub ]";
        tot_correct += correct;
        tot_substitutions += substitutions;
        tot_insertions += insertions;
        tot_deletions += deletions;
        tot_words += num_words;

        std::vector<int32> oracle_words;
        std::vector<int32> reference_words;
        Weight weight;
        GetLinearSymbolSequence(best_path, &oracle_words,
                                &reference_words, &weight);
        KALDI_LOG << "For utterance " << key << ", best cost " << weight;
        if (transcriptions_wspecifier != "")
          transcriptions_writer.Write(key, oracle_words);
        if (word_syms != NULL) {
          std::cerr << key << " (oracle) ";
          for (size_t i = 0; i < oracle_words.size(); i++) {
            std::string s = word_syms->Find(oracle_words[i]);
            if (s == "")
              KALDI_ERR << "Word-id " << oracle_words[i]
                  << " not in symbol table.";
            std::cerr << s << ' ';
          }
          std::cerr << '\n' << key << " (reference) ";
          for (size_t i = 0; i < reference_words.size(); i++) {
            std::string s = word_syms->Find(reference_words[i]);
            if (s == "")
              KALDI_ERR << "Word-id " << reference_words[i]
                        << " not in symbol table.";
            std::cerr << s << ' ';
          }
          std::cerr << '\n';
        }

        // If requested, write the lattice that only contains the oracle path.
        if (lats_wspecifier != "") {
          CompactLattice oracle_clat_mask;
          MakeLinearAcceptor(oracle_words, &oracle_clat_mask);

          CompactLattice clat;
          CompactLattice oracle_clat;
          ConvertLattice(lat, &clat);
          fst::Relabel(&clat, wildcards, LabelPairVector());
          fst::ArcSort(&clat, fst::ILabelCompare<CompactLatticeArc>());
          fst::Compose(oracle_clat_mask, clat, &oracle_clat_mask);
          fst::ShortestPath(oracle_clat_mask, &oracle_clat);
          fst::Project(&oracle_clat, fst::PROJECT_OUTPUT);
          TopSortCompactLatticeIfNeeded(&oracle_clat);

          if (oracle_clat.Start() == fst::kNoStateId) {
            KALDI_WARN << "Failed to find the oracle path in the original "
                       << "lattice: " << key;
          } else {
            lats_writer.Write(key, oracle_clat);
          }
        }
      }
      n_done++;
    }
    delete word_syms;
    int32 tot_errs = tot_substitutions + tot_deletions + tot_insertions;
    // Warning: the script egs/s5/*/steps/oracle_wer.sh parses the next line.
    KALDI_LOG << "Overall %WER " << (100.*tot_errs)/tot_words << " [ "
              << tot_errs << " / " << tot_words << ", " << tot_insertions
              << " insertions, " << tot_deletions << " deletions, "
              << tot_substitutions << " substitutions ]";
    KALDI_LOG << "Scored " << n_done << " lattices, " << n_fail
              << " not present in ref.";
  } catch(const std::exception &e) {
    std::cerr << e.what();
    return -1;
  }
}
