#include "feat/feature-mfcc.h"
#include "feat/wave-reader.h"
#include "online/online-tcp-source.h"
#include "online/online-feat-input.h"
#include "online/online-decodable.h"
#include "online/online-faster-decoder.h"
#include "online/onlinebin-util.h"
#include "matrix/kaldi-vector.h"
#include "lat/word-align-lattice.h"
#include "lat/lattice-functions.h"
#include "lat/sausages.h"
#include "lat/determinize-lattice-pruned.h"
#include <sys/socket.h>
#include <sys/types.h>
#include <unistd.h>
#include <ctime>
#include <signal.h>

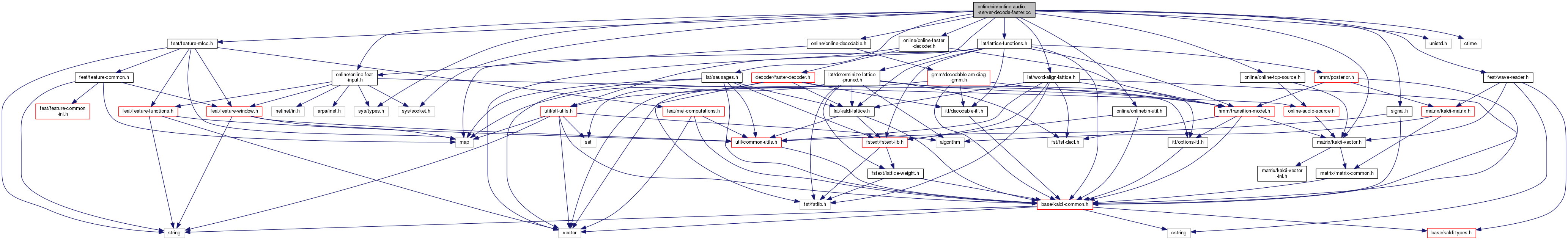

Include dependency graph for online-audio-server-decode-faster.cc:

Classes
class	TcpServer

Namespaces
	kaldi
	This code computes Goodness of Pronunciation (GOP) and extracts phone-level pronunciation feature for mispronunciations detection tasks, the reference:

Functions
bool	WriteLine (int32 socket, std::string line)

int32	main (int argc, char *argv[])

Variables
const float	kFramesPerSecond = 100.0f

Function Documentation

◆ main()

int32 main	(	int	argc,
		char *	argv[]
	)

Definition at line 68 of file online-audio-server-decode-faster.cc.

                                    {
   using namespace kaldi;
   using namespace fst;

   try {
     typedef kaldi::int32 int32;
     typedef OnlineFeInput<Mfcc> FeInput;
     TcpServer tcp_server;
     signal(SIGPIPE, SIG_IGN);

     // up to delta-delta derivative features are calculated (unless LDA is used)
     const int32 kDeltaOrder = 2;

     const char *usage =
         "Starts a TCP server that receives RAW audio and outputs aligned words.\n"
             "A sample client can be found in: onlinebin/online-audio-client\n\n"
             "Usage: online-audio-server-decode-faster [options] model-in "
             "fst-in word-symbol-table silence-phones word_boundary_file tcp-port [lda-matrix-in]\n\n"
             "example: online-audio-server-decode-faster --verbose=1 --rt-min=0.5 --rt-max=3.0 --max-active=6000\n"
             "--beam=72.0 --acoustic-scale=0.0769 final.mdl graph/HCLG.fst graph/words.txt '1:2:3:4:5'\n"
             "graph/word_boundary.int 5000 final.mat\n\n";

     ParseOptions po(usage);
     BaseFloat acoustic_scale = 0.1;
     int32 cmn_window = 600, min_cmn_window = 100;  // adds 1 second latency, only at utterance start.
     int32 right_context = 4, left_context = 4;
     BaseFloat frame_shift = 0.01;

     OnlineFasterDecoderOpts decoder_opts;
     decoder_opts.Register(&po, true);
     OnlineFeatureMatrixOptions feature_reading_opts;
     feature_reading_opts.Register(&po);

     po.Register("left-context", &left_context,
                 "Number of frames of left context");
     po.Register("right-context", &right_context,
                 "Number of frames of right context");
     po.Register("acoustic-scale", &acoustic_scale,
                 "Scaling factor for acoustic likelihoods");
     po.Register(
         "cmn-window", &cmn_window,
         "Number of feat. vectors used in the running average CMN calculation");
     po.Register("min-cmn-window", &min_cmn_window,
                 "Minumum CMN window used at start of decoding (adds "
                 "latency only at start)");
     po.Register("frame-shift", &frame_shift,
                 "Time in seconds between frames.\n");

     WordBoundaryInfoNewOpts opts;
     opts.Register(&po);

     po.Read(argc, argv);
     if (po.NumArgs() < 6 || po.NumArgs() > 7) {
       po.PrintUsage();
       return 1;
     }

     std::string model_rspecifier = po.GetArg(1), fst_rspecifier = po.GetArg(2),
         word_syms_filename = po.GetArg(3), silence_phones_str = po.GetArg(4),
         word_boundary_file = po.GetArg(5), lda_mat_rspecifier = "";

     if (po.NumArgs() == 7)
       lda_mat_rspecifier = po.GetOptArg(7);

     int32 port = strtol(po.GetArg(6).c_str(), 0, 10);

     std::vector<int32> silence_phones;
     if (!SplitStringToIntegers(silence_phones_str, ":", false, &silence_phones))
       KALDI_ERR << "Invalid silence-phones string " << silence_phones_str;
     if (silence_phones.empty())
       KALDI_ERR << "No silence phones given!";

     if (!tcp_server.Listen(port))
       return 0;

     std::cout << "Reading LDA matrix: " << lda_mat_rspecifier << "..."
         << std::endl;
     Matrix < BaseFloat > lda_transform;
     if (lda_mat_rspecifier != "") {
       bool binary_in;
       Input ki(lda_mat_rspecifier, &binary_in);
       lda_transform.Read(ki.Stream(), binary_in);
     }

     std::cout << "Reading acoustic model: " << model_rspecifier << "..."
         << std::endl;
     TransitionModel trans_model;
     AmDiagGmm am_gmm;
     {
       bool binary;
       Input ki(model_rspecifier, &binary);
       trans_model.Read(ki.Stream(), binary);
       am_gmm.Read(ki.Stream(), binary);
     }

     std::cout << "Reading word list: " << word_syms_filename << "..."
         << std::endl;
     fst::SymbolTable *word_syms = NULL;
     if (!(word_syms = fst::SymbolTable::ReadText(word_syms_filename)))
       KALDI_ERR << "Could not read symbol table from file "
           << word_syms_filename;

     std::cout << "Reading word boundary file: " << word_boundary_file << "..."
         << std::endl;
     WordBoundaryInfo info(opts, word_boundary_file);

     std::cout << "Reading FST: " << fst_rspecifier << "..." << std::endl;
     fst::Fst < fst::StdArc > *decode_fst = ReadDecodeGraph(fst_rspecifier);

     // We are not properly registering/exposing MFCC and frame extraction options,
     // because there are parts of the online decoding code, where some of these
     // options are hardwired(ToDo: we should fix this at some point)
     MfccOptions mfcc_opts;
     mfcc_opts.use_energy = false;
     int32 frame_length = mfcc_opts.frame_opts.frame_length_ms = 25;
     int32 mfcc_frame_shift = mfcc_opts.frame_opts.frame_shift_ms = 10;

     int32 window_size = right_context + left_context + 1;
     decoder_opts.batch_size = std::max(decoder_opts.batch_size, window_size);

     DeterminizeLatticePrunedOptions det_opts;
     det_opts.max_mem = 50000000;
     det_opts.max_loop = 0;

     VectorFst < LatticeArc > out_fst;
     Lattice out_lat;
     CompactLattice det_lat, aligned_lat;
     OnlineTcpVectorSource* au_src = NULL;
     int32 client_socket = -1;

     while (true) {
       if (au_src == NULL || !au_src->IsConnected()) {
         if (au_src) {
           std::cout << "Client disconnected!" << std::endl;
           delete au_src;
         }
         client_socket = tcp_server.Accept();
         au_src = new OnlineTcpVectorSource(client_socket);
       }

       //re-initalizing decoder for each utterance
       OnlineFasterDecoder decoder(*decode_fst, decoder_opts, silence_phones,
                                   trans_model);

       Mfcc mfcc(mfcc_opts);
       FeInput fe_input(au_src, &mfcc, frame_length * (16000 / 1000),
                        mfcc_frame_shift * (16000 / 1000));  //we always assume 16 kHz Fs on input
       OnlineCmnInput cmn_input(&fe_input, cmn_window, min_cmn_window);
       OnlineFeatInputItf *feat_transform = 0;
       if (lda_mat_rspecifier != "") {
         feat_transform = new OnlineLdaInput(&cmn_input, lda_transform,
                                             left_context, right_context);
       } else {
         DeltaFeaturesOptions opts;
         opts.order = kDeltaOrder;
         feat_transform = new OnlineDeltaInput(opts, &cmn_input);
       }

       // feature_reading_opts contains number of retries, batch size.
       OnlineFeatureMatrix feature_matrix(feature_reading_opts, feat_transform);

       OnlineDecodableDiagGmmScaled decodable(am_gmm, trans_model,
                                              acoustic_scale, &feature_matrix);

       clock_t start = clock();
       int32 decoder_offset = 0;

       while (1) {
         if (!au_src->IsConnected())
           break;

         OnlineFasterDecoder::DecodeState dstate = decoder.Decode(&decodable);

         if (!au_src->IsConnected()) {
           break;
         }

         if (dstate & (decoder.kEndFeats | decoder.kEndUtt)) {
           std::vector<int32> word_ids, times, lengths;

           decoder.FinishTraceBack(&out_fst);
           decoder.GetBestPath(&out_fst);

           ConvertLattice(out_fst, &out_lat);

           Invert(&out_lat);
           //TopSort(&out_lat);
           //ArcSort(&out_lat, ILabelCompare<LatticeArc>());

           DeterminizeLatticePruned(out_lat, 10.0f, &det_lat, det_opts);

           WordAlignLattice(det_lat, trans_model, info, 0, &aligned_lat);

           CompactLatticeToWordAlignment(aligned_lat, &word_ids, &times,
                                         &lengths);

           //count number of non-sil words
           int32 words_num = 0;
           for (size_t i = 0; i < word_ids.size(); i++)
             if (word_ids[i] != 0)
               words_num++;

           if (words_num > 0) {

             float dur = (clock() - start) / (float) CLOCKS_PER_SEC;
             float input_dur = au_src->SamplesProcessed() / 16000.0;

             start = clock();
             au_src->ResetSamples();

             std::stringstream sstr;
             sstr << "RESULT:NUM=" << words_num << ",FORMAT=WSE,RECO-DUR=" << dur
                 << ",INPUT-DUR=" << input_dur;

             WriteLine(client_socket, sstr.str());

             for (size_t i = 0; i < word_ids.size(); i++) {
               if (word_ids[i] == 0)
                 continue;  //skip silences...

               std::string word = word_syms->Find(word_ids[i]);
               if (word.empty())
                 word = "???";

               float start = (times[i] + decoder_offset) / kFramesPerSecond;
               float len = lengths[i] / kFramesPerSecond;

               std::stringstream wstr;
               wstr << word << "," << start << "," << (start + len);

               WriteLine(client_socket, wstr.str());
             }
           }

           if (dstate == decoder.kEndFeats) {
             WriteLine(client_socket, "RESULT:DONE");
             break;
           }

           decoder_offset = decoder.frame();
         } else {
           std::vector<int32> word_ids;
           if (decoder.PartialTraceback(&out_fst)) {
             GetLinearSymbolSequence(out_fst, static_cast<vector<int32> *>(0),
                                     &word_ids,
                                     static_cast<LatticeArc::Weight*>(0));
             for (size_t i = 0; i < word_ids.size(); i++) {
               if (word_ids[i] != 0) {
                 WriteLine(client_socket,
                           "PARTIAL:" + word_syms->Find(word_ids[i]));
               }
             }
           }
         }
       }
       delete feat_transform;
     }

     std::cout << "Deinitizalizing..." << std::endl;

     delete word_syms;
     delete decode_fst;
     return 0;

   } catch (const std::exception& e) {
     std::cerr << e.what();
     return -1;
   }
 }  // main()
