RemoveEpsLocalClass< Arc, ReweightPlus > Class Template Reference

#include <remove-eps-local-inl.h>

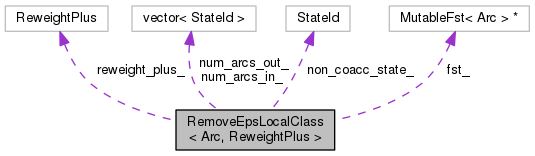

Collaboration diagram for RemoveEpsLocalClass< Arc, ReweightPlus >:

Public Member Functions

 RemoveEpsLocalClass (MutableFst< Arc > *fst)


Private Types

typedef Arc::StateId StateId

typedef Arc::Label Label

typedef Arc::Weight Weight


Private Member Functions

bool CanCombineArcs (const Arc &a, const Arc &b, Arc *c)

void InitNumArcs ()

bool CheckNumArcs ()

void GetArc (StateId s, size_t pos, Arc *arc) const

void SetArc (StateId s, size_t pos, const Arc &arc)

void Reweight (StateId s, size_t pos, Weight reweight)

void RemoveEpsPattern1 (StateId s, size_t pos, Arc arc)

void RemoveEpsPattern2 (StateId s, size_t pos, Arc arc)

void RemoveEps (StateId s, size_t pos)


Static Private Member Functions

static bool CanCombineFinal (const Arc &a, Weight final_prob, Weight *final_prob_out)


Private Attributes

MutableFst< Arc > * fst_

StateId non_coacc_state_

vector< StateIdnum_arcs_in_

vector< StateIdnum_arcs_out_

ReweightPlus reweight_plus_


Detailed Description

template<class Arc, class ReweightPlus = ReweightPlusDefault<typename Arc::Weight>>
class fst::RemoveEpsLocalClass< Arc, ReweightPlus >

Definition at line 46 of file remove-eps-local-inl.h.

Member Typedef Documentation

typedef Arc::Label Label
private

Definition at line 48 of file remove-eps-local-inl.h.

typedef Arc::StateId StateId
private

Definition at line 47 of file remove-eps-local-inl.h.

typedef Arc::Weight Weight
private

Definition at line 49 of file remove-eps-local-inl.h.

Constructor & Destructor Documentation

RemoveEpsLocalClass ( MutableFst< Arc > *  fst)
inline

Definition at line 52 of file remove-eps-local-inl.h.

References RemoveEpsLocalClass< Arc, ReweightPlus >::CheckNumArcs(), RemoveEpsLocalClass< Arc, ReweightPlus >::fst_, RemoveEpsLocalClass< Arc, ReweightPlus >::InitNumArcs(), RemoveEpsLocalClass< Arc, ReweightPlus >::non_coacc_state_, and RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEps().

52  :
53  fst_(fst) {
54  if (fst_->Start() == kNoStateId) return; // empty.
55  non_coacc_state_ = fst_->AddState();
56  InitNumArcs();
57  StateId num_states = fst_->NumStates();
58  for (StateId s = 0; s < num_states; s++)
59  for (size_t pos = 0; pos < fst_->NumArcs(s); pos++)
60  RemoveEps(s, pos);
61  assert(CheckNumArcs());
62  Connect(fst); // remove inaccessible states.
63  }
Definition: graph.dox:21
void RemoveEps(StateId s, size_t pos)

Member Function Documentation

bool CanCombineArcs ( const Arc &  a,
const Arc &  b,
Arc *  c
)
inlineprivate

Definition at line 73 of file remove-eps-local-inl.h.

References fst::Times().

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern1(), and RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern2().

73  {
74  if (a.ilabel != 0 && b.ilabel != 0) return false;
75  if (a.olabel != 0 && b.olabel != 0) return false;
76  c->weight = Times(a.weight, b.weight);
77  c->ilabel = (a.ilabel != 0 ? a.ilabel : b.ilabel);
78  c->olabel = (a.olabel != 0 ? a.olabel : b.olabel);
79  c->nextstate = b.nextstate;
80  return true;
81  }
LatticeWeightTpl< FloatType > Times(const LatticeWeightTpl< FloatType > &w1, const LatticeWeightTpl< FloatType > &w2)
static bool CanCombineFinal ( const Arc &  a,
Weight  final_prob,
Weight final_prob_out
)
inlinestaticprivate

Definition at line 83 of file remove-eps-local-inl.h.

References fst::Times().

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern1(), and RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern2().

83  {
84  if (a.ilabel != 0 || a.olabel != 0) return false;
85  else {
86  *final_prob_out = Times(a.weight, final_prob);
87  return true;
88  }
89  }
LatticeWeightTpl< FloatType > Times(const LatticeWeightTpl< FloatType > &w1, const LatticeWeightTpl< FloatType > &w2)
bool CheckNumArcs ( )
inlineprivate

Definition at line 106 of file remove-eps-local-inl.h.

References RemoveEpsLocalClass< Arc, ReweightPlus >::non_coacc_state_.

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsLocalClass().

106  { // check num arcs in/out of each state, at end. Debug.
107  num_arcs_in_[fst_->Start()]--; // count start as trans in.
108  StateId num_states = fst_->NumStates();
109  for (StateId s = 0; s < num_states; s++) {
110  if (s == non_coacc_state_) continue;
111  if (fst_->Final(s) != Weight::Zero())
112  num_arcs_out_[s]--; // count final as transition.
113  for (ArcIterator<MutableFst<Arc> > aiter(*fst_, s); !aiter.Done(); aiter.Next()) {
114  if (aiter.Value().nextstate == non_coacc_state_) continue;
115  num_arcs_in_[aiter.Value().nextstate]--;
116  num_arcs_out_[s]--;
117  }
118  }
119  for (StateId s = 0; s < num_states; s++) {
120  assert(num_arcs_in_[s] == 0);
121  assert(num_arcs_out_[s] == 0);
122  }
123  return true; // always does this. so we can assert it w/o warnings.
124  }
vector< StateId > num_arcs_out_
vector< StateId > num_arcs_in_
void GetArc ( StateId  s,
size_t  pos,
Arc *  arc
) const
inlineprivate

Definition at line 126 of file remove-eps-local-inl.h.

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEps().

126  {
127  ArcIterator<MutableFst<Arc> > aiter(*fst_, s);
128  aiter.Seek(pos);
129  *arc = aiter.Value();
130  }
void InitNumArcs ( )
inlineprivate

Definition at line 91 of file remove-eps-local-inl.h.

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsLocalClass().

91  { // init num transitions in/out of each state.
92  StateId num_states = fst_->NumStates();
93  num_arcs_in_.resize(num_states);
94  num_arcs_out_.resize(num_states);
95  num_arcs_in_[fst_->Start()]++; // count start as trans in.
96  for (StateId s = 0; s < num_states; s++) {
97  if (fst_->Final(s) != Weight::Zero())
98  num_arcs_out_[s]++; // count final as transition.
99  for (ArcIterator<MutableFst<Arc> > aiter(*fst_, s); !aiter.Done(); aiter.Next()) {
100  num_arcs_in_[aiter.Value().nextstate]++;
101  num_arcs_out_[s]++;
102  }
103  }
104  }
vector< StateId > num_arcs_out_
vector< StateId > num_arcs_in_
void RemoveEps ( StateId  s,
size_t  pos
)
inlineprivate

Definition at line 290 of file remove-eps-local-inl.h.

References RemoveEpsLocalClass< Arc, ReweightPlus >::GetArc(), RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern1(), and RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern2().

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsLocalClass().

290  {
291  // Tries to do local epsilon-removal for arc sequences starting with this arc
292  Arc arc;
293  GetArc(s, pos, &arc);
294  StateId nextstate = arc.nextstate;
295  if (nextstate == non_coacc_state_) return; // deleted arc.
296  if (nextstate == s) return; // don't handle self-loops: too complex.
297
298  if (num_arcs_in_[nextstate] == 1 && num_arcs_out_[nextstate] > 1) {
299  RemoveEpsPattern1(s, pos, arc);
300  } else if (num_arcs_out_[nextstate] == 1) {
301  RemoveEpsPattern2(s, pos, arc);
302  }
303  }
vector< StateId > num_arcs_out_
void RemoveEpsPattern2(StateId s, size_t pos, Arc arc)
void RemoveEpsPattern1(StateId s, size_t pos, Arc arc)
void GetArc(StateId s, size_t pos, Arc *arc) const
vector< StateId > num_arcs_in_
void RemoveEpsPattern1 ( StateId  s,
size_t  pos,
Arc  arc
)
inlineprivate

Definition at line 173 of file remove-eps-local-inl.h.

References RemoveEpsLocalClass< Arc, ReweightPlus >::CanCombineArcs(), RemoveEpsLocalClass< Arc, ReweightPlus >::CanCombineFinal(), fst::Divide(), rnnlm::i, RemoveEpsLocalClass< Arc, ReweightPlus >::non_coacc_state_, fst::Plus(), RemoveEpsLocalClass< Arc, ReweightPlus >::Reweight(), RemoveEpsLocalClass< Arc, ReweightPlus >::reweight_plus_, and RemoveEpsLocalClass< Arc, ReweightPlus >::SetArc().

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEps().

173  {
174  const StateId nextstate = arc.nextstate;
175  Weight total_removed = Weight::Zero(),
176  total_kept = Weight::Zero(); // totals out of nextstate.
177  vector<Arc> arcs_to_add; // to add to state s.
178  for (MutableArcIterator<MutableFst<Arc> > aiter_next(fst_, nextstate);
179  !aiter_next.Done();
180  aiter_next.Next()) {
181  Arc nextarc = aiter_next.Value();
182  if (nextarc.nextstate == non_coacc_state_) continue; // deleted.
183  Arc combined;
184  if (CanCombineArcs(arc, nextarc, &combined)) {
185  total_removed = reweight_plus_(total_removed, nextarc.weight);
186  num_arcs_out_[nextstate]--;
187  num_arcs_in_[nextarc.nextstate]--;
188  nextarc.nextstate = non_coacc_state_;
189  aiter_next.SetValue(nextarc);
190  arcs_to_add.push_back(combined);
191  } else {
192  total_kept = reweight_plus_(total_kept, nextarc.weight);
193  }
194  }
195
196  { // now final-state.
197  Weight next_final = fst_->Final(nextstate);
198  if (next_final != Weight::Zero()) {
199  Weight new_final;
200  if (CanCombineFinal(arc, next_final, &new_final)) {
201  total_removed = reweight_plus_(total_removed, next_final);
202  if (fst_->Final(s) == Weight::Zero())
203  num_arcs_out_[s]++; // final is counted as arc.
204  fst_->SetFinal(s, Plus(fst_->Final(s), new_final));
205  num_arcs_out_[nextstate]--;
206  fst_->SetFinal(nextstate, Weight::Zero());
207  } else {
208  total_kept = reweight_plus_(total_kept, next_final);
209  }
210  }
211  }
212
213  if (total_removed != Weight::Zero()) { // did something...
214  if (total_kept == Weight::Zero()) { // removed everything: remove arc.
215  num_arcs_out_[s]--;
216  num_arcs_in_[arc.nextstate]--;
217  arc.nextstate = non_coacc_state_;
218  SetArc(s, pos, arc);
219  } else {
220  // Have to reweight.
221  Weight total = reweight_plus_(total_removed, total_kept);
222  Weight reweight = Divide(total_kept, total, DIVIDE_LEFT); // <=1
223  Reweight(s, pos, reweight);
224  }
225  }
226  // Now add the arcs we were going to add.
227  for (size_t i = 0; i < arcs_to_add.size(); i++) {
228  num_arcs_out_[s]++;
229  num_arcs_in_[arcs_to_add[i].nextstate]++;
230  fst_->AddArc(s, arcs_to_add[i]);
231  }
232  }
LatticeWeightTpl< FloatType > Divide(const LatticeWeightTpl< FloatType > &w1, const LatticeWeightTpl< FloatType > &w2, DivideType typ=DIVIDE_ANY)
vector< StateId > num_arcs_out_
bool CanCombineArcs(const Arc &a, const Arc &b, Arc *c)
LatticeWeightTpl< FloatType > Plus(const LatticeWeightTpl< FloatType > &w1, const LatticeWeightTpl< FloatType > &w2)
void SetArc(StateId s, size_t pos, const Arc &arc)
vector< StateId > num_arcs_in_
void Reweight(StateId s, size_t pos, Weight reweight)
static bool CanCombineFinal(const Arc &a, Weight final_prob, Weight *final_prob_out)
void RemoveEpsPattern2 ( StateId  s,
size_t  pos,
Arc  arc
)
inlineprivate

Definition at line 234 of file remove-eps-local-inl.h.

References RemoveEpsLocalClass< Arc, ReweightPlus >::CanCombineArcs(), RemoveEpsLocalClass< Arc, ReweightPlus >::CanCombineFinal(), RemoveEpsLocalClass< Arc, ReweightPlus >::non_coacc_state_, fst::Plus(), and RemoveEpsLocalClass< Arc, ReweightPlus >::SetArc().

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEps().

234  {
235
236  // Pattern 2 is where "nextstate" has only one arc out, counting
237  // being-the-final-state as an arc, but possibly multiple arcs in.
238  // Also, nextstate != s.
239
240  const StateId nextstate = arc.nextstate;
241  bool can_delete_next = (num_arcs_in_[nextstate] == 1); // if
242  // we combine, can delete the corresponding out-arc/final-prob
243  // of nextstate.
244  bool delete_arc = false; // set to true if this arc to be deleted.
245
246  Weight next_final = fst_->Final(arc.nextstate);
247  if (next_final != Weight::Zero()) { // nextstate has no actual arcs out, only final-prob.
248  Weight new_final;
249  if (CanCombineFinal(arc, next_final, &new_final)) {
250  if (fst_->Final(s) == Weight::Zero())
251  num_arcs_out_[s]++; // final is counted as arc.
252  fst_->SetFinal(s, Plus(fst_->Final(s), new_final));
253  delete_arc = true; // will delete "arc".
254  if (can_delete_next) {
255  num_arcs_out_[nextstate]--;
256  fst_->SetFinal(nextstate, Weight::Zero());
257  }
258  }
259  } else { // has an arc but no final prob.
260  MutableArcIterator<MutableFst<Arc> > aiter_next(fst_, nextstate);
261  assert(!aiter_next.Done());
262  while (aiter_next.Value().nextstate == non_coacc_state_) {
263  aiter_next.Next();
264  assert(!aiter_next.Done());
265  }
266  // now aiter_next points to a real arc out of nextstate.
267  Arc nextarc = aiter_next.Value();
268  Arc combined;
269  if (CanCombineArcs(arc, nextarc, &combined)) {
270  delete_arc = true;
271  if (can_delete_next) { // do it before we invalidate iterators
272  num_arcs_out_[nextstate]--;
273  num_arcs_in_[nextarc.nextstate]--;
274  nextarc.nextstate = non_coacc_state_;
275  aiter_next.SetValue(nextarc);
276  }
277  num_arcs_out_[s]++;
278  num_arcs_in_[combined.nextstate]++;
279  fst_->AddArc(s, combined);
280  }
281  }
282  if (delete_arc) {
283  num_arcs_out_[s]--;
284  num_arcs_in_[nextstate]--;
285  arc.nextstate = non_coacc_state_;
286  SetArc(s, pos, arc);
287  }
288  }
vector< StateId > num_arcs_out_
bool CanCombineArcs(const Arc &a, const Arc &b, Arc *c)
LatticeWeightTpl< FloatType > Plus(const LatticeWeightTpl< FloatType > &w1, const LatticeWeightTpl< FloatType > &w2)
void SetArc(StateId s, size_t pos, const Arc &arc)
vector< StateId > num_arcs_in_
static bool CanCombineFinal(const Arc &a, Weight final_prob, Weight *final_prob_out)
void Reweight ( StateId  s,
size_t  pos,
Weight  reweight
)
inlineprivate

Definition at line 139 of file remove-eps-local-inl.h.

References fst::Divide(), and fst::Times().

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern1().

139  {
140  // Reweight is called from RemoveEpsPattern1; it is a step we
141  // do to preserve stochasticity. This function multiplies the
142  // arc at (s, pos) by reweight and divides all the arcs [+final-prob]
143  // out of the next state by the same. This is only valid if
144  // the next state has only one arc in and is not the start state.
145  assert(reweight != Weight::Zero());
146  MutableArcIterator<MutableFst<Arc> > aiter(fst_, s);
147  aiter.Seek(pos);
148  Arc arc = aiter.Value();
149  assert(num_arcs_in_[arc.nextstate] == 1);
150  arc.weight = Times(arc.weight, reweight);
151  aiter.SetValue(arc);
152
153  for (MutableArcIterator<MutableFst<Arc> > aiter_next(fst_, arc.nextstate);
154  !aiter_next.Done();
155  aiter_next.Next()) {
156  Arc nextarc = aiter_next.Value();
157  if (nextarc.nextstate != non_coacc_state_) {
158  nextarc.weight = Divide(nextarc.weight, reweight, DIVIDE_LEFT);
159  aiter_next.SetValue(nextarc);
160  }
161  }
162  Weight final = fst_->Final(arc.nextstate);
163  if (final != Weight::Zero()) {
164  fst_->SetFinal(arc.nextstate, Divide(final, reweight, DIVIDE_LEFT));
165  }
166  }
LatticeWeightTpl< FloatType > Divide(const LatticeWeightTpl< FloatType > &w1, const LatticeWeightTpl< FloatType > &w2, DivideType typ=DIVIDE_ANY)
LatticeWeightTpl< FloatType > Times(const LatticeWeightTpl< FloatType > &w1, const LatticeWeightTpl< FloatType > &w2)
vector< StateId > num_arcs_in_
void SetArc ( StateId  s,
size_t  pos,
const Arc &  arc
)
inlineprivate

Definition at line 132 of file remove-eps-local-inl.h.

Referenced by RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern1(), and RemoveEpsLocalClass< Arc, ReweightPlus >::RemoveEpsPattern2().

132  {
133  MutableArcIterator<MutableFst<Arc> > aiter(fst_, s);
134  aiter.Seek(pos);
135  aiter.SetValue(arc);
136  }

Member Data Documentation

MutableFst<Arc>* fst_
private
vector<StateId> num_arcs_in_
private

Definition at line 67 of file remove-eps-local-inl.h.

vector<StateId> num_arcs_out_
private

Definition at line 69 of file remove-eps-local-inl.h.

ReweightPlus reweight_plus_
private

The documentation for this class was generated from the following file:
