This is like DecodableMatrixScaledMapped, but it doesn't support an acoustic scale, and it does support a frame offset, whereby you can state that the first row of 'likes' is actually the n'th row of the matrix of available log-likelihoods. More...

#include <decodable-matrix.h>

Inheritance diagram for DecodableMatrixMapped:

[legend]

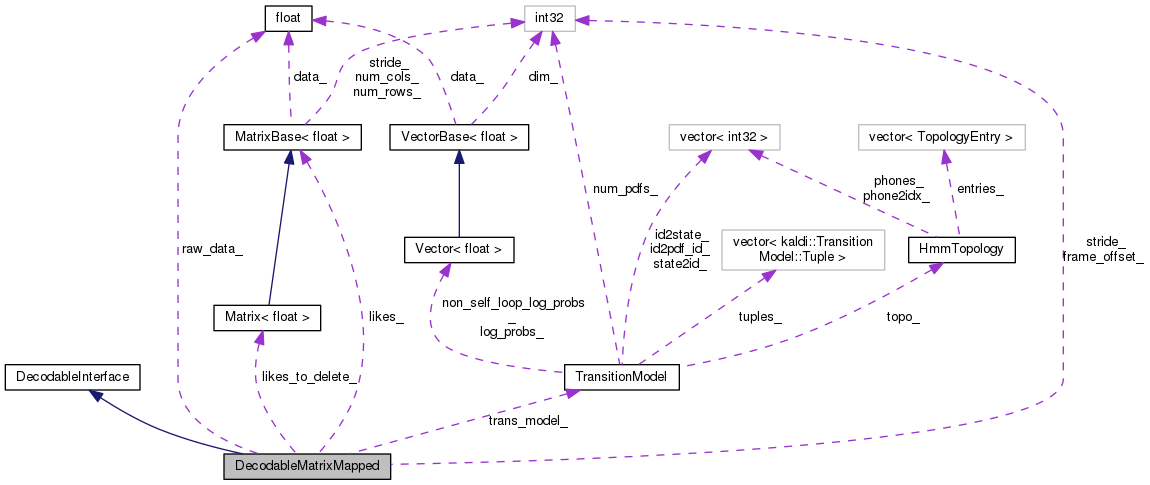

Collaboration diagram for DecodableMatrixMapped:

[legend]

Public Member Functions
	DecodableMatrixMapped (const TransitionModel &tm, const MatrixBase< BaseFloat > &likes, int32 frame_offset=0)

	DecodableMatrixMapped (const TransitionModel &tm, const Matrix< BaseFloat > *likes, int32 frame_offset=0)

virtual int32	NumFramesReady () const
	The call NumFramesReady() will return the number of frames currently available for this decodable object. More...

virtual bool	IsLastFrame (int32 frame) const
	Returns true if this is the last frame. More...

virtual BaseFloat	LogLikelihood (int32 frame, int32 tid)
	Returns the log likelihood, which will be negated in the decoder. More...

virtual int32	NumIndices () const
	Returns the number of states in the acoustic model (they will be indexed one-based, i.e. More...

virtual	~DecodableMatrixMapped ()

Public Member Functions inherited from DecodableInterface
virtual	~DecodableInterface ()

Private Member Functions
	KALDI_DISALLOW_COPY_AND_ASSIGN (DecodableMatrixMapped)

Private Attributes
const TransitionModel &	trans_model_

const MatrixBase< BaseFloat > *	likes_

const Matrix< BaseFloat > *	likes_to_delete_

int32	frame_offset_

const BaseFloat *	raw_data_

int32	stride_

Detailed Description

This is like DecodableMatrixScaledMapped, but it doesn't support an acoustic scale, and it does support a frame offset, whereby you can state that the first row of 'likes' is actually the n'th row of the matrix of available log-likelihoods.

It's useful if the neural net output comes in chunks for different frame ranges.

Note: DecodableMatrixMappedOffset solves the same problem in a slightly different way, where you use the same decodable object. This one, unlike DecodableMatrixMappedOffset, is compatible with when the loglikes are in a SubMatrix.

Definition at line 98 of file decodable-matrix.h.

Constructor & Destructor Documentation

◆ DecodableMatrixMapped() [1/2]

DecodableMatrixMapped	(	const TransitionModel &	tm,
		const MatrixBase< BaseFloat > &	likes,
		int32	frame_offset = `0`
	)

Definition at line 24 of file decodable-matrix.cc.

References MatrixBase< Real >::Data(), KALDI_ERR, MatrixBase< Real >::NumCols(), TransitionModel::NumPdfs(), DecodableMatrixMapped::raw_data_, MatrixBase< Real >::Stride(), and DecodableMatrixMapped::stride_.

                        :
     trans_model_(tm), likes_(&likes), likes_to_delete_(NULL),
     frame_offset_(frame_offset) {
   stride_ = likes.Stride();
   raw_data_ = likes.Data() - (stride_ * frame_offset);

   if (likes.NumCols() != tm.NumPdfs())
     KALDI_ERR << "Mismatch, matrix has "
               << likes.NumCols() << " cols but transition-model has "
               << tm.NumPdfs() << " pdf-ids.";
 }

◆ DecodableMatrixMapped() [2/2]

DecodableMatrixMapped	(	const TransitionModel &	tm,
		const Matrix< BaseFloat > *	likes,
		int32	frame_offset = `0`
	)

Definition at line 39 of file decodable-matrix.cc.

References MatrixBase< Real >::Data(), DecodableMatrixMapped::frame_offset_, KALDI_ERR, MatrixBase< Real >::NumCols(), TransitionModel::NumPdfs(), DecodableMatrixMapped::raw_data_, MatrixBase< Real >::Stride(), and DecodableMatrixMapped::stride_.

                        :
     trans_model_(tm), likes_(likes), likes_to_delete_(likes),
     frame_offset_(frame_offset) {
   stride_ = likes->Stride();
   raw_data_ = likes->Data() - (stride_ * frame_offset_);
   if (likes->NumCols() != tm.NumPdfs())
     KALDI_ERR << "Mismatch, matrix has "
               << likes->NumCols() << " cols but transition-model has "
               << tm.NumPdfs() << " pdf-ids.";
 }

◆ ~DecodableMatrixMapped()

~DecodableMatrixMapped ( )

virtual

Definition at line 76 of file decodable-matrix.cc.

References DecodableMatrixMapped::likes_to_delete_.

                                               {
   delete likes_to_delete_;
 }

Member Function Documentation

◆ IsLastFrame()

bool IsLastFrame ( int32 frame ) const

virtual

Returns true if this is the last frame.

Frames are zero-based, so the first frame is zero. IsLastFrame(-1) will return false, unless the file is empty (which is a case that I'm not sure all the code will handle, so be careful). Caution: the behavior of this function in an online setting is being changed somewhat. In future it may return false in cases where we haven't yet decided to terminate decoding, but later true if we decide to terminate decoding. The plan in future is to rely more on NumFramesReady(), and in future, IsLastFrame() would always return false in an online-decoding setting, and would only return true in a decoding-from-matrix setting where we want to allow the last delta or LDA features to be flushed out for compatibility with the baseline setup.

Implements DecodableInterface.

Definition at line 66 of file decodable-matrix.cc.

References KALDI_ASSERT, and DecodableMatrixMapped::NumFramesReady().

                                                          {
   KALDI_ASSERT(frame < NumFramesReady());
   return (frame == NumFramesReady() - 1);
 }

◆ KALDI_DISALLOW_COPY_AND_ASSIGN()

KALDI_DISALLOW_COPY_AND_ASSIGN ( DecodableMatrixMapped )

private

◆ LogLikelihood()

BaseFloat LogLikelihood	(	int32	frame,
		int32	index
	)

virtual

Returns the log likelihood, which will be negated in the decoder.

The "frame" starts from zero. You should verify that NumFramesReady() > frame before calling this.

Implements DecodableInterface.

Definition at line 53 of file decodable-matrix.cc.

References DecodableMatrixMapped::frame_offset_, DecodableMatrixMapped::likes_, DecodableMatrixMapped::raw_data_, DecodableMatrixMapped::stride_, DecodableMatrixMapped::trans_model_, and TransitionModel::TransitionIdToPdfFast().

                                                                      {
   int32 pdf_id = trans_model_.TransitionIdToPdfFast(tid);
 #ifdef KALDI_PARANOID
   return (*likes_)(frame - frame_offset_, pdf_id);
 #else
   return raw_data_[frame * stride_ + pdf_id];
 #endif
 }

◆ NumFramesReady()

int32 NumFramesReady ( ) const

virtual

The call NumFramesReady() will return the number of frames currently available for this decodable object.

This is for use in setups where you don't want the decoder to block while waiting for input. This is newly added as of Jan 2014, and I hope, going forward, to rely on this mechanism more than IsLastFrame to know when to stop decoding.

Reimplemented from DecodableInterface.

Definition at line 62 of file decodable-matrix.cc.

References DecodableMatrixMapped::frame_offset_, and DecodableMatrixMapped::likes_.

Referenced by DecodableMatrixMapped::IsLastFrame().

                                                   {
   return frame_offset_ + likes_->NumRows();
 }

◆ NumIndices()

int32 NumIndices ( ) const

virtual

Returns the number of states in the acoustic model (they will be indexed one-based, i.e.

from 1 to NumIndices(); this is for compatibility with OpenFst).

Implements DecodableInterface.

Definition at line 72 of file decodable-matrix.cc.

References TransitionModel::NumTransitionIds(), and DecodableMatrixMapped::trans_model_.

                                               {
   return trans_model_.NumTransitionIds();
 }

Member Data Documentation

◆ frame_offset_

int32 frame_offset_

private

Definition at line 128 of file decodable-matrix.h.

Referenced by DecodableMatrixMappedOffset::AcceptLoglikes(), DecodableMatrixMapped::DecodableMatrixMapped(), DecodableMatrixMapped::LogLikelihood(), and DecodableMatrixMapped::NumFramesReady().

◆ likes_

const MatrixBase<BaseFloat>* likes_

private

Definition at line 126 of file decodable-matrix.h.

Referenced by DecodableMatrixMapped::LogLikelihood(), and DecodableMatrixMapped::NumFramesReady().

◆ likes_to_delete_

const Matrix<BaseFloat>* likes_to_delete_

private

Definition at line 127 of file decodable-matrix.h.

Referenced by DecodableMatrixMapped::~DecodableMatrixMapped().

◆ raw_data_

const BaseFloat* raw_data_

private

Definition at line 132 of file decodable-matrix.h.

Referenced by DecodableMatrixMappedOffset::AcceptLoglikes(), DecodableMatrixMapped::DecodableMatrixMapped(), and DecodableMatrixMapped::LogLikelihood().

◆ stride_

int32 stride_

private

Definition at line 133 of file decodable-matrix.h.

Referenced by DecodableMatrixMappedOffset::AcceptLoglikes(), DecodableMatrixMapped::DecodableMatrixMapped(), and DecodableMatrixMapped::LogLikelihood().

◆ trans_model_

const TransitionModel& trans_model_

private

Definition at line 125 of file decodable-matrix.h.

Referenced by DecodableMatrixMappedOffset::AcceptLoglikes(), DecodableMatrixMapped::LogLikelihood(), and DecodableMatrixMapped::NumIndices().

The documentation for this class was generated from the following files:

decoder/decodable-matrix.h
decoder/decodable-matrix.cc
