#include <nnet-rbm.h>

Inheritance diagram for RbmBase:

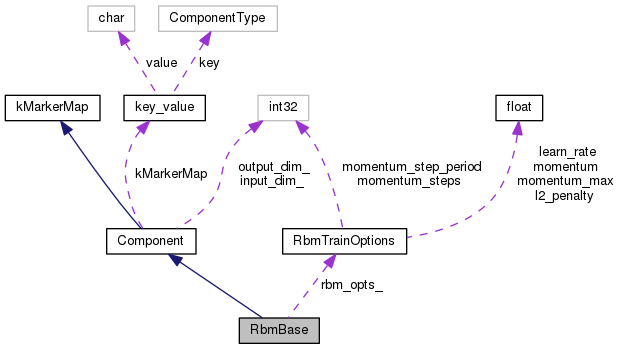

Collaboration diagram for RbmBase:

[legend]

Public Types
enum	RbmNodeType { Bernoulli, Gaussian }

Public Types inherited from Component
enum	ComponentType { kUnknown = 0x0, kUpdatableComponent = 0x0100, kAffineTransform, kLinearTransform, kConvolutionalComponent, kLstmProjected, kBlstmProjected, kRecurrentComponent, kActivationFunction = 0x0200, kSoftmax, kHiddenSoftmax, kBlockSoftmax, kSigmoid, kTanh, kParametricRelu, kDropout, kLengthNormComponent, kTranform = 0x0400, kRbm, kSplice, kCopy, kTranspose, kBlockLinearity, kAddShift, kRescale, kKlHmm = 0x0800, kSentenceAveragingComponent, kSimpleSentenceAveragingComponent, kAveragePoolingComponent, kMaxPoolingComponent, kFramePoolingComponent, kParallelComponent, kMultiBasisComponent }
	Component type identification mechanism,. More...

Public Member Functions
	RbmBase (int32 dim_in, int32 dim_out)

virtual void	Reconstruct (const CuMatrixBase< BaseFloat > &hid_state, CuMatrix< BaseFloat > *vis_probs)=0

virtual void	RbmUpdate (const CuMatrixBase< BaseFloat > &pos_vis, const CuMatrixBase< BaseFloat > &pos_hid, const CuMatrixBase< BaseFloat > &neg_vis, const CuMatrixBase< BaseFloat > &neg_hid)=0

virtual RbmNodeType	VisType () const =0

virtual RbmNodeType	HidType () const =0

virtual void	WriteAsNnet (std::ostream &os, bool binary) const =0

void	SetRbmTrainOptions (const RbmTrainOptions &opts)
	Set training hyper-parameters to the network and its UpdatableComponent(s) More...

const RbmTrainOptions &	GetRbmTrainOptions () const
	Get training hyper-parameters from the network. More...

Public Member Functions inherited from Component
	Component (int32 input_dim, int32 output_dim)
	Generic interface of a component,. More...

virtual	~Component ()

virtual Component *	Copy () const =0
	Copy component (deep copy),. More...

virtual ComponentType	GetType () const =0
	Get Type Identification of the component,. More...

virtual bool	IsUpdatable () const
	Check if componeny has 'Updatable' interface (trainable components),. More...

virtual bool	IsMultistream () const
	Check if component has 'Recurrent' interface (trainable and recurrent),. More...

int32	InputDim () const
	Get the dimension of the input,. More...

int32	OutputDim () const
	Get the dimension of the output,. More...

void	Propagate (const CuMatrixBase< BaseFloat > &in, CuMatrix< BaseFloat > *out)
	Perform forward-pass propagation 'in' -> 'out',. More...

void	Backpropagate (const CuMatrixBase< BaseFloat > &in, const CuMatrixBase< BaseFloat > &out, const CuMatrixBase< BaseFloat > &out_diff, CuMatrix< BaseFloat > *in_diff)
	Perform backward-pass propagation 'out_diff' -> 'in_diff'. More...

void	Write (std::ostream &os, bool binary) const
	Write the component to a stream,. More...

virtual std::string	Info () const
	Print some additional info (after <ComponentName> and the dims),. More...

virtual std::string	InfoGradient () const
	Print some additional info about gradient (after <...> and dims),. More...

Protected Attributes
RbmTrainOptions	rbm_opts_

Protected Attributes inherited from Component
int32	input_dim_
	Data members,. More...

int32	output_dim_
	Dimension of the output of the Component,. More...

Private Member Functions
void	Backpropagate (const CuMatrixBase< BaseFloat > &in, const CuMatrixBase< BaseFloat > &out, const CuMatrixBase< BaseFloat > &out_diff, CuMatrix< BaseFloat > *in_diff)

void	BackpropagateFnc (const CuMatrixBase< BaseFloat > &in, const CuMatrixBase< BaseFloat > &out, const CuMatrixBase< BaseFloat > &out_diff, CuMatrixBase< BaseFloat > *in_diff)
	Backward pass transformation (to be implemented by descending class...) More...

Additional Inherited Members
Static Public Member Functions inherited from Component
static const char *	TypeToMarker (ComponentType t)
	Converts component type to marker,. More...

static ComponentType	MarkerToType (const std::string &s)
	Converts marker to component type (case insensitive),. More...

static Component *	Init (const std::string &conf_line)
	Initialize component from a line in config file,. More...

static Component *	Read (std::istream &is, bool binary)
	Read the component from a stream (static method),. More...

Static Public Attributes inherited from Component
static const struct key_value	kMarkerMap []
	The table with pairs of Component types and markers (defined in nnet-component.cc),. More...

Protected Member Functions inherited from Component
virtual void	PropagateFnc (const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > *out)=0
	Abstract interface for propagation/backpropagation. More...

virtual void	InitData (std::istream &is)
	Virtual interface for initialization and I/O,. More...

virtual void	ReadData (std::istream &is, bool binary)
	Reads the component content. More...

virtual void	WriteData (std::ostream &os, bool binary) const
	Writes the component content. More...

Detailed Description

Definition at line 35 of file nnet-rbm.h.

Member Enumeration Documentation

◆ RbmNodeType

enum RbmNodeType

Enumerator
Bernoulli
Gaussian

Definition at line 37 of file nnet-rbm.h.

                {
     Bernoulli,
     Gaussian
   } RbmNodeType;

Constructor & Destructor Documentation

◆ RbmBase()

RbmBase	(	int32	dim_in,
		int32	dim_out
	)

inline

Definition at line 42 of file nnet-rbm.h.

References RbmBase::HidType(), RbmBase::RbmUpdate(), RbmBase::Reconstruct(), RbmBase::VisType(), and RbmBase::WriteAsNnet().

                                       :
     Component(dim_in, dim_out)
   { }

Member Function Documentation

◆ Backpropagate()

void Backpropagate	(	const CuMatrixBase< BaseFloat > &	in,
		const CuMatrixBase< BaseFloat > &	out,
		const CuMatrixBase< BaseFloat > &	out_diff,
		CuMatrix< BaseFloat > *	in_diff
	)

inlineprivate

Definition at line 81 of file nnet-rbm.h.

85 { }

◆ BackpropagateFnc()

void BackpropagateFnc	(	const CuMatrixBase< BaseFloat > &	in,
		const CuMatrixBase< BaseFloat > &	out,
		const CuMatrixBase< BaseFloat > &	out_diff,
		CuMatrixBase< BaseFloat > *	in_diff
	)

inlineprivatevirtual

Backward pass transformation (to be implemented by descending class...)

Implements Component.

Definition at line 86 of file nnet-rbm.h.

90 { }

◆ GetRbmTrainOptions()

const RbmTrainOptions& GetRbmTrainOptions ( ) const

inline

Get training hyper-parameters from the network.

Definition at line 71 of file nnet-rbm.h.

References RbmBase::rbm_opts_.

                                                     {
     return rbm_opts_;
   }

◆ HidType()

virtual RbmNodeType HidType ( ) const

pure virtual

Implemented in Rbm.

Referenced by RbmBase::RbmBase(), and Rbm::WriteAsNnet().

◆ RbmUpdate()

virtual void RbmUpdate	(	const CuMatrixBase< BaseFloat > &	pos_vis,
		const CuMatrixBase< BaseFloat > &	pos_hid,
		const CuMatrixBase< BaseFloat > &	neg_vis,
		const CuMatrixBase< BaseFloat > &	neg_hid
	)

pure virtual

Implemented in Rbm.

Referenced by RbmBase::RbmBase().

◆ Reconstruct()

virtual void Reconstruct	(	const CuMatrixBase< BaseFloat > &	hid_state,
		CuMatrix< BaseFloat > *	vis_probs
	)

pure virtual

Implemented in Rbm.

Referenced by RbmBase::RbmBase().

◆ SetRbmTrainOptions()

void SetRbmTrainOptions ( const RbmTrainOptions & opts )

inline

Set training hyper-parameters to the network and its UpdatableComponent(s)

Definition at line 67 of file nnet-rbm.h.

References RbmBase::rbm_opts_.

                                                        {
     rbm_opts_ = opts;
   }

◆ VisType()

virtual RbmNodeType VisType ( ) const

pure virtual

Implemented in Rbm.

Referenced by RbmBase::RbmBase().

◆ WriteAsNnet()

virtual void WriteAsNnet	(	std::ostream &	os,
		bool	binary
	)		const

pure virtual

Implemented in Rbm.

Referenced by RbmBase::RbmBase().

Member Data Documentation

◆ rbm_opts_

RbmTrainOptions rbm_opts_

protected

Definition at line 76 of file nnet-rbm.h.

Referenced by RbmBase::GetRbmTrainOptions(), Rbm::RbmUpdate(), and RbmBase::SetRbmTrainOptions().

The documentation for this class was generated from the following file:

nnet/nnet-rbm.h
