Sigmoid Class Reference

#include <nnet-activation.h>

Inheritance diagram for Sigmoid:

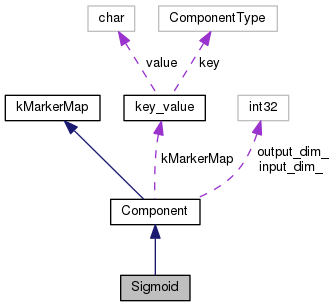

Collaboration diagram for Sigmoid:

Public Member Functions

 Sigmoid (int32 dim_in, int32 dim_out)

 ~Sigmoid ()

ComponentCopy () const
 Copy component (deep copy),. More...

ComponentType GetType () const
 Get Type Identification of the component,. More...

void PropagateFnc (const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > *out)
 Abstract interface for propagation/backpropagation. More...

void BackpropagateFnc (const CuMatrixBase< BaseFloat > &in, const CuMatrixBase< BaseFloat > &out, const CuMatrixBase< BaseFloat > &out_diff, CuMatrixBase< BaseFloat > *in_diff)
 Backward pass transformation (to be implemented by descending class...) More...

- Public Member Functions inherited from Component
 Component (int32 input_dim, int32 output_dim)
 Generic interface of a component,. More...

virtual ~Component ()

virtual bool IsUpdatable () const
 Check if componeny has 'Updatable' interface (trainable components),. More...

virtual bool IsMultistream () const
 Check if component has 'Recurrent' interface (trainable and recurrent),. More...

int32 InputDim () const
 Get the dimension of the input,. More...

int32 OutputDim () const
 Get the dimension of the output,. More...

void Propagate (const CuMatrixBase< BaseFloat > &in, CuMatrix< BaseFloat > *out)
 Perform forward-pass propagation 'in' -> 'out',. More...

void Backpropagate (const CuMatrixBase< BaseFloat > &in, const CuMatrixBase< BaseFloat > &out, const CuMatrixBase< BaseFloat > &out_diff, CuMatrix< BaseFloat > *in_diff)
 Perform backward-pass propagation 'out_diff' -> 'in_diff'. More...

void Write (std::ostream &os, bool binary) const
 Write the component to a stream,. More...

virtual std::string Info () const
 Print some additional info (after <ComponentName> and the dims),. More...

virtual std::string InfoGradient () const
 Print some additional info about gradient (after <...> and dims),. More...


Additional Inherited Members

- Public Types inherited from Component
enum  ComponentType {
  kUnknown = 0x0, kUpdatableComponent = 0x0100, kAffineTransform, kLinearTransform,
  kConvolutionalComponent, kConvolutional2DComponent, kLstmProjected, kBlstmProjected,
  kRecurrentComponent, kActivationFunction = 0x0200, kSoftmax, kHiddenSoftmax,
  kBlockSoftmax, kSigmoid, kTanh, kParametricRelu,
  kDropout, kLengthNormComponent, kTranform = 0x0400, kRbm,
  kSplice, kCopy, kTranspose, kBlockLinearity,
  kAddShift, kRescale, kKlHmm = 0x0800, kSentenceAveragingComponent,
  kSimpleSentenceAveragingComponent, kAveragePoolingComponent, kAveragePooling2DComponent, kMaxPoolingComponent,
  kMaxPooling2DComponent, kFramePoolingComponent, kParallelComponent, kMultiBasisComponent
}
 Component type identification mechanism,. More...

- Static Public Member Functions inherited from Component
static const char * TypeToMarker (ComponentType t)
 Converts component type to marker,. More...

static ComponentType MarkerToType (const std::string &s)
 Converts marker to component type (case insensitive),. More...

static ComponentInit (const std::string &conf_line)
 Initialize component from a line in config file,. More...

static ComponentRead (std::istream &is, bool binary)
 Read the component from a stream (static method),. More...

- Static Public Attributes inherited from Component
static const struct key_value kMarkerMap []
 The table with pairs of Component types and markers (defined in nnet-component.cc),. More...

- Protected Member Functions inherited from Component
virtual void InitData (std::istream &is)
 Virtual interface for initialization and I/O,. More...

virtual void ReadData (std::istream &is, bool binary)
 Reads the component content. More...

virtual void WriteData (std::ostream &os, bool binary) const
 Writes the component content. More...

- Protected Attributes inherited from Component
int32 input_dim_
 Data members,. More...

int32 output_dim_
 Dimension of the output of the Component,. More...


Detailed Description

Definition at line 211 of file nnet-activation.h.

Constructor & Destructor Documentation

Sigmoid ( int32  dim_in,
int32  dim_out
)
inline

Definition at line 213 of file nnet-activation.h.

Referenced by Sigmoid::Copy().

213  :
214  Component(dim_in, dim_out)
215  { }
Component(int32 input_dim, int32 output_dim)
Generic interface of a component,.
~Sigmoid ( )
inline

Definition at line 217 of file nnet-activation.h.

218  { }

Member Function Documentation

void BackpropagateFnc ( const CuMatrixBase< BaseFloat > &  in,
const CuMatrixBase< BaseFloat > &  out,
const CuMatrixBase< BaseFloat > &  out_diff,
CuMatrixBase< BaseFloat > *  in_diff
)
inlinevirtual

Backward pass transformation (to be implemented by descending class...)

Implements Component.

Definition at line 229 of file nnet-activation.h.

References CuMatrixBase< Real >::DiffSigmoid().

232  {
233  // ey = y(1-y)ex,
234  in_diff->DiffSigmoid(out, out_diff);
235  }
void DiffSigmoid(const CuMatrixBase< Real > &value, const CuMatrixBase< Real > &diff)
Differentiate backward through the sigmoid function.
Definition: cu-matrix.cc:1748
Component* Copy ( ) const
inlinevirtual

Copy component (deep copy),.

Implements Component.

Definition at line 220 of file nnet-activation.h.

References Sigmoid::Sigmoid().

220 { return new Sigmoid(*this); }
Sigmoid(int32 dim_in, int32 dim_out)
ComponentType GetType ( ) const
inlinevirtual

Get Type Identification of the component,.

Implements Component.

Definition at line 221 of file nnet-activation.h.

References Component::kSigmoid.

void PropagateFnc ( const CuMatrixBase< BaseFloat > &  in,
CuMatrixBase< BaseFloat > *  out
)
inlinevirtual

Abstract interface for propagation/backpropagation.

Forward pass transformation (to be implemented by descending class...)

Implements Component.

Definition at line 223 of file nnet-activation.h.

References CuMatrixBase< Real >::Sigmoid().

224  {
225  // y = 1/(1+e^-x)
226  out->Sigmoid(in);
227  }
void Sigmoid(const CuMatrixBase< Real > &src)
Set each element to the sigmoid of the corresponding element of "src": element by element...
Definition: cu-matrix.cc:1521

The documentation for this class was generated from the following file:
