compute-gop.cc File Reference

#include "base/kaldi-common.h"
#include "util/common-utils.h"
#include "hmm/transition-model.h"
#include "hmm/hmm-utils.h"
#include "hmm/tree-accu.h"
#include "hmm/posterior.h"

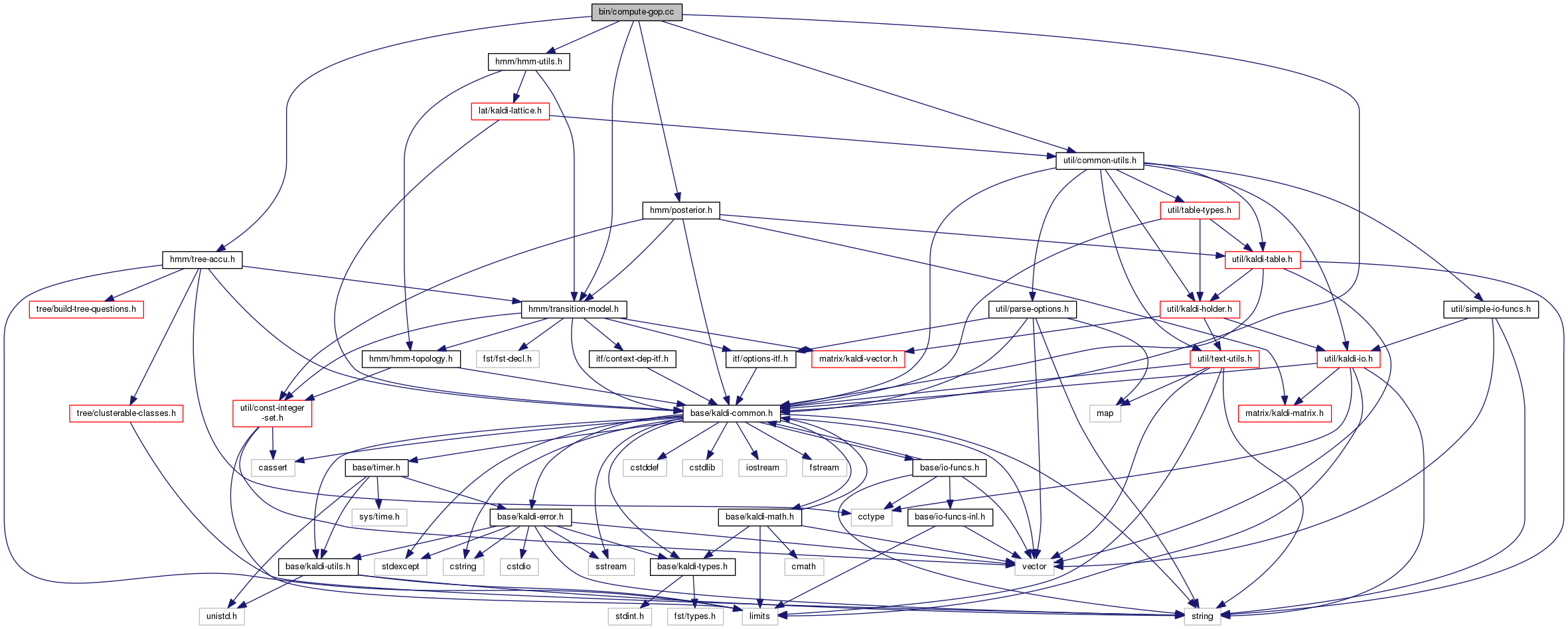

Include dependency graph for compute-gop.cc:

Go to the source code of this file.

Namespaces
	kaldi
	This code computes Goodness of Pronunciation (GOP) and extracts phone-level pronunciation feature for mispronunciations detection tasks, the reference:

Functions
void	FrameLevelLpp (const SubVector< BaseFloat > &prob_row, const std::vector< std::set< int32 > > &pdf2phones, const std::vector< int32 > *phone_map, Vector< BaseFloat > *out_frame_level_lpp)
	FrameLevelLpp compute a log posterior for pure-phones by sum the posterior of the states belonging to those triphones whose current phone is the canonical phone: More...
int	main (int argc, char *argv[])

Function Documentation

main()

int main	(	int	argc,
		char *	argv[]
	)

Definition at line 96 of file compute-gop.cc.

References VectorBase< Real >::AddVec(), MatrixBase< Real >::ApplyExp(), SequentialTableReader< Holder >::Done(), kaldi::FrameLevelLpp(), ParseOptions::GetArg(), kaldi::GetPdfToPhonesMap(), RandomAccessTableReader< Holder >::HasKey(), rnnlm::i, KALDI_ASSERT, KALDI_LOG, KALDI_WARN, SequentialTableReader< Holder >::Key(), VectorBase< Real >::Max(), SequentialTableReader< Holder >::Next(), ParseOptions::NumArgs(), TransitionModel::NumPhones(), MatrixBase< Real >::NumRows(), ParseOptions::PrintUsage(), ParseOptions::Read(), TransitionModel::Read(), kaldi::ReadPhoneMap(), ParseOptions::Register(), MatrixBase< Real >::Row(), VectorBase< Real >::Scale(), VectorBase< Real >::Set(), Input::Stream(), RandomAccessTableReader< Holder >::Value(), SequentialTableReader< Holder >::Value(), and TableWriter< Holder >::Write().

                                 {
  using namespace kaldi;
  typedef kaldi::int32 int32;
  try {
    const char *usage =
        "Compute Goodness Of Pronunciation (GOP) from a matrix of "
        "probabilities (e.g. from nnet3-compute).\n"
        "Usage:  compute-gop [options] <model> <alignments-rspecifier> "
        "<prob-matrix-rspecifier> <gop-wspecifier> "
        "[<phone-feature-wspecifier>]\n"
        "e.g.:\n"
        " nnet3-compute [args] | compute-gop 1.mdl ark:ali-phone.1 ark:-"
        " ark:gop.1 ark:phone-feat.1\n";

    ParseOptions po(usage);

    bool log_applied = true;
    std::string phone_map_rxfilename;

    po.Register("log-applied", &log_applied,
        "If true, assume the input probabilities have been applied log.");
    po.Register("phone-map", &phone_map_rxfilename,
                "File name containing old->new phone mapping (each line is: "
                "old-integer-id new-integer-id)");

    po.Read(argc, argv);

    if (po.NumArgs() != 4 && po.NumArgs() != 5) {
      po.PrintUsage();
      exit(1);
    }

    std::string model_filename = po.GetArg(1),
                alignments_rspecifier = po.GetArg(2),
                prob_rspecifier = po.GetArg(3),
                gop_wspecifier = po.GetArg(4),
                feat_wspecifier = po.GetArg(5);

    TransitionModel trans_model;
    {
      bool binary;
      Input ki(model_filename, &binary);
      trans_model.Read(ki.Stream(), binary);
    }
    std::vector<std::set<int32> > pdf2phones;
    GetPdfToPhonesMap(trans_model, &pdf2phones);
    int32 phone_num = trans_model.NumPhones();

    std::vector<int32> phone_map;
    if (phone_map_rxfilename != "") {
      ReadPhoneMap(phone_map_rxfilename, &phone_map);
      phone_num = phone_map[phone_map.size() - 1];
    }

    RandomAccessInt32VectorReader alignment_reader(alignments_rspecifier);
    SequentialBaseFloatMatrixReader prob_reader(prob_rspecifier);
    PosteriorWriter gop_writer(gop_wspecifier);
    BaseFloatMatrixWriter feat_writer(feat_wspecifier);

    int32 num_done = 0;
    for (; !prob_reader.Done(); prob_reader.Next()) {
      std::string key = prob_reader.Key();
      if (!alignment_reader.HasKey(key)) {
        KALDI_WARN << "No alignment for utterance " << key;
        continue;
      }
      auto alignment = alignment_reader.Value(key);
      Matrix<BaseFloat> &probs = prob_reader.Value();
      if (log_applied) probs.ApplyExp();

      int32 frame_num = alignment.size();
      if (alignment.size() != probs.NumRows()) {
        KALDI_WARN << "The frame numbers of alignment and prob are not equal.";
        if (frame_num > probs.NumRows()) frame_num = probs.NumRows();
      }

      KALDI_ASSERT(frame_num > 0);
      int32 cur_phone_id = alignment[0] - 1;  // start by 0, skipping <eps>
      int32 duration = 0;
      Vector<BaseFloat> phone_level_feat(phone_num * 2);  // LPPs and LPRs
      SubVector<BaseFloat> lpp_part(phone_level_feat, 0, phone_num);
      std::vector<Vector<BaseFloat> > phone_level_feat_stdvector;
      Posterior posterior_gop;
      for (int32 i = 0; i < frame_num; i++) {
        // Calculate LPP and LPR for each pure-phone
        Vector<BaseFloat> frame_level_lpp(phone_num);
        FrameLevelLpp(probs.Row(i), pdf2phones,
                      (phone_map_rxfilename != "") ? &phone_map : NULL,
                      &frame_level_lpp);

        // LPP(p)=\frac{1}{t_e-t_s+1} \sum_{t=t_s}^{t_e}\log p(p|o_t)
        lpp_part.AddVec(1, frame_level_lpp);
        duration++;

        int32 next_phone_id = (i < frame_num - 1) ? alignment[i + 1] - 1: -1;
        if (next_phone_id != cur_phone_id) {
          // The current phone's feature have been ready
          lpp_part.Scale(1.0 / duration);

          // LPR(p_j|p_i)=\log p(p_j|\mathbf o; t_s, t_e)-\log p(p_i|\mathbf o; t_s, t_e)
          for (int k = 0; k < phone_num; k++)
            phone_level_feat(phone_num + k) = lpp_part(cur_phone_id) - lpp_part(k);
          phone_level_feat_stdvector.push_back(phone_level_feat);

          // Compute GOP from LPP
          // GOP(p)=\log \frac{LPP(p)}{\max_{q\in Q} LPP(q)}
          BaseFloat gop = lpp_part(cur_phone_id) - lpp_part.Max();
          std::vector<std::pair<int32, BaseFloat> > posterior_item;
          posterior_item.push_back(std::make_pair(cur_phone_id + 1, gop));
          posterior_gop.push_back(posterior_item);

          // Reset
          phone_level_feat.Set(0);
          duration = 0;
        }
        cur_phone_id = next_phone_id;
      }

      // Write GOPs and the phone-level features
      Matrix<BaseFloat> feats(phone_level_feat_stdvector.size(), phone_num * 2);
      for (int32 i = 0; i < phone_level_feat_stdvector.size(); i++) {
        SubVector<BaseFloat> row(feats, i);
        row.AddVec(1.0, phone_level_feat_stdvector[i]);
      }
      feat_writer.Write(key, feats);
      gop_writer.Write(key, posterior_gop);
      num_done++;
    }

    KALDI_LOG << "Processed " << num_done << " prob matrices.";
    return (num_done != 0 ? 0 : 1);
  } catch (const std::exception &e) {
    std::cerr << e.what() << '\n';
    return -1;
  }
}
