ComputationRequest Struct Reference

#include <nnet-computation.h>

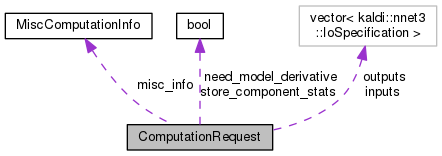

Collaboration diagram for ComputationRequest:

Public Member Functions
	ComputationRequest ()
bool	NeedDerivatives () const
	returns true if any of inputs[*].has_deriv is true, or need_model_derivative is true. More...
int32	IndexForInput (const std::string &node_name) const
	Returns the index into "inputs" corresponding to the node with name "node_name", or -1 if there is no such index. More...
int32	IndexForOutput (const std::string &node_name) const
	Returns the index into "inputs" corresponding to the node with name "node_name", or -1 if there is no such index. More...
void	Print (std::ostream &os) const
	This function is for printing info about the computation request in a human-readable way. More...
void	Read (std::istream &istream, bool binary)
void	Write (std::ostream &ostream, bool binary) const
bool	operator== (const ComputationRequest &other) const

Public Attributes
std::vector< IoSpecification >	inputs
std::vector< IoSpecification >	outputs
bool	need_model_derivative
	if need_model_derivative is true, then we'll be doing either model training or model-derivative computation, so updatable components need to be backprop'd. More...
bool	store_component_stats
	you should set need_component_stats to true if you need the average-activation and average-derivative statistics stored by the StoreStats() functions of components/ such as Tanh, Sigmoid and Softmax. More...
MiscComputationInfo	misc_info
	misc_info is for extensibility to things that don't easily fit into the framework. More...

Detailed Description

Definition at line 114 of file nnet-computation.h.

Constructor & Destructor Documentation

ComputationRequest()

ComputationRequest ( )

inline

Definition at line 132 of file nnet-computation.h.

References MiscComputationInfo::operator==(), and MiscComputationInfo::Print().

                      : need_model_derivative(false),
                        store_component_stats(false) { }

Member Function Documentation

IndexForInput()

int32 IndexForInput

(

const std::string &

node_name

)

const

Returns the index into "inputs" corresponding to the node with name "node_name", or -1 if there is no such index.

It is an error if >1 inputs have the same name.

Definition at line 54 of file nnet-computation.cc.

References rnnlm::i, ComputationRequest::inputs, and KALDI_ASSERT.

Referenced by Compiler::ComputeDerivNeeded().

                                      {
  int32 ans = -1;
  for (size_t i = 0; i < inputs.size(); i++) {
    if (inputs[i].name == node_name) {
      KALDI_ASSERT(ans == -1 && "Two inputs with the same name");
      ans = i;
    }
  }
  return ans;
}

IndexForOutput()

int32 IndexForOutput

(

const std::string &

node_name

)

const

Returns the index into "inputs" corresponding to the node with name "node_name", or -1 if there is no such index.

It is an error if >1 inputs have the same name.

Definition at line 66 of file nnet-computation.cc.

References rnnlm::i, KALDI_ASSERT, and ComputationRequest::outputs.

Referenced by Compiler::ComputeDerivNeeded().

                                      {
  int32 ans = -1;
  for (size_t i = 0; i < outputs.size(); i++) {
    if (outputs[i].name == node_name) {
      KALDI_ASSERT(ans == -1 && "Two inputs with the same name");
      ans = i;
    }
  }
  return ans;
}

NeedDerivatives()

bool NeedDerivatives

(

)

const

returns true if any of inputs[*].has_deriv is true, or need_model_derivative is true.

Definition at line 29 of file nnet-computation.cc.

References rnnlm::i, ComputationRequest::inputs, KALDI_ERR, ComputationRequest::need_model_derivative, and ComputationRequest::outputs.

Referenced by Compiler::SetUpPrecomputedIndexes().

                                               {
  bool ans = false;
  if (need_model_derivative)
    ans = true;
  for (size_t i = 0; i < inputs.size(); i++) {
    if (inputs[i].has_deriv) { // derivative requested for this input
      ans = true;
      break;
    }
  }
  if (ans) {
    // check that the output actually provides a derivative, else the
    // request could not be meaningfully satisfied.
    size_t i;
    for (i = 0; i < outputs.size(); i++)
      if (outputs[i].has_deriv)
        break;
    if (i == outputs.size()) {
      KALDI_ERR << "You requested model derivatives or input derivatives, but "
                << "provide no derivatives at the output.";
    }
  }
  return ans;
}

operator==()

bool operator==

(

const ComputationRequest &

other

)

const

Definition at line 1125 of file nnet-computation.cc.

References ComputationRequest::inputs, ComputationRequest::misc_info, ComputationRequest::need_model_derivative, ComputationRequest::outputs, and ComputationRequest::store_component_stats.

                                                                          {
  // rely on the std::vector's default implementation of ==, which in turn
  // relies on the == operator of class IoSpecification.
  return inputs == other.inputs && outputs == other.outputs &&
      need_model_derivative == other.need_model_derivative &&
      store_component_stats == other.store_component_stats &&
      misc_info == other.misc_info;
}

Print()

void Print

(

std::ostream &

os

)

const

This function is for printing info about the computation request in a human-readable way.

Definition at line 1092 of file nnet-computation.cc.

References rnnlm::i, ComputationRequest::inputs, ComputationRequest::misc_info, ComputationRequest::need_model_derivative, ComputationRequest::outputs, MiscComputationInfo::Print(), and ComputationRequest::store_component_stats.

Referenced by kaldi::nnet3::CompileLoopedInternal(), CachingOptimizingCompiler::CompileNoShortcut(), kaldi::nnet3::UnitTestNnetCompile(), kaldi::nnet3::UnitTestNnetCompileLooped(), and kaldi::nnet3::UnitTestNnetCompileMulti().

                                                   {
  os << " # Computation request:\n";
  for (size_t i = 0; i < inputs.size(); i++) {
    os << "input-" << i << ": ";
    inputs[i].Print(os);
  }
  for (size_t i = 0; i < outputs.size(); i++) {
    os << "output-" << i << ": ";
    outputs[i].Print(os);
  }
  os << "need-model-derivative: " <<
      (need_model_derivative ? "true\n" : "false\n");
  os << "store-component-stats: " <<
      (store_component_stats ? "true\n" : "false\n");
  misc_info.Print(os);
}

Read()

void Read	(	std::istream &	istream,
		bool	binary
	)

Definition at line 1034 of file nnet-computation.cc.

References kaldi::nnet3::ExpectToken(), ComputationRequest::inputs, KALDI_ASSERT, ComputationRequest::need_model_derivative, ComputationRequest::outputs, kaldi::ReadBasicType(), and ComputationRequest::store_component_stats.

Referenced by ComputationCache::Read(), and kaldi::nnet3::UnitTestComputationRequestIo().

                                                         {
  ExpectToken(is, binary, "<ComputationRequest>");
  size_t num_inputs;
  ExpectToken(is, binary, "<NumInputs>");
  ReadBasicType(is, binary, &num_inputs);
  KALDI_ASSERT(num_inputs >= 0);
  inputs.resize(num_inputs);
  ExpectToken(is, binary, "<Inputs>");
  for (size_t c = 0; c < num_inputs; c++) {
    inputs[c].Read(is, binary);
  }

  size_t num_outputs;
  ExpectToken(is, binary, "<NumOutputs>");
  ReadBasicType(is, binary, &num_outputs);
  KALDI_ASSERT(num_outputs >= 0);
  outputs.resize(num_outputs);
  ExpectToken(is, binary, "<Outputs>");
  for (size_t c = 0; c < num_outputs; c++) {
    outputs[c].Read(is, binary);
  }

  ExpectToken(is, binary, "<NeedModelDerivative>");
  ReadBasicType(is, binary, &need_model_derivative);
  ExpectToken(is, binary, "<StoreComponentStats>");
  ReadBasicType(is, binary, &store_component_stats);
  ExpectToken(is, binary, "</ComputationRequest>");
}

Write()

void Write	(	std::ostream &	ostream,
		bool	binary
	)		const

Definition at line 1063 of file nnet-computation.cc.

References ComputationRequest::inputs, ComputationRequest::need_model_derivative, ComputationRequest::outputs, ComputationRequest::store_component_stats, kaldi::WriteBasicType(), and kaldi::WriteToken().

Referenced by kaldi::nnet3::UnitTestComputationRequestIo().

                                                                {
  WriteToken(os, binary, "<ComputationRequest>");
  if (!binary) os << std::endl;
  WriteToken(os, binary, "<NumInputs>");
  WriteBasicType(os, binary, inputs.size());
  if (!binary) os << std::endl;
  WriteToken(os, binary, "<Inputs>");
  for (size_t c = 0; c < inputs.size(); c++) {
    inputs[c].Write(os, binary);
  }
  if (!binary) os << std::endl;

  WriteToken(os, binary, "<NumOutputs>");
  WriteBasicType(os, binary, outputs.size());
  if (!binary) os << std::endl;
  WriteToken(os, binary, "<Outputs>");
  for (size_t c = 0; c < outputs.size(); c++) {
    outputs[c].Write(os, binary);
  }
  if (!binary) os << std::endl;

  WriteToken(os, binary, "<NeedModelDerivative>");
  WriteBasicType(os, binary, need_model_derivative);
  WriteToken(os, binary, "<StoreComponentStats>");
  WriteBasicType(os, binary, store_component_stats);
  WriteToken(os, binary, "</ComputationRequest>");
  if (!binary) os << std::endl;
}

Member Data Documentation

inputs

std::vector<IoSpecification> inputs

Definition at line 115 of file nnet-computation.h.

Referenced by kaldi::nnet3::computation_graph::AddInputToGraph(), kaldi::nnet3::AddTimeOffsetToComputationRequest(), DecodableNnetLoopedOnlineBase::AdvanceChunk(), DecodableNnetSimpleLooped::AdvanceChunk(), BatchedXvectorComputer::BatchedXvectorComputer(), Compiler::ComputeDerivNeeded(), kaldi::nnet3::ComputeExampleComputationRequestSimple(), kaldi::nnet3::ComputeSimpleNnetContextForShift(), kaldi::nnet3::CreateComputationRequestInternal(), Compiler::DeallocateMatrices(), DecodableNnetSimple::DoNnetComputation(), kaldi::nnet3::ExtrapolateComputationRequest(), kaldi::nnet3::GetChainComputationRequest(), kaldi::nnet3::GetComputationRequest(), NnetBatchComputer::GetComputationRequest(), kaldi::nnet3::GetDiscriminativeComputationRequest(), ComputationRequest::IndexForInput(), ComputationRequest::NeedDerivatives(), ComputationRequest::operator==(), ComputationRequest::Print(), ComputationStepsComputer::ProcessInputOrOutputStep(), ComputationRequest::Read(), kaldi::nnet3::RequestIsDecomposable(), kaldi::nnet3::RunNnetComputation(), kaldi::nnet3::SetDerivTimesOptions(), kaldi::nnet3::UnitTestNnetCompileMulti(), kaldi::nnet3::UnitTestNnetCompute(), kaldi::nnet3::UnitTestNnetInputDerivatives(), kaldi::nnet3::UnitTestNnetModelDerivatives(), kaldi::nnet3::UnitTestNnetOptimizeWithOptions(), and ComputationRequest::Write().

misc_info

MiscComputationInfo misc_info

misc_info is for extensibility to things that don't easily fit into the framework.

Definition at line 130 of file nnet-computation.h.

Referenced by ComputationGraphBuilder::AddDependencies(), CachingOptimizingCompiler::CompileViaShortcut(), ComputationGraphBuilder::ComputeComputableInfo(), kaldi::nnet3::ComputeComputationGraph(), ComputationRequest::operator==(), ComputationRequest::Print(), kaldi::nnet3::RequestIsDecomposable(), and Compiler::SetUpPrecomputedIndexes().

need_model_derivative

bool need_model_derivative

if need_model_derivative is true, then we'll be doing either model training or model-derivative computation, so updatable components need to be backprop'd.

Definition at line 121 of file nnet-computation.h.

Referenced by BatchedXvectorComputer::BatchedXvectorComputer(), Compiler::ComputeDerivNeeded(), kaldi::nnet3::ComputeExampleComputationRequestSimple(), DecodableNnetSimple::DoNnetComputation(), kaldi::nnet3::GetChainComputationRequest(), kaldi::nnet3::GetComputationRequest(), NnetBatchComputer::GetComputationRequest(), kaldi::nnet3::GetDiscriminativeComputationRequest(), ComputationRequest::NeedDerivatives(), ComputationRequest::operator==(), ComputationRequest::Print(), ComputationRequest::Read(), NnetComputation::Read(), kaldi::nnet3::RequestIsDecomposable(), kaldi::nnet3::RunNnetComputation(), kaldi::nnet3::UnitTestNnetCompileMulti(), kaldi::nnet3::UnitTestNnetInputDerivatives(), kaldi::nnet3::UnitTestNnetModelDerivatives(), ComputationRequest::Write(), and NnetComputation::Write().

outputs

std::vector<IoSpecification> outputs

Definition at line 116 of file nnet-computation.h.

Referenced by kaldi::nnet3::computation_graph::AddOutputToGraph(), kaldi::nnet3::AddTimeOffsetToComputationRequest(), BatchedXvectorComputer::BatchedXvectorComputer(), Compiler::ComputeDerivNeeded(), kaldi::nnet3::ComputeExampleComputationRequestSimple(), kaldi::nnet3::ComputeSimpleNnetContextForShift(), kaldi::nnet3::CreateComputationRequestInternal(), DecodableNnetSimple::DoNnetComputation(), kaldi::nnet3::GetChainComputationRequest(), ComputationGraphBuilder::GetComputableInfo(), kaldi::nnet3::GetComputationRequest(), NnetBatchComputer::GetComputationRequest(), kaldi::nnet3::GetDiscriminativeComputationRequest(), ComputationRequest::IndexForOutput(), kaldi::nnet3::MaxOutputTimeInRequest(), ComputationRequest::NeedDerivatives(), ComputationRequest::operator==(), ComputationRequest::Print(), ComputationStepsComputer::ProcessInputOrOutputStep(), ComputationRequest::Read(), kaldi::nnet3::RequestIsDecomposable(), kaldi::nnet3::RunNnetComputation(), kaldi::nnet3::SetDerivTimesOptions(), kaldi::nnet3::UnitTestNnetCompileMulti(), kaldi::nnet3::UnitTestNnetCompute(), kaldi::nnet3::UnitTestNnetInputDerivatives(), kaldi::nnet3::UnitTestNnetModelDerivatives(), kaldi::nnet3::UnitTestNnetOptimizeWithOptions(), and ComputationRequest::Write().

store_component_stats

bool store_component_stats

you should set need_component_stats to true if you need the average-activation and average-derivative statistics stored by the StoreStats() functions of components/ such as Tanh, Sigmoid and Softmax.

Definition at line 126 of file nnet-computation.h.

Referenced by BatchedXvectorComputer::BatchedXvectorComputer(), kaldi::nnet3::ComputeExampleComputationRequestSimple(), DecodableNnetSimple::DoNnetComputation(), kaldi::nnet3::GetChainComputationRequest(), kaldi::nnet3::GetComputationRequest(), NnetBatchComputer::GetComputationRequest(), kaldi::nnet3::GetDiscriminativeComputationRequest(), ComputationRequest::operator==(), ComputationRequest::Print(), ComputationRequest::Read(), kaldi::nnet3::RequestIsDecomposable(), kaldi::nnet3::RunNnetComputation(), kaldi::nnet3::UnitTestNnetCompileMulti(), and ComputationRequest::Write().

---

The documentation for this struct was generated from the following files:

• nnet3/nnet-computation.h
• nnet3/nnet-computation.cc
