NnetChainSupervision Struct Reference

#include <nnet-chain-example.h>

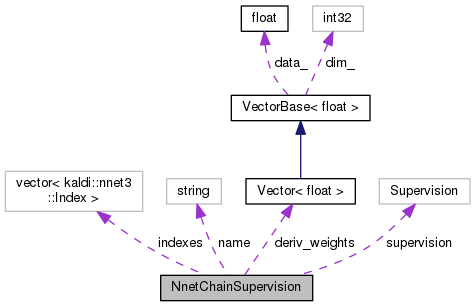

Collaboration diagram for NnetChainSupervision:

Public Member Functions
	NnetChainSupervision ()
	NnetChainSupervision (const std::string &name, const chain::Supervision &supervision, const VectorBase< BaseFloat > &deriv_weights, int32 first_frame, int32 frame_skip)
	Initialize the object from an object of type chain::Supervision, and some extra information. More...
	NnetChainSupervision (const NnetChainSupervision &other)
void	Write (std::ostream &os, bool binary) const
void	Read (std::istream &is, bool binary)
void	Swap (NnetChainSupervision *other)
void	CheckDim () const
bool	operator== (const NnetChainSupervision &other) const

Public Attributes
std::string	name
	the name of the output in the neural net; in simple setups it will just be "output". More...
std::vector< Index >	indexes
	The indexes that the output corresponds to. More...
chain::Supervision	supervision
	The supervision object, containing the FST. More...
Vector< BaseFloat >	deriv_weights
	This is a vector of per-frame weights, required to be between 0 and 1, that is applied to the derivative during training (but not during model combination, where the derivatives need to agree with the computed objf values for the optimization code to work). More...

Detailed Description

Definition at line 43 of file nnet-chain-example.h.

Constructor & Destructor Documentation

NnetChainSupervision() [1/3]

NnetChainSupervision ( )

inline

Definition at line 81 of file nnet-chain-example.h.

References NnetChainSupervision::CheckDim(), NnetChainSupervision::operator==(), NnetChainSupervision::Read(), NnetChainSupervision::Swap(), and NnetChainSupervision::Write().

{ }

NnetChainSupervision() [2/3]

NnetChainSupervision	(	const std::string &	name,
		const chain::Supervision &	supervision,
		const VectorBase< BaseFloat > &	deriv_weights,
		int32	first_frame,
		int32	frame_skip
	)

Initialize the object from an object of type chain::Supervision, and some extra information.

Note: you probably want to set 'name' to "output". 'first_frame' will often be zero but you can choose (just make it consistent with how you numbered your inputs), and 'frame_skip' would be 1 in a vanilla setup, but we plan to try setups where the output periodicity is slower than the input, so in this case it might be 2 or 3.

Definition at line 107 of file nnet-chain-example.cc.

References NnetChainSupervision::CheckDim(), rnnlm::i, NnetChainSupervision::indexes, rnnlm::j, and KALDI_ASSERT.

                     :
    name(name),
    supervision(supervision),
    deriv_weights(deriv_weights) {
  // note: this will set the 'x' index to zero.
  indexes.resize(supervision.num_sequences *
                 supervision.frames_per_sequence);
  int32 k = 0, num_sequences = supervision.num_sequences,
      frames_per_sequence = supervision.frames_per_sequence;
  for (int32 i = 0; i < frames_per_sequence; i++) {
    for (int32 j = 0; j < num_sequences; j++,k++) {
      indexes[k].n = j;
      indexes[k].t = i * frame_skip + first_frame;
    }
  }
  KALDI_ASSERT(k == indexes.size());
  CheckDim();
}

NnetChainSupervision() [3/3]

NnetChainSupervision

(

const NnetChainSupervision &

other

)

Definition at line 92 of file nnet-chain-example.cc.

References NnetChainSupervision::CheckDim().

                                                                           :
    name(other.name),
    indexes(other.indexes),
    supervision(other.supervision),
    deriv_weights(other.deriv_weights) { CheckDim(); }

Member Function Documentation

CheckDim()

void CheckDim

(

)

const

Definition at line 65 of file nnet-chain-example.cc.

References NnetChainSupervision::deriv_weights, rnnlm::i, NnetChainSupervision::indexes, rnnlm::j, KALDI_ASSERT, rnnlm::n, and NnetChainSupervision::supervision.

Referenced by kaldi::nnet3::MergeSupervision(), NnetChainSupervision::NnetChainSupervision(), NnetChainSupervision::Read(), NnetChainSupervision::Swap(), and NnetChainSupervision::Write().

                                          {
  if (supervision.frames_per_sequence == -1) {
    // this object has not been set up.
    KALDI_ASSERT(indexes.empty());
    return;
  }
  KALDI_ASSERT(indexes.size() == supervision.num_sequences *
               supervision.frames_per_sequence && !indexes.empty() &&
               supervision.frames_per_sequence > 1);
  int32 first_frame = indexes[0].t,
      frame_skip = indexes[supervision.num_sequences].t - first_frame,
      num_sequences = supervision.num_sequences,
      frames_per_sequence = supervision.frames_per_sequence;
  int32 k = 0;
  for (int32 i = 0; i < frames_per_sequence; i++) {
    for (int32 j = 0; j < num_sequences; j++,k++) {
      int32 n = j, t = i * frame_skip + first_frame, x = 0;
      Index index(n, t, x);
      KALDI_ASSERT(indexes[k] == index);
    }
  }
  if (deriv_weights.Dim() != 0) {
    KALDI_ASSERT(deriv_weights.Dim() == indexes.size());
    KALDI_ASSERT(deriv_weights.Min() >= 0.0);
  }
}

operator==()

bool operator==

(

const NnetChainSupervision &

other

)

const

Definition at line 39 of file nnet-chain-example.cc.

References NnetChainSupervision::deriv_weights, NnetChainSupervision::indexes, NnetChainSupervision::name, and NnetChainSupervision::supervision.

Referenced by NnetChainSupervision::NnetChainSupervision().

                                                                               {
  return name == other.name && indexes == other.indexes &&
      supervision == other.supervision &&
      deriv_weights.ApproxEqual(other.deriv_weights);
}

Read()

void Read	(	std::istream &	is,
		bool	binary
	)

Definition at line 45 of file nnet-chain-example.cc.

References NnetChainSupervision::CheckDim(), NnetChainSupervision::deriv_weights, kaldi::nnet3::ExpectToken(), NnetChainSupervision::indexes, KALDI_ASSERT, NnetChainSupervision::name, kaldi::nnet3::ReadIndexVector(), kaldi::ReadToken(), kaldi::nnet3::ReadVectorAsChar(), and NnetChainSupervision::supervision.

Referenced by NnetChainSupervision::NnetChainSupervision(), and NnetChainExample::Read().

                                                           {
  ExpectToken(is, binary, "<NnetChainSup>");
  ReadToken(is, binary, &name);
  ReadIndexVector(is, binary, &indexes);
  supervision.Read(is, binary);
  std::string token;
  ReadToken(is, binary, &token);
  // in the future this back-compatibility code can be reworked.
  if (token != "</NnetChainSup>") {
    KALDI_ASSERT(token == "<DW>" || token == "<DW2>");
    if (token == "<DW>")
      ReadVectorAsChar(is, binary, &deriv_weights);
    else
      deriv_weights.Read(is, binary);
    ExpectToken(is, binary, "</NnetChainSup>");
  }
  CheckDim();
}

Swap()

void Swap

(

NnetChainSupervision *

other

)

Definition at line 98 of file nnet-chain-example.cc.

References NnetChainSupervision::CheckDim(), NnetChainSupervision::deriv_weights, NnetChainSupervision::indexes, NnetChainSupervision::name, kaldi::RandInt(), and NnetChainSupervision::supervision.

Referenced by NnetChainSupervision::NnetChainSupervision().

                                                           {
  name.swap(other->name);
  indexes.swap(other->indexes);
  supervision.Swap(&(other->supervision));
  deriv_weights.Swap(&(other->deriv_weights));
  if (RandInt(0, 5) == 0)
    CheckDim();
}

Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

Definition at line 28 of file nnet-chain-example.cc.

References NnetChainSupervision::CheckDim(), NnetChainSupervision::deriv_weights, NnetChainSupervision::indexes, NnetChainSupervision::name, NnetChainSupervision::supervision, kaldi::nnet3::WriteIndexVector(), and kaldi::WriteToken().

Referenced by NnetChainSupervision::NnetChainSupervision().

                                                                  {
  CheckDim();
  WriteToken(os, binary, "<NnetChainSup>");
  WriteToken(os, binary, name);
  WriteIndexVector(os, binary, indexes);
  supervision.Write(os, binary);
  WriteToken(os, binary, "<DW2>");
  deriv_weights.Write(os, binary);
  WriteToken(os, binary, "</NnetChainSup>");
}

Member Data Documentation

deriv_weights

Vector<BaseFloat> deriv_weights

This is a vector of per-frame weights, required to be between 0 and 1, that is applied to the derivative during training (but not during model combination, where the derivatives need to agree with the computed objf values for the optimization code to work).

The reason for this is to more exactly handle edge effects and to ensure that no frames are 'double-counted'. The order of this vector corresponds to the order of the 'indexes' (i.e. all the first frames, then all the second frames, etc.) If this vector is empty it means we're not applying per-frame weights, so it's equivalent to a vector of all ones. This vector is written to disk compactly as unsigned char.

Definition at line 77 of file nnet-chain-example.h.

Referenced by NnetChainSupervision::CheckDim(), kaldi::nnet3::MergeSupervision(), NnetChainSupervision::operator==(), NnetChainTrainer::ProcessOutputs(), NnetChainSupervision::Read(), NnetChainSupervision::Swap(), and NnetChainSupervision::Write().

indexes

std::vector<Index> indexes

The indexes that the output corresponds to.

The size of this vector will be equal to supervision.num_sequences * supervision.frames_per_sequence. Be careful about the order of these indexes– it is a little confusing. The indexes in the 'index' vector are ordered as: (frame 0 of each sequence); (frame 1 of each sequence); and so on. But in the 'supervision' object, the FST contains (sequence 0; sequence 1; ...). So reordering is needed when doing the numerator computation. We order 'indexes' in this way for efficiency in the denominator computation (it helps memory locality), as well as to avoid the need for the nnet to reorder things internally to match the requested output (for layers inside the neural net, the ordering is (frame 0; frame 1 ...) as this corresponds to the order you get when you sort a vector of Index).

Definition at line 60 of file nnet-chain-example.h.

Referenced by NnetChainSupervision::CheckDim(), kaldi::nnet3::GetChainComputationRequest(), kaldi::nnet3::MergeSupervision(), NnetChainSupervision::NnetChainSupervision(), NnetChainExampleStructureHasher::operator()(), NnetChainSupervision::operator==(), NnetChainSupervision::Read(), NnetChainSupervision::Swap(), and NnetChainSupervision::Write().

name

std::string name

the name of the output in the neural net; in simple setups it will just be "output".

Definition at line 46 of file nnet-chain-example.h.

Referenced by kaldi::nnet3::GetChainComputationRequest(), kaldi::nnet3::MergeSupervision(), NnetChainExampleStructureHasher::operator()(), NnetChainSupervision::operator==(), NnetChainTrainer::ProcessOutputs(), NnetChainComputeProb::ProcessOutputs(), NnetChainSupervision::Read(), NnetChainSupervision::Swap(), and NnetChainSupervision::Write().

supervision

chain::Supervision supervision

The supervision object, containing the FST.

Definition at line 64 of file nnet-chain-example.h.

Referenced by NnetChainSupervision::CheckDim(), kaldi::nnet3::MergeSupervision(), NnetChainSupervision::operator==(), NnetChainTrainer::ProcessOutputs(), NnetChainComputeProb::ProcessOutputs(), NnetChainSupervision::Read(), NnetChainSupervision::Swap(), and NnetChainSupervision::Write().

---

The documentation for this struct was generated from the following files:

• nnet3/nnet-chain-example.h
• nnet3/nnet-chain-example.cc
