#include <logistic-regression.h>

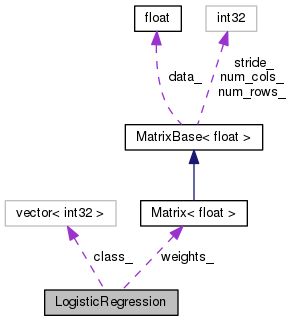

Collaboration diagram for LogisticRegression:

Public Member Functions
void	Train (const Matrix< BaseFloat > &xs, const std::vector< int32 > &ys, const LogisticRegressionConfig &conf)

void	GetLogPosteriors (const Matrix< BaseFloat > &xs, Matrix< BaseFloat > *log_posteriors)

void	GetLogPosteriors (const Vector< BaseFloat > &x, Vector< BaseFloat > *log_posteriors)

void	Write (std::ostream &os, bool binary) const

void	Read (std::istream &is, bool binary)

void	ScalePriors (const Vector< BaseFloat > &prior_scales)

Protected Member Functions
void friend	UnitTestTrain ()

void friend	UnitTestPosteriors ()

Private Member Functions
BaseFloat	DoStep (const Matrix< BaseFloat > &xs, Matrix< BaseFloat > xw, const std::vector< int32 > &ys, OptimizeLbfgs< BaseFloat > lbfgs, BaseFloat normalizer)

void	TrainParameters (const Matrix< BaseFloat > &xs, const std::vector< int32 > &ys, const LogisticRegressionConfig &conf, Matrix< BaseFloat > *xw)

void	MixUp (const std::vector< int32 > &ys, const int32 &num_classes, const LogisticRegressionConfig &conf)

BaseFloat	GetObjfAndGrad (const Matrix< BaseFloat > &xs, const std::vector< int32 > &ys, const Matrix< BaseFloat > &xw, Matrix< BaseFloat > *grad, BaseFloat normalizer)

void	SetWeights (const Matrix< BaseFloat > &weights, const std::vector< int32 > classes)

Private Attributes
Matrix< BaseFloat >	weights_

std::vector< int32 >	class_

Detailed Description

Definition at line 52 of file logistic-regression.h.

Member Function Documentation

◆ DoStep()

BaseFloat DoStep	(	const Matrix< BaseFloat > &	xs,
		Matrix< BaseFloat > *	xw,
		const std::vector< int32 > &	ys,
		OptimizeLbfgs< BaseFloat > *	lbfgs,
		BaseFloat	normalizer
	)

private

Definition at line 196 of file logistic-regression.cc.

References MatrixBase< Real >::AddMatMat(), MatrixBase< Real >::CopyRowsFromVec(), OptimizeLbfgs< Real >::DoStep(), LogisticRegression::GetObjfAndGrad(), OptimizeLbfgs< Real >::GetProposedValue(), KALDI_LOG, kaldi::kNoTrans, kaldi::kTrans, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), and LogisticRegression::weights_.

Referenced by LogisticRegression::TrainParameters().

                           {
   Matrix<BaseFloat> gradient(weights_.NumRows(), weights_.NumCols());
   // Vector form of the above matrix
   Vector<BaseFloat> grad_vec(weights_.NumRows() * weights_.NumCols());

   // Calculate XW.T. The rows correspond to the x
   // training examples and the columns to the class labels.
   xw->AddMatMat(1.0, xs, kNoTrans, weights_, kTrans, 0.0);

   // Calculate both the gradient and the objective function.
   BaseFloat objf = GetObjfAndGrad(xs, ys, *xw, &gradient, normalizer);

   // Convert gradient (a matrix) into a vector of size
   // gradient.NumCols * gradient.NumRows.
   grad_vec.CopyRowsFromMat(gradient);

   // Compute next step in L-BFGS.
   lbfgs->DoStep(objf, grad_vec);

   // Update weights
   Vector<BaseFloat> new_w(lbfgs->GetProposedValue());
   weights_.CopyRowsFromVec(new_w);
   KALDI_LOG << "Objective function is " << objf;
   return objf;
 }

◆ GetLogPosteriors() [1/2]

void GetLogPosteriors	(	const Matrix< BaseFloat > &	xs,
		Matrix< BaseFloat > *	log_posteriors
	)

Definition at line 137 of file logistic-regression.cc.

References MatrixBase< Real >::AddMatMat(), LogisticRegression::class_, MatrixBase< Real >::CopyFromMat(), rnnlm::i, rnnlm::j, kaldi::kNoTrans, kaldi::kTrans, kaldi::LogAdd(), MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), Matrix< Real >::Resize(), MatrixBase< Real >::Row(), MatrixBase< Real >::Set(), and LogisticRegression::weights_.

Referenced by ComputeLogPosteriors(), ComputeScores(), and kaldi::UnitTestPosteriors().

                                                                              {
   int32 xs_num_rows = xs.NumRows(),
       xs_num_cols = xs.NumCols(),
       num_mixes = weights_.NumRows();

   int32 num_classes = *std::max_element(class_.begin(), class_.end()) + 1;

   log_posteriors->Resize(xs_num_rows, num_classes);
   Matrix<BaseFloat> xw(xs_num_rows, num_mixes);

   Matrix<BaseFloat> xs_with_prior(xs_num_rows, xs_num_cols + 1);
   SubMatrix<BaseFloat> sub_xs(xs_with_prior, 0, xs_num_rows, 0, xs_num_cols);
   sub_xs.CopyFromMat(xs);
   // Adding on extra column for each x to handle the prior.
   for (int32 i = 0; i < xs_num_rows; i++) {
     xs_with_prior(i, xs_num_cols) = 1.0;
   }
   xw.AddMatMat(1.0, xs_with_prior, kNoTrans, weights_,
                kTrans, 0.0);

   log_posteriors->Set(-std::numeric_limits<BaseFloat>::infinity());

   // i is the training example
   for (int32 i = 0; i < xs_num_rows; i++) {
     for (int32 j = 0; j < num_mixes; j++) {
       int32 k = class_[j];
       (*log_posteriors)(i,k) = LogAdd((*log_posteriors)(i,k), xw(i, j));
     }
     // Normalize the row.
     log_posteriors->Row(i).Add(-xw.Row(i).LogSumExp());
   }
 }

◆ GetLogPosteriors() [2/2]

void GetLogPosteriors	(	const Vector< BaseFloat > &	x,
		Vector< BaseFloat > *	log_posteriors
	)

Definition at line 171 of file logistic-regression.cc.

References VectorBase< Real >::Add(), VectorBase< Real >::AddMatVec(), LogisticRegression::class_, VectorBase< Real >::CopyFromVec(), VectorBase< Real >::Dim(), rnnlm::i, rnnlm::j, kaldi::kNoTrans, kaldi::LogAdd(), VectorBase< Real >::LogSumExp(), MatrixBase< Real >::NumRows(), Vector< Real >::Resize(), VectorBase< Real >::Set(), and LogisticRegression::weights_.

                                                                              {
   int32 x_dim = x.Dim();
   int32 num_classes = *std::max_element(class_.begin(), class_.end()) + 1,
       num_mixes = weights_.NumRows();
   log_posteriors->Resize(num_classes);
   Vector<BaseFloat> xw(weights_.NumRows());

   Vector<BaseFloat> x_with_prior(x_dim + 1);
   SubVector<BaseFloat> sub_x(x_with_prior, 0, x_dim);
   sub_x.CopyFromVec(x);
   // Adding on extra element to handle the prior
   x_with_prior(x_dim) = 1.0;

   xw.AddMatVec(1.0, weights_, kNoTrans, x_with_prior, kNoTrans);

   log_posteriors->Set(-std::numeric_limits<BaseFloat>::infinity());

   for (int32 i = 0; i < num_mixes; i++) {
     int32 j = class_[i];
     (*log_posteriors)(j) = LogAdd((*log_posteriors)(j), xw(i));
   }
   log_posteriors->Add(-log_posteriors->LogSumExp());
 }

◆ GetObjfAndGrad()

BaseFloat GetObjfAndGrad	(	const Matrix< BaseFloat > &	xs,
		const std::vector< int32 > &	ys,
		const Matrix< BaseFloat > &	xw,
		Matrix< BaseFloat > *	grad,
		BaseFloat	normalizer
	)

private

Definition at line 225 of file logistic-regression.cc.

References MatrixBase< Real >::AddMat(), LogisticRegression::class_, VectorBase< Real >::CopyFromVec(), rnnlm::i, rnnlm::j, KALDI_VLOG, kaldi::kTrans, kaldi::Log(), MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), MatrixBase< Real >::Row(), MatrixBase< Real >::Scale(), kaldi::TraceMatMat(), and LogisticRegression::weights_.

Referenced by LogisticRegression::DoStep(), and kaldi::UnitTestTrain().

                                                    {
   BaseFloat raw_objf = 0.0;
   int32 num_classes = *std::max_element(ys.begin(), ys.end()) + 1;
   std::vector< std::vector<int32> > class_to_cols(num_classes, std::vector<int32>());
   for (int32 i = 0; i < class_.size(); i++) {
     class_to_cols[class_[i]].push_back(i);
   }
   // For each training example class
   for (int32 i = 0; i < ys.size(); i++) {
     Vector<BaseFloat> row(xw.NumCols());
     row.CopyFromVec(xw.Row(i));
     row.ApplySoftMax();
     // Identify the rows of weights_ (which are a set of columns in wx)
     // which correspond to class ys[i]
     const std::vector<int32> &cols = class_to_cols[ys[i]];
     SubVector<BaseFloat> x = xs.Row(i);
     BaseFloat class_sum = 0.0;
     for (int32 j = 0; j < cols.size(); j++) {
       class_sum += row(cols[j]);
     }
     if (class_sum < 1.0e-20) class_sum = 1.0e-20;
     raw_objf += Log(class_sum);
     // Iterate over weights for each component. If there are no
     // mixtures each row corresponds to a class.
     for (int32 k = 0; k < weights_.NumRows(); k++) {
       // p(y = k | x_i) where k is a component.
       BaseFloat p = row(k);
       if (class_[k] == ys[i]) {
         // If the classes aren't split into mixture components
         // then p/class_sum = 1.0.
         grad->Row(k).AddVec(p/class_sum - p, x);
       } else {
         grad->Row(k).AddVec(-1.0 * p, x);
       }
     }
   }
   // Scale and add regularization term.
   grad->Scale(1.0/ys.size());
   grad->AddMat(-1.0 * normalizer, weights_);
   raw_objf /= ys.size();
   BaseFloat regularizer = - 0.5 * normalizer
                           * TraceMatMat(weights_, weights_, kTrans);
   KALDI_VLOG(2) << "Objf is " << raw_objf << " + " << regularizer
                 << " = " << (raw_objf + regularizer);
   return raw_objf + regularizer;
 }

◆ MixUp()

void MixUp	(	const std::vector< int32 > &	ys,
		const int32 &	num_classes,
		const LogisticRegressionConfig &	conf
	)

private

Definition at line 71 of file logistic-regression.cc.

References LogisticRegression::class_, MatrixBase< Real >::CopyFromMat(), kaldi::GetSplitTargets(), rnnlm::i, rnnlm::j, KALDI_LOG, LogisticRegressionConfig::mix_up, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), LogisticRegressionConfig::power, Matrix< Real >::Resize(), MatrixBase< Real >::Row(), VectorBase< Real >::SetRandn(), and LogisticRegression::weights_.

Referenced by LogisticRegression::Train().

                                                                      {

   Vector<BaseFloat> counts(num_classes);
   for (int32 i = 0; i < ys.size(); i++) {
     counts(ys[i]) += 1.0;
   }

   // TODO: Figure out what min_count should be
   int32 min_count = 1;
   std::vector<int32> targets;
   GetSplitTargets(counts, conf.mix_up, conf.power, min_count, &targets);
   int32 new_dim = std::accumulate(targets.begin(), targets.end(),
                                   static_cast<int32>(0));

   KALDI_LOG << "Target number mixture components was " << conf.mix_up
             << ". Training " << new_dim << " mixture components.";

   int32 old_dim = weights_.NumRows(),
         num_components = old_dim,
         num_feats = weights_.NumCols();

   Matrix<BaseFloat> old_weights(weights_);
   weights_.Resize(new_dim, num_feats);
   SubMatrix<BaseFloat> sub_weights(weights_, 0, num_classes, 0, num_feats);
   // We need to retain the original weights
   sub_weights.CopyFromMat(old_weights);
   class_.resize(new_dim);
   // For each class i
   for (int32 i = 0; i < targets.size(); i++) {
     int32 mixes = targets[i];
     // We start at j = 1 since one copy of the components already
     // exists in weights_.
     for (int32 j = 1; j < mixes; j++) {
       int32 offset = num_components;
       weights_.Row(offset).CopyRowFromMat(weights_, i);
       Vector<BaseFloat> noise(num_feats);
       noise.SetRandn();
       weights_.Row(offset).AddVec(1.0e-05, noise);
       class_[offset] = i; // The class i maps to the row at offset
       num_components += 1;
     }
   }
 }

◆ Read()

void Read	(	std::istream &	is,
		bool	binary
	)

Definition at line 301 of file logistic-regression.cc.

References LogisticRegression::class_, kaldi::ExpectToken(), rnnlm::i, MatrixBase< Real >::NumRows(), Matrix< Real >::Read(), kaldi::ReadIntegerVector(), kaldi::ReadToken(), and LogisticRegression::weights_.

                                                          {
   ExpectToken(is, binary, "<LogisticRegression>");
   ExpectToken(is, binary, "<weights>");
   weights_.Read(is, binary);
   std::string token;
   ReadToken(is, binary, &token);
   if (token == "<class>") {
     ReadIntegerVector(is, binary, &class_);
   } else {
     int32 num_classes = weights_.NumRows();
     for (int32 i = 0; i < num_classes; i++) {
       class_.push_back(i);
     }
   }
   ExpectToken(is, binary, "</LogisticRegression>");
 }

◆ ScalePriors()

void ScalePriors ( const Vector< BaseFloat > & prior_scales )

Definition at line 284 of file logistic-regression.cc.

References VectorBase< Real >::ApplyLog(), LogisticRegression::class_, rnnlm::i, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), and LogisticRegression::weights_.

Referenced by main().

                                                                     {
   Vector<BaseFloat> log_scales(scales);
   log_scales.ApplyLog();

   for (int32 i = 0; i < weights_.NumRows(); i++)
     weights_(i, weights_.NumCols() - 1) += log_scales(class_[i]);
 }

◆ SetWeights()

void SetWeights	(	const Matrix< BaseFloat > &	weights,
		const std::vector< int32 >	classes
	)

private

Definition at line 275 of file logistic-regression.cc.

References LogisticRegression::class_, MatrixBase< Real >::CopyFromMat(), rnnlm::i, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), Matrix< Real >::Resize(), and LogisticRegression::weights_.

Referenced by kaldi::UnitTestPosteriors().

                                                                     {
   weights_.Resize(weights.NumRows(), weights.NumCols());
   weights_.CopyFromMat(weights);
   class_.resize(classes.size());
   for (int32 i = 0; i < class_.size(); i++)
     class_[i] = classes[i];
 }

◆ Train()

void Train	(	const Matrix< BaseFloat > &	xs,
		const std::vector< int32 > &	ys,
		const LogisticRegressionConfig &	conf
	)

Definition at line 27 of file logistic-regression.cc.

References LogisticRegression::class_, MatrixBase< Real >::CopyFromMat(), rnnlm::i, KALDI_ASSERT, KALDI_LOG, LogisticRegressionConfig::mix_up, LogisticRegression::MixUp(), MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), Matrix< Real >::Resize(), MatrixBase< Real >::SetZero(), LogisticRegression::TrainParameters(), and LogisticRegression::weights_.

Referenced by main(), and kaldi::UnitTestTrain().

                                                                      {

   int32 xs_num_rows = xs.NumRows(), xs_num_cols = xs.NumCols(),
                      num_ys = ys.size();
   KALDI_ASSERT(xs_num_rows == num_ys);

   // Adding on extra column for each x to handle the prior.
   Matrix<BaseFloat> xs_with_prior(xs_num_rows, xs_num_cols + 1);
   SubMatrix<BaseFloat> sub_xs(xs_with_prior, 0, xs_num_rows, 0, xs_num_cols);
   sub_xs.CopyFromMat(xs);

   int32 num_classes = *std::max_element(ys.begin(), ys.end()) + 1;
   weights_.Resize(num_classes, xs_num_cols + 1);
   Matrix<BaseFloat> xw(xs_num_rows, num_classes);

   // Adding on extra column for each x to handle the prior.
   for (int32 i = 0; i < xs_num_rows; i++) {
     xs_with_prior(i, xs_num_cols) = 1.0;
   }

   // At the beginning of training we have no mixture components,
   // therefore class_ is the "identity" mapping, that is
   // class_[i] = i.
   for (int32 i = 0; i < num_classes; i++) {
     class_.push_back(i);
   }

   weights_.SetZero();
   TrainParameters(xs_with_prior, ys, conf, &xw);
   KALDI_LOG << "Finished training parameters without mixture components.";

   // If we are using mixture components, we add those components
   // in MixUp and retrain with the extra weights.
   if (conf.mix_up > num_classes) {
     MixUp(ys, num_classes, conf);
     Matrix<BaseFloat> xw(xs_num_rows, weights_.NumRows());
     TrainParameters(xs_with_prior, ys, conf, &xw);
     KALDI_LOG << "Finished training mixture components.";
   }
 }

◆ TrainParameters()

void TrainParameters	(	const Matrix< BaseFloat > &	xs,
		const std::vector< int32 > &	ys,
		const LogisticRegressionConfig &	conf,
		Matrix< BaseFloat > *	xw
	)

private

Definition at line 117 of file logistic-regression.cc.

References VectorBase< Real >::CopyRowsFromMat(), MatrixBase< Real >::CopyRowsFromVec(), LogisticRegression::DoStep(), OptimizeLbfgs< Real >::GetValue(), LogisticRegressionConfig::max_steps, LbfgsOptions::minimize, LogisticRegressionConfig::normalizer, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), and LogisticRegression::weights_.

Referenced by LogisticRegression::Train().

                            {
   int32 max_steps = conf.max_steps;
   BaseFloat normalizer = conf.normalizer;
   LbfgsOptions lbfgs_opts;
   lbfgs_opts.minimize = false;
   // Get initial w vector
   Vector<BaseFloat> init_w(weights_.NumRows() * weights_.NumCols());
   init_w.CopyRowsFromMat(weights_);
   OptimizeLbfgs<BaseFloat> lbfgs(init_w, lbfgs_opts);

   for (int32 step = 0; step < max_steps; step++) {
     DoStep(xs, xw, ys, &lbfgs, normalizer);
   }

   Vector<BaseFloat> best_w(lbfgs.GetValue());
   weights_.CopyRowsFromVec(best_w);
 }

◆ UnitTestPosteriors()

void friend UnitTestPosteriors ( )

protected

◆ UnitTestTrain()

void friend UnitTestTrain ( )

protected

◆ Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

Definition at line 292 of file logistic-regression.cc.

References LogisticRegression::class_, LogisticRegression::weights_, MatrixBase< Real >::Write(), kaldi::WriteIntegerVector(), and kaldi::WriteToken().

                                                                 {
   WriteToken(os, binary, "<LogisticRegression>");
   WriteToken(os, binary, "<weights>");
   weights_.Write(os, binary);
   WriteToken(os, binary, "<class>");
   WriteIntegerVector(os, binary, class_);
   WriteToken(os, binary, "</LogisticRegression>");
 }

Member Data Documentation

◆ class_

std::vector<int32> class_

private

Definition at line 121 of file logistic-regression.h.

Referenced by LogisticRegression::GetLogPosteriors(), LogisticRegression::GetObjfAndGrad(), LogisticRegression::MixUp(), LogisticRegression::Read(), LogisticRegression::ScalePriors(), LogisticRegression::SetWeights(), LogisticRegression::Train(), and LogisticRegression::Write().

◆ weights_

Matrix<BaseFloat> weights_

private

Definition at line 117 of file logistic-regression.h.

Referenced by LogisticRegression::DoStep(), LogisticRegression::GetLogPosteriors(), LogisticRegression::GetObjfAndGrad(), LogisticRegression::MixUp(), LogisticRegression::Read(), LogisticRegression::ScalePriors(), LogisticRegression::SetWeights(), LogisticRegression::Train(), LogisticRegression::TrainParameters(), kaldi::UnitTestTrain(), and LogisticRegression::Write().

The documentation for this class was generated from the following files:

ivector/logistic-regression.h
ivector/logistic-regression.cc

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ DoStep()

◆ GetLogPosteriors() [1/2]

◆ GetLogPosteriors() [2/2]

◆ GetObjfAndGrad()

◆ MixUp()

◆ Read()

◆ ScalePriors()

◆ SetWeights()

◆ Train()

◆ TrainParameters()

◆ UnitTestPosteriors()

◆ UnitTestTrain()

◆ Write()

Member Data Documentation

◆ class_

◆ weights_
