CuSparseMatrix< Real > Class Template Reference

#include <matrix-common.h>

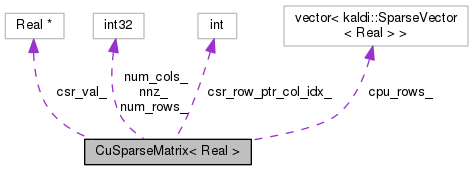

Collaboration diagram for CuSparseMatrix< Real >:

Public Member Functions
MatrixIndexT	NumRows () const
MatrixIndexT	NumCols () const
MatrixIndexT	NumElements () const
template<typename OtherReal >
void	CopyToMat (CuMatrixBase< OtherReal > *dest, MatrixTransposeType trans=kNoTrans) const
Real	Sum () const
Real	FrobeniusNorm () const
CuSparseMatrix< Real > &	operator= (const SparseMatrix< Real > &smat)
	Copy from CPU-based matrix. More...
CuSparseMatrix< Real > &	operator= (const CuSparseMatrix< Real > &smat)
	Copy from possibly-GPU-based matrix. More...
template<typename OtherReal >
void	CopyFromSmat (const SparseMatrix< OtherReal > &smat)
	Copy from CPU-based matrix. More...
void	CopyFromSmat (const CuSparseMatrix< Real > &smat, MatrixTransposeType trans=kNoTrans)
	Copy from GPU-based matrix, supporting transposition. More...
void	SelectRows (const CuArray< int32 > &row_indexes, const CuSparseMatrix< Real > &smat_other)
	Select a subset of the rows of a CuSparseMatrix. More...
template<typename OtherReal >
void	CopyToSmat (SparseMatrix< OtherReal > *smat) const
	Copy to CPU-based matrix. More...
void	CopyElementsToVec (CuVectorBase< Real > *vec) const
	Copy elements to CuVector. More...
void	Swap (SparseMatrix< Real > *smat)
	Swap with CPU-based matrix. More...
void	Swap (CuSparseMatrix< Real > *smat)
	Swap with possibly-CPU-based matrix. More...
void	SetRandn (BaseFloat zero_prob)
	Sets up to a pseudo-randomly initialized matrix, with each element zero with probability zero_prob and else normally distributed- mostly for purposes of testing. More...
void	Write (std::ostream &os, bool binary) const
void	Read (std::istream &is, bool binary)
	CuSparseMatrix ()
	Default constructor. More...
	CuSparseMatrix (const SparseMatrix< Real > &smat)
	Constructor from CPU-based sparse matrix. More...
	CuSparseMatrix (const CuSparseMatrix< Real > &smat, MatrixTransposeType trans=kNoTrans)
	Constructor from GPU-based sparse matrix (supports transposition). More...
	CuSparseMatrix (const CuArray< int32 > &indexes, int32 dim, MatrixTransposeType trans=kNoTrans)
	Constructor from an array of indexes. More...
	CuSparseMatrix (const CuArray< int32 > &indexes, const CuVectorBase< Real > &weights, int32 dim, MatrixTransposeType trans=kNoTrans)
	Constructor from an array of indexes and an array of weights; requires indexes.Dim() == weights.Dim(). More...
	~CuSparseMatrix ()

Protected Member Functions
const SparseMatrix< Real > &	Smat () const
SparseMatrix< Real > &	Smat ()
void	Resize (const MatrixIndexT num_rows, const MatrixIndexT num_cols, const MatrixIndexT nnz, MatrixResizeType resize_type=kSetZero)
	Users of this class won't normally have to use Resize. More...
const Real *	CsrVal () const
	Returns pointer to the data array of length nnz_ that holds all nonzero values in zero-based CSR format. More...
Real *	CsrVal ()
const int *	CsrRowPtr () const
	Returns pointer to the integer array of length NumRows()+1 that holds indices of the first nonzero element in the i-th row, while the last entry contains nnz_, as zero-based CSR format is used. More...
int *	CsrRowPtr ()
const int *	CsrColIdx () const
	Returns pointer to the integer array of length nnz_ that contains the column indices of the corresponding elements in array CsrVal() More...
int *	CsrColIdx ()

Private Member Functions
void	Destroy ()

Private Attributes
std::vector< SparseVector< Real > >	cpu_rows_
MatrixIndexT	num_rows_
MatrixIndexT	num_cols_
MatrixIndexT	nnz_
int *	csr_row_ptr_col_idx_
Real *	csr_val_

Friends
class	CuMatrixBase< float >
class	CuMatrixBase< double >
class	CuMatrixBase< Real >
class	CuVectorBase< float >
class	CuVectorBase< double >
class	CuVectorBase< Real >
Real	TraceMatSmat (const CuMatrixBase< Real > &A, const CuSparseMatrix< Real > &B, MatrixTransposeType trans)

Detailed Description

template<class Real>
class kaldi::CuSparseMatrix< Real >

Definition at line 78 of file matrix-common.h.

Constructor & Destructor Documentation

CuSparseMatrix() [1/5]

CuSparseMatrix ( )

inline

Default constructor.

Definition at line 123 of file cu-sparse-matrix.h.

Referenced by CuSparseMatrix< Real >::CuSparseMatrix().

                   :
      num_rows_(0), num_cols_(0), nnz_(0), csr_row_ptr_col_idx_(NULL), csr_val_(
          NULL) {
  }

CuSparseMatrix() [2/5]

CuSparseMatrix ( const SparseMatrix< Real > &  smat )

inlineexplicit

Constructor from CPU-based sparse matrix.

Definition at line 129 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::CopyFromSmat().

                                                          :
      num_rows_(0), num_cols_(0), nnz_(0), csr_row_ptr_col_idx_(NULL), csr_val_(
      NULL) {
    this->CopyFromSmat(smat);
  }

CuSparseMatrix() [3/5]

CuSparseMatrix ( const CuSparseMatrix< Real > &  smat, MatrixTransposeType  trans = kNoTrans  )

inline

Constructor from GPU-based sparse matrix (supports transposition).

Definition at line 136 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CuSparseMatrix(), and kaldi::kNoTrans.

                               :
      num_rows_(0), num_cols_(0), nnz_(0), csr_row_ptr_col_idx_(NULL), csr_val_(
      NULL) {
    this->CopyFromSmat(smat, trans);
  }

CuSparseMatrix() [4/5]

CuSparseMatrix	(	const CuArray< int32 > &	indexes,
		int32	dim,
		MatrixTransposeType	trans = kNoTrans
	)

Constructor from an array of indexes.

If trans == kNoTrans, construct a sparse matrix with num-rows == indexes.Dim() and num-cols = 'dim'. 'indexes' is expected to contain elements in the range [0, dim - 1]. Each row 'i' of *this after calling the constructor will contain a single element at column-index indexes[i] with value 1.0.

If trans == kTrans, the result will be the transpose of the sparse matrix described above.

Definition at line 162 of file cu-sparse-matrix.cc.

References CuArrayBase< T >::CopyFromArray(), CuArrayBase< T >::CopyToVec(), CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::CsrVal(), CuArrayBase< T >::Dim(), kaldi::kTrans, kaldi::kUndefined, CuSparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::NumRows(), CuSparseMatrix< Real >::Resize(), CuArrayBase< T >::Sequence(), CuVectorBase< Real >::Set(), CuSparseMatrix< Real >::Smat(), and CuSparseMatrix< Real >::Swap().

                                                                :
    num_rows_(0), num_cols_(0), nnz_(0), csr_row_ptr_col_idx_(NULL), csr_val_(
    NULL) {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    Resize(indexes.Dim(), dim, indexes.Dim(), kUndefined);
    if (NumElements() == 0) {
      return;
    }
    CuSubArray<int> row_ptr(CsrRowPtr(), NumRows() + 1);
    row_ptr.Sequence(0);
    CuSubArray<int> col_idx(CsrColIdx(), NumElements());
    col_idx.CopyFromArray(indexes);
    CuSubVector<Real> val(CsrVal(), NumElements());
    val.Set(1);

    if (trans == kTrans) {
      CuSparseMatrix<Real> tmp(*this, kTrans);
      this->Swap(&tmp);
    }
  } else
#endif
  {
    std::vector<int32> idx(indexes.Dim());
    indexes.CopyToVec(&idx);
    SparseMatrix<Real> tmp(idx, dim, trans);
    Smat().Swap(&tmp);
  }
}

CuSparseMatrix() [5/5]

CuSparseMatrix	(	const CuArray< int32 > &	indexes,
		const CuVectorBase< Real > &	weights,
		int32	dim,
		MatrixTransposeType	trans = kNoTrans
	)

Constructor from an array of indexes and an array of weights; requires indexes.Dim() == weights.Dim().

If trans == kNoTrans, construct a sparse matrix with num-rows == indexes.Dim() and num-cols = 'dim'. 'indexes' is expected to contain elements in the range [0, dim - 1]. Each row 'i' of *this after calling the constructor will contain a single element at column-index indexes[i] with value weights[i]. If trans == kTrans, the result will be the transpose of the sparse matrix described above.

Definition at line 194 of file cu-sparse-matrix.cc.

References CuArrayBase< T >::CopyFromArray(), CuVectorBase< Real >::CopyFromVec(), CuArrayBase< T >::CopyToVec(), CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::CsrVal(), CuArrayBase< T >::Dim(), kaldi::kTrans, kaldi::kUndefined, CuSparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::NumRows(), CuSparseMatrix< Real >::Resize(), CuArrayBase< T >::Sequence(), CuSparseMatrix< Real >::Smat(), CuSparseMatrix< Real >::Swap(), and CuVectorBase< Real >::Vec().

                                                                           :
    num_rows_(0), num_cols_(0), nnz_(0), csr_row_ptr_col_idx_(NULL), csr_val_(
    NULL) {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    Resize(indexes.Dim(), dim, indexes.Dim(), kUndefined);
    if (NumElements() == 0) {
      return;
    }
    CuSubArray<int> row_ptr(CsrRowPtr(), NumRows() + 1);
    row_ptr.Sequence(0);
    CuSubArray<int> col_idx(CsrColIdx(), NumElements());
    col_idx.CopyFromArray(indexes);
    CuSubVector<Real> val(CsrVal(), NumElements());
    val.CopyFromVec(weights);

    if (trans == kTrans) {
      CuSparseMatrix<Real> tmp(*this, kTrans);
      this->Swap(&tmp);
    }
  } else
#endif
  {
    std::vector<int32> idx(indexes.Dim());
    indexes.CopyToVec(&idx);
    SparseMatrix<Real> tmp(idx, weights.Vec(), dim, trans);
    Smat().Swap(&tmp);
  }
}

~CuSparseMatrix()

~CuSparseMatrix ( )

inline

Definition at line 170 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::Destroy().

                    {
    Destroy();
  }

Member Function Documentation

CopyElementsToVec()

void CopyElementsToVec

(

CuVectorBase< Real > *

vec

)

const

Copy elements to CuVector.

It is the caller's responsibility to resize <*vec>.

Definition at line 452 of file cu-sparse-matrix.cc.

References CuVectorBase< Real >::CopyFromVec(), CuSparseMatrix< Real >::CsrVal(), CuVectorBase< Real >::Dim(), KALDI_ASSERT, CuSparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::Smat(), and CuVectorBase< Real >::Vec().

                                                                          {
  KALDI_ASSERT(vec != NULL);
  KALDI_ASSERT(this->NumElements() == vec->Dim());
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    CuSubVector<Real> val(CsrVal(), NumElements());
    vec->CopyFromVec(val);
  } else
#endif
  {
    Smat().CopyElementsToVec(&(vec->Vec()));
  }
}

CopyFromSmat() [1/2]

void CopyFromSmat

(

const SparseMatrix< OtherReal > &

smat

)

Copy from CPU-based matrix.

We will add the transpose option later when it is necessary. Resizes *this as needed.

Definition at line 326 of file cu-sparse-matrix.cc.

References CuArrayBase< T >::CopyFromVec(), CuVectorBase< Real >::CopyFromVec(), CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::CsrVal(), SparseMatrix< Real >::Data(), rnnlm::i, rnnlm::j, KALDI_ASSERT, kaldi::kUndefined, rnnlm::n, SparseMatrix< Real >::NumCols(), CuSparseMatrix< Real >::NumElements(), SparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::NumRows(), SparseMatrix< Real >::NumRows(), CuSparseMatrix< Real >::Resize(), and CuSparseMatrix< Real >::Smat().

Referenced by CuSparseMatrix< Real >::CuSparseMatrix(), and CuSparseMatrix< Real >::operator=().

                                                                           {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    Resize(smat.NumRows(), smat.NumCols(), smat.NumElements(), kUndefined);
    if (NumElements() == 0) {
      return;
    }
    std::vector<int> row_ptr(NumRows() + 1);
    std::vector<int> col_idx(NumElements());
    Vector<Real> val(NumElements(), kUndefined);

    int n = 0;
    for (int32 i = 0; i < smat.NumRows(); ++i) {
      row_ptr[i] = n;
      for (int32 j = 0; j < (smat.Data() + i)->NumElements(); ++j, ++n) {
        col_idx[n] = ((smat.Data() + i)->Data() + j)->first;
        val(n) = static_cast<Real>(((smat.Data() + i)->Data() + j)->second);
      }
    }
    row_ptr[NumRows()] = n;
    KALDI_ASSERT(n == NumElements());

    CuSubArray<int> cu_row_ptr(CsrRowPtr(), NumRows() + 1);
    cu_row_ptr.CopyFromVec(row_ptr);
    CuSubArray<int> cu_col_idx(CsrColIdx(), NumElements());
    cu_col_idx.CopyFromVec(col_idx);
    CuSubVector<Real> cu_val(CsrVal(), NumElements());
    cu_val.CopyFromVec(val);
  } else
#endif
  {
    this->Smat().CopyFromSmat(smat);
  }
}

CopyFromSmat() [2/2]

void CopyFromSmat	(	const CuSparseMatrix< Real > &	smat,
		MatrixTransposeType	trans = kNoTrans
	)

Copy from GPU-based matrix, supporting transposition.

Resizes *this as needed.

Definition at line 370 of file cu-sparse-matrix.cc.

References CuArrayBase< T >::CopyFromArray(), CuVectorBase< Real >::CopyFromVec(), CuSparseMatrix< Real >::csr_row_ptr_col_idx_, CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::CsrVal(), kaldi::kNoTrans, kaldi::kUndefined, CuSparseMatrix< Real >::NumCols(), CuSparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::NumRows(), CuSparseMatrix< Real >::Resize(), and CuSparseMatrix< Real >::Smat().

                                                                   {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    if (trans == kNoTrans) {
      Resize(smat.NumRows(), smat.NumCols(), smat.NumElements(), kUndefined);

      CuSubVector<Real> val_to(CsrVal(), NumElements());
      CuSubVector<Real> val_from(smat.CsrVal(), smat.NumElements());
      val_to.CopyFromVec(val_from);

      CuSubArray<int> idx_to(csr_row_ptr_col_idx_,
                             NumRows() + 1 + NumElements());
      CuSubArray<int> idx_from(smat.csr_row_ptr_col_idx_,
                               smat.NumRows() + 1 + smat.NumElements());
      idx_to.CopyFromArray(idx_from);

    } else {
      Resize(smat.NumCols(), smat.NumRows(), smat.NumElements(), kUndefined);
      CuTimer tim;

      CUSPARSE_SAFE_CALL(
          cusparse_csr2csc(GetCusparseHandle(), smat.NumRows(), smat.NumCols(),
                           smat.NumElements(), smat.CsrVal(), smat.CsrRowPtr(),
                           smat.CsrColIdx(), CsrVal(), CsrColIdx(), CsrRowPtr(),
                           CUSPARSE_ACTION_NUMERIC, CUSPARSE_INDEX_BASE_ZERO));

      CuDevice::Instantiate().AccuProfile(__func__, tim);
    }
  } else
#endif
  {
    Smat().CopyFromSmat(smat.Smat(), trans);
  }
}

CopyToMat()

template void CopyToMat	(	CuMatrixBase< OtherReal > *	dest,
		MatrixTransposeType	trans = kNoTrans
	)		const

Definition at line 622 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::CsrVal(), CU1DBLOCK, CuMatrixBase< Real >::Data(), CuMatrixBase< Real >::Dim(), KALDI_ASSERT, kaldi::kNoTrans, CuMatrixBase< Real >::Mat(), CuSparseMatrix< Real >::NumCols(), CuMatrixBase< Real >::NumCols(), CuSparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::NumRows(), CuMatrixBase< Real >::NumRows(), CuMatrixBase< Real >::SetZero(), and CuSparseMatrix< Real >::Smat().

Referenced by kaldi::nnet3::ComputeObjectiveFunction(), CuMatrixBase< float >::CopyFromGeneralMat(), GeneralMatrix::CopyToMat(), kaldi::UnitTestCuSparseMatrixConstructFromIndexes(), kaldi::UnitTestCuSparseMatrixCopyToSmat(), kaldi::UnitTestCuSparseMatrixFrobeniusNorm(), kaldi::UnitTestCuSparseMatrixSelectRowsAndTranspose(), kaldi::UnitTestCuSparseMatrixSum(), kaldi::UnitTestCuSparseMatrixSwap(), and kaldi::UnitTestCuSparseMatrixTraceMatSmat().

                                                                      {
  if (trans == kNoTrans) {
    KALDI_ASSERT(M->NumRows() == NumRows() && M->NumCols() == NumCols());
  } else {
    KALDI_ASSERT(M->NumRows() == NumCols() && M->NumCols() == NumRows());
  }
  M->SetZero();
  if (NumElements() == 0) {
    return;
  }

#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    CuTimer tim;

    // We use warpSize threads per row to access only the nnz elements.
    // Every CU1DBLOCK/warpSize rows share one thread block.
    // 1D grid to cover all rows.
    const int warpSize = 32;
    dim3 dimBlock(warpSize, CU1DBLOCK / warpSize);
    dim3 dimGrid(n_blocks(NumRows(), dimBlock.y));

    if (trans == kNoTrans) {
      cuda_copy_from_smat(dimGrid, dimBlock, M->Data(), M->Dim(), CsrRowPtr(),
                          CsrColIdx(), CsrVal());
    } else {
      cuda_copy_from_smat_trans(dimGrid, dimBlock, M->Data(), M->Dim(),
                                CsrRowPtr(), CsrColIdx(), CsrVal());
    }
    CU_SAFE_CALL(cudaGetLastError());
    CuDevice::Instantiate().AccuProfile(__func__, tim);
  } else
#endif
  {
    Smat().CopyToMat(&(M->Mat()), trans);
  }
}

CopyToSmat()

template void CopyToSmat

(

SparseMatrix< OtherReal > *

smat

)

const

Copy to CPU-based matrix.

We will add the transpose option later when it is necessary.

Definition at line 408 of file cu-sparse-matrix.cc.

References SparseMatrix< Real >::CopyFromSmat(), CuArrayBase< T >::CopyToVec(), CuVectorBase< Real >::CopyToVec(), CuSparseMatrix< Real >::csr_row_ptr_col_idx_, CuSparseMatrix< Real >::CsrVal(), rnnlm::i, rnnlm::j, KALDI_ASSERT, kaldi::kUndefined, rnnlm::n, CuSparseMatrix< Real >::num_cols_, CuSparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::NumRows(), SparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::Smat(), and SparseMatrix< Real >::Swap().

Referenced by CuSparseMatrix< Real >::Swap(), kaldi::UnitTestCuSparseMatrixCopyToSmat(), and CuSparseMatrix< Real >::Write().

                                                                         {
  KALDI_ASSERT(smat != NULL);
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    if (NumRows() == 0) {
      smat->Resize(0, 0);
      return;
    }
    CuSubArray<int> idx(csr_row_ptr_col_idx_, NumRows() + 1 + NumElements());
    std::vector<int> idx_cpu;
    idx.CopyToVec(&idx_cpu);

    CuSubVector<Real> val(CsrVal(), NumElements());
    Vector<OtherReal> val_cpu(NumElements(), kUndefined);
    val.CopyToVec(&val_cpu);

    std::vector<std::vector<std::pair<MatrixIndexT, OtherReal> > > pairs(
        NumRows());
    int n = 0;
    for (int i = 0; i < NumRows(); ++i) {
      for (; n < idx_cpu[i + 1]; ++n) {
        const MatrixIndexT j = idx_cpu[NumRows() + 1 + n];
        pairs[i].push_back( { j, val_cpu(n) });
      }
    }
    KALDI_ASSERT(n == NumElements());
    SparseMatrix<OtherReal> tmp(num_cols_, pairs);
    smat->Swap(&tmp);
  } else
#endif
  {
    smat->CopyFromSmat(this->Smat());
  }
}

CsrColIdx() [1/2]

const int* CsrColIdx ( ) const

inlineprotected

Returns pointer to the integer array of length nnz_ that contains the column indices of the corresponding elements in array CsrVal()

Definition at line 211 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::csr_row_ptr_col_idx_, and CuSparseMatrix< Real >::num_rows_.

Referenced by CuMatrixBase< float >::AddMatSmat(), CuMatrixBase< float >::AddSmat(), CuMatrixBase< float >::AddSmatMat(), CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToMat(), CuSparseMatrix< Real >::CuSparseMatrix(), CuSparseMatrix< Real >::SelectRows(), and kaldi::TraceMatSmat().

                               {
    return csr_row_ptr_col_idx_ + num_rows_ + 1;
  }

CsrColIdx() [2/2]

int* CsrColIdx ( )

inlineprotected

Definition at line 214 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::csr_row_ptr_col_idx_, CuSparseMatrix< Real >::Destroy(), and CuSparseMatrix< Real >::num_rows_.

                   {
    return csr_row_ptr_col_idx_ + num_rows_ + 1;
  }

CsrRowPtr() [1/2]

const int* CsrRowPtr ( ) const

inlineprotected

Returns pointer to the integer array of length NumRows()+1 that holds indices of the first nonzero element in the i-th row, while the last entry contains nnz_, as zero-based CSR format is used.

Definition at line 202 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::csr_row_ptr_col_idx_.

Referenced by CuMatrixBase< float >::AddMatSmat(), CuMatrixBase< float >::AddSmat(), CuMatrixBase< float >::AddSmatMat(), CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToMat(), CuSparseMatrix< Real >::CuSparseMatrix(), CuSparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::SelectRows(), and kaldi::TraceMatSmat().

                               {
    return csr_row_ptr_col_idx_;
  }

CsrRowPtr() [2/2]

int* CsrRowPtr ( )

inlineprotected

Definition at line 205 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::csr_row_ptr_col_idx_.

                   {
    return csr_row_ptr_col_idx_;
  }

CsrVal() [1/2]

const Real* CsrVal ( ) const

inlineprotected

Returns pointer to the data array of length nnz_ that holds all nonzero values in zero-based CSR format.

Definition at line 192 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::csr_val_.

Referenced by CuMatrixBase< float >::AddMatSmat(), CuMatrixBase< float >::AddSmat(), CuMatrixBase< float >::AddSmatMat(), CuSparseMatrix< Real >::CopyElementsToVec(), CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToMat(), CuSparseMatrix< Real >::CopyToSmat(), CuSparseMatrix< Real >::CuSparseMatrix(), CuSparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::SelectRows(), and kaldi::TraceMatSmat().

                             {
    return csr_val_;
  }

CsrVal() [2/2]

Real* CsrVal ( )

inlineprotected

Definition at line 195 of file cu-sparse-matrix.h.

References CuSparseMatrix< Real >::csr_val_.

                 {
    return csr_val_;
  }

Destroy()

void Destroy ( )

private

Definition at line 301 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::csr_row_ptr_col_idx_, CuSparseMatrix< Real >::csr_val_, CuSparseMatrix< Real >::nnz_, CuSparseMatrix< Real >::num_cols_, CuSparseMatrix< Real >::num_rows_, and CuSparseMatrix< Real >::Smat().

Referenced by CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::Resize(), and CuSparseMatrix< Real >::~CuSparseMatrix().

                                   {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    CuTimer tim;
    if (csr_row_ptr_col_idx_) {
      CuDevice::Instantiate().Free(csr_row_ptr_col_idx_);
    }
    if (csr_val_) {
      CuDevice::Instantiate().Free(csr_val_);
    }
    num_rows_ = 0;
    num_cols_ = 0;
    nnz_ = 0;
    csr_row_ptr_col_idx_ = NULL;
    csr_val_ = NULL;
    CuDevice::Instantiate().AccuProfile(__func__, tim);
  } else
#endif
  {
    Smat().Resize(0, 0);
  }
}

FrobeniusNorm()

Real FrobeniusNorm

(

)

const

Definition at line 97 of file cu-sparse-matrix.cc.

References CuVectorBase< Real >::Norm().

Referenced by kaldi::UnitTestCuSparseMatrixFrobeniusNorm().

                                               {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    CuSubVector<Real> element_vec(CsrVal(), NumElements());
    return element_vec.Norm(2);
  } else
#endif
  {
    return Smat().FrobeniusNorm();
  }
}

NumCols()

MatrixIndexT NumCols

(

)

const

Definition at line 58 of file cu-sparse-matrix.cc.

Referenced by CuMatrixBase< float >::AddMatSmat(), CuMatrixBase< float >::AddSmat(), CuMatrixBase< float >::AddSmatMat(), CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToMat(), CuSparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::SelectRows(), kaldi::TraceMatSmat(), kaldi::UnitTestCuSparseMatrixConstructFromIndexes(), kaldi::UnitTestCuSparseMatrixSelectRowsAndTranspose(), and kaldi::UnitTestCuSparseMatrixSwap().

                                                 {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    return num_cols_;
  } else
#endif
  {
    return Smat().NumCols();
  }
}

NumElements()

MatrixIndexT NumElements

(

)

const

Definition at line 70 of file cu-sparse-matrix.cc.

Referenced by CuMatrixBase< float >::AddMatSmat(), CuMatrixBase< float >::AddSmatMat(), CuSparseMatrix< Real >::CopyElementsToVec(), CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToMat(), CuSparseMatrix< Real >::CopyToSmat(), CuSparseMatrix< Real >::CuSparseMatrix(), CuSparseMatrix< Real >::Resize(), and kaldi::TraceMatSmat().

                                                     {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    return nnz_;
  } else
#endif
  {
    return Smat().NumElements();
  }
}

NumRows()

MatrixIndexT NumRows

(

)

const

Definition at line 46 of file cu-sparse-matrix.cc.

Referenced by CuMatrixBase< float >::AddMatSmat(), CuMatrixBase< float >::AddSmat(), CuMatrixBase< float >::AddSmatMat(), CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToMat(), CuSparseMatrix< Real >::CopyToSmat(), CuSparseMatrix< Real >::CuSparseMatrix(), CuSparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::SelectRows(), kaldi::TraceMatSmat(), kaldi::UnitTestCuSparseMatrixConstructFromIndexes(), kaldi::UnitTestCuSparseMatrixSelectRowsAndTranspose(), and kaldi::UnitTestCuSparseMatrixSwap().

                                                 {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    return num_rows_;
  } else
#endif
  {
    return Smat().NumRows();
  }
}

operator=() [1/2]

CuSparseMatrix< Real > & operator=

(

const SparseMatrix< Real > &

smat

)

Copy from CPU-based matrix.

Definition at line 227 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::CopyFromSmat().

                                    {
  this->CopyFromSmat(smat);
  return *this;
}

operator=() [2/2]

CuSparseMatrix< Real > & operator=

(

const CuSparseMatrix< Real > &

smat

)

Copy from possibly-GPU-based matrix.

Definition at line 234 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::CopyFromSmat(), and kaldi::kNoTrans.

                                      {
  this->CopyFromSmat(smat, kNoTrans);
  return *this;
}

Read()

void Read	(	std::istream &	is,
		bool	binary
	)

Definition at line 514 of file cu-sparse-matrix.cc.

References SparseMatrix< Real >::Read(), and CuSparseMatrix< Real >::Swap().

                                                           {
  SparseMatrix<Real> tmp;
  tmp.Read(is, binary);
  this->Swap(&tmp);
}

Resize()

void Resize ( const MatrixIndexT  num_rows, const MatrixIndexT  num_cols, const MatrixIndexT  nnz, MatrixResizeType  resize_type = kSetZero  )

protected

Users of this class won't normally have to use Resize.

'nnz' should be determined beforehand when calling this API.

Definition at line 241 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::csr_row_ptr_col_idx_, CuSparseMatrix< Real >::csr_val_, CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::CsrVal(), CuSparseMatrix< Real >::Destroy(), KALDI_ASSERT, kaldi::kSetZero, kaldi::kUndefined, CuSparseMatrix< Real >::nnz_, CuSparseMatrix< Real >::num_cols_, CuSparseMatrix< Real >::num_rows_, CuSparseMatrix< Real >::NumCols(), CuSparseMatrix< Real >::NumElements(), CuSparseMatrix< Real >::NumRows(), CuArrayBase< T >::Set(), CuVectorBase< Real >::Set(), and CuSparseMatrix< Real >::Smat().

Referenced by CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CuSparseMatrix(), and CuSparseMatrix< Real >::Smat().

                                                                {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    KALDI_ASSERT(resize_type == kSetZero || resize_type == kUndefined);

    if (num_rows == NumRows() && num_cols == NumCols()
        && nnz == NumElements()) {
      if (resize_type == kSetZero) {
        CuSubVector<Real> val(CsrVal(), NumElements());
        val.Set(0);
      }
      return;
    }

    Destroy();

    CuTimer tim;

    if (num_rows * num_cols == 0) {
      KALDI_ASSERT(num_rows == 0);
      KALDI_ASSERT(num_cols == 0);
      KALDI_ASSERT(nnz == 0);
      num_rows_ = 0;
      num_cols_ = 0;
      nnz_ = 0;
      csr_row_ptr_col_idx_ = static_cast<int*>(CuDevice::Instantiate().Malloc(
          1 * sizeof(int)));
      csr_val_ = NULL;
    } else {
      KALDI_ASSERT(num_rows > 0);
      KALDI_ASSERT(num_cols > 0);
      KALDI_ASSERT(nnz >= 0 && nnz <= num_rows * static_cast<int64>(num_cols));

      num_rows_ = num_rows;
      num_cols_ = num_cols;
      nnz_ = nnz;
      csr_row_ptr_col_idx_ = static_cast<int*>(CuDevice::Instantiate().Malloc(
          (num_rows + 1 + nnz) * sizeof(int)));
      csr_val_ = static_cast<Real*>(CuDevice::Instantiate().Malloc(
          nnz * sizeof(Real)));
      CuSubArray<int> row_ptr(CsrRowPtr(), NumRows() + 1);
      row_ptr.Set(nnz);
      if (resize_type == kSetZero) {
        CuSubVector<Real> val(CsrVal(), NumElements());
        val.Set(0);
      }
    }

    CuDevice::Instantiate().AccuProfile(__func__, tim);
  } else
#endif
  {
    Smat().Resize(num_rows, num_cols, resize_type);
  }
}

SelectRows()

void SelectRows	(	const CuArray< int32 > &	row_indexes,
		const CuSparseMatrix< Real > &	smat_other
	)

Select a subset of the rows of a CuSparseMatrix.

Sets *this to only the rows of 'smat_other' that are listed in 'row_indexes'. 'row_indexes' must satisfy 0 <= row_indexes[i] < smat_other.NumRows().

Definition at line 110 of file cu-sparse-matrix.cc.

References CuArrayBase< T >::CopyToVec(), CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::CsrVal(), CU1DBLOCK, CuArrayBase< T >::Data(), CuArrayBase< T >::Dim(), rnnlm::i, kaldi::kUndefined, CuSparseMatrix< Real >::NumCols(), CuSparseMatrix< Real >::NumRows(), and CuSparseMatrix< Real >::Smat().

Referenced by kaldi::UnitTestCuSparseMatrixSelectRowsAndTranspose().

                                                                              {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    CuTimer tim;

    // Calculate nnz and row_ptr before copying selected col_idx and val.
    // We do this on CPU for now. We will move this part to GPU is mem copy
    // becomes a bottle-neck here.
    std::vector<int32> row_indexes_cpu(row_indexes.Dim());
    row_indexes.CopyToVec(&row_indexes_cpu);
    CuSubArray<int> other_row_ptr(smat_other.CsrRowPtr(),
                                  smat_other.NumRows() + 1);
    std::vector<int> other_row_ptr_cpu(smat_other.NumRows() + 1);
    other_row_ptr.CopyToVec(&other_row_ptr_cpu);
    int nnz = 0;
    std::vector<int> row_ptr_cpu(row_indexes_cpu.size() + 1);
    for (int i = 0; i < row_indexes_cpu.size(); ++i) {
      row_ptr_cpu[i] = nnz;
      nnz += other_row_ptr_cpu[row_indexes_cpu[i] + 1]
          - other_row_ptr_cpu[row_indexes_cpu[i]];
    }
    row_ptr_cpu[row_indexes_cpu.size()] = nnz;

    Resize(row_indexes.Dim(), smat_other.NumCols(), nnz, kUndefined);
    CuSubArray<int> row_ptr(CsrRowPtr(), NumRows() + 1);
    row_ptr.CopyFromVec(row_ptr_cpu);

    // We use warpSize threads per row to access only the nnz elements.
    // Every CU1DBLOCK/warpSize rows share one thread block.
    // 1D grid to cover all selected rows.
    const int warpSize = 32;
    dim3 dimBlock(warpSize, CU1DBLOCK / warpSize);
    dim3 dimGrid(n_blocks(row_indexes.Dim(), dimBlock.y));

    cuda_select_rows(dimGrid, dimBlock, CsrRowPtr(), CsrColIdx(), CsrVal(),
                     row_indexes.Data(), row_indexes.Dim(),
                     smat_other.CsrRowPtr(), smat_other.CsrColIdx(),
                     smat_other.CsrVal());

    CU_SAFE_CALL(cudaGetLastError());
    CuDevice::Instantiate().AccuProfile(__func__, tim);
  } else
#endif
  {
    std::vector<int32> row_indexes_cpu(row_indexes.Dim());
    row_indexes.CopyToVec(&row_indexes_cpu);
    Smat().SelectRows(row_indexes_cpu, smat_other.Smat());
  }
}

SetRandn()

void SetRandn

(

BaseFloat

zero_prob

)

Sets up to a pseudo-randomly initialized matrix, with each element zero with probability zero_prob and else normally distributed- mostly for purposes of testing.

Definition at line 497 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::num_cols_, CuSparseMatrix< Real >::num_rows_, SparseMatrix< Real >::SetRandn(), and CuSparseMatrix< Real >::Swap().

                                                       {
  if (num_rows_ == 0)
    return;
  // Use the CPU function for the moment, not efficient...
  SparseMatrix<Real> tmp(num_rows_, num_cols_);
  tmp.SetRandn(zero_prob);
  Swap(&tmp);
}

Smat() [1/2]

const SparseMatrix<Real>& Smat ( ) const

inlineprotected

Definition at line 178 of file cu-sparse-matrix.h.

Referenced by CuMatrixBase< float >::AddMatSmat(), CuMatrixBase< float >::AddSmat(), CuMatrixBase< float >::AddSmatMat(), CuSparseMatrix< Real >::CopyElementsToVec(), CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToMat(), CuSparseMatrix< Real >::CopyToSmat(), CuSparseMatrix< Real >::CuSparseMatrix(), CuSparseMatrix< Real >::Destroy(), CuSparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::SelectRows(), CuSparseMatrix< Real >::Swap(), and kaldi::TraceMatSmat().

                                                {
    return *(reinterpret_cast<const SparseMatrix<Real>*>(this));
  }

Smat() [2/2]

SparseMatrix<Real>& Smat ( )

inlineprotected

Definition at line 181 of file cu-sparse-matrix.h.

References kaldi::kSetZero, and CuSparseMatrix< Real >::Resize().

                                    {
    return *(reinterpret_cast<SparseMatrix<Real>*>(this));
  }

Sum()

Real Sum

(

)

const

Definition at line 82 of file cu-sparse-matrix.cc.

References CuVectorBase< Real >::Sum().

Referenced by kaldi::nnet3::ComputeObjectiveFunction(), and kaldi::UnitTestCuSparseMatrixSum().

                                     {
  if (NumElements() == 0)
    return 0;
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    CuSubVector<Real> sum_vec(CsrVal(), NumElements());
    return sum_vec.Sum();
  } else
#endif
  {
    return Smat().Sum();
  }
}

Swap() [1/2]

void Swap

(

SparseMatrix< Real > *

smat

)

Swap with CPU-based matrix.

Definition at line 467 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::CopyToSmat(), and CuSparseMatrix< Real >::Smat().

Referenced by CuSparseMatrix< Real >::CuSparseMatrix(), CuSparseMatrix< Real >::Read(), CuSparseMatrix< Real >::SetRandn(), and kaldi::UnitTestCuSparseMatrixSwap().

                                                        {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    CuSparseMatrix<Real> tmp(*smat);
    Swap(&tmp);
    tmp.CopyToSmat(smat);
  } else
#endif
  {
    Smat().Swap(smat);
  }
}

Swap() [2/2]

void Swap

(

CuSparseMatrix< Real > *

smat

)

Swap with possibly-CPU-based matrix.

Definition at line 481 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::csr_row_ptr_col_idx_, CuSparseMatrix< Real >::csr_val_, CuSparseMatrix< Real >::nnz_, CuSparseMatrix< Real >::num_cols_, CuSparseMatrix< Real >::num_rows_, CuSparseMatrix< Real >::Smat(), and kaldi::swap().

                                                          {
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    std::swap(num_rows_, smat->num_rows_);
    std::swap(num_cols_, smat->num_cols_);
    std::swap(nnz_, smat->nnz_);
    std::swap(csr_row_ptr_col_idx_, smat->csr_row_ptr_col_idx_);
    std::swap(csr_val_, smat->csr_val_);
  } else
#endif
  {
    Smat().Swap(&(smat->Smat()));
  }
}

Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

Definition at line 507 of file cu-sparse-matrix.cc.

References CuSparseMatrix< Real >::CopyToSmat(), and SparseMatrix< Real >::Write().

                                                                  {
  SparseMatrix<Real> tmp;
  CopyToSmat(&tmp);
  tmp.Write(os, binary);
}

Friends And Related Function Documentation

CuMatrixBase< double >

friend class CuMatrixBase< double >

friend

Definition at line 51 of file cu-sparse-matrix.h.

CuMatrixBase< float >

friend class CuMatrixBase< float >

friend

Definition at line 50 of file cu-sparse-matrix.h.

CuMatrixBase< Real >

friend class CuMatrixBase< Real >

friend

Definition at line 52 of file cu-sparse-matrix.h.

CuVectorBase< double >

friend class CuVectorBase< double >

friend

Definition at line 54 of file cu-sparse-matrix.h.

CuVectorBase< float >

friend class CuVectorBase< float >

friend

Definition at line 53 of file cu-sparse-matrix.h.

CuVectorBase< Real >

friend class CuVectorBase< Real >

friend

Definition at line 55 of file cu-sparse-matrix.h.

TraceMatSmat

Real TraceMatSmat ( const CuMatrixBase< Real > &  A, const CuSparseMatrix< Real > &  B, MatrixTransposeType  trans  )

friend

Definition at line 524 of file cu-sparse-matrix.cc.

Referenced by kaldi::TraceMatSmat().

                                             {
  if (A.NumCols() == 0) {
    KALDI_ASSERT(B.NumCols() == 0);
    return 0.0;
  }
  if (B.NumElements() == 0) {
    return 0.0;
  }
  Real result = 0;
#if HAVE_CUDA == 1
  if (CuDevice::Instantiate().Enabled()) {
    if (trans == kTrans) {
      KALDI_ASSERT(A.NumRows() == B.NumRows() && A.NumCols() == B.NumCols());
    } else {
      KALDI_ASSERT(A.NumCols() == B.NumRows() && A.NumRows() == B.NumCols());
    }

    // The Sum() method in CuVector handles a bunch of logic, we use that to
    // comptue the trace.
    CuVector<Real> sum_vec(B.NumElements());
    CuTimer tim;

    // We use warpSize threads per row to access only the nnz elements.
    // Every CU1DBLOCK/warpSize rows share one thread block.
    // 1D grid to cover all rows of B.
    const int warpSize = 32;
    dim3 dimBlock(warpSize, CU1DBLOCK / warpSize);
    dim3 dimGrid(n_blocks(B.NumRows(), dimBlock.y));

    if (trans == kNoTrans) {
      cuda_trace_mat_smat(dimGrid, dimBlock, A.Data(), A.Dim(), B.CsrRowPtr(),
                          B.CsrColIdx(), B.CsrVal(), sum_vec.Data());
    } else {
      cuda_trace_mat_smat_trans(dimGrid, dimBlock, A.Data(), A.Dim(),
                                B.CsrRowPtr(), B.CsrColIdx(), B.CsrVal(),
                                sum_vec.Data());
    }
    result = sum_vec.Sum();
    CuDevice::Instantiate().AccuProfile(__func__, tim);
  } else
#endif
  {
    result = TraceMatSmat(A.Mat(), B.Smat(), trans);
  }
  return result;
}

Member Data Documentation

cpu_rows_

std::vector<SparseVector<Real> > cpu_rows_

private

Definition at line 224 of file cu-sparse-matrix.h.

csr_row_ptr_col_idx_

int* csr_row_ptr_col_idx_

private

Definition at line 243 of file cu-sparse-matrix.h.

Referenced by CuSparseMatrix< Real >::CopyFromSmat(), CuSparseMatrix< Real >::CopyToSmat(), CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::CsrRowPtr(), CuSparseMatrix< Real >::Destroy(), CuSparseMatrix< Real >::Resize(), and CuSparseMatrix< Real >::Swap().

csr_val_

Real* csr_val_

private

Definition at line 246 of file cu-sparse-matrix.h.

Referenced by CuSparseMatrix< Real >::CsrVal(), CuSparseMatrix< Real >::Destroy(), CuSparseMatrix< Real >::Resize(), and CuSparseMatrix< Real >::Swap().

nnz_

MatrixIndexT nnz_

private

Definition at line 239 of file cu-sparse-matrix.h.

Referenced by CuSparseMatrix< Real >::Destroy(), CuSparseMatrix< Real >::Resize(), and CuSparseMatrix< Real >::Swap().

num_cols_

MatrixIndexT num_cols_

private

Definition at line 236 of file cu-sparse-matrix.h.

Referenced by CuSparseMatrix< Real >::CopyToSmat(), CuSparseMatrix< Real >::Destroy(), CuSparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::SetRandn(), and CuSparseMatrix< Real >::Swap().

num_rows_

MatrixIndexT num_rows_

private

Definition at line 235 of file cu-sparse-matrix.h.

Referenced by CuSparseMatrix< Real >::CsrColIdx(), CuSparseMatrix< Real >::Destroy(), CuSparseMatrix< Real >::Resize(), CuSparseMatrix< Real >::SetRandn(), and CuSparseMatrix< Real >::Swap().

---

The documentation for this class was generated from the following files:

• matrix/matrix-common.h
• cudamatrix/cu-sparse-matrix.h
• cudamatrix/cu-sparse-matrix.cc
