OnlinePitchFeature Class Reference

#include <pitch-functions.h>

Inheritance diagram for OnlinePitchFeature:

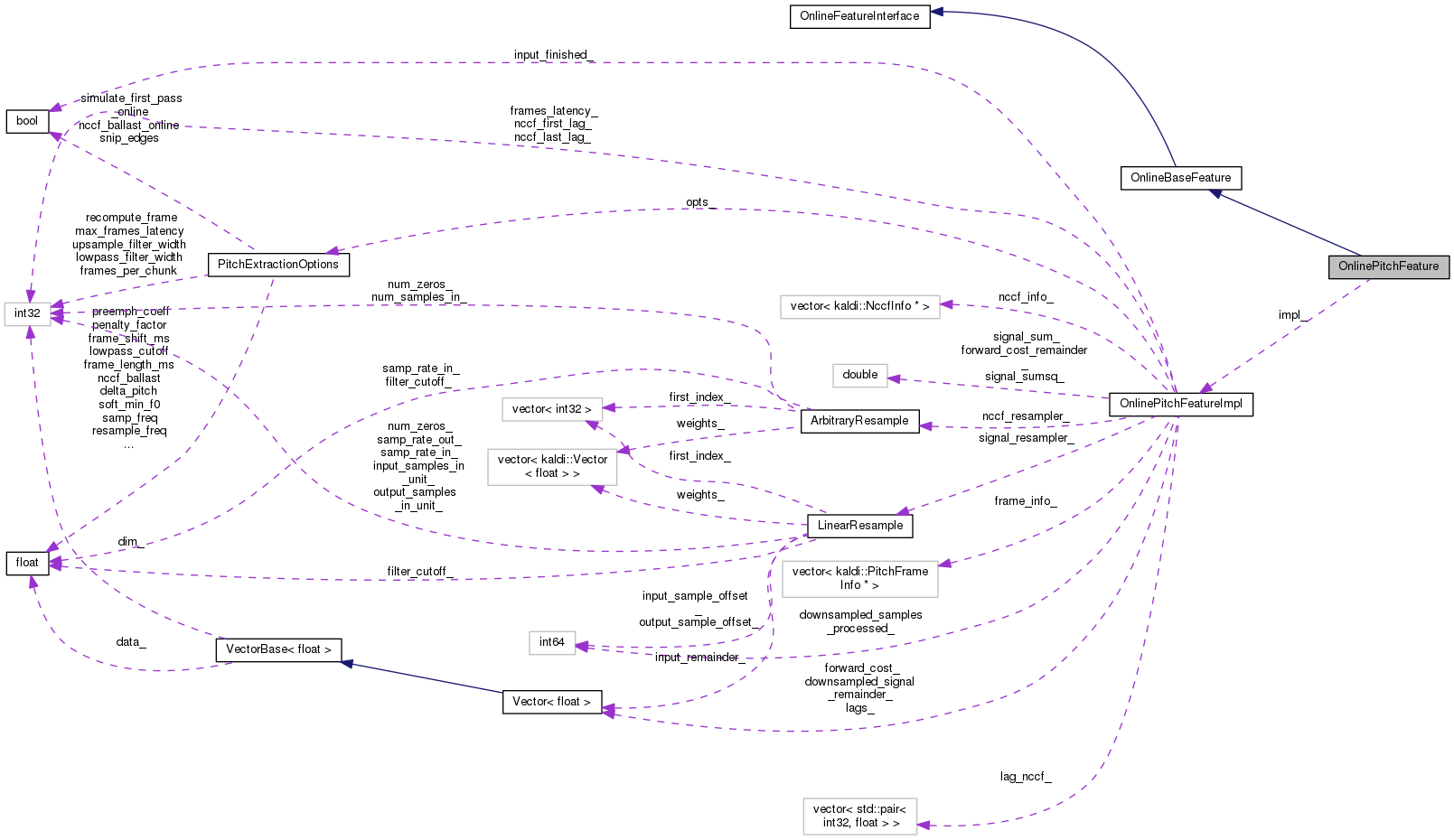

Collaboration diagram for OnlinePitchFeature:

Public Member Functions
	OnlinePitchFeature (const PitchExtractionOptions &opts)
virtual int32	Dim () const
virtual int32	NumFramesReady () const
	returns the feature dimension. More...
virtual BaseFloat	FrameShiftInSeconds () const
virtual bool	IsLastFrame (int32 frame) const
	Returns true if this is the last frame. More...
virtual void	GetFrame (int32 frame, VectorBase< BaseFloat > *feat)
	Outputs the two-dimensional feature consisting of (pitch, NCCF). More...
virtual void	AcceptWaveform (BaseFloat sampling_rate, const VectorBase< BaseFloat > &waveform)
	This would be called from the application, when you get more wave data. More...
virtual void	InputFinished ()
	InputFinished() tells the class you won't be providing any more waveform. More...
virtual	~OnlinePitchFeature ()
Public Member Functions inherited from OnlineFeatureInterface
virtual void	GetFrames (const std::vector< int32 > &frames, MatrixBase< BaseFloat > *feats)
	This is like GetFrame() but for a collection of frames. More...
virtual	~OnlineFeatureInterface ()
	Virtual destructor. More...

Private Attributes
OnlinePitchFeatureImpl *	impl_

Detailed Description

Definition at line 300 of file pitch-functions.h.

Constructor & Destructor Documentation

OnlinePitchFeature()

OnlinePitchFeature ( const PitchExtractionOptions &  opts )

explicit

Definition at line 1208 of file pitch-functions.cc.

    :impl_(new OnlinePitchFeatureImpl(opts)) { }

~OnlinePitchFeature()

~OnlinePitchFeature ( )

virtual

Definition at line 1233 of file pitch-functions.cc.

References OnlinePitchFeature::impl_.

                                        {
  delete impl_;
}

Member Function Documentation

AcceptWaveform()

void AcceptWaveform ( BaseFloat  sampling_rate, const VectorBase< BaseFloat > &  waveform  )

virtual

This would be called from the application, when you get more wave data.

Note: the sampling_rate is typically only provided so the code can assert that it matches the sampling rate expected in the options.

Implements OnlineBaseFeature.

Definition at line 1223 of file pitch-functions.cc.

References OnlinePitchFeatureImpl::AcceptWaveform(), and OnlinePitchFeature::impl_.

Referenced by OnlineFeaturePipeline::AcceptWaveform(), OnlineNnet2FeaturePipeline::AcceptWaveform(), kaldi::ComputeAndProcessKaldiPitch(), kaldi::ComputeKaldiPitch(), kaldi::ComputeKaldiPitchFirstPass(), kaldi::UnitTestDelay(), and kaldi::UnitTestPieces().

                                           {
  impl_->AcceptWaveform(sampling_rate, waveform);
}

Dim()

virtual int32 Dim ( ) const

inlinevirtual

Implements OnlineFeatureInterface.

Definition at line 304 of file pitch-functions.h.

{ return 2; /* (NCCF, pitch) */ }

FrameShiftInSeconds()

BaseFloat FrameShiftInSeconds ( ) const

virtual

Implements OnlineFeatureInterface.

Definition at line 1215 of file pitch-functions.cc.

References OnlinePitchFeatureImpl::FrameShiftInSeconds(), and OnlinePitchFeature::impl_.

                                                        {
  return impl_->FrameShiftInSeconds();
}

GetFrame()

void GetFrame ( int32  frame, VectorBase< BaseFloat > *  feat  )

virtual

Outputs the two-dimensional feature consisting of (pitch, NCCF).

You should probably post-process this using class OnlineProcessPitch.

Implements OnlineFeatureInterface.

Definition at line 1219 of file pitch-functions.cc.

References OnlinePitchFeatureImpl::GetFrame(), and OnlinePitchFeature::impl_.

Referenced by kaldi::ComputeKaldiPitch(), kaldi::ComputeKaldiPitchFirstPass(), and kaldi::UnitTestPieces().

                                                                          {
  impl_->GetFrame(frame, feat);
}

InputFinished()

void InputFinished ( )

virtual

InputFinished() tells the class you won't be providing any more waveform.

This will help flush out the last few frames of delta or LDA features (it will typically affect the return value of IsLastFrame.

Implements OnlineBaseFeature.

Definition at line 1229 of file pitch-functions.cc.

References OnlinePitchFeature::impl_, and OnlinePitchFeatureImpl::InputFinished().

Referenced by kaldi::ComputeAndProcessKaldiPitch(), kaldi::ComputeKaldiPitch(), kaldi::ComputeKaldiPitchFirstPass(), OnlineFeaturePipeline::InputFinished(), OnlineNnet2FeaturePipeline::InputFinished(), kaldi::UnitTestDelay(), and kaldi::UnitTestPieces().

                                       {
  impl_->InputFinished();
}

IsLastFrame()

bool IsLastFrame ( int32  frame ) const

virtual

Returns true if this is the last frame.

Frame indices are zero-based, so the first frame is zero. IsLastFrame(-1) will return false, unless the file is empty (which is a case that I'm not sure all the code will handle, so be careful). This function may return false for some frame if we haven't yet decided to terminate decoding, but later true if we decide to terminate decoding. This function exists mainly to correctly handle end effects in feature extraction, and is not a mechanism to determine how many frames are in the decodable object (as it used to be, and for backward compatibility, still is, in the Decodable interface).

Implements OnlineFeatureInterface.

Definition at line 1211 of file pitch-functions.cc.

References OnlinePitchFeature::impl_, and OnlinePitchFeatureImpl::IsLastFrame().

                                                      {
  return impl_->IsLastFrame(frame);
}

NumFramesReady()

int32 NumFramesReady ( ) const

virtual

returns the feature dimension.

Returns the total number of frames, since the start of the utterance, that are now available. In an online-decoding context, this will likely increase with time as more data becomes available.

Implements OnlineFeatureInterface.

Definition at line 1204 of file pitch-functions.cc.

Referenced by kaldi::ComputeKaldiPitch(), kaldi::ComputeKaldiPitchFirstPass(), and kaldi::UnitTestPieces().

                                               {
  return impl_->NumFramesReady();
}

Member Data Documentation

impl_

OnlinePitchFeatureImpl* impl_

private

Definition at line 324 of file pitch-functions.h.

Referenced by OnlinePitchFeature::AcceptWaveform(), OnlinePitchFeature::FrameShiftInSeconds(), OnlinePitchFeature::GetFrame(), OnlinePitchFeature::InputFinished(), OnlinePitchFeature::IsLastFrame(), and OnlinePitchFeature::~OnlinePitchFeature().

---

The documentation for this class was generated from the following files:

• feat/pitch-functions.h
• feat/pitch-functions.cc
