NnetOnlineComputer Class Reference

#include <nnet-compute-online.h>

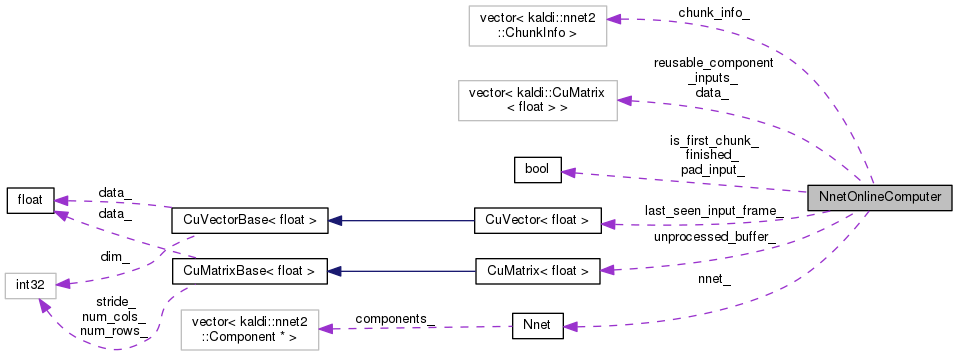

Collaboration diagram for NnetOnlineComputer:

Public Member Functions

 NnetOnlineComputer (const Nnet &nnet, bool pad_input)

void Compute (const CuMatrixBase< BaseFloat > &input, CuMatrix< BaseFloat > *output)

void Flush (CuMatrix< BaseFloat > *output)


Private Member Functions

void Propagate ()

 KALDI_DISALLOW_COPY_AND_ASSIGN (NnetOnlineComputer)


Private Attributes

const Nnetnnet_

std::vector< CuMatrix
< BaseFloat > >
data_

std::vector< ChunkInfochunk_info_

std::vector< CuMatrix
< BaseFloat > >
reusable_component_inputs_

CuMatrix< BaseFloatunprocessed_buffer_

CuVector< BaseFloatlast_seen_input_frame_

bool pad_input_

bool is_first_chunk_

bool finished_


Detailed Description

Definition at line 41 of file nnet-compute-online.h.

Constructor & Destructor Documentation

NnetOnlineComputer ( const Nnet nnet,
bool  pad_input
)

Definition at line 28 of file nnet-compute-online.cc.

References NnetOnlineComputer::data_, NnetOnlineComputer::nnet_, Nnet::NumComponents(), and NnetOnlineComputer::reusable_component_inputs_.

29  : nnet_(nnet), pad_input_(pad_input),
30  is_first_chunk_(true), finished_(false) {
31  data_.resize(nnet_.NumComponents() + 1);
33 }
std::vector< CuMatrix< BaseFloat > > data_
std::vector< CuMatrix< BaseFloat > > reusable_component_inputs_
int32 NumComponents() const
Returns number of components– think of this as similar to # of layers, but e.g.
Definition: nnet-nnet.h:69

Member Function Documentation

void Compute ( const CuMatrixBase< BaseFloat > &  input,
CuMatrix< BaseFloat > *  output
)

Definition at line 35 of file nnet-compute-online.cc.

References NnetOnlineComputer::chunk_info_, Nnet::ComputeChunkInfo(), CuMatrixBase< Real >::CopyFromMat(), CuVectorBase< Real >::CopyFromVec(), NnetOnlineComputer::data_, CuVectorBase< Real >::Dim(), NnetOnlineComputer::finished_, rnnlm::i, Nnet::InputDim(), NnetOnlineComputer::is_first_chunk_, KALDI_ASSERT, KALDI_ERR, NnetOnlineComputer::last_seen_input_frame_, Nnet::LeftContext(), NnetOnlineComputer::nnet_, CuMatrixBase< Real >::NumCols(), CuMatrixBase< Real >::NumRows(), NnetOnlineComputer::pad_input_, NnetOnlineComputer::Propagate(), CuMatrixBase< Real >::Range(), CuVector< Real >::Resize(), CuMatrix< Real >::Resize(), NnetOnlineComputer::reusable_component_inputs_, Nnet::RightContext(), CuMatrixBase< Real >::Row(), and NnetOnlineComputer::unprocessed_buffer_.

Referenced by kaldi::nnet2::UnitTestNnetCompute().

36  {
37  KALDI_ASSERT(output != NULL);
39  int32 dim = input.NumCols();
40
41  // If input is empty, we also set output to zero size.
42  if (input.NumRows() == 0) {
43  output->Resize(0, 0);
44  return;
45  } else {
46  // store the last frame as it might be needed for padding when Flush() is
47  // called.
48  if (last_seen_input_frame_.Dim() != input.NumCols())
50  last_seen_input_frame_.CopyFromVec(input.Row(input.NumRows() - 1));
51  }
52
53  // Checking if feature dimension matches that required by the neural network.
54  if (dim != nnet_.InputDim()) {
55  KALDI_ERR << "Feature dimension is " << dim << ", but network expects "
56  << nnet_.InputDim();
57  }
58  // num_effective_input_rows is the effective number of input rows we have, for
59  // purposes of computing how much output we will get. It is the number of
60  // actual input rows plus the amount of context stored at intermediate layers
61  // of the network (which if we have previously done the computation, will
62  // equal nnet_.LeftContext() + nnet_.RightContext()).
63  int32 num_effective_input_rows = 0;
64  // Initialize the first element of data_, with input
65  CuMatrix<BaseFloat> &input_data(data_[0]);
66  if (is_first_chunk_) {
67  is_first_chunk_ = false;
68  // assert that all the component-wise input buffers are empty
69  for (int32 i = 0; i < reusable_component_inputs_.size(); i++)
70  KALDI_ASSERT(reusable_component_inputs_[0].NumRows() == 0);
71  // Pad at the start of the file if necessary.
72  if ((pad_input_) && (nnet_.LeftContext() > 0)) {
73  input_data.Resize(nnet_.LeftContext() + input.NumRows(), dim);
74  input_data.Range(0, nnet_.LeftContext(), 0,
75  dim).CopyRowsFromVec(input.Row(0));
76  input_data.Range(nnet_.LeftContext(), input.NumRows(),
77  0, dim).CopyFromMat(input);
78  } else {
79  input_data.Resize(input.NumRows(), input.NumCols());
80  input_data.CopyFromMat(input);
81  }
82  num_effective_input_rows = input_data.NumRows();
83  } else {
84  int32 extra_input_rows = 0;
85  // checking if we did forward pass for any chunks before.
86  // if we did a forward pass, component input buffers would be non-empty
87  // these buffers store information equivalent to having an nnet_input
88  // buffer of (nnet_.LeftContext() + nnet_.RightContext())
89  for (int32 i = 0; i < reusable_component_inputs_.size(); i++) {
90  if (reusable_component_inputs_[i].NumRows() > 0) {
91  extra_input_rows = nnet_.LeftContext() + nnet_.RightContext();
92  break;
93  }
94  }
95  // add unprocessed input from the previous calls
96  input_data.Resize(input.NumRows() + unprocessed_buffer_.NumRows(), dim);
97  if (unprocessed_buffer_.NumRows() > 0)
98  input_data.Range(0, unprocessed_buffer_.NumRows(),
99  0, dim).CopyFromMat(unprocessed_buffer_);
100  input_data.Range(unprocessed_buffer_.NumRows(), input.NumRows(),
101  0, dim).CopyFromMat(input);
102  unprocessed_buffer_.Resize(0, 0); // clearing the unprocessed buffer
103  num_effective_input_rows = input_data.NumRows() + extra_input_rows;
104  }
105  if (num_effective_input_rows >=
106  nnet_.LeftContext() + nnet_.RightContext() + 1) {
107  // we have sufficient frames to compute at least one nnet output
108  nnet_.ComputeChunkInfo(num_effective_input_rows, 1, &chunk_info_);
109  Propagate();
110  *output = data_.back();
111  } else {
112  // store the input in the unprocessed_buffer_
113  unprocessed_buffer_ = input_data;
114  // not enough input context so just return an empty array
115  output->Resize(0, 0);
116  }
117
118 }
std::vector< CuMatrix< BaseFloat > > data_
std::vector< CuMatrix< BaseFloat > > reusable_component_inputs_
void ComputeChunkInfo(int32 input_chunk_size, int32 num_chunks, std::vector< ChunkInfo > *chunk_info_out) const
Uses the output of the Context() functions of the network, to compute a vector of size NumComponents(...
Definition: nnet-nnet.cc:65
std::vector< ChunkInfo > chunk_info_
const CuSubVector< Real > Row(MatrixIndexT i) const
Definition: cu-matrix.h:549
int32 InputDim() const
Dimension of the input features, e.g.
Definition: nnet-nnet.cc:36
MatrixIndexT NumCols() const
Definition: cu-matrix.h:196
void Resize(MatrixIndexT dim, MatrixResizeType t=kSetZero)
Allocate the memory.
Definition: cu-vector.cc:892
CuVector< BaseFloat > last_seen_input_frame_
int32 LeftContext() const
Returns the left-context summed over all the Components...
Definition: nnet-nnet.cc:42
void Resize(MatrixIndexT rows, MatrixIndexT cols, MatrixResizeType resize_type=kSetZero, MatrixStrideType stride_type=kDefaultStride)
Allocate the memory.
Definition: cu-matrix.cc:47
MatrixIndexT Dim() const
Dimensions.
Definition: cu-vector.h:67
MatrixIndexT NumRows() const
Dimensions.
Definition: cu-matrix.h:195
#define KALDI_ERR
Definition: kaldi-error.h:127
void CopyFromVec(const CuVectorBase< Real > &src)
Copy functions; these will crash if the dimension do not match.
Definition: cu-vector.cc:970
CuMatrix< BaseFloat > unprocessed_buffer_
#define KALDI_ASSERT(cond)
Definition: kaldi-error.h:169
int32 RightContext() const
Returns the right-context summed over all the Components...
Definition: nnet-nnet.cc:56
void Flush ( CuMatrix< BaseFloat > *  output)

Definition at line 120 of file nnet-compute-online.cc.

References NnetOnlineComputer::chunk_info_, Nnet::ComputeChunkInfo(), CuMatrixBase< Real >::CopyRowsFromVec(), NnetOnlineComputer::data_, NnetOnlineComputer::finished_, Nnet::InputDim(), NnetOnlineComputer::is_first_chunk_, KALDI_ASSERT, NnetOnlineComputer::last_seen_input_frame_, Nnet::LeftContext(), NnetOnlineComputer::nnet_, NnetOnlineComputer::pad_input_, NnetOnlineComputer::Propagate(), CuMatrix< Real >::Resize(), and Nnet::RightContext().

Referenced by kaldi::nnet2::UnitTestNnetCompute().

120  {
122  int32 num_frames_padding = (pad_input_ ? nnet_.RightContext() : 0);
123  int32 num_stored_frames = nnet_.LeftContext() + nnet_.RightContext();
124  int32 num_effective_input_rows = num_stored_frames + num_frames_padding;
125  // If the amount of output would be empty return at this point.
126  if (num_effective_input_rows < nnet_.LeftContext() + nnet_.RightContext() + 1) {
127  output->Resize(0, 0);
128  finished_ = true;
129  return;
130  }
131
132  int32 dim = nnet_.InputDim();
133  CuMatrix<BaseFloat> &input_data(data_[0]);
134  KALDI_ASSERT(num_frames_padding > 0); // else we would have returned above.
135  input_data.Resize(num_frames_padding, dim);
136  input_data.CopyRowsFromVec(last_seen_input_frame_);
137
138  // Note, we later modify this chunk-info, it isn't quite correct right now
139  // because we add extra data at intermediate layers, and the actual number of
140  // input rows doesn't equal num_effective_input_rows.
141  nnet_.ComputeChunkInfo(num_effective_input_rows, 1,
142  &chunk_info_);
143  Propagate();
144  *output = data_.back();
145  finished_ = true;
146 }
std::vector< CuMatrix< BaseFloat > > data_
void ComputeChunkInfo(int32 input_chunk_size, int32 num_chunks, std::vector< ChunkInfo > *chunk_info_out) const
Uses the output of the Context() functions of the network, to compute a vector of size NumComponents(...
Definition: nnet-nnet.cc:65
std::vector< ChunkInfo > chunk_info_
int32 InputDim() const
Dimension of the input features, e.g.
Definition: nnet-nnet.cc:36
CuVector< BaseFloat > last_seen_input_frame_
int32 LeftContext() const
Returns the left-context summed over all the Components...
Definition: nnet-nnet.cc:42
void Resize(MatrixIndexT rows, MatrixIndexT cols, MatrixResizeType resize_type=kSetZero, MatrixStrideType stride_type=kDefaultStride)
Allocate the memory.
Definition: cu-matrix.cc:47
#define KALDI_ASSERT(cond)
Definition: kaldi-error.h:169
int32 RightContext() const
Returns the right-context summed over all the Components...
Definition: nnet-nnet.cc:56
KALDI_DISALLOW_COPY_AND_ASSIGN ( NnetOnlineComputer  )
private
void Propagate ( )
private

Definition at line 148 of file nnet-compute-online.cc.

References NnetOnlineComputer::chunk_info_, Component::Context(), NnetOnlineComputer::data_, Nnet::GetComponent(), Component::InputDim(), NnetOnlineComputer::nnet_, Nnet::NumComponents(), CuMatrixBase< Real >::NumRows(), Component::Propagate(), CuMatrixBase< Real >::Range(), CuMatrix< Real >::Resize(), NnetOnlineComputer::reusable_component_inputs_, and CuMatrixBase< Real >::RowRange().

Referenced by NnetOnlineComputer::Compute(), and NnetOnlineComputer::Flush().

148  {
149  // This method is like the normal nnet propagate, but we reuse the frames
150  // computed from the previous chunk, at each component.
151
152  for (int32 c = 0; c < nnet_.NumComponents(); c++) {
153  // we assume that the chunks are always contiguous
154  chunk_info_[c].MakeOffsetsContiguous();
155  chunk_info_[c + 1].MakeOffsetsContiguous();
156
157  const Component &component = nnet_.GetComponent(c);
158  CuMatrix<BaseFloat> &input_data = data_[c], &output_data = data_[c + 1];
159  CuMatrix<BaseFloat> input_data_temp;
160
161  if (component.Context().size() > 1) {
162  int32 dim = component.InputDim();
163  if (reusable_component_inputs_[c].NumRows() > 0) {
164  // concatenate any frames computed by previous component
165  // in the last call, to the input of the current component
166  input_data_temp.Resize(reusable_component_inputs_[c].NumRows()
167  + input_data.NumRows(), dim);
168  input_data_temp.Range(0, reusable_component_inputs_[c].NumRows(),
169  0, dim).CopyFromMat(reusable_component_inputs_[c]);
170  input_data_temp.Range(reusable_component_inputs_[c].NumRows(),
171  input_data.NumRows(), 0, dim).CopyFromMat(
172  input_data);
173  input_data = input_data_temp;
174  }
175  // store any frames which can be reused in the next call
176  reusable_component_inputs_[c].Resize(component.Context().back() -
177  component.Context().front(), dim);
178  reusable_component_inputs_[c].CopyFromMat(
179  input_data.RowRange(input_data.NumRows() -
180  reusable_component_inputs_[c].NumRows(),
181  reusable_component_inputs_[c].NumRows()));
182  }
183
184  // chunk_info objects provided assume that we added all the reusable
185  // context at the input of the nnet. However we are reusing hidden
186  // activations computed in the previous call.
187  // Hence we manipulate the chunk_info objects to reflect the state of the
188  // actual chunk, each component is computing, in the current Propagate.
189  // As before we always assume the chunks are contiguous.
190
191  // modifying the input chunk_info
192  int32 chunk_size_assumed = chunk_info_[c].ChunkSize();
193  int32 last_offset = chunk_info_[c].GetOffset(chunk_size_assumed - 1);
194  int32 first_offset = last_offset - input_data.NumRows() + 1;
195  ChunkInfo input_chunk_info(chunk_info_[c].NumCols(),
196  chunk_info_[c].NumChunks(),
197  first_offset,
198  last_offset);
199  // modifying the output chunk_info
200  chunk_size_assumed = chunk_info_[c + 1].ChunkSize();
201  last_offset = chunk_info_[c + 1].GetOffset(chunk_size_assumed - 1);
202  first_offset = last_offset - (input_data.NumRows() -
203  (component.Context().back() -
204  component.Context().front())) + 1;
205  ChunkInfo output_chunk_info(chunk_info_[c + 1].NumCols(),
206  chunk_info_[c + 1].NumChunks(),
207  first_offset,
208  last_offset);
209  component.Propagate(input_chunk_info, output_chunk_info,
210  input_data, &output_data);
211  }
212 }
std::vector< CuMatrix< BaseFloat > > data_
std::vector< CuMatrix< BaseFloat > > reusable_component_inputs_
std::vector< ChunkInfo > chunk_info_
int32 NumComponents() const
Returns number of components– think of this as similar to # of layers, but e.g.
Definition: nnet-nnet.h:69
const Component & GetComponent(int32 c) const
Definition: nnet-nnet.cc:141

Member Data Documentation

std::vector<ChunkInfo> chunk_info_
private
bool finished_
private
bool is_first_chunk_
private

Definition at line 99 of file nnet-compute-online.h.

Referenced by NnetOnlineComputer::Compute(), and NnetOnlineComputer::Flush().

CuVector<BaseFloat> last_seen_input_frame_
private

Definition at line 93 of file nnet-compute-online.h.

Referenced by NnetOnlineComputer::Compute(), and NnetOnlineComputer::Flush().

bool pad_input_
private

Definition at line 97 of file nnet-compute-online.h.

Referenced by NnetOnlineComputer::Compute(), and NnetOnlineComputer::Flush().

std::vector<CuMatrix<BaseFloat> > reusable_component_inputs_
private
CuMatrix<BaseFloat> unprocessed_buffer_
private

Definition at line 89 of file nnet-compute-online.h.

Referenced by NnetOnlineComputer::Compute().


The documentation for this class was generated from the following files:
