DropoutMaskComponent Class Reference

#include <nnet-general-component.h>

Inheritance diagram for DropoutMaskComponent:

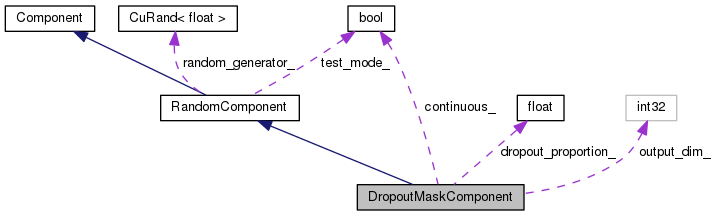

Collaboration diagram for DropoutMaskComponent:

Public Member Functions
virtual int32	InputDim () const
	Returns input-dimension of this component. More...
virtual int32	OutputDim () const
	Returns output-dimension of this component. More...
virtual std::string	Info () const
	Returns some text-form information about this component, for diagnostics. More...
virtual void	InitFromConfig (ConfigLine *cfl)
	Initialize, from a ConfigLine object. More...
	DropoutMaskComponent ()
	DropoutMaskComponent (const DropoutMaskComponent &other)
virtual std::string	Type () const
	Returns a string such as "SigmoidComponent", describing the type of the object. More...
virtual int32	Properties () const
	Return bitmask of the component's properties. More...
virtual void *	Propagate (const ComponentPrecomputedIndexes *indexes, const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > *out) const
	Propagate function. More...
virtual void	Backprop (const std::string &debug_info, const ComponentPrecomputedIndexes *indexes, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &out_deriv, void *memo, Component *to_update, CuMatrixBase< BaseFloat > *in_deriv) const
	Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update. More...
virtual void	Read (std::istream &is, bool binary)
	Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed. More...
virtual void	Write (std::ostream &os, bool binary) const
	Write component to stream. More...
virtual Component *	Copy () const
	Copies component (deep copy). More...
virtual void	GetInputIndexes (const MiscComputationInfo &misc_info, const Index &output_index, std::vector< Index > *desired_indexes) const
	This function only does something interesting for non-simple Components. More...
virtual bool	IsComputable (const MiscComputationInfo &misc_info, const Index &output_index, const IndexSet &input_index_set, std::vector< Index > *used_inputs) const
	This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs. More...
void	SetDropoutProportion (BaseFloat p)
Public Member Functions inherited from RandomComponent
void	ResetGenerator ()
void	SetTestMode (bool test_mode)
	RandomComponent ()
	RandomComponent (const RandomComponent &other)
Public Member Functions inherited from Component
virtual void	StoreStats (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, void *memo)
	This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity. More...
virtual void	ZeroStats ()
	Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero. More...
virtual void	ReorderIndexes (std::vector< Index > *input_indexes, std::vector< Index > *output_indexes) const
	This function only does something interesting for non-simple Components. More...
virtual ComponentPrecomputedIndexes *	PrecomputeIndexes (const MiscComputationInfo &misc_info, const std::vector< Index > &input_indexes, const std::vector< Index > &output_indexes, bool need_backprop) const
	This function must return NULL for simple Components. More...
virtual void	Scale (BaseFloat scale)
	This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent. More...
virtual void	Add (BaseFloat alpha, const Component &other)
	This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters. More...
virtual void	DeleteMemo (void *memo) const
	This virtual function only needs to be overwritten by Components that return a non-NULL memo from their Propagate() function. More...
virtual void	ConsolidateMemory ()
	This virtual function relates to memory management, and avoiding fragmentation. More...
	Component ()
virtual	~Component ()

Private Member Functions
const DropoutMaskComponent &	operator= (const DropoutMaskComponent &other)

Private Attributes
int32	output_dim_
BaseFloat	dropout_proportion_
bool	continuous_

Additional Inherited Members
Static Public Member Functions inherited from Component
static Component *	ReadNew (std::istream &is, bool binary)
	Read component from stream (works out its type). Dies on error. More...
static Component *	NewComponentOfType (const std::string &type)
	Returns a new Component of the given type e.g. More...
Protected Attributes inherited from RandomComponent
CuRand< BaseFloat >	random_generator_
bool	test_mode_

Detailed Description

Definition at line 722 of file nnet-general-component.h.

Constructor & Destructor Documentation

DropoutMaskComponent() [1/2]

DropoutMaskComponent

(

)

Definition at line 1412 of file nnet-general-component.cc.

Referenced by DropoutMaskComponent::Copy().

                                          :
    output_dim_(-1), dropout_proportion_(0.5), continuous_(false) { }

DropoutMaskComponent() [2/2]

DropoutMaskComponent

(

const DropoutMaskComponent &

other

)

Definition at line 1415 of file nnet-general-component.cc.

                                      :
    output_dim_(other.output_dim_),
    dropout_proportion_(other.dropout_proportion_),
    continuous_(other.continuous_) { }

Member Function Documentation

Backprop()

virtual void Backprop ( const std::string &  debug_info, const ComponentPrecomputedIndexes *  indexes, const CuMatrixBase< BaseFloat > &  in_value, const CuMatrixBase< BaseFloat > &  out_value, const CuMatrixBase< BaseFloat > &  out_deriv, void *  memo, Component *  to_update, CuMatrixBase< BaseFloat > *  in_deriv  ) const

inlinevirtual

Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update.

Parameters

[in]	debug_info	The component name, to be printed out in any warning messages.
[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in_value	The matrix that was given as input to the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsInput == 0.
[in]	out_value	The matrix that was output from the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsOutput == 0
[in]	out_deriv	The derivative at the output of this component.
[in]	memo	This will normally be NULL, but for component types that set the flag kUsesMemo, this will be the return value of the Propagate() function that corresponds to this Backprop() function. Ownership of any pointers is not transferred to the Backprop function; DeleteMemo() will be called to delete it.
[out]	to_update	If model update is desired, the Component to be updated, else NULL. Does not have to be identical to this. If supplied, you can assume that to_update->Properties() & kUpdatableComponent is nonzero.
[out]	in_deriv	The derivative at the input of this component, if needed (else NULL). If Properties()&kBackpropInPlace, may be the same matrix as out_deriv. If Properties()&kBackpropAdds, this is added to by the Backprop routine, else it is set. The component code chooses which mode to work in, based on convenience.

Implements Component.

Definition at line 753 of file nnet-general-component.h.

References DistributeComponent::Copy(), DistributeComponent::Read(), and DistributeComponent::Write().

                                                                 { }

Copy()

Component * Copy ( ) const

virtual

Copies component (deep copy).

Implements Component.

Definition at line 1512 of file nnet-general-component.cc.

References DropoutMaskComponent::DropoutMaskComponent().

                                            {
  return new DropoutMaskComponent(*this);
}

GetInputIndexes()

virtual void GetInputIndexes ( const MiscComputationInfo &  misc_info, const Index &  output_index, std::vector< Index > *  desired_indexes  ) const

inlinevirtual

This function only does something interesting for non-simple Components.

For a given index at the output of the component, tells us what indexes are required at its input (note: "required" encompasses also optionally-required things; it will enumerate all things that we'd like to have). See also IsComputable().

Parameters

[in]	misc_info	This argument is supplied to handle things that the framework can't very easily supply: information like which time indexes are needed for AggregateComponent, which time-indexes are available at the input of a recurrent network, and so on. We will add members to misc_info as needed.
[in]	output_index	The Index at the output of the component, for which we are requesting the list of indexes at the component's input.
[out]	desired_indexes	A list of indexes that are desired at the input. are to be written to here. By "desired" we mean required or optionally-required.

The default implementation of this function is suitable for any SimpleComponent; it just copies the output_index to a single identical element in input_indexes.

Reimplemented from Component.

Definition at line 768 of file nnet-general-component.h.

                                                                        {
    desired_indexes->clear();  // requires no inputs.
  }

Info()

std::string Info ( ) const

virtual

Returns some text-form information about this component, for diagnostics.

Starts with the type of the component. E.g. "SigmoidComponent dim=900", although most components will have much more info.

Reimplemented from Component.

Definition at line 1402 of file nnet-general-component.cc.

References ConstantComponent::Type().

                                           {
  std::ostringstream stream;
  stream << Type()
         << ", output-dim=" << output_dim_
         << ", dropout-proportion=" << dropout_proportion_;
  if (continuous_)
    stream << ", continuous=true";
  return stream.str();
}

InitFromConfig()

void InitFromConfig ( ConfigLine *  cfl )

virtual

Initialize, from a ConfigLine object.

Parameters

[in]

cfl

A ConfigLine containing any parameters that are needed for initialization. For example: "dim=100 param-stddev=0.1"

Implements Component.

Definition at line 1516 of file nnet-general-component.cc.

References DropoutMaskComponent::continuous_, DropoutMaskComponent::dropout_proportion_, ConfigLine::GetValue(), KALDI_ASSERT, DropoutMaskComponent::output_dim_, and RandomComponent::test_mode_.

                                                         {
  output_dim_ = 0;
  bool ok = cfl->GetValue("output-dim", &output_dim_);
  KALDI_ASSERT(ok && output_dim_ > 0);
  dropout_proportion_ = 0.5;
  cfl->GetValue("dropout-proportion", &dropout_proportion_);
  continuous_ = false;
  cfl->GetValue("continuous", &continuous_);
  test_mode_ = false;
  cfl->GetValue("test-mode", &test_mode_);
}

InputDim()

virtual int32 InputDim ( ) const

inlinevirtual

Returns input-dimension of this component.

Implements Component.

Definition at line 726 of file nnet-general-component.h.

References DistributeComponent::output_dim_.

{ return output_dim_; }

IsComputable()

virtual bool IsComputable ( const MiscComputationInfo &  misc_info, const Index &  output_index, const IndexSet &  input_index_set, std::vector< Index > *  used_inputs  ) const

inlinevirtual

This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs.

It tells the user whether a given output index is computable from a given set of input indexes, and if so, says which input indexes will be used in the computation.

Implementations of this function are required to have the property that adding an element to "input_index_set" can only ever change IsComputable from false to true, never vice versa.

Parameters

[in]	misc_info	Some information specific to the computation, such as minimum and maximum times for certain components to do adaptation on; it's a place to put things that don't easily fit in the framework.
[in]	output_index	The index that is to be computed at the output of this Component.
[in]	input_index_set	The set of indexes that is available at the input of this Component.
[out]	used_inputs	If this is non-NULL and the output is computable this will be set to the list of input indexes that will actually be used in the computation.

Returns

Returns true iff this output is computable from the provided inputs.

The default implementation of this function is suitable for any SimpleComponent: it just returns true if output_index is in input_index_set, and if so sets used_inputs to vector containing that one Index.

Reimplemented from Component.

Definition at line 777 of file nnet-general-component.h.

                                                                 {
    if (used_inputs) used_inputs->clear();
    return true;
  }

operator=()

const DropoutMaskComponent& operator= ( const DropoutMaskComponent &  other )

private

OutputDim()

virtual int32 OutputDim ( ) const

inlinevirtual

Returns output-dimension of this component.

Implements Component.

Definition at line 728 of file nnet-general-component.h.

References Component::Info(), DistributeComponent::InitFromConfig(), and DistributeComponent::output_dim_.

{ return output_dim_; }

Propagate()

void * Propagate ( const ComponentPrecomputedIndexes *  indexes, const CuMatrixBase< BaseFloat > &  in, CuMatrixBase< BaseFloat > *  out  ) const

virtual

Propagate function.

Parameters

[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in	The input to this component. Num-columns == InputDim().
[out]	out	The output of this component. Num-columns == OutputDim(). Note: output of this component will be added to the initial value of "out" if Properties()&kPropagateAdds != 0; otherwise the output will be set and the initial value ignored. Each Component chooses whether it is more convenient implementation-wise to add or set, and the calling code has to deal with it.

Returns

Normally returns NULL, but may return a non-NULL value for components which have the flag kUsesMemo set. This value will be passed into the corresponding Backprop routine.

Implements Component.

Definition at line 1421 of file nnet-general-component.cc.

References CuVectorBase< Real >::Add(), CuMatrixBase< Real >::Add(), CuMatrixBase< Real >::ApplyHeaviside(), DropoutMaskComponent::continuous_, CuMatrixBase< Real >::CopyColFromVec(), DropoutMaskComponent::dropout_proportion_, KALDI_ASSERT, kaldi::kUndefined, CuMatrixBase< Real >::NumCols(), CuMatrixBase< Real >::NumRows(), DropoutMaskComponent::output_dim_, RandomComponent::random_generator_, kaldi::RandUniform(), CuVectorBase< Real >::Scale(), CuMatrixBase< Real >::Scale(), CuMatrixBase< Real >::Set(), and RandomComponent::test_mode_.

                                        {
  KALDI_ASSERT(in.NumRows() == 0 && out->NumCols() == output_dim_);
  BaseFloat dropout_proportion = dropout_proportion_;
  KALDI_ASSERT(dropout_proportion >= 0.0 && dropout_proportion <= 1.0);

  if (dropout_proportion == 0) {
    out->Set(1.0);
    return NULL;
  }

  if (continuous_) {
    if (test_mode_) {
      out->Set(1.0);
    } else {
      const_cast<CuRand<BaseFloat>&>(random_generator_).RandUniform(out);
      out->Scale(dropout_proportion * 4.0);
      // make the expected value 1.0.
      out->Add(1.0 - (2.0 * dropout_proportion));
    }
    return NULL;
  }

  if (test_mode_) {
    out->Set(1.0 - dropout_proportion);
    return NULL;
  }

  const_cast<CuRand<BaseFloat>&>(random_generator_).RandUniform(out);
  out->Add(-dropout_proportion);
  out->ApplyHeaviside();

  if (out->NumCols() == 2 || out->NumCols() == 3) {
    // This is a kind of special case relevant to LSTms.
    // To generate data where it's never the case that both of the dimensions
    // for a row are zero, we generate uniformly distributed data (call this u_i),
    // and for row i, set (*out)(i, 0) = (0 if u_i < dropout_proportion else 1)
    //                and (*out)(i, 1) = (0 if u_i > 1-dropout_proportion else 1)
    int32 num_rows = out->NumRows();
    // later we may make this a bit more efficient.
    CuVector<BaseFloat> temp(num_rows, kUndefined);
    const_cast<CuRand<BaseFloat>&>(random_generator_).RandUniform(&temp);
    temp.Add(-dropout_proportion);
    out->CopyColFromVec(temp, 0);
    temp.Add(-1.0 + (2.0 * dropout_proportion));
    // Now, 'temp' contains the original uniformly-distributed data plus
    // -(1 - dropout_proportion).
    temp.Scale(-1.0);
    out->CopyColFromVec(temp, 1);
    out->ApplyHeaviside();
  }
  return NULL;
}

Properties()

virtual int32 Properties ( ) const

inlinevirtual

Return bitmask of the component's properties.

These properties depend only on the component's type. See enum ComponentProperties.

Implements Component.

Definition at line 746 of file nnet-general-component.h.

References kaldi::nnet3::kRandomComponent, and DistributeComponent::Propagate().

{ return kRandomComponent; }

Read()

void Read ( std::istream &  is, bool  binary  )

virtual

Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed.

Implements Component.

Definition at line 1478 of file nnet-general-component.cc.

References DropoutMaskComponent::continuous_, DropoutMaskComponent::dropout_proportion_, kaldi::ExpectOneOrTwoTokens(), kaldi::nnet3::ExpectToken(), DropoutMaskComponent::output_dim_, kaldi::PeekToken(), kaldi::ReadBasicType(), and RandomComponent::test_mode_.

                                                           {
  ExpectOneOrTwoTokens(is, binary, "<DropoutMaskComponent>", "<OutputDim>");
  ReadBasicType(is, binary, &output_dim_);
  ExpectToken(is, binary, "<DropoutProportion>");
  ReadBasicType(is, binary, &dropout_proportion_);
  if (PeekToken(is, binary) == 'T') {
    ExpectToken(is, binary, "<TestMode>");
    ReadBasicType(is, binary, &test_mode_);  // read test mode
  } else {
    test_mode_ = false;
  }
  if (PeekToken(is, binary) == 'C') {
    ExpectToken(is, binary, "<Continuous>");
    continuous_ = true;
  } else {
    continuous_ = false;
  }
  ExpectToken(is, binary, "</DropoutMaskComponent>");
}

SetDropoutProportion()

void SetDropoutProportion ( BaseFloat  p )

inline

Definition at line 785 of file nnet-general-component.h.

Referenced by kaldi::nnet3::ReadEditConfig(), and kaldi::nnet3::SetDropoutProportion().

{ dropout_proportion_ = p; }

Type()

virtual std::string Type ( ) const

inlinevirtual

Returns a string such as "SigmoidComponent", describing the type of the object.

Implements Component.

Definition at line 745 of file nnet-general-component.h.

Referenced by GeneralDropoutComponent::Info().

{ return "DropoutMaskComponent"; }

Write()

void Write ( std::ostream &  os, bool  binary  ) const

virtual

Write component to stream.

Implements Component.

Definition at line 1499 of file nnet-general-component.cc.

References DropoutMaskComponent::continuous_, DropoutMaskComponent::dropout_proportion_, DropoutMaskComponent::output_dim_, RandomComponent::test_mode_, kaldi::WriteBasicType(), and kaldi::WriteToken().

                                                                  {
  WriteToken(os, binary, "<DropoutMaskComponent>");
  WriteToken(os, binary, "<OutputDim>");
  WriteBasicType(os, binary, output_dim_);
  WriteToken(os, binary, "<DropoutProportion>");
  WriteBasicType(os, binary, dropout_proportion_);
  WriteToken(os, binary, "<TestMode>");
  WriteBasicType(os, binary, test_mode_);
  if (continuous_)
    WriteToken(os, binary, "<Continuous>");
  WriteToken(os, binary, "</DropoutMaskComponent>");
}

Member Data Documentation

continuous_

bool continuous_

private

Definition at line 794 of file nnet-general-component.h.

Referenced by GeneralDropoutComponent::Info(), DropoutMaskComponent::InitFromConfig(), DropoutMaskComponent::Propagate(), DropoutMaskComponent::Read(), and DropoutMaskComponent::Write().

dropout_proportion_

BaseFloat dropout_proportion_

private

Definition at line 792 of file nnet-general-component.h.

Referenced by GeneralDropoutComponent::Info(), DropoutMaskComponent::InitFromConfig(), DropoutMaskComponent::Propagate(), DropoutMaskComponent::Read(), and DropoutMaskComponent::Write().

output_dim_

int32 output_dim_

private

Definition at line 790 of file nnet-general-component.h.

Referenced by DropoutMaskComponent::InitFromConfig(), DropoutMaskComponent::Propagate(), DropoutMaskComponent::Read(), and DropoutMaskComponent::Write().

---

The documentation for this class was generated from the following files:

• nnet3/nnet-general-component.h
• nnet3/nnet-general-component.cc
