NoOpComponent Class Reference

NoOpComponent just duplicates its input. More...

#include <nnet-simple-component.h>

Inheritance diagram for NoOpComponent:

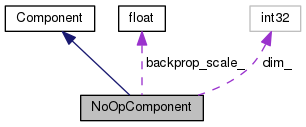

Collaboration diagram for NoOpComponent:

Public Member Functions
	NoOpComponent (const NoOpComponent &other)
	NoOpComponent ()
virtual std::string	Type () const
	Returns a string such as "SigmoidComponent", describing the type of the object. More...
virtual int32	Properties () const
	Return bitmask of the component's properties. More...
virtual int32	InputDim () const
	Returns input-dimension of this component. More...
virtual int32	OutputDim () const
	Returns output-dimension of this component. More...
virtual Component *	Copy ()
virtual void	InitFromConfig (ConfigLine *cfl)
	Initialize, from a ConfigLine object. More...
virtual void	Read (std::istream &is, bool binary)
	Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed. More...
virtual void	Write (std::ostream &os, bool binary) const
	Write component to stream. More...
virtual std::string	Info () const
	Returns some text-form information about this component, for diagnostics. More...
virtual Component *	Copy () const
	Copies component (deep copy). More...
virtual void *	Propagate (const ComponentPrecomputedIndexes *indexes, const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > *out) const
	Propagate function. More...
virtual void	Backprop (const std::string &debug_info, const ComponentPrecomputedIndexes *indexes, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &out_deriv, void *memo, Component *to_update, CuMatrixBase< BaseFloat > *in_deriv) const
	Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update. More...
Public Member Functions inherited from Component
virtual void	StoreStats (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, void *memo)
	This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity. More...
virtual void	ZeroStats ()
	Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero. More...
virtual void	GetInputIndexes (const MiscComputationInfo &misc_info, const Index &output_index, std::vector< Index > *desired_indexes) const
	This function only does something interesting for non-simple Components. More...
virtual bool	IsComputable (const MiscComputationInfo &misc_info, const Index &output_index, const IndexSet &input_index_set, std::vector< Index > *used_inputs) const
	This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs. More...
virtual void	ReorderIndexes (std::vector< Index > *input_indexes, std::vector< Index > *output_indexes) const
	This function only does something interesting for non-simple Components. More...
virtual ComponentPrecomputedIndexes *	PrecomputeIndexes (const MiscComputationInfo &misc_info, const std::vector< Index > &input_indexes, const std::vector< Index > &output_indexes, bool need_backprop) const
	This function must return NULL for simple Components. More...
virtual void	Scale (BaseFloat scale)
	This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent. More...
virtual void	Add (BaseFloat alpha, const Component &other)
	This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters. More...
virtual void	DeleteMemo (void *memo) const
	This virtual function only needs to be overwritten by Components that return a non-NULL memo from their Propagate() function. More...
virtual void	ConsolidateMemory ()
	This virtual function relates to memory management, and avoiding fragmentation. More...
	Component ()
virtual	~Component ()

Private Member Functions
NoOpComponent &	operator= (const NoOpComponent &other)

Private Attributes
int32	dim_
BaseFloat	backprop_scale_

Additional Inherited Members
Static Public Member Functions inherited from Component
static Component *	ReadNew (std::istream &is, bool binary)
	Read component from stream (works out its type). Dies on error. More...
static Component *	NewComponentOfType (const std::string &type)
	Returns a new Component of the given type e.g. More...

Detailed Description

NoOpComponent just duplicates its input.

We don't anticipate this being used very often, but it may sometimes make your life easier. Config parameters:

dim E.g. dim=1024. Required. backprop-scale Defaults to 1.0. May be set to a different value to scale the derivatives being backpropagated.

Definition at line 1186 of file nnet-simple-component.h.

Constructor & Destructor Documentation

NoOpComponent() [1/2]

NoOpComponent ( const NoOpComponent &  other )

inlineexplicit

Definition at line 1188 of file nnet-simple-component.h.

                                                    :
      dim_(other.dim_), backprop_scale_(other.backprop_scale_) { }

NoOpComponent() [2/2]

NoOpComponent ( )

inline

Definition at line 1190 of file nnet-simple-component.h.

{ }

Member Function Documentation

Backprop()

void Backprop ( const std::string &  debug_info, const ComponentPrecomputedIndexes *  indexes, const CuMatrixBase< BaseFloat > &  in_value, const CuMatrixBase< BaseFloat > &  out_value, const CuMatrixBase< BaseFloat > &  out_deriv, void *  memo, Component *  to_update, CuMatrixBase< BaseFloat > *  in_deriv  ) const

virtual

Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update.

Parameters

[in]	debug_info	The component name, to be printed out in any warning messages.
[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in_value	The matrix that was given as input to the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsInput == 0.
[in]	out_value	The matrix that was output from the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsOutput == 0
[in]	out_deriv	The derivative at the output of this component.
[in]	memo	This will normally be NULL, but for component types that set the flag kUsesMemo, this will be the return value of the Propagate() function that corresponds to this Backprop() function. Ownership of any pointers is not transferred to the Backprop function; DeleteMemo() will be called to delete it.
[out]	to_update	If model update is desired, the Component to be updated, else NULL. Does not have to be identical to this. If supplied, you can assume that to_update->Properties() & kUpdatableComponent is nonzero.
[out]	in_deriv	The derivative at the input of this component, if needed (else NULL). If Properties()&kBackpropInPlace, may be the same matrix as out_deriv. If Properties()&kBackpropAdds, this is added to by the Backprop routine, else it is set. The component code chooses which mode to work in, based on convenience.

Implements Component.

Definition at line 447 of file nnet-simple-component.cc.

References CuMatrixBase< Real >::CopyFromMat(), NVTX_RANGE, and CuMatrixBase< Real >::Scale().

                                                                      {
  NVTX_RANGE("NoOpComponent::Backprop");
  in_deriv->CopyFromMat(out_deriv);
  if (backprop_scale_ != 1.0)
    in_deriv->Scale(backprop_scale_);
}

Copy() [1/2]

virtual Component* Copy ( )

inlinevirtual

Definition at line 1197 of file nnet-simple-component.h.

References Component::Info(), PnormComponent::InitFromConfig(), PnormComponent::Read(), and PnormComponent::Write().

{ return new NoOpComponent(*this); }

Copy() [2/2]

virtual Component* Copy ( ) const

inlinevirtual

Copies component (deep copy).

Implements Component.

Definition at line 1202 of file nnet-simple-component.h.

References PnormComponent::Backprop(), and PnormComponent::Propagate().

{ return new NoOpComponent(*this); }

Info()

std::string Info ( ) const

virtual

Returns some text-form information about this component, for diagnostics.

Starts with the type of the component. E.g. "SigmoidComponent dim=900", although most components will have much more info.

Reimplemented from Component.

Definition at line 472 of file nnet-simple-component.cc.

References DropoutComponent::dim_, and DropoutComponent::Type().

                                    {
  std::ostringstream stream;
  stream << Type() << ", dim=" << dim_;
  if (backprop_scale_ != 1.0)
    stream << ", backprop-scale=" << backprop_scale_;
  return stream.str();
}

InitFromConfig()

void InitFromConfig ( ConfigLine *  cfl )

virtual

Initialize, from a ConfigLine object.

Parameters

[in]

cfl

A ConfigLine containing any parameters that are needed for initialization. For example: "dim=100 param-stddev=0.1"

Implements Component.

Definition at line 462 of file nnet-simple-component.cc.

References DropoutComponent::dim_, ConfigLine::GetValue(), ConfigLine::HasUnusedValues(), KALDI_ERR, DropoutComponent::Type(), and ConfigLine::WholeLine().

                                                  {
  backprop_scale_ = 1.0;
  cfl->GetValue("backprop-scale", &backprop_scale_);
  if (!cfl->GetValue("dim", &dim_) ||
      dim_ <= 0 || cfl->HasUnusedValues()) {
    KALDI_ERR << "Invalid initializer for layer of type "
              << Type() << ": \"" << cfl->WholeLine() << "\"";
  }
}

InputDim()

virtual int32 InputDim ( ) const

inlinevirtual

Returns input-dimension of this component.

Implements Component.

Definition at line 1195 of file nnet-simple-component.h.

{ return dim_; }

operator=()

NoOpComponent& operator= ( const NoOpComponent &  other )

private

OutputDim()

virtual int32 OutputDim ( ) const

inlinevirtual

Returns output-dimension of this component.

Implements Component.

Definition at line 1196 of file nnet-simple-component.h.

{ return dim_; }

Propagate()

void * Propagate ( const ComponentPrecomputedIndexes *  indexes, const CuMatrixBase< BaseFloat > &  in, CuMatrixBase< BaseFloat > *  out  ) const

virtual

Propagate function.

Parameters

[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in	The input to this component. Num-columns == InputDim().
[out]	out	The output of this component. Num-columns == OutputDim(). Note: output of this component will be added to the initial value of "out" if Properties()&kPropagateAdds != 0; otherwise the output will be set and the initial value ignored. Each Component chooses whether it is more convenient implementation-wise to add or set, and the calling code has to deal with it.

Returns

Normally returns NULL, but may return a non-NULL value for components which have the flag kUsesMemo set. This value will be passed into the corresponding Backprop routine.

Implements Component.

Definition at line 440 of file nnet-simple-component.cc.

References CuMatrixBase< Real >::CopyFromMat().

                                                                  {
  out->CopyFromMat(in);
  return NULL;
}

Properties()

virtual int32 Properties ( ) const

inlinevirtual

Return bitmask of the component's properties.

These properties depend only on the component's type. See enum ComponentProperties.

Implements Component.

Definition at line 1192 of file nnet-simple-component.h.

References kaldi::nnet3::kBackpropInPlace, kaldi::nnet3::kPropagateInPlace, and kaldi::nnet3::kSimpleComponent.

                                   {
    return kSimpleComponent|kPropagateInPlace|kBackpropInPlace;
  }

Read()

void Read ( std::istream &  is, bool  binary  )

virtual

Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed.

Implements Component.

Definition at line 489 of file nnet-simple-component.cc.

References DropoutComponent::dim_, kaldi::ExpectOneOrTwoTokens(), kaldi::nnet3::ExpectToken(), KALDI_ASSERT, kaldi::PeekToken(), CuVector< Real >::Read(), kaldi::ReadBasicType(), and kaldi::ReadToken().

                                                    {
  ExpectOneOrTwoTokens(is, binary, "<NoOpComponent>", "<Dim>");
  ReadBasicType(is, binary, &dim_);

  if (PeekToken(is, binary) == 'V') {
    // This is the old format, from when NoOpComponent inherited from
    // NonlinearComponent.
    backprop_scale_ = 1.0;
    ExpectToken(is, binary, "<ValueAvg>");
    CuVector<BaseFloat> temp_vec;
    temp_vec.Read(is, binary);
    ExpectToken(is, binary, "<DerivAvg>");
    temp_vec.Read(is, binary);
    ExpectToken(is, binary, "<Count>");
    BaseFloat temp_float;
    ReadBasicType(is, binary, &temp_float);
    if (PeekToken(is, binary) == 'O') {
      ExpectToken(is, binary, "<OderivRms>");
      temp_vec.Read(is, binary);
      ExpectToken(is, binary, "<OderivCount>");
      ReadBasicType(is, binary, &temp_float);
    }
    std::string token;
    ReadToken(is, binary, &token);
    if (token[0] != '<') {
      // this should happen only rarely, in case we couldn't push back the
      // '<' to the stream in PeekToken().
      token = '<' + token;
    }
    if (token == "<NumDimsSelfRepaired>") {
      ReadBasicType(is, binary, &temp_float);
      ReadToken(is, binary, &token);
    }
    if (token == "<NumDimsProcessed>") {
      ReadBasicType(is, binary, &temp_float);
      ReadToken(is, binary, &token);
    }
    KALDI_ASSERT(token == "</NoOpComponent>");
    return;
  } else {
    ExpectToken(is, binary, "<BackpropScale>");
    ReadBasicType(is, binary, &backprop_scale_);
    ExpectToken(is, binary, "</NoOpComponent>");
  }
}

Type()

virtual std::string Type ( ) const

inlinevirtual

Returns a string such as "SigmoidComponent", describing the type of the object.

Implements Component.

Definition at line 1191 of file nnet-simple-component.h.

{ return "NoOpComponent"; }

Write()

void Write ( std::ostream &  os, bool  binary  ) const

virtual

Write component to stream.

Implements Component.

Definition at line 480 of file nnet-simple-component.cc.

References DropoutComponent::dim_, kaldi::WriteBasicType(), and kaldi::WriteToken().

                                                           {
  WriteToken(os, binary, "<NoOpComponent>");
  WriteToken(os, binary, "<Dim>");
  WriteBasicType(os, binary, dim_);
  WriteToken(os, binary, "<BackpropScale>");
  WriteBasicType(os, binary, backprop_scale_);
  WriteToken(os, binary, "</NoOpComponent>");
}

Member Data Documentation

backprop_scale_

BaseFloat backprop_scale_

private

Definition at line 1216 of file nnet-simple-component.h.

dim_

int32 dim_

private

Definition at line 1215 of file nnet-simple-component.h.

---

The documentation for this class was generated from the following files:

• nnet3/nnet-simple-component.h
• nnet3/nnet-simple-component.cc
