ReplaceIndexForwardingDescriptor Class Reference

This ForwardingDescriptor modifies the indexes (n, t, x) by replacing one of them (normally t) with a constant value and keeping the rest. More...

#include <nnet-descriptor.h>

Inheritance diagram for ReplaceIndexForwardingDescriptor:

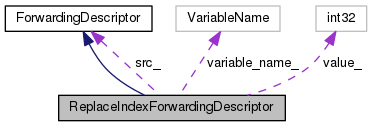

Collaboration diagram for ReplaceIndexForwardingDescriptor:

Public Types
enum	VariableName { kN = 0, kT = 1, kX = 2 }

Public Member Functions
virtual Cindex	MapToInput (const Index &ind) const
virtual int32	Dim (const Nnet &nnet) const
virtual ForwardingDescriptor *	Copy () const
virtual void	WriteConfig (std::ostream &os, const std::vector< std::string > &node_names) const
virtual void	GetNodeDependencies (std::vector< int32 > *node_indexes) const
	This function appends to "node_indexes" all the node indexes. More...
virtual BaseFloat	GetScaleForNode (int32 node_index) const
	This function returns the scale on the node-index 'node_index' when it appears in expressions inside this descriptor, or +infinity if it does not appear. More...
	ReplaceIndexForwardingDescriptor (ForwardingDescriptor *src, VariableName variable_name, int32 value)
virtual	~ReplaceIndexForwardingDescriptor ()
Public Member Functions inherited from ForwardingDescriptor
virtual int32	Modulus () const
	This function is for use in things like clockwork RNNs, where shifting the time of the inputs and outputs of the network by some multiple integer n would leave things the same, but shifting by non-multiples would change the network structure. More...
virtual	~ForwardingDescriptor ()
	ForwardingDescriptor ()

Private Attributes
ForwardingDescriptor *	src_
VariableName	variable_name_
int32	value_

Detailed Description

This ForwardingDescriptor modifies the indexes (n, t, x) by replacing one of them (normally t) with a constant value and keeping the rest.

Written form is: `ReplaceIndex(<descriptor>, <variable-name>,

)` e.g. `ReplaceIndex(ivector, t, 0)`

Definition at line 273 of file nnet-descriptor.h.

Member Enumeration Documentation

VariableName

enum VariableName

Enumerator
kN
kT
kX

Definition at line 275 of file nnet-descriptor.h.

{ kN = 0, kT = 1, kX = 2};

Constructor & Destructor Documentation

ReplaceIndexForwardingDescriptor()

ReplaceIndexForwardingDescriptor ( ForwardingDescriptor *  src, VariableName  variable_name, int32  value  )

inline

Definition at line 291 of file nnet-descriptor.h.

                                               :
      src_(src), variable_name_(variable_name), value_(value) { }

~ReplaceIndexForwardingDescriptor()

virtual ~ReplaceIndexForwardingDescriptor ( )

inlinevirtual

Definition at line 296 of file nnet-descriptor.h.

{ delete src_; }

Member Function Documentation

Copy()

ForwardingDescriptor * Copy ( ) const

virtual

Implements ForwardingDescriptor.

Definition at line 237 of file nnet-descriptor.cc.

                                                                   {
  return new ReplaceIndexForwardingDescriptor(src_->Copy(),
                                              variable_name_, value_);

}

Dim()

virtual int32 Dim ( const Nnet &  nnet ) const

inlinevirtual

Implements ForwardingDescriptor.

Definition at line 278 of file nnet-descriptor.h.

References ForwardingDescriptor::Copy(), ForwardingDescriptor::GetNodeDependencies(), ForwardingDescriptor::GetScaleForNode(), and ForwardingDescriptor::WriteConfig().

{ return src_->Dim(nnet); }

GetNodeDependencies()

void GetNodeDependencies ( std::vector< int32 > *  node_indexes ) const

virtual

This function appends to "node_indexes" all the node indexes.

Implements ForwardingDescriptor.

Definition at line 215 of file nnet-descriptor.cc.

                                          {
  src_->GetNodeDependencies(node_indexes);
}

GetScaleForNode()

BaseFloat GetScaleForNode ( int32  node_index ) const

virtual

This function returns the scale on the node-index 'node_index' when it appears in expressions inside this descriptor, or +infinity if it does not appear.

E.g. if the descriptor is just `Scale(tdnn2, 2.0)` and the node index for `tdnn2` is 4, then GetScaleForNode(4) would return 2.0. If a particular node_index > 0 appears in different sub-expressions of the descriptor with different scales it is an error (it's not supported) and this function would crash.

Implements ForwardingDescriptor.

Definition at line 220 of file nnet-descriptor.cc.

                            {
  return src_->GetScaleForNode(node_index);
}

MapToInput()

Cindex MapToInput ( const Index &  ind ) const

virtual

Implements ForwardingDescriptor.

Definition at line 225 of file nnet-descriptor.cc.

References KALDI_ERR, Index::t, and Index::x.

                                                                          {
  Index ind_mod(ind);
  switch (variable_name_) {
    case kT: ind_mod.t = value_; break;
    case kX: ind_mod.x = value_; break;
    default:  // kN or any other value is not allowed (doesn't make sense
      // to change the minibatch index in this way).
      KALDI_ERR << "Invalid variable name";
  }
  return src_->MapToInput(ind_mod);
}

WriteConfig()

void WriteConfig ( std::ostream &  os, const std::vector< std::string > &  node_names  ) const

virtual

Implements ForwardingDescriptor.

Definition at line 243 of file nnet-descriptor.cc.

References KALDI_ASSERT.

                                                  {
  os << "ReplaceIndex(";
  src_->WriteConfig(os, node_names);
  KALDI_ASSERT(variable_name_ == kT || variable_name_ == kX);
  os << ", " << (variable_name_ == kT  ? "t" : "x") << ", "
     << value_ << ")";
}

Member Data Documentation

src_

ForwardingDescriptor* src_

private

Definition at line 298 of file nnet-descriptor.h.

value_

int32 value_

private

Definition at line 300 of file nnet-descriptor.h.

variable_name_

VariableName variable_name_

private

Definition at line 299 of file nnet-descriptor.h.

---

The documentation for this class was generated from the following files:

• nnet3/nnet-descriptor.h
• nnet3/nnet-descriptor.cc
