SimpleForwardingDescriptor Class Reference

SimpleForwardingDescriptor is the base-case of ForwardingDescriptor, consisting of a source node in the graph with a given scalar weight (which will in the normal case be 1.0). More...

#include <nnet-descriptor.h>

Inheritance diagram for SimpleForwardingDescriptor:

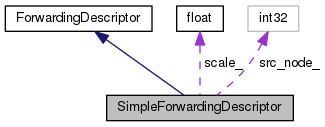

Collaboration diagram for SimpleForwardingDescriptor:

Public Member Functions
virtual Cindex	MapToInput (const Index &index) const
virtual int32	Dim (const Nnet &nnet) const
virtual ForwardingDescriptor *	Copy () const
virtual void	GetNodeDependencies (std::vector< int32 > *node_indexes) const
	This function appends to "node_indexes" all the node indexes. More...
virtual BaseFloat	GetScaleForNode (int32 node_index) const
	This function returns the scale on the node-index 'node_index' when it appears in expressions inside this descriptor, or +infinity if it does not appear. More...
virtual void	WriteConfig (std::ostream &os, const std::vector< std::string > &node_names) const
	SimpleForwardingDescriptor (int32 src_node, BaseFloat scale=1.0)
virtual	~SimpleForwardingDescriptor ()
Public Member Functions inherited from ForwardingDescriptor
virtual int32	Modulus () const
	This function is for use in things like clockwork RNNs, where shifting the time of the inputs and outputs of the network by some multiple integer n would leave things the same, but shifting by non-multiples would change the network structure. More...
virtual	~ForwardingDescriptor ()
	ForwardingDescriptor ()

Private Attributes
int32	src_node_
BaseFloat	scale_

Detailed Description

SimpleForwardingDescriptor is the base-case of ForwardingDescriptor, consisting of a source node in the graph with a given scalar weight (which will in the normal case be 1.0).

The string representation in the normal (scale=1.0) case is just the node-name, like `tdnn2`; if the weight is not 1.0 it's something like `Scale(2.0, tdnn2)`

Definition at line 144 of file nnet-descriptor.h.

Constructor & Destructor Documentation

SimpleForwardingDescriptor()

SimpleForwardingDescriptor ( int32  src_node, BaseFloat  scale = 1.0  )

inline

Definition at line 158 of file nnet-descriptor.h.

References KALDI_ASSERT.

                                                   :
      src_node_(src_node), scale_(scale) {
    KALDI_ASSERT(src_node >= 0);
  }

~SimpleForwardingDescriptor()

virtual ~SimpleForwardingDescriptor ( )

inlinevirtual

Definition at line 163 of file nnet-descriptor.h.

{ }

Member Function Documentation

Copy()

ForwardingDescriptor * Copy ( ) const

virtual

Implements ForwardingDescriptor.

Definition at line 92 of file nnet-descriptor.cc.

                                                             {
  return new SimpleForwardingDescriptor(src_node_, scale_);
}

Dim()

int32 Dim ( const Nnet &  nnet ) const

virtual

Implements ForwardingDescriptor.

Definition at line 79 of file nnet-descriptor.cc.

References NetworkNode::Dim(), and Nnet::GetNode().

                                                            {
  return nnet.GetNode(src_node_).Dim(nnet);
}

GetNodeDependencies()

void GetNodeDependencies ( std::vector< int32 > *  node_indexes ) const

virtual

This function appends to "node_indexes" all the node indexes.

Implements ForwardingDescriptor.

Definition at line 96 of file nnet-descriptor.cc.

Referenced by ModelCollapser::SumDescriptorIsCollapsible().

                                          {
  node_indexes->push_back(src_node_);
}

GetScaleForNode()

BaseFloat GetScaleForNode ( int32  node_index ) const

virtual

This function returns the scale on the node-index 'node_index' when it appears in expressions inside this descriptor, or +infinity if it does not appear.

E.g. if the descriptor is just `Scale(tdnn2, 2.0)` and the node index for `tdnn2` is 4, then GetScaleForNode(4) would return 2.0. If a particular node_index > 0 appears in different sub-expressions of the descriptor with different scales it is an error (it's not supported) and this function would crash.

Implements ForwardingDescriptor.

Definition at line 83 of file nnet-descriptor.cc.

                                                                            {
  if (node_index == src_node_) return scale_;
  else return std::numeric_limits<BaseFloat>::infinity();
}

MapToInput()

Cindex MapToInput ( const Index &  index ) const

virtual

Implements ForwardingDescriptor.

Definition at line 88 of file nnet-descriptor.cc.

                                                                      {
  return Cindex(src_node_, index);
}

WriteConfig()

void WriteConfig ( std::ostream &  os, const std::vector< std::string > &  node_names  ) const

virtual

Implements ForwardingDescriptor.

Definition at line 101 of file nnet-descriptor.cc.

References KALDI_ASSERT.

                                                  {
  KALDI_ASSERT(static_cast<size_t>(src_node_) < node_names.size());
  if (scale_ == 1.0) {
    os << node_names[src_node_];
  } else {
    os << "Scale(" << scale_ << ", " << node_names[src_node_] << ")";
  }
}

Member Data Documentation

scale_

BaseFloat scale_

private

Definition at line 166 of file nnet-descriptor.h.

src_node_

int32 src_node_

private

Definition at line 165 of file nnet-descriptor.h.

---

The documentation for this class was generated from the following files:

• nnet3/nnet-descriptor.h
• nnet3/nnet-descriptor.cc
