#include <nnet-simple-component.h>

Inheritance diagram for SoftmaxComponent:

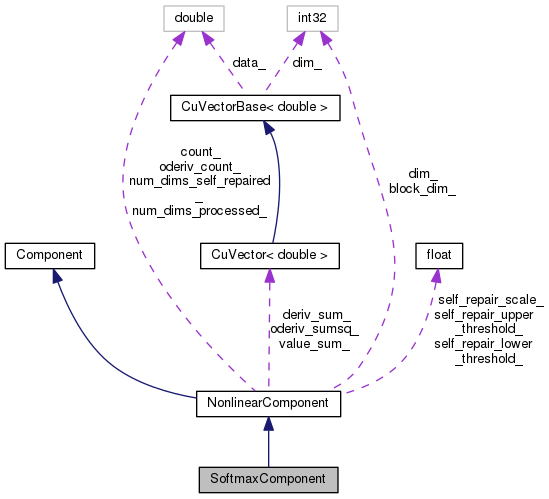

Collaboration diagram for SoftmaxComponent:

[legend]

Public Member Functions
	SoftmaxComponent (const SoftmaxComponent &other)

	SoftmaxComponent ()

virtual std::string	Type () const
	Returns a string such as "SigmoidComponent", describing the type of the object. More...

virtual int32	Properties () const
	Return bitmask of the component's properties. More...

virtual void *	Propagate (const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > out) const
	Propagate function. More...

virtual void	Backprop (const std::string &debug_info, const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, const CuMatrixBase< BaseFloat > &out_deriv, void memo, Component to_update, CuMatrixBase< BaseFloat > in_deriv) const
	Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update. More...

virtual void	StoreStats (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, void *memo)
	This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity. More...

virtual Component *	Copy () const
	Copies component (deep copy). More...

Public Member Functions inherited from NonlinearComponent
	NonlinearComponent ()

	NonlinearComponent (const NonlinearComponent &other)

virtual int32	InputDim () const
	Returns input-dimension of this component. More...

virtual int32	OutputDim () const
	Returns output-dimension of this component. More...

virtual void	InitFromConfig (ConfigLine *cfl)
	Initialize, from a ConfigLine object. More...

virtual void	Read (std::istream &is, bool binary)
	We implement Read at this level as it just needs the Type(). More...

virtual void	ZeroStats ()
	Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero. More...

virtual std::string	Info () const
	Returns some text-form information about this component, for diagnostics. More...

virtual void	Write (std::ostream &os, bool binary) const
	Write component to stream. More...

virtual void	Scale (BaseFloat scale)
	This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent. More...

virtual void	Add (BaseFloat alpha, const Component &other)
	This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters. More...

virtual void	ConsolidateMemory ()
	This virtual function relates to memory management, and avoiding fragmentation. More...

const CuVector< double > &	ValueSum () const

const CuVector< double > &	DerivSum () const

double	Count () const

Public Member Functions inherited from Component
virtual void	GetInputIndexes (const MiscComputationInfo &misc_info, const Index &output_index, std::vector< Index > *desired_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual bool	IsComputable (const MiscComputationInfo &misc_info, const Index &output_index, const IndexSet &input_index_set, std::vector< Index > *used_inputs) const
	This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs. More...

virtual void	ReorderIndexes (std::vector< Index > input_indexes, std::vector< Index > output_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual ComponentPrecomputedIndexes *	PrecomputeIndexes (const MiscComputationInfo &misc_info, const std::vector< Index > &input_indexes, const std::vector< Index > &output_indexes, bool need_backprop) const
	This function must return NULL for simple Components. More...

virtual void	DeleteMemo (void *memo) const
	This virtual function only needs to be overwritten by Components that return a non-NULL memo from their Propagate() function. More...

	Component ()

virtual	~Component ()

Private Member Functions
SoftmaxComponent &	operator= (const SoftmaxComponent &other)

Additional Inherited Members
Static Public Member Functions inherited from Component
static Component *	ReadNew (std::istream &is, bool binary)
	Read component from stream (works out its type). Dies on error. More...

static Component *	NewComponentOfType (const std::string &type)
	Returns a new Component of the given type e.g. More...

Protected Types inherited from NonlinearComponent
enum	{ kUnsetThreshold = -1000 }

Protected Member Functions inherited from NonlinearComponent
void	StoreStatsInternal (const CuMatrixBase< BaseFloat > &out_value, const CuMatrixBase< BaseFloat > *deriv=NULL)

void	StoreBackpropStats (const CuMatrixBase< BaseFloat > &out_deriv)

const NonlinearComponent &	operator= (const NonlinearComponent &other)

Protected Attributes inherited from NonlinearComponent
int32	dim_

int32	block_dim_

CuVector< double >	value_sum_

CuVector< double >	deriv_sum_

double	count_

CuVector< double >	oderiv_sumsq_

double	oderiv_count_

double	num_dims_self_repaired_

double	num_dims_processed_

BaseFloat	self_repair_lower_threshold_

BaseFloat	self_repair_upper_threshold_

BaseFloat	self_repair_scale_

Detailed Description

Definition at line 677 of file nnet-simple-component.h.

Constructor & Destructor Documentation

◆ SoftmaxComponent() [1/2]

SoftmaxComponent ( const SoftmaxComponent & other )

inlineexplicit

Definition at line 679 of file nnet-simple-component.h.

679 :

680 NonlinearComponent(other) { }

kaldi::nnet3::NonlinearComponent::NonlinearComponent

NonlinearComponent()

Definition: nnet-component-itf.cc:605

◆ SoftmaxComponent() [2/2]

SoftmaxComponent ( )

inline

Definition at line 681 of file nnet-simple-component.h.

681 { }

Member Function Documentation

◆ Backprop()

void Backprop	(	const std::string &	debug_info,
		const ComponentPrecomputedIndexes *	indexes,
		const CuMatrixBase< BaseFloat > &	in_value,
		const CuMatrixBase< BaseFloat > &	out_value,
		const CuMatrixBase< BaseFloat > &	out_deriv,
		void *	memo,
		Component *	to_update,
		CuMatrixBase< BaseFloat > *	in_deriv
	)		const

virtual

Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update.

Parameters

[in]	debug_info	The component name, to be printed out in any warning messages.
[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in_value	The matrix that was given as input to the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsInput == 0.
[in]	out_value	The matrix that was output from the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsOutput == 0
[in]	out_deriv	The derivative at the output of this component.
[in]	memo	This will normally be NULL, but for component types that set the flag kUsesMemo, this will be the return value of the Propagate() function that corresponds to this Backprop() function. Ownership of any pointers is not transferred to the Backprop function; DeleteMemo() will be called to delete it.
[out]	to_update	If model update is desired, the Component to be updated, else NULL. Does not have to be identical to this. If supplied, you can assume that to_update->Properties() & kUpdatableComponent is nonzero.
[out]	in_deriv	The derivative at the input of this component, if needed (else NULL). If Properties()&kBackpropInPlace, may be the same matrix as out_deriv. If Properties()&kBackpropAdds, this is added to by the Backprop routine, else it is set. The component code chooses which mode to work in, based on convenience.

Implements Component.

Definition at line 3578 of file nnet-simple-component.cc.

References CuMatrixBase< Real >::DiffSoftmaxPerRow(), NVTX_RANGE, and NonlinearComponent::StoreBackpropStats().

                                                                          {
   NVTX_RANGE("SoftmaxComponent::Backprop");

   if (to_update_in) {
     SoftmaxComponent *to_update =
         dynamic_cast<SoftmaxComponent*>(to_update_in);
     to_update->StoreBackpropStats(out_deriv);
   }

   if (in_deriv == NULL)
     return;
   /*
     Note on the derivative of the softmax function: let it be
     p_i = exp(x_i) / sum_i exp_i
     The [matrix-valued] Jacobian of this function is
     diag(p) - p p^T
     Let the derivative vector at the output be e, and at the input be
     d.  We have
     d = diag(p) e - p (p^T e).
     d_i = p_i e_i - p_i (p^T e).
   */
   in_deriv->DiffSoftmaxPerRow(out_value, out_deriv);
 }

◆ Copy()

virtual Component* Copy ( ) const

inlinevirtual

Copies component (deep copy).

Implements Component.

Definition at line 701 of file nnet-simple-component.h.

701 { return new SoftmaxComponent(*this); }

kaldi::nnet3::SoftmaxComponent::SoftmaxComponent

SoftmaxComponent()

Definition: nnet-simple-component.h:681

◆ operator=()

SoftmaxComponent& operator= ( const SoftmaxComponent & other )

private

◆ Propagate()

void * Propagate	(	const ComponentPrecomputedIndexes *	indexes,
		const CuMatrixBase< BaseFloat > &	in,
		CuMatrixBase< BaseFloat > *	out
	)		const

virtual

Propagate function.

Parameters

[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in	The input to this component. Num-columns == InputDim().
[out]	out	The output of this component. Num-columns == OutputDim(). Note: output of this component will be added to the initial value of "out" if Properties()&kPropagateAdds != 0; otherwise the output will be set and the initial value ignored. Each Component chooses whether it is more convenient implementation-wise to add or set, and the calling code has to deal with it.

Returns: Normally returns NULL, but may return a non-NULL value for components which have the flag kUsesMemo set. This value will be passed into the corresponding Backprop routine.

Implements Component.

Definition at line 3563 of file nnet-simple-component.cc.

References CuMatrixBase< Real >::ApplyFloor(), and CuMatrixBase< Real >::SoftMaxPerRow().

                                                                      {
   // Apply softmax function to each row of the output...
   // for that row, we do
   // x_i = exp(x_i) / sum_j exp(x_j).
   out->SoftMaxPerRow(in);

   // This floor on the output helps us deal with
   // almost-zeros in a way that doesn't lead to overflow.
   out->ApplyFloor(1.0e-20);

   return NULL;
 }

◆ Properties()

virtual int32 Properties ( ) const

inlinevirtual

Return bitmask of the component's properties.

These properties depend only on the component's type. See enum ComponentProperties.

Implements Component.

Definition at line 683 of file nnet-simple-component.h.

References PnormComponent::Backprop(), kaldi::nnet3::kBackpropInPlace, kaldi::nnet3::kBackpropNeedsOutput, kaldi::nnet3::kPropagateInPlace, kaldi::nnet3::kSimpleComponent, kaldi::nnet3::kStoresStats, PnormComponent::Propagate(), and Component::StoreStats().

                                    {
     return kSimpleComponent|kPropagateInPlace|kBackpropInPlace|
         kBackpropNeedsOutput|kStoresStats;
   }

◆ StoreStats()

void StoreStats	(	const CuMatrixBase< BaseFloat > &	in_value,
		const CuMatrixBase< BaseFloat > &	out_value,
		void *	memo
	)

virtual

This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity.

It only does something for those components that have nonzero Properties()&kStoresStats.

Parameters

[in]	in_value	The input to the Propagate() function. Note: if the component sets the flag kPropagateInPlace, this should not be used; the empty matrix will be provided here if in-place propagation was used.
[in]	out_value	The output of the Propagate() function.
[in]	memo	The 'memo' returned by the Propagate() function; this will usually be NULL.

Reimplemented from Component.

Definition at line 3609 of file nnet-simple-component.cc.

                                               {
   // We don't store derivative stats for this component type, just activation
   // stats.
   StoreStatsInternal(out_value, NULL);
 }

◆ Type()

virtual std::string Type ( ) const

inlinevirtual

Returns a string such as "SigmoidComponent", describing the type of the object.

Implements Component.

Definition at line 682 of file nnet-simple-component.h.

682 { return "SoftmaxComponent"; }

The documentation for this class was generated from the following files:

nnet3/nnet-simple-component.h
nnet3/nnet-simple-component.cc
