FmpeStats Struct Reference

#include <fmpe.h>

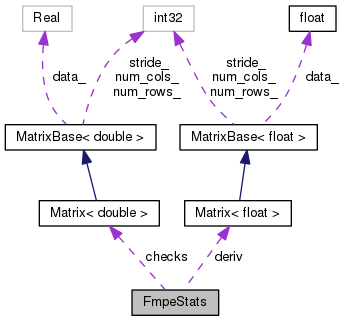

Collaboration diagram for FmpeStats:

Public Member Functions
	FmpeStats ()
void	Init (const Fmpe &fmpe)
	FmpeStats (const Fmpe &fmpe)
void	Write (std::ostream &os, bool binary) const
void	Read (std::istream &is, bool binary, bool add=false)
SubMatrix< BaseFloat >	DerivPlus () const
SubMatrix< BaseFloat >	DerivMinus () const
void	AccumulateChecks (const MatrixBase< BaseFloat > &feats, const MatrixBase< BaseFloat > &direct_deriv, const MatrixBase< BaseFloat > &indirect_deriv)
	If we're using the indirect differential, accumulates certain quantities that will be used in the update phase to verify that the computation of the indirect differential was done correctly. More...
void	DoChecks ()

Private Attributes
Matrix< BaseFloat >	deriv
Matrix< double >	checks

Detailed Description

Definition at line 105 of file fmpe.h.

Constructor & Destructor Documentation

FmpeStats() [1/2]

FmpeStats ( )

inline

Definition at line 106 of file fmpe.h.

{ };

FmpeStats() [2/2]

FmpeStats ( const Fmpe &  fmpe )

inline

Definition at line 108 of file fmpe.h.

References FmpeOptions::Read(), and FmpeOptions::Write().

{ Init(fmpe); }

Member Function Documentation

AccumulateChecks()

void AccumulateChecks	(	const MatrixBase< BaseFloat > &	feats,
		const MatrixBase< BaseFloat > &	direct_deriv,
		const MatrixBase< BaseFloat > &	indirect_deriv
	)

If we're using the indirect differential, accumulates certain quantities that will be used in the update phase to verify that the computation of the indirect differential was done correctly.

Definition at line 627 of file fmpe.cc.

References rnnlm::d, KALDI_ASSERT, MatrixBase< Real >::NumCols(), and MatrixBase< Real >::NumRows().

Referenced by Fmpe::AccStats().

                                                                              {
  int32 T = feats.NumRows(), dim = feats.NumCols();
  KALDI_ASSERT(direct_deriv.NumRows() == T && direct_deriv.NumCols() == dim &&
               indirect_deriv.NumRows() == T && indirect_deriv.NumCols() == dim);
  KALDI_ASSERT(checks.NumRows() == 8 && checks.NumCols() == dim);
  for (int32 t = 0; t < T; t++) {
    for (int32 d = 0; d < dim; d++) {
      BaseFloat zero = 0.0;
      checks(0, d) += std::max(zero, direct_deriv(t, d));
      checks(1, d) += std::max(zero, -direct_deriv(t, d));
      checks(2, d) += std::max(zero, indirect_deriv(t, d));
      checks(3, d) += std::max(zero, -indirect_deriv(t, d));
      checks(4, d) += std::max(zero, feats(t, d)*direct_deriv(t, d));
      checks(5, d) += std::max(zero, -feats(t, d)*direct_deriv(t, d));
      checks(6, d) += std::max(zero, feats(t, d)*indirect_deriv(t, d));
      checks(7, d) += std::max(zero, -feats(t, d)*indirect_deriv(t, d));
    }
  }
}

DerivMinus()

SubMatrix< BaseFloat > DerivMinus

(

)

const

Definition at line 610 of file fmpe.cc.

References KALDI_ASSERT.

Referenced by Fmpe::AccStats(), and Fmpe::Update().

                                                 { // const-ness not preserved.
  KALDI_ASSERT(deriv.NumRows() != 0);
  int32 proj_num_rows = deriv.NumRows(),
      proj_num_cols = deriv.NumCols()/2;
  return SubMatrix<BaseFloat>(deriv, 0, proj_num_rows,
                              proj_num_cols, proj_num_cols);
}

DerivPlus()

SubMatrix< BaseFloat > DerivPlus

(

)

const

Definition at line 603 of file fmpe.cc.

References KALDI_ASSERT.

Referenced by Fmpe::AccStats(), and Fmpe::Update().

                                                { // const-ness not preserved.
  KALDI_ASSERT(deriv.NumRows() != 0);
  int32 proj_num_rows = deriv.NumRows(),
      proj_num_cols = deriv.NumCols()/2;
  return SubMatrix<BaseFloat>(deriv, 0, proj_num_rows,
                              0, proj_num_cols);
}

DoChecks()

void DoChecks

(

)

Definition at line 649 of file fmpe.cc.

References rnnlm::d, and KALDI_LOG.

Referenced by main().

                         {
  if (checks.IsZero()) {
    KALDI_LOG << "No checks will be done, probably indirect derivative was not used.";
    return;
  }
  int32 dim = checks.NumCols();
  Vector<double> shift_check(dim), shift_check2(dim), scale_check(dim), scale_check2(dim);
  for (int32 d = 0; d < dim; d++) {
    // shiftnumerator = direct+indirect deriv-- should be zero.
    double shift_num = checks(0, d) - checks(1, d) + checks(2, d) - checks(3, d),
        shift_den = checks(0, d) + checks(1, d) + checks(2, d) + checks(3, d),
        shift_den2 = fabs(checks(0, d) - checks(1, d)) + fabs(checks(2, d) - checks(3, d));
    shift_check(d) = shift_num / shift_den;
    shift_check2(d) = shift_num / shift_den2;
    double scale_num = checks(4, d) - checks(5, d) + checks(6, d) - checks(7, d),
        scale_den = checks(4, d) + checks(5, d) + checks(6, d) + checks(7, d),
        scale_den2 = fabs(checks(4, d) - checks(5, d)) + fabs(checks(6, d) - checks(7, d));
    scale_check(d) = scale_num / scale_den;
    scale_check2(d) = scale_num / scale_den2;
  }

  KALDI_LOG << "Shift-check is as follows (should be in range +- 0.01 or less)."
            << shift_check;
  KALDI_LOG << "Scale-check is as follows (should be in range +- 0.01 or less)."
            << scale_check;
  KALDI_LOG << "Shift-check(2) is as follows: most elements should be in range +-0.1: "
            << shift_check2;
  KALDI_LOG << "Scale-check(2) is as follows: most elements should be in range +-0.1: "
            << scale_check2;
}

Init()

void Init

(

const Fmpe &

fmpe

)

Definition at line 618 of file fmpe.cc.

References Fmpe::FeatDim(), Fmpe::ProjectionTNumCols(), and Fmpe::ProjectionTNumRows().

                                     {
  int32 num_rows = fmpe.ProjectionTNumRows(),
      num_cols = fmpe.ProjectionTNumCols();
  deriv.Resize(num_rows, num_cols*2);

  int32 feat_dim = fmpe.FeatDim();
  checks.Resize(8, feat_dim);
}

Read()

void Read	(	std::istream &	is,
		bool	binary,
		bool	add = false
	)

Definition at line 685 of file fmpe.cc.

Referenced by main().

                                                          {
  deriv.Read(is, binary, add);
  checks.Read(is, binary, add);
}

Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

Definition at line 680 of file fmpe.cc.

Referenced by main().

                                                       {
  deriv.Write(os, binary);
  checks.Write(os, binary);
}

Member Data Documentation

checks

Matrix<double> checks

private

Definition at line 133 of file fmpe.h.

deriv

Matrix<BaseFloat> deriv

private

Definition at line 125 of file fmpe.h.

---

The documentation for this struct was generated from the following files:

• transform/fmpe.h
• transform/fmpe.cc
