NnetDiscriminativeUpdater Class Reference

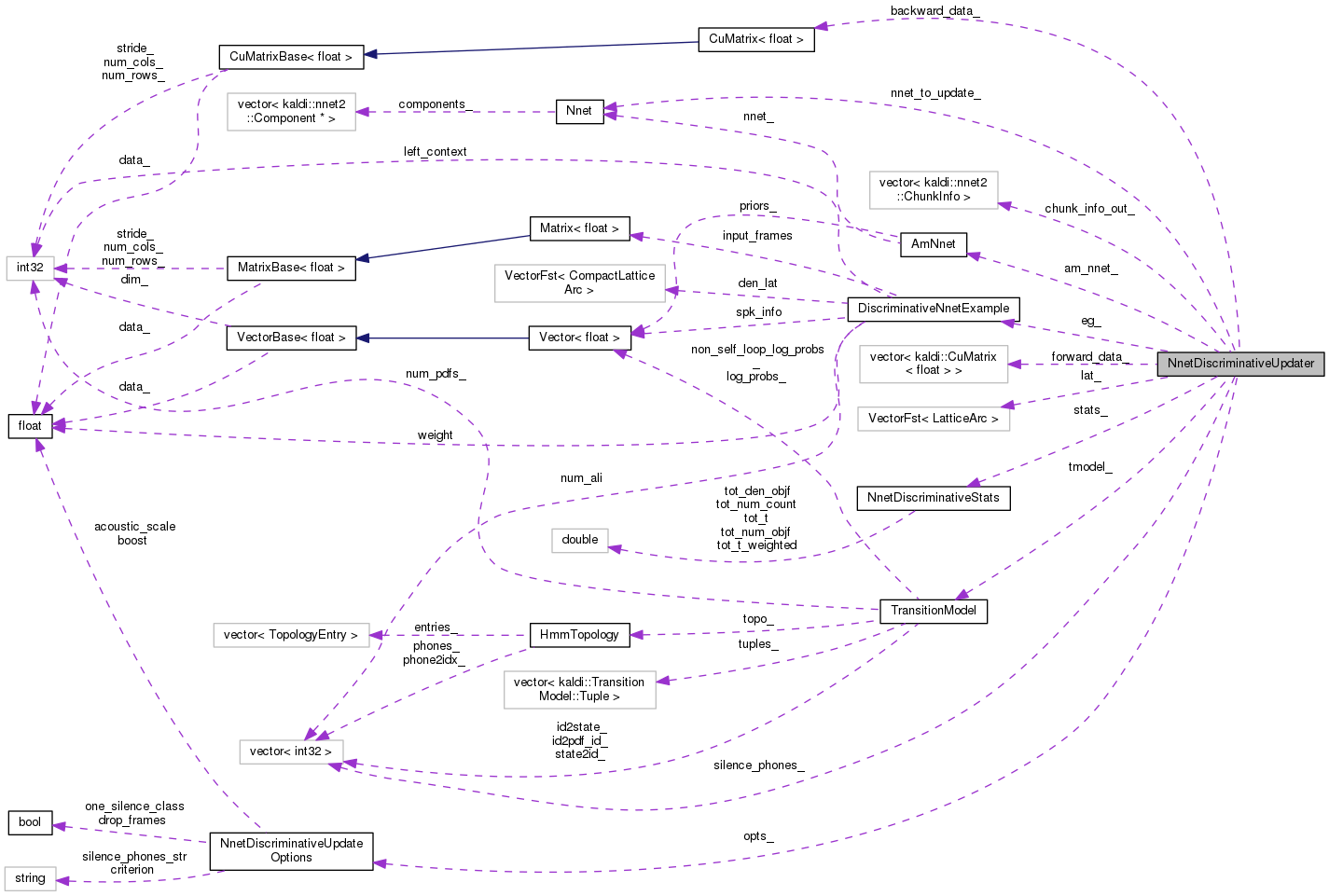

Collaboration diagram for NnetDiscriminativeUpdater:

Public Member Functions
	NnetDiscriminativeUpdater (const AmNnet &am_nnet, const TransitionModel &tmodel, const NnetDiscriminativeUpdateOptions &opts, const DiscriminativeNnetExample &eg, Nnet *nnet_to_update, NnetDiscriminativeStats *stats)
void	Update ()
void	Propagate ()
	The forward-through-the-layers part of the computation. More...
void	LatticeComputations ()
	Does the parts between Propagate() and Backprop(), that involve forward-backward over the lattice. More...
void	Backprop ()
double	GetDiscriminativePosteriors (Posterior *post)
	Assuming the lattice already has the correct scores in it, this function does the MPE or MMI forward-backward and puts the resulting discriminative posteriors (which may have positive or negative weight) into "post". More...
SubMatrix< BaseFloat >	GetInputFeatures () const
CuMatrixBase< BaseFloat > &	GetOutput ()

Static Public Member Functions
static Int32Pair	MakePair (int32 first, int32 second)

Private Types
typedef LatticeArc	Arc
typedef Arc::StateId	StateId

Private Attributes
const AmNnet &	am_nnet_
const TransitionModel &	tmodel_
const NnetDiscriminativeUpdateOptions &	opts_
const DiscriminativeNnetExample &	eg_
Nnet *	nnet_to_update_
NnetDiscriminativeStats *	stats_
std::vector< ChunkInfo >	chunk_info_out_
std::vector< CuMatrix< BaseFloat > >	forward_data_
Lattice	lat_
CuMatrix< BaseFloat >	backward_data_
std::vector< int32 >	silence_phones_

Detailed Description

Definition at line 32 of file nnet-compute-discriminative.cc.

Member Typedef Documentation

Arc

typedef LatticeArc Arc

private

Definition at line 78 of file nnet-compute-discriminative.cc.

StateId

typedef Arc::StateId StateId

private

Definition at line 79 of file nnet-compute-discriminative.cc.

Constructor & Destructor Documentation

NnetDiscriminativeUpdater()

NnetDiscriminativeUpdater	(	const AmNnet &	am_nnet,
		const TransitionModel &	tmodel,
		const NnetDiscriminativeUpdateOptions &	opts,
		const DiscriminativeNnetExample &	eg,
		Nnet *	nnet_to_update,
		NnetDiscriminativeStats *	stats
	)

Definition at line 101 of file nnet-compute-discriminative.cc.

References NnetDiscriminativeUpdater::am_nnet_, NnetDiscriminativeUpdater::chunk_info_out_, Nnet::ComputeChunkInfo(), NnetDiscriminativeUpdater::eg_, AmNnet::GetNnet(), DiscriminativeNnetExample::input_frames, KALDI_ERR, MatrixBase< Real >::NumRows(), NnetDiscriminativeUpdater::opts_, NnetDiscriminativeUpdater::silence_phones_, NnetDiscriminativeUpdateOptions::silence_phones_str, and kaldi::SplitStringToIntegers().

                                   :
    am_nnet_(am_nnet), tmodel_(tmodel), opts_(opts), eg_(eg),
    nnet_to_update_(nnet_to_update), stats_(stats) {
  if (!SplitStringToIntegers(opts_.silence_phones_str, ":", false,
                             &silence_phones_)) {
    KALDI_ERR << "Bad value for --silence-phones option: "
              << opts_.silence_phones_str;
  }
  const Nnet &nnet = am_nnet_.GetNnet();
  nnet.ComputeChunkInfo(eg_.input_frames.NumRows(), 1, &chunk_info_out_);
}

Member Function Documentation

Backprop()

void Backprop

(

)

Definition at line 349 of file nnet-compute-discriminative.cc.

References NnetDiscriminativeUpdater::am_nnet_, Component::Backprop(), NnetDiscriminativeUpdater::backward_data_, NnetDiscriminativeUpdater::chunk_info_out_, NnetDiscriminativeUpdater::forward_data_, Nnet::GetComponent(), AmNnet::GetNnet(), NnetDiscriminativeUpdater::nnet_to_update_, and Nnet::NumComponents().

Referenced by NnetDiscriminativeUpdater::Update().

                                         {
  const Nnet &nnet = am_nnet_.GetNnet();
  for (int32 c = nnet.NumComponents() - 1; c >= 0; c--) {
    const Component &component = nnet.GetComponent(c);
    Component *component_to_update = &(nnet_to_update_->GetComponent(c));
    const CuMatrix<BaseFloat>  &input = forward_data_[c],
                            &output = forward_data_[c+1],
                      &output_deriv = backward_data_;
    CuMatrix<BaseFloat> input_deriv;
    component.Backprop(chunk_info_out_[c], chunk_info_out_[c+1], input, output, output_deriv,
                       component_to_update, &input_deriv);
    backward_data_.Swap(&input_deriv); // backward_data_ = input_deriv.
  }
}

GetDiscriminativePosteriors()

double GetDiscriminativePosteriors

(

Posterior *

post

)

Assuming the lattice already has the correct scores in it, this function does the MPE or MMI forward-backward and puts the resulting discriminative posteriors (which may have positive or negative weight) into "post".

It returns, for MPFE/SMBR, the objective function, or for MMI, the negative of the denominator-lattice log-likelihood.

Definition at line 326 of file nnet-compute-discriminative.cc.

References kaldi::ConvertPosteriorToPdfs(), NnetDiscriminativeUpdateOptions::criterion, NnetDiscriminativeUpdateOptions::drop_frames, NnetDiscriminativeUpdater::eg_, KALDI_ASSERT, NnetDiscriminativeUpdater::lat_, kaldi::LatticeForwardBackwardMmi(), kaldi::LatticeForwardBackwardMpeVariants(), DiscriminativeNnetExample::num_ali, NnetDiscriminativeUpdateOptions::one_silence_class, NnetDiscriminativeUpdater::opts_, NnetDiscriminativeUpdater::silence_phones_, and NnetDiscriminativeUpdater::tmodel_.

Referenced by NnetDiscriminativeUpdater::LatticeComputations(), and NnetDiscriminativeUpdater::Update().

                                                                             {
  if (opts_.criterion == "mpfe" || opts_.criterion == "smbr") {
    Posterior tid_post;
    double ans;
    ans = LatticeForwardBackwardMpeVariants(tmodel_, silence_phones_, lat_,
                                            eg_.num_ali, opts_.criterion,
                                            opts_.one_silence_class,
                                            &tid_post);
    ConvertPosteriorToPdfs(tmodel_, tid_post, post);
    return ans; // returns the objective function.
  } else {
    KALDI_ASSERT(opts_.criterion == "mmi");
    bool convert_to_pdfs = true, cancel = true;
    // we'll return the denominator-lattice forward backward likelihood,
    // which is one term in the objective function.
    return LatticeForwardBackwardMmi(tmodel_, lat_, eg_.num_ali,
                                     opts_.drop_frames, convert_to_pdfs,
                                     cancel, post);
  }
}

GetInputFeatures()

SubMatrix< BaseFloat > GetInputFeatures

(

)

const

Definition at line 121 of file nnet-compute-discriminative.cc.

References NnetDiscriminativeUpdater::am_nnet_, NnetDiscriminativeUpdater::eg_, AmNnet::GetNnet(), DiscriminativeNnetExample::input_frames, KALDI_ASSERT, DiscriminativeNnetExample::left_context, Nnet::LeftContext(), DiscriminativeNnetExample::num_ali, MatrixBase< Real >::NumCols(), MatrixBase< Real >::NumRows(), and Nnet::RightContext().

Referenced by NnetDiscriminativeUpdater::Propagate(), and NnetDiscriminativeUpdater::Update().

                                                                       {
  int32 num_frames_output = eg_.num_ali.size();
  int32 eg_left_context = eg_.left_context,
      eg_right_context = eg_.input_frames.NumRows() -
      num_frames_output - eg_left_context;
  KALDI_ASSERT(eg_right_context >= 0);
  const Nnet &nnet = am_nnet_.GetNnet();
  // Make sure the example has enough acoustic left and right
  // context... normally we'll use examples generated using the same model,
  // which will have the exact context, but we enable a mismatch in context as
  // long as it is more, not less.
  KALDI_ASSERT(eg_left_context >= nnet.LeftContext() &&
               eg_right_context >= nnet.RightContext());
  int32 offset = eg_left_context - nnet.LeftContext(),
      num_output_frames =
      num_frames_output + nnet.LeftContext() + nnet.RightContext();
  SubMatrix<BaseFloat> ans(eg_.input_frames, offset, num_output_frames,
                           0, eg_.input_frames.NumCols());
  return ans;
}

GetOutput()

CuMatrixBase<BaseFloat>& GetOutput ( )

inline

Definition at line 68 of file nnet-compute-discriminative.cc.

References NnetDiscriminativeUpdater::forward_data_.

{ return forward_data_.back(); }

LatticeComputations()

void LatticeComputations

(

)

Does the parts between Propagate() and Backprop(), that involve forward-backward over the lattice.

Definition at line 178 of file nnet-compute-discriminative.cc.

References NnetDiscriminativeUpdateOptions::acoustic_scale, NnetDiscriminativeUpdater::am_nnet_, NnetDiscriminativeUpdater::backward_data_, NnetDiscriminativeUpdateOptions::boost, fst::ConvertLattice(), NnetDiscriminativeUpdateOptions::criterion, DiscriminativeNnetExample::den_lat, VectorBase< Real >::Dim(), NnetDiscriminativeUpdater::eg_, NnetDiscriminativeUpdater::forward_data_, NnetDiscriminativeUpdater::GetDiscriminativePosteriors(), AmNnet::GetNnet(), rnnlm::i, KALDI_ASSERT, KALDI_ISINF, KALDI_ISNAN, KALDI_WARN, NnetDiscriminativeUpdater::lat_, kaldi::LatticeBoost(), kaldi::LatticeStateTimes(), kaldi::Log(), CuMatrixBase< Real >::Lookup(), NnetDiscriminativeUpdater::MakePair(), DiscriminativeNnetExample::num_ali, CuMatrixBase< Real >::NumCols(), Nnet::NumComponents(), CuMatrixBase< Real >::NumRows(), NnetDiscriminativeUpdater::opts_, AmNnet::Priors(), kaldi::ScalePosterior(), NnetDiscriminativeUpdater::silence_phones_, NnetDiscriminativeUpdater::stats_, NnetDiscriminativeUpdater::tmodel_, NnetDiscriminativeStats::tot_den_objf, NnetDiscriminativeStats::tot_num_count, NnetDiscriminativeStats::tot_num_objf, NnetDiscriminativeStats::tot_t, NnetDiscriminativeStats::tot_t_weighted, TransitionModel::TransitionIdToPdf(), DiscriminativeNnetExample::weight, and LatticeWeightTpl< BaseFloat >::Zero().

Referenced by NnetDiscriminativeUpdater::Update().

                                                    {
  ConvertLattice(eg_.den_lat, &lat_); // convert to Lattice.
  TopSort(&lat_); // Topologically sort (required by forward-backward algorithms)

  if (opts_.criterion == "mmi" && opts_.boost != 0.0) {
    BaseFloat max_silence_error = 0.0;
    LatticeBoost(tmodel_, eg_.num_ali, silence_phones_,
                 opts_.boost, max_silence_error, &lat_);
  }

  int32 num_frames = static_cast<int32>(eg_.num_ali.size());

  stats_->tot_t += num_frames;
  stats_->tot_t_weighted += num_frames * eg_.weight;

  const VectorBase<BaseFloat> &priors = am_nnet_.Priors();
  const CuMatrix<BaseFloat> &posteriors = forward_data_.back();

  KALDI_ASSERT(posteriors.NumRows() == num_frames);
  int32 num_pdfs = posteriors.NumCols();
  KALDI_ASSERT(num_pdfs == priors.Dim());

  // We need to look up the posteriors of some pdf-ids in the matrix
  // "posteriors".  Rather than looking them all up using operator (), which is
  // very slow because each lookup involves a separate CUDA call with
  // communication over PciExpress, we look them up all at once using
  // CuMatrix::Lookup().
  // Note: regardless of the criterion, we evaluate the likelihoods in
  // the numerator alignment.  Even though they may be irrelevant to
  // the optimization, they will affect the value of the objective function.

  std::vector<Int32Pair> requested_indexes;
  BaseFloat wiggle_room = 1.3; // value not critical.. it's just 'reserve'
  requested_indexes.reserve(num_frames + wiggle_room * lat_.NumStates());

  if (opts_.criterion == "mmi") { // need numerator probabilities...
    for (int32 t = 0; t < num_frames; t++) {
      int32 tid = eg_.num_ali[t], pdf_id = tmodel_.TransitionIdToPdf(tid);
      KALDI_ASSERT(pdf_id >= 0 && pdf_id < num_pdfs);
      requested_indexes.push_back(MakePair(t, pdf_id));
    }
  }

  std::vector<int32> state_times;
  int32 T = LatticeStateTimes(lat_, &state_times);
  KALDI_ASSERT(T == num_frames);

  StateId num_states = lat_.NumStates();
  for (StateId s = 0; s < num_states; s++) {
    StateId t = state_times[s];
    for (fst::ArcIterator<Lattice> aiter(lat_, s); !aiter.Done(); aiter.Next()) {
      const Arc &arc = aiter.Value();
      if (arc.ilabel != 0) { // input-side has transition-ids, output-side empty
        int32 tid = arc.ilabel, pdf_id = tmodel_.TransitionIdToPdf(tid);
        requested_indexes.push_back(MakePair(t, pdf_id));
      }
    }
  }

  std::vector<BaseFloat> answers;
  CuArray<Int32Pair> cu_requested_indexes(requested_indexes);
  answers.resize(requested_indexes.size());
  posteriors.Lookup(cu_requested_indexes, &(answers[0]));

  int32 num_floored = 0;

  BaseFloat floor_val = 1.0e-20; // floor for posteriors.
  size_t index;

  // Replace "answers" with the vector of scaled log-probs.  If this step takes
  // too much time, we can look at other ways to do it, using the CUDA card.
  for (index = 0; index < answers.size(); index++) {
    BaseFloat post = answers[index];
    if (post < floor_val) {
      post = floor_val;
      num_floored++;
    }
    int32 pdf_id = requested_indexes[index].second;
    BaseFloat pseudo_loglike = Log(post / priors(pdf_id)) * opts_.acoustic_scale;
    KALDI_ASSERT(!KALDI_ISINF(pseudo_loglike) && !KALDI_ISNAN(pseudo_loglike));
    answers[index] = pseudo_loglike;
  }
  if (num_floored > 0) {
    KALDI_WARN << "Floored " << num_floored << " probabilities from nnet.";
  }

  index = 0;

  if (opts_.criterion == "mmi") {
    double tot_num_like = 0.0;
    for (; index < eg_.num_ali.size(); index++)
      tot_num_like += answers[index];
    stats_->tot_num_objf += eg_.weight * tot_num_like;
  }

  // Now put the (scaled) acoustic log-likelihoods in the lattice.
  for (StateId s = 0; s < num_states; s++) {
    for (fst::MutableArcIterator<Lattice> aiter(&lat_, s);
         !aiter.Done(); aiter.Next()) {
      Arc arc = aiter.Value();
      if (arc.ilabel != 0) { // input-side has transition-ids, output-side empty
        arc.weight.SetValue2(-answers[index]);
        index++;
        aiter.SetValue(arc);
      }
    }
    LatticeWeight final = lat_.Final(s);
    if (final != LatticeWeight::Zero()) {
      final.SetValue2(0.0); // make sure no acoustic term in final-prob.
      lat_.SetFinal(s, final);
    }
  }
  KALDI_ASSERT(index == answers.size());

  // Get the MPE or MMI posteriors.
  Posterior post;
  stats_->tot_den_objf += eg_.weight * GetDiscriminativePosteriors(&post);

  ScalePosterior(eg_.weight, &post);

  double tot_num_post = 0.0, tot_den_post = 0.0;
  std::vector<MatrixElement<BaseFloat> > sv_labels;
  sv_labels.reserve(answers.size());
  for (int32 t = 0; t < post.size(); t++) {
    for (int32 i = 0; i < post[t].size(); i++) {
      int32 pdf_id = post[t][i].first;
      BaseFloat weight = post[t][i].second;
      if (weight > 0.0) { tot_num_post += weight; }
      else { tot_den_post -= weight; }
      MatrixElement<BaseFloat> elem = {t, pdf_id, weight};
      sv_labels.push_back(elem);
    }
  }
  stats_->tot_num_count += tot_num_post;
  int32 num_components = am_nnet_.GetNnet().NumComponents();
  const CuMatrix<BaseFloat> &output(forward_data_[num_components]);
  backward_data_.Resize(output.NumRows(), output.NumCols()); // zeroes it.

  { // We don't actually need tot_objf and tot_weight; we have already
    // computed the objective function.
    BaseFloat tot_objf, tot_weight;
    backward_data_.CompObjfAndDeriv(sv_labels, output, &tot_objf, &tot_weight);
    // Now backward_data_ will contan the derivative at the output.
    // Our work here is done..
  }
}

MakePair()

static Int32Pair MakePair ( int32  first, int32  second  )

inlinestatic

Definition at line 70 of file nnet-compute-discriminative.cc.

References Int32Pair::first, and Int32Pair::second.

Referenced by NnetDiscriminativeUpdater::LatticeComputations().

                                                              {
    Int32Pair ans;
    ans.first = first;
    ans.second = second;
    return ans;
  }

Propagate()

void Propagate

(

)

The forward-through-the-layers part of the computation.

Definition at line 142 of file nnet-compute-discriminative.cc.

References NnetDiscriminativeUpdater::am_nnet_, Component::BackpropNeedsInput(), Component::BackpropNeedsOutput(), NnetDiscriminativeUpdater::chunk_info_out_, NnetDiscriminativeUpdater::eg_, NnetDiscriminativeUpdater::forward_data_, Nnet::GetComponent(), NnetDiscriminativeUpdater::GetInputFeatures(), AmNnet::GetNnet(), NnetDiscriminativeUpdater::nnet_to_update_, MatrixBase< Real >::NumCols(), Nnet::NumComponents(), MatrixBase< Real >::NumRows(), Component::Propagate(), and DiscriminativeNnetExample::spk_info.

Referenced by NnetDiscriminativeUpdater::Update().

                                          {
  const Nnet &nnet = am_nnet_.GetNnet();
  forward_data_.resize(nnet.NumComponents() + 1);

  SubMatrix<BaseFloat> input_feats = GetInputFeatures();
  int32 spk_dim = eg_.spk_info.Dim();
  if (spk_dim == 0) {
    forward_data_[0] = input_feats;
  } else {
    forward_data_[0].Resize(input_feats.NumRows(),
                            input_feats.NumCols() + eg_.spk_info.Dim());
    forward_data_[0].Range(0, input_feats.NumRows(),
                           0, input_feats.NumCols()).CopyFromMat(input_feats);
    forward_data_[0].Range(0, input_feats.NumRows(),
                           input_feats.NumCols(), spk_dim).CopyRowsFromVec(
                               eg_.spk_info);
  }

  for (int32 c = 0; c < nnet.NumComponents(); c++) {
    const Component &component = nnet.GetComponent(c);
    CuMatrix<BaseFloat> &input = forward_data_[c],
        &output = forward_data_[c+1];
    component.Propagate(chunk_info_out_[c] , chunk_info_out_[c+1], input, &output);
    const Component *prev_component = (c == 0 ? NULL :
                                       &(nnet.GetComponent(c-1)));
    bool will_do_backprop = (nnet_to_update_ != NULL),
        keep_last_output = will_do_backprop &&
        ((c>0 && prev_component->BackpropNeedsOutput()) ||
         component.BackpropNeedsInput());
    if (!keep_last_output)
      forward_data_[c].Resize(0, 0); // We won't need this data; save memory.
  }
}

Update()

void Update ( )

inline

Definition at line 42 of file nnet-compute-discriminative.cc.

References NnetDiscriminativeUpdater::Backprop(), NnetDiscriminativeUpdater::GetDiscriminativePosteriors(), NnetDiscriminativeUpdater::GetInputFeatures(), NnetDiscriminativeUpdater::LatticeComputations(), NnetDiscriminativeUpdater::nnet_to_update_, and NnetDiscriminativeUpdater::Propagate().

Referenced by kaldi::nnet2::NnetDiscriminativeUpdate().

                {
    Propagate();
    LatticeComputations();
    if (nnet_to_update_ != NULL)
      Backprop();
  }

Member Data Documentation

am_nnet_

const AmNnet& am_nnet_

private

Definition at line 82 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::Backprop(), NnetDiscriminativeUpdater::GetInputFeatures(), NnetDiscriminativeUpdater::LatticeComputations(), NnetDiscriminativeUpdater::NnetDiscriminativeUpdater(), and NnetDiscriminativeUpdater::Propagate().

backward_data_

CuMatrix<BaseFloat> backward_data_

private

Definition at line 95 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::Backprop(), and NnetDiscriminativeUpdater::LatticeComputations().

chunk_info_out_

std::vector<ChunkInfo> chunk_info_out_

private

Definition at line 90 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::Backprop(), NnetDiscriminativeUpdater::NnetDiscriminativeUpdater(), and NnetDiscriminativeUpdater::Propagate().

eg_

const DiscriminativeNnetExample& eg_

private

Definition at line 85 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::GetDiscriminativePosteriors(), NnetDiscriminativeUpdater::GetInputFeatures(), NnetDiscriminativeUpdater::LatticeComputations(), NnetDiscriminativeUpdater::NnetDiscriminativeUpdater(), and NnetDiscriminativeUpdater::Propagate().

forward_data_

std::vector<CuMatrix<BaseFloat> > forward_data_

private

Definition at line 93 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::Backprop(), NnetDiscriminativeUpdater::GetOutput(), NnetDiscriminativeUpdater::LatticeComputations(), and NnetDiscriminativeUpdater::Propagate().

lat_

Lattice lat_

private

Definition at line 94 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::GetDiscriminativePosteriors(), and NnetDiscriminativeUpdater::LatticeComputations().

nnet_to_update_

Nnet* nnet_to_update_

private

Definition at line 86 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::Backprop(), NnetDiscriminativeUpdater::Propagate(), and NnetDiscriminativeUpdater::Update().

opts_

const NnetDiscriminativeUpdateOptions& opts_

private

Definition at line 84 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::GetDiscriminativePosteriors(), NnetDiscriminativeUpdater::LatticeComputations(), and NnetDiscriminativeUpdater::NnetDiscriminativeUpdater().

silence_phones_

std::vector<int32> silence_phones_

private

Definition at line 96 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::GetDiscriminativePosteriors(), NnetDiscriminativeUpdater::LatticeComputations(), and NnetDiscriminativeUpdater::NnetDiscriminativeUpdater().

stats_

NnetDiscriminativeStats* stats_

private

Definition at line 89 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::LatticeComputations().

tmodel_

const TransitionModel& tmodel_

private

Definition at line 83 of file nnet-compute-discriminative.cc.

Referenced by NnetDiscriminativeUpdater::GetDiscriminativePosteriors(), and NnetDiscriminativeUpdater::LatticeComputations().

---

The documentation for this class was generated from the following file:

• nnet2/nnet-compute-discriminative.cc
