This class creates an initial version of the NnetComputation, without any optimization or sharing of matrices. More...

#include <nnet-compile.h>

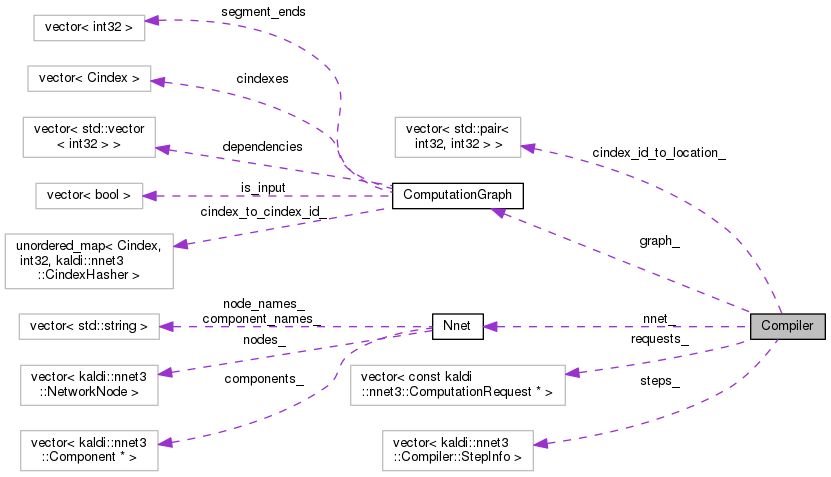

Collaboration diagram for Compiler:

Classes
struct	StepInfo

Public Member Functions
	Compiler (const ComputationRequest &request, const Nnet &nnet)

	Compiler (const std::vector< const ComputationRequest *> &request, const Nnet &nnet)

void	CreateComputation (const CompilerOptions &opts, NnetComputation *computation)

Private Member Functions
void	ComputeStepDependencies (const std::vector< int32 > &this_step, int32 step_index, unordered_set< int32 > *dep_steps)

void	ComputeDerivNeeded (const std::vector< std::vector< int32 > > &steps, const std::vector< int32 > &step_to_segment, std::vector< bool > *deriv_needed)

void	CreateStepInfo (const std::vector< bool > &deriv_needed, const std::vector< int32 > &step_to_segment, std::vector< std::vector< int32 > > by_step, NnetComputation computation)

MatrixStrideType	GetStrideType (int32 node_index) const

void	DefineMatrices (NnetComputation *computation) const

void	DefineSubmatrices (NnetComputation *computation)

void	AllocateMatrices (const std::vector< int32 > &whole_submatrices, NnetComputation *computation) const

void	SetUpPrecomputedIndexes (const std::vector< int32 > &step_to_segment, NnetComputation *computation)

void	CompileForward (int32 step, NnetComputation *computation) const

void	AddForwardStepComponent (int32 step, NnetComputation *computation) const

void	AddForwardStepInput (int32 step, NnetComputation *computation) const

bool	IsInputStep (int32 step) const

void	CompileForwardDescriptor (int32 step, NnetComputation *computation) const

void	CompileForwardSumDescriptor (int32 step, int32 part_index, NnetComputation *computation) const

void	ComputeInputLocationsList (int32 step, int32 part_index, std::vector< std::vector< std::pair< int32, int32 > > > *input_locations) const

BaseFloat	SplitByScale (const SumDescriptor &descriptor, const std::vector< std::vector< std::pair< int32, int32 > > > &input_locations_list, std::vector< std::pair< BaseFloat, std::vector< std::vector< std::pair< int32, int32 > > > > > *split_locations_lists) const
	This function helps to handle scalar factors in Descriptors (expressions like `Scale(-1.0, <descriptor)`). More...

void	ComputeValueSubmatLocationsList (const std::vector< std::vector< std::pair< int32, int32 > > > &input_locations_list, std::vector< std::vector< std::pair< int32, int32 > > > *submat_locations_list) const

void	ComputeDerivSubmatLocationsList (const std::vector< std::vector< std::pair< int32, int32 > > > &input_locations_list, std::vector< std::vector< std::pair< int32, int32 > > > *submat_locations_list) const

void	CompileForwardFromSubmatLocationsList (int32 value_submatrix_index, BaseFloat alpha, const std::vector< std::vector< std::pair< int32, int32 > > > &submat_locations, NnetComputation *computation) const
	Adds to 'computation' commands for part of the forward computation corresponding to a Descriptor. More...

void	CompileForwardFromSubmatLocations (int32 value_submatrix_index, BaseFloat alpha, const std::vector< std::pair< int32, int32 > > &submat_locations, NnetComputation *computation) const
	Adds to 'computation' commands for part of the forward computation corresponding to a Descriptor. More...

void	CompileForwardFromIndexes (int32 value_submatrix_index, int32 input_submatrix_index, BaseFloat alpha, const std::vector< int32 > &indexes, NnetComputation *computation) const
	Adds to `computation` a command that adds to the submatrix in `value_submatrix_index` a quantity consisting of alpha times the submatrix in `input_submatrix_index`, with a row mapping given by `indexes`. More...

void	CompileBackward (int32 step, NnetComputation *computation)

void	AddBackwardStepComponent (int32 step, NnetComputation *computation) const

void	AddBackwardStepInput (int32 step, NnetComputation *computation) const

void	CompileBackwardDescriptor (int32 step, NnetComputation *computation)

void	CompileBackwardSumDescriptor (int32 step, int32 part_index, NnetComputation *computation) const

void	CompileBackwardFromSubmatLocationsList (int32 deriv_submatrix_index, BaseFloat alpha, const std::vector< std::vector< std::pair< int32, int32 > > > &submat_locations, NnetComputation *computation) const

void	CompileBackwardFromSubmatLocations (int32 deriv_submatrix_index, BaseFloat alpha, const std::vector< std::pair< int32, int32 > > &submat_locations, NnetComputation *computation) const

void	CompileBackwardFromIndexes (int32 deriv_submatrix_index, int32 input_deriv_submatrix_index, BaseFloat alpha, const std::vector< int32 > &indexes, NnetComputation *computation) const

void	DeallocateMatrices (const std::vector< int32 > &whole_submatrices, const std::vector< int32 > &step_to_segment, NnetComputation *computation)

void	OutputDebugInfo (NnetComputation *computation) const

void	AddCommands (const std::vector< bool > &deriv_needed, const std::vector< int32 > &step_to_segment, NnetComputation *computation)

Private Attributes
std::vector< const ComputationRequest * >	requests_

const Nnet &	nnet_

ComputationGraph	graph_

std::vector< StepInfo >	steps_

std::vector< std::pair< int32, int32 > >	cindex_id_to_location_
	This maps each cindex_id to its location. More...

Detailed Description

This class creates an initial version of the NnetComputation, without any optimization or sharing of matrices.

Note: for a user-level interface that includes optimization, see class CachingOptimizingCompiler in nnet-optimize.h.

Definition at line 44 of file nnet-compile.h.

Constructor & Destructor Documentation

◆ Compiler() [1/2]

Compiler	(	const ComputationRequest &	request,
		const Nnet &	nnet
	)

Definition at line 29 of file nnet-compile.cc.

References Compiler::requests_.

                      : nnet_(nnet) {
   requests_.push_back(&request);
 }

◆ Compiler() [2/2]

Compiler	(	const std::vector< const ComputationRequest *> &	request,
		const Nnet &	nnet
	)

Definition at line 35 of file nnet-compile.cc.

References rnnlm::i, KALDI_ASSERT, and Compiler::requests_.

                      : requests_(requests), nnet_(nnet) {
   KALDI_ASSERT(requests_.size() >= 1);
   // We are currently not supporting getting model derivatives for multi-segment
   // (online) computations.
   if (requests_.size() != 1) {
     for (size_t i = 0; i < requests_.size(); i++) {
       KALDI_ASSERT(!requests_[i]->need_model_derivative);
       KALDI_ASSERT(requests_[i]->store_component_stats ==
                    requests_[0]->store_component_stats);
     }
   }
 }

Member Function Documentation

◆ AddBackwardStepComponent()

void AddBackwardStepComponent	(	int32	step,
		NnetComputation *	computation
	)		const

private

Definition at line 1149 of file nnet-compile.cc.

References NnetComputation::commands, NetworkNode::component_index, Compiler::StepInfo::deriv, Nnet::GetComponent(), Nnet::GetNode(), KALDI_ASSERT, kaldi::nnet3::kBackprop, kaldi::nnet3::kBackpropNeedsInput, kaldi::nnet3::kBackpropNeedsOutput, kaldi::nnet3::kComponent, kaldi::nnet3::kUpdatableComponent, kaldi::nnet3::kUsesMemo, Compiler::nnet_, NetworkNode::node_type, Component::Properties(), Compiler::steps_, NetworkNode::u, and Compiler::StepInfo::value.

Referenced by Compiler::CompileBackward().

                                                                             {
   KALDI_ASSERT(static_cast<size_t>(step) < steps_.size());
   const StepInfo &step_info = steps_[step];
   int32 input_step = step - 1;
   const StepInfo &input_step_info = steps_[input_step];
   int32 node_index = step_info.node_index;
   const NetworkNode &node = nnet_.GetNode(node_index);
   KALDI_ASSERT(node.node_type == kComponent);
   int32 component_index = node.u.component_index;
   const Component *component = nnet_.GetComponent(component_index);
   int32 properties = component->Properties();

   int32 input_submatrix_index = input_step_info.value,
       output_submatrix_index = step_info.value,
       input_deriv_submatrix_index = input_step_info.deriv,
       output_deriv_submatrix_index = step_info.deriv,
       memo_index = (properties & kUsesMemo ? step : 0);
   KALDI_ASSERT(output_deriv_submatrix_index > 0 &&
                (input_deriv_submatrix_index > 0 ||
                 properties & kUpdatableComponent));

   if (! (properties & kBackpropNeedsInput))
     input_submatrix_index = 0;
   if (! (properties & kBackpropNeedsOutput))
     output_submatrix_index = 0;

   NnetComputation::Command c(kBackprop,
                              component_index,
                              step_info.precomputed_indexes_index,
                              input_submatrix_index,
                              output_submatrix_index,
                              output_deriv_submatrix_index,
                              input_deriv_submatrix_index,
                              memo_index);
   computation->commands.push_back(c);
 }

◆ AddBackwardStepInput()

void AddBackwardStepInput	(	int32	step,
		NnetComputation *	computation
	)		const

private

Definition at line 1131 of file nnet-compile.cc.

References NnetComputation::commands, Nnet::GetNode(), NnetComputation::IsWholeMatrix(), KALDI_ASSERT, kaldi::nnet3::kComponent, kaldi::nnet3::kInput, kaldi::nnet3::kProvideOutput, Compiler::nnet_, and Compiler::steps_.

Referenced by Compiler::CompileBackward().

                                                                         {
   KALDI_ASSERT(static_cast<size_t>(step) < steps_.size());
   const StepInfo &step_info = steps_[step];
   int32 node_index = step_info.node_index,
       deriv_submatrix_index = step_info.deriv;
   if (deriv_submatrix_index == 0)
     return;  // Nothing to do.
   KALDI_ASSERT(computation->IsWholeMatrix(deriv_submatrix_index));
   const NetworkNode &node = nnet_.GetNode(node_index);
   // actually, currently the node type would always be kInput.
   KALDI_ASSERT(node.node_type == kInput || node.node_type == kComponent);

   NnetComputation::Command c(kProvideOutput, deriv_submatrix_index, node_index);
   computation->commands.push_back(c);
 }

◆ AddCommands()

void AddCommands	(	const std::vector< bool > &	deriv_needed,
		const std::vector< int32 > &	step_to_segment,
		NnetComputation *	computation
	)

private

Definition at line 107 of file nnet-compile.cc.

References Compiler::AllocateMatrices(), NnetComputation::commands, Compiler::CompileBackward(), Compiler::CompileForward(), Compiler::DeallocateMatrices(), NnetComputation::GetWholeSubmatrices(), kaldi::nnet3::kNoOperationMarker, NnetComputation::matrices, NnetComputation::need_model_derivative, Compiler::requests_, Compiler::SetUpPrecomputedIndexes(), and Compiler::steps_.

Referenced by Compiler::CreateComputation().

                                                          {
   computation->need_model_derivative = requests_[0]->need_model_derivative;
   int32 arbitrary_factor = 8;
   computation->commands.reserve(computation->matrices.size()
                                 * arbitrary_factor);

   std::vector<int32> whole_submatrices;
   computation->GetWholeSubmatrices(&whole_submatrices);
   AllocateMatrices(whole_submatrices, computation);
   SetUpPrecomputedIndexes(step_to_segment, computation);
   int32 num_steps = steps_.size();
   for (int32 step = 0; step < num_steps; step++) {
     CompileForward(step, computation);
     if (step + 1 < static_cast<int32>(step_to_segment.size()) &&
         step_to_segment[step + 1] != step_to_segment[step]) {
       // insert a marker that separates segments of the computation.
       computation->commands.push_back(
           NnetComputation::Command(kNoOperationMarker));
     }
   }

   // mark the end of the forward phase.
   computation->commands.push_back(
       NnetComputation::Command(kNoOperationMarker));

   for (int32 step = num_steps - 1; step >= 0; step--)
     if (deriv_needed[step])
       CompileBackward(step, computation);

   DeallocateMatrices(whole_submatrices, step_to_segment, computation);
 }

◆ AddForwardStepComponent()

void AddForwardStepComponent	(	int32	step,
		NnetComputation *	computation
	)		const

private

Definition at line 1097 of file nnet-compile.cc.

References NnetComputation::commands, NetworkNode::component_index, Nnet::GetComponent(), Nnet::GetNode(), KALDI_ASSERT, kaldi::nnet3::kComponent, kaldi::nnet3::kPropagate, kaldi::nnet3::kStoresStats, kaldi::nnet3::kUsesMemo, Compiler::nnet_, NetworkNode::node_type, Component::Properties(), Compiler::requests_, Compiler::steps_, NetworkNode::u, and Compiler::StepInfo::value.

Referenced by Compiler::CompileForward().

                                                                            {
   KALDI_ASSERT(static_cast<size_t>(step) < steps_.size());
   const StepInfo &step_info = steps_[step];
   int32 input_step = step - 1;
   const StepInfo &input_step_info = steps_[input_step];
   int32 node_index = step_info.node_index;
   const NetworkNode &node = nnet_.GetNode(node_index);
   KALDI_ASSERT(node.node_type == kComponent);
   int32 component_index = node.u.component_index;
   const Component *component = nnet_.GetComponent(component_index);

   // note RE memo_index: we'll renumber them in optimization to get rid of gaps.
   // The use of 'step' as the memo index is OK because step > 0 if we're doing
   // forward propagation, there must be preceding steps for inputs or for
   // component-input nodes).
   int32 properties = component->Properties(),
       input_submatrix_index = input_step_info.value,
       output_submatrix_index = step_info.value,
       memo_index = (step_info.deriv > 0 && (properties & kUsesMemo) ? step : 0),
       store_stats = (requests_[0]->store_component_stats &&
                      (properties & kStoresStats) ?  1 : 0);

   NnetComputation::Command c(kPropagate,
                              component_index,
                              step_info.precomputed_indexes_index,
                              input_submatrix_index,
                              output_submatrix_index,
                              memo_index,
                              store_stats);
   computation->commands.push_back(c);
 }

◆ AddForwardStepInput()

void AddForwardStepInput	(	int32	step,
		NnetComputation *	computation
	)		const

private

Definition at line 1080 of file nnet-compile.cc.

References NnetComputation::commands, Nnet::GetNode(), NnetComputation::IsWholeMatrix(), kaldi::nnet3::kAcceptInput, KALDI_ASSERT, kaldi::nnet3::kComponent, kaldi::nnet3::kInput, Compiler::nnet_, and Compiler::steps_.

Referenced by Compiler::CompileForward().

                                                                        {
   KALDI_ASSERT(static_cast<size_t>(step) < steps_.size());
   const StepInfo &step_info = steps_[step];
   int32 node_index = step_info.node_index,
       submatrix_index = step_info.value;
   KALDI_ASSERT(computation->IsWholeMatrix(submatrix_index));

   const NetworkNode &node = nnet_.GetNode(node_index);
   // actually currently the node type would always be kInput.
   KALDI_ASSERT(node.node_type == kInput || node.node_type == kComponent);

   NnetComputation::Command c(kAcceptInput, submatrix_index, node_index);
   computation->commands.push_back(c);
 }

◆ AllocateMatrices()

void AllocateMatrices	(	const std::vector< int32 > &	whole_submatrices,
		NnetComputation *	computation
	)		const

private

Definition at line 1189 of file nnet-compile.cc.

References NnetComputation::commands, Compiler::StepInfo::deriv, Compiler::graph_, ComputationGraph::is_input, Nnet::IsOutputNode(), KALDI_ASSERT, kaldi::nnet3::kAllocMatrix, kaldi::nnet3::kSetConst, NnetComputation::matrices, Compiler::nnet_, Compiler::StepInfo::node_index, Compiler::StepInfo::output_cindex_ids, Compiler::steps_, NnetComputation::submatrices, and Compiler::StepInfo::value.

Referenced by Compiler::AddCommands().

                                                                     {
   KALDI_ASSERT(computation->commands.empty());
   // Work out which matrices are inputs to the computation (or output-derivs,
   // which are also supplied as inputs to the computation); we won't be setting
   // these up.
   unordered_set<int32> input_and_oderiv_matrices;
   int32 num_steps = steps_.size();
   for (int32 step = 0; step < num_steps; step++) {
     const StepInfo &this_info = steps_[step];
     if (this_info.output_cindex_ids.empty())
       continue;
     int32 first_cindex_id = this_info.output_cindex_ids.front(),
         node_index = this_info.node_index;
     bool is_input = graph_.is_input[first_cindex_id],
         is_output = nnet_.IsOutputNode(node_index);
     if (is_input) {
       int32 value_submatrix_index = this_info.value,
           value_matrix_index =
           computation->submatrices[value_submatrix_index].matrix_index;
       input_and_oderiv_matrices.insert(value_matrix_index);
     }
     if (is_output && this_info.deriv != 0) {
       int32 deriv_submatrix_index = this_info.deriv,
           deriv_matrix_index =
           computation->submatrices[deriv_submatrix_index].matrix_index;
       input_and_oderiv_matrices.insert(deriv_matrix_index);
     }
   }

   int32 num_matrices = computation->matrices.size();
   for (int32 m = 1; m < num_matrices; m++) {
     // We don't set up the matrices that are inputs to the computation;
     // this happens when the user provides the input.
     if (input_and_oderiv_matrices.count(m) == 0) {
       // get a submatrix index that refers to the entire matrix.
       int32 submatrix_index = whole_submatrices[m];

       computation->commands.push_back(
           NnetComputation::Command(kAllocMatrix, submatrix_index));
       // Later in the optimization phase, it turns out that zeroing is not
       // necessary for some matrices, we'll remove the redundant kSetConst
       // commands.
       computation->commands.push_back(
           NnetComputation::Command(0.0, kSetConst, submatrix_index));
     }
   }
 }

◆ CompileBackward()

void CompileBackward	(	int32	step,
		NnetComputation *	computation
	)

private

Definition at line 1050 of file nnet-compile.cc.

References Compiler::AddBackwardStepComponent(), Compiler::AddBackwardStepInput(), NnetComputation::commands, Compiler::CompileBackwardDescriptor(), Nnet::GetNode(), Compiler::IsInputStep(), KALDI_ASSERT, KALDI_ERR, kaldi::nnet3::kComponent, kaldi::nnet3::kDescriptor, kaldi::nnet3::kDimRange, kaldi::nnet3::kInput, kaldi::nnet3::kNoOperationPermanent, Compiler::nnet_, Compiler::StepInfo::node_index, NetworkNode::node_type, and Compiler::steps_.

Referenced by Compiler::AddCommands().

                                                                    {
   KALDI_ASSERT(step < static_cast<int32>(steps_.size()));
   const StepInfo &step_info = steps_[step];
   int32 node_index = step_info.node_index;
   const NetworkNode &node = nnet_.GetNode(node_index);

   switch (node.node_type) {
     case kInput:
       AddBackwardStepInput(step, computation);
       if (!IsInputStep(step + 1))  // Make sure backward computation is nonempty.
         computation->commands.push_back(
             NnetComputation::Command(kNoOperationPermanent));
       break;
     case kDimRange:
       break;  // Nothing to do.
     case kComponent:
       AddBackwardStepComponent(step, computation);
       break;
     case kDescriptor:
       CompileBackwardDescriptor(step, computation);
       break;
     default:
       KALDI_ERR << "Invalid node type";
   }
 }

◆ CompileBackwardDescriptor()

void CompileBackwardDescriptor	(	int32	step,
		NnetComputation *	computation
	)

private

Definition at line 1029 of file nnet-compile.cc.

References NnetComputation::commands, Compiler::CompileBackwardSumDescriptor(), Compiler::StepInfo::deriv, Nnet::IsOutputNode(), NnetComputation::IsWholeMatrix(), kaldi::nnet3::kAcceptInput, KALDI_ASSERT, Compiler::nnet_, Compiler::StepInfo::node_index, Compiler::steps_, and Compiler::StepInfo::value_parts.

Referenced by Compiler::CompileBackward().

                                               {
   StepInfo &step_info = steps_[step];
   if (nnet_.IsOutputNode(step_info.node_index) &&
       step_info.deriv > 0) {
     int32 deriv_submatrix_index = step_info.deriv;
     KALDI_ASSERT(computation->IsWholeMatrix(deriv_submatrix_index));
     NnetComputation::Command c(kAcceptInput, deriv_submatrix_index,
                                step_info.node_index);
     computation->commands.push_back(c);
   }

   // the top-level descriptor has a bunch of parts that we concatenate features
   // over.
   int32 num_parts = step_info.value_parts.size();
   for (int32 part = 0; part < num_parts; part++)
     CompileBackwardSumDescriptor(step, part,
                                        computation);
 }

◆ CompileBackwardFromIndexes()

void CompileBackwardFromIndexes	(	int32	deriv_submatrix_index,
		int32	input_deriv_submatrix_index,
		BaseFloat	alpha,
		const std::vector< int32 > &	indexes,
		NnetComputation *	computation
	)		const

private

Definition at line 939 of file nnet-compile.cc.

References NnetComputation::commands, kaldi::nnet3::HasContiguousProperty(), rnnlm::i, NnetComputation::indexes, NnetComputation::indexes_ranges, kaldi::nnet3::kAddRowRanges, kaldi::nnet3::kAddRows, KALDI_ASSERT, KALDI_ERR, kaldi::nnet3::kMatrixAdd, and NnetComputation::submatrices.

Referenced by Compiler::CompileBackwardFromSubmatLocations().

                                         {

   int32 num_rows = computation->submatrices[deriv_submatrix_index].num_rows,
       input_num_rows =
       computation->submatrices[input_deriv_submatrix_index].num_rows;
   KALDI_ASSERT(indexes.size() == num_rows);
   if (input_num_rows == num_rows) {
     int32 i;
     for (i = 0; i < num_rows; i++)
       if (indexes[i] != i)
         break;
     if (i == num_rows) {  // Simplest case: just matrix addition.
         computation->commands.push_back(
             NnetComputation::Command(alpha,
                                      kMatrixAdd,
                                      input_deriv_submatrix_index,
                                      deriv_submatrix_index));

       return;
     }
   }
   if (input_num_rows >= num_rows) {
     // If there are no repeated elements in the "indexes" array, we can reverse
     // the mapping and make it an operation of type kAddRows.  TODO: change this
     // to use kAddToRows, kCopyToRows, when implemented (will be more
     // efficient).
     std::vector<int32> reverse_indexes(input_num_rows, -1);
     int32 i;
     for (i = 0; i < num_rows; i++) {
       int32 index_i = indexes[i];
       KALDI_ASSERT(index_i >= -1 && index_i < input_num_rows);
       if (index_i >= 0) {
         if (reverse_indexes[index_i] == -1)
           reverse_indexes[index_i] = i;
         else
           break;
       }  // note: there may be -1's in 'indexes', meaning just use zero.
     }
     if (i == num_rows) {
       // There were no repeated elements, and this strategy will work.
       int32 indexes_index = computation->indexes.size();
       computation->indexes.push_back(reverse_indexes);
         computation->commands.push_back(
             NnetComputation::Command(alpha,
                                      kAddRows,
                                      input_deriv_submatrix_index,
                                      deriv_submatrix_index,
                                      indexes_index));
         return;
     }
   }
   std::vector<std::pair<int32, int32> > ranges;
   if (HasContiguousProperty(indexes, &ranges)) {
     // the operation can be set up as AddRowRanges.
     if (static_cast<int32>(ranges.size()) != input_num_rows) {
       KALDI_ASSERT(static_cast<int32>(ranges.size()) < input_num_rows);
       // extend with (-1, -1) pairs.
       ranges.resize(input_num_rows, std::pair<int32,int32>(-1, -1));
     }
     int32 indexes_ranges_index = computation->indexes_ranges.size();
     computation->indexes_ranges.push_back(ranges);
     computation->commands.push_back(
         NnetComputation::Command(alpha,
                                  kAddRowRanges,
                                  input_deriv_submatrix_index,
                                  deriv_submatrix_index,
                                  indexes_ranges_index));
     // TODO: if any of these ranges are quite long (summing over many rows), the
     // resulting code could be inefficient because the AddRowRanges kernels
     // takes time linear in the length of the range.  Using a temporary matrix
     // with an intermediate size would make this more efficient in that case, so
     // the one command would be two commands (plus commands to set up and
     // destroy the temporary matrix).
     return;
   }

   // If you ever reach here, it means someone has used a type of network that we
   // don't yet support in the backprop.  Basically this case can be handled by
   // creating a temporary matrix to reorder the matrix at deriv_submatrix_index,
   // (using CopyRows), and doing AddRowRanges from that.
   // It wouldn't be too much work.
   KALDI_ERR << "This case not implemented yet.";
 }

◆ CompileBackwardFromSubmatLocations()

void CompileBackwardFromSubmatLocations	(	int32	deriv_submatrix_index,
		BaseFloat	alpha,
		const std::vector< std::pair< int32, int32 > > &	submat_locations,
		NnetComputation *	computation
	)		const

private

Definition at line 887 of file nnet-compile.cc.

References NnetComputation::commands, Compiler::CompileBackwardFromIndexes(), kaldi::nnet3::ConvertToIndexes(), NnetComputation::indexes_multi, kaldi::IsSortedAndUniq(), kaldi::nnet3::kAddToRowsMulti, and KALDI_ERR.

Referenced by Compiler::CompileBackwardFromSubmatLocationsList().

                                         {
   // This function creates a command to handle an individual piece of the
   // Descriptor, for backprop.  Note: because the backprop case is a little
   // trickier to implement efficiently on the GPU, there may be cases
   // which we will refuse to implement backprop for if we get here.



   int32 first_value;
   std::vector<int32> second_values;
   if (ConvertToIndexes(submat_locations, &first_value,
                        &second_values)) {
     int32 input_deriv_submatrix_index = first_value;
     CompileBackwardFromIndexes(deriv_submatrix_index,
                                input_deriv_submatrix_index,
                                alpha,
                                second_values,
                                computation);
     return;
   } else {
     // There are multiple source matrices.
     std::vector<std::pair<int32, int32> > submat_locations_sorted;
     std::sort(submat_locations_sorted.begin(), submat_locations_sorted.end());
     if (IsSortedAndUniq(submat_locations_sorted)) {
       // There are no repeats in any of the submat locations.  This means that
       // we can just use kAddToRowsMulti (i.e. AddToRows with pointer
       // destination).  If there were repeats, the CUDA kernel would require
       // special synchronization so we don't allow it.
       int32 indexes_multi_index = computation->indexes_multi.size();
       computation->indexes_multi.push_back(submat_locations);
       computation->commands.push_back(
           NnetComputation::Command(alpha,
                                    kAddToRowsMulti,
                                    deriv_submatrix_index,
                                    indexes_multi_index));
       return;
     }
     // If you reach this point, there is a case that wasn't handled.  Our
     // intended strategy to handle it, if it's ever needed, is to create a
     // temporary matrix consisting of all the unique submat_locations in the
     // input.  We would first recurse to CompileBackwardFromIndexes, and
     // let it write to this temporary matrix; and then do the kAddToRowsMulti
     // command as above to go from the temporary matrix to the multiple
     // matrices.
     KALDI_ERR << "This case not handled.";
   }
 }

◆ CompileBackwardFromSubmatLocationsList()

void CompileBackwardFromSubmatLocationsList	(	int32	deriv_submatrix_index,
		BaseFloat	alpha,
		const std::vector< std::vector< std::pair< int32, int32 > > > &	submat_locations,
		NnetComputation *	computation
	)		const

private

Definition at line 818 of file nnet-compile.cc.

References Compiler::CompileBackwardFromSubmatLocations(), rnnlm::i, and kaldi::nnet3::SplitLocationsBackward().

Referenced by Compiler::CompileBackwardSumDescriptor().

                                         {
   std::vector<std::vector<std::pair<int32, int32> > > split_lists;
   SplitLocationsBackward(submat_lists, &split_lists);
   int32 size = split_lists.size();  // size may be zero e.g. for unused outputs.
   for (int32 i = 0; i < size; i++)
     CompileBackwardFromSubmatLocations(
         deriv_submatrix_index,
         alpha,
         split_lists[i],
         computation);
 }

◆ CompileBackwardSumDescriptor()

void CompileBackwardSumDescriptor	(	int32	step,
		int32	part_index,
		NnetComputation *	computation
	)		const

private

Definition at line 835 of file nnet-compile.cc.

References Compiler::CompileBackwardFromSubmatLocationsList(), Compiler::ComputeDerivSubmatLocationsList(), Compiler::StepInfo::deriv_parts, NetworkNode::descriptor, Nnet::GetNode(), rnnlm::i, Compiler::StepInfo::input_locations_list, KALDI_ASSERT, Compiler::nnet_, Compiler::StepInfo::node_index, Descriptor::Part(), Compiler::SplitByScale(), and Compiler::steps_.

Referenced by Compiler::CompileBackwardDescriptor().

                                                                       {
   const StepInfo &step_info = steps_[step];
   int32 deriv_submatrix_index = step_info.deriv_parts[part_index];
   KALDI_ASSERT(deriv_submatrix_index > 0);  // or should not have called this.
   const SumDescriptor &descriptor =
       nnet_.GetNode(step_info.node_index).descriptor.Part(part_index);
   // Note: `offset_term` appeared in the forward computation here but does not
   // come into the backward computation.

   // `input_locations_list` is a vector indexed by row-index, with each element
   // being a list of pairs (step, row_index) representing terms in a weighted
   // sum.
   const std::vector<std::vector<std::pair<int32,int32> > >
       &input_locations_list = step_info.input_locations_list[part_index];

   // `split_locations_lists` is a vector of pairs `(alpha, locations_list)`
   // where alpha is the scale in which these items appear in the
   // summation and `locations_list` is the same format as `input_locations_list`
   std::vector<std::pair<BaseFloat,
    std::vector<std::vector<std::pair<int32,int32> > > > > split_locations_lists;
   BaseFloat shared_alpha = SplitByScale(descriptor, input_locations_list,
                                  &split_locations_lists);
   if (shared_alpha - shared_alpha == 0.0) {
     // If the returned value 'shared_alpha' is finite, this indicates that there
     // was no need to split up 'input_locations_list' because all the alpha
     // values (scales) were the same.  We treat this case specially for
     // efficiency reasons; this branch will be the most common branch.
     std::vector<std::vector<std::pair<int32, int32> > > submat_locations_list;
     ComputeDerivSubmatLocationsList(input_locations_list,
                                     &submat_locations_list);
     CompileBackwardFromSubmatLocationsList(deriv_submatrix_index,
                                            shared_alpha,
                                            submat_locations_list,
                                            computation);
   } else {
     for (size_t i = 0; i < split_locations_lists.size(); i++) {
       BaseFloat this_alpha = split_locations_lists[i].first;
       KALDI_ASSERT(this_alpha - this_alpha == 0.0);
       std::vector<std::vector<std::pair<int32, int32> > > submat_locations_list;
       ComputeDerivSubmatLocationsList(split_locations_lists[i].second,
                                       &submat_locations_list);
       CompileBackwardFromSubmatLocationsList(deriv_submatrix_index,
                                              this_alpha,
                                              submat_locations_list,
                                              computation);
     }
   }
 }

◆ CompileForward()

void CompileForward	(	int32	step,
		NnetComputation *	computation
	)		const

private

Definition at line 406 of file nnet-compile.cc.

References Compiler::AddForwardStepComponent(), Compiler::AddForwardStepInput(), NnetComputation::commands, Compiler::CompileForwardDescriptor(), Nnet::GetNode(), Compiler::IsInputStep(), KALDI_ASSERT, KALDI_ERR, kaldi::nnet3::kComponent, kaldi::nnet3::kDescriptor, kaldi::nnet3::kDimRange, kaldi::nnet3::kInput, kaldi::nnet3::kNoOperationPermanent, Compiler::nnet_, Compiler::StepInfo::node_index, NetworkNode::node_type, and Compiler::steps_.

Referenced by Compiler::AddCommands().

                                                                         {
   KALDI_ASSERT(step < static_cast<int32>(steps_.size()));
   const StepInfo &step_info = steps_[step];
   const NetworkNode &node = nnet_.GetNode(step_info.node_index);
   switch (node.node_type) {
     case kInput:  // Note: input nodes appear before other node types.
       AddForwardStepInput(step, computation);
       if (!IsInputStep(step + 1))  // Make sure forward computation is nonempty.
         computation->commands.push_back(
             NnetComputation::Command(kNoOperationPermanent));
       break;
     case kDimRange: break;  // Nothing to do.
     case kComponent:
       AddForwardStepComponent(step, computation);
       break;
     case kDescriptor:
       CompileForwardDescriptor(step, computation);
       break;
     default:
       KALDI_ERR << "Invalid node type";
   }

 }

◆ CompileForwardDescriptor()

void CompileForwardDescriptor	(	int32	step,
		NnetComputation *	computation
	)		const

private

Definition at line 432 of file nnet-compile.cc.

References NnetComputation::commands, Compiler::CompileForwardSumDescriptor(), Nnet::IsOutputNode(), NnetComputation::IsWholeMatrix(), KALDI_ASSERT, kaldi::nnet3::kProvideOutput, Compiler::nnet_, Compiler::StepInfo::node_index, Compiler::steps_, and Compiler::StepInfo::value.

Referenced by Compiler::CompileForward().

                                                     {
   int32 num_parts = steps_[step].value_parts.size();
   for (int32 part = 0; part < num_parts; part++)
     CompileForwardSumDescriptor(step, part, computation);
   const StepInfo &step_info = steps_[step];
   if (nnet_.IsOutputNode(step_info.node_index)) {
     // If the node is an output then we need to add commands to provide the
     // output to the user, and possibly to get derivatives w.r.t. the output
     // from the user.
     int32 node_index = step_info.node_index,
         submatrix_index = step_info.value;
     KALDI_ASSERT(computation->IsWholeMatrix(submatrix_index));
     NnetComputation::Command c(kProvideOutput, submatrix_index, node_index);
     computation->commands.push_back(c);
   }
 }

◆ CompileForwardFromIndexes()

void CompileForwardFromIndexes	(	int32	value_submatrix_index,
		int32	input_submatrix_index,
		BaseFloat	alpha,
		const std::vector< int32 > &	indexes,
		NnetComputation *	computation
	)		const

private

Adds to `computation` a command that adds to the submatrix in `value_submatrix_index` a quantity consisting of alpha times the submatrix in `input_submatrix_index`, with a row mapping given by `indexes`.

Definition at line 738 of file nnet-compile.cc.

References NnetComputation::commands, rnnlm::i, NnetComputation::indexes, kaldi::nnet3::kAddRows, kaldi::nnet3::kMatrixAdd, and NnetComputation::submatrices.

Referenced by Compiler::CompileForwardFromSubmatLocations().

                                         {

   int32 input_num_rows =
       computation->submatrices[input_submatrix_index].num_rows,
       num_rows = indexes.size();
   if (input_num_rows == num_rows) {
     int32 i;
     for (i = 0; i < num_rows; i++)
       if (indexes[i] != i)
         break;
     if (i == num_rows) {  // Simplest case: just matrix addition.
       computation->commands.push_back(
           NnetComputation::Command(alpha, kMatrixAdd,
                                    value_submatrix_index,
                                    input_submatrix_index));

       return;
     }
   }
   // if we got to here, it's not just a case of matrix-copy or matrix-add,
   // but it's still from a single source matrix.
   int32 indexes_index = computation->indexes.size();
   computation->indexes.push_back(indexes);
   computation->commands.push_back(
       NnetComputation::Command(alpha, kAddRows, value_submatrix_index,
                                input_submatrix_index, indexes_index));
   return;
 }

◆ CompileForwardFromSubmatLocations()

void CompileForwardFromSubmatLocations	(	int32	value_submatrix_index,
		BaseFloat	alpha,
		const std::vector< std::pair< int32, int32 > > &	submat_locations,
		NnetComputation *	computation
	)		const

private

Adds to 'computation' commands for part of the forward computation corresponding to a Descriptor.

This is called from CompileForwardFromSubmatLocationsList.

Parameters

[in]	value_submatrix_index	The submatrix index of the quanitity we are computing (part of a Descriptor; it's something like Sum(tdnn1, tdnn2) in general).
[in]	alpha	The scale (1.0 unless Scale(...) expressions are involved in descriptors) with which these terms are present in the summation.
[in]	submat_locations	Indexed by the row index corresponding to the rows of the submatrix referred to by 'value_submatrix_index', this reprenents the source vector which we are adding to this row, in the format (submatrix-index, row-index), or (-1, -1) if in this case there is nothing to add.
[in,out]	computation	The computation which we are adding commands to.

Definition at line 772 of file nnet-compile.cc.

References NnetComputation::commands, Compiler::CompileForwardFromIndexes(), kaldi::nnet3::ConvertToIndexes(), NnetComputation::indexes_multi, and kaldi::nnet3::kAddRowsMulti.

Referenced by Compiler::CompileForwardFromSubmatLocationsList().

                                         {

   int32 input_submatrix_index = -1;
   std::vector<int32> indexes;
   if (ConvertToIndexes(submat_locations, &input_submatrix_index, &indexes)) {
     CompileForwardFromIndexes(value_submatrix_index,
                               input_submatrix_index,
                               alpha,
                               indexes,
                               computation);
     return;
   } else {
     // There are multiple source matrices.
     int32 indexes_multi_index = computation->indexes_multi.size();
     computation->indexes_multi.push_back(submat_locations);
     computation->commands.push_back(
         NnetComputation::Command(alpha, kAddRowsMulti,
                                  value_submatrix_index,
                                  indexes_multi_index));
     return;
   }
 }

◆ CompileForwardFromSubmatLocationsList()

void CompileForwardFromSubmatLocationsList	(	int32	value_submatrix_index,
		BaseFloat	alpha,
		const std::vector< std::vector< std::pair< int32, int32 > > > &	submat_locations,
		NnetComputation *	computation
	)		const

private

Adds to 'computation' commands for part of the forward computation corresponding to a Descriptor.

This is called from CompileForwardSumDescriptor.

Parameters

[in]	value_submatrix_index	The submatrix index of the quanitity we are computing (part of a Descriptor; it's something like Sum(tdnn1, tdnn2) in general).
[in]	alpha	The scale (1.0 unless Scale(...) expressions are involved in descriptors) with which these terms are present in the summation.
[in]	submat_locations	Indexed by the row index of the submatrix referred to by 'value_submatrix_index', each element is a list of sources over which we must sum to obtain that row. Each source is a pair (submatrix-index, row-index).

Definition at line 799 of file nnet-compile.cc.

References Compiler::CompileForwardFromSubmatLocations(), rnnlm::i, and kaldi::nnet3::SplitLocations().

Referenced by Compiler::CompileForwardSumDescriptor().

                                         {
   std::vector<std::vector<std::pair<int32, int32> > > split_lists;
   SplitLocations(submat_lists, &split_lists);
   int32 size = split_lists.size();
   // note: `size` may be empty in unusual cases so don't assert that it's
   // nonzero.
   for (int32 i = 0; i < size; i++)
     CompileForwardFromSubmatLocations(
         value_submatrix_index,
         alpha,
         split_lists[i],
         computation);
 }

◆ CompileForwardSumDescriptor()

void CompileForwardSumDescriptor	(	int32	step,
		int32	part_index,
		NnetComputation *	computation
	)		const

private

Definition at line 676 of file nnet-compile.cc.

References NnetComputation::commands, Compiler::CompileForwardFromSubmatLocationsList(), Compiler::ComputeValueSubmatLocationsList(), NetworkNode::descriptor, Nnet::GetNode(), SumDescriptor::GetScaleForNode(), rnnlm::i, Compiler::StepInfo::input_locations_list, KALDI_ASSERT, kaldi::nnet3::kSetConst, Compiler::nnet_, Compiler::StepInfo::node_index, Descriptor::Part(), Compiler::SplitByScale(), Compiler::steps_, and Compiler::StepInfo::value_parts.

Referenced by Compiler::CompileForwardDescriptor().

                                                                       {
   const StepInfo &step_info = steps_[step];
   int32 value_submatrix_index = step_info.value_parts[part_index];
   const SumDescriptor &descriptor =
       nnet_.GetNode(step_info.node_index).descriptor.Part(part_index);

   BaseFloat offset_term = descriptor.GetScaleForNode(-1);
   if (offset_term != 0.0) {
     computation->commands.push_back(
         NnetComputation::Command(offset_term, kSetConst,
                                  value_submatrix_index));
     // if offset_term == 0.0 there's no need to do this, because
     // we zeroed the matrix when we allocated it; search in this
     // file for kSetConst to see the code.  If we are redundantly
     // setting the value, this will later be optimized out (in the
     // common cases).
   }


   // `input_locations_list` is a vector indexed by row-index, with each element
   // being a list of pairs (step, row_index) representing terms in a weighted
   // sum.
   const std::vector<std::vector<std::pair<int32,int32> > >
       &input_locations_list = step_info.input_locations_list[part_index];

   // `split_locations_lists` is a vector of pairs `(alpha, locations_list)`
   // where alpha is the scale in which these items appear in the
   // summation and `locations_list` is the same format as `input_locations_list`
   std::vector<std::pair<BaseFloat,
    std::vector<std::vector<std::pair<int32,int32> > > > > split_locations_lists;
   BaseFloat shared_alpha = SplitByScale(descriptor, input_locations_list,
                                  &split_locations_lists);
   if (shared_alpha - shared_alpha == 0.0) {
     // If the returned value 'shared_alpha' is finite, this indicates that there was no
     // need to split up 'input_locations_list' because all the alpha values
     // (scales) were the same.  We treat this case specially for efficiency
     // reasons; this branch will be the most common branch.
     std::vector<std::vector<std::pair<int32, int32> > > submat_locations_list;
     ComputeValueSubmatLocationsList(input_locations_list,
                                     &submat_locations_list);
     CompileForwardFromSubmatLocationsList(
         value_submatrix_index,
         shared_alpha,
         submat_locations_list,
         computation);
   } else {
     for (size_t i = 0; i < split_locations_lists.size(); i++) {
       BaseFloat this_alpha = split_locations_lists[i].first;
       KALDI_ASSERT(this_alpha - this_alpha == 0.0);
       std::vector<std::vector<std::pair<int32, int32> > > submat_locations_list;
       ComputeValueSubmatLocationsList(split_locations_lists[i].second,
                                       &submat_locations_list);
       CompileForwardFromSubmatLocationsList(
         value_submatrix_index,
         this_alpha,
         submat_locations_list,
         computation);
     }
   }
 }

◆ ComputeDerivNeeded()

void ComputeDerivNeeded	(	const std::vector< std::vector< int32 > > &	steps,
		const std::vector< int32 > &	step_to_segment,
		std::vector< bool > *	deriv_needed
	)

private

Definition at line 176 of file nnet-compile.cc.

References ComputationGraph::cindexes, NetworkNode::component_index, Compiler::ComputeStepDependencies(), Nnet::GetComponent(), Nnet::GetNode(), Nnet::GetNodeNames(), kaldi::GetVerboseLevel(), Compiler::graph_, rnnlm::i, ComputationRequest::IndexForInput(), ComputationRequest::IndexForOutput(), ComputationRequest::inputs, ComputationGraph::is_input, Nnet::IsComponentNode(), Nnet::IsOutputNode(), KALDI_ASSERT, KALDI_VLOG, kaldi::nnet3::kUpdatableComponent, UpdatableComponent::LearningRate(), ComputationRequest::need_model_derivative, Compiler::nnet_, ComputationRequest::outputs, Component::Properties(), Compiler::requests_, and NetworkNode::u.

Referenced by Compiler::CreateComputation().

                                    {
   KALDI_ASSERT(steps.size() == step_to_segment.size() &&
                step_to_segment[0] == 0 &&
                step_to_segment.back() + 1 == requests_.size());
   deriv_needed->clear();
   int32 num_steps = steps.size();
   deriv_needed->resize(num_steps, false);

   for (int32 step = 0; step < num_steps; step++) {
     const std::vector<int32> &this_step = steps[step];
     if (this_step.empty())  // empty steps are theoretically possible, e.g.
       continue;             // if a non-simple Component requires no input.
     int32 cindex_id = this_step[0];
     int32 node_index = graph_.cindexes[cindex_id].first;
     bool is_input = graph_.is_input[cindex_id];

     std::string node_name = nnet_.GetNodeNames()[node_index];
     unordered_set<int32> input_steps;
     ComputeStepDependencies(this_step, step, &input_steps);

     unordered_set<int32>::iterator iter = input_steps.begin(),
         end = input_steps.end();
     // if some step that we depend on needs a derivative, we need the derivative.
     for (; iter != end; ++iter) {
       int32 dep_step = *iter;
       KALDI_ASSERT(dep_step < step);
       if ((*deriv_needed)[dep_step])
         (*deriv_needed)[step] = true;
     }
     // if this step is an input and the user requested the derivative w.r.t. that
     // input, we need the derivative.
     const ComputationRequest &request = *(requests_[step_to_segment[step]]);

     if (is_input) {
       int32 input_index = request.IndexForInput(node_name);
       KALDI_ASSERT(input_index != -1);
       if (request.inputs[input_index].has_deriv)
         (*deriv_needed)[step] = true;
     }
     // if this step is an output and the user is providing the derivative w.r.t. that
     // output, we need a place to store the derivative, so we set (*deriv_needed) to
     // true.
     if (nnet_.IsOutputNode(node_index)) {
       int32 output_index = request.IndexForOutput(node_name);
       KALDI_ASSERT(output_index != -1);
       if (request.outputs[output_index].has_deriv)
         (*deriv_needed)[step] = true;
     }

     // If this is an updatable Component node with a nonzero learning rate and
     // the user requested model derivatives (e.g. during training), we need this
     // step's derivative.
     if (nnet_.IsComponentNode(node_index) && request.need_model_derivative) {
       const NetworkNode &node = nnet_.GetNode(node_index);
       const Component *c = nnet_.GetComponent(node.u.component_index);
       if (c->Properties() & kUpdatableComponent) {
         const UpdatableComponent *u = dynamic_cast<const UpdatableComponent*>(c);
         KALDI_ASSERT(u != NULL);
         if (u->LearningRate() != 0)
           (*deriv_needed)[step] = true;
       }
     }
   }
   if (GetVerboseLevel() >= 5) {
     std::ostringstream os;
     os << "deriv_needed = ";
     for (int32 i = 0; i < deriv_needed->size(); i++)
       os << ((*deriv_needed)[i] ? "t" : "f");
     os << "\n";
     KALDI_VLOG(5) << os.str();
   }
 }

◆ ComputeDerivSubmatLocationsList()

void ComputeDerivSubmatLocationsList	(	const std::vector< std::vector< std::pair< int32, int32 > > > &	input_locations_list,
		std::vector< std::vector< std::pair< int32, int32 > > > *	submat_locations_list
	)		const

private

Definition at line 531 of file nnet-compile.cc.

References rnnlm::i, and Compiler::steps_.

Referenced by Compiler::CompileBackwardSumDescriptor().

           {
   submat_locations_list->clear();
   submat_locations_list->resize(input_locations_list.size());
   int32 size = submat_locations_list->size();
   for (int32 i = 0; i < size; i++) {
     const std::vector<std::pair<int32, int32> > &this_list = input_locations_list[i];
     std::vector<std::pair<int32, int32> > &this_submat_list = (*submat_locations_list)[i];
     this_submat_list.reserve(this_list.size());
     std::vector<std::pair<int32, int32> >::const_iterator
         input_iter = this_list.begin(), input_end = this_list.end();
     for (; input_iter != input_end; ++input_iter) {
       int32 step = input_iter->first,
           deriv_submat_index = steps_[step].deriv,
           row = input_iter->second;
       if (deriv_submat_index > 0)
         this_submat_list.push_back(std::pair<int32,int32>(deriv_submat_index,
                                                           row));
     }
   }
 }

◆ ComputeInputLocationsList()

void ComputeInputLocationsList	(	int32	step,
		int32	part_index,
		std::vector< std::vector< std::pair< int32, int32 > > > *	input_locations
	)		const

private

Definition at line 457 of file nnet-compile.cc.

References Compiler::cindex_id_to_location_, NetworkNode::descriptor, ComputationGraph::GetCindexId(), Nnet::GetNode(), Compiler::graph_, rnnlm::i, SumDescriptor::IsComputable(), rnnlm::j, KALDI_ASSERT, kaldi::nnet3::kNoTime, Compiler::nnet_, Descriptor::Part(), Compiler::steps_, and Index::t.

Referenced by Compiler::CreateStepInfo().

           {

   KALDI_ASSERT(static_cast<size_t>(step) < steps_.size());
   const StepInfo &step_info = steps_[step];
   const std::vector<Index> &output_indexes = step_info.output_indexes;
   const NetworkNode &node = nnet_.GetNode(step_info.node_index);
   const SumDescriptor &descriptor = node.descriptor.Part(part_index);
   int32 num_indexes = output_indexes.size();
   submat_locations_list->clear();
   submat_locations_list->resize(num_indexes);

   for (int32 i = 0; i < num_indexes; i++) {
     const Index &index = output_indexes[i];
     std::vector<std::pair<int32, int32> > &this_locations_list =
         (*submat_locations_list)[i];
     if (index.t != kNoTime) {
       // a real Index, not a 'blank' one
       // ('blank' indexes are inserted by some non-simple Components to
       // satisfy internal constraints.
       std::vector<int32> input_cindex_ids;
       std::vector<Cindex> input_cindexes;
       CindexSet cindex_set(graph_);
       bool ans = descriptor.IsComputable(index, cindex_set, &input_cindexes);
       // earlier compilation stages should have checked that it is computable,
       // and the graph should still contain required inputs.
       KALDI_ASSERT(ans);
       std::sort(input_cindexes.begin(), input_cindexes.end());
       int32 size = input_cindexes.size();
       input_cindex_ids.resize(size);
       for (int32 j = 0; j < size; j++) {
         int32 c = graph_.GetCindexId(input_cindexes[j]);
         KALDI_ASSERT(c != -1);
         input_cindex_ids[j] = c;
       }
       this_locations_list.resize(size);
       for (int32 j = 0; j < size; j++)
         this_locations_list[j] = cindex_id_to_location_[input_cindex_ids[j]];
     } else {
       this_locations_list.clear();
     }
   }
 }

◆ ComputeStepDependencies()

void ComputeStepDependencies	(	const std::vector< int32 > &	this_step,
		int32	step_index,
		unordered_set< int32 > *	dep_steps
	)

private

Definition at line 142 of file nnet-compile.cc.

References Compiler::cindex_id_to_location_, ComputationGraph::cindexes, ComputationGraph::dependencies, Compiler::graph_, Nnet::IsComponentNode(), KALDI_ASSERT, and Compiler::nnet_.

Referenced by Compiler::ComputeDerivNeeded().

                                      {
   dep_steps->clear();
   if (this_step.empty())
     return;
   // steps always have a single node index, we can pick the first.
   int32 node_index = graph_.cindexes[this_step[0]].first;
   if (nnet_.IsComponentNode(node_index)) {
     // there is only one step that a component step depends on, and it's the
     // immediately preceding step (the component-input step).
     KALDI_ASSERT(step_index > 0);
     dep_steps->insert(step_index - 1);
     return;
   }
   std::vector<int32>::const_iterator step_iter = this_step.begin(),
       step_end = this_step.end();
   int32 prev_input_step = -1;  // this is an optimization for speed.
   for (; step_iter != step_end; ++step_iter) {
     int32 cindex_id = *step_iter;
     const std::vector<int32> &dep = graph_.dependencies[cindex_id];
     std::vector<int32>::const_iterator iter = dep.begin(), end = dep.end();
     for (; iter != end; ++iter) {
       int32 dep_cindex_id = *iter,
           input_step = cindex_id_to_location_[dep_cindex_id].first;
       if (input_step != prev_input_step) {  // optimization.
         prev_input_step = input_step;
         dep_steps->insert(input_step);
       }
     }
   }
 }

◆ ComputeValueSubmatLocationsList()

void ComputeValueSubmatLocationsList	(	const std::vector< std::vector< std::pair< int32, int32 > > > &	input_locations_list,
		std::vector< std::vector< std::pair< int32, int32 > > > *	submat_locations_list
	)		const

private

Definition at line 503 of file nnet-compile.cc.

References rnnlm::i, and Compiler::steps_.

Referenced by Compiler::CompileForwardSumDescriptor().

       {
   submat_locations_list->clear();
   submat_locations_list->resize(input_locations_list.size());
   int32 size = submat_locations_list->size();
   for (int32 i = 0; i < size; i++) {
     const std::vector<std::pair<int32, int32> > &this_list =
         input_locations_list[i];
     std::vector<std::pair<int32, int32> > &this_submat_list =
         (*submat_locations_list)[i];
     this_submat_list.resize(this_list.size());
     std::vector<std::pair<int32, int32> >::const_iterator
         input_iter = this_list.begin(), input_end = this_list.end();
     std::vector<std::pair<int32, int32> >::iterator iter =
         this_submat_list.begin();
     for (; input_iter != input_end; ++input_iter, ++iter) {
       int32 step = input_iter->first,
           value_submat_index = steps_[step].value,
           row = input_iter->second;
       iter->first = value_submat_index;
       iter->second = row;
     }
   }
 }

◆ CreateComputation()

void CreateComputation	(	const CompilerOptions &	opts,
		NnetComputation *	computation
	)

Definition at line 50 of file nnet-compile.cc.

References Compiler::AddCommands(), ComputationGraphBuilder::AllOutputsAreComputable(), ComputationStepsComputer::Check(), Compiler::cindex_id_to_location_, NnetComputation::Clear(), ComputationGraphBuilder::Compute(), kaldi::nnet3::ComputeComputationPhases(), Compiler::ComputeDerivNeeded(), ComputationStepsComputer::ComputeForSegment(), kaldi::nnet3::ConsolidateIoOperations(), Compiler::CreateStepInfo(), ComputationGraphBuilder::ExplainWhyAllOutputsNotComputable(), Compiler::graph_, KALDI_ERR, Compiler::nnet_, CompilerOptions::output_debug_info, Compiler::OutputDebugInfo(), ComputationGraphBuilder::Prune(), and Compiler::requests_.

Referenced by kaldi::nnet3::CompileLoopedInternal(), CachingOptimizingCompiler::CompileNoShortcut(), kaldi::nnet3::UnitTestNnetAnalyze(), kaldi::nnet3::UnitTestNnetCompile(), kaldi::nnet3::UnitTestNnetCompute(), and kaldi::nnet3::UnitTestNnetOptimizeWithOptions().

                                                                {
   computation->Clear();
   ComputationGraphBuilder builder(nnet_, &graph_);
   // note: there are only >1 segments in a 'looped' computation.
   for (size_t segment = 0; segment < requests_.size(); segment++) {
     builder.Compute(*(requests_[segment]));
     if (!builder.AllOutputsAreComputable()) {
       builder.ExplainWhyAllOutputsNotComputable();  // prints logging info
       KALDI_ERR << "Not all outputs were computable, cannot create computation.";
     }
     builder.Prune();
   }
   // see function declaration's comment for more on the meaning of "phases" (a
   // phase will later be decomposed into one or more steps).  for each segment
   // s, phases_per_segment[s] is a list of phases; each phase is a list of
   // cindex_ids.
   std::vector<std::vector<std::vector<int32> > > phases_per_segment;
   ComputeComputationPhases(nnet_, graph_, &phases_per_segment);
   std::vector<std::vector<int32> > steps;
   steps.reserve(1000);

   // maps each step to the segment in which it appears.  in the normal case
   // (non-looped computation), a vector of all zeros.
   std::vector<int32> step_to_segment;


   {
     // note: this class will output to 'steps' and to 'cindex_id_to_location_'.
     // it may incidentally change 'graph_' by adding a few cindexes.
     ComputationStepsComputer steps_computer(nnet_, &graph_, &steps,
                                             &cindex_id_to_location_);

     for (size_t segment = 0; segment < requests_.size(); segment++) {
       steps_computer.ComputeForSegment(*(requests_[segment]),
                                        phases_per_segment[segment]);
       while (step_to_segment.size() < steps.size())
         step_to_segment.push_back(segment);

       // save memory, by deleting the phases we just consumed.  the
       // following two lines just exist to save memory.
       std::vector<std::vector<int32> > temp;
       phases_per_segment[segment].swap(temp);
     }
     steps_computer.Check();
   }
   std::vector<bool> deriv_needed;
   ComputeDerivNeeded(steps, step_to_segment, &deriv_needed);
   CreateStepInfo(deriv_needed, step_to_segment, &steps, computation);
   AddCommands(deriv_needed, step_to_segment, computation);
   // the following command reorders commands so kAcceptInput and kProvideOutput
   // appear in the desired places.
   ConsolidateIoOperations(nnet_, computation);
   if (opts.output_debug_info)
     OutputDebugInfo(computation);
 }

◆ CreateStepInfo()

void CreateStepInfo	(	const std::vector< bool > &	deriv_needed,
		const std::vector< int32 > &	step_to_segment,
		std::vector< std::vector< int32 > > *	by_step,
		NnetComputation *	computation
	)

private

Definition at line 279 of file nnet-compile.cc.

Referenced by Compiler::CreateComputation().

                                   {
   KALDI_ASSERT(!by_step->empty());
   int32 num_steps = by_step->size();
   steps_.resize(num_steps);
   for (int32 step = 0; step < num_steps; step++) {
     StepInfo &this_info = steps_[step];
     this_info.output_cindex_ids.swap((*by_step)[step]);
     this_info.segment = step_to_segment[step];
     int32 num_ids = this_info.output_cindex_ids.size();
     this_info.output_indexes.resize(num_ids);
     for (int32 row_index = 0; row_index < num_ids; row_index++)
       this_info.output_indexes[row_index] =
           graph_.cindexes[this_info.output_cindex_ids[row_index]].second;
     if (num_ids > 0) {
       // node id's of all Cindexes are the same, so just use first one.
       this_info.node_index =
           graph_.cindexes[this_info.output_cindex_ids.front()].first;
     } else {
       // it's possible to have an empty step if it's the component-input step of
       // a GeneralComponent that does not always have dependencies, such as the
       // ConstantFunctionComponent.  This is just a kind of placeholder; it will
       // generate no commands.  The next command works because the next
       // step will be the propagate for that Component, whose node-index is one
       // more than the component-input node.
       KALDI_ASSERT((step+1) < by_step->size() && !(*by_step)[step+1].empty());
       this_info.node_index =
           graph_.cindexes[(*by_step)[step+1][0]].first - 1;
       KALDI_ASSERT(this_info.node_index >= 0);
       continue;  // we don't need to do anything else for this step.
     }
     const NetworkNode &node = nnet_.GetNode(this_info.node_index);
     int32 num_rows = num_ids, num_cols = node.Dim(nnet_);

     if (node.node_type != kDimRange) {
       MatrixStrideType stride_type = GetStrideType(this_info.node_index);
       this_info.value = computation->NewMatrix(num_rows, num_cols,
                                                stride_type);
       if (deriv_needed[step])
         this_info.deriv = computation->NewMatrix(num_rows, num_cols,
                                                  stride_type);
     } else {
       // kDimRange.  Will just be a sub-matrix of a Component or Input node.
       std::vector<int32>::const_iterator
           iter = this_info.output_cindex_ids.begin(),
           end = this_info.output_cindex_ids.end();
       int32 source_cindex_id = -1;
       for (; iter != end; ++iter) {
         int32 cindex_id = *iter;
         if (!graph_.dependencies[cindex_id].empty()) {
           KALDI_ASSERT(graph_.dependencies[cindex_id].size() == 1);
           source_cindex_id = graph_.dependencies[cindex_id][0];
           break;
         }
       }
       KALDI_ASSERT(source_cindex_id >= 0);
       int32 input_step = cindex_id_to_location_[source_cindex_id].first;
       KALDI_ASSERT(this_info.output_cindex_ids.size() ==
                    steps_[input_step].output_cindex_ids.size());
       KALDI_ASSERT(input_step >= 0 && input_step < step);
       KALDI_PARANOID_ASSERT(this_info.output_indexes ==
                             steps_[input_step].output_indexes);
       this_info.value = computation->NewSubMatrix(steps_[input_step].value,
                                                   0, -1,
                                                   node.dim_offset, node.dim);
       if (deriv_needed[step])
         this_info.deriv = computation->NewSubMatrix(steps_[input_step].deriv,
                                                     0, -1,
                                                     node.dim_offset, node.dim);
     }
     if (node.node_type == kDescriptor) {
       // we have a couple of things to do: set up input_locations_list which
       // says where we copy the data from, and also set up value_parts and
       // possibly deriv_parts.
       const Descriptor &desc = node.descriptor;
       int32 num_parts = desc.NumParts();
       KALDI_ASSERT(num_parts > 0);
       // set up input_locations_list.
       this_info.input_locations_list.resize(num_parts);
       for (int32 part = 0; part < num_parts; part++)
         ComputeInputLocationsList(step, part,
                                   &(this_info.input_locations_list[part]));
       // set up value_parts and deriv_parts.
       if (num_parts == 1) {
         this_info.value_parts.push_back(this_info.value);
         if (deriv_needed[step])
           this_info.deriv_parts.push_back(this_info.deriv);
       } else { // num_parts > 1.
         int32 cur_dim_offset = 0;
         // Have multiple parts, so need to set up sub-matrices.
         this_info.value_parts.resize(num_parts);
         if (deriv_needed[step])
           this_info.deriv_parts.resize(num_parts);
         for (int32 p = 0; p < num_parts; p++) {
           const SumDescriptor &this_part = desc.Part(p);
           int32 this_dim = this_part.Dim(nnet_);
           this_info.value_parts[p] =
               computation->NewSubMatrix(this_info.value,
                                         0, -1,
                                         cur_dim_offset, this_dim);
           if (deriv_needed[step])
             this_info.deriv_parts[p] =
                 computation->NewSubMatrix(this_info.deriv,
                                           0, -1,
                                           cur_dim_offset, this_dim);
           cur_dim_offset += this_dim;
         }
         KALDI_ASSERT(cur_dim_offset == desc.Dim(nnet_));
       }
     }
     KALDI_ASSERT(static_cast<int32>(this_info.output_cindex_ids.size()) ==
                  computation->submatrices[this_info.value].num_rows);
   }
 }

◆ DeallocateMatrices()

void DeallocateMatrices	(	const std::vector< int32 > &	whole_submatrices,
		const std::vector< int32 > &	step_to_segment,
		NnetComputation *	computation
	)

private

Definition at line 1293 of file nnet-compile.cc.

References NnetComputation::commands, Compiler::StepInfo::deriv, Nnet::GetNodeNames(), rnnlm::i, ComputationRequest::inputs, Nnet::IsInputNode(), Nnet::IsOutputNode(), KALDI_ASSERT, kaldi::nnet3::kDeallocMatrix, NnetComputation::matrices, Compiler::nnet_, Compiler::StepInfo::node_index, Compiler::requests_, Compiler::steps_, NnetComputation::submatrices, and Compiler::StepInfo::value.

Referenced by Compiler::AddCommands().

                                                                 {
   // This adds the commands to destroy all the matrices- but not the
   // ones that might be needed as outputs of the computation.  The ones that
   // are spared from destruction are those corresponding to outputs of the
   // computation, and those corresponding to input derivatives that were
   // requested by the user.
   int32 num_matrices = computation->matrices.size();
   std::vector<bool> will_destroy(num_matrices, true);

   int32 num_steps = steps_.size();
   for (int32 step = 0; step < num_steps; step++) {
     const StepInfo &step_info = steps_[step];
     const ComputationRequest &request = *(requests_[step_to_segment[step]]);
     if (nnet_.IsOutputNode(step_info.node_index)) {
       // steps corresponding to output nodes need to have their "value" kept.
       int32 value_matrix_index =
           computation->submatrices[step_info.value].matrix_index;
       will_destroy[value_matrix_index] = false;
     } else if (nnet_.IsInputNode(step_info.node_index)) {
       // steps corresponding to input nodes need to have their "deriv" kept, but
       // only if the corresponding input derivative was requested.  (we don't
       // need to worry about whether outputs were requested, because if they
       // were not requested we would not be computing them in the first place).
       std::string input_name = nnet_.GetNodeNames()[step_info.node_index];
       int32 i = 0, num_inputs = request.inputs.size();
       bool has_deriv = false;
       for (; i < num_inputs; i++) {
         if (input_name == request.inputs[i].name) {
           has_deriv = request.inputs[i].has_deriv;
           break;
         }
       }
       KALDI_ASSERT(i != num_inputs); // assert we found an input-request with
                                      // this name
       if (has_deriv) {
         int32 deriv_matrix_index =
           computation->submatrices[step_info.deriv].matrix_index;
         will_destroy[deriv_matrix_index] = false;
       }
     }
   }
   // note: matrix-index 0 is the empty matrix.
   for (int32 m = 1; m < num_matrices; m++) {
     if (will_destroy[m]) {
       int32 submatrix_index = whole_submatrices[m];
       computation->commands.push_back(
           NnetComputation::Command(kDeallocMatrix, submatrix_index));
     }
   }
 }

◆ DefineMatrices()

void DefineMatrices ( NnetComputation * computation ) const

private

◆ DefineSubmatrices()

void DefineSubmatrices ( NnetComputation * computation )

private

◆ GetStrideType()

MatrixStrideType GetStrideType ( int32 node_index ) const

private

Definition at line 252 of file nnet-compile.cc.

References NetworkNode::component_index, Nnet::GetComponent(), Nnet::GetNode(), Nnet::IsComponentInputNode(), Nnet::IsComponentNode(), kaldi::kDefaultStride, kaldi::nnet3::kInputContiguous, kaldi::nnet3::kOutputContiguous, kaldi::kStrideEqualNumCols, Compiler::nnet_, Component::Properties(), and NetworkNode::u.

Referenced by Compiler::CreateStepInfo().

                                                                {
   int32 component_node_index;
   bool is_input;
   if (nnet_.IsComponentInputNode(node_index)) {
     // this node is for the input to a component.
     component_node_index = node_index + 1;
     is_input = true;
   } else if (nnet_.IsComponentNode(node_index)) {
     component_node_index = node_index;
     is_input = false;
   } else {
     return kDefaultStride;
   }
   const NetworkNode &node = nnet_.GetNode(component_node_index);
   const Component *c = nnet_.GetComponent(node.u.component_index);
   if (is_input) {
     return (c->Properties() & kInputContiguous) ?
         kStrideEqualNumCols : kDefaultStride;
   } else {
     return (c->Properties() & kOutputContiguous) ?
         kStrideEqualNumCols : kDefaultStride;
   }
 }

◆ IsInputStep()

bool IsInputStep ( int32 step ) const

private

Definition at line 397 of file nnet-compile.cc.

References Nnet::GetNode(), KALDI_ASSERT, kaldi::nnet3::kInput, Compiler::nnet_, Compiler::StepInfo::node_index, NetworkNode::node_type, and Compiler::steps_.

Referenced by Compiler::CompileBackward(), and Compiler::CompileForward().

                                            {
   KALDI_ASSERT(step >= 0);
   if (step >= steps_.size())
     return false;
   const StepInfo &step_info = steps_[step];
   const NetworkNode &node = nnet_.GetNode(step_info.node_index);
   return (node.node_type == kInput);
 }

◆ OutputDebugInfo()

void OutputDebugInfo ( NnetComputation * computation ) const

private

Definition at line 1346 of file nnet-compile.cc.

References kaldi::nnet3::AppendCindexes(), NnetComputation::MatrixDebugInfo::cindexes, Compiler::StepInfo::deriv, NnetComputation::MatrixDebugInfo::is_deriv, NnetComputation::IsWholeMatrix(), NnetComputation::matrices, NnetComputation::matrix_debug_info, Compiler::StepInfo::node_index, Compiler::StepInfo::output_indexes, Compiler::steps_, NnetComputation::submatrices, and Compiler::StepInfo::value.

Referenced by Compiler::CreateComputation().

                                                                  {
   int32 num_matrices = computation->matrices.size(),
       num_steps = steps_.size();
   computation->matrix_debug_info.resize(num_matrices);
   for (int32 step = 0; step < num_steps; step++) {
     const StepInfo &step_info = steps_[step];
     if (step_info.value == 0)
       continue;  // e.g. input step for ConstantComponent.
     if (!computation->IsWholeMatrix(step_info.value))
       continue;
     int32 value_matrix = computation->submatrices[step_info.value].matrix_index;
     int32 deriv_matrix = 0;
     if (step_info.deriv != 0 && computation->IsWholeMatrix(step_info.deriv))
       deriv_matrix = computation->submatrices[step_info.deriv].matrix_index;

     NnetComputation::MatrixDebugInfo &debug_info =
         computation->matrix_debug_info[value_matrix];
     debug_info.is_deriv = false;
     if (!debug_info.cindexes.empty()) {
       // This can happen if we created an alias for a node using a
       // dim-range-node that covers all the dimensions (would satisfy
       // IsWholeMatrix() above while not being a unique matrix).  We sometimes
       // do that to work around compiler constraints when creating expressions
       // that have the same quantity with more than one scaling value within the
       // same expression (like for computing deltas).
       continue;
     }
     AppendCindexes(step_info.node_index, step_info.output_indexes,
                    &debug_info.cindexes);
     if (deriv_matrix != 0) {
       NnetComputation::MatrixDebugInfo &deriv_debug_info =
           computation->matrix_debug_info[deriv_matrix];
       deriv_debug_info.is_deriv = true;
       deriv_debug_info.cindexes = debug_info.cindexes;
     }
   }
 }

◆ SetUpPrecomputedIndexes()

void SetUpPrecomputedIndexes	(	const std::vector< int32 > &	step_to_segment,
		NnetComputation *	computation
	)

private

Definition at line 1239 of file nnet-compile.cc.

References NetworkNode::component_index, NnetComputation::component_precomputed_indexes, NnetComputation::PrecomputedIndexesInfo::data, Nnet::GetComponent(), Nnet::GetNode(), NnetComputation::PrecomputedIndexesInfo::input_indexes, KALDI_ASSERT, kaldi::nnet3::kComponent, ComputationRequest::misc_info, ComputationRequest::NeedDerivatives(), Compiler::nnet_, Compiler::StepInfo::node_index, NetworkNode::node_type, Compiler::StepInfo::output_indexes, NnetComputation::PrecomputedIndexesInfo::output_indexes, Compiler::StepInfo::precomputed_indexes_index, Component::PrecomputeIndexes(), Compiler::requests_, Compiler::steps_, and NetworkNode::u.

Referenced by Compiler::AddCommands().

                                   {
   int32 num_steps = steps_.size();
   KALDI_ASSERT(computation->component_precomputed_indexes.empty());
   // the zeroth commponent is special, contains a NULL pointer.
   computation->component_precomputed_indexes.resize(1);
   for (int32 step = 0; step < num_steps; step++) {
     StepInfo &step_info = steps_[step];
     int32 node_index = step_info.node_index;
     const NetworkNode &node = nnet_.GetNode(node_index);
     // There is only something to do for nodes of type Component.
     if (node.node_type != kComponent)
       continue;
     const StepInfo &input_step_info = steps_[step - 1];
     int32 component_index = node.u.component_index;
     int32 input_node_index = input_step_info.node_index;
     KALDI_ASSERT(input_node_index == node_index - 1);
     const std::vector<Index> &input_indexes = input_step_info.output_indexes;
     const std::vector<Index> &output_indexes = step_info.output_indexes;

     const Component *component = nnet_.GetComponent(component_index);

     const ComputationRequest &request = *(requests_[step_to_segment[step]]);
     bool need_derivs = request.NeedDerivatives();
     ComponentPrecomputedIndexes *precomputed_indexes =
         component->PrecomputeIndexes(request.misc_info,
                                      input_indexes, output_indexes,
                                      need_derivs);
     if (precomputed_indexes == NULL) {
       // e.g. simple Components, and some other Components, will return NULL for
       // precomputed_indexes.
       step_info.precomputed_indexes_index = 0;
     } else {
       step_info.precomputed_indexes_index =
           computation->component_precomputed_indexes.size();

       NnetComputation::PrecomputedIndexesInfo info;
       info.data = precomputed_indexes;

       if (!input_indexes.empty() && input_indexes.back().n == 1 &&
           !output_indexes.empty() && output_indexes.back().n == 1) {
         // If these conditions are true, it's *possible* that we are doing
         // 'shortcut' compilation.  So just in case that's what's going on, we
         // store 'input_indexes' and 'output_indexes, which are needed by
         // the ExpandComputation() function that is used in that process.
         info.input_indexes = input_indexes;
         info.output_indexes = output_indexes;
       }
       computation->component_precomputed_indexes.push_back(info);
     }
   }
 }

◆ SplitByScale()

BaseFloat SplitByScale	(	const SumDescriptor &	descriptor,
		const std::vector< std::vector< std::pair< int32, int32 > > > &	input_locations_list,
		std::vector< std::pair< BaseFloat, std::vector< std::vector< std::pair< int32, int32 > > > > > *	split_locations_lists
	)		const

private

This function helps to handle scalar factors in Descriptors (expressions like `Scale(-1.0, <descriptor)`).

It splits an input_locations_list for one SumDescriptor (consisting of one of the appended-together parts of a Descriptor) by scale, such that each split-up locations_list corresponds to a single scaling factor. The scaling factors are all 1.0 by default, but may be different from 1.0 if the user uses `Scale(...)` expressions in descriptors, e.g. `Scale(-1.0, lstm1.z)`. To help efficiency, this function treats the case where all the scales in the expression are the same (usually 1.0), as a special case. In this case, 'split_locations_lists' will be empty and the shared scale (e.g. 1.0) is returned.

Parameters

[in]	descriptor	The SumDescriptor for which we're getting scalar factors.
[in]	input_locations_list	This is one element of the input_locations_list from the StepInfo of the step we are computing, corresponding to this SumDescriptor (i.e. one part of the Descriptor). It is indexed by row-index, then it is a list of pairs (step, row-index), representing source Cindexes of a summation. This function will work out what scaling factors the pairs in these lists have.
[out]	split_locations_lists	We write to this location. If all the scaling factors are the same this will be set to the empty list and the common scaling factor returned. Otherwise +infinity will be returned and the split-up list will be written to the location. Each element (split_locations_lists)[i] will be set to a pair (alpha, partial_input_locations_list) where alpha is the scaling factor associated with this split-up piece (e.g. -1.0 if it was part of an expression like `Scale(-1.0, lstm1.z)`), and 'partial_input_locations_list' is a vector with the same dimension as 'input_locations_list' (indexed by row-index), where partial_input_locations_list[r] will contain a subset of the pairs present in input_locations_list[r], and if we were to append together all the (split_locations_lists)[*].second.partial_input_locations_list[r], we'd get a list with the same members as input_locations_list[r], although not necessarily in the same order.

Returns: In the general case (where multiple scales are used), returns +infinity and sets 'split_locations_lists' to the split-up list. In the special, but more common case where only a single scale is used, return that scale (1.0 will be the most common value) and set 'split_locations_lists' to empty; in this special case, which has been made a special case for efficiency reasons, the user should directly use the un-split locations list in 'input_locations_list'.

Definition at line 557 of file nnet-compile.cc.

References SumDescriptor::GetNodeDependencies(), SumDescriptor::GetScaleForNode(), rnnlm::i, rnnlm::j, KALDI_ASSERT, kaldi::SortAndUniq(), and Compiler::steps_.

Referenced by Compiler::CompileBackwardSumDescriptor(), and Compiler::CompileForwardSumDescriptor().

                                   {
   split_locations_lists->clear();
   // alpha_to_nodes maps from the scale alpha to the list of nodes which are
   // given that scale.
   std::map<BaseFloat, std::vector<int32> > alpha_to_nodes;
   { // This block compute `alpha_to_nodes`.
     std::vector<int32> nodes;
     descriptor.GetNodeDependencies(&nodes);
     SortAndUniq(&nodes);
     // Now `nodes` is a list of the graph node indexes that are referred to
     // in the descriptor.  E.g. if the Descriptor represents
     // 'Sum(tdnn1, Offset(tdnn2, -2))' then `nodes` would contain the
     // integer node indexes for graph-nodes 'tdnn1' and 'tdnn2'.
     for (size_t i = 0; i < nodes.size(); i++) {
       int32 node = nodes[i];
       BaseFloat alpha = descriptor.GetScaleForNode(node);
       KALDI_ASSERT(alpha - alpha == 0.0);  // check it's not infinity.
       alpha_to_nodes[alpha].push_back(node);
     }
   }

   if (alpha_to_nodes.size() == 1) {
     // If all the alpha values are the same we treat it as a special case
     // for efficiency, to avoid a redundant copy of the contents of
     // 'input_locations_list'.
     return alpha_to_nodes.begin()->first;
   }

   // `steps_used` will be a list of all step indexes that appear as `.first`
   // elements in `input_locations_list`.
   unordered_set<int32> steps_used;
   {  // This block computes `steps_used`.
     int32 cur_step = -1000;
     std::vector<std::vector<std::pair<int32,int32> > >::const_iterator
         iter = input_locations_list.begin(),
         end = input_locations_list.end();
     for (; iter != end; ++iter) {
       std::vector<std::pair<int32,int32> >::const_iterator
           pair_iter = iter->begin(),
           pair_end = iter->end();
       for (; pair_iter != pair_end; ++pair_iter) {
         if (pair_iter->first != cur_step) {
           cur_step = pair_iter->first;
           steps_used.insert(cur_step);
         }
       }
     }
   }

   // `node_to_steps` will be a map from graph node index to the list of steps
   // which are present in `steps_used` and which are associated with that graph
   // node.
   std::map<int32, std::vector<int32> > node_to_steps;
   {  // This block computes `node_to_steps`.
     unordered_set<int32>::const_iterator
         step_iter = steps_used.begin(), step_end = steps_used.end();
     for (; step_iter != step_end; ++step_iter) {
       int32 step_index = *step_iter;
       KALDI_ASSERT(static_cast<size_t>(step_index) < steps_.size());
       int32 node_index = steps_[step_index].node_index;
       node_to_steps[node_index].push_back(step_index);
     }
   }

   int32 num_rows = input_locations_list.size();
   split_locations_lists->resize(alpha_to_nodes.size());
   // `step_to_index` will map from the step-index to the index into
   // `split_locations_lists`; each index is associated with a different value of
   // the scale `alpha`.
   std::vector<int32> step_to_locations_index(steps_.size(), -1);
   {  // This block computes `step_to_index` and also sets the `alpha` values
      // which are present as (*split_locations_lists)[*].first.
     std::map<BaseFloat, std::vector<int32> >::const_iterator
         iter = alpha_to_nodes.begin(), end = alpha_to_nodes.end();
     int32 split_locations_index = 0;
     for (; iter != end; ++iter, ++split_locations_index) {
       BaseFloat alpha = iter->first;
       const std::vector<int32> &nodes = iter->second;
       (*split_locations_lists)[split_locations_index].first = alpha;
       (*split_locations_lists)[split_locations_index].second.resize(num_rows);
       for (size_t i = 0; i < nodes.size(); i++) {
         int32 node_index = nodes[i];
         KALDI_ASSERT(node_to_steps.count(node_index) != 0);
         const std::vector<int32> &steps = node_to_steps[node_index];
         for (size_t j = 0; j < steps.size(); j++) {
           int32 step_index = steps[j];
           KALDI_ASSERT(step_index >= 0 &&
                        step_to_locations_index[step_index] == -1);
           step_to_locations_index[step_index] = split_locations_index;
         }
       }
     }
   }

   {  // This block populates 'split_locations_lists[*].second' with the
      // split-by-alpha version of 'input_locations_list'
     for (int32 r = 0; r < num_rows; r++) {
       const std::vector<std::pair<int32,int32> > &this_list =
           input_locations_list[r];
       std::vector<std::pair<int32,int32> >::const_iterator
           pair_iter = this_list.begin(),
           pair_end = this_list.end();
       for (; pair_iter != pair_end; ++pair_iter) {
         int32 step = pair_iter->first,
             split_locations_index = step_to_locations_index[step];
         (*split_locations_lists)[split_locations_index].second[r].push_back(
             *pair_iter);
       }
     }
   }
   return std::numeric_limits<BaseFloat>::infinity();
 }

Member Data Documentation

◆ cindex_id_to_location_

std::vector<std::pair<int32, int32> > cindex_id_to_location_

private

This maps each cindex_id to its location.

However, you should not rely on its accuracy for cindex_ids that correspond to the Descriptors at Component inputs, since it's possible in principle for such cindex_ids to exist at >1 location. (This is not a problem in practice, because we only need this for the outputs of component-nodes, and for computation inputs). A location is a pair (step-index, matrix-row-index).

Definition at line 161 of file nnet-compile.h.

Referenced by Compiler::ComputeInputLocationsList(), Compiler::ComputeStepDependencies(), Compiler::CreateComputation(), and Compiler::CreateStepInfo().

◆ graph_

ComputationGraph graph_

private

Definition at line 64 of file nnet-compile.h.

Referenced by Compiler::AllocateMatrices(), Compiler::ComputeDerivNeeded(), Compiler::ComputeInputLocationsList(), Compiler::ComputeStepDependencies(), Compiler::CreateComputation(), and Compiler::CreateStepInfo().

◆ nnet_

◆ requests_

std::vector<const ComputationRequest*> requests_

private

Definition at line 62 of file nnet-compile.h.

Referenced by Compiler::AddCommands(), Compiler::AddForwardStepComponent(), Compiler::Compiler(), Compiler::ComputeDerivNeeded(), Compiler::CreateComputation(), Compiler::DeallocateMatrices(), and Compiler::SetUpPrecomputedIndexes().

◆ steps_

std::vector<StepInfo> steps_

private

The documentation for this class was generated from the following files:

nnet3/nnet-compile.h
nnet3/nnet-compile.cc

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Compiler() [1/2]

◆ Compiler() [2/2]

Member Function Documentation

◆ AddBackwardStepComponent()

◆ AddBackwardStepInput()

◆ AddCommands()

◆ AddForwardStepComponent()

◆ AddForwardStepInput()

◆ AllocateMatrices()

◆ CompileBackward()

◆ CompileBackwardDescriptor()

◆ CompileBackwardFromIndexes()

◆ CompileBackwardFromSubmatLocations()

◆ CompileBackwardFromSubmatLocationsList()

◆ CompileBackwardSumDescriptor()

◆ CompileForward()

◆ CompileForwardDescriptor()

◆ CompileForwardFromIndexes()

◆ CompileForwardFromSubmatLocations()

◆ CompileForwardFromSubmatLocationsList()

◆ CompileForwardSumDescriptor()

◆ ComputeDerivNeeded()

◆ ComputeDerivSubmatLocationsList()

◆ ComputeInputLocationsList()

◆ ComputeStepDependencies()

◆ ComputeValueSubmatLocationsList()

◆ CreateComputation()

◆ CreateStepInfo()

◆ DeallocateMatrices()

◆ DefineMatrices()

◆ DefineSubmatrices()

◆ GetStrideType()

◆ IsInputStep()

◆ OutputDebugInfo()

◆ SetUpPrecomputedIndexes()

◆ SplitByScale()

Member Data Documentation

◆ cindex_id_to_location_

◆ graph_

◆ nnet_

◆ requests_

◆ steps_
