SumGroupComponent is used to sum up groups of posteriors. More...

#include <nnet-simple-component.h>

Inheritance diagram for SumGroupComponent:

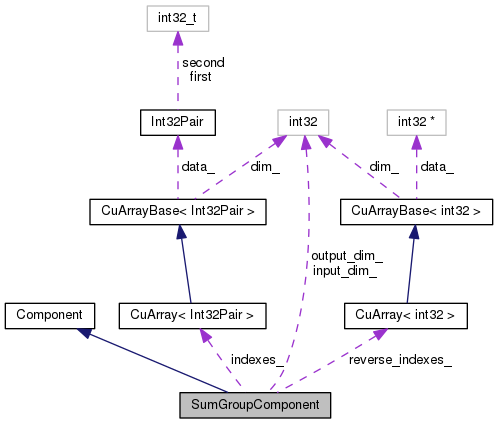

Collaboration diagram for SumGroupComponent:

[legend]

Public Member Functions
virtual int32	InputDim () const
	Returns input-dimension of this component. More...

virtual int32	OutputDim () const
	Returns output-dimension of this component. More...

void	Init (const std::vector< int32 > &sizes)

void	Init (int32 input_dim, int32 output_dim)

void	GetSizes (std::vector< int32 > *sizes) const

virtual void	InitFromConfig (ConfigLine *cfl)
	Initialize, from a ConfigLine object. More...

	SumGroupComponent ()

virtual std::string	Type () const
	Returns a string such as "SigmoidComponent", describing the type of the object. More...

virtual int32	Properties () const
	Return bitmask of the component's properties. More...

virtual void *	Propagate (const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > out) const
	Propagate function. More...

virtual void	Backprop (const std::string &debug_info, const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &out_deriv, void memo, Component to_update, CuMatrixBase< BaseFloat > in_deriv) const
	Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update. More...

virtual Component *	Copy () const
	Copies component (deep copy). More...

virtual void	Read (std::istream &is, bool binary)
	Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed. More...

virtual void	Write (std::ostream &os, bool binary) const
	Write component to stream. More...

Public Member Functions inherited from Component
virtual void	StoreStats (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, void *memo)
	This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity. More...

virtual void	ZeroStats ()
	Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero. More...

virtual void	GetInputIndexes (const MiscComputationInfo &misc_info, const Index &output_index, std::vector< Index > *desired_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual bool	IsComputable (const MiscComputationInfo &misc_info, const Index &output_index, const IndexSet &input_index_set, std::vector< Index > *used_inputs) const
	This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs. More...

virtual void	ReorderIndexes (std::vector< Index > input_indexes, std::vector< Index > output_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual ComponentPrecomputedIndexes *	PrecomputeIndexes (const MiscComputationInfo &misc_info, const std::vector< Index > &input_indexes, const std::vector< Index > &output_indexes, bool need_backprop) const
	This function must return NULL for simple Components. More...

virtual std::string	Info () const
	Returns some text-form information about this component, for diagnostics. More...

virtual void	Scale (BaseFloat scale)
	This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent. More...

virtual void	Add (BaseFloat alpha, const Component &other)
	This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters. More...

virtual void	DeleteMemo (void *memo) const
	This virtual function only needs to be overwritten by Components that return a non-NULL memo from their Propagate() function. More...

virtual void	ConsolidateMemory ()
	This virtual function relates to memory management, and avoiding fragmentation. More...

	Component ()

virtual	~Component ()

Private Member Functions
	KALDI_DISALLOW_COPY_AND_ASSIGN (SumGroupComponent)

Private Attributes
CuArray< Int32Pair >	indexes_

CuArray< int32 >	reverse_indexes_

int32	input_dim_

int32	output_dim_

Additional Inherited Members
Static Public Member Functions inherited from Component
static Component *	ReadNew (std::istream &is, bool binary)
	Read component from stream (works out its type). Dies on error. More...

static Component *	NewComponentOfType (const std::string &type)
	Returns a new Component of the given type e.g. More...

Detailed Description

SumGroupComponent is used to sum up groups of posteriors.

It's used to introduce a kind of Gaussian-mixture-model-like idea into neural nets. This is basically a degenerate case of MixtureProbComponent; we had to implement it separately to be efficient for CUDA (we can use this one regardless whether we have CUDA or not; it's the normal case we want anyway).

There are two forms of initialization in a config file: one where the number of elements are specified for each group individually as a vector, and one where only the total input dimension and the output dimension (number of groups) is specified. The second is used when all groups have the same size.

Definition at line 1053 of file nnet-simple-component.h.

Constructor & Destructor Documentation

◆ SumGroupComponent()

SumGroupComponent ( )

inline

Definition at line 1064 of file nnet-simple-component.h.

1064 { }

Member Function Documentation

◆ Backprop()

void Backprop	(	const std::string &	debug_info,
		const ComponentPrecomputedIndexes *	indexes,
		const CuMatrixBase< BaseFloat > &	in_value,
		const CuMatrixBase< BaseFloat > &	out_value,
		const CuMatrixBase< BaseFloat > &	out_deriv,
		void *	memo,
		Component *	to_update,
		CuMatrixBase< BaseFloat > *	in_deriv
	)		const

virtual

Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update.

Parameters

[in]	debug_info	The component name, to be printed out in any warning messages.
[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in_value	The matrix that was given as input to the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsInput == 0.
[in]	out_value	The matrix that was output from the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsOutput == 0
[in]	out_deriv	The derivative at the output of this component.
[in]	memo	This will normally be NULL, but for component types that set the flag kUsesMemo, this will be the return value of the Propagate() function that corresponds to this Backprop() function. Ownership of any pointers is not transferred to the Backprop function; DeleteMemo() will be called to delete it.
[out]	to_update	If model update is desired, the Component to be updated, else NULL. Does not have to be identical to this. If supplied, you can assume that to_update->Properties() & kUpdatableComponent is nonzero.
[out]	in_deriv	The derivative at the input of this component, if needed (else NULL). If Properties()&kBackpropInPlace, may be the same matrix as out_deriv. If Properties()&kBackpropAdds, this is added to by the Backprop routine, else it is set. The component code chooses which mode to work in, based on convenience.

Implements Component.

Definition at line 3551 of file nnet-simple-component.cc.

References CuMatrixBase< Real >::CopyCols(), and NVTX_RANGE.

                                                                           {
   NVTX_RANGE("SumGroupComponent::Backprop");
   in_deriv->CopyCols(out_deriv, reverse_indexes_);
 }

◆ Copy()

Component * Copy ( ) const

virtual

Copies component (deep copy).

Implements Component.

Definition at line 3499 of file nnet-simple-component.cc.

References SumGroupComponent::indexes_, SumGroupComponent::input_dim_, SumGroupComponent::output_dim_, and SumGroupComponent::reverse_indexes_.

                                          {
   SumGroupComponent *ans = new SumGroupComponent();
   ans->indexes_ = indexes_;
   ans->reverse_indexes_ = reverse_indexes_;
   ans->input_dim_ = input_dim_;
   ans->output_dim_ = output_dim_;
   return ans;
 }

◆ GetSizes()

void GetSizes ( std::vector< int32 > * sizes ) const

Definition at line 3522 of file nnet-simple-component.cc.

References rnnlm::i, and KALDI_ASSERT.

                                                               {
   std::vector<Int32Pair> indexes;
   indexes_.CopyToVec(&indexes);
   sizes->resize(indexes.size());
   for (size_t i = 0; i < indexes.size(); i++) {
     (*sizes)[i] = indexes[i].second - indexes[i].first;
     if (i == 0) { KALDI_ASSERT(indexes[i].first == 0); }
     else { KALDI_ASSERT(indexes[i].first == indexes[i-1].second); }
     KALDI_ASSERT(indexes[i].second > indexes[i].first);
     (*sizes)[i] = indexes[i].second - indexes[i].first;
   }
 }

◆ Init() [1/2]

void Init ( const std::vector< int32 > & sizes )

Definition at line 3440 of file nnet-simple-component.cc.

References rnnlm::i, rnnlm::j, and KALDI_ASSERT.

                                                           {
   KALDI_ASSERT(!sizes.empty());
   std::vector<Int32Pair> cpu_vec(sizes.size());
   std::vector<int32> reverse_cpu_vec;
   int32 cur_index = 0;
   for (size_t i = 0; i < sizes.size(); i++) {
     KALDI_ASSERT(sizes[i] > 0);
     cpu_vec[i].first = cur_index;
     cpu_vec[i].second = cur_index + sizes[i];
     cur_index += sizes[i];
     for (int32 j = cpu_vec[i].first; j < cpu_vec[i].second; j++)
       reverse_cpu_vec.push_back(i);
   }
   this->indexes_ = cpu_vec;
   this->reverse_indexes_ = reverse_cpu_vec;
   this->input_dim_ = cur_index;
   this->output_dim_ = sizes.size();
 }

◆ Init() [2/2]

void Init	(	int32	input_dim,
		int32	output_dim
	)

Definition at line 3459 of file nnet-simple-component.cc.

References rnnlm::i, rnnlm::j, and KALDI_ASSERT.

                                                               {
   const int32 num_groups = output_dim;
   KALDI_ASSERT(input_dim % num_groups == 0);
   const int32 group_size = input_dim / num_groups;

   std::vector<Int32Pair> cpu_vec(num_groups);
   std::vector<int32> reverse_cpu_vec;
   int32 cur_index = 0;
   for (size_t i = 0; i < num_groups; i++) {
     cpu_vec[i].first = cur_index;
     cpu_vec[i].second = cur_index + group_size;
     cur_index += group_size;
     for (int32 j = cpu_vec[i].first; j < cpu_vec[i].second; j++)
       reverse_cpu_vec.push_back(i);
   }
   this->indexes_ = cpu_vec;
   this->reverse_indexes_ = reverse_cpu_vec;
   this->input_dim_ = input_dim;
   this->output_dim_ = num_groups;
 }

◆ InitFromConfig()

void InitFromConfig ( ConfigLine * cfl )

virtual

Initialize, from a ConfigLine object.

Parameters

[in] cfl A ConfigLine containing any parameters that are needed for initialization. For example: "dim=100 param-stddev=0.1"

Implements Component.

Definition at line 3480 of file nnet-simple-component.cc.

References ConfigLine::GetValue(), ConfigLine::HasUnusedValues(), FixedAffineComponent::Init(), KALDI_ERR, FixedAffineComponent::Type(), and ConfigLine::WholeLine().

                                                       {
   std::vector<int32> sizes;
   bool has_sizes = cfl->GetValue("sizes", &sizes);
   if (has_sizes) {
     if (cfl->HasUnusedValues() || sizes.empty())
       KALDI_ERR << "Invalid initializer for layer of type "
                 << Type() << ": \"" << cfl->WholeLine() << "\"";
     this->Init(sizes);
   } else { // each group has the same size
     int32 input_dim = -1, output_dim = -1;
     if (!cfl->GetValue("input-dim", &input_dim) ||
         !cfl->GetValue("output-dim", &output_dim) || cfl->HasUnusedValues()) {
       KALDI_ERR << "Invalid initializer for layer of type "
                 << Type() << ": \"" << cfl->WholeLine() << "\"";
     }
     Init(input_dim, output_dim);
   }
 }

◆ InputDim()

virtual int32 InputDim ( ) const

inlinevirtual

Returns input-dimension of this component.

Implements Component.

Definition at line 1055 of file nnet-simple-component.h.

References PnormComponent::input_dim_.

1055 { return input_dim_; }

kaldi::nnet3::SumGroupComponent::input_dim_

int32 input_dim_

Definition: nnet-simple-component.h:1089

◆ KALDI_DISALLOW_COPY_AND_ASSIGN()

KALDI_DISALLOW_COPY_AND_ASSIGN ( SumGroupComponent )

private

◆ OutputDim()

virtual int32 OutputDim ( ) const

inlinevirtual

Returns output-dimension of this component.

Implements Component.

Definition at line 1056 of file nnet-simple-component.h.

References PnormComponent::Init(), PnormComponent::InitFromConfig(), and PnormComponent::output_dim_.

1056 { return output_dim_; }

kaldi::nnet3::SumGroupComponent::output_dim_

int32 output_dim_

Definition: nnet-simple-component.h:1090

◆ Propagate()

void * Propagate	(	const ComponentPrecomputedIndexes *	indexes,
		const CuMatrixBase< BaseFloat > &	in,
		CuMatrixBase< BaseFloat > *	out
	)		const

virtual

Propagate function.

Parameters

[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in	The input to this component. Num-columns == InputDim().
[out]	out	The output of this component. Num-columns == OutputDim(). Note: output of this component will be added to the initial value of "out" if Properties()&kPropagateAdds != 0; otherwise the output will be set and the initial value ignored. Each Component chooses whether it is more convenient implementation-wise to add or set, and the calling code has to deal with it.

Returns: Normally returns NULL, but may return a non-NULL value for components which have the flag kUsesMemo set. This value will be passed into the corresponding Backprop routine.

Implements Component.

Definition at line 3544 of file nnet-simple-component.cc.

References CuMatrixBase< Real >::SumColumnRanges().

                                                                       {
   out->SumColumnRanges(in, indexes_);
   return NULL;
 }

◆ Properties()

virtual int32 Properties ( ) const

inlinevirtual

Return bitmask of the component's properties.

These properties depend only on the component's type. See enum ComponentProperties.

Implements Component.

Definition at line 1066 of file nnet-simple-component.h.

References PnormComponent::Backprop(), PnormComponent::Copy(), Component::KALDI_DISALLOW_COPY_AND_ASSIGN(), kaldi::nnet3::kSimpleComponent, PnormComponent::Propagate(), PnormComponent::Read(), and PnormComponent::Write().

1066 { return kSimpleComponent; }

kaldi::nnet3::kSimpleComponent

Definition: nnet-component-itf.h:38

◆ Read()

void Read	(	std::istream &	is,
		bool	binary
	)

virtual

Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed.

Implements Component.

Definition at line 3508 of file nnet-simple-component.cc.

References kaldi::ExpectOneOrTwoTokens(), FixedAffineComponent::Init(), KALDI_ERR, kaldi::ReadIntegerVector(), and kaldi::ReadToken().

                                                         {
   ExpectOneOrTwoTokens(is, binary, "<SumGroupComponent>", "<Sizes>");
   std::vector<int32> sizes;
   ReadIntegerVector(is, binary, &sizes);

   std::string token;
   ReadToken(is, binary, &token);
   if (!(token == "<SumGroupComponent>" ||
         token == "</SumGroupComponent>")) {
     KALDI_ERR << "Expected </SumGroupComponent>, got " << token;
   }
   this->Init(sizes);
 }

◆ Type()

virtual std::string Type ( ) const

inlinevirtual

Returns a string such as "SigmoidComponent", describing the type of the object.

Implements Component.

Definition at line 1065 of file nnet-simple-component.h.

1065 { return "SumGroupComponent"; }

◆ Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

virtual

Write component to stream.

Implements Component.

Definition at line 3535 of file nnet-simple-component.cc.

References kaldi::WriteIntegerVector(), and kaldi::WriteToken().

                                                                {
   WriteToken(os, binary, "<SumGroupComponent>");
   WriteToken(os, binary, "<Sizes>");
   std::vector<int32> sizes;
   this->GetSizes(&sizes);
   WriteIntegerVector(os, binary, sizes);
   WriteToken(os, binary, "</SumGroupComponent>");
 }

Member Data Documentation

◆ indexes_

CuArray<Int32Pair> indexes_

private

Definition at line 1086 of file nnet-simple-component.h.

Referenced by SumGroupComponent::Copy().

◆ input_dim_

int32 input_dim_

private

Definition at line 1089 of file nnet-simple-component.h.

Referenced by SumGroupComponent::Copy().

◆ output_dim_

int32 output_dim_

private

Definition at line 1090 of file nnet-simple-component.h.

Referenced by SumGroupComponent::Copy().

◆ reverse_indexes_

CuArray<int32> reverse_indexes_

private

Definition at line 1088 of file nnet-simple-component.h.

Referenced by SumGroupComponent::Copy().

The documentation for this class was generated from the following files:

nnet3/nnet-simple-component.h
nnet3/nnet-simple-component.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ SumGroupComponent()

Member Function Documentation

◆ Backprop()

◆ Copy()

◆ GetSizes()

◆ Init() [1/2]

◆ Init() [2/2]

◆ InitFromConfig()

◆ InputDim()

◆ KALDI_DISALLOW_COPY_AND_ASSIGN()

◆ OutputDim()

◆ Propagate()

◆ Properties()

◆ Read()

◆ Type()

◆ Write()

Member Data Documentation

◆ indexes_

◆ input_dim_

◆ output_dim_

◆ reverse_indexes_
