#include <nnet-example.h>

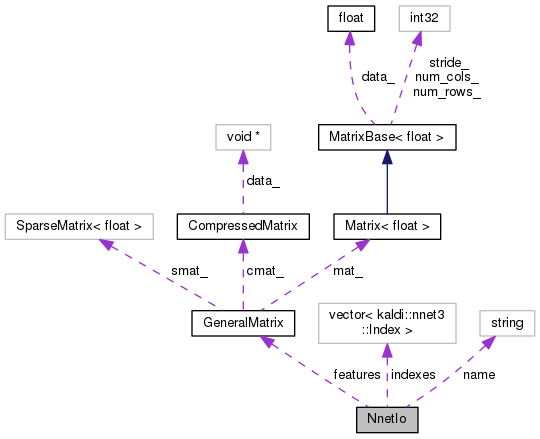

Collaboration diagram for NnetIo:

[legend]

Public Member Functions
	NnetIo (const std::string &name, int32 t_begin, const MatrixBase< BaseFloat > &feats, int32 t_stride=1)
	This constructor creates NnetIo with name "name", indexes with n=0, x=0, and t values ranging from t_begin to (t_begin + t_stride * feats.NumRows() - 1) with a stride t_stride, and the provided features. More...

	NnetIo (const std::string &name, int32 t_begin, const GeneralMatrix &feats, int32 t_stride=1)
	This constructor creates NnetIo with name "name", indexes with n=0, x=0, and t values ranging from t_begin to (t_begin + t_stride * feats.NumRows() - 1) with a stride t_stride, and the provided features. More...

	NnetIo (const std::string &name, int32 dim, int32 t_begin, const Posterior &labels, int32 t_stride=1)
	This constructor sets "name" to the provided string, sets "indexes" with n=0, x=0, and t from t_begin to (t_begin + t_stride * labels.size() - 1) with a stride t_stride, and the labels as provided. More...

void	Swap (NnetIo *other)

	NnetIo ()

void	Write (std::ostream &os, bool binary) const

void	Read (std::istream &is, bool binary)

bool	operator== (const NnetIo &other) const

Public Attributes
std::string	name
	the name of the input in the neural net; in simple setups it will just be "input". More...

std::vector< Index >	indexes
	"indexes" is a vector the same length as features.NumRows(), explaining the meaning of each row of the "features" matrix. More...

GeneralMatrix	features
	The features or labels. More...

Detailed Description

Definition at line 33 of file nnet-example.h.

Constructor & Destructor Documentation

◆ NnetIo() [1/4]

NnetIo	(	const std::string &	name,
		int32	t_begin,
		const MatrixBase< BaseFloat > &	feats,
		int32	t_stride = `1`
	)

This constructor creates NnetIo with name "name", indexes with n=0, x=0, and t values ranging from t_begin to (t_begin + t_stride * feats.NumRows() - 1) with a stride t_stride, and the provided features.

t_begin should be the frame that feats.Row(0) represents.

Definition at line 58 of file nnet-example.cc.

References rnnlm::i, NnetIo::indexes, KALDI_ASSERT, and MatrixBase< Real >::NumRows().

                               :
     name(name), features(feats) {
   int32 num_rows = feats.NumRows();
   KALDI_ASSERT(num_rows > 0);
   indexes.resize(num_rows);  // sets all n,t,x to zeros.
   for (int32 i = 0; i < num_rows; i++)
     indexes[i].t = t_begin + i * t_stride;
 }

◆ NnetIo() [2/4]

NnetIo	(	const std::string &	name,
		int32	t_begin,
		const GeneralMatrix &	feats,
		int32	t_stride = `1`
	)

This constructor creates NnetIo with name "name", indexes with n=0, x=0, and t values ranging from t_begin to (t_begin + t_stride * feats.NumRows() - 1) with a stride t_stride, and the provided features.

t_begin should be the frame that the first row of 'feats' represents.

Definition at line 69 of file nnet-example.cc.

References rnnlm::i, NnetIo::indexes, KALDI_ASSERT, and GeneralMatrix::NumRows().

                               :
     name(name), features(feats) {
   int32 num_rows = feats.NumRows();
   KALDI_ASSERT(num_rows > 0);
   indexes.resize(num_rows);  // sets all n,t,x to zeros.
   for (int32 i = 0; i < num_rows; i++)
     indexes[i].t = t_begin + i * t_stride;
 }

◆ NnetIo() [3/4]

NnetIo	(	const std::string &	name,
		int32	dim,
		int32	t_begin,
		const Posterior &	labels,
		int32	t_stride = `1`
	)

This constructor sets "name" to the provided string, sets "indexes" with n=0, x=0, and t from t_begin to (t_begin + t_stride * labels.size() - 1) with a stride t_stride, and the labels as provided.

t_begin should be the frame to which labels[0] corresponds.

Definition at line 86 of file nnet-example.cc.

References NnetIo::features, rnnlm::i, NnetIo::indexes, and KALDI_ASSERT.

                               :
     name(name) {
   int32 num_rows = labels.size();
   KALDI_ASSERT(num_rows > 0);
   SparseMatrix<BaseFloat> sparse_feats(dim, labels);
   features = sparse_feats;
   indexes.resize(num_rows);  // sets all n,t,x to zeros.
   for (int32 i = 0; i < num_rows; i++)
     indexes[i].t = t_begin + i * t_stride;
 }

◆ NnetIo() [4/4]

NnetIo ( )

inline

Definition at line 78 of file nnet-example.h.

References NnetIo::operator==(), NnetIo::Read(), and NnetIo::Write().

78 { }

Member Function Documentation

◆ operator==()

bool operator== ( const NnetIo & other ) const

Definition at line 46 of file nnet-example.cc.

References kaldi::ApproxEqual(), NnetIo::features, GeneralMatrix::GetMatrix(), NnetIo::indexes, NnetIo::name, GeneralMatrix::NumCols(), and GeneralMatrix::NumRows().

Referenced by NnetIo::NnetIo().

                                                    {
   if (name != other.name) return false;
   if (indexes != other.indexes) return false;
   if (features.NumRows() != other.features.NumRows() ||
       features.NumCols() != other.features.NumCols())
     return false;
   Matrix<BaseFloat> this_mat, other_mat;
   features.GetMatrix(&this_mat);
   other.features.GetMatrix(&other_mat);
   return ApproxEqual(this_mat, other_mat);
 }

◆ Read()

void Read	(	std::istream &	is,
		bool	binary
	)

Definition at line 38 of file nnet-example.cc.

References kaldi::nnet3::ExpectToken(), NnetIo::features, NnetIo::indexes, NnetIo::name, GeneralMatrix::Read(), kaldi::nnet3::ReadIndexVector(), and kaldi::ReadToken().

Referenced by NnetIo::NnetIo(), and NnetExample::Read().

                                              {
   ExpectToken(is, binary, "<NnetIo>");
   ReadToken(is, binary, &name);
   ReadIndexVector(is, binary, &indexes);
   features.Read(is, binary);
   ExpectToken(is, binary, "</NnetIo>");
 }

◆ Swap()

void Swap ( NnetIo * other )

Definition at line 80 of file nnet-example.cc.

References NnetIo::features, NnetIo::indexes, NnetIo::name, and GeneralMatrix::Swap().

                                {
   name.swap(other->name);
   indexes.swap(other->indexes);
   features.Swap(&(other->features));
 }

◆ Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

Definition at line 28 of file nnet-example.cc.

References NnetIo::features, NnetIo::indexes, KALDI_ASSERT, NnetIo::name, GeneralMatrix::NumRows(), GeneralMatrix::Write(), kaldi::nnet3::WriteIndexVector(), and kaldi::WriteToken().

Referenced by NnetIo::NnetIo(), and NnetExample::Write().

                                                     {
   KALDI_ASSERT(features.NumRows() == static_cast<int32>(indexes.size()));
   WriteToken(os, binary, "<NnetIo>");
   WriteToken(os, binary, name);
   WriteIndexVector(os, binary, indexes);
   features.Write(os, binary);
   WriteToken(os, binary, "</NnetIo>");
   KALDI_ASSERT(static_cast<size_t>(features.NumRows()) == indexes.size());
 }

Member Data Documentation

◆ features

GeneralMatrix features

The features or labels.

GeneralMatrix may contain either a CompressedMatrix, a Matrix, or SparseMatrix (a SparseMatrix would be the natural format for posteriors).

Definition at line 46 of file nnet-example.h.

Referenced by NnetComputer::AcceptInputs(), NnetLdaStatsAccumulator::AccStatsFromOutput(), kaldi::nnet3::ExampleApproxEqual(), kaldi::nnet3::FilterExample(), kaldi::nnet3::GenerateSimpleNnetTrainingExample(), kaldi::nnet3::GetIoSizes(), kaldi::nnet3::MergeIo(), NnetIo::NnetIo(), NnetIoStructureCompare::operator()(), NnetIo::operator==(), kaldi::nnet3::PerturbImageInNnetExample(), NnetComputeProb::ProcessOutputs(), NnetTrainer::ProcessOutputs(), NnetIo::Read(), NnetIo::Swap(), and NnetIo::Write().

◆ indexes

std::vector<Index> indexes

"indexes" is a vector the same length as features.NumRows(), explaining the meaning of each row of the "features" matrix.

Note: the "n" values in the indexes will always be zero in individual examples, but in general nonzero after we aggregate the examples into the minibatch level.

Definition at line 42 of file nnet-example.h.

Referenced by kaldi::nnet3::ContainsSingleExample(), kaldi::nnet3::ExampleApproxEqual(), kaldi::nnet3::FilterExample(), kaldi::nnet3::GetChainComputationRequest(), kaldi::nnet3::GetComputationRequest(), kaldi::nnet3::GetDiscriminativeComputationRequest(), kaldi::nnet3::GetIoSizes(), kaldi::nnet3::GetNumNvalues(), main(), kaldi::nnet3::MergeIo(), NnetIo::NnetIo(), NnetIoStructureCompare::operator()(), NnetIo::operator==(), NnetIo::Read(), NnetIo::Swap(), NnetIo::Write(), and kaldi::nnet3::WriteExamples().

◆ name

std::string name

the name of the input in the neural net; in simple setups it will just be "input".

Definition at line 36 of file nnet-example.h.

Referenced by NnetComputer::AcceptInputs(), kaldi::nnet3::ContainsSingleExample(), kaldi::nnet3::ExampleApproxEqual(), kaldi::nnet3::FilterExample(), kaldi::nnet3::GetChainComputationRequest(), kaldi::nnet3::GetComputationRequest(), kaldi::nnet3::GetDiscriminativeComputationRequest(), kaldi::nnet3::GetIoSizes(), main(), kaldi::nnet3::MergeIo(), NnetIoStructureCompare::operator()(), NnetIo::operator==(), kaldi::nnet3::PerturbImageInNnetExample(), NnetComputeProb::ProcessOutputs(), NnetTrainer::ProcessOutputs(), NnetIo::Read(), NnetIo::Swap(), and NnetIo::Write().

The documentation for this struct was generated from the following files:

nnet3/nnet-example.h
nnet3/nnet-example.cc
