LatticeFasterDecoderTpl< FST, Token > Class Template Reference

This is the "normal" lattice-generating decoder. More...

#include <lattice-faster-decoder.h>

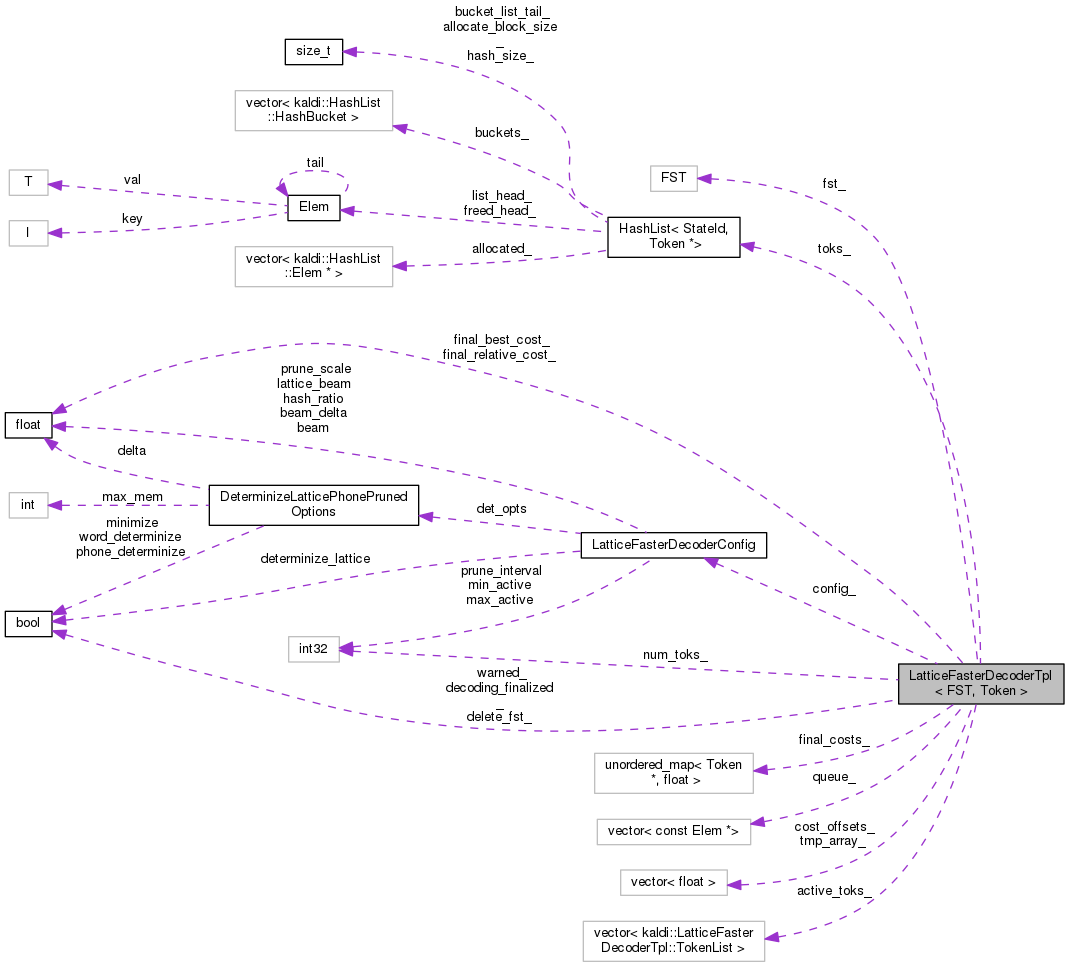

Collaboration diagram for LatticeFasterDecoderTpl< FST, Token >:

Classes
struct	TokenList

Public Types
using	Arc = typename FST::Arc
using	Label = typename Arc::Label
using	StateId = typename Arc::StateId
using	Weight = typename Arc::Weight
using	ForwardLinkT = decoder::ForwardLink< Token >

Public Member Functions
	LatticeFasterDecoderTpl (const FST &fst, const LatticeFasterDecoderConfig &config)
	LatticeFasterDecoderTpl (const LatticeFasterDecoderConfig &config, FST *fst)
void	SetOptions (const LatticeFasterDecoderConfig &config)
const LatticeFasterDecoderConfig &	GetOptions () const
	~LatticeFasterDecoderTpl ()
bool	Decode (DecodableInterface *decodable)
	Decodes until there are no more frames left in the "decodable" object. More...
bool	ReachedFinal () const
	says whether a final-state was active on the last frame. More...
bool	GetBestPath (Lattice *ofst, bool use_final_probs=true) const
	Outputs an FST corresponding to the single best path through the lattice. More...
bool	GetRawLattice (Lattice *ofst, bool use_final_probs=true) const
	Outputs an FST corresponding to the raw, state-level tracebacks. More...
bool	GetLattice (CompactLattice *ofst, bool use_final_probs=true) const
	[Deprecated, users should now use GetRawLattice and determinize it themselves, e.g. More...
void	InitDecoding ()
	InitDecoding initializes the decoding, and should only be used if you intend to call AdvanceDecoding(). More...
void	AdvanceDecoding (DecodableInterface *decodable, int32 max_num_frames=-1)
	This will decode until there are no more frames ready in the decodable object. More...
void	FinalizeDecoding ()
	This function may be optionally called after AdvanceDecoding(), when you do not plan to decode any further. More...
BaseFloat	FinalRelativeCost () const
	FinalRelativeCost() serves the same purpose as ReachedFinal(), but gives more information. More...
int32	NumFramesDecoded () const

Protected Types
using	Elem = typename HashList< StateId, Token * >::Elem

Protected Member Functions
void	PossiblyResizeHash (size_t num_toks)
Elem *	FindOrAddToken (StateId state, int32 frame_plus_one, BaseFloat tot_cost, Token *backpointer, bool *changed)
void	PruneForwardLinks (int32 frame_plus_one, bool *extra_costs_changed, bool *links_pruned, BaseFloat delta)
void	ComputeFinalCosts (unordered_map< Token *, BaseFloat > *final_costs, BaseFloat *final_relative_cost, BaseFloat *final_best_cost) const
void	PruneForwardLinksFinal ()
void	PruneTokensForFrame (int32 frame_plus_one)
void	PruneActiveTokens (BaseFloat delta)
BaseFloat	GetCutoff (Elem *list_head, size_t *tok_count, BaseFloat *adaptive_beam, Elem **best_elem)
	Gets the weight cutoff. Also counts the active tokens. More...
BaseFloat	ProcessEmitting (DecodableInterface *decodable)
	Processes emitting arcs for one frame. More...
void	ProcessNonemitting (BaseFloat cost_cutoff)
	Processes nonemitting (epsilon) arcs for one frame. More...
void	DeleteElems (Elem *list)
void	ClearActiveTokens ()
	KALDI_DISALLOW_COPY_AND_ASSIGN (LatticeFasterDecoderTpl)

Static Protected Member Functions
static void	DeleteForwardLinks (Token *tok)
static void	TopSortTokens (Token *tok_list, std::vector< Token *> *topsorted_list)

Protected Attributes
HashList< StateId, Token * >	toks_
std::vector< TokenList >	active_toks_
std::vector< const Elem *>	queue_
std::vector< BaseFloat >	tmp_array_
const FST *	fst_
bool	delete_fst_
std::vector< BaseFloat >	cost_offsets_
LatticeFasterDecoderConfig	config_
int32	num_toks_
bool	warned_
bool	decoding_finalized_
	decoding_finalized_ is true if someone called FinalizeDecoding(). More...
unordered_map< Token *, BaseFloat >	final_costs_
	For the meaning of the next 3 variables, see the comment for decoding_finalized_ above., and ComputeFinalCosts(). More...
BaseFloat	final_relative_cost_
BaseFloat	final_best_cost_

Detailed Description

template<typename FST, typename Token = decoder::StdToken>
class kaldi::LatticeFasterDecoderTpl< FST, Token >

This is the "normal" lattice-generating decoder.

See Lattice generation FasterDecoder: a more optimized decoder and SimpleDecoder: the simplest possible decoder for more information.

The decoder is templated on the FST type and the token type. The token type will normally be StdToken, but also may be BackpointerToken which is to support quick lookup of the current best path (see lattice-faster-online-decoder.h)

The FST you invoke this decoder which is expected to equal Fst::Fst<fst::StdArc>, a.k.a. StdFst, or GrammarFst. If you invoke it with FST == StdFst and it notices that the actual FST type is fst::VectorFst<fst::StdArc> or fst::ConstFst<fst::StdArc>, the decoder object will internally cast itself to one that is templated on those more specific types; this is an optimization for speed.

Definition at line 229 of file lattice-faster-decoder.h.

Member Typedef Documentation

Arc

using Arc = typename FST::Arc

Definition at line 231 of file lattice-faster-decoder.h.

Elem

using Elem = typename HashList<StateId, Token*>::Elem

protected

Definition at line 360 of file lattice-faster-decoder.h.

ForwardLinkT

using ForwardLinkT = decoder::ForwardLink<Token>

Definition at line 235 of file lattice-faster-decoder.h.

Label

using Label = typename Arc::Label

Definition at line 232 of file lattice-faster-decoder.h.

StateId

using StateId = typename Arc::StateId

Definition at line 233 of file lattice-faster-decoder.h.

Weight

using Weight = typename Arc::Weight

Definition at line 234 of file lattice-faster-decoder.h.

Constructor & Destructor Documentation

LatticeFasterDecoderTpl() [1/2]

LatticeFasterDecoderTpl	(	const FST &	fst,
		const LatticeFasterDecoderConfig &	config
	)

Definition at line 30 of file lattice-faster-decoder.cc.

                                             :
    fst_(&fst), delete_fst_(false), config_(config), num_toks_(0) {
  config.Check();
  toks_.SetSize(1000);  // just so on the first frame we do something reasonable.
}

LatticeFasterDecoderTpl() [2/2]

LatticeFasterDecoderTpl	(	const LatticeFasterDecoderConfig &	config,
		FST *	fst
	)

Definition at line 40 of file lattice-faster-decoder.cc.

                                                       :
    fst_(fst), delete_fst_(true), config_(config), num_toks_(0) {
  config.Check();
  toks_.SetSize(1000);  // just so on the first frame we do something reasonable.
}

~LatticeFasterDecoderTpl()

~LatticeFasterDecoderTpl

(

)

Definition at line 49 of file lattice-faster-decoder.cc.

                                                              {
  DeleteElems(toks_.Clear());
  ClearActiveTokens();
  if (delete_fst_) delete fst_;
}

Member Function Documentation

AdvanceDecoding()

void AdvanceDecoding	(	DecodableInterface *	decodable,
		int32	max_num_frames = -1
	)

This will decode until there are no more frames ready in the decodable object.

You can keep calling it each time more frames become available. If max_num_frames is specified, it specifies the maximum number of frames the function will decode before returning.

Definition at line 580 of file lattice-faster-decoder.cc.

Referenced by SingleUtteranceNnet2Decoder::AdvanceDecoding(), SingleUtteranceGmmDecoder::AdvanceDecoding(), LatticeFasterDecoderTpl< fst::StdFst, decoder::BackpointerToken >::AdvanceDecoding(), NnetBatchDecoder::Decode(), and SingleUtteranceNnet2DecoderThreaded::RunDecoderSearchInternal().

                                                                      {
  if (std::is_same<FST, fst::Fst<fst::StdArc> >::value) {
    // if the type 'FST' is the FST base-class, then see if the FST type of fst_
    // is actually VectorFst or ConstFst.  If so, call the AdvanceDecoding()
    // function after casting *this to the more specific type.
    if (fst_->Type() == "const") {
      LatticeFasterDecoderTpl<fst::ConstFst<fst::StdArc>, Token> *this_cast =
          reinterpret_cast<LatticeFasterDecoderTpl<fst::ConstFst<fst::StdArc>, Token>* >(this);
      this_cast->AdvanceDecoding(decodable, max_num_frames);
      return;
    } else if (fst_->Type() == "vector") {
      LatticeFasterDecoderTpl<fst::VectorFst<fst::StdArc>, Token> *this_cast =
          reinterpret_cast<LatticeFasterDecoderTpl<fst::VectorFst<fst::StdArc>, Token>* >(this);
      this_cast->AdvanceDecoding(decodable, max_num_frames);
      return;
    }
  }


  KALDI_ASSERT(!active_toks_.empty() && !decoding_finalized_ &&
               "You must call InitDecoding() before AdvanceDecoding");
  int32 num_frames_ready = decodable->NumFramesReady();
  // num_frames_ready must be >= num_frames_decoded, or else
  // the number of frames ready must have decreased (which doesn't
  // make sense) or the decodable object changed between calls
  // (which isn't allowed).
  KALDI_ASSERT(num_frames_ready >= NumFramesDecoded());
  int32 target_frames_decoded = num_frames_ready;
  if (max_num_frames >= 0)
    target_frames_decoded = std::min(target_frames_decoded,
                                     NumFramesDecoded() + max_num_frames);
  while (NumFramesDecoded() < target_frames_decoded) {
    if (NumFramesDecoded() % config_.prune_interval == 0) {
      PruneActiveTokens(config_.lattice_beam * config_.prune_scale);
    }
    BaseFloat cost_cutoff = ProcessEmitting(decodable);
    ProcessNonemitting(cost_cutoff);
  }
}

ClearActiveTokens()

void ClearActiveTokens ( )

protected

Definition at line 899 of file lattice-faster-decoder.cc.

                                                            { // a cleanup routine, at utt end/begin
  for (size_t i = 0; i < active_toks_.size(); i++) {
    // Delete all tokens alive on this frame, and any forward
    // links they may have.
    for (Token *tok = active_toks_[i].toks; tok != NULL; ) {
      DeleteForwardLinks(tok);
      Token *next_tok = tok->next;
      delete tok;
      num_toks_--;
      tok = next_tok;
    }
  }
  active_toks_.clear();
  KALDI_ASSERT(num_toks_ == 0);
}

ComputeFinalCosts()

void ComputeFinalCosts ( unordered_map< Token *, BaseFloat > *  final_costs, BaseFloat *  final_relative_cost, BaseFloat *  final_best_cost  ) const

protected

Definition at line 536 of file lattice-faster-decoder.cc.

                                      {
  KALDI_ASSERT(!decoding_finalized_);
  if (final_costs != NULL)
    final_costs->clear();
  const Elem *final_toks = toks_.GetList();
  BaseFloat infinity = std::numeric_limits<BaseFloat>::infinity();
  BaseFloat best_cost = infinity,
      best_cost_with_final = infinity;

  while (final_toks != NULL) {
    StateId state = final_toks->key;
    Token *tok = final_toks->val;
    const Elem *next = final_toks->tail;
    BaseFloat final_cost = fst_->Final(state).Value();
    BaseFloat cost = tok->tot_cost,
        cost_with_final = cost + final_cost;
    best_cost = std::min(cost, best_cost);
    best_cost_with_final = std::min(cost_with_final, best_cost_with_final);
    if (final_costs != NULL && final_cost != infinity)
      (*final_costs)[tok] = final_cost;
    final_toks = next;
  }
  if (final_relative_cost != NULL) {
    if (best_cost == infinity && best_cost_with_final == infinity) {
      // Likely this will only happen if there are no tokens surviving.
      // This seems the least bad way to handle it.
      *final_relative_cost = infinity;
    } else {
      *final_relative_cost = best_cost_with_final - best_cost;
    }
  }
  if (final_best_cost != NULL) {
    if (best_cost_with_final != infinity) { // final-state exists.
      *final_best_cost = best_cost_with_final;
    } else { // no final-state exists.
      *final_best_cost = best_cost;
    }
  }
}

Decode()

bool Decode

(

DecodableInterface *

decodable

)

Decodes until there are no more frames left in the "decodable" object.

note, this may block waiting for input if the "decodable" object blocks. Returns true if any kind of traceback is available (not necessarily from a final state).

Definition at line 79 of file lattice-faster-decoder.cc.

Referenced by kaldi::DecodeUtteranceLatticeFaster(), and DecodeUtteranceLatticeFasterClass::operator()().

                                                                              {
  InitDecoding();
  // We use 1-based indexing for frames in this decoder (if you view it in
  // terms of features), but note that the decodable object uses zero-based
  // numbering, which we have to correct for when we call it.
  AdvanceDecoding(decodable);
  FinalizeDecoding();

  // Returns true if we have any kind of traceback available (not necessarily
  // to the end state; query ReachedFinal() for that).
  return !active_toks_.empty() && active_toks_.back().toks != NULL;
}

DeleteElems()

void DeleteElems ( Elem *  list )

protected

Definition at line 891 of file lattice-faster-decoder.cc.

                                                                {
  for (Elem *e = list, *e_tail; e != NULL; e = e_tail) {
    e_tail = e->tail;
    toks_.Delete(e);
  }
}

DeleteForwardLinks()

void DeleteForwardLinks ( Token *  tok )

inlinestaticprotected

Definition at line 808 of file lattice-faster-decoder.cc.

                                                                       {
  ForwardLinkT *l = tok->links, *m;
  while (l != NULL) {
    m = l->next;
    delete l;
    l = m;
  }
  tok->links = NULL;
}

FinalizeDecoding()

void FinalizeDecoding

(

)

This function may be optionally called after AdvanceDecoding(), when you do not plan to decode any further.

It does an extra pruning step that will help to prune the lattices output by GetLattice and (particularly) GetRawLattice more completely, particularly toward the end of the utterance. If you call this, you cannot call AdvanceDecoding again (it will fail), and you cannot call GetLattice() and related functions with use_final_probs = false. Used to be called PruneActiveTokensFinal().

Definition at line 625 of file lattice-faster-decoder.cc.

Referenced by SingleUtteranceNnet2Decoder::FinalizeDecoding(), SingleUtteranceGmmDecoder::FinalizeDecoding(), and SingleUtteranceNnet2DecoderThreaded::FinalizeDecoding().

                                                           {
  int32 final_frame_plus_one = NumFramesDecoded();
  int32 num_toks_begin = num_toks_;
  // PruneForwardLinksFinal() prunes final frame (with final-probs), and
  // sets decoding_finalized_.
  PruneForwardLinksFinal();
  for (int32 f = final_frame_plus_one - 1; f >= 0; f--) {
    bool b1, b2; // values not used.
    BaseFloat dontcare = 0.0; // delta of zero means we must always update
    PruneForwardLinks(f, &b1, &b2, dontcare);
    PruneTokensForFrame(f + 1);
  }
  PruneTokensForFrame(0);
  KALDI_VLOG(4) << "pruned tokens from " << num_toks_begin
                << " to " << num_toks_;
}

FinalRelativeCost()

BaseFloat FinalRelativeCost

(

)

const

FinalRelativeCost() serves the same purpose as ReachedFinal(), but gives more information.

It returns the difference between the best (final-cost plus cost) of any token on the final frame, and the best cost of any token on the final frame. If it is infinity it means no final-states were present on the final frame. It will usually be nonnegative. If it not too positive (e.g. < 5 is my first guess, but this is not tested) you can take it as a good indication that we reached the final-state with reasonable likelihood.

Definition at line 461 of file lattice-faster-decoder.cc.

Referenced by SingleUtteranceNnet2DecoderThreaded::GetBestPath(), and SingleUtteranceNnet2DecoderThreaded::GetLattice().

                                                                       {
  if (!decoding_finalized_) {
    BaseFloat relative_cost;
    ComputeFinalCosts(NULL, &relative_cost, NULL);
    return relative_cost;
  } else {
    // we're not allowed to call that function if FinalizeDecoding() has
    // been called; return a cached value.
    return final_relative_cost_;
  }
}

FindOrAddToken()

LatticeFasterDecoderTpl< FST, Token >::Elem * FindOrAddToken ( StateId  state, int32  frame_plus_one, BaseFloat  tot_cost, Token *  backpointer, bool *  changed  )

inlineprotected

Definition at line 253 of file lattice-faster-decoder.cc.

                                         {
  // Returns the Token pointer.  Sets "changed" (if non-NULL) to true
  // if the token was newly created or the cost changed.
  KALDI_ASSERT(frame_plus_one < active_toks_.size());
  Token *&toks = active_toks_[frame_plus_one].toks;
  Elem *e_found = toks_.Insert(state, NULL);
  if (e_found->val == NULL) {  // no such token presently.
    const BaseFloat extra_cost = 0.0;
    // tokens on the currently final frame have zero extra_cost
    // as any of them could end up
    // on the winning path.
    Token *new_tok = new Token (tot_cost, extra_cost, NULL, toks, backpointer);
    // NULL: no forward links yet
    toks = new_tok;
    num_toks_++;
    e_found->val = new_tok;
    if (changed) *changed = true;
    return e_found;
  } else {
    Token *tok = e_found->val;  // There is an existing Token for this state.
    if (tok->tot_cost > tot_cost) {  // replace old token
      tok->tot_cost = tot_cost;
      // SetBackpointer() just does tok->backpointer = backpointer in
      // the case where Token == BackpointerToken, else nothing.
      tok->SetBackpointer(backpointer);
      // we don't allocate a new token, the old stays linked in active_toks_
      // we only replace the tot_cost
      // in the current frame, there are no forward links (and no extra_cost)
      // only in ProcessNonemitting we have to delete forward links
      // in case we visit a state for the second time
      // those forward links, that lead to this replaced token before:
      // they remain and will hopefully be pruned later (PruneForwardLinks...)
      if (changed) *changed = true;
    } else {
      if (changed) *changed = false;
    }
    return e_found;
  }
}

GetBestPath()

bool GetBestPath	(	Lattice *	ofst,
		bool	use_final_probs = true
	)		const

Outputs an FST corresponding to the single best path through the lattice.

Returns true if result is nonempty (using the return status is deprecated, it will become void). If "use_final_probs" is true AND we reached the final-state of the graph then it will include those as final-probs, else it will treat all final-probs as one. Note: this just calls GetRawLattice() and figures out the shortest path.

Definition at line 95 of file lattice-faster-decoder.cc.

Referenced by kaldi::DecodeUtteranceLatticeFaster(), and DecodeUtteranceLatticeFasterClass::~DecodeUtteranceLatticeFasterClass().

                                                                   {
  Lattice raw_lat;
  GetRawLattice(&raw_lat, use_final_probs);
  ShortestPath(raw_lat, olat);
  return (olat->NumStates() != 0);
}

GetCutoff()

BaseFloat GetCutoff ( Elem *  list_head, size_t *  tok_count, BaseFloat *  adaptive_beam, Elem **  best_elem  )

protected

Gets the weight cutoff. Also counts the active tokens.

Definition at line 644 of file lattice-faster-decoder.cc.

                                                                                      {
  BaseFloat best_weight = std::numeric_limits<BaseFloat>::infinity();
  // positive == high cost == bad.
  size_t count = 0;
  if (config_.max_active == std::numeric_limits<int32>::max() &&
      config_.min_active == 0) {
    for (Elem *e = list_head; e != NULL; e = e->tail, count++) {
      BaseFloat w = static_cast<BaseFloat>(e->val->tot_cost);
      if (w < best_weight) {
        best_weight = w;
        if (best_elem) *best_elem = e;
      }
    }
    if (tok_count != NULL) *tok_count = count;
    if (adaptive_beam != NULL) *adaptive_beam = config_.beam;
    return best_weight + config_.beam;
  } else {
    tmp_array_.clear();
    for (Elem *e = list_head; e != NULL; e = e->tail, count++) {
      BaseFloat w = e->val->tot_cost;
      tmp_array_.push_back(w);
      if (w < best_weight) {
        best_weight = w;
        if (best_elem) *best_elem = e;
      }
    }
    if (tok_count != NULL) *tok_count = count;

    BaseFloat beam_cutoff = best_weight + config_.beam,
        min_active_cutoff = std::numeric_limits<BaseFloat>::infinity(),
        max_active_cutoff = std::numeric_limits<BaseFloat>::infinity();

    KALDI_VLOG(6) << "Number of tokens active on frame " << NumFramesDecoded()
                  << " is " << tmp_array_.size();

    if (tmp_array_.size() > static_cast<size_t>(config_.max_active)) {
      std::nth_element(tmp_array_.begin(),
                       tmp_array_.begin() + config_.max_active,
                       tmp_array_.end());
      max_active_cutoff = tmp_array_[config_.max_active];
    }
    if (max_active_cutoff < beam_cutoff) { // max_active is tighter than beam.
      if (adaptive_beam)
        *adaptive_beam = max_active_cutoff - best_weight + config_.beam_delta;
      return max_active_cutoff;
    }
    if (tmp_array_.size() > static_cast<size_t>(config_.min_active)) {
      if (config_.min_active == 0) min_active_cutoff = best_weight;
      else {
        std::nth_element(tmp_array_.begin(),
                         tmp_array_.begin() + config_.min_active,
                         tmp_array_.size() > static_cast<size_t>(config_.max_active) ?
                         tmp_array_.begin() + config_.max_active :
                         tmp_array_.end());
        min_active_cutoff = tmp_array_[config_.min_active];
      }
    }
    if (min_active_cutoff > beam_cutoff) { // min_active is looser than beam.
      if (adaptive_beam)
        *adaptive_beam = min_active_cutoff - best_weight + config_.beam_delta;
      return min_active_cutoff;
    } else {
      *adaptive_beam = config_.beam;
      return beam_cutoff;
    }
  }
}

GetLattice()

bool GetLattice	(	CompactLattice *	ofst,
		bool	use_final_probs = true
	)		const

[Deprecated, users should now use GetRawLattice and determinize it themselves, e.g.

using DeterminizeLatticePhonePrunedWrapper]. Outputs an FST corresponding to the lattice-determinized lattice (one path per word sequence). Returns true if result is nonempty. If "use_final_probs" is true AND we reached the final-state of the graph then it will include those as final-probs, else it will treat all final-probs as one.

Definition at line 196 of file lattice-faster-decoder.cc.

                                                                       {
  Lattice raw_fst;
  GetRawLattice(&raw_fst, use_final_probs);
  Invert(&raw_fst);  // make it so word labels are on the input.
  // (in phase where we get backward-costs).
  fst::ILabelCompare<LatticeArc> ilabel_comp;
  ArcSort(&raw_fst, ilabel_comp);  // sort on ilabel; makes
  // lattice-determinization more efficient.

  fst::DeterminizeLatticePrunedOptions lat_opts;
  lat_opts.max_mem = config_.det_opts.max_mem;

  DeterminizeLatticePruned(raw_fst, config_.lattice_beam, ofst, lat_opts);
  raw_fst.DeleteStates();  // Free memory-- raw_fst no longer needed.
  Connect(ofst);  // Remove unreachable states... there might be
  // a small number of these, in some cases.
  // Note: if something went wrong and the raw lattice was empty,
  // we should still get to this point in the code without warnings or failures.
  return (ofst->NumStates() != 0);
}

GetOptions()

const LatticeFasterDecoderConfig& GetOptions ( ) const

inline

Definition at line 252 of file lattice-faster-decoder.h.

Referenced by kaldi::DecodeUtteranceLatticeFaster(), and DecodeUtteranceLatticeFasterClass::operator()().

                                                       {
    return config_;
  }

GetRawLattice()

bool GetRawLattice	(	Lattice *	ofst,
		bool	use_final_probs = true
	)		const

Outputs an FST corresponding to the raw, state-level tracebacks.

Returns true if result is nonempty. If "use_final_probs" is true AND we reached the final-state of the graph then it will include those as final-probs, else it will treat all final-probs as one. The raw lattice will be topologically sorted.

See also GetRawLatticePruned in lattice-faster-online-decoder.h, which also supports a pruning beam, in case for some reason you want it pruned tighter than the regular lattice beam. We could put that here in future needed.

Definition at line 106 of file lattice-faster-decoder.cc.

Referenced by NnetBatchDecoder::Decode(), kaldi::DecodeUtteranceLatticeFaster(), SingleUtteranceNnet2Decoder::GetLattice(), SingleUtteranceGmmDecoder::GetLattice(), SingleUtteranceNnet2DecoderThreaded::GetLattice(), and DecodeUtteranceLatticeFasterClass::operator()().

                                {
  typedef LatticeArc Arc;
  typedef Arc::StateId StateId;
  typedef Arc::Weight Weight;
  typedef Arc::Label Label;

  // Note: you can't use the old interface (Decode()) if you want to
  // get the lattice with use_final_probs = false.  You'd have to do
  // InitDecoding() and then AdvanceDecoding().
  if (decoding_finalized_ && !use_final_probs)
    KALDI_ERR << "You cannot call FinalizeDecoding() and then call "
              << "GetRawLattice() with use_final_probs == false";

  unordered_map<Token*, BaseFloat> final_costs_local;

  const unordered_map<Token*, BaseFloat> &final_costs =
      (decoding_finalized_ ? final_costs_ : final_costs_local);
  if (!decoding_finalized_ && use_final_probs)
    ComputeFinalCosts(&final_costs_local, NULL, NULL);

  ofst->DeleteStates();
  // num-frames plus one (since frames are one-based, and we have
  // an extra frame for the start-state).
  int32 num_frames = active_toks_.size() - 1;
  KALDI_ASSERT(num_frames > 0);
  const int32 bucket_count = num_toks_/2 + 3;
  unordered_map<Token*, StateId> tok_map(bucket_count);
  // First create all states.
  std::vector<Token*> token_list;
  for (int32 f = 0; f <= num_frames; f++) {
    if (active_toks_[f].toks == NULL) {
      KALDI_WARN << "GetRawLattice: no tokens active on frame " << f
                 << ": not producing lattice.\n";
      return false;
    }
    TopSortTokens(active_toks_[f].toks, &token_list);
    for (size_t i = 0; i < token_list.size(); i++)
      if (token_list[i] != NULL)
        tok_map[token_list[i]] = ofst->AddState();
  }
  // The next statement sets the start state of the output FST.  Because we
  // topologically sorted the tokens, state zero must be the start-state.
  ofst->SetStart(0);

  KALDI_VLOG(4) << "init:" << num_toks_/2 + 3 << " buckets:"
                << tok_map.bucket_count() << " load:" << tok_map.load_factor()
                << " max:" << tok_map.max_load_factor();
  // Now create all arcs.
  for (int32 f = 0; f <= num_frames; f++) {
    for (Token *tok = active_toks_[f].toks; tok != NULL; tok = tok->next) {
      StateId cur_state = tok_map[tok];
      for (ForwardLinkT *l = tok->links;
           l != NULL;
           l = l->next) {
        typename unordered_map<Token*, StateId>::const_iterator
            iter = tok_map.find(l->next_tok);
        StateId nextstate = iter->second;
        KALDI_ASSERT(iter != tok_map.end());
        BaseFloat cost_offset = 0.0;
        if (l->ilabel != 0) {  // emitting..
          KALDI_ASSERT(f >= 0 && f < cost_offsets_.size());
          cost_offset = cost_offsets_[f];
        }
        Arc arc(l->ilabel, l->olabel,
                Weight(l->graph_cost, l->acoustic_cost - cost_offset),
                nextstate);
        ofst->AddArc(cur_state, arc);
      }
      if (f == num_frames) {
        if (use_final_probs && !final_costs.empty()) {
          typename unordered_map<Token*, BaseFloat>::const_iterator
              iter = final_costs.find(tok);
          if (iter != final_costs.end())
            ofst->SetFinal(cur_state, LatticeWeight(iter->second, 0));
        } else {
          ofst->SetFinal(cur_state, LatticeWeight::One());
        }
      }
    }
  }
  return (ofst->NumStates() > 0);
}

InitDecoding()

void InitDecoding

(

)

InitDecoding initializes the decoding, and should only be used if you intend to call AdvanceDecoding().

If you call Decode(), you don't need to call this. You can also call InitDecoding if you have already decoded an utterance and want to start with a new utterance.

Definition at line 56 of file lattice-faster-decoder.cc.

Referenced by NnetBatchDecoder::Decode(), SingleUtteranceGmmDecoder::SingleUtteranceGmmDecoder(), SingleUtteranceNnet2Decoder::SingleUtteranceNnet2Decoder(), and SingleUtteranceNnet2DecoderThreaded::SingleUtteranceNnet2DecoderThreaded().

                                                       {
  // clean up from last time:
  DeleteElems(toks_.Clear());
  cost_offsets_.clear();
  ClearActiveTokens();
  warned_ = false;
  num_toks_ = 0;
  decoding_finalized_ = false;
  final_costs_.clear();
  StateId start_state = fst_->Start();
  KALDI_ASSERT(start_state != fst::kNoStateId);
  active_toks_.resize(1);
  Token *start_tok = new Token(0.0, 0.0, NULL, NULL, NULL);
  active_toks_[0].toks = start_tok;
  toks_.Insert(start_state, start_tok);
  num_toks_++;
  ProcessNonemitting(config_.beam);
}

KALDI_DISALLOW_COPY_AND_ASSIGN()

KALDI_DISALLOW_COPY_AND_ASSIGN ( LatticeFasterDecoderTpl< FST, Token >  )

protected

NumFramesDecoded()

int32 NumFramesDecoded ( ) const

inline

Definition at line 340 of file lattice-faster-decoder.h.

Referenced by SingleUtteranceGmmDecoder::AdvanceDecoding(), SingleUtteranceGmmDecoder::EstimateFmllr(), SingleUtteranceNnet2DecoderThreaded::GetBestPath(), SingleUtteranceGmmDecoder::GetGaussianPosteriors(), SingleUtteranceNnet2DecoderThreaded::GetLattice(), SingleUtteranceNnet2Decoder::NumFramesDecoded(), SingleUtteranceNnet2DecoderThreaded::NumFramesDecoded(), and SingleUtteranceNnet2DecoderThreaded::RunDecoderSearchInternal().

{ return active_toks_.size() - 1; }

PossiblyResizeHash()

void PossiblyResizeHash ( size_t  num_toks )

protected

Definition at line 219 of file lattice-faster-decoder.cc.

                                                                            {
  size_t new_sz = static_cast<size_t>(static_cast<BaseFloat>(num_toks)
                                      * config_.hash_ratio);
  if (new_sz > toks_.Size()) {
    toks_.SetSize(new_sz);
  }
}

ProcessEmitting()

BaseFloat ProcessEmitting ( DecodableInterface *  decodable )

protected

Processes emitting arcs for one frame.

Propagates from prev_toks_ to cur_toks_. Returns the cost cutoff for subsequent ProcessNonemitting() to use.

Definition at line 714 of file lattice-faster-decoder.cc.

                                   {
  KALDI_ASSERT(active_toks_.size() > 0);
  int32 frame = active_toks_.size() - 1; // frame is the frame-index
                                         // (zero-based) used to get likelihoods
                                         // from the decodable object.
  active_toks_.resize(active_toks_.size() + 1);

  Elem *final_toks = toks_.Clear(); // analogous to swapping prev_toks_ / cur_toks_
                                   // in simple-decoder.h.   Removes the Elems from
                                   // being indexed in the hash in toks_.
  Elem *best_elem = NULL;
  BaseFloat adaptive_beam;
  size_t tok_cnt;
  BaseFloat cur_cutoff = GetCutoff(final_toks, &tok_cnt, &adaptive_beam, &best_elem);
  KALDI_VLOG(6) << "Adaptive beam on frame " << NumFramesDecoded() << " is "
                << adaptive_beam;

  PossiblyResizeHash(tok_cnt);  // This makes sure the hash is always big enough.

  BaseFloat next_cutoff = std::numeric_limits<BaseFloat>::infinity();
  // pruning "online" before having seen all tokens

  BaseFloat cost_offset = 0.0; // Used to keep probabilities in a good
                               // dynamic range.


  // First process the best token to get a hopefully
  // reasonably tight bound on the next cutoff.  The only
  // products of the next block are "next_cutoff" and "cost_offset".
  if (best_elem) {
    StateId state = best_elem->key;
    Token *tok = best_elem->val;
    cost_offset = - tok->tot_cost;
    for (fst::ArcIterator<FST> aiter(*fst_, state);
         !aiter.Done();
         aiter.Next()) {
      const Arc &arc = aiter.Value();
      if (arc.ilabel != 0) {  // propagate..
        BaseFloat new_weight = arc.weight.Value() + cost_offset -
            decodable->LogLikelihood(frame, arc.ilabel) + tok->tot_cost;
        if (new_weight + adaptive_beam < next_cutoff)
          next_cutoff = new_weight + adaptive_beam;
      }
    }
  }

  // Store the offset on the acoustic likelihoods that we're applying.
  // Could just do cost_offsets_.push_back(cost_offset), but we
  // do it this way as it's more robust to future code changes.
  cost_offsets_.resize(frame + 1, 0.0);
  cost_offsets_[frame] = cost_offset;

  // the tokens are now owned here, in final_toks, and the hash is empty.
  // 'owned' is a complex thing here; the point is we need to call DeleteElem
  // on each elem 'e' to let toks_ know we're done with them.
  for (Elem *e = final_toks, *e_tail; e != NULL; e = e_tail) {
    // loop this way because we delete "e" as we go.
    StateId state = e->key;
    Token *tok = e->val;
    if (tok->tot_cost <= cur_cutoff) {
      for (fst::ArcIterator<FST> aiter(*fst_, state);
           !aiter.Done();
           aiter.Next()) {
        const Arc &arc = aiter.Value();
        if (arc.ilabel != 0) {  // propagate..
          BaseFloat ac_cost = cost_offset -
              decodable->LogLikelihood(frame, arc.ilabel),
              graph_cost = arc.weight.Value(),
              cur_cost = tok->tot_cost,
              tot_cost = cur_cost + ac_cost + graph_cost;
          if (tot_cost >= next_cutoff) continue;
          else if (tot_cost + adaptive_beam < next_cutoff)
            next_cutoff = tot_cost + adaptive_beam; // prune by best current token
          // Note: the frame indexes into active_toks_ are one-based,
          // hence the + 1.
          Elem *e_next = FindOrAddToken(arc.nextstate,
                                        frame + 1, tot_cost, tok, NULL);
          // NULL: no change indicator needed

          // Add ForwardLink from tok to next_tok (put on head of list tok->links)
          tok->links = new ForwardLinkT(e_next->val, arc.ilabel, arc.olabel,
                                        graph_cost, ac_cost, tok->links);
        }
      } // for all arcs
    }
    e_tail = e->tail;
    toks_.Delete(e); // delete Elem
  }
  return next_cutoff;
}

ProcessNonemitting()

void ProcessNonemitting ( BaseFloat  cost_cutoff )

protected

Processes nonemitting (epsilon) arcs for one frame.

Called after ProcessEmitting() on each frame. The cost cutoff is computed by the preceding ProcessEmitting().

Definition at line 820 of file lattice-faster-decoder.cc.

                                                                             {
  KALDI_ASSERT(!active_toks_.empty());
  int32 frame = static_cast<int32>(active_toks_.size()) - 2;
  // Note: "frame" is the time-index we just processed, or -1 if
  // we are processing the nonemitting transitions before the
  // first frame (called from InitDecoding()).

  // Processes nonemitting arcs for one frame.  Propagates within toks_.
  // Note-- this queue structure is not very optimal as
  // it may cause us to process states unnecessarily (e.g. more than once),
  // but in the baseline code, turning this vector into a set to fix this
  // problem did not improve overall speed.

  KALDI_ASSERT(queue_.empty());

  if (toks_.GetList() == NULL) {
    if (!warned_) {
      KALDI_WARN << "Error, no surviving tokens: frame is " << frame;
      warned_ = true;
    }
  }

  for (const Elem *e = toks_.GetList(); e != NULL;  e = e->tail) {
    StateId state = e->key;
    if (fst_->NumInputEpsilons(state) != 0)
      queue_.push_back(e);
  }

  while (!queue_.empty()) {
    const Elem *e = queue_.back();
    queue_.pop_back();

    StateId state = e->key;
    Token *tok = e->val;  // would segfault if e is a NULL pointer but this can't happen.
    BaseFloat cur_cost = tok->tot_cost;
    if (cur_cost >= cutoff) // Don't bother processing successors.
      continue;
    // If "tok" has any existing forward links, delete them,
    // because we're about to regenerate them.  This is a kind
    // of non-optimality (remember, this is the simple decoder),
    // but since most states are emitting it's not a huge issue.
    DeleteForwardLinks(tok); // necessary when re-visiting
    tok->links = NULL;
    for (fst::ArcIterator<FST> aiter(*fst_, state);
         !aiter.Done();
         aiter.Next()) {
      const Arc &arc = aiter.Value();
      if (arc.ilabel == 0) {  // propagate nonemitting only...
        BaseFloat graph_cost = arc.weight.Value(),
            tot_cost = cur_cost + graph_cost;
        if (tot_cost < cutoff) {
          bool changed;

          Elem *e_new = FindOrAddToken(arc.nextstate, frame + 1, tot_cost,
                                          tok, &changed);

          tok->links = new ForwardLinkT(e_new->val, 0, arc.olabel,
                                        graph_cost, 0, tok->links);

          // "changed" tells us whether the new token has a different
          // cost from before, or is new [if so, add into queue].
          if (changed && fst_->NumInputEpsilons(arc.nextstate) != 0)
            queue_.push_back(e_new);
        }
      }
    } // for all arcs
  } // while queue not empty
}

PruneActiveTokens()

void PruneActiveTokens ( BaseFloat  delta )

protected

Definition at line 506 of file lattice-faster-decoder.cc.

                                                                           {
  int32 cur_frame_plus_one = NumFramesDecoded();
  int32 num_toks_begin = num_toks_;
  // The index "f" below represents a "frame plus one", i.e. you'd have to subtract
  // one to get the corresponding index for the decodable object.
  for (int32 f = cur_frame_plus_one - 1; f >= 0; f--) {
    // Reason why we need to prune forward links in this situation:
    // (1) we have never pruned them (new TokenList)
    // (2) we have not yet pruned the forward links to the next f,
    // after any of those tokens have changed their extra_cost.
    if (active_toks_[f].must_prune_forward_links) {
      bool extra_costs_changed = false, links_pruned = false;
      PruneForwardLinks(f, &extra_costs_changed, &links_pruned, delta);
      if (extra_costs_changed && f > 0) // any token has changed extra_cost
        active_toks_[f-1].must_prune_forward_links = true;
      if (links_pruned) // any link was pruned
        active_toks_[f].must_prune_tokens = true;
      active_toks_[f].must_prune_forward_links = false; // job done
    }
    if (f+1 < cur_frame_plus_one &&      // except for last f (no forward links)
        active_toks_[f+1].must_prune_tokens) {
      PruneTokensForFrame(f+1);
      active_toks_[f+1].must_prune_tokens = false;
    }
  }
  KALDI_VLOG(4) << "PruneActiveTokens: pruned tokens from " << num_toks_begin
                << " to " << num_toks_;
}

PruneForwardLinks()

void PruneForwardLinks ( int32  frame_plus_one, bool *  extra_costs_changed, bool *  links_pruned, BaseFloat  delta  )

protected

Definition at line 299 of file lattice-faster-decoder.cc.

                                         {
  // delta is the amount by which the extra_costs must change
  // If delta is larger,  we'll tend to go back less far
  //    toward the beginning of the file.
  // extra_costs_changed is set to true if extra_cost was changed for any token
  // links_pruned is set to true if any link in any token was pruned

  *extra_costs_changed = false;
  *links_pruned = false;
  KALDI_ASSERT(frame_plus_one >= 0 && frame_plus_one < active_toks_.size());
  if (active_toks_[frame_plus_one].toks == NULL) {  // empty list; should not happen.
    if (!warned_) {
      KALDI_WARN << "No tokens alive [doing pruning].. warning first "
          "time only for each utterance\n";
      warned_ = true;
    }
  }

  // We have to iterate until there is no more change, because the links
  // are not guaranteed to be in topological order.
  bool changed = true;  // difference new minus old extra cost >= delta ?
  while (changed) {
    changed = false;
    for (Token *tok = active_toks_[frame_plus_one].toks;
         tok != NULL; tok = tok->next) {
      ForwardLinkT *link, *prev_link = NULL;
      // will recompute tok_extra_cost for tok.
      BaseFloat tok_extra_cost = std::numeric_limits<BaseFloat>::infinity();
      // tok_extra_cost is the best (min) of link_extra_cost of outgoing links
      for (link = tok->links; link != NULL; ) {
        // See if we need to excise this link...
        Token *next_tok = link->next_tok;
        BaseFloat link_extra_cost = next_tok->extra_cost +
            ((tok->tot_cost + link->acoustic_cost + link->graph_cost)
             - next_tok->tot_cost);  // difference in brackets is >= 0
        // link_exta_cost is the difference in score between the best paths
        // through link source state and through link destination state
        KALDI_ASSERT(link_extra_cost == link_extra_cost);  // check for NaN
        if (link_extra_cost > config_.lattice_beam) {  // excise link
          ForwardLinkT *next_link = link->next;
          if (prev_link != NULL) prev_link->next = next_link;
          else tok->links = next_link;
          delete link;
          link = next_link;  // advance link but leave prev_link the same.
          *links_pruned = true;
        } else {   // keep the link and update the tok_extra_cost if needed.
          if (link_extra_cost < 0.0) {  // this is just a precaution.
            if (link_extra_cost < -0.01)
              KALDI_WARN << "Negative extra_cost: " << link_extra_cost;
            link_extra_cost = 0.0;
          }
          if (link_extra_cost < tok_extra_cost)
            tok_extra_cost = link_extra_cost;
          prev_link = link;  // move to next link
          link = link->next;
        }
      }  // for all outgoing links
      if (fabs(tok_extra_cost - tok->extra_cost) > delta)
        changed = true;   // difference new minus old is bigger than delta
      tok->extra_cost = tok_extra_cost;
      // will be +infinity or <= lattice_beam_.
      // infinity indicates, that no forward link survived pruning
    }  // for all Token on active_toks_[frame]
    if (changed) *extra_costs_changed = true;

    // Note: it's theoretically possible that aggressive compiler
    // optimizations could cause an infinite loop here for small delta and
    // high-dynamic-range scores.
  } // while changed
}

PruneForwardLinksFinal()

void PruneForwardLinksFinal ( )

protected

Definition at line 376 of file lattice-faster-decoder.cc.

                                                                 {
  KALDI_ASSERT(!active_toks_.empty());
  int32 frame_plus_one = active_toks_.size() - 1;

  if (active_toks_[frame_plus_one].toks == NULL)  // empty list; should not happen.
    KALDI_WARN << "No tokens alive at end of file";

  typedef typename unordered_map<Token*, BaseFloat>::const_iterator IterType;
  ComputeFinalCosts(&final_costs_, &final_relative_cost_, &final_best_cost_);
  decoding_finalized_ = true;
  // We call DeleteElems() as a nicety, not because it's really necessary;
  // otherwise there would be a time, after calling PruneTokensForFrame() on the
  // final frame, when toks_.GetList() or toks_.Clear() would contain pointers
  // to nonexistent tokens.
  DeleteElems(toks_.Clear());

  // Now go through tokens on this frame, pruning forward links...  may have to
  // iterate a few times until there is no more change, because the list is not
  // in topological order.  This is a modified version of the code in
  // PruneForwardLinks, but here we also take account of the final-probs.
  bool changed = true;
  BaseFloat delta = 1.0e-05;
  while (changed) {
    changed = false;
    for (Token *tok = active_toks_[frame_plus_one].toks;
         tok != NULL; tok = tok->next) {
      ForwardLinkT *link, *prev_link = NULL;
      // will recompute tok_extra_cost.  It has a term in it that corresponds
      // to the "final-prob", so instead of initializing tok_extra_cost to infinity
      // below we set it to the difference between the (score+final_prob) of this token,
      // and the best such (score+final_prob).
      BaseFloat final_cost;
      if (final_costs_.empty()) {
        final_cost = 0.0;
      } else {
        IterType iter = final_costs_.find(tok);
        if (iter != final_costs_.end())
          final_cost = iter->second;
        else
          final_cost = std::numeric_limits<BaseFloat>::infinity();
      }
      BaseFloat tok_extra_cost = tok->tot_cost + final_cost - final_best_cost_;
      // tok_extra_cost will be a "min" over either directly being final, or
      // being indirectly final through other links, and the loop below may
      // decrease its value:
      for (link = tok->links; link != NULL; ) {
        // See if we need to excise this link...
        Token *next_tok = link->next_tok;
        BaseFloat link_extra_cost = next_tok->extra_cost +
            ((tok->tot_cost + link->acoustic_cost + link->graph_cost)
             - next_tok->tot_cost);
        if (link_extra_cost > config_.lattice_beam) {  // excise link
          ForwardLinkT *next_link = link->next;
          if (prev_link != NULL) prev_link->next = next_link;
          else tok->links = next_link;
          delete link;
          link = next_link; // advance link but leave prev_link the same.
        } else { // keep the link and update the tok_extra_cost if needed.
          if (link_extra_cost < 0.0) { // this is just a precaution.
            if (link_extra_cost < -0.01)
              KALDI_WARN << "Negative extra_cost: " << link_extra_cost;
            link_extra_cost = 0.0;
          }
          if (link_extra_cost < tok_extra_cost)
            tok_extra_cost = link_extra_cost;
          prev_link = link;
          link = link->next;
        }
      }
      // prune away tokens worse than lattice_beam above best path.  This step
      // was not necessary in the non-final case because then, this case
      // showed up as having no forward links.  Here, the tok_extra_cost has
      // an extra component relating to the final-prob.
      if (tok_extra_cost > config_.lattice_beam)
        tok_extra_cost = std::numeric_limits<BaseFloat>::infinity();
      // to be pruned in PruneTokensForFrame

      if (!ApproxEqual(tok->extra_cost, tok_extra_cost, delta))
        changed = true;
      tok->extra_cost = tok_extra_cost; // will be +infinity or <= lattice_beam_.
    }
  } // while changed
}

PruneTokensForFrame()

void PruneTokensForFrame ( int32  frame_plus_one )

protected

Definition at line 479 of file lattice-faster-decoder.cc.

                                                                                  {
  KALDI_ASSERT(frame_plus_one >= 0 && frame_plus_one < active_toks_.size());
  Token *&toks = active_toks_[frame_plus_one].toks;
  if (toks == NULL)
    KALDI_WARN << "No tokens alive [doing pruning]";
  Token *tok, *next_tok, *prev_tok = NULL;
  for (tok = toks; tok != NULL; tok = next_tok) {
    next_tok = tok->next;
    if (tok->extra_cost == std::numeric_limits<BaseFloat>::infinity()) {
      // token is unreachable from end of graph; (no forward links survived)
      // excise tok from list and delete tok.
      if (prev_tok != NULL) prev_tok->next = tok->next;
      else toks = tok->next;
      delete tok;
      num_toks_--;
    } else {  // fetch next Token
      prev_tok = tok;
    }
  }
}

ReachedFinal()

bool ReachedFinal ( ) const

inline

says whether a final-state was active on the last frame.

If it was not, the lattice (or traceback) will end with states that are not final-states.

Definition at line 267 of file lattice-faster-decoder.h.

Referenced by NnetBatchDecoder::Decode(), kaldi::DecodeUtteranceLatticeFaster(), and DecodeUtteranceLatticeFasterClass::operator()().

                            {
    return FinalRelativeCost() != std::numeric_limits<BaseFloat>::infinity();
  }

SetOptions()

void SetOptions ( const LatticeFasterDecoderConfig &  config )

inline

Definition at line 248 of file lattice-faster-decoder.h.

                                                            {
    config_ = config;
  }

TopSortTokens()

void TopSortTokens ( Token *  tok_list, std::vector< Token *> *  topsorted_list  )

staticprotected

Definition at line 917 of file lattice-faster-decoder.cc.

                                                        {
  unordered_map<Token*, int32> token2pos;
  typedef typename unordered_map<Token*, int32>::iterator IterType;
  int32 num_toks = 0;
  for (Token *tok = tok_list; tok != NULL; tok = tok->next)
    num_toks++;
  int32 cur_pos = 0;
  // We assign the tokens numbers num_toks - 1, ... , 2, 1, 0.
  // This is likely to be in closer to topological order than
  // if we had given them ascending order, because of the way
  // new tokens are put at the front of the list.
  for (Token *tok = tok_list; tok != NULL; tok = tok->next)
    token2pos[tok] = num_toks - ++cur_pos;

  unordered_set<Token*> reprocess;

  for (IterType iter = token2pos.begin(); iter != token2pos.end(); ++iter) {
    Token *tok = iter->first;
    int32 pos = iter->second;
    for (ForwardLinkT *link = tok->links; link != NULL; link = link->next) {
      if (link->ilabel == 0) {
        // We only need to consider epsilon links, since non-epsilon links
        // transition between frames and this function only needs to sort a list
        // of tokens from a single frame.
        IterType following_iter = token2pos.find(link->next_tok);
        if (following_iter != token2pos.end()) { // another token on this frame,
                                                 // so must consider it.
          int32 next_pos = following_iter->second;
          if (next_pos < pos) { // reassign the position of the next Token.
            following_iter->second = cur_pos++;
            reprocess.insert(link->next_tok);
          }
        }
      }
    }
    // In case we had previously assigned this token to be reprocessed, we can
    // erase it from that set because it's "happy now" (we just processed it).
    reprocess.erase(tok);
  }

  size_t max_loop = 1000000, loop_count; // max_loop is to detect epsilon cycles.
  for (loop_count = 0;
       !reprocess.empty() && loop_count < max_loop; ++loop_count) {
    std::vector<Token*> reprocess_vec;
    for (typename unordered_set<Token*>::iterator iter = reprocess.begin();
         iter != reprocess.end(); ++iter)
      reprocess_vec.push_back(*iter);
    reprocess.clear();
    for (typename std::vector<Token*>::iterator iter = reprocess_vec.begin();
         iter != reprocess_vec.end(); ++iter) {
      Token *tok = *iter;
      int32 pos = token2pos[tok];
      // Repeat the processing we did above (for comments, see above).
      for (ForwardLinkT *link = tok->links; link != NULL; link = link->next) {
        if (link->ilabel == 0) {
          IterType following_iter = token2pos.find(link->next_tok);
          if (following_iter != token2pos.end()) {
            int32 next_pos = following_iter->second;
            if (next_pos < pos) {
              following_iter->second = cur_pos++;
              reprocess.insert(link->next_tok);
            }
          }
        }
      }
    }
  }
  KALDI_ASSERT(loop_count < max_loop && "Epsilon loops exist in your decoding "
               "graph (this is not allowed!)");

  topsorted_list->clear();
  topsorted_list->resize(cur_pos, NULL);  // create a list with NULLs in between.
  for (IterType iter = token2pos.begin(); iter != token2pos.end(); ++iter)
    (*topsorted_list)[iter->second] = iter->first;
}

Member Data Documentation

active_toks_

std::vector<TokenList> active_toks_

protected

Definition at line 461 of file lattice-faster-decoder.h.

config_

LatticeFasterDecoderConfig config_

protected

Definition at line 477 of file lattice-faster-decoder.h.

cost_offsets_

std::vector<BaseFloat> cost_offsets_

protected

Definition at line 473 of file lattice-faster-decoder.h.

decoding_finalized_

bool decoding_finalized_

protected

decoding_finalized_ is true if someone called FinalizeDecoding().

[note, calling this is optional]. If true, it's forbidden to decode more. Also, if this is set, then the output of ComputeFinalCosts() is in the next three variables. The reason we need to do this is that after FinalizeDecoding() calls PruneTokensForFrame() for the final frame, some of the tokens on the last frame are freed, so we free the list from toks_ to avoid having dangling pointers hanging around.

Definition at line 488 of file lattice-faster-decoder.h.

delete_fst_

bool delete_fst_

protected

Definition at line 471 of file lattice-faster-decoder.h.

final_best_cost_

BaseFloat final_best_cost_

protected

Definition at line 493 of file lattice-faster-decoder.h.

final_costs_

unordered_map<Token*, BaseFloat> final_costs_

protected

For the meaning of the next 3 variables, see the comment for decoding_finalized_ above., and ComputeFinalCosts().

Definition at line 491 of file lattice-faster-decoder.h.

final_relative_cost_

BaseFloat final_relative_cost_

protected

Definition at line 492 of file lattice-faster-decoder.h.

fst_

const FST* fst_

protected

Definition at line 468 of file lattice-faster-decoder.h.

num_toks_

int32 num_toks_

protected

Definition at line 478 of file lattice-faster-decoder.h.

queue_

std::vector<const Elem* > queue_

protected

Definition at line 464 of file lattice-faster-decoder.h.

tmp_array_

std::vector<BaseFloat> tmp_array_

protected

Definition at line 465 of file lattice-faster-decoder.h.

toks_

HashList<StateId, Token*> toks_

protected

Definition at line 459 of file lattice-faster-decoder.h.

warned_

bool warned_

protected

Definition at line 479 of file lattice-faster-decoder.h.

---

The documentation for this class was generated from the following files:

• decoder/lattice-faster-decoder.h
• decoder/lattice-faster-decoder.cc
