NaturalGradientPerElementScaleComponent is like PerElementScaleComponent but it uses a natural gradient update for the per-element scales. More...

#include <nnet-simple-component.h>

Inheritance diagram for NaturalGradientPerElementScaleComponent:

[legend]

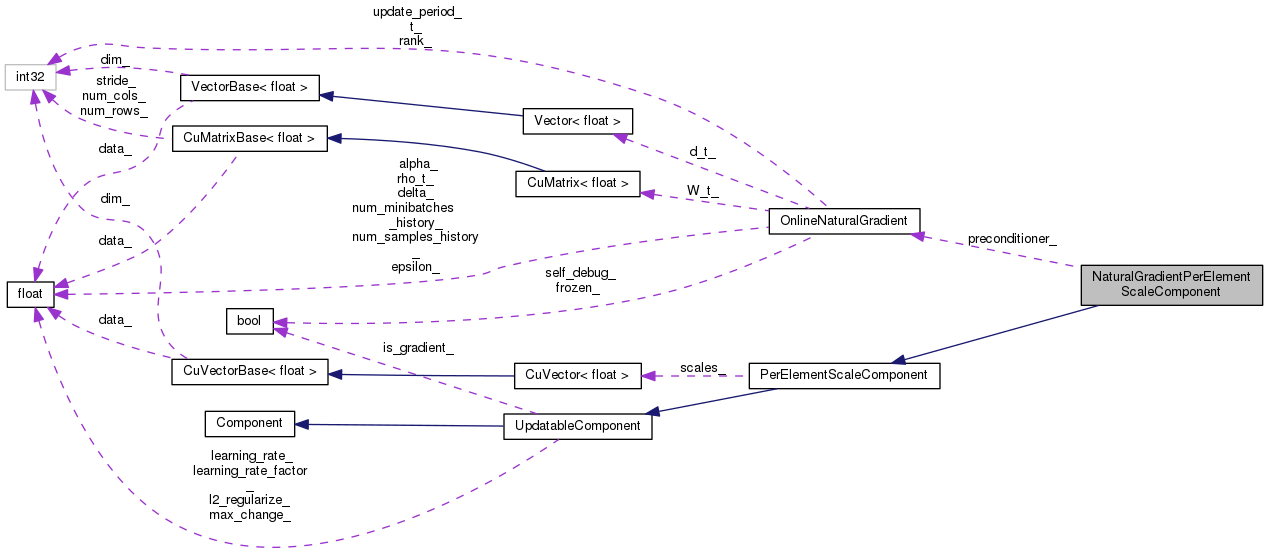

Collaboration diagram for NaturalGradientPerElementScaleComponent:

[legend]

Public Member Functions
virtual std::string	Info () const
	Returns some text-form information about this component, for diagnostics. More...

virtual void	InitFromConfig (ConfigLine *cfl)
	Initialize, from a ConfigLine object. More...

	NaturalGradientPerElementScaleComponent ()

virtual std::string	Type () const
	Returns a string such as "SigmoidComponent", describing the type of the object. More...

virtual void	Read (std::istream &is, bool binary)
	Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed. More...

virtual void	Write (std::ostream &os, bool binary) const
	Write component to stream. More...

virtual void	FreezeNaturalGradient (bool freeze)
	freezes/unfreezes NaturalGradient updates, if applicable (to be overriden by components that use Natural Gradient). More...

virtual Component *	Copy () const
	Copies component (deep copy). More...

	NaturalGradientPerElementScaleComponent (const NaturalGradientPerElementScaleComponent &other)

void	Init (int32 dim, BaseFloat param_mean, BaseFloat param_stddev, int32 rank, int32 update_period, BaseFloat num_samples_history, BaseFloat alpha)

void	Init (std::string vector_filename, int32 rank, int32 update_period, BaseFloat num_samples_history, BaseFloat alpha)

void	ConsolidateMemory ()
	This virtual function relates to memory management, and avoiding fragmentation. More...

Public Member Functions inherited from PerElementScaleComponent
virtual int32	InputDim () const
	Returns input-dimension of this component. More...

virtual int32	OutputDim () const
	Returns output-dimension of this component. More...

	PerElementScaleComponent ()

virtual int32	Properties () const
	Return bitmask of the component's properties. More...

virtual void *	Propagate (const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > out) const
	Propagate function. More...

virtual void	Backprop (const std::string &debug_info, const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &out_deriv, void memo, Component to_update, CuMatrixBase< BaseFloat > in_deriv) const
	Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update. More...

virtual void	Scale (BaseFloat scale)
	This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent. More...

virtual void	Add (BaseFloat alpha, const Component &other)
	This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters. More...

virtual void	PerturbParams (BaseFloat stddev)
	This function is to be used in testing. More...

virtual BaseFloat	DotProduct (const UpdatableComponent &other) const
	Computes dot-product between parameters of two instances of a Component. More...

virtual int32	NumParameters () const
	The following new virtual function returns the total dimension of the parameters in this class. More...

virtual void	Vectorize (VectorBase< BaseFloat > *params) const
	Turns the parameters into vector form. More...

virtual void	UnVectorize (const VectorBase< BaseFloat > &params)
	Converts the parameters from vector form. More...

	PerElementScaleComponent (const PerElementScaleComponent &other)

void	Init (int32 dim, BaseFloat param_mean, BaseFloat param_stddev)

void	Init (std::string vector_filename)

Public Member Functions inherited from UpdatableComponent
	UpdatableComponent (const UpdatableComponent &other)

	UpdatableComponent ()

virtual	~UpdatableComponent ()

virtual void	SetUnderlyingLearningRate (BaseFloat lrate)
	Sets the learning rate of gradient descent- gets multiplied by learning_rate_factor_. More...

virtual void	SetActualLearningRate (BaseFloat lrate)
	Sets the learning rate directly, bypassing learning_rate_factor_. More...

virtual void	SetAsGradient ()
	Sets is_gradient_ to true and sets learning_rate_ to 1, ignoring learning_rate_factor_. More...

virtual BaseFloat	LearningRateFactor ()

virtual void	SetLearningRateFactor (BaseFloat lrate_factor)

void	SetUpdatableConfigs (const UpdatableComponent &other)

BaseFloat	LearningRate () const
	Gets the learning rate to be used in gradient descent. More...

BaseFloat	MaxChange () const
	Returns the per-component max-change value, which is interpreted as the maximum change (in l2 norm) in parameters that is allowed per minibatch for this component. More...

void	SetMaxChange (BaseFloat max_change)

BaseFloat	L2Regularization () const
	Returns the l2 regularization constant, which may be set in any updatable component (usually from the config file). More...

void	SetL2Regularization (BaseFloat a)

Public Member Functions inherited from Component
virtual void	StoreStats (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, void *memo)
	This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity. More...

virtual void	ZeroStats ()
	Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero. More...

virtual void	GetInputIndexes (const MiscComputationInfo &misc_info, const Index &output_index, std::vector< Index > *desired_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual bool	IsComputable (const MiscComputationInfo &misc_info, const Index &output_index, const IndexSet &input_index_set, std::vector< Index > *used_inputs) const
	This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs. More...

virtual void	ReorderIndexes (std::vector< Index > input_indexes, std::vector< Index > output_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual ComponentPrecomputedIndexes *	PrecomputeIndexes (const MiscComputationInfo &misc_info, const std::vector< Index > &input_indexes, const std::vector< Index > &output_indexes, bool need_backprop) const
	This function must return NULL for simple Components. More...

virtual void	DeleteMemo (void *memo) const
	This virtual function only needs to be overwritten by Components that return a non-NULL memo from their Propagate() function. More...

	Component ()

virtual	~Component ()

Private Member Functions
virtual void	Update (const std::string &debug_info, const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_deriv)

const NaturalGradientPerElementScaleComponent &	operator= (const NaturalGradientPerElementScaleComponent &other)

Private Attributes
OnlineNaturalGradient	preconditioner_

Additional Inherited Members
Static Public Member Functions inherited from Component
static Component *	ReadNew (std::istream &is, bool binary)
	Read component from stream (works out its type). Dies on error. More...

static Component *	NewComponentOfType (const std::string &type)
	Returns a new Component of the given type e.g. More...

Protected Member Functions inherited from PerElementScaleComponent
virtual void	UpdateSimple (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_deriv)

const PerElementScaleComponent &	operator= (const PerElementScaleComponent &other)

Protected Member Functions inherited from UpdatableComponent
void	InitLearningRatesFromConfig (ConfigLine *cfl)

std::string	ReadUpdatableCommon (std::istream &is, bool binary)

void	WriteUpdatableCommon (std::ostream &is, bool binary) const

Protected Attributes inherited from PerElementScaleComponent
CuVector< BaseFloat >	scales_

Protected Attributes inherited from UpdatableComponent
BaseFloat	learning_rate_
	learning rate (typically 0.0..0.01) More...

BaseFloat	learning_rate_factor_
	learning rate factor (normally 1.0, but can be set to another < value so that when < you call SetLearningRate(), that value will be scaled by this factor. More...

BaseFloat	l2_regularize_
	L2 regularization constant. More...

bool	is_gradient_
	True if this component is to be treated as a gradient rather than as parameters. More...

BaseFloat	max_change_
	configuration value for imposing max-change More...

Detailed Description

NaturalGradientPerElementScaleComponent is like PerElementScaleComponent but it uses a natural gradient update for the per-element scales.

Accepted values on its config line, with defaults if applicable:

vector If specified, the offsets will be read from this file ('vector' is interpreted as an rxfilename).

dim The dimension that this component inputs and outputs. Only required if 'vector' is not specified.

param-mean=1.0 Mean of randomly initialized offset parameters; should only be supplied if 'vector' is not supplied. param-stddev=0.0 Standard deviation of randomly initialized offset parameters; should only be supplied if 'vector' is not supplied.

And the natural-gradient-related configuration values: rank=8 update-period=10 num-samples-history=2000.0 alpha=4.0

Definition at line 1766 of file nnet-simple-component.h.

Constructor & Destructor Documentation

◆ NaturalGradientPerElementScaleComponent() [1/2]

NaturalGradientPerElementScaleComponent ( )

inline

Definition at line 1773 of file nnet-simple-component.h.

Referenced by NaturalGradientPerElementScaleComponent::Copy().

1773 { } // use Init to really initialize.

◆ NaturalGradientPerElementScaleComponent() [2/2]

NaturalGradientPerElementScaleComponent ( const NaturalGradientPerElementScaleComponent & other )

explicit

Definition at line 3928 of file nnet-simple-component.cc.

                                                          :
     PerElementScaleComponent(other),
     preconditioner_(other.preconditioner_) { }

Member Function Documentation

◆ ConsolidateMemory()

void ConsolidateMemory ( )

virtual

This virtual function relates to memory management, and avoiding fragmentation.

It is called only once per model, after we do the first minibatch of training. The default implementation does nothing, but it can be overridden by child classes, where it may re-initialize certain quantities that may possibly have been allocated during the forward pass (e.g. certain statistics; OnlineNaturalGradient objects). We use our own CPU-based allocator (see cu-allocator.h) and since it can't do paging since we're not in control of the GPU page table, fragmentation can be a problem. The allocator always tries to put things in 'low-address memory' (i.e. at smaller memory addresses) near the beginning of the block it allocated, to avoid fragmentation; but if permanent things (belonging to the model) are allocated in the forward pass, they can permanently stay in high memory. This function helps to prevent that, by re-allocating those things into low-address memory (It's important that it's called after all the temporary buffers for the forward-backward have been freed, so that there is low-address memory available)).

Reimplemented from Component.

Definition at line 3962 of file nnet-simple-component.cc.

References NaturalGradientPerElementScaleComponent::preconditioner_, and OnlineNaturalGradient::Swap().

                                                                 {
   OnlineNaturalGradient temp(preconditioner_);
   preconditioner_.Swap(&temp);
 }

◆ Copy()

Component * Copy ( ) const

virtual

Copies component (deep copy).

Reimplemented from PerElementScaleComponent.

Definition at line 3936 of file nnet-simple-component.cc.

References NaturalGradientPerElementScaleComponent::NaturalGradientPerElementScaleComponent().

Referenced by CompositeComponent::Copy().

                                                                {
   return new NaturalGradientPerElementScaleComponent(*this);
 }

◆ FreezeNaturalGradient()

void FreezeNaturalGradient ( bool freeze )

virtual

freezes/unfreezes NaturalGradient updates, if applicable (to be overriden by components that use Natural Gradient).

Reimplemented from UpdatableComponent.

Definition at line 3958 of file nnet-simple-component.cc.

References OnlineNaturalGradient::Freeze(), and NaturalGradientPerElementScaleComponent::preconditioner_.

                                                                                {
   preconditioner_.Freeze(freeze);
 }

◆ Info()

std::string Info ( ) const

virtual

Returns some text-form information about this component, for diagnostics.

Starts with the type of the component. E.g. "SigmoidComponent dim=900", although most components will have much more info.

Reimplemented from PerElementScaleComponent.

Definition at line 3858 of file nnet-simple-component.cc.

References PerElementScaleComponent::Info().

Referenced by CompositeComponent::Info().

                                                               {
   std::ostringstream stream;
   stream << PerElementScaleComponent::Info()
          << ", rank=" << preconditioner_.GetRank()
          << ", update-period=" << preconditioner_.GetUpdatePeriod()
          << ", num-samples-history=" << preconditioner_.GetNumSamplesHistory()
          << ", alpha=" << preconditioner_.GetAlpha();
   return stream.str();
 }

◆ Init() [1/2]

void Init	(	int32	dim,
		BaseFloat	param_mean,
		BaseFloat	param_stddev,
		int32	rank,
		int32	update_period,
		BaseFloat	num_samples_history,
		BaseFloat	alpha
	)

Definition at line 3904 of file nnet-simple-component.cc.

References PerElementScaleComponent::Init().

Referenced by PermuteComponent::InitFromConfig(), CompositeComponent::InitFromConfig(), and CompositeComponent::Read().

                                                     {
   PerElementScaleComponent::Init(dim, param_mean,
                                  param_stddev);
   preconditioner_.SetRank(rank);
   preconditioner_.SetUpdatePeriod(update_period);
   preconditioner_.SetNumSamplesHistory(num_samples_history);
   preconditioner_.SetAlpha(alpha);
 }

◆ Init() [2/2]

void Init	(	std::string	vector_filename,
		int32	rank,
		int32	update_period,
		BaseFloat	num_samples_history,
		BaseFloat	alpha
	)

Definition at line 3916 of file nnet-simple-component.cc.

References PerElementScaleComponent::Init().

                      {
   PerElementScaleComponent::Init(vector_filename);
   preconditioner_.SetRank(rank);
   preconditioner_.SetUpdatePeriod(update_period);
   preconditioner_.SetNumSamplesHistory(num_samples_history);
   preconditioner_.SetAlpha(alpha);
 }

◆ InitFromConfig()

void InitFromConfig ( ConfigLine * cfl )

virtual

Initialize, from a ConfigLine object.

Parameters

[in] cfl A ConfigLine containing any parameters that are needed for initialization. For example: "dim=100 param-stddev=0.1"

Reimplemented from PerElementScaleComponent.

Definition at line 3868 of file nnet-simple-component.cc.

References ConfigLine::GetValue(), ConfigLine::HasUnusedValues(), FixedAffineComponent::Init(), KALDI_ASSERT, KALDI_ERR, FixedAffineComponent::Type(), and ConfigLine::WholeLine().

                                                                             {
   // First set various configuration values that have defaults.
   int32 rank = 8,  // Use a small rank because in this case the amount of memory
                    // for the preconditioner actually exceeds the memory for the
                    // parameters (by "rank").
       update_period = 10;
   BaseFloat num_samples_history = 2000.0, alpha = 4.0;
   cfl->GetValue("rank", &rank);
   cfl->GetValue("update-period", &update_period);
   cfl->GetValue("num-samples-history", &num_samples_history);
   cfl->GetValue("alpha", &alpha);
   InitLearningRatesFromConfig(cfl);
   std::string filename;
   // Accepts "scales" config (for filename) or "dim" -> random init, for testing.
   if (cfl->GetValue("scales", &filename)) {
     if (cfl->HasUnusedValues())
       KALDI_ERR << "Invalid initializer for layer of type "
                 << Type() << ": \"" << cfl->WholeLine() << "\"";
     Init(filename, rank, update_period, num_samples_history, alpha);

   } else {
     BaseFloat param_mean = 1.0, param_stddev = 0.0;
     cfl->GetValue("param-mean", &param_mean);
     cfl->GetValue("param-stddev", &param_stddev);

     int32 dim;
     if (!cfl->GetValue("dim", &dim) || cfl->HasUnusedValues())
       KALDI_ERR << "Invalid initializer for layer of type "
                 << Type() << ": \"" << cfl->WholeLine() << "\"";
     KALDI_ASSERT(dim > 0);

     Init(dim, param_mean, param_stddev, rank, update_period,
          num_samples_history, alpha);
   }
 }

◆ operator=()

const NaturalGradientPerElementScaleComponent& operator= ( const NaturalGradientPerElementScaleComponent & other )

private

◆ Read()

void Read	(	std::istream &	is,
		bool	binary
	)

virtual

Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed.

Reimplemented from PerElementScaleComponent.

Definition at line 3807 of file nnet-simple-component.cc.

References kaldi::nnet3::ExpectToken(), KALDI_ASSERT, kaldi::ReadBasicType(), and kaldi::ReadToken().

                                  {
   ReadUpdatableCommon(is, binary);  // Read the opening tag and learning rate
   ExpectToken(is, binary, "<Params>");
   scales_.Read(is, binary);
   ExpectToken(is, binary, "<IsGradient>");
   ReadBasicType(is, binary, &is_gradient_);
   int32 rank, update_period;
   ExpectToken(is, binary, "<Rank>");
   ReadBasicType(is, binary, &rank);
   preconditioner_.SetRank(rank);
   ExpectToken(is, binary, "<UpdatePeriod>");
   ReadBasicType(is, binary, &update_period);
   preconditioner_.SetUpdatePeriod(update_period);
   BaseFloat num_samples_history, alpha;
   ExpectToken(is, binary, "<NumSamplesHistory>");
   ReadBasicType(is, binary, &num_samples_history);
   preconditioner_.SetNumSamplesHistory(num_samples_history);
   ExpectToken(is, binary, "<Alpha>");
   ReadBasicType(is, binary, &alpha);
   preconditioner_.SetAlpha(alpha);
   std::string token;
   ReadToken(is, binary, &token);
   if (token == "<MaxChangePerMinibatch>") {
     // back compatibility; this was removed, it's now handled by the
     // 'max-change' config variable.
     BaseFloat temp;
     ReadBasicType(is, binary, &temp);
     ReadToken(is, binary, &token);
   }
   KALDI_ASSERT(token == "</NaturalGradientPerElementScaleComponent>");
 }

◆ Type()

virtual std::string Type ( ) const

inlinevirtual

Returns a string such as "SigmoidComponent", describing the type of the object.

Reimplemented from PerElementScaleComponent.

Definition at line 1774 of file nnet-simple-component.h.

References Component::ConsolidateMemory(), PnormComponent::Copy(), kaldi::nnet3::FreezeNaturalGradient(), PnormComponent::Init(), PnormComponent::Read(), and PnormComponent::Write().

Referenced by PermuteComponent::Info(), CompositeComponent::Info(), and PermuteComponent::InitFromConfig().

                                  {
     return "NaturalGradientPerElementScaleComponent";
   }

◆ Update()

void Update	(	const std::string &	debug_info,
		const CuMatrixBase< BaseFloat > &	in_value,
		const CuMatrixBase< BaseFloat > &	out_deriv
	)

privatevirtual

Reimplemented from PerElementScaleComponent.

Definition at line 3940 of file nnet-simple-component.cc.

References CuVectorBase< Real >::AddRowSumMat(), UpdatableComponent::learning_rate_, CuMatrixBase< Real >::MulElements(), OnlineNaturalGradient::PreconditionDirections(), NaturalGradientPerElementScaleComponent::preconditioner_, and PerElementScaleComponent::scales_.

                                               {

   CuMatrix<BaseFloat> derivs_per_frame(in_value);
   derivs_per_frame.MulElements(out_deriv);
   // the non-natural-gradient update would just do
   // scales_.AddRowSumMat(learning_rate_, derivs_per_frame).

   BaseFloat scale;
   preconditioner_.PreconditionDirections(&derivs_per_frame, &scale);

   CuVector<BaseFloat> delta_scales(scales_.Dim());
   delta_scales.AddRowSumMat(scale * learning_rate_, derivs_per_frame);
   scales_.AddVec(1.0, delta_scales);
 }

◆ Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

virtual

Write component to stream.

Reimplemented from PerElementScaleComponent.

Definition at line 3840 of file nnet-simple-component.cc.

References kaldi::WriteBasicType(), and kaldi::WriteToken().

Referenced by CompositeComponent::Write().

                                                                        {
   WriteUpdatableCommon(os, binary);  // Write the opening tag and learning rate
   WriteToken(os, binary, "<Params>");
   scales_.Write(os, binary);
   WriteToken(os, binary, "<IsGradient>");
   WriteBasicType(os, binary, is_gradient_);
   WriteToken(os, binary, "<Rank>");
   WriteBasicType(os, binary, preconditioner_.GetRank());
   WriteToken(os, binary, "<UpdatePeriod>");
   WriteBasicType(os, binary, preconditioner_.GetUpdatePeriod());
   WriteToken(os, binary, "<NumSamplesHistory>");
   WriteBasicType(os, binary, preconditioner_.GetNumSamplesHistory());
   WriteToken(os, binary, "<Alpha>");
   WriteBasicType(os, binary, preconditioner_.GetAlpha());
   WriteToken(os, binary, "</NaturalGradientPerElementScaleComponent>");
 }

Member Data Documentation

◆ preconditioner_

OnlineNaturalGradient preconditioner_

private

Definition at line 1803 of file nnet-simple-component.h.

Referenced by NaturalGradientPerElementScaleComponent::ConsolidateMemory(), NaturalGradientPerElementScaleComponent::FreezeNaturalGradient(), and NaturalGradientPerElementScaleComponent::Update().

The documentation for this class was generated from the following files:

nnet3/nnet-simple-component.h
nnet3/nnet-simple-component.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ NaturalGradientPerElementScaleComponent() [1/2]

◆ NaturalGradientPerElementScaleComponent() [2/2]

Member Function Documentation

◆ ConsolidateMemory()

◆ Copy()

◆ FreezeNaturalGradient()

◆ Info()

◆ Init() [1/2]

◆ Init() [2/2]

◆ InitFromConfig()

◆ operator=()

◆ Read()

◆ Type()

◆ Update()

◆ Write()

Member Data Documentation

◆ preconditioner_
