CompositeComponent is a component representing a sequence of [simple] components. More...

#include <nnet-simple-component.h>

Inheritance diagram for CompositeComponent:

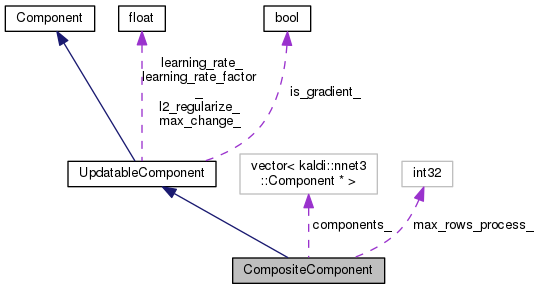

Collaboration diagram for CompositeComponent:

[legend]

Public Member Functions
virtual int32	InputDim () const
	Returns input-dimension of this component. More...

virtual int32	OutputDim () const
	Returns output-dimension of this component. More...

virtual std::string	Info () const
	Returns some text-form information about this component, for diagnostics. More...

virtual void	InitFromConfig (ConfigLine *cfl)
	Initialize, from a ConfigLine object. More...

virtual Component *	Copy () const
	Copies component (deep copy). More...

	CompositeComponent ()

void	Init (const std::vector< Component *> &components, int32 max_rows_process)

virtual std::string	Type () const
	Returns a string such as "SigmoidComponent", describing the type of the object. More...

virtual int32	Properties () const
	Return bitmask of the component's properties. More...

virtual void *	Propagate (const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > out) const
	Propagate function. More...

virtual void	Backprop (const std::string &debug_info, const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &out_deriv, void memo, Component to_update, CuMatrixBase< BaseFloat > in_deriv) const
	Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update. More...

virtual void	ZeroStats ()
	Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero. More...

virtual void	Read (std::istream &is, bool binary)
	Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed. More...

virtual void	Write (std::ostream &os, bool binary) const
	Write component to stream. More...

virtual void	SetUnderlyingLearningRate (BaseFloat lrate)
	Sets the learning rate of gradient descent- gets multiplied by learning_rate_factor_. More...

virtual void	SetActualLearningRate (BaseFloat lrate)
	Sets the learning rate directly, bypassing learning_rate_factor_. More...

virtual void	SetAsGradient ()
	Sets is_gradient_ to true and sets learning_rate_ to 1, ignoring learning_rate_factor_. More...

virtual void	Scale (BaseFloat scale)
	This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent. More...

virtual void	Add (BaseFloat alpha, const Component &other)
	This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters. More...

virtual void	PerturbParams (BaseFloat stddev)
	This function is to be used in testing. More...

virtual BaseFloat	DotProduct (const UpdatableComponent &other) const
	Computes dot-product between parameters of two instances of a Component. More...

virtual int32	NumParameters () const
	The following new virtual function returns the total dimension of the parameters in this class. More...

virtual void	Vectorize (VectorBase< BaseFloat > *params) const
	Turns the parameters into vector form. More...

virtual void	UnVectorize (const VectorBase< BaseFloat > &params)
	Converts the parameters from vector form. More...

virtual void	FreezeNaturalGradient (bool freeze)
	virtual More...

int32	NumComponents () const

const Component *	GetComponent (int32 i) const
	Gets the ith component in this component. More...

void	SetComponent (int32 i, Component *component)
	Sets the ith component. More...

virtual	~CompositeComponent ()

Public Member Functions inherited from UpdatableComponent
	UpdatableComponent (const UpdatableComponent &other)

	UpdatableComponent ()

virtual	~UpdatableComponent ()

virtual BaseFloat	LearningRateFactor ()

virtual void	SetLearningRateFactor (BaseFloat lrate_factor)

void	SetUpdatableConfigs (const UpdatableComponent &other)

BaseFloat	LearningRate () const
	Gets the learning rate to be used in gradient descent. More...

BaseFloat	MaxChange () const
	Returns the per-component max-change value, which is interpreted as the maximum change (in l2 norm) in parameters that is allowed per minibatch for this component. More...

void	SetMaxChange (BaseFloat max_change)

BaseFloat	L2Regularization () const
	Returns the l2 regularization constant, which may be set in any updatable component (usually from the config file). More...

void	SetL2Regularization (BaseFloat a)

Public Member Functions inherited from Component
virtual void	StoreStats (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, void *memo)
	This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity. More...

virtual void	GetInputIndexes (const MiscComputationInfo &misc_info, const Index &output_index, std::vector< Index > *desired_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual bool	IsComputable (const MiscComputationInfo &misc_info, const Index &output_index, const IndexSet &input_index_set, std::vector< Index > *used_inputs) const
	This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs. More...

virtual void	ReorderIndexes (std::vector< Index > input_indexes, std::vector< Index > output_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual ComponentPrecomputedIndexes *	PrecomputeIndexes (const MiscComputationInfo &misc_info, const std::vector< Index > &input_indexes, const std::vector< Index > &output_indexes, bool need_backprop) const
	This function must return NULL for simple Components. More...

virtual void	DeleteMemo (void *memo) const
	This virtual function only needs to be overwritten by Components that return a non-NULL memo from their Propagate() function. More...

virtual void	ConsolidateMemory ()
	This virtual function relates to memory management, and avoiding fragmentation. More...

	Component ()

virtual	~Component ()

Private Member Functions
MatrixStrideType	GetStrideType (int32 i) const

bool	IsUpdatable () const

Private Attributes
int32	max_rows_process_

std::vector< Component * >	components_

Additional Inherited Members
Static Public Member Functions inherited from Component
static Component *	ReadNew (std::istream &is, bool binary)
	Read component from stream (works out its type). Dies on error. More...

static Component *	NewComponentOfType (const std::string &type)
	Returns a new Component of the given type e.g. More...

Protected Member Functions inherited from UpdatableComponent
void	InitLearningRatesFromConfig (ConfigLine *cfl)

std::string	ReadUpdatableCommon (std::istream &is, bool binary)

void	WriteUpdatableCommon (std::ostream &is, bool binary) const

Protected Attributes inherited from UpdatableComponent
BaseFloat	learning_rate_
	learning rate (typically 0.0..0.01) More...

BaseFloat	learning_rate_factor_
	learning rate factor (normally 1.0, but can be set to another < value so that when < you call SetLearningRate(), that value will be scaled by this factor. More...

BaseFloat	l2_regularize_
	L2 regularization constant. More...

bool	is_gradient_
	True if this component is to be treated as a gradient rather than as parameters. More...

BaseFloat	max_change_
	configuration value for imposing max-change More...

Detailed Description

CompositeComponent is a component representing a sequence of [simple] components.

The config line would be something like the following (imagine this is all on one line):

component name=composite1 type=CompositeComponent max-rows-process=2048 num-components=3 \ component1='type=BlockAffineComponent input-dim=1000 output-dim=10000 num-blocks=100' \ component2='type=RectifiedLinearComponent dim=10000' \ component3='type=BlockAffineComponent input-dim=10000 output-dim=1000 num-blocks=100'

The reason you might want to use this component, instead of directly using the same sequence of components in the config file, is to save GPU memory (at the expense of more compute)– because doing it like this means we have to re-do parts of the forward pass in the backprop phase, but we avoid using much memory for very long (and you can make the memory usage very small by making max-rows-process small). We inherit from UpdatableComponent just in case one or more of the components in the sequence are updatable.

It is an error to nest a CompositeComponent inside a CompositeComponent. The same effect can be accomplished by specifying a smaller max-rows-process in a single CompositeComponent.

Definition at line 1971 of file nnet-simple-component.h.

Constructor & Destructor Documentation

◆ CompositeComponent()

CompositeComponent ( )

inline

Definition at line 1982 of file nnet-simple-component.h.

References PnormComponent::Init().

1982 { } // use Init() or InitFromConfig() to really initialize.

◆ ~CompositeComponent()

virtual ~CompositeComponent ( )

inlinevirtual

Definition at line 2050 of file nnet-simple-component.h.

References kaldi::DeletePointers().

2050 { DeletePointers(&components_); }

kaldi::DeletePointers

void DeletePointers(std::vector< A *> *v)

Deletes any non-NULL pointers in the vector v, and sets the corresponding entries of v to NULL...

Definition: stl-utils.h:184

kaldi::nnet3::CompositeComponent::components_

std::vector< Component * > components_

Definition: nnet-simple-component.h:2062

Member Function Documentation

◆ Add()

void Add	(	BaseFloat	alpha,
		const Component &	other
	)

virtual

This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters.

– a NonlinearComponent (or another component that stores stats, like BatchNormComponent)– it relates to adding stats. Otherwise it will normally do nothing.

Reimplemented from Component.

Definition at line 4423 of file nnet-simple-component.cc.

References PerElementScaleComponent::Add(), CompositeComponent::components_, rnnlm::i, and KALDI_ASSERT.

                                                                        {
   const CompositeComponent *other = dynamic_cast<const CompositeComponent*>(
       &other_in);
   KALDI_ASSERT(other != NULL && other->components_.size() ==
                components_.size() && "Mismatching nnet topologies");
   for (size_t i = 0; i < components_.size(); i++)
     components_[i]->Add(alpha, *(other->components_[i]));
 }

◆ Backprop()

void Backprop	(	const std::string &	debug_info,
		const ComponentPrecomputedIndexes *	indexes,
		const CuMatrixBase< BaseFloat > &	in_value,
		const CuMatrixBase< BaseFloat > &	out_value,
		const CuMatrixBase< BaseFloat > &	out_deriv,
		void *	memo,
		Component *	to_update,
		CuMatrixBase< BaseFloat > *	in_deriv
	)		const

virtual

Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update.

Parameters

[in]	debug_info	The component name, to be printed out in any warning messages.
[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in_value	The matrix that was given as input to the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsInput == 0.
[in]	out_value	The matrix that was output from the Propagate function. Will be ignored (and may be empty) if Properties()&kBackpropNeedsOutput == 0
[in]	out_deriv	The derivative at the output of this component.
[in]	memo	This will normally be NULL, but for component types that set the flag kUsesMemo, this will be the return value of the Propagate() function that corresponds to this Backprop() function. Ownership of any pointers is not transferred to the Backprop function; DeleteMemo() will be called to delete it.
[out]	to_update	If model update is desired, the Component to be updated, else NULL. Does not have to be identical to this. If supplied, you can assume that to_update->Properties() & kUpdatableComponent is nonzero.
[out]	in_deriv	The derivative at the input of this component, if needed (else NULL). If Properties()&kBackpropInPlace, may be the same matrix as out_deriv. If Properties()&kBackpropAdds, this is added to by the Backprop routine, else it is set. The component code chooses which mode to work in, based on convenience.

Implements Component.

Definition at line 4277 of file nnet-simple-component.cc.

References PerElementScaleComponent::Backprop(), rnnlm::i, PerElementScaleComponent::InputDim(), KALDI_ASSERT, kaldi::nnet3::kBackpropAdds, kaldi::nnet3::kBackpropNeedsInput, kaldi::nnet3::kBackpropNeedsOutput, kaldi::nnet3::kPropagateAdds, kaldi::kSetZero, kaldi::nnet3::kStoresStats, kaldi::kUndefined, kaldi::nnet3::kUpdatableComponent, kaldi::nnet3::kUsesMemo, CuMatrixBase< Real >::NumCols(), CuMatrixBase< Real >::NumRows(), NVTX_RANGE, PerElementScaleComponent::OutputDim(), PerElementScaleComponent::Properties(), and Component::StoreStats().

                                                                            {
   NVTX_RANGE("CompositeComponent::Backprop");
   KALDI_ASSERT(in_value.NumRows() == out_deriv.NumRows() &&
                in_value.NumCols() == InputDim() &&
                out_deriv.NumCols() == OutputDim());
   int32 num_rows = in_value.NumRows(),
       num_components = components_.size();
   if (max_rows_process_ > 0 && num_rows > max_rows_process_) {
     KALDI_ASSERT(max_rows_process_ > 0);
     // recurse and process smaller parts of the data, to save memory.
     for (int32 row_offset = 0; row_offset < num_rows;
          row_offset += max_rows_process_) {
       bool have_output_value = (out_value.NumRows() != 0);
       int32 this_num_rows = std::min<int32>(max_rows_process_,
                                             num_rows - row_offset);
       // out_value_part will only be used if out_value is nonempty; otherwise we
       // make it a submatrix of 'out_deriv' to avoid errors in the constructor.
       const CuSubMatrix<BaseFloat> out_value_part(have_output_value ? out_value : out_deriv,
                                                   row_offset, this_num_rows,
                                                   0, out_deriv.NumCols());
       // in_deriv_value_part will only be used if in_deriv != NULL; otherwise we
       // make it a submatrix of 'in_value' to avoid errors in the constructor.
       CuSubMatrix<BaseFloat> in_deriv_part(in_deriv != NULL ? *in_deriv : in_value,
                                             row_offset, this_num_rows,
                                             0, in_value.NumCols());
       CuSubMatrix<BaseFloat> in_value_part(in_value, row_offset, this_num_rows,
                                            0, in_value.NumCols());
       const CuSubMatrix<BaseFloat> out_deriv_part(out_deriv,
                                                   row_offset, this_num_rows,
                                                   0, out_deriv.NumCols());
       CuMatrix<BaseFloat>  empty_mat;
       this->Backprop(debug_info, NULL, in_value_part,
                      (have_output_value ? static_cast<const CuMatrixBase<BaseFloat>&>(out_value_part) :
                       static_cast<const CuMatrixBase<BaseFloat>&>(empty_mat)),
                      out_deriv_part, NULL, to_update,
                      in_deriv != NULL ? &in_deriv_part : NULL);
     }
     return;
   }
   // For now, assume all intermediate values and derivatives need to be
   // computed.  in_value and out_deriv will always be supplied.

   // intermediate_outputs[i] contains the output of component i.
   std::vector<CuMatrix<BaseFloat> > intermediate_outputs(num_components);
   // intermediate_derivs[i] contains the deriative at the output of component i.
   std::vector<CuMatrix<BaseFloat> > intermediate_derivs(num_components - 1);

   KALDI_ASSERT(memo == NULL);
   // note: only a very few components use memos, but we need to support them.
   std::vector<void*> memos(num_components, NULL);

   int32 num_components_to_propagate = num_components;
   if (!(components_[num_components - 1]->Properties() & kUsesMemo)) {
     // we only need to propagate the very last component if it uses a memo.
     num_components_to_propagate--;
     if (num_components > 1) {
       // skip the last-but-one component's propagate if the last component's
       // backprop doesn't need the input and the last-but-one component's
       // backprop doesn't need the output.  This is the lowest hanging fruit for
       // optimization; other propagates might also be skippable.
       int32 properties = components_[num_components - 2]->Properties(),
           next_properties = components_[num_components - 1]->Properties();
       if (!(properties & (kBackpropNeedsOutput | kUsesMemo)) &&
           !(next_properties & kBackpropNeedsInput)) {
         num_components_to_propagate--;
       }
     }
   }


   // Do the propagation again.
   for (int32 i = 0; i < num_components_to_propagate; i++) {
     MatrixResizeType resize_type =
         ((components_[i]->Properties() & kPropagateAdds) ?
          kSetZero : kUndefined);
     intermediate_outputs[i].Resize(num_rows, components_[i]->OutputDim(),
                                    resize_type, GetStrideType(i));
     memos[i] =
         components_[i]->Propagate(NULL,
                              (i == 0 ? in_value : intermediate_outputs[i-1]),
                               &(intermediate_outputs[i]));
   }

   for (int32 i = num_components - 1; i >= 0; i--) {
     const CuMatrixBase<BaseFloat> &this_in_value =
         (i == 0 ? in_value : intermediate_outputs[i-1]),
         &this_out_value =
         (i == num_components - 1 ? out_value : intermediate_outputs[i]);

     Component *component_to_update =
         (to_update == NULL ? NULL :
          dynamic_cast<CompositeComponent*>(to_update)->components_[i]);

     if (component_to_update != NULL  &&
         components_[i]->Properties() & kStoresStats)
       component_to_update->StoreStats(this_in_value, this_out_value, memos[i]);

     if (i > 0) {
       MatrixResizeType resize_type =
           ((components_[i]->Properties() & kBackpropAdds) ?
            kSetZero : kUndefined);
       intermediate_derivs[i-1].Resize(num_rows, components_[i]->InputDim(),
                                       resize_type, GetStrideType(i - 1));
     }
     // skip the first component's backprop if it's not updatable and in_deriv is
     // not requested.  Again, this is the lowest-hanging fruit to optimize.
     if (!(i == 0 && !(components_[0]->Properties() & kUpdatableComponent) &&
           in_deriv == NULL)) {
       components_[i]->Backprop(debug_info, NULL,
                 this_in_value, this_out_value,
                 (i + 1 == num_components ? out_deriv : intermediate_derivs[i]),
                 memos[i], component_to_update,
                 (i == 0 ? in_deriv : &(intermediate_derivs[i-1])));
     }
     if (memos[i] != NULL)
       components_[i]->DeleteMemo(memos[i]);
   }
 }

◆ Copy()

Component * Copy ( ) const

virtual

Copies component (deep copy).

Implements Component.

Definition at line 4567 of file nnet-simple-component.cc.

References NaturalGradientPerElementScaleComponent::Copy(), rnnlm::i, and CompositeComponent::Init().

                                           {
   std::vector<Component*> components(components_.size());
   for (size_t i = 0; i < components_.size(); i++)
     components[i] = components_[i]->Copy();
   CompositeComponent *ans = new CompositeComponent();
   ans->Init(components, max_rows_process_);
   return ans;
 }

◆ DotProduct()

BaseFloat DotProduct ( const UpdatableComponent & other ) const

virtual

Computes dot-product between parameters of two instances of a Component.

Can be used for computing parameter-norm of an UpdatableComponent.

Implements UpdatableComponent.

Definition at line 4534 of file nnet-simple-component.cc.

References CompositeComponent::components_, UpdatableComponent::DotProduct(), rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, and PerElementScaleComponent::Properties().

                                               {
   const CompositeComponent *other = dynamic_cast<const CompositeComponent*>(
       &other_in);
   KALDI_ASSERT(other != NULL && other->components_.size() ==
                components_.size() && "Mismatching nnet topologies");
   BaseFloat ans = 0.0;
   for (size_t i = 0.0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       const UpdatableComponent *uc_other =
           dynamic_cast<UpdatableComponent*>(other->components_[i]);
       KALDI_ASSERT(uc != NULL && uc_other != NULL);
       ans += uc->DotProduct(*uc_other);
     }
   }
   return ans;
 }

◆ FreezeNaturalGradient()

void FreezeNaturalGradient ( bool freeze )

virtual

Reimplemented from UpdatableComponent.

Definition at line 4555 of file nnet-simple-component.cc.

References UpdatableComponent::FreezeNaturalGradient(), rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, and PerElementScaleComponent::Properties().

                                                           {
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       KALDI_ASSERT(uc != NULL);
       uc->FreezeNaturalGradient(freeze);
     }
   }
 }

◆ GetComponent()

const Component * GetComponent ( int32 i ) const

Gets the ith component in this component.

The ordering is the same as in the config line. The caller does not own the received component.

Definition at line 4633 of file nnet-simple-component.cc.

References rnnlm::i, and KALDI_ASSERT.

Referenced by kaldi::nnet3::ConvertRepeatedToBlockAffine(), and kaldi::nnet3::UnitTestConvertRepeatedToBlockAffineComposite().

                                                                {
   KALDI_ASSERT(static_cast<size_t>(i) < components_.size());
   return components_[i];
 }

◆ GetStrideType()

MatrixStrideType GetStrideType ( int32 i ) const

inlineprivate

Definition at line 4125 of file nnet-simple-component.cc.

References kaldi::kDefaultStride, kaldi::nnet3::kInputContiguous, kaldi::nnet3::kOutputContiguous, kaldi::kStrideEqualNumCols, and PerElementScaleComponent::Properties().

                                                                 {
   int32 num_components = components_.size();
   if ((components_[i]->Properties() & kOutputContiguous) ||
       (i + 1 < num_components &&
        (components_[i + 1]->Properties() & kInputContiguous)))
     return kStrideEqualNumCols;
   else
     return kDefaultStride;
 }

◆ Info()

std::string Info ( ) const

virtual

Returns some text-form information about this component, for diagnostics.

Starts with the type of the component. E.g. "SigmoidComponent dim=900", although most components will have much more info.

Reimplemented from UpdatableComponent.

Definition at line 4405 of file nnet-simple-component.cc.

References rnnlm::i, NaturalGradientPerElementScaleComponent::Info(), and NaturalGradientPerElementScaleComponent::Type().

                                          {
   std::ostringstream stream;
   stream << Type() << " ";
   for (size_t i = 0; i < components_.size(); i++) {
     if (i > 0) stream << ", ";
     stream << "sub-component" << (i+1) << " = { "
            << components_[i]->Info() << " }";
   }
   return stream.str();
 }

◆ Init()

void Init	(	const std::vector< Component *> &	components,
		int32	max_rows_process
	)

Definition at line 4184 of file nnet-simple-component.cc.

References kaldi::DeletePointers(), rnnlm::i, PerElementScaleComponent::InputDim(), KALDI_ASSERT, kaldi::nnet3::kSimpleComponent, PerElementScaleComponent::OutputDim(), and PerElementScaleComponent::Properties().

Referenced by CompositeComponent::Copy().

                                                       {
   DeletePointers(&components_);  // clean up.
   components_ = components;
   KALDI_ASSERT(!components.empty());
   max_rows_process_ = max_rows_process;

   for (size_t i = 0; i < components_.size(); i++) {
     // make sure all constituent components are simple.
     KALDI_ASSERT(components_[i]->Properties() & kSimpleComponent);
     if (i > 0) {
       // make sure all the internal dimensions match up.
       KALDI_ASSERT(components_[i]->InputDim() ==
                    components_[i-1]->OutputDim());
     }
   }
 }

◆ InitFromConfig()

void InitFromConfig ( ConfigLine * cfl )

virtual

Initialize, from a ConfigLine object.

Parameters

[in] cfl A ConfigLine containing any parameters that are needed for initialization. For example: "dim=100 param-stddev=0.1"

Implements Component.

Definition at line 4578 of file nnet-simple-component.cc.

References kaldi::DeletePointers(), ConfigLine::FirstToken(), ConfigLine::GetValue(), ConfigLine::HasUnusedValues(), rnnlm::i, NaturalGradientPerElementScaleComponent::Init(), Component::InitFromConfig(), KALDI_ERR, kaldi::nnet3::kRandomComponent, kaldi::nnet3::kSimpleComponent, Component::NewComponentOfType(), ConfigLine::ParseLine(), Component::Properties(), Component::Type(), ConfigLine::UnusedValues(), and ConfigLine::WholeLine().

                                                        {
   int32 max_rows_process = 4096, num_components = -1;
   cfl->GetValue("max-rows-process", &max_rows_process);
   if (!cfl->GetValue("num-components", &num_components) ||
       num_components < 1)
     KALDI_ERR << "Expected num-components to be defined in "
               << "CompositeComponent config line '" << cfl->WholeLine() << "'";
   std::vector<Component*> components;
   for (int32 i = 1; i <= num_components; i++) {
     std::ostringstream name_stream;
     name_stream << "component" << i;
     std::string component_config;
     if (!cfl->GetValue(name_stream.str(), &component_config)) {
       DeletePointers(&components);
       KALDI_ERR << "Expected '" << name_stream.str() << "' to be defined in "
                 << "CompositeComponent config line '" << cfl->WholeLine() << "'";
     }
     ConfigLine nested_line;
     // note: the nested line may not contain comments.
     std::string component_type;
     Component *this_component = NULL;
     if (!nested_line.ParseLine(component_config) ||
         !nested_line.GetValue("type", &component_type) ||
         !(this_component = NewComponentOfType(component_type)) ||
         nested_line.FirstToken() != "") {
       DeletePointers(&components);
       KALDI_ERR << "Could not parse config line for '" << name_stream.str()
                 << "(or undefined or bad component type [type=xxx]), in "
                 << "CompositeComponent config line '" << cfl->WholeLine() << "'";
     }
     if(this_component->Type() == "CompositeComponent") {
       DeletePointers(&components);
       delete this_component;
       // This is not allowed.  If memory is too much with just one
       // CompositeComponent, try decreasing max-rows-process instead.
       KALDI_ERR << "Found CompositeComponent nested within CompositeComponent."
                 << "Nested line: '" << nested_line.WholeLine() << "'\n"
                 << "Toplevel CompositeComponent line '" << cfl->WholeLine()
                 << "'";
     }
     this_component->InitFromConfig(&nested_line);
     int32 props = this_component->Properties();
     if ((props & kRandomComponent) != 0 ||
         (props & kSimpleComponent) == 0) {
       KALDI_ERR << "CompositeComponent contains disallowed component type: "
                 << nested_line.WholeLine();
     }
     components.push_back(this_component);
   }
   if (cfl->HasUnusedValues())
     KALDI_ERR << "Could not process these elements in initializer: "
               << cfl->UnusedValues();
   this->Init(components, max_rows_process);
 }

◆ InputDim()

int32 InputDim ( ) const

virtual

Returns input-dimension of this component.

Implements Component.

Definition at line 4091 of file nnet-simple-component.cc.

References KALDI_ASSERT.

                                          {
   KALDI_ASSERT(!components_.empty());
   return components_.front()->InputDim();
 }

◆ IsUpdatable()

bool IsUpdatable ( ) const

private

Definition at line 4082 of file nnet-simple-component.cc.

References kaldi::nnet3::kUpdatableComponent.

                                            {
   for (std::vector<Component*>::const_iterator iter = components_.begin(),
            end = components_.end(); iter != end; ++iter)
     if (((*iter)->Properties() & kUpdatableComponent) != 0)
       return true;
   return false;
 }

◆ NumComponents()

int32 NumComponents ( ) const

inline

Definition at line 2040 of file nnet-simple-component.h.

References rnnlm::i.

Referenced by kaldi::nnet3::ConvertRepeatedToBlockAffine(), and kaldi::nnet3::UnitTestConvertRepeatedToBlockAffineComposite().

2040 { return components_.size(); }

kaldi::nnet3::CompositeComponent::components_

std::vector< Component * > components_

Definition: nnet-simple-component.h:2062

◆ NumParameters()

int32 NumParameters ( ) const

virtual

The following new virtual function returns the total dimension of the parameters in this class.

Reimplemented from UpdatableComponent.

Definition at line 4486 of file nnet-simple-component.cc.

References rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, UpdatableComponent::NumParameters(), and PerElementScaleComponent::Properties().

                                               {
   KALDI_ASSERT(this->IsUpdatable());  // or should not be called.
   int32 ans = 0;
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       ans += uc->NumParameters();
     }
   }
   return ans;
 }

◆ OutputDim()

int32 OutputDim ( ) const

virtual

Returns output-dimension of this component.

Implements Component.

Definition at line 4097 of file nnet-simple-component.cc.

References KALDI_ASSERT.

                                           {
   KALDI_ASSERT(!components_.empty());
   return components_.back()->OutputDim();
 }

◆ PerturbParams()

void PerturbParams ( BaseFloat stddev )

virtual

This function is to be used in testing.

It adds unit noise times "stddev" to the parameters of the component.

Implements UpdatableComponent.

Definition at line 4433 of file nnet-simple-component.cc.

References rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, UpdatableComponent::PerturbParams(), and PerElementScaleComponent::Properties().

                                                        {
   KALDI_ASSERT(this->IsUpdatable());  // or should not be called.
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       uc->PerturbParams(stddev);
     }
   }
 }

◆ Propagate()

void * Propagate	(	const ComponentPrecomputedIndexes *	indexes,
		const CuMatrixBase< BaseFloat > &	in,
		CuMatrixBase< BaseFloat > *	out
	)		const

virtual

Propagate function.

Parameters

[in]	indexes	A pointer to some information output by this class's PrecomputeIndexes function (will be NULL for simple components, i.e. those that don't do things like splicing).
[in]	in	The input to this component. Num-columns == InputDim().
[out]	out	The output of this component. Num-columns == OutputDim(). Note: output of this component will be added to the initial value of "out" if Properties()&kPropagateAdds != 0; otherwise the output will be set and the initial value ignored. Each Component chooses whether it is more convenient implementation-wise to add or set, and the calling code has to deal with it.

Returns: Normally returns NULL, but may return a non-NULL value for components which have the flag kUsesMemo set. This value will be passed into the corresponding Backprop routine.

Implements Component.

Definition at line 4137 of file nnet-simple-component.cc.

References rnnlm::i, PerElementScaleComponent::InputDim(), KALDI_ASSERT, kaldi::nnet3::kPropagateAdds, kaldi::kSetZero, kaldi::kUndefined, CuMatrixBase< Real >::NumCols(), CuMatrixBase< Real >::NumRows(), PerElementScaleComponent::OutputDim(), and PerElementScaleComponent::Propagate().

                                         {
   KALDI_ASSERT(in.NumRows() == out->NumRows() && in.NumCols() == InputDim() &&
                out->NumCols() == OutputDim());
   int32 num_rows = in.NumRows(),
       num_components = components_.size();
   if (max_rows_process_ > 0 && num_rows > max_rows_process_) {
     // recurse and process smaller parts of the data, to save memory.
     for (int32 row_offset = 0; row_offset < num_rows;
          row_offset += max_rows_process_) {
       int32 this_num_rows = std::min<int32>(max_rows_process_,
                                             num_rows - row_offset);
       const CuSubMatrix<BaseFloat> in_part(in, row_offset, this_num_rows,
                                            0, in.NumCols());
       CuSubMatrix<BaseFloat> out_part(*out, row_offset, this_num_rows,
                                       0, out->NumCols());
       this->Propagate(NULL, in_part, &out_part);
     }
     return NULL;
   }
   std::vector<CuMatrix<BaseFloat> > intermediate_outputs(num_components - 1);
   for (int32 i = 0; i < num_components; i++) {
     if (i + 1 < num_components) {
       MatrixResizeType resize_type =
           ((components_[i]->Properties() & kPropagateAdds) ?
            kSetZero : kUndefined);
       intermediate_outputs[i].Resize(num_rows, components_[i]->OutputDim(),
                                      resize_type, GetStrideType(i));
     }
     const CuMatrixBase<BaseFloat> &this_in = (i == 0 ? in :
                                               intermediate_outputs[i-1]);
     CuMatrixBase<BaseFloat> *this_out = (i + 1 == num_components ?
                                          out : &(intermediate_outputs[i]));
     void *memo =  components_[i]->Propagate(NULL, this_in, this_out);
     // we'll re-do the forward propagation in the backprop, and we can
     // regenerate any memos there, so no need to keep them.
     if (memo != NULL)
       components_[i]->DeleteMemo(memo);
     if (i > 0)
       intermediate_outputs[i-1].Resize(0, 0);
   }
   return NULL;
 }

◆ Properties()

int32 Properties ( ) const

virtual

Return bitmask of the component's properties.

These properties depend only on the component's type. See enum ComponentProperties.

Implements Component.

Definition at line 4103 of file nnet-simple-component.cc.

References KALDI_ASSERT, kaldi::nnet3::kBackpropAdds, kaldi::nnet3::kBackpropNeedsInput, kaldi::nnet3::kBackpropNeedsOutput, kaldi::nnet3::kInputContiguous, kaldi::nnet3::kOutputContiguous, kaldi::nnet3::kPropagateAdds, kaldi::nnet3::kSimpleComponent, kaldi::nnet3::kStoresStats, and kaldi::nnet3::kUpdatableComponent.

                                            {
   KALDI_ASSERT(!components_.empty());
   int32 last_component_properties = components_.back()->Properties(),
       first_component_properties = components_.front()->Properties();
   // We always assume backprop needs the input, as this would be necessary to
   // get the activations at intermediate layers, if these were not needed in
   // backprop, there would be no reason to use a CompositeComponent.
   int32 ans = kSimpleComponent | kBackpropNeedsInput |
       (last_component_properties &
        (kPropagateAdds|kBackpropNeedsOutput|kOutputContiguous)) |
        (first_component_properties &
         (kBackpropAdds|kInputContiguous)) |
        (IsUpdatable() ? kUpdatableComponent : 0);
   // note, we don't return the kStoresStats property because that function is
   // not implemented; instead, for efficiency, we call StoreStats() on any
   // sub-components as part of the backprop phase.
   if (last_component_properties & kStoresStats)
     ans |= kBackpropNeedsOutput;
   return ans;
 }

◆ Read()

void Read	(	std::istream &	is,
		bool	binary
	)

virtual

Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed.

Implements Component.

Definition at line 4203 of file nnet-simple-component.cc.

References kaldi::nnet3::ExpectToken(), rnnlm::i, NaturalGradientPerElementScaleComponent::Init(), UpdatableComponent::is_gradient_, KALDI_ERR, UpdatableComponent::learning_rate_, UpdatableComponent::learning_rate_factor_, kaldi::ReadBasicType(), Component::ReadNew(), kaldi::ReadToken(), and UpdatableComponent::ReadUpdatableCommon().

                                                          {
   // Because we didn't previously write out the learning rate,
   // we need some temporary code.
   int32 max_rows_process;
   if (false) {
     ReadUpdatableCommon(is, binary);
     ExpectToken(is, binary, "<MaxRowsProcess>");
     ReadBasicType(is, binary, &max_rows_process);
   } else {  // temporary code.
     std::string token;
     ReadToken(is, binary, &token);
     if (token == "<CompositeComponent>") {
       // if the first token is the opening tag, then
       // ignore it and get the next tag.
       ReadToken(is, binary, &token);
     }
     if (token == "<LearningRateFactor>") {
       ReadBasicType(is, binary, &learning_rate_factor_);
       ReadToken(is, binary, &token);
     } else {
       learning_rate_factor_ = 1.0;
     }
     if (token == "<IsGradient>") {
       ReadBasicType(is, binary, &is_gradient_);
       ReadToken(is, binary, &token);
     } else {
       is_gradient_ = false;
     }
     if (token == "<LearningRate>") {
       ReadBasicType(is, binary, &learning_rate_);
       ReadToken(is, binary, &token);
     }
     if (token != "<MaxRowsProcess>") {
       KALDI_ERR << "Expected token <MaxRowsProcess>, got "
                 << token;
     }
     ReadBasicType(is, binary, &max_rows_process);
   }
   ExpectToken(is, binary, "<NumComponents>");
   int32 num_components;
   ReadBasicType(is, binary, &num_components); // Read dimension.
   if (num_components < 0 || num_components > 100000)
     KALDI_ERR << "Bad num-components";
   std::vector<Component*> components(num_components);
   for (int32 i = 0; i < num_components; i++)
     components[i] = ReadNew(is, binary);
   Init(components, max_rows_process);
   ExpectToken(is, binary, "</CompositeComponent>");
 }

◆ Scale()

void Scale ( BaseFloat scale )

virtual

This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent.

– a Nonlinear component (or another component that stores stats, like BatchNormComponent)– it relates to scaling activation stats, not parameters. Otherwise it will normally do nothing.

Reimplemented from Component.

Definition at line 4417 of file nnet-simple-component.cc.

References rnnlm::i, and PerElementScaleComponent::Scale().

                                               {
   for (size_t i = 0; i < components_.size(); i++)
     components_[i]->Scale(scale);
 }

◆ SetActualLearningRate()

void SetActualLearningRate ( BaseFloat lrate )

virtual

Sets the learning rate directly, bypassing learning_rate_factor_.

Reimplemented from UpdatableComponent.

Definition at line 4460 of file nnet-simple-component.cc.

References rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, PerElementScaleComponent::Properties(), and UpdatableComponent::SetActualLearningRate().

                                                               {
   KALDI_ASSERT(this->IsUpdatable());  // or should not be called.
   UpdatableComponent::SetActualLearningRate(lrate);
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       uc->SetActualLearningRate(lrate);
     }
   }
 }

◆ SetAsGradient()

void SetAsGradient ( )

virtual

Sets is_gradient_ to true and sets learning_rate_ to 1, ignoring learning_rate_factor_.

Reimplemented from UpdatableComponent.

Definition at line 4473 of file nnet-simple-component.cc.

References rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, PerElementScaleComponent::Properties(), and UpdatableComponent::SetAsGradient().

                                        {
   KALDI_ASSERT(this->IsUpdatable());  // or should not be called.
   UpdatableComponent::SetAsGradient();
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       uc->SetAsGradient();
     }
   }
 }

◆ SetComponent()

void SetComponent	(	int32	i,
		Component *	component
	)

Sets the ith component.

After this call, CompositeComponent owns the reference to the argument component. Frees the previous ith component.

Definition at line 4638 of file nnet-simple-component.cc.

References rnnlm::i, and KALDI_ASSERT.

Referenced by kaldi::nnet3::ConvertRepeatedToBlockAffine().

                                                                    {
   KALDI_ASSERT(static_cast<size_t>(i) < components_.size());
   delete components_[i];
   components_[i] = component;
 }

◆ SetUnderlyingLearningRate()

void SetUnderlyingLearningRate ( BaseFloat lrate )

virtual

Sets the learning rate of gradient descent- gets multiplied by learning_rate_factor_.

Reimplemented from UpdatableComponent.

Definition at line 4444 of file nnet-simple-component.cc.

References rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, UpdatableComponent::LearningRate(), PerElementScaleComponent::Properties(), and UpdatableComponent::SetUnderlyingLearningRate().

                                                                   {
   KALDI_ASSERT(this->IsUpdatable());  // or should not be called.
   UpdatableComponent::SetUnderlyingLearningRate(lrate);

   // apply any learning-rate-factor that's set at this level (ill-advised, but
   // we'll do it.)
   BaseFloat effective_lrate = LearningRate();
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       uc->SetUnderlyingLearningRate(effective_lrate);
     }
   }
 }

◆ Type()

virtual std::string Type ( ) const

inlinevirtual

Returns a string such as "SigmoidComponent", describing the type of the object.

Implements Component.

Definition at line 1988 of file nnet-simple-component.h.

References Component::Add(), PnormComponent::Backprop(), kaldi::nnet3::DotProduct(), kaldi::nnet3::FreezeNaturalGradient(), kaldi::nnet3::NumParameters(), kaldi::nnet3::PerturbParams(), PnormComponent::Propagate(), PnormComponent::Properties(), PnormComponent::Read(), Component::Scale(), PnormComponent::Write(), and Component::ZeroStats().

1988 { return "CompositeComponent"; }

◆ UnVectorize()

void UnVectorize ( const VectorBase< BaseFloat > & params )

virtual

Converts the parameters from vector form.

Reimplemented from UpdatableComponent.

Definition at line 4517 of file nnet-simple-component.cc.

References VectorBase< Real >::Dim(), rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, UpdatableComponent::NumParameters(), PerElementScaleComponent::Properties(), and UpdatableComponent::UnVectorize().

                                                                         {
   int32 cur_offset = 0;
   KALDI_ASSERT(this->IsUpdatable());  // or should not be called.
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       int32 this_size = uc->NumParameters();
       SubVector<BaseFloat> params_range(params, cur_offset, this_size);
       uc->UnVectorize(params_range);
       cur_offset += this_size;
     }
   }
   KALDI_ASSERT(cur_offset == params.Dim());
 }

◆ Vectorize()

void Vectorize ( VectorBase< BaseFloat > * params ) const

virtual

Turns the parameters into vector form.

We put the vector form on the CPU, because in the kinds of situations where we do this, we'll tend to use too much memory for the GPU.

Reimplemented from UpdatableComponent.

Definition at line 4500 of file nnet-simple-component.cc.

References VectorBase< Real >::Dim(), rnnlm::i, KALDI_ASSERT, kaldi::nnet3::kUpdatableComponent, UpdatableComponent::NumParameters(), PerElementScaleComponent::Properties(), and UpdatableComponent::Vectorize().

                                                                       {
   int32 cur_offset = 0;
   KALDI_ASSERT(this->IsUpdatable());  // or should not be called.
   for (size_t i = 0; i < components_.size(); i++) {
     if (components_[i]->Properties() & kUpdatableComponent) {
       UpdatableComponent *uc =
           dynamic_cast<UpdatableComponent*>(components_[i]);
       int32 this_size = uc->NumParameters();
       SubVector<BaseFloat> params_range(*params, cur_offset, this_size);
       uc->Vectorize(&params_range);
       cur_offset += this_size;
     }
   }
   KALDI_ASSERT(cur_offset == params->Dim());
 }

◆ Write()

void Write	(	std::ostream &	os,
		bool	binary
	)		const

virtual

Write component to stream.

Implements Component.

Definition at line 4263 of file nnet-simple-component.cc.

References rnnlm::i, NaturalGradientPerElementScaleComponent::Write(), kaldi::WriteBasicType(), kaldi::WriteToken(), and UpdatableComponent::WriteUpdatableCommon().

                                                                 {
   WriteUpdatableCommon(os, binary);  // Write opening tag and learning rate.
   WriteToken(os, binary, "<MaxRowsProcess>");
   WriteBasicType(os, binary, max_rows_process_);
   WriteToken(os, binary, "<NumComponents>");
   int32 num_components = components_.size();
   WriteBasicType(os, binary, num_components);
   for (int32 i = 0; i < num_components; i++)
     components_[i]->Write(os, binary);
   WriteToken(os, binary, "</CompositeComponent>");
 }

◆ ZeroStats()

void ZeroStats ( )

virtual

Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero.

Other components that store other types of statistics (e.g. regarding gradient clipping) should implement ZeroStats() also.

Reimplemented from Component.

Definition at line 4254 of file nnet-simple-component.cc.

References rnnlm::i, and Component::ZeroStats().

                                    {
   // we call ZeroStats() on all components without checking their flags; this
   // will do nothing if the component doesn't store stats.  (components like
   // ReLU and sigmoid and tanh store stats on activations).
   for (size_t i = 0; i < components_.size(); i++)
    components_[i]->ZeroStats();
 }

Member Data Documentation

◆ components_

std::vector<Component*> components_

private

Definition at line 2062 of file nnet-simple-component.h.

Referenced by CompositeComponent::Add(), and CompositeComponent::DotProduct().

◆ max_rows_process_

int32 max_rows_process_

private

Definition at line 2061 of file nnet-simple-component.h.

The documentation for this class was generated from the following files:

nnet3/nnet-simple-component.h
nnet3/nnet-simple-component.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CompositeComponent()

◆ ~CompositeComponent()

Member Function Documentation

◆ Add()

◆ Backprop()

◆ Copy()

◆ DotProduct()

◆ FreezeNaturalGradient()

◆ GetComponent()

◆ GetStrideType()

◆ Info()

◆ Init()

◆ InitFromConfig()

◆ InputDim()

◆ IsUpdatable()

◆ NumComponents()

◆ NumParameters()

◆ OutputDim()

◆ PerturbParams()

◆ Propagate()

◆ Properties()

◆ Read()

◆ Scale()

◆ SetActualLearningRate()

◆ SetAsGradient()

◆ SetComponent()

◆ SetUnderlyingLearningRate()

◆ Type()

◆ UnVectorize()

◆ Vectorize()

◆ Write()

◆ ZeroStats()

Member Data Documentation

◆ components_

◆ max_rows_process_
