#include <nnet-simple-component.h>

Inheritance diagram for NaturalGradientRepeatedAffineComponent:

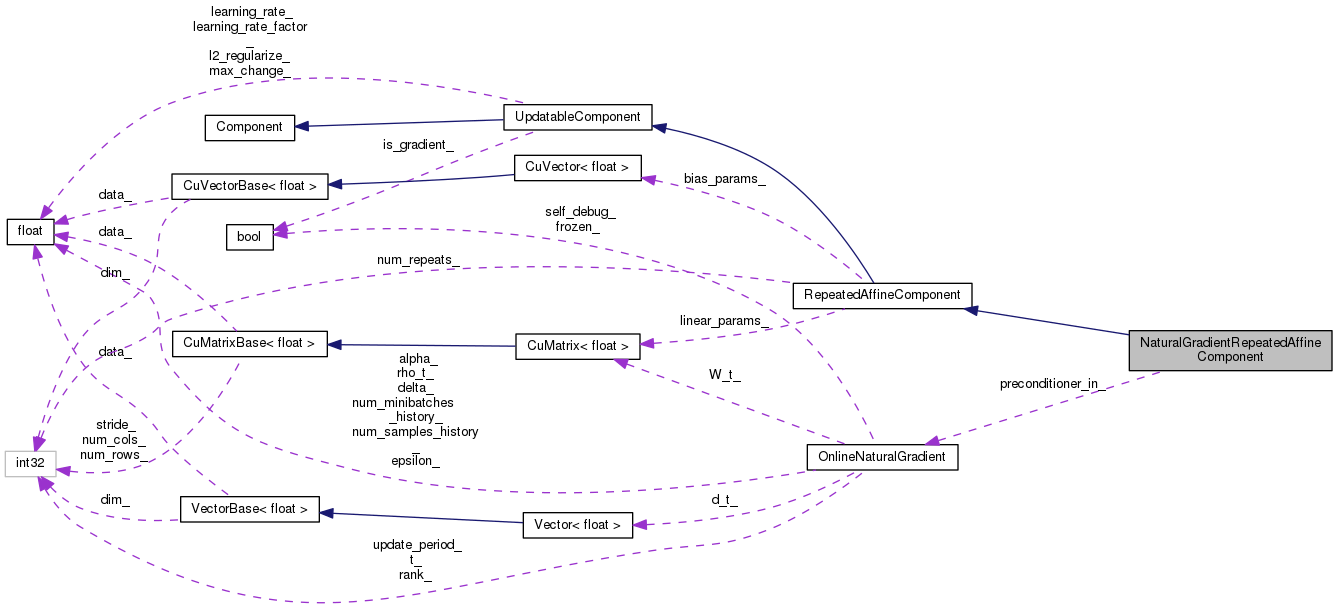

Collaboration diagram for NaturalGradientRepeatedAffineComponent:

[legend]

Public Member Functions
	NaturalGradientRepeatedAffineComponent ()

virtual std::string	Type () const
	Returns a string such as "SigmoidComponent", describing the type of the object. More...

virtual Component *	Copy () const
	Copies component (deep copy). More...

	NaturalGradientRepeatedAffineComponent (const NaturalGradientRepeatedAffineComponent &other)

virtual void	ConsolidateMemory ()
	This virtual function relates to memory management, and avoiding fragmentation. More...

Public Member Functions inherited from RepeatedAffineComponent
virtual int32	InputDim () const
	Returns input-dimension of this component. More...

virtual int32	OutputDim () const
	Returns output-dimension of this component. More...

virtual std::string	Info () const
	Returns some text-form information about this component, for diagnostics. More...

virtual void	InitFromConfig (ConfigLine *cfl)
	Initialize, from a ConfigLine object. More...

	RepeatedAffineComponent ()

virtual int32	Properties () const
	Return bitmask of the component's properties. More...

virtual void *	Propagate (const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in, CuMatrixBase< BaseFloat > out) const
	Propagate function. More...

virtual void	Backprop (const std::string &debug_info, const ComponentPrecomputedIndexes indexes, const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &, const CuMatrixBase< BaseFloat > &out_deriv, void memo, Component to_update, CuMatrixBase< BaseFloat > in_deriv) const
	Backprop function; depending on which of the arguments 'to_update' and 'in_deriv' are non-NULL, this can compute input-data derivatives and/or perform model update. More...

virtual void	Read (std::istream &is, bool binary)
	Read function (used after we know the type of the Component); accepts input that is missing the token that describes the component type, in case it has already been consumed. More...

virtual void	Write (std::ostream &os, bool binary) const
	Write component to stream. More...

virtual void	Scale (BaseFloat scale)
	This virtual function when called on – an UpdatableComponent scales the parameters by "scale" when called by an UpdatableComponent. More...

virtual void	Add (BaseFloat alpha, const Component &other)
	This virtual function when called by – an UpdatableComponent adds the parameters of another updatable component, times some constant, to the current parameters. More...

virtual void	PerturbParams (BaseFloat stddev)
	This function is to be used in testing. More...

virtual BaseFloat	DotProduct (const UpdatableComponent &other) const
	Computes dot-product between parameters of two instances of a Component. More...

virtual int32	NumParameters () const
	The following new virtual function returns the total dimension of the parameters in this class. More...

virtual void	Vectorize (VectorBase< BaseFloat > *params) const
	Turns the parameters into vector form. More...

virtual void	UnVectorize (const VectorBase< BaseFloat > &params)
	Converts the parameters from vector form. More...

const CuVector< BaseFloat > &	BiasParams () const

const CuMatrix< BaseFloat > &	LinearParams () const

	RepeatedAffineComponent (const RepeatedAffineComponent &other)

friend	BlockAffineComponent::BlockAffineComponent (const RepeatedAffineComponent &rac)

Public Member Functions inherited from UpdatableComponent
	UpdatableComponent (const UpdatableComponent &other)

	UpdatableComponent ()

virtual	~UpdatableComponent ()

virtual void	SetUnderlyingLearningRate (BaseFloat lrate)
	Sets the learning rate of gradient descent- gets multiplied by learning_rate_factor_. More...

virtual void	SetActualLearningRate (BaseFloat lrate)
	Sets the learning rate directly, bypassing learning_rate_factor_. More...

virtual void	SetAsGradient ()
	Sets is_gradient_ to true and sets learning_rate_ to 1, ignoring learning_rate_factor_. More...

virtual BaseFloat	LearningRateFactor ()

virtual void	SetLearningRateFactor (BaseFloat lrate_factor)

void	SetUpdatableConfigs (const UpdatableComponent &other)

virtual void	FreezeNaturalGradient (bool freeze)
	freezes/unfreezes NaturalGradient updates, if applicable (to be overriden by components that use Natural Gradient). More...

BaseFloat	LearningRate () const
	Gets the learning rate to be used in gradient descent. More...

BaseFloat	MaxChange () const
	Returns the per-component max-change value, which is interpreted as the maximum change (in l2 norm) in parameters that is allowed per minibatch for this component. More...

void	SetMaxChange (BaseFloat max_change)

BaseFloat	L2Regularization () const
	Returns the l2 regularization constant, which may be set in any updatable component (usually from the config file). More...

void	SetL2Regularization (BaseFloat a)

Public Member Functions inherited from Component
virtual void	StoreStats (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_value, void *memo)
	This function may store stats on average activation values, and for some component types, the average value of the derivative of the nonlinearity. More...

virtual void	ZeroStats ()
	Components that provide an implementation of StoreStats should also provide an implementation of ZeroStats(), to set those stats to zero. More...

virtual void	GetInputIndexes (const MiscComputationInfo &misc_info, const Index &output_index, std::vector< Index > *desired_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual bool	IsComputable (const MiscComputationInfo &misc_info, const Index &output_index, const IndexSet &input_index_set, std::vector< Index > *used_inputs) const
	This function only does something interesting for non-simple Components, and it exists to make it possible to manage optionally-required inputs. More...

virtual void	ReorderIndexes (std::vector< Index > input_indexes, std::vector< Index > output_indexes) const
	This function only does something interesting for non-simple Components. More...

virtual ComponentPrecomputedIndexes *	PrecomputeIndexes (const MiscComputationInfo &misc_info, const std::vector< Index > &input_indexes, const std::vector< Index > &output_indexes, bool need_backprop) const
	This function must return NULL for simple Components. More...

virtual void	DeleteMemo (void *memo) const
	This virtual function only needs to be overwritten by Components that return a non-NULL memo from their Propagate() function. More...

	Component ()

virtual	~Component ()

Private Member Functions
virtual void	Update (const CuMatrixBase< BaseFloat > &in_value, const CuMatrixBase< BaseFloat > &out_deriv)

const NaturalGradientRepeatedAffineComponent &	operator= (const NaturalGradientRepeatedAffineComponent &other)

virtual void	SetNaturalGradientConfigs ()

Private Attributes
OnlineNaturalGradient	preconditioner_in_

Additional Inherited Members
Static Public Member Functions inherited from Component
static Component *	ReadNew (std::istream &is, bool binary)
	Read component from stream (works out its type). Dies on error. More...

static Component *	NewComponentOfType (const std::string &type)
	Returns a new Component of the given type e.g. More...

Protected Member Functions inherited from RepeatedAffineComponent
void	Init (int32 input_dim, int32 output_dim, int32 num_repeats, BaseFloat param_stddev, BaseFloat bias_mean, BaseFloat bias_stddev)

const RepeatedAffineComponent &	operator= (const RepeatedAffineComponent &other)

Protected Member Functions inherited from UpdatableComponent
void	InitLearningRatesFromConfig (ConfigLine *cfl)

std::string	ReadUpdatableCommon (std::istream &is, bool binary)

void	WriteUpdatableCommon (std::ostream &is, bool binary) const

Protected Attributes inherited from RepeatedAffineComponent
CuMatrix< BaseFloat >	linear_params_

CuVector< BaseFloat >	bias_params_

int32	num_repeats_

Protected Attributes inherited from UpdatableComponent
BaseFloat	learning_rate_
	learning rate (typically 0.0..0.01) More...

BaseFloat	learning_rate_factor_
	learning rate factor (normally 1.0, but can be set to another < value so that when < you call SetLearningRate(), that value will be scaled by this factor. More...

BaseFloat	l2_regularize_
	L2 regularization constant. More...

bool	is_gradient_
	True if this component is to be treated as a gradient rather than as parameters. More...

BaseFloat	max_change_
	configuration value for imposing max-change More...

Detailed Description

Definition at line 638 of file nnet-simple-component.h.

Constructor & Destructor Documentation

◆ NaturalGradientRepeatedAffineComponent() [1/2]

NaturalGradientRepeatedAffineComponent ( )

inline

Definition at line 641 of file nnet-simple-component.h.

Referenced by NaturalGradientRepeatedAffineComponent::Copy().

641 { }

◆ NaturalGradientRepeatedAffineComponent() [2/2]

NaturalGradientRepeatedAffineComponent ( const NaturalGradientRepeatedAffineComponent & other )

explicit

Definition at line 1594 of file nnet-simple-component.cc.

                                                         :
     RepeatedAffineComponent(other),
     preconditioner_in_(other.preconditioner_in_) { }

Member Function Documentation

◆ ConsolidateMemory()

void ConsolidateMemory ( )

virtual

This virtual function relates to memory management, and avoiding fragmentation.

It is called only once per model, after we do the first minibatch of training. The default implementation does nothing, but it can be overridden by child classes, where it may re-initialize certain quantities that may possibly have been allocated during the forward pass (e.g. certain statistics; OnlineNaturalGradient objects). We use our own CPU-based allocator (see cu-allocator.h) and since it can't do paging since we're not in control of the GPU page table, fragmentation can be a problem. The allocator always tries to put things in 'low-address memory' (i.e. at smaller memory addresses) near the beginning of the block it allocated, to avoid fragmentation; but if permanent things (belonging to the model) are allocated in the forward pass, they can permanently stay in high memory. This function helps to prevent that, by re-allocating those things into low-address memory (It's important that it's called after all the temporary buffers for the forward-backward have been freed, so that there is low-address memory available)).

Reimplemented from Component.

Definition at line 1656 of file nnet-simple-component.cc.

References NaturalGradientRepeatedAffineComponent::preconditioner_in_, and OnlineNaturalGradient::Swap().

                                                                {
   OnlineNaturalGradient temp(preconditioner_in_);
   preconditioner_in_.Swap(&temp);
 }

◆ Copy()

Component * Copy ( ) const

virtual

Copies component (deep copy).

Reimplemented from RepeatedAffineComponent.

Definition at line 1600 of file nnet-simple-component.cc.

References NaturalGradientRepeatedAffineComponent::NaturalGradientRepeatedAffineComponent().

                                                               {
   return new NaturalGradientRepeatedAffineComponent(*this);
 }

◆ operator=()

const NaturalGradientRepeatedAffineComponent& operator= ( const NaturalGradientRepeatedAffineComponent & other )

private

◆ SetNaturalGradientConfigs()

void SetNaturalGradientConfigs ( )

privatevirtual

Reimplemented from RepeatedAffineComponent.

Definition at line 1583 of file nnet-simple-component.cc.

References RepeatedAffineComponent::linear_params_.

                                                                        {
   int32 rank_in = 40;
   int32 input_dim = linear_params_.NumCols();
   if (rank_in > input_dim / 2)
     rank_in = input_dim / 2;
   if (rank_in < 1)
     rank_in = 1;
   preconditioner_in_.SetRank(rank_in);
   preconditioner_in_.SetUpdatePeriod(4);
 }

◆ Type()

virtual std::string Type ( ) const

inlinevirtual

Returns a string such as "SigmoidComponent", describing the type of the object.

Reimplemented from RepeatedAffineComponent.

Definition at line 644 of file nnet-simple-component.h.

References Component::ConsolidateMemory(), and PnormComponent::Copy().

                                  {
     return "NaturalGradientRepeatedAffineComponent";
   }

◆ Update()

void Update	(	const CuMatrixBase< BaseFloat > &	in_value,
		const CuMatrixBase< BaseFloat > &	out_deriv
	)

privatevirtual

Reimplemented from RepeatedAffineComponent.

Definition at line 1604 of file nnet-simple-component.cc.

                                               {
   KALDI_ASSERT(out_deriv.NumCols() == out_deriv.Stride() &&
                in_value.NumCols() == in_value.Stride() &&
                in_value.NumRows() == out_deriv.NumRows());

   int32 num_repeats = num_repeats_,
       num_rows = in_value.NumRows(),
       block_dim_out = linear_params_.NumRows(),
       block_dim_in = linear_params_.NumCols();

   CuSubMatrix<BaseFloat> in_value_reshaped(in_value.Data(),
                                            num_rows * num_repeats,
                                            block_dim_in, block_dim_in),
         out_deriv_reshaped(out_deriv.Data(),
                            num_rows * num_repeats,
                            block_dim_out, block_dim_out);

   CuVector<BaseFloat> bias_deriv(block_dim_out);
   bias_deriv.AddRowSumMat(1.0, out_deriv_reshaped);

   CuMatrix<BaseFloat> deriv(block_dim_out,
                             block_dim_in + 1);
   deriv.ColRange(0, block_dim_in).AddMatMat(
       1.0, out_deriv_reshaped, kTrans,
       in_value_reshaped, kNoTrans, 1.0);
   deriv.CopyColFromVec(bias_deriv, block_dim_in);

   BaseFloat scale = 1.0;
   if (!is_gradient_) {
     try {
       // Only apply the preconditioning/natural-gradient if we're not computing
       // the exact gradient.
       preconditioner_in_.PreconditionDirections(&deriv, &scale);
     } catch (...) {
       int32 num_bad_rows = 0;
       for (int32 i = 0; i < out_deriv.NumRows(); i++) {
         BaseFloat f = out_deriv.Row(i).Sum();
         if (!(f - f == 0)) num_bad_rows++;
       }
       KALDI_ERR << "Preonditioning failed, in_value sum is "
                 << in_value.Sum() << ", out_deriv sum is " << out_deriv.Sum()
                 << ", out_deriv has " << num_bad_rows << " bad rows.";
     }
   }
   linear_params_.AddMat(learning_rate_ * scale,
                         deriv.ColRange(0, block_dim_in));
   bias_deriv.CopyColFromMat(deriv, block_dim_in);
   bias_params_.AddVec(learning_rate_ * scale, bias_deriv);
 }

Member Data Documentation

◆ preconditioner_in_

OnlineNaturalGradient preconditioner_in_

private

Definition at line 674 of file nnet-simple-component.h.

Referenced by NaturalGradientRepeatedAffineComponent::ConsolidateMemory(), and NaturalGradientRepeatedAffineComponent::Update().

The documentation for this class was generated from the following files:

nnet3/nnet-simple-component.h
nnet3/nnet-simple-component.cc

Public Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ NaturalGradientRepeatedAffineComponent() [1/2]

◆ NaturalGradientRepeatedAffineComponent() [2/2]

Member Function Documentation

◆ ConsolidateMemory()

◆ Copy()

◆ operator=()

◆ SetNaturalGradientConfigs()

◆ Type()

◆ Update()

Member Data Documentation

◆ preconditioner_in_
