class NnetComputer is responsible for executing the computation described in the "computation" object. More...

#include <nnet-compute.h>

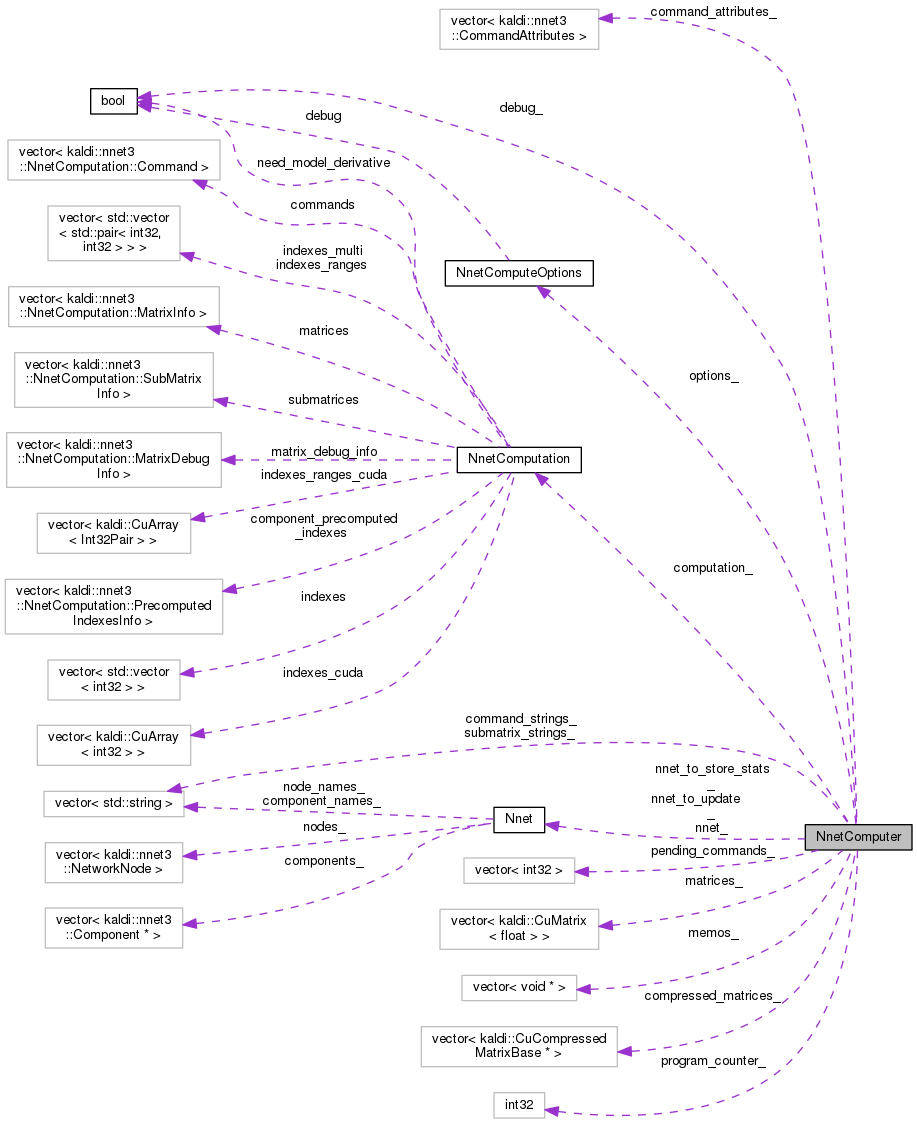

Collaboration diagram for NnetComputer:

[legend]

Classes
struct	CommandDebugInfo

Public Member Functions
	NnetComputer (const NnetComputeOptions &options, const NnetComputation &computation, const Nnet &nnet, Nnet *nnet_to_update)
	Constructor. More...

	NnetComputer (const NnetComputeOptions &options, const NnetComputation &computation, Nnet nnet, Nnet nnet_to_update)
	This version of the constructor accepts a pointer to 'nnet' instead of a const reference. More...

	NnetComputer (const NnetComputer &other)
	Copy constructor. More...

void	AcceptInput (const std::string &node_name, CuMatrix< BaseFloat > *input)
	e.g. More...

void	AcceptInputs (const Nnet &nnet, const std::vector< NnetIo > &io)
	This convenience function calls AcceptInput() in turn on all the inputs in the training example. More...

void	Run ()
	This does either the forward or backward computation, depending when it is called (in a typical computation, the first time you call this it will do the forward computation; then you'll take the outputs and provide derivatives; and the second time you call it, it will do the backward computation. More...

const CuMatrixBase< BaseFloat > &	GetOutput (const std::string &node_name)

void	GetOutputDestructive (const std::string &output_name, CuMatrix< BaseFloat > *output)

	~NnetComputer ()

Private Member Functions
void	Init ()

void	ExecuteCommand ()

int32	GetIoMatrixIndex (const std::string &node_name, bool is_output)

void	CheckNoPendingIo ()

CuSubMatrix< BaseFloat >	GetSubMatrix (int32 submatrix_index)

void	GetPointers (int32 indexes_multi_index, int32 num_cols, CuArray< BaseFloat > pointers)

void	GetPointers (int32 indexes_multi_index, int32 num_cols, CuArray< const BaseFloat > pointers)

void	DebugBeforeExecute (int32 command, CommandDebugInfo *info)

void	DebugAfterExecute (int32 command, const CommandDebugInfo &info, double command_execution_time)

void	SaveMemo (int32 memo_index, const Component &c, void *memo)

void *	GetMemo (int32 memo_index)

NnetComputer &	operator= (const NnetComputer &other)

Static Private Member Functions
static BaseFloat	MatrixStddev (const CuMatrixBase< BaseFloat > &m)

static BaseFloat	ParameterStddev (const Component &c)

Private Attributes
const NnetComputeOptions &	options_

const NnetComputation &	computation_

const Nnet &	nnet_

int32	program_counter_

std::vector< int32 >	pending_commands_

Nnet *	nnet_to_store_stats_

Nnet *	nnet_to_update_

bool	debug_

std::vector< CommandAttributes >	command_attributes_

std::vector< std::string >	submatrix_strings_

std::vector< std::string >	command_strings_

std::vector< CuMatrix< BaseFloat > >	matrices_

std::vector< void * >	memos_

std::vector< CuCompressedMatrixBase * >	compressed_matrices_

Detailed Description

class NnetComputer is responsible for executing the computation described in the "computation" object.

You call in sequence, the constructor, then AcceptInput() [or AcceptInputs()], then Run(), then GetOutput() [and if applicable, AcceptOutputDeriv], then if there is a backward computation, Run() [then, if applicable, GetInputDeriv()].

Definition at line 59 of file nnet-compute.h.

Constructor & Destructor Documentation

◆ NnetComputer() [1/3]

NnetComputer	(	const NnetComputeOptions &	options,
		const NnetComputation &	computation,
		const Nnet &	nnet,
		Nnet *	nnet_to_update
	)

Constructor.

nnet_to_update will be NULL if you are not doing model update or model-derivative computation. You must call computation.ComputeCudaIndexes() before calling this function.

Caution: there is another constructor that takes a pointer for 'nnet', be careful not to mix these up.

Definition at line 28 of file nnet-compute.cc.

References NnetComputer::Init().

                                                 :
     options_(options), computation_(computation), nnet_(nnet),
     program_counter_(0), nnet_to_store_stats_(nnet_to_update),
     nnet_to_update_(nnet_to_update) {
   Init();
 }

◆ NnetComputer() [2/3]

NnetComputer	(	const NnetComputeOptions &	options,
		const NnetComputation &	computation,
		Nnet *	nnet,
		Nnet *	nnet_to_update
	)

This version of the constructor accepts a pointer to 'nnet' instead of a const reference.

The difference is that this version will, for storing statistics (the StoreStats() function of class Component), use 'nnet' instead of 'nnet_to_update' (if specified).

Definition at line 38 of file nnet-compute.cc.

References NnetComputer::Init().

                                                 :
     options_(options), computation_(computation), nnet_(*nnet),
     program_counter_(0), nnet_to_store_stats_(nnet),
     nnet_to_update_(nnet_to_update) {
   Init();
 }

◆ NnetComputer() [3/3]

NnetComputer ( const NnetComputer & other )

Copy constructor.

May not be used if memos are stored with this object (which is only a possibility if backprop will take place, and in these situations you won't normally be wanting to use the copy constructor anyway; the copy constructor is more useful for things like RNNLM lattice rescoring).

Definition at line 189 of file nnet-compute.cc.

References KALDI_ERR, and NnetComputer::memos_.

                                                    :
     options_(other.options_),
     computation_(other.computation_),
     nnet_(other.nnet_),
     program_counter_(other.program_counter_),
     pending_commands_(other.pending_commands_),
     nnet_to_store_stats_(other.nnet_to_store_stats_),
     nnet_to_update_(other.nnet_to_update_),
     debug_(other.debug_),
     command_attributes_(other.command_attributes_),
     submatrix_strings_(other.submatrix_strings_),
     command_strings_(other.command_strings_),
     matrices_(other.matrices_),
     memos_(other.memos_) {
   // Note: this is the same as the default copy constructor, except for the check below.
   if (!memos_.empty()) {
     KALDI_ERR << "You cannot use the copy constructor of NnetComputer if "
         "memos are used.";
   }
 }

◆ ~NnetComputer()

~NnetComputer ( )

Definition at line 680 of file nnet-compute.cc.

References NnetComputer::compressed_matrices_, and rnnlm::i.

                             {
   // Delete any pointers that are present in compressed_matrices_.  Actually
   // they should all already have been deallocated and set to NULL if the
   // compuation was run to completion; we do this in case someone ran
   // the forward propagation but not the backprop.
   for (size_t i = 0; i < compressed_matrices_.size(); i++)
     delete compressed_matrices_[i];
 }

Member Function Documentation

◆ AcceptInput()

void AcceptInput	(	const std::string &	node_name,
		CuMatrix< BaseFloat > *	input
	)

e.g.

AcceptInput ("input", &input_mat), or for derivatives w.r.t. the output, AcceptInput("output", output_deriv_mat). Will crash if there is no input or output node with the given name. This function is destructive of "input" as it takes it using the Swap function of CuMatrix. Must have the same number of rows as the corresponding input described in the ComputationRequest e.g. the indexes.size() in the corresponding IoSpecification.

Definition at line 547 of file nnet-compute.cc.

References NnetComputer::computation_, NnetComputer::GetIoMatrixIndex(), KALDI_ERR, kaldi::kDefaultStride, kaldi::kStrideEqualNumCols, kaldi::kUndefined, NnetComputation::matrices, NnetComputer::matrices_, NnetComputation::MatrixInfo::num_cols, NnetComputation::MatrixInfo::num_rows, CuMatrixBase< Real >::NumCols(), CuMatrixBase< Real >::NumRows(), CuMatrix< Real >::Resize(), CuMatrixBase< Real >::Stride(), and NnetComputation::MatrixInfo::stride_type.

Referenced by NnetComputer::AcceptInputs(), DecodableNnetLoopedOnlineBase::AdvanceChunk(), DecodableNnetSimpleLooped::AdvanceChunk(), NnetBatchComputer::Compute(), kaldi::nnet3::ComputeObjectiveFunction(), BatchedXvectorComputer::ComputeOneBatch(), DecodableNnetSimple::DoNnetComputation(), NnetDiscriminativeComputeObjf::ProcessOutputs(), NnetChainTrainer::ProcessOutputs(), NnetChainComputeProb::ProcessOutputs(), NnetDiscriminativeTrainer::ProcessOutputs(), kaldi::nnet3::RunNnetComputation(), kaldi::nnet3::UnitTestNnetCompute(), kaldi::nnet3::UnitTestNnetInputDerivatives(), kaldi::nnet3::UnitTestNnetModelDerivatives(), and kaldi::nnet3::UnitTestNnetOptimizeWithOptions().

                                                            {
   bool is_output = false;
   int32 matrix_index = GetIoMatrixIndex(node_name, is_output);

   const NnetComputation::MatrixInfo &matrix_info =
       computation_.matrices[matrix_index];
   if (input->NumRows() != matrix_info.num_rows) {
     KALDI_ERR << "Num-rows mismatch for input '" << node_name
               << "': " << matrix_info.num_rows
               <<  " in computation-request, " << input->NumRows()
               << " provided.";
   }
   if (input->NumCols() != matrix_info.num_cols) {
     KALDI_ERR << "Num-cols mismatch for input '" << node_name
               << "': " << matrix_info.num_cols
               <<  " in computation-request, " << input->NumCols()
               << " provided.";
   }
   if (matrix_info.stride_type == kDefaultStride ||
       input->Stride() == input->NumCols()) {
     matrices_[matrix_index].Swap(input);
   } else {
     matrices_[matrix_index].Resize(matrix_info.num_rows,
                                    matrix_info.num_cols,
                                    kUndefined, kStrideEqualNumCols);
     matrices_[matrix_index].CopyFromMat(*input);
     input->Resize(0, 0);
   }
 }

◆ AcceptInputs()

void AcceptInputs	(	const Nnet &	nnet,
		const std::vector< NnetIo > &	io
	)

This convenience function calls AcceptInput() in turn on all the inputs in the training example.

It needs "nnet" only in order to distinguish inputs from outputs.

Definition at line 663 of file nnet-compute.cc.

References NnetComputer::AcceptInput(), CuMatrixBase< Real >::CopyFromGeneralMat(), NnetIo::features, Nnet::GetNodeIndex(), rnnlm::i, Nnet::IsInputNode(), KALDI_ERR, kaldi::kUndefined, NnetIo::name, GeneralMatrix::NumCols(), and GeneralMatrix::NumRows().

Referenced by NnetLdaStatsAccumulator::AccStats(), NnetComputerFromEg::Compute(), NnetDiscriminativeComputeObjf::Compute(), NnetChainComputeProb::Compute(), NnetComputeProb::Compute(), NnetDiscriminativeTrainer::Train(), NnetChainTrainer::TrainInternal(), NnetTrainer::TrainInternal(), NnetChainTrainer::TrainInternalBackstitch(), and NnetTrainer::TrainInternalBackstitch().

                                                                  {
   for (size_t i = 0; i < io_vec.size(); i++) {
     const NnetIo &io = io_vec[i];
     int32 node_index = nnet.GetNodeIndex(io.name);
     if (node_index == -1)
       KALDI_ERR << "No node named '" << io.name << "' in nnet.";
     if (nnet.IsInputNode(node_index)) {
       CuMatrix<BaseFloat> cu_input(io.features.NumRows(),
                                    io.features.NumCols(),
                                    kUndefined);
       cu_input.CopyFromGeneralMat(io.features);
       this->AcceptInput(io.name, &cu_input);
     }
   }
 }

◆ CheckNoPendingIo()

void CheckNoPendingIo ( )

private

Definition at line 597 of file nnet-compute.cc.

References NnetComputation::commands, NnetComputer::computation_, Nnet::GetNodeName(), rnnlm::i, kaldi::nnet3::kAcceptInput, KALDI_ERR, kaldi::nnet3::kProvideOutput, NnetComputer::nnet_, NnetComputer::pending_commands_, and NnetComputer::program_counter_.

Referenced by NnetComputer::Run().

                                     {
   const std::vector<NnetComputation::Command> &c = computation_.commands;
   while (program_counter_ < static_cast<int32>(c.size()) &&
          (c[program_counter_].command_type == kAcceptInput ||
           c[program_counter_].command_type == kProvideOutput)) {
     pending_commands_.push_back(program_counter_);
     program_counter_++;
   }
   for (size_t i = 0; i < pending_commands_.size(); i++) {
     // the order here doesn't really matter; we go from back to front
     // as it's more efficient, not that efficiency really matters here.
     int32 command = pending_commands_[i];
     if (c[command].command_type == kAcceptInput) {
       // we can't ignore if we needed input from the user that hasn't been
       // provided.
       int32 node = c[command].arg2;
       KALDI_ERR << "Cannot run computation-- we did not get input for node '"
                 << nnet_.GetNodeName(node) << "'";
     }
   }
   pending_commands_.clear();
 }

◆ DebugAfterExecute()

void DebugAfterExecute	(	int32	command,
		const CommandDebugInfo &	info,
		double	command_execution_time
	)

private

Definition at line 116 of file nnet-compute.cc.

References NnetComputation::Command::arg1, NnetComputer::command_attributes_, NnetComputer::command_strings_, NnetComputation::Command::command_type, NnetComputation::commands, NnetComputer::CommandDebugInfo::components_parameter_stddev, NnetComputer::computation_, Nnet::GetComponent(), Nnet::GetComponentName(), NnetComputer::GetSubMatrix(), rnnlm::i, NnetComputation::IsWholeMatrix(), KALDI_ASSERT, KALDI_LOG, kaldi::nnet3::kBackprop, kaldi::nnet3::kUpdatableComponent, NnetComputer::matrices_, NnetComputer::CommandDebugInfo::matrices_written_stddevs, NnetComputer::MatrixStddev(), NnetComputer::nnet_, NnetComputer::ParameterStddev(), Component::Properties(), NnetComputer::CommandDebugInfo::submatrices_written_stddevs, and NnetComputer::submatrix_strings_.

Referenced by NnetComputer::Run().

                                                                {
   std::ostringstream os;
   os << command_strings_[command] << "\t|\t";
   {
     const std::vector<int32> &matrices_written =
         command_attributes_[command].matrices_written;
     size_t size = matrices_written.size();
     KALDI_ASSERT(info.matrices_written_stddevs.size() == size);
     for (size_t i = 0; i < size; i++) {
       int32 m = matrices_written[i];
       BaseFloat old_stddev = info.matrices_written_stddevs[i],
           stddev = MatrixStddev(matrices_[m]);
       os << 'm' << m << ": " << old_stddev << "->" << stddev << " ";
     }
   }
   {
     const std::vector<int32> &submatrices_written =
         command_attributes_[command].submatrices_written;
     size_t size = submatrices_written.size();
     KALDI_ASSERT(info.submatrices_written_stddevs.size() == size);
     for (size_t i = 0; i < size; i++) {
       int32 s = submatrices_written[i];
       if (!computation_.IsWholeMatrix(s)) {
         const CuSubMatrix<BaseFloat> submat(GetSubMatrix(s));
         BaseFloat old_stddev = info.submatrices_written_stddevs[i],
             stddev = MatrixStddev(submat);
         os << submatrix_strings_[s] << ": " << old_stddev << "->"
            << stddev << " ";
       }
     }
   }
   const NnetComputation::Command &c = computation_.commands[command];
   if (c.command_type == kBackprop) {
     const Component *component = nnet_.GetComponent(c.arg1);
     if (component->Properties() & kUpdatableComponent) {
       const std::string &component_name = nnet_.GetComponentName(c.arg1);
       os << component_name << ": " << info.components_parameter_stddev
          << "->" << ParameterStddev(*component) << " ";
     }
   }
   os << "\t|\t time: " << command_exec_time << " secs";
   KALDI_LOG << os.str();
 }

◆ DebugBeforeExecute()

void DebugBeforeExecute	(	int32	command,
		CommandDebugInfo *	info
	)

private

Definition at line 82 of file nnet-compute.cc.

References NnetComputation::Command::arg1, NnetComputer::command_attributes_, NnetComputation::Command::command_type, NnetComputation::commands, NnetComputer::CommandDebugInfo::components_parameter_stddev, NnetComputer::computation_, Nnet::GetComponent(), NnetComputer::GetSubMatrix(), rnnlm::i, NnetComputation::IsWholeMatrix(), kaldi::nnet3::kBackprop, kaldi::nnet3::kUpdatableComponent, NnetComputer::matrices_, NnetComputer::CommandDebugInfo::matrices_written_stddevs, NnetComputer::MatrixStddev(), NnetComputer::nnet_, NnetComputer::ParameterStddev(), Component::Properties(), and NnetComputer::CommandDebugInfo::submatrices_written_stddevs.

Referenced by NnetComputer::Run().

                                                               {
   {
     const std::vector<int32> &matrices_written =
         command_attributes_[command].matrices_written;
     size_t size = matrices_written.size();
     info->matrices_written_stddevs.resize(size);
     for (size_t i = 0; i < size; i++) {
       int32 m = matrices_written[i];
       info->matrices_written_stddevs[i] = MatrixStddev(matrices_[m]);
     }
   }
   {
     const std::vector<int32> &submatrices_written =
         command_attributes_[command].submatrices_written;
     size_t size = submatrices_written.size();
     info->submatrices_written_stddevs.resize(size);
     for (size_t i = 0; i < size; i++) {
       int32 s = submatrices_written[i];
       if (!computation_.IsWholeMatrix(s)) {
         const CuSubMatrix<BaseFloat> submat(GetSubMatrix(s));
         info->submatrices_written_stddevs[i] = MatrixStddev(submat);
       }
     }
   }
   const NnetComputation::Command &c = computation_.commands[command];
   if (c.command_type == kBackprop) {
     const Component *component = nnet_.GetComponent(c.arg1);
     if (component->Properties() & kUpdatableComponent)
       info->components_parameter_stddev = ParameterStddev(*component);
   }
 }

◆ ExecuteCommand()

void ExecuteCommand ( )

private

Definition at line 210 of file nnet-compute.cc.

Referenced by NnetComputer::Run().

                                   {
   const NnetComputation::Command &c = computation_.commands[program_counter_];
   int32 m1, m2;
   try {
     switch (c.command_type) {
       case kAllocMatrix:
         m1 = computation_.submatrices[c.arg1].matrix_index;
         matrices_[m1].Resize(computation_.matrices[m1].num_rows,
                              computation_.matrices[m1].num_cols,
                              kUndefined,
                              computation_.matrices[m1].stride_type);
         break;
       case kDeallocMatrix:
         m1 = computation_.submatrices[c.arg1].matrix_index;
         matrices_[m1].Resize(0, 0);
         break;
       case kSwapMatrix:
         m1 = computation_.submatrices[c.arg1].matrix_index;
         m2 = computation_.submatrices[c.arg2].matrix_index;
         matrices_[m1].Swap(&(matrices_[m2]));
         break;
       case kSetConst: {
         CuSubMatrix<BaseFloat> s(GetSubMatrix(c.arg1));
         if (c.alpha == 0.0) s.SetZero();
         else s.Set(c.alpha);
         break;
       }
       case kPropagate: {
         NVTX_RANGE("NnetComputer::ExecuteCommand::kPropagate");
         const Component *component = nnet_.GetComponent(c.arg1);
         ComponentPrecomputedIndexes *indexes =
             computation_.component_precomputed_indexes[c.arg2].data;
         const CuSubMatrix<BaseFloat> input(GetSubMatrix(c.arg3));
         CuSubMatrix<BaseFloat> output(GetSubMatrix(c.arg4));
         void *memo = component->Propagate(indexes, input, &output);
         if (c.arg6) {  // need to store stats.
           KALDI_ASSERT(nnet_to_store_stats_ != NULL);
           Component *stats_component = nnet_to_store_stats_->GetComponent(c.arg1);
           bool was_in_place = (c.arg3 == c.arg4);
           // if propagate was in-place, provide empty matrix and not 'input', as
           // input is no longer valid.
           const CuSubMatrix<BaseFloat> maybe_input(
               GetSubMatrix(was_in_place ? 0 : c.arg3));
           stats_component->StoreStats(maybe_input, output, memo);
         }
         SaveMemo(c.arg5, *component, memo);
         break;
       }
       case kBackprop:
       case kBackpropNoModelUpdate:  {
         NVTX_RANGE("NnetComputer::ExecuteCommand::kBackpropNoModelUpdate");
         std::ostringstream debug_str;
         KALDI_ASSERT(nnet_to_update_ != NULL);
         debug_str << nnet_.GetComponentName(c.arg1);
         const Component *component = nnet_.GetComponent(c.arg1);
         KALDI_ASSERT(!(computation_.need_model_derivative && !nnet_to_update_));
         Component *upd_component = NULL;
         if (c.command_type == kBackprop) {  // this block sets 'upd_component'
           Nnet *nnet_to_update;
           if (component->Properties()&kUpdatableComponent) {
             nnet_to_update = (computation_.need_model_derivative ?
                               nnet_to_update_ : NULL);
           } else {
             // Some non-updatable components, such as CompositeComponent, store
             // stats in the backprop.  For other types of non-updatable
             // component, this arg won't matter.
             nnet_to_update = nnet_to_store_stats_;
           }
           if (nnet_to_update)
             upd_component = nnet_to_update->GetComponent(c.arg1);
         }
         ComponentPrecomputedIndexes *indexes =
             computation_.component_precomputed_indexes[c.arg2].data;
         const CuSubMatrix<BaseFloat> in_value(GetSubMatrix(c.arg3));
         const CuSubMatrix<BaseFloat> out_value(GetSubMatrix(c.arg4));
         const CuSubMatrix<BaseFloat> out_deriv(GetSubMatrix(c.arg5));
         CuSubMatrix<BaseFloat> in_deriv(GetSubMatrix(c.arg6));
         void *memo = GetMemo(c.arg7);
         component->Backprop(debug_str.str(), indexes,
                             in_value, out_value, out_deriv,
                             memo, upd_component,
                             c.arg6 == 0 ? NULL : &in_deriv);
         if (memo != NULL)
           component->DeleteMemo(memo);
         break;
       }
       case kMatrixCopy: {
         CuSubMatrix<BaseFloat> dest(GetSubMatrix(c.arg1));
         const CuSubMatrix<BaseFloat> src(GetSubMatrix(c.arg2));
         dest.CopyFromMat(src);
         if (c.alpha != 1.0)
           dest.Scale(c.alpha);  // note: in principle in future we could write a
                                 // kernel which would do this in one operation.
         break;
       }
       case kMatrixAdd: {
         CuSubMatrix<BaseFloat> dest(GetSubMatrix(c.arg1));
         const CuSubMatrix<BaseFloat> src(GetSubMatrix(c.arg2));
         dest.AddMat(c.alpha, src);
         break;
       }
       case kAddRows: {
         CuSubMatrix<BaseFloat> dest(GetSubMatrix(c.arg1));
         const CuSubMatrix<BaseFloat> src(GetSubMatrix(c.arg2));
         const CuArray<int32> &indexes = computation_.indexes_cuda[c.arg3];
         dest.AddRows(c.alpha, src, indexes);
         break;
       }
       case kCopyRows: {
         CuSubMatrix<BaseFloat> dest(GetSubMatrix(c.arg1));
         const CuSubMatrix<BaseFloat> src(GetSubMatrix(c.arg2));
         const CuArray<int32> &indexes = computation_.indexes_cuda[c.arg3];
         BaseFloat alpha = c.alpha;
         if (alpha != 1.0) {            // for now we're faking the 'alpha' thing because the CopyRows
           if (alpha == 0.0) break;     // command doesn't take that argument.
           dest.Scale(1.0 / alpha);
           dest.CopyRows(src, indexes);
           dest.Scale(c.alpha);
         } else {
           dest.CopyRows(src, indexes);
         }
         break;
       }
       case kCopyRowsMulti: {
         CuSubMatrix<BaseFloat> dest(GetSubMatrix(c.arg1));
         CuArray<const BaseFloat*> pointers;
         GetPointers(c.arg2, dest.NumCols(), &pointers);
         BaseFloat alpha = c.alpha;
         if (alpha != 1.0) {            // for now we're faking the 'alpha' thing because the CopyRows
           if (alpha == 0.0) break;     // command doesn't take that argument.
           dest.Scale(1.0 / alpha);
           dest.CopyRows(pointers);
           dest.Scale(c.alpha);
         } else {
           dest.CopyRows(pointers);
         }
         break;
       }
       case kCopyToRowsMulti: {
         // If c.alpha is not 1.0, this command is not supported.
         KALDI_ASSERT(c.alpha == 1.0);
         CuSubMatrix<BaseFloat> src(GetSubMatrix(c.arg1));
         CuArray<BaseFloat*> pointers;
         GetPointers(c.arg2, src.NumCols(), &pointers);
         src.CopyToRows(pointers);
         break;
       }
       case kAddRowsMulti: {
         CuSubMatrix<BaseFloat> dest(GetSubMatrix(c.arg1));
         CuArray<const BaseFloat*> pointers;
         GetPointers(c.arg2, dest.NumCols(), &pointers);
         dest.AddRows(c.alpha, pointers);
         break;
       }
       case kAddToRowsMulti: {
         CuSubMatrix<BaseFloat> src(GetSubMatrix(c.arg1));
         CuArray<BaseFloat*> pointers;
         GetPointers(c.arg2, src.NumCols(), &pointers);
         src.AddToRows(c.alpha, pointers);
         break;
       }
       case kAddRowRanges: {
         CuSubMatrix<BaseFloat> dest(GetSubMatrix(c.arg1));
         const CuSubMatrix<BaseFloat> src(GetSubMatrix(c.arg2));
         const CuArray<Int32Pair> &pairs = computation_.indexes_ranges_cuda[c.arg3];
         BaseFloat alpha = c.alpha;
         if (alpha != 1.0) {            // for now we're faking the 'alpha' thing
                                        // because the AddRowRanges
           if (alpha == 0.0) break;     // command doesn't take that argument.
           dest.Scale(1.0 / alpha);
           dest.AddRowRanges(src, pairs);
           dest.Scale(c.alpha);
         } else {
           dest.AddRowRanges(src, pairs);
         }
         break;
       }
       case kCompressMatrix:
         // This does nothing if CUDA is not in use.
 #if HAVE_CUDA == 1
         if (CuDevice::Instantiate().Enabled()) {
           if (compressed_matrices_.empty())
             compressed_matrices_.resize(matrices_.size(), NULL);
           int32 m = computation_.submatrices[c.arg1].matrix_index;
           KALDI_ASSERT(compressed_matrices_[m] == NULL &&
                        matrices_[m].NumRows() != 0);
           BaseFloat range = c.alpha;
           bool truncate = (c.arg3 != 0);
           compressed_matrices_[m] = NewCuCompressedMatrix(
               static_cast<CuCompressedMatrixType>(c.arg2),
               range, truncate);
           compressed_matrices_[m]->CopyFromMat(matrices_[m]);
           matrices_[m].Resize(0, 0);
         }
 #endif
         break;
       case kDecompressMatrix:
 #if HAVE_CUDA == 1
         if (CuDevice::Instantiate().Enabled()) {
           int32 m = computation_.submatrices[c.arg1].matrix_index;
           CuCompressedMatrixBase *compressed_matrix =
               compressed_matrices_[m];
           KALDI_ASSERT(compressed_matrix != NULL &&
                        matrices_[m].NumRows() == 0);
           matrices_[m].Resize(compressed_matrix->NumRows(),
                               compressed_matrix->NumCols(),
                               kUndefined,
                               computation_.matrices[m].stride_type);
           compressed_matrix->CopyToMat(&(matrices_[m]));
           delete compressed_matrix;
           compressed_matrices_[m] = NULL;
         }
 #endif
         break;
       case kNoOperation: case kNoOperationPermanent: case kNoOperationMarker:
       case kNoOperationLabel:
         break;
       case kGotoLabel:
         KALDI_ASSERT(computation_.commands[c.arg1].command_type == kNoOperationLabel);
         program_counter_ = c.arg1;
         break;
       default:
         KALDI_ERR << "Invalid command in computation";
     }
   } catch (...) {
     if (!debug_) {
       std::string preamble;
       computation_.GetCommandStrings(nnet_, &preamble, &command_strings_);
       KALDI_WARN << "Printing some background info since error was detected";
       KALDI_LOG << preamble;
       for (int32 prev_c = 0; prev_c < program_counter_; prev_c++)
         KALDI_LOG << command_strings_[prev_c];
     }
     // the following will re-throw the error, but now we've printed more info
     // about what went wrong.
     KALDI_ERR << "Error running command " << command_strings_[program_counter_];
   }
 }

◆ GetIoMatrixIndex()

int32 GetIoMatrixIndex	(	const std::string &	node_name,
		bool	is_output
	)

private

Definition at line 620 of file nnet-compute.cc.

References NnetComputation::commands, NnetComputer::computation_, Nnet::GetNodeIndex(), rnnlm::i, NnetComputation::IsWholeMatrix(), kaldi::nnet3::kAcceptInput, KALDI_ERR, kaldi::nnet3::kNoOperationMarker, kaldi::nnet3::kProvideOutput, NnetComputer::nnet_, NnetComputer::pending_commands_, NnetComputer::program_counter_, and NnetComputation::submatrices.

Referenced by NnetComputer::AcceptInput(), NnetComputer::GetOutput(), and NnetComputer::GetOutputDestructive().

                                                                                {
   const std::vector<NnetComputation::Command> &c = computation_.commands;
   int32 node_index = nnet_.GetNodeIndex(node_name);
   if (node_index == -1)
     KALDI_ERR << "No node named '" << node_name << "'in network.";
   // first make sure all the I/O commands that we immediately expect, are listed
   // in 'pending_commands_'.
   while (program_counter_ < static_cast<int32>(computation_.commands.size()) &&
          ((c[program_counter_].command_type == kAcceptInput ||
            c[program_counter_].command_type == kProvideOutput ||
            c[program_counter_].command_type == kNoOperationMarker))) {
     if (c[program_counter_].command_type != kNoOperationMarker)
       pending_commands_.push_back(program_counter_);
     program_counter_++;
   }
   for (size_t i = 0; i < pending_commands_.size(); i++) {
     int32 command = pending_commands_[i];
     bool this_command_is_output =
         (c[command].command_type == kProvideOutput);
     int32 this_submatrix_index = c[command].arg1,
         this_node_index = c[command].arg2;
     if (this_command_is_output == is_output && node_index == this_node_index) {
       if (!is_output) {
         pending_commands_.erase(pending_commands_.begin() + i);
         // don't erase the command for outputs, as that would prevent things
         // from being output twice, which is an unnecessary restriction.
       }
       if (!(computation_.IsWholeMatrix(this_submatrix_index)))
         KALDI_ERR << "Getting input or output that is not a whole matrix "
                   << "(probably some optimization code needs to be changed)";
       return computation_.submatrices[this_submatrix_index].matrix_index;
     }
   }
   // if you get the following error it will likely be a bug in the calling code,
   // or possibly due to giving the wrong egs.
   KALDI_ERR << "Could not "
             << (is_output ? "provide output " : "accept input ")
             << "for network node " << node_name
             << " (it is not expected at this point in the computation)";
   return 0;  // Suppress compiler warnings; this line will never be reached.
 }

◆ GetMemo()

void * GetMemo ( int32 memo_index )

inlineprivate

Definition at line 176 of file nnet-compute.cc.

References KALDI_ERR, and NnetComputer::memos_.

Referenced by NnetComputer::ExecuteCommand().

                                             {
   if (memo_index == 0) {
     return NULL;
   } else {
     if (static_cast<size_t>(memo_index) >= memos_.size())
       KALDI_ERR << "Memo requested that was not generated.";
     void *ans = memos_[memo_index];
     memos_[memo_index] = NULL;
     return ans;
   }
 }

◆ GetOutput()

const CuMatrixBase< BaseFloat > & GetOutput ( const std::string & node_name )

Definition at line 578 of file nnet-compute.cc.

References NnetComputer::GetIoMatrixIndex(), KALDI_ASSERT, and NnetComputer::matrices_.

Referenced by kaldi::nnet3::ComputeObjectiveFunction(), NnetDiscriminativeComputeObjf::ProcessOutputs(), NnetChainTrainer::ProcessOutputs(), NnetChainComputeProb::ProcessOutputs(), NnetDiscriminativeTrainer::ProcessOutputs(), NnetComputeProb::ProcessOutputs(), kaldi::nnet3::UnitTestNnetCompute(), kaldi::nnet3::UnitTestNnetInputDerivatives(), kaldi::nnet3::UnitTestNnetModelDerivatives(), and kaldi::nnet3::UnitTestNnetOptimizeWithOptions().

                                 {
   bool is_output = true;
   int32 matrix_index = GetIoMatrixIndex(node_name, is_output);
   KALDI_ASSERT(matrices_[matrix_index].NumRows() != 0);
   return matrices_[matrix_index];
 }

◆ GetOutputDestructive()

void GetOutputDestructive	(	const std::string &	output_name,
		CuMatrix< BaseFloat > *	output
	)

Definition at line 587 of file nnet-compute.cc.

References NnetComputer::GetIoMatrixIndex(), KALDI_ASSERT, and NnetComputer::matrices_.

Referenced by DecodableNnetLoopedOnlineBase::AdvanceChunk(), DecodableNnetSimpleLooped::AdvanceChunk(), NnetBatchComputer::Compute(), BatchedXvectorComputer::ComputeOneBatch(), DecodableNnetSimple::DoNnetComputation(), and kaldi::nnet3::RunNnetComputation().

                                                                      {
   bool is_output = true;
   int32 matrix_index = GetIoMatrixIndex(node_name, is_output);
   KALDI_ASSERT(matrices_[matrix_index].NumRows() != 0);
   matrices_[matrix_index].Swap(output);
   matrices_[matrix_index].Resize(0, 0);
 }

◆ GetPointers() [1/2]

void GetPointers	(	int32	indexes_multi_index,
		int32	num_cols,
		CuArray< BaseFloat >	pointers
	)

private

Definition at line 459 of file nnet-compute.cc.

References NnetComputer::computation_, CuArray< T >::CopyFromVec(), CuMatrixBase< Real >::Data(), NnetComputer::GetSubMatrix(), rnnlm::i, NnetComputation::indexes_multi, KALDI_ASSERT, CuMatrixBase< Real >::NumCols(), CuMatrixBase< Real >::NumRows(), kaldi::RandInt(), and CuMatrixBase< Real >::Stride().

Referenced by NnetComputer::ExecuteCommand(), and NnetComputer::GetPointers().

                                                               {
   KALDI_ASSERT(static_cast<size_t>(indexes_multi_index)
                < computation_.indexes_multi.size());
   const std::vector<std::pair<int32,int32> > &pairs =
       computation_.indexes_multi[indexes_multi_index];
   int32 size = pairs.size();
   std::vector<BaseFloat*> vec(size);

   // the map "lookup" maps from submatrix index to the Data()
   // pointer of that submatrix, and the corresponding Stride().
   unordered_map<int32, std::pair<BaseFloat*, int32> > lookup;

   for (int32 i = 0; i < size; i++) {
     int32 submatrix_index = pairs[i].first, row = pairs[i].second;
     if (submatrix_index != -1) {
       unordered_map<int32, std::pair<BaseFloat*, int32> >::iterator
           iter = lookup.find(submatrix_index);
       if (iter == lookup.end()) {
         CuSubMatrix<BaseFloat> m = GetSubMatrix(submatrix_index);
         lookup[submatrix_index] = std::pair<BaseFloat*, int32>(m.Data(),
                                                                m.Stride());
         iter = lookup.find(submatrix_index);
       }
       BaseFloat *data = iter->second.first;
       int32 stride = iter->second.second;
       vec[i] = data + (row * stride);
     } else {
       // -1 is a marker that will be translated to NULL.
       vec[i] = NULL;
     }
   }
 #ifdef KALDI_PARANOID
   for (int32 i = 0; i < size; i += 30 + RandInt(0, 9)) {
     // Do a pseudo-random spot check that the row-indexes are not out of range.
     int32 submatrix_index = pairs[i].first, row = pairs[i].second;
     if (submatrix_index != -1) {
       CuSubMatrix<BaseFloat> m = GetSubMatrix(submatrix_index);
       KALDI_ASSERT(row >= 0 && row < m.NumRows() && num_cols == m.NumCols());
     }
   }
 #endif
   pointers->CopyFromVec(vec);
 }

◆ GetPointers() [2/2]

void GetPointers	(	int32	indexes_multi_index,
		int32	num_cols,
		CuArray< const BaseFloat >	pointers
	)

private

Definition at line 505 of file nnet-compute.cc.

References NnetComputer::GetPointers().

                                                                     {
   GetPointers(indexes_multi_index, num_cols,
               reinterpret_cast<CuArray<BaseFloat*>*>(pointers));
 }

◆ GetSubMatrix()

CuSubMatrix< BaseFloat > GetSubMatrix ( int32 submatrix_index )

private

Definition at line 449 of file nnet-compute.cc.

References NnetComputer::computation_, KALDI_PARANOID_ASSERT, NnetComputer::matrices_, and NnetComputation::submatrices.

Referenced by NnetComputer::DebugAfterExecute(), NnetComputer::DebugBeforeExecute(), NnetComputer::ExecuteCommand(), and NnetComputer::GetPointers().

                                                                        {
   KALDI_PARANOID_ASSERT(static_cast<size_t>(submatrix_index) <
                         computation_.submatrices.size());
   const NnetComputation::SubMatrixInfo &info =
       computation_.submatrices[submatrix_index];
   const CuMatrix<BaseFloat> &mat = matrices_[info.matrix_index];
   return CuSubMatrix<BaseFloat>(
       mat, info.row_offset, info.num_rows, info.col_offset, info.num_cols);
 }

◆ Init()

void Init ( )

private

Definition at line 48 of file nnet-compute.cc.

References NnetComputer::command_attributes_, NnetComputer::command_strings_, NnetComputer::computation_, kaldi::nnet3::ComputeCommandAttributes(), NnetComputeOptions::debug, NnetComputer::debug_, NnetComputation::GetCommandStrings(), NnetComputation::GetSubmatrixStrings(), kaldi::GetVerboseLevel(), NnetComputation::indexes, NnetComputation::indexes_cuda, NnetComputation::indexes_ranges, NnetComputation::indexes_ranges_cuda, ComputationVariables::Init(), KALDI_ASSERT, KALDI_LOG, NnetComputation::matrices, NnetComputer::matrices_, NnetComputer::nnet_, NnetComputer::options_, and NnetComputer::submatrix_strings_.

Referenced by NnetComputer::NnetComputer().

                         {
   KALDI_ASSERT(computation_.indexes_cuda.size() == computation_.indexes.size() &&
  computation_.indexes_ranges_cuda.size() == computation_.indexes_ranges.size() &&
                "You must call NnetComputation::ComputeCudaIndexes() before "
                "executing the computation.");
   matrices_.resize(computation_.matrices.size());
   debug_ = (options_.debug || GetVerboseLevel() >= 5);
   if (debug_) {
     ComputationVariables variables;
     variables.Init(computation_);
     ComputeCommandAttributes(nnet_, computation_, variables,
                              &command_attributes_);
     std::string preamble;
     computation_.GetCommandStrings(nnet_, &preamble, &command_strings_);
     KALDI_LOG << preamble;
     computation_.GetSubmatrixStrings(nnet_, &submatrix_strings_);
   }
 }

◆ MatrixStddev()

BaseFloat MatrixStddev ( const CuMatrixBase< BaseFloat > & m )

staticprivate

Definition at line 68 of file nnet-compute.cc.

References kaldi::kTrans, CuMatrixBase< Real >::NumCols(), CuMatrixBase< Real >::NumRows(), and kaldi::TraceMatMat().

Referenced by NnetComputer::DebugAfterExecute(), and NnetComputer::DebugBeforeExecute().

                                                                      {
   if (m.NumRows() == 0)
     return 0.0;
   return std::sqrt(TraceMatMat(m, m, kTrans) / (m.NumRows() * m.NumCols()));
 }

◆ operator=()

NnetComputer& operator= ( const NnetComputer & other )

private

◆ ParameterStddev()

BaseFloat ParameterStddev ( const Component & c )

staticprivate

Definition at line 75 of file nnet-compute.cc.

References UpdatableComponent::DotProduct(), KALDI_ASSERT, and UpdatableComponent::NumParameters().

Referenced by NnetComputer::DebugAfterExecute(), and NnetComputer::DebugBeforeExecute().

                                                           {
   const UpdatableComponent *uc = dynamic_cast<const UpdatableComponent*>(&c);
   KALDI_ASSERT(uc != NULL &&
                "Attempting to get parameter stddev of non-updatable component");
   return std::sqrt(uc->DotProduct(*uc) / uc->NumParameters());
 }

◆ Run()

void Run ( )

This does either the forward or backward computation, depending when it is called (in a typical computation, the first time you call this it will do the forward computation; then you'll take the outputs and provide derivatives; and the second time you call it, it will do the backward computation.

There used to be two separate functions Forward() and Backward().

Definition at line 512 of file nnet-compute.cc.

References NnetComputer::CheckNoPendingIo(), NnetComputation::commands, NnetComputer::computation_, NnetComputer::debug_, NnetComputer::DebugAfterExecute(), NnetComputer::DebugBeforeExecute(), Timer::Elapsed(), NnetComputer::ExecuteCommand(), kaldi::nnet3::kAcceptInput, KALDI_ERR, kaldi::nnet3::kProvideOutput, NnetComputer::nnet_, NVTX_RANGE, NnetComputation::Print(), and NnetComputer::program_counter_.

Referenced by DecodableNnetLoopedOnlineBase::AdvanceChunk(), DecodableNnetSimpleLooped::AdvanceChunk(), NnetDiscriminativeComputeObjf::Compute(), NnetChainComputeProb::Compute(), NnetComputeProb::Compute(), NnetBatchComputer::Compute(), BatchedXvectorComputer::ComputeOneBatch(), DecodableNnetSimple::DoNnetComputation(), kaldi::nnet3::RunNnetComputation(), NnetDiscriminativeTrainer::Train(), NnetChainTrainer::TrainInternal(), NnetTrainer::TrainInternal(), NnetChainTrainer::TrainInternalBackstitch(), NnetTrainer::TrainInternalBackstitch(), kaldi::nnet3::UnitTestNnetCompute(), kaldi::nnet3::UnitTestNnetInputDerivatives(), kaldi::nnet3::UnitTestNnetModelDerivatives(), and kaldi::nnet3::UnitTestNnetOptimizeWithOptions().

                        {
   NVTX_RANGE(__func__);
   const std::vector<NnetComputation::Command> &c = computation_.commands;
   int32 num_commands = c.size();

   if (program_counter_ >= num_commands) {
     computation_.Print(std::cerr, nnet_);
     KALDI_ERR << "Running computation that has finished: program-counter="
               << program_counter_;
   }
   CheckNoPendingIo();

   CommandDebugInfo info;
   Timer timer;
   double total_elapsed_previous = 0.0;

   for (; program_counter_ < num_commands; program_counter_++) {
     if (c[program_counter_].command_type == kAcceptInput ||
         c[program_counter_].command_type == kProvideOutput) {
       // We have hit a part of the computation that requires user
       // interaction, e.g. the end of the forward or backward phase.
       break;
     }
     if (debug_)
       DebugBeforeExecute(program_counter_, &info);
     ExecuteCommand();
     if (debug_) {
       double total_elapsed_now = timer.Elapsed();
       DebugAfterExecute(program_counter_, info,
                         total_elapsed_now - total_elapsed_previous);
       total_elapsed_previous = total_elapsed_now;
     }
   }
 }

◆ SaveMemo()

void SaveMemo	(	int32	memo_index,
		const Component &	c,
		void *	memo
	)

inlineprivate

Definition at line 163 of file nnet-compute.cc.

References Component::DeleteMemo(), and NnetComputer::memos_.

Referenced by NnetComputer::ExecuteCommand().

                                                             {
   if (memo_index <= 0) {
     if (memo != NULL) {  // memo was returned but is not needed.
       c.DeleteMemo(memo);
     }
   } else {
     if (memos_.size() <= static_cast<size_t>(memo_index))
       memos_.resize(memo_index + 1, NULL);
     memos_[memo_index] = memo;
   }
 }

Member Data Documentation

◆ command_attributes_

std::vector<CommandAttributes> command_attributes_

private

Definition at line 153 of file nnet-compute.h.

Referenced by NnetComputer::DebugAfterExecute(), NnetComputer::DebugBeforeExecute(), and NnetComputer::Init().

◆ command_strings_

std::vector<std::string> command_strings_

private

Definition at line 157 of file nnet-compute.h.

Referenced by NnetComputer::DebugAfterExecute(), NnetComputer::ExecuteCommand(), and NnetComputer::Init().

◆ compressed_matrices_

std::vector<CuCompressedMatrixBase*> compressed_matrices_

private

Definition at line 173 of file nnet-compute.h.

Referenced by NnetComputer::ExecuteCommand(), and NnetComputer::~NnetComputer().

◆ computation_

const NnetComputation& computation_

private

Definition at line 133 of file nnet-compute.h.

Referenced by NnetComputer::AcceptInput(), NnetComputer::CheckNoPendingIo(), NnetComputer::DebugAfterExecute(), NnetComputer::DebugBeforeExecute(), NnetComputer::ExecuteCommand(), NnetComputer::GetIoMatrixIndex(), NnetComputer::GetPointers(), NnetComputer::GetSubMatrix(), NnetComputer::Init(), and NnetComputer::Run().

◆ debug_

bool debug_

private

Definition at line 151 of file nnet-compute.h.

Referenced by NnetComputer::ExecuteCommand(), NnetComputer::Init(), and NnetComputer::Run().

◆ matrices_

std::vector<CuMatrix<BaseFloat> > matrices_

private

Definition at line 160 of file nnet-compute.h.

Referenced by NnetComputer::AcceptInput(), NnetComputer::DebugAfterExecute(), NnetComputer::DebugBeforeExecute(), NnetComputer::ExecuteCommand(), NnetComputer::GetOutput(), NnetComputer::GetOutputDestructive(), NnetComputer::GetSubMatrix(), and NnetComputer::Init().

◆ memos_

std::vector<void*> memos_

private

Definition at line 165 of file nnet-compute.h.

Referenced by NnetComputer::GetMemo(), NnetComputer::NnetComputer(), and NnetComputer::SaveMemo().

◆ nnet_

const Nnet& nnet_

private

Definition at line 134 of file nnet-compute.h.

Referenced by NnetComputer::CheckNoPendingIo(), NnetComputer::DebugAfterExecute(), NnetComputer::DebugBeforeExecute(), NnetComputer::ExecuteCommand(), NnetComputer::GetIoMatrixIndex(), NnetComputer::Init(), and NnetComputer::Run().

◆ nnet_to_store_stats_

Nnet* nnet_to_store_stats_

private

Definition at line 146 of file nnet-compute.h.

Referenced by NnetComputer::ExecuteCommand().

◆ nnet_to_update_

Nnet* nnet_to_update_

private

Definition at line 150 of file nnet-compute.h.

Referenced by NnetComputer::ExecuteCommand().

◆ options_

const NnetComputeOptions& options_

private

Definition at line 132 of file nnet-compute.h.

Referenced by NnetComputer::Init().

◆ pending_commands_

std::vector<int32> pending_commands_

private

Definition at line 141 of file nnet-compute.h.

Referenced by NnetComputer::CheckNoPendingIo(), and NnetComputer::GetIoMatrixIndex().

◆ program_counter_

int32 program_counter_

private

Definition at line 136 of file nnet-compute.h.

Referenced by NnetComputer::CheckNoPendingIo(), NnetComputer::ExecuteCommand(), NnetComputer::GetIoMatrixIndex(), and NnetComputer::Run().

◆ submatrix_strings_

std::vector<std::string> submatrix_strings_

private

Definition at line 155 of file nnet-compute.h.

Referenced by NnetComputer::DebugAfterExecute(), and NnetComputer::Init().

The documentation for this class was generated from the following files:

nnet3/nnet-compute.h
nnet3/nnet-compute.cc

Classes

Public Member Functions

Private Member Functions

Static Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ NnetComputer() [1/3]

◆ NnetComputer() [2/3]

◆ NnetComputer() [3/3]

◆ ~NnetComputer()

Member Function Documentation

◆ AcceptInput()

◆ AcceptInputs()

◆ CheckNoPendingIo()

◆ DebugAfterExecute()

◆ DebugBeforeExecute()

◆ ExecuteCommand()

◆ GetIoMatrixIndex()

◆ GetMemo()

◆ GetOutput()

◆ GetOutputDestructive()

◆ GetPointers() [1/2]

◆ GetPointers() [2/2]

◆ GetSubMatrix()

◆ Init()

◆ MatrixStddev()

◆ operator=()

◆ ParameterStddev()

◆ Run()

◆ SaveMemo()

Member Data Documentation

◆ command_attributes_

◆ command_strings_

◆ compressed_matrices_

◆ computation_

◆ debug_

◆ matrices_

◆ memos_

◆ nnet_

◆ nnet_to_store_stats_

◆ nnet_to_update_

◆ options_

◆ pending_commands_

◆ program_counter_

◆ submatrix_strings_
